Comprehensive Product Summary: Nuvo‑3003P‑C1020 Fanless Embedded Controller

---

### 1. Product Overview

Product Name: Nuvo‑3003P‑C1020
Model: Nuvo‑3003P‑C1020
Series: Nuvo‑3000 Series (Nuvo‑3003P variant)
Article Number: Nuvo‑3003P‑C1020
Manufacturer: Neousys Technology Inc.

The Nuvo‑3003P‑C1020 is a rugged, fanless embedded controller designed for industrial and in‑vehicle applications. It integrates an Intel® Celeron™ 1020E processor and Intel® HM76 chipset, offering a balance of performance, reliability, and expandability. As part of the Nuvo‑3000 series, it inherits Neousys’ patented Cassette architecture for modular expansion and thermal isolation, ensuring stable operation in harsh environments.

---

### 2. Key Features

- Intel® Celeron™ 1020E Processor (2.2 GHz, 2 MB cache)
Dual‑core CPU delivering efficient performance for automation, vision, and control tasks.

- Fanless Thermal Design
Operates silently and reliably in ‑25 °C to +70 °C ambient temperature under full CPU load.

- Intel® HM76 Chipset
Provides stable platform support for 3rd‑generation Intel® Core™ and Celeron® processors.

- Triple Gigabit Ethernet Ports
Three Intel® I210 GbE controllers with dedicated PCIe lanes for high‑throughput networking.

- Dual Independent Display Outputs
VGA (2048 × 1536) and dual DVI‑D (1920 × 1200) outputs support simultaneous multi‑display configurations.

- Flexible Expansion Architecture
- One PCI slot via integrated Cassette module
- Two Mini‑PCIe slots (one with SIM socket) for wireless, GPS, or I/O expansion
- Optional isolated digital I/O (8 DI + 8 DO) with Change‑of‑State interrupt
- Optional ignition power control for vehicle integration

- Comprehensive I/O Connectivity
2 × USB 3.0, 2 × USB 2.0, 1 × RS‑232/422/485, PS/2, audio I/O, and external CFast slot.

- Rugged Reliability
- Vibration resistance: 5 Grms (5–500 Hz, 3 axes, SSD)
- Shock resistance: 50 Grms (half‑sine, 11 ms, SSD)
- MTBF: 93,732 hours

- Wide‑Range DC Power Input (8–25 VDC)
Built‑in DC input with optional 120 W AC/DC adapter; supports ignition control and remote on/off.

- Compact Industrial Form Factor
240 mm (W) × 225 mm (D) × 69 mm (H), 3.4 kg including HDD and RAM.

---

### 3. Technical Specifications

| Category | Specification |
|---------------|------------------|
| Processor | Intel® Celeron™ 1020E, 2.2 GHz, 2 MB cache |
| Chipset | Intel® HM76 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics 4000 |
| Memory | 2 × 204‑pin DDR3 SODIMM, up to 16 GB DDR3 1333/1600 MHz |
| Storage | 1 × internal 2.5″ SATA III HDD/SSD bay; 1 × external CFast slot |
| Expansion | 1 × PCI slot (via Cassette); 2 × Mini‑PCIe (1 with SIM socket) |
| Ethernet | 3 × Intel® I210 Gigabit Ethernet ports |
| Video Outputs | 1 × VGA (2048 × 1536), 2 × DVI‑D (1920 × 1200) |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
| Serial Ports | 1 × RS‑232/422/485 (software‑selectable) |
| Audio | 1 × Mic‑in, 1 × Speaker‑out (Realtek ALC262 codec) |
| PS/2 | 6‑pin Mini‑DIN for keyboard/mouse |
| Power Input | 8–25 VDC via 4‑pin Mini‑DIN or 3‑pin terminal block |
| Power Consumption | 41.65 W (2.19 A @ 19 V) with Celeron 1020E |
| Dimensions | 240 mm (W) × 225 mm (D) × 69 mm (H) |
| Weight | 3.4 kg (including HDD and RAM) |
| Operating Temperature | ‑25 °C to +70 °C (@ 100 % CPU load with SSD) |
| Storage Temperature | ‑40 °C to +85 °C |
| Humidity | 10 % – 90 %, non‑condensing |
| Vibration | 5 Grms (5–500 Hz, 3 axes, SSD) per IEC 60068‑2‑64 |
| Shock | 50 Grms (half‑sine 11 ms, SSD) per IEC 60068‑2‑27 |
| EMC Compliance | CE/FCC Class A (EN 55022 & EN 55024) |
| MTBF | 93,732 hours |
| Mounting Options | Wall‑mount (standard) or DIN‑rail (optional) |

---

### 4. Functionality

The Nuvo‑3003P‑C1020 functions as a compact, industrial‑grade embedded controller optimized for automation, machine vision, and vehicular computing. Its fanless design ensures silent operation and long‑term reliability in dusty or vibration‑prone environments.

Use Cases and Applications:
- Machine Vision & Industrial Automation: Real‑time image processing, inspection, and control.
- In‑Vehicle Systems: Fleet management, mobile surveillance, and data logging with ignition control.
- Medical Imaging & Diagnostics: Stable platform for imaging devices and data acquisition.
- Security & Surveillance: Multi‑camera video analytics via Gigabit Ethernet interfaces.
- Embedded Control Systems: Factory automation, robotics, and process monitoring.

Compatibility:
Supports Windows XP/7 (32/64‑bit), Ubuntu ≥ 11.04, Debian ≥ 6.0, Fedora 14, CentOS 6.4, and other x86‑based OS. Linux users may need to compile Intel I210 drivers manually.

---

### 5. Components & Accessories

Included Items:
- 1 × Nuvo‑3003P‑C1020 unit
- Accessory box containing:
- Neousys Drivers & Utilities DVD
- Wall‑mount brackets and M4 screws
- Foot pads
- 3‑pin pluggable terminal block
- HDD thermal pad (for 2.5″ drive)

Optional Accessories:
- PA‑120W or PA‑160W AC/DC Power Adapter
- DIN‑Rail Mounting Kit
- PCIe‑PoE4P Card (4 × GigE PoE ports)
- Isolated DIO Module (8 DI + 8 DO)
- Ignition Power Control Module
- Smart Fan for Cassette Cooling

Connectors:

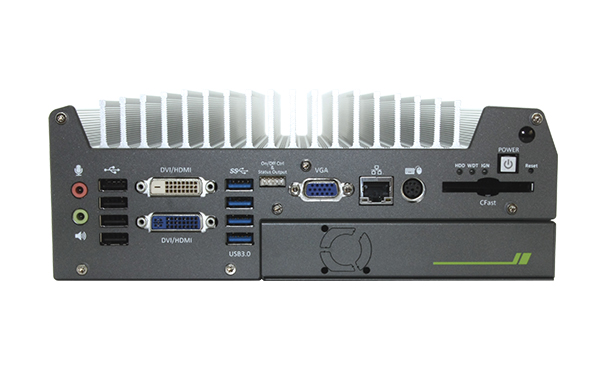

- Front panel: Power button, reset, LED indicators, CFast slot, PS/2, USB 3.0/2.0, VGA, DVI‑D, audio jacks.
- Rear panel: DC input (4‑pin Mini‑DIN and 3‑pin terminal), COM ports, Ethernet ports, auxiliary I/O connector.

---

### 6. Installation & Setup

Requirements:
- DC power supply (8–25 VDC) or Neousys AC/DC adapter.
- Compatible DDR3 SODIMM modules (up to 16 GB).
- 2.5″ SATA HDD/SSD for storage.

Mounting Options:
- Wall‑Mounting: Standard brackets included.
- DIN‑Rail Mounting: Optional kit for cabinet installation.

Configuration Steps:
1. Install DDR3 SODIMM modules via bottom access panel.
2. Mount 2.5″ HDD/SSD using thermal pad and bracket.
3. Connect DC power via 4‑pin Mini‑DIN or 3‑pin terminal block (do not use both).
4. Power on using front panel button or external non‑latched switch.
5. Configure BIOS for SATA mode (IDE/AHCI), COM port mode, and Wake‑on‑LAN if required.
6. Install drivers from Neousys DVD using “Automatic Driver Installation” utility or manual setup.

Ignition Control Setup (Optional):
- Rotary switch selects one of 8 modes with pre‑set on/off delays (10 s to 5 h).
- Supports low‑battery protection, guarded delays, and hard‑off timeout (10 min).

---

### 7. Performance & Capabilities

- Processing Power: Dual‑core Celeron 1020E (2.2 GHz) suitable for moderate computing tasks.
- Memory Bandwidth: DDR3 1600 MHz up to 16 GB for multi‑tasking and data buffering.
- Graphics: Intel HD Graphics 4000 supports dual independent displays (VGA + DVI).
- Networking: Three Intel I210 GbE controllers with dedicated PCIe lanes for low‑latency data transfer.
- Storage: SATA III 6 Gb/s interface for high‑speed SSD performance.
- Power Efficiency: Typical consumption ≈ 42 W under full load.
- Environmental Endurance: Operates reliably in ‑25 °C to +70 °C ambient with SSD; resists shock and vibration per IEC standards.
- Reliability: MTBF > 93,000 hours ensures long service life in continuous operation.

Limitations:
Not intended for high‑end GPU computing or extreme real‑time AI workloads; limited to one PCI slot for expansion.

---

### 8. Standards & Compliance

- EMC: CE and FCC Class A compliant (EN 55022 & EN 55024).
- Environmental Testing: Vibration and shock tested per IEC 60068‑2‑64 and IEC 60068‑2‑27.
- Safety: Designed for industrial and vehicular use with wide DC input range and ignition control.
- RoHS Compliance: All components meet RoHS environmental requirements.
- Quality Assurance: Manufactured under Neousys Technology’s ISO‑certified processes.

---

### 9. Additional Information

Warranty & Support:
Standard Neousys limited warranty (typically 2 years) covering manufacturing defects. Technical support and firmware updates available via [www.neousys‑tech.com](https://www.neousys-tech.com).

Maintenance:
- Periodically inspect connectors and mounting screws.
- Use compressed air to remove dust from vents.
- Ensure adequate airflow around chassis for optimal heat dissipation.

Software & Updates:
- BIOS and driver updates provided through Neousys support portal.
- “Drivers & Utilities DVD” includes chipset, graphics, LAN, audio, USB 3.0, and ME drivers for Windows XP/7.
- Linux users may compile Intel I210 and Realtek ALC262 drivers from source.

Serviceability:
- Modular Cassette design simplifies PCI card installation and maintenance.
- Accessible “Pet‑Door” panel for quick HDD/SSD replacement.
- Optional fan module for Cassette enables active cooling of high‑power add‑on cards.

---

### Summary

The Nuvo‑3003P‑C1020 is a robust, fanless embedded controller engineered for industrial automation, transportation, and surveillance applications requiring dependable 24/7 operation. Its Intel® Celeron™ 1020E processor, triple Gigabit Ethernet ports, and modular PCI Cassette architecture deliver a flexible platform for system integrators. With wide‑temperature operation, vibration/shock resistance, and optional ignition control, it is ideal for deployment in factory floors, vehicles, and remote monitoring stations. Neousys Technology’s attention to thermal design and expandability ensures long‑term reliability and ease of integration in demanding industrial environments.
