Comprehensive Product Summary: Nuvo-5501 Series Fanless Embedded Controller

---

### 1. Product Overview

Product Name: Nuvo-5501
Model: Nuvo-5501 / Nuvo-5501-DIO
Series: Nuvo-5501 Series – Compact Fanless Embedded Controller
Article Number: Nuvo-5501
Manufacturer: Neousys Technology Inc.
Manufacturer Headquarters: 15F, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan
Website: [www.neousys-tech.com](https://www.neousys-tech.com)

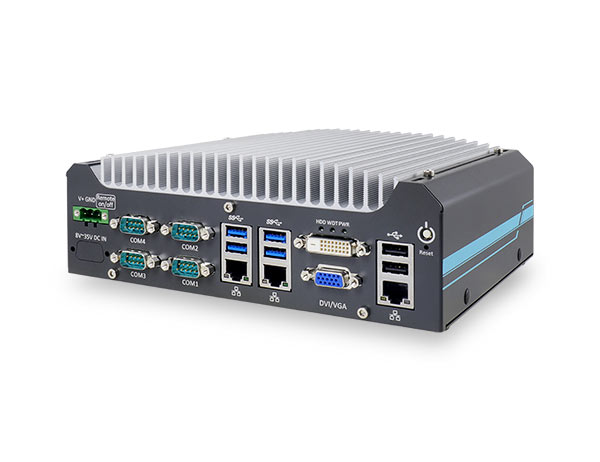

The Nuvo-5501 Series is a rugged, compact, and fanless embedded controller designed for industrial and embedded computing applications. Built on the Intel® 6th Generation Skylake platform, it supports LGA1151 socket CPUs and integrates the Intel® H110 chipset. The system is engineered for high reliability, wide temperature operation, and vibration/shock resistance, making it ideal for harsh industrial environments.

---

### 2. Key Features

- Intel® 6th-Gen Core™ i7/i5/i3, Pentium®, and Celeron® CPU support (LGA1151 socket, 35W TDP)
- Fanless design for silent, maintenance-free operation
- Compact footprint: 221 mm (W) × 173 mm (D) × 76 mm (H)
- Triple Gigabit Ethernet ports (1x Intel® I219-LM + 2x Intel® I210-IT)
- Rich I/O interface: 6x USB ports (4x USB 3.0, 2x USB 2.0), 4x COM ports (2x RS-232/422/485, 2x RS-232)
- Dual independent display outputs: 1x VGA, 1x DVI-D (up to 1920×1200@60Hz)
- Storage flexibility: 1x SATA III port for 2.5"/3.5" HDD/SSD, 1x full-size mSATA socket
- Expansion capability: 1x full-size mini-PCIe, 1x M.2 B-key slot with SIM socket for 3G/4G modules
- Wide-range DC input: 8–35 VDC via 3-pin terminal block
- Rugged environmental tolerance: -25°C to +70°C operation, 5Grms vibration, 50Grms shock
- Optional isolated digital I/O (Nuvo-5501-DIO): 8-channel DI and 8-channel DO
- Optional accessories: DIN-rail mounting kit (DINRAIL-31), 120W AC/DC adapter (PA-120W-OW)
- Compliance: CE/FCC Class A, EN 55032, EN 55024, EN 55022

---

### 3. Technical Specifications

Processor Support:
- Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W)
- Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W)
- Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W)
- Intel® Pentium® G4400TE (3M Cache, 2.4 GHz, 35W)
- Intel® Celeron® G3900TE (2M Cache, 2.3 GHz, 35W)

Chipset: Intel® H110 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics 530/510
Memory: 1x DDR4 SO-DIMM slot, up to 16GB DDR4-2133

Storage Interfaces:
- 1x SATA III port for 2.5"/3.5" HDD/SSD
- 1x full-size mSATA socket

Expansion Interfaces:
- 1x full-size mini-PCIe slot
- 1x M.2 B-key slot (2242) with SIM socket for 3G/4G modules
- 1x internal USB 2.0 port
- 1x 2x6-pin header for remote on/off and LED status output

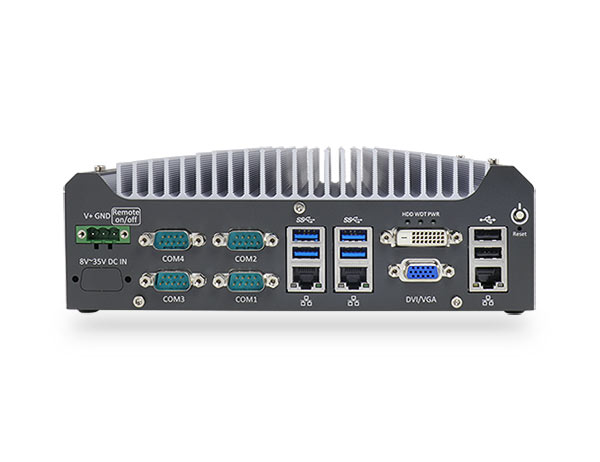

I/O Interfaces:
- Ethernet: 3x GbE (1x Intel® I219-LM, 2x Intel® I210-IT)
- USB: 4x USB 3.0, 2x USB 2.0
- Serial Ports: 2x RS-232/422/485 (software-programmable), 2x RS-232
- Video Outputs: 1x VGA, 1x DVI-D
- Optional DIO (Nuvo-5501-DIO): 8x isolated DI, 8x isolated DO via DB25 connector

Power Input: 8–35 VDC via 3-pin pluggable terminal block
Power Consumption:
- i7-6700TE: 47.3W @ 24V
- i5-6500TE: 46.8W @ 24V
- i3-6100TE: 42.5W @ 24V

Mechanical:
- Dimensions: 221 mm (W) × 173 mm (D) × 76.2 mm (H)
- Weight: 2.8 kg (with CPU, memory, and HDD)
- Mounting: Wall-mount (standard) or DIN-rail (optional)

Environmental:
- Operating Temperature: -25°C to +70°C (with SSD)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: 5Grms, 5–500Hz, 3 axes (IEC60068-2-64)
- Shock: 50Grms, half-sine 11ms (IEC60068-2-27)
- EMC: CE/FCC Class A, EN 55032, EN 55024

---

### 4. Functionality

The Nuvo-5501 operates as a fanless embedded controller optimized for industrial automation, machine vision, transportation, and edge computing. It provides high-performance computing in a compact, rugged chassis suitable for space-constrained environments.

Use Cases:
- Industrial control and automation
- Machine vision and inspection systems
- Data acquisition and monitoring
- Edge computing and IoT gateways
- Transportation and mobile surveillance
- Digital signage and kiosk systems

Operation:
The system uses passive cooling through its aluminum chassis, eliminating moving parts and ensuring silent, dust-resistant operation. It supports dual independent displays via VGA and DVI-D, multiple network interfaces for redundancy or segmentation, and flexible storage options for data-intensive applications.

Compatibility:
Supports Windows 7/8/10 (x86/x64), CentOS 7, Debian 8.7, Fedora 24, OpenSUSE 42.1, Ubuntu 14.04/16.04 LTS.
Windows 7 requires xHCI driver patching for USB support.

---

### 5. Components & Accessories

Included Items:
- Nuvo-5501 main unit
- HDD/SSD bracket
- CPU bracket
- Wall-mounting brackets (2)
- Neousys Drivers & Utilities DVD
- 3-pin power terminal block
- Screw pack

Optional Accessories:
- DINRAIL-31: DIN-rail mounting assembly
- PA-120W-OW: 120W AC/DC adapter (20V/6A, -30°C to +70°C)
- Isolated DIO module: (Nuvo-5501-DIO variant)

Connectors:
- 3-pin terminal block for DC input and remote on/off
- DB9 connectors for COM ports
- DB25 connector for DIO (DIO model)
- SMA antenna apertures for wireless modules

---

### 6. Installation & Setup

Requirements:
- DC power source (8–35 VDC)
- Compatible CPU (LGA1151, 35W TDP)
- DDR4 SO-DIMM memory module (up to 16GB)
- Storage device (2.5"/3.5" SATA or mSATA SSD)

Mounting Options:
- Wall-mount: Standard brackets included
- DIN-rail: Optional DINRAIL-31 kit for cabinet installation

Configuration Steps:
1. Disassemble enclosure to access internal components.
2. Install CPU, memory, and storage following ESD precautions.
3. Connect power via terminal block.
4. Configure BIOS settings (COM mode, power recovery, WOL, boot type).
5. Install OS and drivers using the provided DVD or USB installer.
6. Optionally configure watchdog timer and DIO functions.

BIOS Features:
- COM port mode selection (RS-232/422/485)
- Power-on after power failure
- CPU SKU power limit configuration
- Wake-on-LAN enable/disable
- Boot mode (Legacy/UEFI)
- Watchdog timer for booting

---

### 7. Performance & Capabilities

Processing Power:
Supports Intel® Skylake CPUs up to Core™ i7-6700TE, delivering high performance for multitasking and real-time control.

Graphics:
Integrated Intel® HD Graphics 530/510 supports dual independent displays up to 1920×1200@60Hz.

Networking:
Triple GbE ports with Intel® controllers ensure reliable, high-speed connectivity and support for industrial Ethernet protocols.

Storage Performance:
SATA III and mSATA interfaces provide high-speed data access. SSDs are recommended for vibration/shock environments.

Expansion:
mini-PCIe and M.2 slots enable wireless communication (Wi-Fi, 3G/4G), GPS, or additional I/O modules.

Reliability:
Fanless design and industrial-grade components ensure continuous operation in harsh conditions.
Vibration and shock resistance meet IEC60068-2-64 and IEC60068-2-27 standards.

Limitations:
- Single memory slot (max 16GB)
- Single internal storage bay
- No native PCI/PCIe expansion slots beyond mini-PCIe/M.2

---

### 8. Standards & Compliance

Certifications:
- CE/FCC Class A
- EN 55022, EN 55024, EN 55032 (EMC)
- IEC60068-2-64 (vibration)
- IEC60068-2-27 (shock)

Regulatory Compliance:
- FCC Part 15, Class A digital device
- CE marking for European Union compliance
- RoHS-compliant manufacturing

Industry Standards:
- Intel® x86 architecture compatibility
- UEFI/Legacy BIOS support
- USB 3.0/2.0, SATA III, and Gigabit Ethernet standards

---

### 9. Additional Information

Warranty:
Standard Neousys Technology warranty policy applies. Warranty covers manufacturing defects; details available from Neousys or authorized distributors.

Support & Maintenance:
- Technical support via Neousys regional offices (Taiwan, USA, China)
- Firmware and driver updates available on the Neousys website
- Only qualified personnel should perform servicing or component replacement
- ESD precautions required during installation or maintenance

Software & Driver Updates:
- Drivers & Utilities DVD included
- Automatic or manual driver installation supported
- Watchdog Timer and DIO API libraries available (WDT_DIO_Setup v2.2.7 or later)

Maintenance Recommendations:
- Ensure adequate ventilation around chassis
- Use SSDs for high-vibration environments
- Disconnect power before servicing
- Periodically check cable connections and mounting integrity

Contact Information:
- Neousys Technology Inc. (Taiwan): +886-2-2223-6182
- Neousys Technology America, Inc. (USA): +1-847-656-3298
- Neousys Technology China Co., Ltd. (Shanghai): +86-21-61155366
- Email: sales@neousys-tech.com

---

### Summary

The Neousys Nuvo-5501 Series represents a robust, compact, and energy-efficient embedded computing platform tailored for industrial and embedded applications. Its fanless design, wide operating temperature range, and comprehensive I/O set make it suitable for deployment in demanding environments where reliability and performance are critical. With support for Intel® 6th-Gen Skylake CPUs, triple Gigabit Ethernet, dual display outputs, and flexible expansion options, the Nuvo-5501 delivers a balanced combination of computing power, connectivity, and durability.

The optional Nuvo-5501-DIO variant extends functionality with isolated digital I/O channels, enhancing its suitability for automation and control systems. Combined with Neousys’ long-term support, compliance with industrial standards, and modular expandability, the Nuvo-5501 is a versatile solution for modern industrial computing needs.
