Comprehensive Product Summary – Nuvo‑5608VR Fanless Surveillance System
### 1. Product Overview

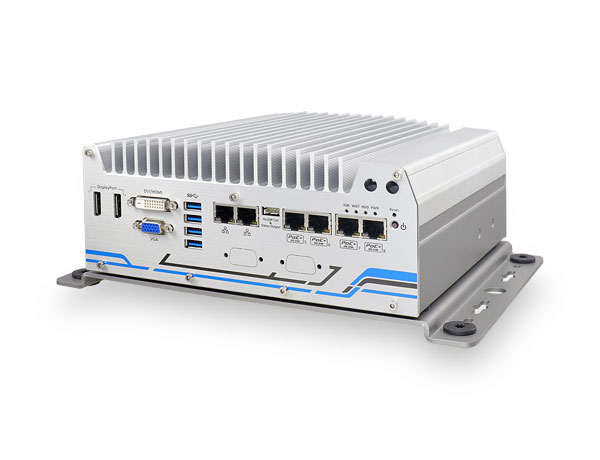

Product Name: Nuvo‑5608VR
Model / Series: Nuvo‑5608VR Series – Fanless Surveillance / Video Analytics Platform
Article Number: Nuvo‑5608VR
Manufacturer: Neousys Technology Inc. (Taipei, Taiwan)
Product Type: Rugged fanless embedded computer for surveillance, video analytics, and in‑vehicle applications
Chipset Platform: Intel® Q170 PCH
Processor Support: Intel® 6th‑Generation Core™ i7/i5/i3 (Skylake) CPUs, LGA1151 socket
The Nuvo‑5608VR is a high‑performance, industrial‑grade fanless surveillance system engineered for real‑time video analytics, multi‑channel IP camera streaming, and long‑term data recording. Designed by Neousys Technology, it integrates Intel’s 6th‑Generation Core™ processors, extensive PoE+ connectivity, and ruggedized mechanical design to meet the demands of both stationary and mobile surveillance environments.
### 2. Key Features
- Fanless Industrial Design: Completely fanless aluminum chassis with integrated heat‑spreader and patented damping bracket for vibration isolation.
- High‑Performance CPU Options: Supports Intel® Core™ i7‑6700/6700TE, i5‑6500/6500TE, and i3‑6100/6100TE processors (35–65 W TDP).
- Intel® Q170 Chipset: Provides advanced I/O, AMT 11.0 remote management, and TPM 2.0 hardware security.
- Massive Storage Capacity: Dual 3.5″ SATA III bays supporting RAID 0/1, up to 24 TB total capacity for long‑term video retention.
- 10 × Gigabit Ethernet Ports: 2 × standard GbE (Intel I219 + I210) and 8 × PoE+ (IEEE 802.3at 25.5 W each, 120 W total budget).
- Integrated Intel® HD Graphics 530: Triple independent display via VGA, DVI‑D, and dual DisplayPort (4K @ 4096 × 2304).
- Rich Expansion: Four full‑size Mini‑PCIe sockets (one front‑accessible SIM, three internal SIMs) for 3G/4G/Wi‑Fi/GPS modules.
- Comprehensive I/O: 4 × USB 3.0, 4 × USB 2.0, 3 × COM (2 × RS‑232/422/485 + 1 × RS‑232), isolated DIO (4 DI / 4 DO), CAN 2.0, audio I/O.
- Wide‑Range DC Input: 8 – 35 V DC with ignition control for in‑vehicle power sequencing.
- Environmental Ruggedness: ‑25 °C – 70 °C operation (SSD), vibration 1 Grms, shock 30 Grms.
- Certifications: CE/FCC Class A, EN 55032 & EN 55024 compliance.
### 3. Technical Specifications
Processor Support
- Intel® Core™ i7‑6700 (8 MB cache, 3.4/4.0 GHz, 65 W)
- Intel® Core™ i5‑6500 (6 MB cache, 3.2/3.6 GHz, 65 W)
- Intel® Core™ i3‑6100 (3 MB cache, 3.7 GHz, 51 W)
- Intel® Core™ i7‑6700TE (8 MB cache, 2.4/3.4 GHz, 35 W)
- Intel® Core™ i5‑6500TE (6 MB cache, 2.3/3.3 GHz, 35 W)
- Intel® Core™ i3‑6100TE (4 MB cache, 2.7 GHz, 35 W)
Chipset: Intel® Q170 PCH
Graphics: Intel® HD Graphics 530, triple independent display
Memory: 2 × DDR4 SO‑DIMM slots, up to 32 GB DDR4‑2133
Storage:
- 2 × SATA III ports for 3.5″ HDD (RAID 0/1)
- 1 × full‑size mSATA (mux with Mini‑PCIe)
Expansion:
- 1 × Mini‑PCIe (front SIM)
- 1 × Mini‑PCIe (internal SIM, mux mSATA)
- 2 × Mini‑PCIe (USB signals only, internal SIMs)
I/O Interfaces
- Ethernet: 2 × GbE (Intel I219 + I210)
- PoE+: 8 × IEEE 802.3at (25.5 W each, 120 W @ 24 V input)
- USB: 4 × USB 3.0 + 4 × USB 2.0
- Serial: 2 × RS‑232/422/485 (software‑selectable) + 1 × RS‑232
- Video: 1 × VGA (1920 × 1200), 1 × DVI‑D (1920 × 1200), 2 × DisplayPort (4096 × 2304)
- Audio: Mic‑in + Speaker‑out (Realtek ALC262 codec)
- DIO: 4 × isolated DI / 4 × isolated DO (2500 Vrms isolation)
- CAN Bus: 1 × CAN 2.0 (DB9, 1 Mbps max)
- Remote Ctrl & Status: 10‑pin (2 × 5) wafer connector
Power Input: 8 – 35 V DC via 3‑pin terminal block
Power Consumption: ~49 W (i7‑6700TE @ 24 V)
Dimensions: 240 (W) × 225 (D) × 98 (H) mm
Weight: ≈ 3.5 kg (incl. HDD and RAM)
Mounting: Neousys patented anti‑vibration damping bracket
Environmental Ratings
- Operating Temp: ‑25 °C – 70 °C (SSD) / ‑10 °C – 60 °C (HDD)
- Storage Temp: ‑40 °C – 85 °C
- Humidity: 10 – 90 % non‑condensing
- Vibration: 1 Grms (5–500 Hz, 3 axes, IEC 60068‑2‑64)
- Shock: 30 Grms (11 ms half‑sine, IEC 60068‑2‑27)
### 4. Functionality and Applications
The Nuvo‑5608VR functions as a high‑bandwidth, multi‑channel video acquisition and processing platform. Its eight PoE+ ports directly power IP cameras while simultaneously transmitting data, eliminating external PoE switches. The integrated Intel Core™ CPU and HD Graphics 530 enable real‑time video analytics, encoding, and display.
Primary Use Cases
- Intelligent video surveillance and analytics
- Mobile DVR / NVR for buses, trucks, and rail vehicles
- Industrial machine vision and process monitoring
- Smart city and traffic management systems
- Edge computing for AI‑based video inference
Compatibility
- Operating Systems: Windows 7/8/10 (x86/x64), Windows Embedded Standard 7, Linux (CentOS 7, Debian 8.7, Fedora 24, OpenSUSE 42.1, Ubuntu 14.04/16.04 LTS)
- Supports Intel AMT 11.0 for remote management and Wake‑on‑LAN.
- TPM 2.0 for secure boot and encryption applications.
### 5. Components & Accessories
Included Items
- Nuvo‑5608VR main unit
- Damping bracket with anti‑vibration grommets
- 3‑pin DC terminal block
- Screw pack for mounting and HDD installation
- Driver & Utility DVD (includes WDT_DIO library and device drivers)
Optional Accessories
- PA‑160W‑OW: 160 W AC/DC adapter (20 V / 8 A, ‑30 °C – 70 °C)
- PA‑280W‑OW: 280 W AC/DC adapter (24 V / 11.67 A, ‑30 °C – 60 °C)
Connectors

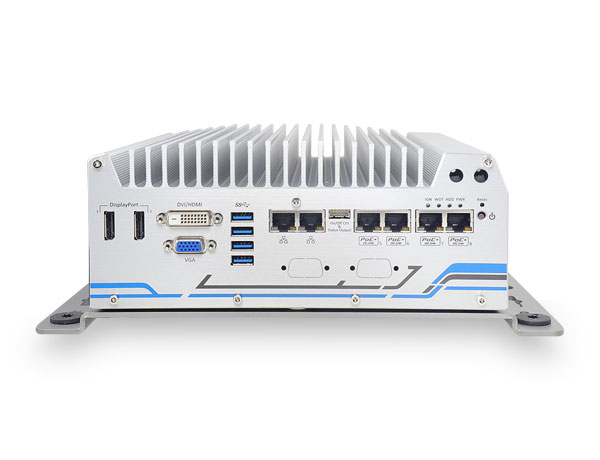

- Front: DisplayPort × 2, DVI‑D, VGA, USB 3.0 × 4, PoE+ × 8, Power button, Reset, Status LEDs

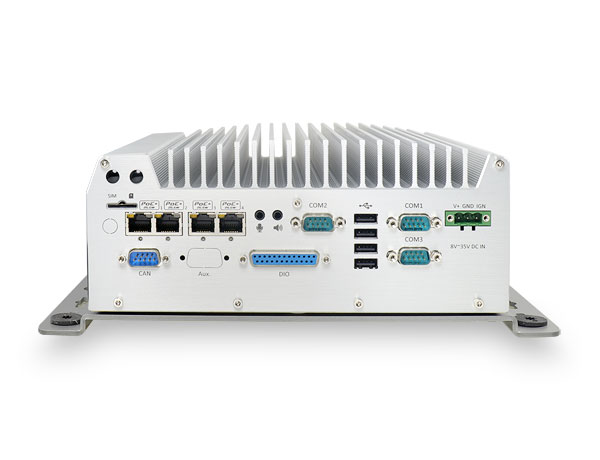

- Rear: SIM slot, Ignition switch, CAN bus, DIO, Audio jacks, COM ports, USB 2.0 × 4, DC input
### 6. Installation & Setup
Mounting Options
- Wall‑mount using the supplied anti‑vibration bracket (M4 screws and sleeves).
- Recommended orientation: heat‑sink fins horizontal for optimal thermal dissipation.
Component Installation
- Accessible internal slots for CPU, RAM, Mini‑PCIe, and HDD installation.
- Dual 3.5″ HDDs mount to dedicated heat‑spreader plates with thermal pads.
- mPCIe modules insert at 45° angle and secured with M2.5 screws; SIM cards inserted upside‑down (push‑push type).
Power Connection
- 3‑pin terminal block: V+, IGN, GND (8–35 V DC).
- Verify polarity and voltage before connection; > 35 V may damage system.
Ignition Control
- MCU‑based ignition module monitors vehicle ACC signal.
- Configurable power‑on/off delays (0 – 2 hours) via rotary switch or BIOS.
- Supports low‑battery protection (9 V/18 V thresholds), hard‑off timeout (10 min), and smart off‑delay.
BIOS Configuration
- AMI UEFI BIOS with options for SATA mode (AHCI/RAID), TPM enable, COM mode selection, CAN termination, WOL, and power recovery behavior.
### 7. Performance & Capabilities
Processing Performance
- 6th‑Gen Intel Core™ architecture delivers quad‑core processing up to 4.0 GHz.
- Supports hardware virtualization and Intel HD Graphics 530 for 4K video decoding.
Networking
- Dedicated PCIe lanes for each GbE port ensure non‑blocking throughput.
- PoE+ ports supply up to 25.5 W per port (IEEE 802.3at) with 120 W total budget @ 24 V input.
Storage Throughput
- SATA III 6 Gb/s interfaces support RAID 0 for high speed or RAID 1 for redundancy.
- mSATA SSD option for OS installation and fast boot.
Environmental Endurance
- Operates reliably in ‑25 °C to 70 °C (SSD) environments.
- Withstands 1 Grms vibration and 30 Grms shock with damping bracket.
Limitations
- When using 65 W CPUs, maximum ambient temperature limited to 50 °C unless SKU power is reduced in BIOS.
- Total PoE budget drops to 100 W when powered by 12 V input.
### 8. Standards & Compliance
- Electrical Safety & EMC: CE / FCC Class A (EN 55032, EN 55024)
- PoE Standard: IEEE 802.3at (PoE+) compliant
- Environmental Tests: IEC 60068‑2‑64 (vibration), IEC 60068‑2‑27 (shock)
- Security: TPM 2.0 hardware module for trusted computing
- Remote Management: Intel® AMT 11.0 for out‑of‑band control
- RoHS / WEEE: Compliant with EU environmental directives
### 9. Additional Information
Warranty & Support
- Standard Neousys limited hardware warranty per manufacturer policy.
- Technical support available via regional offices (Taiwan, USA, China).
- Firmware and driver updates provided through Neousys website.
Maintenance
- Fanless design minimizes moving parts and maintenance needs.
- HDD heat‑spreader ensures 24/7 operation without thermal degradation.
- ESD precautions recommended during service; qualified personnel only.
Software & Drivers
- “Drivers & Utilities” DVD includes automatic and manual driver installation for Windows and Linux.
- WDT_DIO library provides APIs for watchdog timer, digital I/O, PoE port control, CAN bus, and ignition status monitoring.
Programming Interfaces
- API functions for WDT (Start/Stop/Reset), DIO (Read/Write), CAN bus (Send/Receive), and PoE (On/Off).
- Supports C/C++ development under Windows 7/8/10 (32/64‑bit).
Service & Safety Notes
- Disconnect power before servicing.
- Use grounded wrist strap to avoid ESD damage.
- Ensure correct DC voltage and polarity before power‑on.
### Summary
The Neousys Nuvo‑5608VR is a robust, fanless surveillance computer purpose‑built for high‑definition video acquisition and analytics in harsh or mobile environments. Combining Intel® Skylake processing, 10 Gigabit Ethernet ports (8 with PoE+), dual 3.5″ RAID storage, and extensive I/O expandability, it delivers a complete edge computing solution for intelligent security and industrial applications. Its rugged mechanical design, wide temperature operation, and vehicle‑grade ignition control make it ideal for deployment in transportation, factory automation, and outdoor surveillance systems requiring long‑term reliability and 24/7 operation.
