- Fanless Industrial Design:
Completely fanless aluminum chassis for silent operation and high reliability in dusty or vibration‑prone environments.
- Intel® 6th‑Gen Skylake CPU Support:
Supports LGA1151 socket processors including:
- Core™ i7‑6700TE (8 MB cache, 2.4/3.4 GHz, 35 W TDP)
- Core™ i5‑6500TE (6 MB cache, 2.3/3.3 GHz, 35 W TDP)
- Core™ i3‑6100TE (4 MB cache, 2.7 GHz, 35 W TDP)
- Pentium® G4400TE (3 MB cache, 2.4 GHz, 35 W TDP)
- Celeron® G3900TE (2 MB cache, 2.3 GHz, 35 W TDP)
- High Expandability:
- 1 × PCIe x16 (Gen3, 16 lanes)
- 1 × PCIe x4 (Gen2, 4 lanes)
- 1 × PCIe x4 (Gen2, 1 lane)
- 2 × PCI (33 MHz/32‑bit)
Provides compatibility with both modern and legacy add‑on cards.
- Rich I/O Connectivity:
- 2 × Gigabit Ethernet (Intel® I219‑LM + I210‑IT)
- 4 × USB 3.0 ports
- 2 × RS‑232/422/485 software‑selectable ports
- 2 × RS‑232 ports
- 2 × DVI‑D/HDMI video outputs
- 1 × Speaker‑out audio jack
- Storage Flexibility:
- 3 × 2.5″ SATA III ports for HDD/SSD
- 1 × full‑size mSATA socket
- Rugged Environmental Tolerance:
- Operating temperature: –25 °C to +60 °C
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- Compact Form Factor:
184 mm (W) × 225 mm (D) × 174 mm (H), 3.5 kg
- Wide‑Range DC Power Input:
Accepts 8–35 V DC via 3‑pin terminal block; optional 120 W AC/DC adapter available.
- Front‑Accessible I/O:
All major ports are accessible from the front panel for easy maintenance when installed in cabinets or racks.
- Multiple Mounting Options:
Wall‑mount (standard), DIN‑rail, and 19″ rack‑mount (optional).
Completely fanless aluminum chassis for silent operation and high reliability in dusty or vibration‑prone environments.
- Intel® 6th‑Gen Skylake CPU Support:
Supports LGA1151 socket processors including:
- Core™ i7‑6700TE (8 MB cache, 2.4/3.4 GHz, 35 W TDP)
- Core™ i5‑6500TE (6 MB cache, 2.3/3.3 GHz, 35 W TDP)
- Core™ i3‑6100TE (4 MB cache, 2.7 GHz, 35 W TDP)
- Pentium® G4400TE (3 MB cache, 2.4 GHz, 35 W TDP)
- Celeron® G3900TE (2 MB cache, 2.3 GHz, 35 W TDP)
- High Expandability:
- 1 × PCIe x16 (Gen3, 16 lanes)
- 1 × PCIe x4 (Gen2, 4 lanes)
- 1 × PCIe x4 (Gen2, 1 lane)
- 2 × PCI (33 MHz/32‑bit)
Provides compatibility with both modern and legacy add‑on cards.
- Rich I/O Connectivity:
- 2 × Gigabit Ethernet (Intel® I219‑LM + I210‑IT)
- 4 × USB 3.0 ports
- 2 × RS‑232/422/485 software‑selectable ports
- 2 × RS‑232 ports
- 2 × DVI‑D/HDMI video outputs
- 1 × Speaker‑out audio jack
- Storage Flexibility:
- 3 × 2.5″ SATA III ports for HDD/SSD
- 1 × full‑size mSATA socket
- Rugged Environmental Tolerance:
- Operating temperature: –25 °C to +60 °C
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- Compact Form Factor:
184 mm (W) × 225 mm (D) × 174 mm (H), 3.5 kg
- Wide‑Range DC Power Input:
Accepts 8–35 V DC via 3‑pin terminal block; optional 120 W AC/DC adapter available.
- Front‑Accessible I/O:
All major ports are accessible from the front panel for easy maintenance when installed in cabinets or racks.
- Multiple Mounting Options:
Wall‑mount (standard), DIN‑rail, and 19″ rack‑mount (optional).

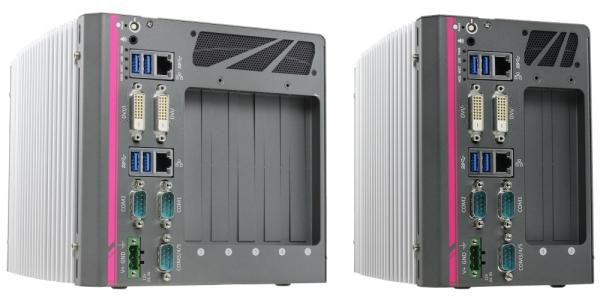

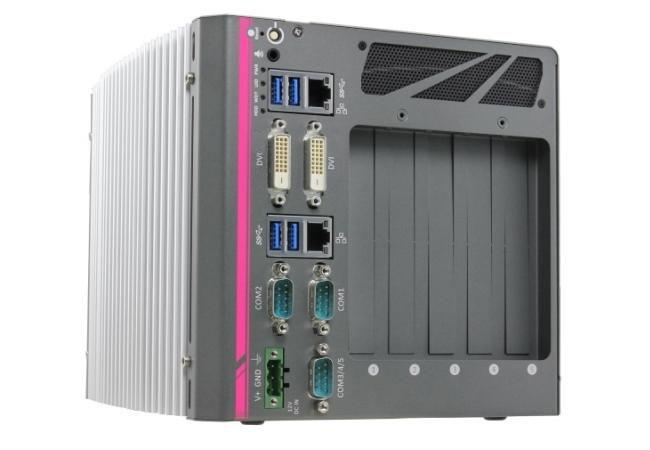

Comprehensive Product Summary: Neousys Nuvo‑6023 Fanless Embedded System
### 1. Product Overview
Product Name: Nuvo‑6023
Model/Article Number: Nuvo‑6023
Series: Nuvo‑6000 Series – Rugged Embedded Fanless Box‑PCs
Manufacturer: Neousys Technology Inc.
Product Type: Industrial fanless embedded computer with PCIe/PCI expansion
Platform: Intel® 6th‑Generation Skylake Core™ i3/i5/i7, Pentium®, and Celeron® CPUs
Chipset: Intel® H110 Platform Controller Hub (PCH)
The Nuvo‑6023 belongs to Neousys’ Nuvo‑6000 family of rugged, fanless industrial box PCs designed to replace traditional rack‑mount or wall‑mount IPCs. It combines high‑performance Intel® Skylake processors with a compact, thermally efficient, and vibration‑resistant chassis. The system is optimized for industrial automation, machine vision, data acquisition, and embedded control applications requiring PCIe and legacy PCI expansion.
### 2. Key Features
- Fanless Industrial Design:
Completely fanless aluminum chassis for silent operation and high reliability in dusty or vibration‑prone environments.
- Intel® 6th‑Gen Skylake CPU Support:
Supports LGA1151 socket processors including:
- Core™ i7‑6700TE (8 MB cache, 2.4/3.4 GHz, 35 W TDP)
- Core™ i5‑6500TE (6 MB cache, 2.3/3.3 GHz, 35 W TDP)
- Core™ i3‑6100TE (4 MB cache, 2.7 GHz, 35 W TDP)
- Pentium® G4400TE (3 MB cache, 2.4 GHz, 35 W TDP)
- Celeron® G3900TE (2 MB cache, 2.3 GHz, 35 W TDP)
- High Expandability:
- 1 × PCIe x16 (Gen3, 16 lanes)
- 1 × PCIe x4 (Gen2, 4 lanes)
- 1 × PCIe x4 (Gen2, 1 lane)
- 2 × PCI (33 MHz/32‑bit)
Provides compatibility with both modern and legacy add‑on cards.
- Rich I/O Connectivity:
- 2 × Gigabit Ethernet (Intel® I219‑LM + I210‑IT)
- 4 × USB 3.0 ports
- 2 × RS‑232/422/485 software‑selectable ports
- 2 × RS‑232 ports
- 2 × DVI‑D/HDMI video outputs
- 1 × Speaker‑out audio jack
- Storage Flexibility:
- 3 × 2.5″ SATA III ports for HDD/SSD
- 1 × full‑size mSATA socket
- Rugged Environmental Tolerance:
- Operating temperature: –25 °C to +60 °C
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- Compact Form Factor:
184 mm (W) × 225 mm (D) × 174 mm (H), 3.5 kg
- Wide‑Range DC Power Input:
Accepts 8–35 V DC via 3‑pin terminal block; optional 120 W AC/DC adapter available.
- Front‑Accessible I/O:
All major ports are accessible from the front panel for easy maintenance when installed in cabinets or racks.
- Multiple Mounting Options:
Wall‑mount (standard), DIN‑rail, and 19″ rack‑mount (optional).
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor Support | Intel® 6th‑Gen Core™ i7/i5/i3, Pentium®, Celeron® LGA1151 (35 W TDP max) |
| Chipset | Intel® H110 PCH |
| Graphics | Integrated Intel® HD Graphics 530/510 controller |
| Memory | 1 × DDR4 SO‑DIMM slot, up to 16 GB DDR4‑2133 |
| Ethernet | 1 × Intel® I219‑LM GbE + 1 × Intel® I210‑IT GbE |
| Video Outputs | 2 × DVI‑D connectors (support DVI/HDMI up to 1920 × 1200) |
| Serial Ports | 2 × RS‑232/422/485 (software‑selectable), 2 × RS‑232 |
| USB Ports | 4 × USB 3.0 (front panel) + internal USB 2.0 headers |
| Audio | 1 × Speaker‑out (Realtek ALC262 codec) |
| Storage | 3 × 2.5″ SATA III ports + 1 × full‑size mSATA |
| Expansion Slots | 1 × PCIe x16 (Gen3), 1 × PCIe x4 (Gen2), 2 × PCI (33 MHz/32‑bit) |
| Power Input | 8–35 V DC via 3‑pin terminal block |
| Power Consumption | ~35–49 W @ 24 V DC (depending on CPU model) |
| Dimensions | 184 (W) × 225 (D) × 174 (H) mm |
| Weight | 3.5 kg (including CPU, memory, HDD) |
| Operating Temperature | –25 °C to +60 °C (100 % CPU load with SSD) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 10 % – 90 %, non‑condensing |
| Vibration Resistance | 5 Grms (5–500 Hz, 3 axes, SSD installed) |
| Shock Resistance | 50 Grms (half‑sine 11 ms, SSD installed) |
| EMC Compliance | CE/FCC Class A (EN 55022, EN 55024, EN 55032) |
### 4. Functionality
The Nuvo‑6023 operates as a compact, high‑performance industrial controller. It integrates Intel® Skylake CPUs with a robust passive cooling system, enabling continuous operation in harsh environments without active fans. The system’s modular backplane supports both PCIe and legacy PCI cards, allowing integration of motion controllers, frame grabbers, DAQ cards, or communication interfaces.
Typical Use Cases:
- Industrial automation and process control
- Machine vision and inspection systems
- Data acquisition and test instrumentation
- Transportation and mobile computing
- Edge computing and IoT gateways
Compatibility:
- Operating systems: Windows 7/8.1/10 (32/64‑bit), Linux (Ubuntu, Fedora, Debian, OpenSUSE)
- Supports BIOS configuration for legacy or UEFI boot modes
- Wake‑on‑LAN and remote power control supported
### 5. Components & Accessories
Included Items:
- Nuvo‑6023 fanless Box‑PC unit
- Wall‑mount brackets and screws
- SATA HDD bracket and/or tray (for HDD/SSD installation)
- Neousys Drivers & Utilities DVD
- Screw package and accessory box
Optional Accessories:
- Rackmount‑6: 19″ rack‑mount assembly for Nuvo‑6000 series
- DINRAIL‑E: DIN‑rail mounting kit
- Fan‑80: 80 × 80 × 15 mm fan assembly for active cooling of high‑power add‑on cards
- PA‑120W‑OW: 120 W AC/DC adapter (20 V/6 A, –30 °C to +70 °C operation)
- PA‑160W‑OW: 160 W AC/DC adapter (20 V/8 A, –30 °C to +70 °C operation)
- C‑D9‑3D9‑RS232‑10CM: DB9 female‑to‑triple‑DB9 male Y‑cable for COM ports (10 cm)
### 6. Installation & Setup
Requirements:
- DC power supply (8–35 V DC) or optional AC/DC adapter
- Compatible LGA1151 CPU and DDR4 SO‑DIMM module
- 2.5″ SATA HDD/SSD or mSATA storage
Mounting Options:
- Wall‑mount: Standard brackets included
- Flat‑surface mount: Brackets attach to bottom panel
- DIN‑rail mount: Optional clip for cabinet installation
- Rack‑mount: Optional kit for 19″ 4U rack integration
Configuration Highlights:
- BIOS accessible via F2 key at boot
- Configurable COM port modes (RS‑232/422/485)
- Adjustable PCIe link speeds for compatibility
- Smart fan control trip points for optional fan
- Wake‑on‑LAN and power‑on‑after‑failure settings
- Watchdog timer for boot and runtime monitoring
Power Connection:
- 3‑pin terminal block (V+, GND, Chassis Ground)
- Ensure correct polarity and voltage (< 35 V DC)
### 7. Performance & Capabilities
- Processing Power: Up to Intel® Core™ i7‑6700TE (quad‑core, 3.4 GHz Turbo)
- Memory Bandwidth: DDR4‑2133 up to 17 GB/s
- Graphics: Intel® HD 530/510 supports dual independent displays (1920 × 1200)
- Storage Throughput: SATA III 6 Gb/s and mSATA SSD support
- Network Performance: Dual Gigabit Ethernet with independent PCIe lanes
- Reliability: Fanless thermal design ensures stable operation at full CPU load up to 60 °C
- Expansion Capability: Supports up to five add‑on cards (PCIe and PCI)
- Power Efficiency: Typical system draw < 50 W @ 24 V DC
- Limitations: Total add‑on card power consumption ≤ 16 W for fanless operation; use optional fan for higher loads.
### 8. Standards & Compliance
- EMC: CE/FCC Class A compliant (EN 55022, EN 55024, EN 55032)
- Environmental Testing: IEC 60068‑2‑64 (vibration) and IEC 60068‑2‑27 (shock)
- Safety: Designed for industrial use with wide temperature and voltage tolerance
- RoHS Compliance: All components meet RoHS environmental standards
- BIOS and Firmware: AMI UEFI BIOS with legacy support, configurable WDT and power management
### 9. Additional Information
Warranty & Support:
Neousys provides a standard manufacturer’s warranty covering defects in materials and workmanship. Technical support and driver updates are available through the Neousys website and authorized distributors.
Maintenance:
- Periodically inspect DC power connections and mounting hardware.
- For systems with optional fan, clean air vents to maintain airflow.
- BIOS and firmware updates available for performance and security enhancements.
Software & Drivers:
- “Drivers & Utilities DVD” includes chipset, graphics, audio, LAN, and ME drivers.
- One‑click automatic installation utility for Windows 7/8/10.
- WDT_DIO library for watchdog and digital I/O control (Windows 7/8/10 32/64‑bit).
Operating System Support:
- Windows 7 (32/64‑bit) with xHCI USB driver integration
- Windows 8.1 and Windows 10 (64‑bit)
- Linux distributions including Ubuntu 14.04/16.04 LTS, Debian 8, Fedora 23, OpenSUSE 42.1
Watchdog Timer (WDT):
Hardware WDT ensures system recovery from software hangs. Programmable timeout (1–65535 ticks, seconds or minutes), with Start, Reset, and Stop functions via API.
BIOS Features:
- COM port mode selection (RS‑232/422/485)
- PCIe link speed configuration
- Smart fan trip points
- CPU SKU power limit adjustment
- Wake‑on‑LAN enable/disable
- Power‑on‑after‑failure behavior
- Legacy/UEFI boot mode selection
- Watchdog timer for boot process
Reliability Enhancements:
- Passive heat‑sink coupled to CPU and chipset
- Solid‑state storage recommended for vibration environments
- Wide temperature HDD/SSD required for sub‑zero operation
Mechanical Design:
- Rigid aluminum chassis with integrated heat dissipation fins
- Front panel LED indicators (PWR, UID, WDT, HDD)
- Hidden reset switch to prevent accidental operation
- Internal connectors for remote on/off control and status LED output
Power Management:
- ATX‑mode on/off control via front button or remote header
- Wake‑on‑LAN from S5 state supported on Intel® I219‑LM port
- BIOS option for automatic power‑on after power failure
Thermal Management:
- Passive fanless cooling for ≤ 35 W TDP CPUs
- Optional 80 mm fan for add‑on cards > 16 W total power
- Smart fan control with two temperature trip points
Mechanical Integration:
- Supports add‑on cards up to 205 mm (L) × 140 mm (H) without fan, 185 mm (L) × 140 mm (H) with fan
- 6‑pin 12 V PCIe power connector (8 A max) for high‑power cards
Environmental Durability:
- Designed for industrial automation and transport applications subject to shock and vibration
- Operates reliably in ambient temperatures from –25 °C to +60 °C at full CPU load
### Summary
The Neousys Nuvo‑6023 is a compact, rugged, and highly expandable fanless embedded computer engineered for demanding industrial environments. Built on the Intel® Skylake H110 platform, it delivers desktop‑class performance with exceptional reliability. Its combination of PCIe and PCI slots, wide DC input range, and robust thermal design make it ideal for machine vision, automation, and edge computing applications. With comprehensive I/O, dual Gigabit Ethernet, and support for multiple mounting options, the Nuvo‑6023 offers a versatile solution for industrial system integrators seeking long‑life, maintenance‑free operation in harsh conditions.
### 1. Product Overview
Product Name: Nuvo‑6023
Model/Article Number: Nuvo‑6023
Series: Nuvo‑6000 Series – Rugged Embedded Fanless Box‑PCs
Manufacturer: Neousys Technology Inc.
Product Type: Industrial fanless embedded computer with PCIe/PCI expansion
Platform: Intel® 6th‑Generation Skylake Core™ i3/i5/i7, Pentium®, and Celeron® CPUs
Chipset: Intel® H110 Platform Controller Hub (PCH)
The Nuvo‑6023 belongs to Neousys’ Nuvo‑6000 family of rugged, fanless industrial box PCs designed to replace traditional rack‑mount or wall‑mount IPCs. It combines high‑performance Intel® Skylake processors with a compact, thermally efficient, and vibration‑resistant chassis. The system is optimized for industrial automation, machine vision, data acquisition, and embedded control applications requiring PCIe and legacy PCI expansion.
### 2. Key Features
- Fanless Industrial Design:
Completely fanless aluminum chassis for silent operation and high reliability in dusty or vibration‑prone environments.
- Intel® 6th‑Gen Skylake CPU Support:
Supports LGA1151 socket processors including:
- Core™ i7‑6700TE (8 MB cache, 2.4/3.4 GHz, 35 W TDP)
- Core™ i5‑6500TE (6 MB cache, 2.3/3.3 GHz, 35 W TDP)
- Core™ i3‑6100TE (4 MB cache, 2.7 GHz, 35 W TDP)
- Pentium® G4400TE (3 MB cache, 2.4 GHz, 35 W TDP)
- Celeron® G3900TE (2 MB cache, 2.3 GHz, 35 W TDP)
- High Expandability:
- 1 × PCIe x16 (Gen3, 16 lanes)
- 1 × PCIe x4 (Gen2, 4 lanes)
- 1 × PCIe x4 (Gen2, 1 lane)
- 2 × PCI (33 MHz/32‑bit)
Provides compatibility with both modern and legacy add‑on cards.
- Rich I/O Connectivity:
- 2 × Gigabit Ethernet (Intel® I219‑LM + I210‑IT)
- 4 × USB 3.0 ports
- 2 × RS‑232/422/485 software‑selectable ports
- 2 × RS‑232 ports
- 2 × DVI‑D/HDMI video outputs
- 1 × Speaker‑out audio jack
- Storage Flexibility:
- 3 × 2.5″ SATA III ports for HDD/SSD
- 1 × full‑size mSATA socket
- Rugged Environmental Tolerance:
- Operating temperature: –25 °C to +60 °C
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- Compact Form Factor:
184 mm (W) × 225 mm (D) × 174 mm (H), 3.5 kg
- Wide‑Range DC Power Input:
Accepts 8–35 V DC via 3‑pin terminal block; optional 120 W AC/DC adapter available.
- Front‑Accessible I/O:
All major ports are accessible from the front panel for easy maintenance when installed in cabinets or racks.
- Multiple Mounting Options:

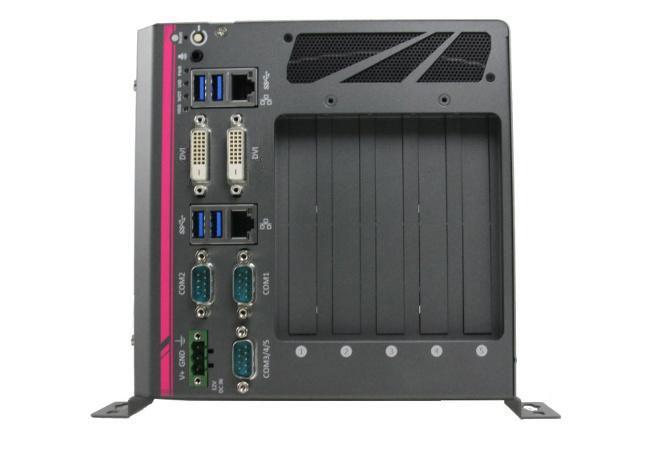

Wall‑mount (standard), DIN‑rail, and 19″ rack‑mount (optional).
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor Support | Intel® 6th‑Gen Core™ i7/i5/i3, Pentium®, Celeron® LGA1151 (35 W TDP max) |
| Chipset | Intel® H110 PCH |
| Graphics | Integrated Intel® HD Graphics 530/510 controller |
| Memory | 1 × DDR4 SO‑DIMM slot, up to 16 GB DDR4‑2133 |
| Ethernet | 1 × Intel® I219‑LM GbE + 1 × Intel® I210‑IT GbE |
| Video Outputs | 2 × DVI‑D connectors (support DVI/HDMI up to 1920 × 1200) |
| Serial Ports | 2 × RS‑232/422/485 (software‑selectable), 2 × RS‑232 |
| USB Ports | 4 × USB 3.0 (front panel) + internal USB 2.0 headers |
| Audio | 1 × Speaker‑out (Realtek ALC262 codec) |
| Storage | 3 × 2.5″ SATA III ports + 1 × full‑size mSATA |
| Expansion Slots | 1 × PCIe x16 (Gen3), 1 × PCIe x4 (Gen2), 2 × PCI (33 MHz/32‑bit) |
| Power Input | 8–35 V DC via 3‑pin terminal block |
| Power Consumption | ~35–49 W @ 24 V DC (depending on CPU model) |
| Dimensions | 184 (W) × 225 (D) × 174 (H) mm |
| Weight | 3.5 kg (including CPU, memory, HDD) |
| Operating Temperature | –25 °C to +60 °C (100 % CPU load with SSD) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 10 % – 90 %, non‑condensing |
| Vibration Resistance | 5 Grms (5–500 Hz, 3 axes, SSD installed) |
| Shock Resistance | 50 Grms (half‑sine 11 ms, SSD installed) |
| EMC Compliance | CE/FCC Class A (EN 55022, EN 55024, EN 55032) |
### 4. Functionality
The Nuvo‑6023 operates as a compact, high‑performance industrial controller. It integrates Intel® Skylake CPUs with a robust passive cooling system, enabling continuous operation in harsh environments without active fans. The system’s modular backplane supports both PCIe and legacy PCI cards, allowing integration of motion controllers, frame grabbers, DAQ cards, or communication interfaces.
Typical Use Cases:
- Industrial automation and process control
- Machine vision and inspection systems
- Data acquisition and test instrumentation
- Transportation and mobile computing
- Edge computing and IoT gateways
Compatibility:
- Operating systems: Windows 7/8.1/10 (32/64‑bit), Linux (Ubuntu, Fedora, Debian, OpenSUSE)
- Supports BIOS configuration for legacy or UEFI boot modes
- Wake‑on‑LAN and remote power control supported
### 5. Components & Accessories
Included Items:
- Nuvo‑6023 fanless Box‑PC unit
- Wall‑mount brackets and screws
- SATA HDD bracket and/or tray (for HDD/SSD installation)
- Neousys Drivers & Utilities DVD
- Screw package and accessory box
Optional Accessories:

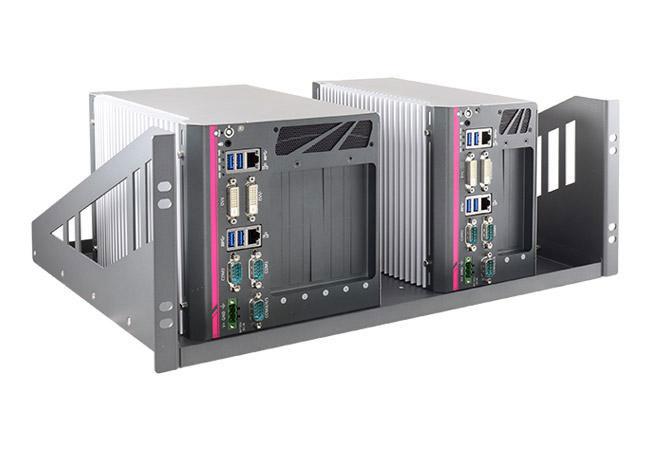

- Rackmount‑6: 19″ rack‑mount assembly for Nuvo‑6000 series
- DINRAIL‑E: DIN‑rail mounting kit
- Fan‑80: 80 × 80 × 15 mm fan assembly for active cooling of high‑power add‑on cards
- PA‑120W‑OW: 120 W AC/DC adapter (20 V/6 A, –30 °C to +70 °C operation)
- PA‑160W‑OW: 160 W AC/DC adapter (20 V/8 A, –30 °C to +70 °C operation)
- C‑D9‑3D9‑RS232‑10CM: DB9 female‑to‑triple‑DB9 male Y‑cable for COM ports (10 cm)
### 6. Installation & Setup
Requirements:
- DC power supply (8–35 V DC) or optional AC/DC adapter
- Compatible LGA1151 CPU and DDR4 SO‑DIMM module
- 2.5″ SATA HDD/SSD or mSATA storage
Mounting Options:
- Wall‑mount: Standard brackets included
- Flat‑surface mount: Brackets attach to bottom panel
- DIN‑rail mount: Optional clip for cabinet installation
- Rack‑mount: Optional kit for 19″ 4U rack integration
Configuration Highlights:
- BIOS accessible via F2 key at boot
- Configurable COM port modes (RS‑232/422/485)
- Adjustable PCIe link speeds for compatibility
- Smart fan control trip points for optional fan
- Wake‑on‑LAN and power‑on‑after‑failure settings
- Watchdog timer for boot and runtime monitoring
Power Connection:
- 3‑pin terminal block (V+, GND, Chassis Ground)
- Ensure correct polarity and voltage (< 35 V DC)
### 7. Performance & Capabilities
- Processing Power: Up to Intel® Core™ i7‑6700TE (quad‑core, 3.4 GHz Turbo)
- Memory Bandwidth: DDR4‑2133 up to 17 GB/s
- Graphics: Intel® HD 530/510 supports dual independent displays (1920 × 1200)
- Storage Throughput: SATA III 6 Gb/s and mSATA SSD support
- Network Performance: Dual Gigabit Ethernet with independent PCIe lanes
- Reliability: Fanless thermal design ensures stable operation at full CPU load up to 60 °C
- Expansion Capability: Supports up to five add‑on cards (PCIe and PCI)
- Power Efficiency: Typical system draw < 50 W @ 24 V DC
- Limitations: Total add‑on card power consumption ≤ 16 W for fanless operation; use optional fan for higher loads.
### 8. Standards & Compliance
- EMC: CE/FCC Class A compliant (EN 55022, EN 55024, EN 55032)
- Environmental Testing: IEC 60068‑2‑64 (vibration) and IEC 60068‑2‑27 (shock)
- Safety: Designed for industrial use with wide temperature and voltage tolerance
- RoHS Compliance: All components meet RoHS environmental standards
- BIOS and Firmware: AMI UEFI BIOS with legacy support, configurable WDT and power management
### 9. Additional Information
Warranty & Support:
Neousys provides a standard manufacturer’s warranty covering defects in materials and workmanship. Technical support and driver updates are available through the Neousys website and authorized distributors.
Maintenance:
- Periodically inspect DC power connections and mounting hardware.
- For systems with optional fan, clean air vents to maintain airflow.
- BIOS and firmware updates available for performance and security enhancements.
Software & Drivers:
- “Drivers & Utilities DVD” includes chipset, graphics, audio, LAN, and ME drivers.
- One‑click automatic installation utility for Windows 7/8/10.
- WDT_DIO library for watchdog and digital I/O control (Windows 7/8/10 32/64‑bit).
Operating System Support:
- Windows 7 (32/64‑bit) with xHCI USB driver integration
- Windows 8.1 and Windows 10 (64‑bit)
- Linux distributions including Ubuntu 14.04/16.04 LTS, Debian 8, Fedora 23, OpenSUSE 42.1
Watchdog Timer (WDT):
Hardware WDT ensures system recovery from software hangs. Programmable timeout (1–65535 ticks, seconds or minutes), with Start, Reset, and Stop functions via API.
BIOS Features:
- COM port mode selection (RS‑232/422/485)
- PCIe link speed configuration
- Smart fan trip points
- CPU SKU power limit adjustment
- Wake‑on‑LAN enable/disable
- Power‑on‑after‑failure behavior
- Legacy/UEFI boot mode selection
- Watchdog timer for boot process
Reliability Enhancements:
- Passive heat‑sink coupled to CPU and chipset
- Solid‑state storage recommended for vibration environments
- Wide temperature HDD/SSD required for sub‑zero operation
Mechanical Design:
- Rigid aluminum chassis with integrated heat dissipation fins
- Front panel LED indicators (PWR, UID, WDT, HDD)
- Hidden reset switch to prevent accidental operation
- Internal connectors for remote on/off control and status LED output
Power Management:
- ATX‑mode on/off control via front button or remote header
- Wake‑on‑LAN from S5 state supported on Intel® I219‑LM port
- BIOS option for automatic power‑on after power failure
Thermal Management:
- Passive fanless cooling for ≤ 35 W TDP CPUs
- Optional 80 mm fan for add‑on cards > 16 W total power
- Smart fan control with two temperature trip points
Mechanical Integration:
- Supports add‑on cards up to 205 mm (L) × 140 mm (H) without fan, 185 mm (L) × 140 mm (H) with fan
- 6‑pin 12 V PCIe power connector (8 A max) for high‑power cards
Environmental Durability:
- Designed for industrial automation and transport applications subject to shock and vibration
- Operates reliably in ambient temperatures from –25 °C to +60 °C at full CPU load
### Summary
The Neousys Nuvo‑6023 is a compact, rugged, and highly expandable fanless embedded computer engineered for demanding industrial environments. Built on the Intel® Skylake H110 platform, it delivers desktop‑class performance with exceptional reliability. Its combination of PCIe and PCI slots, wide DC input range, and robust thermal design make it ideal for machine vision, automation, and edge computing applications. With comprehensive I/O, dual Gigabit Ethernet, and support for multiple mounting options, the Nuvo‑6023 offers a versatile solution for industrial system integrators seeking long‑life, maintenance‑free operation in harsh conditions.
-
Nuvo-6000_Datasheet.pdf
PDF Catalog
- Nuvo-PA-160W - 160W AC/DC Power Adapter for Nuvo-1300af/3005 PoE models
- Nuvo-PA-120W - 120W AC/DC Power Adapter for Nuvo-3000 series
