1. Product Overview
Product Name: Nuvo-6108GC-IGN
Model/Series: Nuvo-6108GC Series – Industrial GPU Computing Platform
Article Number: Nuvo-6108GC-IGN
Manufacturer: Neousys Technology, Inc.
Product Type: Industrial-grade GPU computing platform with built-in ignition control
Primary Function: High-performance embedded computing system designed for GPU-accelerated industrial applications, supporting up to 250W NVIDIA® GPU cards and Intel® Xeon® E3 v5 or 6th-Gen Core™ processors.
The Nuvo-6108GC-IGN is part of Neousys’ flagship GPU computing series, engineered to deliver workstation-class performance in rugged, field-deployable environments. It integrates advanced thermal management, robust power design, and industrial-grade reliability to support demanding AI, machine vision, and autonomous system workloads.
2. Key Features
- GPU Computing Capability: Supports one high-end NVIDIA® GPU card up to 250W TDP, enabling CUDA®, AI inference, deep learning, and GPU-accelerated analytics.
- Processor Support: Compatible with Intel® Xeon® E3 v5 and 6th-Gen Core™ i7/i5 LGA1151 CPUs (Skylake architecture) using the Intel® C236 chipset.
- Memory: Up to 32GB DDR4-2133 ECC or non-ECC SODIMM memory across two slots, ensuring both performance and data integrity.
- Thermal Design: Patented cold air intake and optimized airflow architecture for stable GPU operation at ambient temperatures up to 60°C under full load.
- Ignition Control: Integrated ignition power control for in-vehicle and mobile applications, allowing synchronized system startup/shutdown with vehicle ignition.
- Storage Flexibility: Three 2.5" SATA III drive bays supporting RAID 0/1/5; two bays feature Neousys’ patented easy-swap trays for quick HDD/SSD replacement.
- Expansion Capability: One PCIe x16 Gen3 slot for GPU, plus two PCIe x8 Gen3 slots for additional high-bandwidth expansion cards.
- Connectivity: Dual Intel® Gigabit Ethernet ports (I219-LM and I210-IT), four USB 3.0 ports, two software-programmable RS-232/422/485 serial ports, and dual DVI-D video outputs.
- Industrial Reliability: Wide operating temperature range (-25°C to +60°C), vibration resistance up to 1Grms (5–500Hz, 3 axes), and compliance with IEC60068-2-64.
- Compact Form Factor: 178 mm (W) × 360 mm (D) × 174 mm (H) rugged chassis with wall-mounting brackets.
- Power Input: 24 VDC input via 3-pin pluggable terminal block (IGN/GND/V+).
3. Technical Specifications
Processor Options:
- Intel® Xeon® E3-1275 v5 (8MB cache, 3.6/4.0GHz)
- Intel® Xeon® E3-1268L v5 (8MB cache, 2.4/3.4GHz)
- Intel® Core™ i7-6700 (8MB cache, 3.4/4.0GHz)
- Intel® Core™ i5-6500 (6MB cache, 3.2/3.6GHz)
- Intel® Core™ i7-6700TE (8MB cache, 2.4/3.4GHz)
- Intel® Core™ i5-6500TE (6MB cache, 2.3/3.3GHz)
Chipset: Intel® C236 Platform Controller Hub
Memory:
- Up to 32GB DDR4-2133 ECC/non-ECC SODIMM
- Two memory slots
Graphics:
- Independent GPU via PCIe x16 PEG port (supports up to 250W NVIDIA® GPU)
- Integrated Intel® HD Graphics 530/510 (depending on CPU)
- Dual DVI-D outputs supporting up to 1920×1200 resolution
Expansion Interfaces:
- 1 × PCIe x16 Gen3 slot (16 lanes) for GPU
- 2 × PCIe x8 Gen3 slots (4 lanes each)
- 1 × M.2 B-key socket for 3G/4G module with SIM socket
- 1 × full-size mini PCIe slot
- 1 × 2×6-pin 2.0mm header for remote on/off and status LED output
Storage:
- 3 × 2.5" SATA III HDD/SSD bays (2 easy-swap trays + 1 internal)
- RAID 0/1/5 support
I/O Interfaces:
- 2 × Gigabit Ethernet ports (Intel® I219-LM and I210-IT)
- 4 × USB 3.0 ports
- 2 × software-programmable RS-232/422/485 ports
- 1 × Speaker-out audio port
- 2 × DVI-D video outputs
Power Supply:
- Input Voltage: 24 VDC
- Connector: 3-pin pluggable terminal block (IGN/GND/V+)
Mechanical:
- Dimensions: 178 mm (W) × 360 mm (D) × 174 mm (H)
- Weight: 4.7 kg (including CPU, GPU, memory, and HDD)
- Mounting: Wall-mount with damping brackets
Environmental:
- Operating Temperature: -25°C to +60°C (with 100% CPU/GPU load, 35W TDP CPU)
- Storage Temperature: -40°C to +85°C
- Humidity: 10%–90%, non-condensing
- Vibration: 1Grms, 5–500Hz, 3 axes (with GPU, fan, and HDD)
- Compliance: IEC60068-2-64 vibration standard
EMC Compliance:
- CE/FCC Class A
- EN 55022, EN 55024, EN 55032
4. Functionality
The Nuvo-6108GC-IGN is designed as a high-performance embedded GPU computing platform for industrial and field-deployed applications. It combines CPU and GPU processing power to handle compute-intensive tasks such as:
- Artificial Intelligence (AI) and Deep Learning: Supports CUDA-based frameworks for neural network inference and training.
- Machine Vision and Inspection: Enables real-time image processing and pattern recognition in manufacturing environments.
- Autonomous Vehicles and Robotics: Built-in ignition control and rugged design make it ideal for mobile robotics, AGVs, and autonomous driving systems.
- Virtual Reality (VR) and Simulation: Provides GPU acceleration for immersive visualization and simulation workloads.
- Industrial Automation and Edge Computing: Acts as an edge AI node for data acquisition, analytics, and control in smart factories.
The system’s ignition control allows it to synchronize power states with vehicle ignition signals, ensuring safe startup and shutdown in automotive or mobile deployments. Its multiple PCIe slots enable flexible expansion for additional I/O, communication, or data acquisition cards.
5. Components & Accessories
Included Components:
- Nuvo-6108GC-IGN main system unit
- Wall-mounting brackets with vibration-damping design
- 3-pin pluggable terminal block for DC power input
- User documentation and quick installation guide
Optional Accessories:
- PA-280W-OW: 280W AC/DC power adapter (24V/11.67A), 16AWG cable, 100cm length, cord-end terminals for terminal block, operating temperature -30°C to +60°C.
- PA-480W-DIN: 480W AC/DC power adapter (DIN-rail mount), 24V/20A, 90–264VAC or 127–370VDC input, terminal block output, operating temperature -20°C to +70°C (Meanwell SDR-480-24).

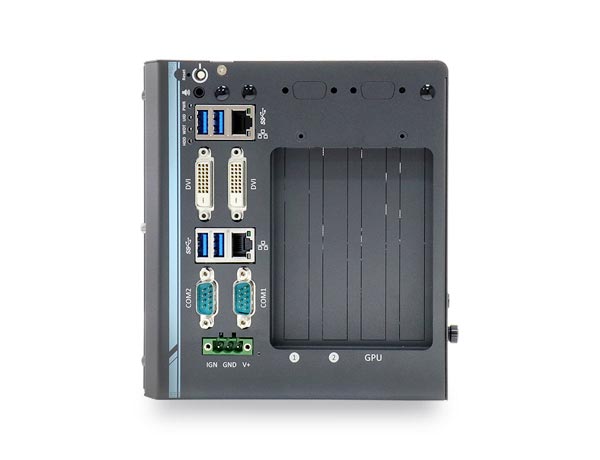

Connectors and Interfaces:
- 3-pin terminal block (IGN/GND/V+) for DC input
- Dual DVI-D connectors for video output
- RJ45 connectors for Ethernet ports
- USB Type-A connectors for USB 3.0 ports
- DB9 connectors for serial ports
- Audio jack for speaker output
6. Installation & Setup
Power Requirements:
- 24V DC regulated power supply required.
- For mobile or vehicular installations, ignition control line (IGN) can be connected to vehicle ignition signal for automatic power sequencing.
Mounting Options:
- Wall-mount installation using included damping brackets.
- Designed for vibration resistance in industrial or vehicular environments.
Configuration Steps:
1. Install CPU, memory, and GPU according to Neousys guidelines.
2. Connect storage drives to SATA III ports; configure RAID if required.
3. Connect DC power input via terminal block (ensure correct polarity).
4. Connect display, Ethernet, USB, and serial devices.
5. Configure BIOS and operating system settings for GPU and I/O operation.
6. For ignition control, configure delay and power-off timing parameters as per application needs.
Environmental Considerations:
- Ensure adequate airflow around the chassis for optimal thermal performance.
- For sub-zero operation, use wide-temperature HDD or SSD.
- Avoid exposure to direct moisture or corrosive environments.
7. Performance & Capabilities
Processing Performance:
- Supports up to 4-core/8-thread Intel® Xeon® or Core™ processors with high clock speeds (up to 4.0GHz).
- ECC memory support ensures data reliability in mission-critical applications.
GPU Performance:
- Accommodates a single 250W NVIDIA® GPU (e.g., GTX, RTX, or Tesla series depending on power and size constraints).
- Enables GPU-accelerated computing for AI inference, deep learning, and parallel processing workloads.
Thermal Efficiency:
- Patented cold air intake design ensures stable GPU operation at 60°C ambient temperature under full load.
- Optimized internal airflow and heat dissipation for continuous 24/7 operation.
Storage Performance:
- SATA III interface supports up to 6Gbps transfer rate per drive.
- RAID 0/1/5 configurations provide flexibility between performance and redundancy.
Network & I/O Throughput:
- Dual Intel® Gigabit Ethernet ports ensure reliable, low-latency network connectivity.
- USB 3.0 ports deliver up to 5Gbps data transfer for high-speed peripherals.
Limitations:
- GPU power limited to 250W maximum.
- Operating temperature range may degrade with higher TDP CPUs.
- Requires 24V DC power source; not compatible with AC input without external adapter.
8. Standards & Compliance
Regulatory Compliance:
- CE and FCC Class A certified for electromagnetic compatibility.
- Meets EN 55022, EN 55024, and EN 55032 standards for emissions and immunity.
- Vibration tested according to IEC60068-2-64 for industrial reliability.
Environmental Standards:
- Designed for extended temperature operation (-25°C to +60°C).
- Complies with industrial-grade environmental and mechanical durability standards.
Industry Standards:
- PCI Express Gen3 compliant expansion slots.
- SATA III (6Gbps) and USB 3.0 (5Gbps) interfaces.
- Supports ECC memory for data integrity in professional computing environments.
9. Additional Information
Warranty:
- Standard manufacturer warranty (duration subject to Neousys regional policy).
- Covers defects in materials and workmanship under normal operating conditions.
Support:
- Technical documentation, drivers, and BIOS updates available via Neousys Technology website.
- Engineering support for system integration, GPU compatibility, and thermal validation.
Maintenance:
- Periodic cleaning of air intake and exhaust vents recommended.
- Easy-swap drive trays simplify storage maintenance and replacement.
- Firmware and BIOS updates can be applied via USB or network interface.
Product Lifecycle & Updates:
- Long-term availability and revision control for industrial deployment.
- Backward compatibility within the Nuvo-6108GC series for consistent system integration.
Ordering Information:
- Model: Nuvo-6108GC-IGN
- Description: Industrial-grade GPU computing platform supporting up to 250W NVIDIA® GPU, Intel® Xeon® E3 v5 or 6th-Gen Core™ processor, built-in ignition control, and dual easy-swap drive trays.
Summary
The Neousys Nuvo-6108GC-IGN represents a robust, high-performance industrial GPU computing solution engineered for AI, machine vision, and autonomous systems. Combining Intel® Xeon® or Core™ CPUs with a 250W NVIDIA® GPU, it delivers exceptional parallel processing power in a compact, ruggedized chassis. Its patented thermal design ensures reliable operation in harsh environments, while built-in ignition control and wide-temperature tolerance make it ideal for mobile and field-deployed applications. With extensive I/O, flexible expansion, and industrial-grade reliability, the Nuvo-6108GC-IGN stands as a versatile platform for next-generation GPU-accelerated industrial computing.
Product Name: Nuvo-6108GC-IGN
Model/Series: Nuvo-6108GC Series – Industrial GPU Computing Platform
Article Number: Nuvo-6108GC-IGN
Manufacturer: Neousys Technology, Inc.
Product Type: Industrial-grade GPU computing platform with built-in ignition control
Primary Function: High-performance embedded computing system designed for GPU-accelerated industrial applications, supporting up to 250W NVIDIA® GPU cards and Intel® Xeon® E3 v5 or 6th-Gen Core™ processors.
The Nuvo-6108GC-IGN is part of Neousys’ flagship GPU computing series, engineered to deliver workstation-class performance in rugged, field-deployable environments. It integrates advanced thermal management, robust power design, and industrial-grade reliability to support demanding AI, machine vision, and autonomous system workloads.
2. Key Features
- GPU Computing Capability: Supports one high-end NVIDIA® GPU card up to 250W TDP, enabling CUDA®, AI inference, deep learning, and GPU-accelerated analytics.
- Processor Support: Compatible with Intel® Xeon® E3 v5 and 6th-Gen Core™ i7/i5 LGA1151 CPUs (Skylake architecture) using the Intel® C236 chipset.
- Memory: Up to 32GB DDR4-2133 ECC or non-ECC SODIMM memory across two slots, ensuring both performance and data integrity.
- Thermal Design: Patented cold air intake and optimized airflow architecture for stable GPU operation at ambient temperatures up to 60°C under full load.
- Ignition Control: Integrated ignition power control for in-vehicle and mobile applications, allowing synchronized system startup/shutdown with vehicle ignition.
- Storage Flexibility: Three 2.5" SATA III drive bays supporting RAID 0/1/5; two bays feature Neousys’ patented easy-swap trays for quick HDD/SSD replacement.
- Expansion Capability: One PCIe x16 Gen3 slot for GPU, plus two PCIe x8 Gen3 slots for additional high-bandwidth expansion cards.
- Connectivity: Dual Intel® Gigabit Ethernet ports (I219-LM and I210-IT), four USB 3.0 ports, two software-programmable RS-232/422/485 serial ports, and dual DVI-D video outputs.
- Industrial Reliability: Wide operating temperature range (-25°C to +60°C), vibration resistance up to 1Grms (5–500Hz, 3 axes), and compliance with IEC60068-2-64.
- Compact Form Factor: 178 mm (W) × 360 mm (D) × 174 mm (H) rugged chassis with wall-mounting brackets.
- Power Input: 24 VDC input via 3-pin pluggable terminal block (IGN/GND/V+).
3. Technical Specifications
Processor Options:
- Intel® Xeon® E3-1275 v5 (8MB cache, 3.6/4.0GHz)
- Intel® Xeon® E3-1268L v5 (8MB cache, 2.4/3.4GHz)
- Intel® Core™ i7-6700 (8MB cache, 3.4/4.0GHz)
- Intel® Core™ i5-6500 (6MB cache, 3.2/3.6GHz)
- Intel® Core™ i7-6700TE (8MB cache, 2.4/3.4GHz)
- Intel® Core™ i5-6500TE (6MB cache, 2.3/3.3GHz)
Chipset: Intel® C236 Platform Controller Hub
Memory:
- Up to 32GB DDR4-2133 ECC/non-ECC SODIMM
- Two memory slots
Graphics:
- Independent GPU via PCIe x16 PEG port (supports up to 250W NVIDIA® GPU)
- Integrated Intel® HD Graphics 530/510 (depending on CPU)
- Dual DVI-D outputs supporting up to 1920×1200 resolution
Expansion Interfaces:
- 1 × PCIe x16 Gen3 slot (16 lanes) for GPU
- 2 × PCIe x8 Gen3 slots (4 lanes each)
- 1 × M.2 B-key socket for 3G/4G module with SIM socket
- 1 × full-size mini PCIe slot
- 1 × 2×6-pin 2.0mm header for remote on/off and status LED output
Storage:
- 3 × 2.5" SATA III HDD/SSD bays (2 easy-swap trays + 1 internal)
- RAID 0/1/5 support
I/O Interfaces:
- 2 × Gigabit Ethernet ports (Intel® I219-LM and I210-IT)
- 4 × USB 3.0 ports
- 2 × software-programmable RS-232/422/485 ports
- 1 × Speaker-out audio port
- 2 × DVI-D video outputs
Power Supply:
- Input Voltage: 24 VDC
- Connector: 3-pin pluggable terminal block (IGN/GND/V+)
Mechanical:
- Dimensions: 178 mm (W) × 360 mm (D) × 174 mm (H)
- Weight: 4.7 kg (including CPU, GPU, memory, and HDD)
- Mounting: Wall-mount with damping brackets
Environmental:
- Operating Temperature: -25°C to +60°C (with 100% CPU/GPU load, 35W TDP CPU)
- Storage Temperature: -40°C to +85°C
- Humidity: 10%–90%, non-condensing
- Vibration: 1Grms, 5–500Hz, 3 axes (with GPU, fan, and HDD)
- Compliance: IEC60068-2-64 vibration standard
EMC Compliance:
- CE/FCC Class A
- EN 55022, EN 55024, EN 55032
4. Functionality
The Nuvo-6108GC-IGN is designed as a high-performance embedded GPU computing platform for industrial and field-deployed applications. It combines CPU and GPU processing power to handle compute-intensive tasks such as:
- Artificial Intelligence (AI) and Deep Learning: Supports CUDA-based frameworks for neural network inference and training.
- Machine Vision and Inspection: Enables real-time image processing and pattern recognition in manufacturing environments.
- Autonomous Vehicles and Robotics: Built-in ignition control and rugged design make it ideal for mobile robotics, AGVs, and autonomous driving systems.
- Virtual Reality (VR) and Simulation: Provides GPU acceleration for immersive visualization and simulation workloads.
- Industrial Automation and Edge Computing: Acts as an edge AI node for data acquisition, analytics, and control in smart factories.
The system’s ignition control allows it to synchronize power states with vehicle ignition signals, ensuring safe startup and shutdown in automotive or mobile deployments. Its multiple PCIe slots enable flexible expansion for additional I/O, communication, or data acquisition cards.
5. Components & Accessories
Included Components:
- Nuvo-6108GC-IGN main system unit
- Wall-mounting brackets with vibration-damping design
- 3-pin pluggable terminal block for DC power input
- User documentation and quick installation guide
Optional Accessories:
- PA-280W-OW: 280W AC/DC power adapter (24V/11.67A), 16AWG cable, 100cm length, cord-end terminals for terminal block, operating temperature -30°C to +60°C.
- PA-480W-DIN: 480W AC/DC power adapter (DIN-rail mount), 24V/20A, 90–264VAC or 127–370VDC input, terminal block output, operating temperature -20°C to +70°C (Meanwell SDR-480-24).
Connectors and Interfaces:
- 3-pin terminal block (IGN/GND/V+) for DC input
- Dual DVI-D connectors for video output
- RJ45 connectors for Ethernet ports
- USB Type-A connectors for USB 3.0 ports
- DB9 connectors for serial ports
- Audio jack for speaker output
6. Installation & Setup
Power Requirements:
- 24V DC regulated power supply required.
- For mobile or vehicular installations, ignition control line (IGN) can be connected to vehicle ignition signal for automatic power sequencing.
Mounting Options:
- Wall-mount installation using included damping brackets.
- Designed for vibration resistance in industrial or vehicular environments.
Configuration Steps:
1. Install CPU, memory, and GPU according to Neousys guidelines.
2. Connect storage drives to SATA III ports; configure RAID if required.
3. Connect DC power input via terminal block (ensure correct polarity).
4. Connect display, Ethernet, USB, and serial devices.
5. Configure BIOS and operating system settings for GPU and I/O operation.
6. For ignition control, configure delay and power-off timing parameters as per application needs.
Environmental Considerations:
- Ensure adequate airflow around the chassis for optimal thermal performance.
- For sub-zero operation, use wide-temperature HDD or SSD.
- Avoid exposure to direct moisture or corrosive environments.
7. Performance & Capabilities
Processing Performance:
- Supports up to 4-core/8-thread Intel® Xeon® or Core™ processors with high clock speeds (up to 4.0GHz).
- ECC memory support ensures data reliability in mission-critical applications.
GPU Performance:
- Accommodates a single 250W NVIDIA® GPU (e.g., GTX, RTX, or Tesla series depending on power and size constraints).
- Enables GPU-accelerated computing for AI inference, deep learning, and parallel processing workloads.
Thermal Efficiency:
- Patented cold air intake design ensures stable GPU operation at 60°C ambient temperature under full load.
- Optimized internal airflow and heat dissipation for continuous 24/7 operation.
Storage Performance:
- SATA III interface supports up to 6Gbps transfer rate per drive.
- RAID 0/1/5 configurations provide flexibility between performance and redundancy.
Network & I/O Throughput:
- Dual Intel® Gigabit Ethernet ports ensure reliable, low-latency network connectivity.
- USB 3.0 ports deliver up to 5Gbps data transfer for high-speed peripherals.
Limitations:
- GPU power limited to 250W maximum.
- Operating temperature range may degrade with higher TDP CPUs.
- Requires 24V DC power source; not compatible with AC input without external adapter.
8. Standards & Compliance
Regulatory Compliance:
- CE and FCC Class A certified for electromagnetic compatibility.
- Meets EN 55022, EN 55024, and EN 55032 standards for emissions and immunity.
- Vibration tested according to IEC60068-2-64 for industrial reliability.
Environmental Standards:
- Designed for extended temperature operation (-25°C to +60°C).
- Complies with industrial-grade environmental and mechanical durability standards.
Industry Standards:
- PCI Express Gen3 compliant expansion slots.
- SATA III (6Gbps) and USB 3.0 (5Gbps) interfaces.
- Supports ECC memory for data integrity in professional computing environments.
9. Additional Information
Warranty:
- Standard manufacturer warranty (duration subject to Neousys regional policy).
- Covers defects in materials and workmanship under normal operating conditions.
Support:
- Technical documentation, drivers, and BIOS updates available via Neousys Technology website.
- Engineering support for system integration, GPU compatibility, and thermal validation.
Maintenance:
- Periodic cleaning of air intake and exhaust vents recommended.
- Easy-swap drive trays simplify storage maintenance and replacement.
- Firmware and BIOS updates can be applied via USB or network interface.
Product Lifecycle & Updates:
- Long-term availability and revision control for industrial deployment.
- Backward compatibility within the Nuvo-6108GC series for consistent system integration.
Ordering Information:
- Model: Nuvo-6108GC-IGN
- Description: Industrial-grade GPU computing platform supporting up to 250W NVIDIA® GPU, Intel® Xeon® E3 v5 or 6th-Gen Core™ processor, built-in ignition control, and dual easy-swap drive trays.
Summary
The Neousys Nuvo-6108GC-IGN represents a robust, high-performance industrial GPU computing solution engineered for AI, machine vision, and autonomous systems. Combining Intel® Xeon® or Core™ CPUs with a 250W NVIDIA® GPU, it delivers exceptional parallel processing power in a compact, ruggedized chassis. Its patented thermal design ensures reliable operation in harsh environments, while built-in ignition control and wide-temperature tolerance make it ideal for mobile and field-deployed applications. With extensive I/O, flexible expansion, and industrial-grade reliability, the Nuvo-6108GC-IGN stands as a versatile platform for next-generation GPU-accelerated industrial computing.
-
Nuvo-6108GC-IGN_datasheet.pdf
PDF Catalog
- PA-280W-OW - 280W AC/DC power adapter 24V/11.67A 18AWG
- PA-480W-DIN - 480W AC/DC power adapter 24V/20A
