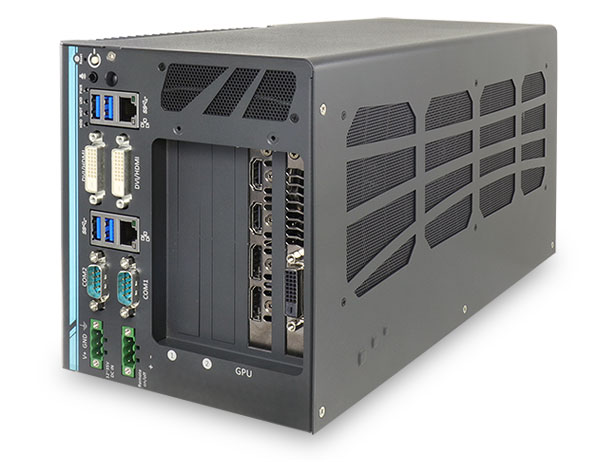

Comprehensive Product Summary – Nuvo-6108GC-TI Industrial GPU Computing Platform
### 1. Product Overview
Product Name: Nuvo-6108GC-TI
Model/Series: Nuvo-6108GC Series
Article Number: Nuvo-6108GC-TI
Manufacturer: Neousys Technology Inc.
Product Type: Industrial-grade GPU computing platform supporting 250W NVIDIA® GPU and Intel® Xeon® E3 v5 or 6th-Gen Core™ processors
Intended Use: High-performance embedded computing for AI, machine vision, autonomous driving, VR, and GPU-accelerated industrial applications
The Nuvo-6108GC-TI is an advanced industrial-grade GPU computer engineered to integrate high-end NVIDIA® GeForce® GTX 1080 Ti graphics with Intel® Xeon® E3 v5 or 6th-generation Core™ processors. It is designed for rugged environments requiring reliable GPU performance, combining high computational throughput with industrial durability and extended temperature operation.
### 2. Key Features
- High-Performance GPU Support:
Supports up to 250W NVIDIA® GeForce® GTX 1080 Ti GPU via PCIe x16 Gen3 slot, enabling CUDA-based parallel computing, AI inference, and deep learning workloads.
- Powerful CPU Options:
Compatible with Intel® Xeon® E3 v5 and 6th-Gen Core™ i7/i5 LGA1151 CPUs (Skylake architecture) using Intel® C236 chipset.
- ECC/Non-ECC Memory Support:
Dual 260-pin DDR4-2133 SODIMM slots supporting up to 32GB ECC or non-ECC memory for data integrity and performance.
- Advanced Thermal Design:

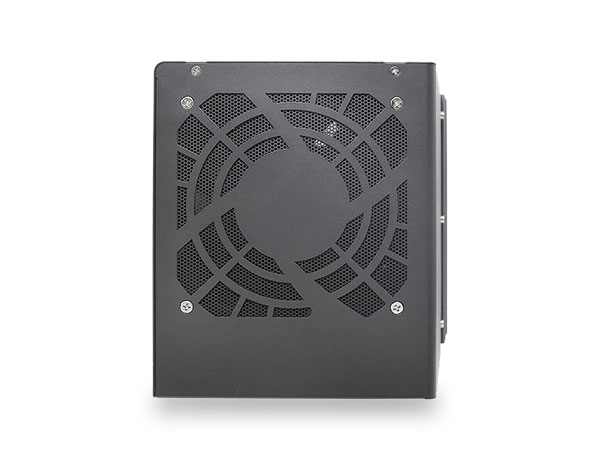

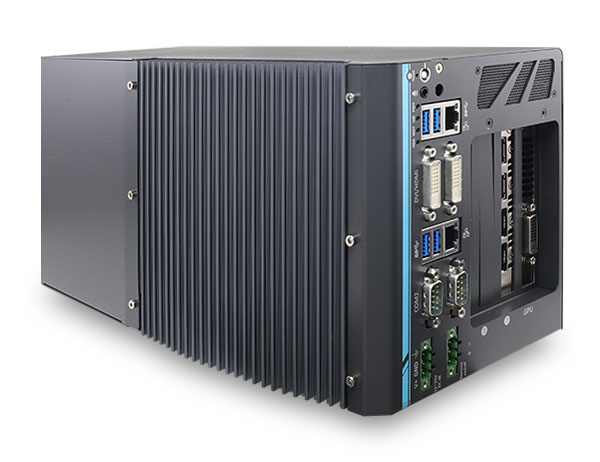

Patented cold air intake system ensures stable GPU operation at up to 60°C under full load, maintaining reliability in harsh industrial environments.
- Comprehensive I/O Connectivity:
Dual Intel® Gigabit Ethernet ports (I219-LM and I210-IT), four USB 3.0 ports, two software-programmable RS-232/422/485 ports, dual DVI-D video outputs, and audio output.
- Flexible Expansion:
One PCIe x16 Gen3 slot for GPU, two PCIe x8 Gen3 slots for additional high-bandwidth cards, one M.2 B-key socket with SIM slot for 3G/4G modules, and one full-size mini-PCIe slot.
- Industrial Reliability:
Operating temperature range of -25°C to +60°C, vibration resistance up to 1Grms (5–500Hz, 3 axes), and CE/FCC Class A compliance.
- Storage Flexibility:
Four SATA III ports supporting 2.5” HDD/SSD with RAID 0/1/5/10 configurations for performance and redundancy.
- Rugged Mechanical Design:
Compact aluminum chassis (164 x 360 x 174 mm), wall-mountable with damping brackets, and anti-vibration grommets for in-vehicle or field deployment.
### 3. Technical Specifications
Processor Support:
- Intel® Xeon® E3-1275 v5 (8M Cache, 3.6/4.0 GHz)
- Intel® Xeon® E3-1268L v5 (8M Cache, 2.4/3.4 GHz)
- Intel® Core™ i7-6700 (8M Cache, 3.4/4.0 GHz)
- Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz)
- Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz)
- Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz)
Chipset: Intel® C236 Platform Controller Hub
Graphics: Independent GPU via x16 PEG port or integrated Intel® HD Graphics 530
Memory: Up to 32GB DDR4-2133 ECC/non-ECC SODIMM (2 slots)
Storage:
- 4x SATA III ports for 2.5” HDD/SSD
- RAID 0/1/5/10 support
Expansion Interfaces:
- 1x PCIe x16 Gen3 (16 lanes)
- 2x PCIe x8 Gen3 (4 lanes each)
- 1x M.2 B-key socket with SIM slot
- 1x full-size mini-PCIe slot
I/O Interfaces:
- 2x Gigabit Ethernet (Intel® I219-LM + I210-IT)
- 4x USB 3.0 ports
- 2x RS-232/422/485 (software-programmable)
- 2x DVI-D video outputs (1920x1200 max)
- 1x 3.5mm speaker-out
Power Supply:
- 24V DC input via 3-pin terminal block
- Optional 280W or 480W AC/DC adapters available
Mechanical:
- Dimensions: 164 mm (W) x 360 mm (D) x 174 mm (H)
- Weight: Approx. 4.7 kg (with CPU, GPU, memory, HDD)
- Mounting: Wall-mount with damping brackets
Environmental:
- Operating Temperature: -25°C to +60°C (100% CPU/GPU load)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: 1Grms, 5–500Hz, 3 axes (IEC60068-2-64)
- EMC: CE/FCC Class A (EN 55022, EN 55024, EN 55032)
### 4. Functionality
The Nuvo-6108GC-TI functions as a high-performance embedded GPU computing node. It integrates CPU and GPU resources for parallel processing tasks such as AI inference, deep learning, image recognition, and real-time data analytics.
Use Cases:
- Artificial Intelligence and Machine Learning inference engines
- Autonomous vehicle computing and sensor fusion
- Industrial automation and machine vision
- Virtual reality and simulation systems
- Edge computing for data-intensive industrial IoT applications
Compatibility:
Supports Windows 8/10 (x64), CentOS 7, Debian 8.7, Fedora 24, OpenSUSE 42.1, Ubuntu 14.04/16.04 LTS. Linux users may need to manually install Intel® graphics and I210 GbE drivers.
### 5. Components & Accessories
Included Items:
- Nuvo-6108GC-TI main system
- SATA HDD/SSD brackets and trays
- Damping brackets and anti-vibration grommets
- 3-pin power terminal block
- Screw pack
- Neousys Drivers & Utilities DVD
Optional Accessories:
- PA-280W-OW: 280W AC/DC power adapter (24V/11.67A, -30°C to +60°C)
- PA-480W-DIN: 480W DIN-rail mount AC/DC adapter (24V/20A, -20°C to +70°C)
Connectors:
- 3-pin DC input terminal block
- 3-pin remote on/off control terminal
- 2x6-pin header for remote LED and power control
- PCIe 8-pin and 6-pin 12V GPU power connectors
### 6. Installation & Setup
Requirements:
- 24V DC power source
- Compatible Intel® LGA1151 CPU and DDR4 SODIMM memory
- Supported GPU (up to 250W TDP)
Mounting Options:
- Wall-mount with damping brackets
- Anti-vibration grommets for in-vehicle or mobile installations
Configuration Steps:
1. Install CPU and memory modules following ESD precautions.
2. Mount GPU in PCIe x16 slot and connect 8-pin/6-pin power.
3. Install storage drives to SATA ports and configure RAID if required.
4. Connect power, network, and peripheral cables.
5. Configure BIOS settings for COM ports, SATA mode (AHCI/RAID), TPM, and boot order.
6. Install operating system and drivers from the provided DVD.
BIOS Features:
- COM port mode selection (RS-232/422/485)
- RAID configuration utility (Ctrl+I)
- TPM 2.0 enablement
- Wake-on-LAN and Auto Power Recovery
- Watchdog Timer configuration for system reliability
### 7. Performance & Capabilities
Processing Power:
Supports up to Intel® Xeon® E3-1275 v5 (4 cores, 8 threads, 3.6/4.0 GHz) with ECC memory for industrial-grade reliability.
GPU Performance:
Accommodates NVIDIA® GeForce® GTX 1080 Ti (250W TDP) for CUDA, TensorFlow, and GPU-accelerated workloads.
Memory Bandwidth:
DDR4-2133 dual-channel memory up to 32GB ensures high data throughput for compute-intensive tasks.
Storage Performance:
Four SATA III ports with RAID 0/1/5/10 provide flexible balance between speed and redundancy.
Network Throughput:
Dual Intel® Gigabit Ethernet controllers with independent PCIe lanes ensure low-latency, high-bandwidth communication.
Thermal Efficiency:
Patented cold air intake design maintains GPU stability at 60°C under full load, ensuring sustained performance in industrial environments.
Limitations:
- Maximum GPU TDP: 250W
- CPU TDP recommended ≤65W for optimal thermal performance
- Requires 24V DC regulated power input
### 8. Standards & Compliance
Certifications:
- CE/FCC Class A (EN 55022, EN 55024, EN 55032)
- IEC60068-2-64 vibration compliance
- RoHS compliant
Regulatory Compliance:
- FCC Part 15 Class A digital device
- CE marking for European Union conformity
Industry Standards:
- PCI Express Gen3
- SATA III (6Gb/s)
- DDR4-2133 memory standard
- Intel® Active Management Technology (AMT) support
- TPM 2.0 hardware security module
### 9. Additional Information
Warranty & Support:
- Standard Neousys warranty policy applies (contact manufacturer for details).
- Firmware, BIOS, and driver updates available via Neousys website.
- Technical support available through global offices in Taiwan, USA, and China.
Maintenance:
- Only qualified personnel should service the system.
- Disconnect power before servicing.
- Use anti-static precautions when handling internal components.
Software & Driver Updates:
- Automatic driver installation via included DVD.
- Manual installation supported for chipset, graphics, audio, LAN, and ME drivers.
- Watchdog Timer and DIO driver package (WDT_DIO_Setup_v2.2.6 or later) required for watchdog functionality.
Operating System Support:
- Windows 8/10 (x64)
- Linux distributions (CentOS, Debian, Fedora, OpenSUSE, Ubuntu)
Contact Information:
- Neousys Technology Inc. (HQ):
15F, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, Taiwan
Tel: +886-2-2223-6182 | Email: sales@neousys-tech.com
- Neousys Technology America Inc.:
3384 Commercial Avenue, Northbrook, IL 60062, USA
Tel: +1-847-656-3298
- Neousys Technology (China) Ltd.:
Room 612, Building 32, Guiping Road 680, Shanghai
Tel: +86-21-61155366
### Summary
The Nuvo-6108GC-TI represents a milestone in industrial GPU computing, combining workstation-class performance with ruggedized design. Its ability to host a 250W NVIDIA® GPU alongside Intel® Xeon® or Core™ processors makes it ideal for AI, deep learning, and real-time analytics at the edge. With robust thermal management, wide temperature tolerance, and extensive I/O, it delivers reliable performance in demanding industrial, automotive, and field-deployed environments.
This platform is a future-ready solution for organizations seeking to deploy GPU-accelerated computing in mission-critical, high-reliability applications.
### 1. Product Overview
Product Name: Nuvo-6108GC-TI
Model/Series: Nuvo-6108GC Series
Article Number: Nuvo-6108GC-TI
Manufacturer: Neousys Technology Inc.
Product Type: Industrial-grade GPU computing platform supporting 250W NVIDIA® GPU and Intel® Xeon® E3 v5 or 6th-Gen Core™ processors
Intended Use: High-performance embedded computing for AI, machine vision, autonomous driving, VR, and GPU-accelerated industrial applications
The Nuvo-6108GC-TI is an advanced industrial-grade GPU computer engineered to integrate high-end NVIDIA® GeForce® GTX 1080 Ti graphics with Intel® Xeon® E3 v5 or 6th-generation Core™ processors. It is designed for rugged environments requiring reliable GPU performance, combining high computational throughput with industrial durability and extended temperature operation.
### 2. Key Features
- High-Performance GPU Support:
Supports up to 250W NVIDIA® GeForce® GTX 1080 Ti GPU via PCIe x16 Gen3 slot, enabling CUDA-based parallel computing, AI inference, and deep learning workloads.
- Powerful CPU Options:
Compatible with Intel® Xeon® E3 v5 and 6th-Gen Core™ i7/i5 LGA1151 CPUs (Skylake architecture) using Intel® C236 chipset.
- ECC/Non-ECC Memory Support:
Dual 260-pin DDR4-2133 SODIMM slots supporting up to 32GB ECC or non-ECC memory for data integrity and performance.
- Advanced Thermal Design:
Patented cold air intake system ensures stable GPU operation at up to 60°C under full load, maintaining reliability in harsh industrial environments.
- Comprehensive I/O Connectivity:
Dual Intel® Gigabit Ethernet ports (I219-LM and I210-IT), four USB 3.0 ports, two software-programmable RS-232/422/485 ports, dual DVI-D video outputs, and audio output.
- Flexible Expansion:
One PCIe x16 Gen3 slot for GPU, two PCIe x8 Gen3 slots for additional high-bandwidth cards, one M.2 B-key socket with SIM slot for 3G/4G modules, and one full-size mini-PCIe slot.
- Industrial Reliability:
Operating temperature range of -25°C to +60°C, vibration resistance up to 1Grms (5–500Hz, 3 axes), and CE/FCC Class A compliance.
- Storage Flexibility:
Four SATA III ports supporting 2.5” HDD/SSD with RAID 0/1/5/10 configurations for performance and redundancy.
- Rugged Mechanical Design:
Compact aluminum chassis (164 x 360 x 174 mm), wall-mountable with damping brackets, and anti-vibration grommets for in-vehicle or field deployment.
### 3. Technical Specifications
Processor Support:
- Intel® Xeon® E3-1275 v5 (8M Cache, 3.6/4.0 GHz)
- Intel® Xeon® E3-1268L v5 (8M Cache, 2.4/3.4 GHz)
- Intel® Core™ i7-6700 (8M Cache, 3.4/4.0 GHz)
- Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz)
- Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz)
- Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz)
Chipset: Intel® C236 Platform Controller Hub
Graphics: Independent GPU via x16 PEG port or integrated Intel® HD Graphics 530
Memory: Up to 32GB DDR4-2133 ECC/non-ECC SODIMM (2 slots)
Storage:
- 4x SATA III ports for 2.5” HDD/SSD
- RAID 0/1/5/10 support
Expansion Interfaces:
- 1x PCIe x16 Gen3 (16 lanes)
- 2x PCIe x8 Gen3 (4 lanes each)
- 1x M.2 B-key socket with SIM slot
- 1x full-size mini-PCIe slot
I/O Interfaces:
- 2x Gigabit Ethernet (Intel® I219-LM + I210-IT)
- 4x USB 3.0 ports
- 2x RS-232/422/485 (software-programmable)
- 2x DVI-D video outputs (1920x1200 max)
- 1x 3.5mm speaker-out
Power Supply:
- 24V DC input via 3-pin terminal block
- Optional 280W or 480W AC/DC adapters available
Mechanical:
- Dimensions: 164 mm (W) x 360 mm (D) x 174 mm (H)
- Weight: Approx. 4.7 kg (with CPU, GPU, memory, HDD)
- Mounting: Wall-mount with damping brackets
Environmental:
- Operating Temperature: -25°C to +60°C (100% CPU/GPU load)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: 1Grms, 5–500Hz, 3 axes (IEC60068-2-64)
- EMC: CE/FCC Class A (EN 55022, EN 55024, EN 55032)
### 4. Functionality
The Nuvo-6108GC-TI functions as a high-performance embedded GPU computing node. It integrates CPU and GPU resources for parallel processing tasks such as AI inference, deep learning, image recognition, and real-time data analytics.
Use Cases:
- Artificial Intelligence and Machine Learning inference engines
- Autonomous vehicle computing and sensor fusion
- Industrial automation and machine vision
- Virtual reality and simulation systems
- Edge computing for data-intensive industrial IoT applications
Compatibility:
Supports Windows 8/10 (x64), CentOS 7, Debian 8.7, Fedora 24, OpenSUSE 42.1, Ubuntu 14.04/16.04 LTS. Linux users may need to manually install Intel® graphics and I210 GbE drivers.
### 5. Components & Accessories
Included Items:
- Nuvo-6108GC-TI main system
- SATA HDD/SSD brackets and trays
- Damping brackets and anti-vibration grommets
- 3-pin power terminal block
- Screw pack
- Neousys Drivers & Utilities DVD
Optional Accessories:
- PA-280W-OW: 280W AC/DC power adapter (24V/11.67A, -30°C to +60°C)
- PA-480W-DIN: 480W DIN-rail mount AC/DC adapter (24V/20A, -20°C to +70°C)
Connectors:
- 3-pin DC input terminal block
- 3-pin remote on/off control terminal
- 2x6-pin header for remote LED and power control
- PCIe 8-pin and 6-pin 12V GPU power connectors
### 6. Installation & Setup
Requirements:
- 24V DC power source
- Compatible Intel® LGA1151 CPU and DDR4 SODIMM memory
- Supported GPU (up to 250W TDP)
Mounting Options:
- Wall-mount with damping brackets
- Anti-vibration grommets for in-vehicle or mobile installations
Configuration Steps:
1. Install CPU and memory modules following ESD precautions.
2. Mount GPU in PCIe x16 slot and connect 8-pin/6-pin power.
3. Install storage drives to SATA ports and configure RAID if required.
4. Connect power, network, and peripheral cables.
5. Configure BIOS settings for COM ports, SATA mode (AHCI/RAID), TPM, and boot order.
6. Install operating system and drivers from the provided DVD.
BIOS Features:
- COM port mode selection (RS-232/422/485)
- RAID configuration utility (Ctrl+I)
- TPM 2.0 enablement
- Wake-on-LAN and Auto Power Recovery
- Watchdog Timer configuration for system reliability
### 7. Performance & Capabilities
Processing Power:
Supports up to Intel® Xeon® E3-1275 v5 (4 cores, 8 threads, 3.6/4.0 GHz) with ECC memory for industrial-grade reliability.
GPU Performance:
Accommodates NVIDIA® GeForce® GTX 1080 Ti (250W TDP) for CUDA, TensorFlow, and GPU-accelerated workloads.
Memory Bandwidth:
DDR4-2133 dual-channel memory up to 32GB ensures high data throughput for compute-intensive tasks.
Storage Performance:
Four SATA III ports with RAID 0/1/5/10 provide flexible balance between speed and redundancy.
Network Throughput:
Dual Intel® Gigabit Ethernet controllers with independent PCIe lanes ensure low-latency, high-bandwidth communication.
Thermal Efficiency:
Patented cold air intake design maintains GPU stability at 60°C under full load, ensuring sustained performance in industrial environments.
Limitations:
- Maximum GPU TDP: 250W
- CPU TDP recommended ≤65W for optimal thermal performance
- Requires 24V DC regulated power input
### 8. Standards & Compliance
Certifications:
- CE/FCC Class A (EN 55022, EN 55024, EN 55032)
- IEC60068-2-64 vibration compliance
- RoHS compliant
Regulatory Compliance:
- FCC Part 15 Class A digital device
- CE marking for European Union conformity
Industry Standards:
- PCI Express Gen3
- SATA III (6Gb/s)
- DDR4-2133 memory standard
- Intel® Active Management Technology (AMT) support
- TPM 2.0 hardware security module
### 9. Additional Information
Warranty & Support:
- Standard Neousys warranty policy applies (contact manufacturer for details).
- Firmware, BIOS, and driver updates available via Neousys website.
- Technical support available through global offices in Taiwan, USA, and China.
Maintenance:
- Only qualified personnel should service the system.
- Disconnect power before servicing.
- Use anti-static precautions when handling internal components.
Software & Driver Updates:
- Automatic driver installation via included DVD.
- Manual installation supported for chipset, graphics, audio, LAN, and ME drivers.
- Watchdog Timer and DIO driver package (WDT_DIO_Setup_v2.2.6 or later) required for watchdog functionality.
Operating System Support:
- Windows 8/10 (x64)
- Linux distributions (CentOS, Debian, Fedora, OpenSUSE, Ubuntu)
Contact Information:
- Neousys Technology Inc. (HQ):
15F, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, Taiwan
Tel: +886-2-2223-6182 | Email: sales@neousys-tech.com
- Neousys Technology America Inc.:
3384 Commercial Avenue, Northbrook, IL 60062, USA
Tel: +1-847-656-3298
- Neousys Technology (China) Ltd.:
Room 612, Building 32, Guiping Road 680, Shanghai
Tel: +86-21-61155366
### Summary
The Nuvo-6108GC-TI represents a milestone in industrial GPU computing, combining workstation-class performance with ruggedized design. Its ability to host a 250W NVIDIA® GPU alongside Intel® Xeon® or Core™ processors makes it ideal for AI, deep learning, and real-time analytics at the edge. With robust thermal management, wide temperature tolerance, and extensive I/O, it delivers reliable performance in demanding industrial, automotive, and field-deployed environments.
This platform is a future-ready solution for organizations seeking to deploy GPU-accelerated computing in mission-critical, high-reliability applications.
-
Nuvo-6108GC_Datasheet.pdf
PDF Catalog
- PA-280W-OW - 280W AC/DC power adapter 24V/11.67A 18AWG
- PA-480W-DIN - 480W AC/DC power adapter 24V/20A
