Comprehensive Product Summary: OPM‑17T 17” Open Frame LCD Monitor with Touchscreen

---

### 1. Product Overview

Product Name: OPM‑17T
Model: OPM‑17T
Series: OPM‑17 Series Open Frame LCD Displays
Article Number: OPM‑17T
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
Product Category: Industrial Open Frame LCD Monitor with Resistive Touchscreen

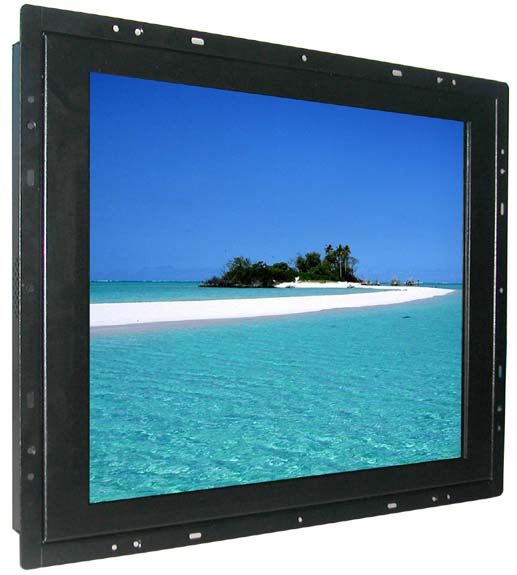

The Acceed OPM‑17T is a 17‑inch open‑frame LCD display designed for industrial, kiosk, and embedded system applications requiring a robust, panel‑mountable display solution. It combines a high‑resolution SXGA TFT LCD panel with an analog resistive touchscreen interface, housed in a durable steel chassis suitable for integration into custom enclosures or control panels. The OPM‑17T is part of Acceed’s OPM‑17 series, which also includes the non‑touch OPM‑17 model.

---

### 2. Key Features

- Display Size: 17‑inch TFT active matrix LCD panel
- Resolution: SXGA 1280 × 1024 pixels
- Touchscreen: Analog resistive type (optional on OPM‑17T)
- Brightness: 260 cd/m² typical luminance
- Contrast Ratio: 450 : 1 for clear image reproduction
- Viewing Angle: ±70° horizontal / ±70° vertical
- Color Depth: 16.2 million colors (262 K effective displayable colors)
- Response Time: 16 ms typical
- Backlight Lifetime: 50,000 hours MTBF
- Construction: Heavy‑duty steel chassis with open‑frame design and strengthened glass
- Mounting: Panel‑mount configuration with VESA 75 mm / 100 mm standard screw holes
- Input Signal: VGA analog input via 15‑pin D‑SUB connector; optional AV input
- Control Interface: Rear‑panel OSD (On‑Screen Display) controls for brightness, contrast, color, and geometry adjustments
- Audio: Integrated dual 2 W speakers
- Power Supply: External 36 W DC 12 V power adapter (included)
- Touch Controller Interface: RS‑232 standard, USB optional
- Operating System Support: MS‑DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, Windows XP
- Environmental Robustness: Designed for industrial environments with vibration and shock resistance

The OPM‑17T’s open‑frame structure allows seamless integration into kiosks, industrial control panels, and embedded systems where a front bezel is not required.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Display Type | 17” TFT Active Matrix LCD |
| Native Resolution | 1280 × 1024 (SXGA) |
| Pixel Pitch | 0.264 mm × 0.264 mm |
| Brightness (Luminance) | 260 cd/m² |
| Contrast Ratio | 450 : 1 |
| Color Support | 16.2 million colors |
| Response Time | 16 ms |
| Viewing Angle (H/V) | ±70° horizontal / ±70° vertical |
| Backlight Lifetime (MTBF) | 50,000 hours |
| Touchscreen Type | Analog resistive (4‑wire) |
| Touch Resolution | Continuous |
| Touch Light Transmission | ≥ 79 % |
| Touch Controller Interface | RS‑232 (standard) or USB (optional) |
| Touch Power Consumption | < 5 V @ 100 mA |
| Touch Lifetime | 100 million touches |
| Audio Output | 2 × 2 W internal speakers |
| Signal Input | VGA (15‑pin D‑SUB), optional AV input |
| OSD Controls | Brightness, Contrast, H/V Position, Color, Phase, Clock, Management |
| Power Supply | External 36 W DC 12 V adapter |
| Power Consumption | Approx. 36 W (typical) |
| Dimensions (W × H × D) | 428.6 × 342.6 × 50 mm |
| Front Frame Dimensions | Approx. 440 × 343 mm (open frame) |
| Mounting Options | Panel mount, VESA 75 mm / 100 mm |
| Chassis Material | Heavy‑duty steel |
| Protective Glass | Strengthened front glass |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | −20 °C to 60 °C |
| Storage Humidity | 10 % – 95 % @ 40 °C, non‑condensing |
| Vibration Resistance | 10 – 150 Hz, 0.15 mm amplitude, 10 cycles @ 1 G |
| Shock Resistance | 30 G peak acceleration (11 ms duration) |
| MTBF (System) | 50,000 hours |
| Weight | Approx. 5–6 kg (typical, depending on configuration) |

---

### 4. Functionality

The OPM‑17T operates as a high‑performance display module for embedded and industrial systems. Its open‑frame design allows integrators to mount the display directly into custom housings, kiosks, or control panels without a front bezel. The resistive touchscreen provides precise input recognition, suitable for environments where gloves or styluses are used.

Display Operation:
The monitor receives analog video signals through its VGA (DB‑15) connector. The internal scaler processes the input to match the native SXGA resolution, ensuring sharp and accurate image reproduction. The On‑Screen Display (OSD) menu, accessible via rear‑panel buttons, allows users to adjust brightness, contrast, color balance, and image geometry.

Touchscreen Functionality:
The analog resistive touchscreen detects pressure from a finger, stylus, or gloved hand. The touch controller communicates via RS‑232 or optional USB interface, translating touch coordinates into cursor movements or control inputs. The driver software supports multiple legacy Windows operating systems, ensuring compatibility with industrial control software and legacy systems.

Use Cases and Applications:
- Industrial automation and control panels
- Kiosk and point‑of‑sale (POS) terminals
- Human‑machine interface (HMI) systems
- Embedded computing platforms
- Digital signage and information terminals
- Test and measurement equipment displays
- Transportation and logistics control systems

Compatibility:
The OPM‑17T supports standard VGA analog input, making it compatible with a wide range of PCs, embedded controllers, and industrial computers. The resistive touchscreen interface supports Windows 98/NT/2000/ME/XP and MS‑DOS environments, ideal for legacy system integration.

---

### 5. Components & Accessories

Included Items:
- OPM‑17T 17” TFT LCD open‑frame monitor with resistive touchscreen
- External 36 W DC 12 V power adapter
- RS‑232 touchscreen controller (integrated)
- Standard VGA (DB‑15) signal cable
- User manual and driver CD (for touchscreen interface)

Optional Accessories:
- USB touchscreen controller interface (factory option)
- AV input module (optional video input)
- Mounting brackets or panel‑mount hardware kits
- Extended‑temperature or high‑brightness panel variants (on request)

Connectors:
- Video Input: 15‑pin D‑SUB (VGA)
- Touch Interface: RS‑232 (DB‑9) or USB (optional)
- Power Input: DC 12 V barrel connector
- Audio Output: Internal 2 × 2 W speakers (no external audio jack)

---

### 6. Installation & Setup

Mounting Requirements:
The OPM‑17T is designed for panel‑mount installation. The open‑frame structure allows the display to be secured from the rear using standard VESA 75 mm or 100 mm mounting holes. The strengthened glass front provides protection against mechanical impact while maintaining optical clarity.

Installation Steps:
1. Prepare the mounting cutout according to the display’s front dimensions (approx. 440 × 343 mm).
2. Secure the display chassis using VESA‑compatible screws or panel‑mount brackets.
3. Connect the VGA signal cable to the host system’s video output.
4. Connect the RS‑232 or USB cable for touchscreen communication.
5. Attach the DC 12 V power adapter to the power input connector.
6. Power on the system and adjust display parameters using the rear OSD controls.
7. Install the touchscreen driver software on the host PC (if applicable).

Configuration:
The OSD menu provides control over brightness, contrast, horizontal/vertical position, color temperature, phase, and clock settings. Touchscreen calibration is performed through the driver software once the interface is recognized by the operating system.

Environmental Considerations:
Ensure adequate ventilation within the enclosure to maintain operating temperatures between 0 °C and 45 °C. Avoid exposure to direct sunlight or high humidity environments beyond the specified limits.

---

### 7. Performance & Capabilities

Display Performance:
The OPM‑17T delivers crisp, high‑contrast images with a native SXGA resolution of 1280 × 1024 pixels. The 260 cd/m² brightness and 450 : 1 contrast ratio provide sufficient clarity for indoor industrial environments. The 16 ms response time ensures smooth motion rendering for dynamic graphical interfaces.

Touch Responsiveness:
The analog resistive touchscreen offers reliable and accurate touch detection, even when operated with gloves or styluses. With a rated lifetime of 100 million actuations, it is suitable for continuous industrial use.

Power Efficiency:
Operating from a 12 V DC supply, the display consumes approximately 36 W, making it energy‑efficient for embedded applications.

Durability:
The heavy‑duty steel chassis and strengthened glass front ensure mechanical stability and resistance to vibration and shock. The display is rated to withstand 30 G shock and 1 G vibration, meeting industrial reliability requirements.

Limitations:
- The display is not sunlight‑readable; outdoor use requires shading or enclosure.
- Operating temperature range limited to 0 °C – 45 °C.
- Resistive touchscreen offers single‑touch input only (no multi‑touch capability).

Reliability:
With a backlight MTBF of 50,000 hours and robust mechanical design, the OPM‑17T provides long‑term operational reliability in demanding environments.

---

### 8. Standards & Compliance

Mechanical Standards:
- VESA Mounting Interface: 75 mm × 75 mm and 100 mm × 100 mm
- Panel‑Mount Compatibility: Standard industrial panel cutouts

Electrical & Safety Compliance:
- Power Supply: 12 V DC external adapter (36 W) compliant with CE safety standards
- EMC Compliance: Designed to meet industrial electromagnetic compatibility requirements (CE/FCC Class A, typical for Acceed products)

Environmental Standards:
- Operating Conditions: 0 °C – 45 °C, 10 % – 95 % RH non‑condensing
- Shock/Vibration Resistance: Conforms to industrial test conditions (30 G shock, 1 G vibration)

Software Compatibility:
- Operating Systems: MS‑DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, Windows XP
- Touchscreen Drivers: Provided for supported OS versions

Quality Assurance:
Each unit undergoes factory testing for display uniformity, touch accuracy, and electrical safety. Acceed GmbH adheres to ISO‑compliant manufacturing and quality control processes.

---

### 9. Additional Information

Ordering Information:
- OPM‑17: 17” TFT LCD monitor (non‑touch), includes 48 W DC 12 V power adapter
- OPM‑17T: 17” TFT LCD monitor with resistive touchscreen, includes 48 W DC 12 V power adapter

Warranty:
Standard manufacturer warranty (typically 12 months, extendable depending on region and distributor policy).

Technical Support:
Acceed GmbH provides full technical documentation, driver downloads, and integration support via [www.acceed.com](https://www.acceed.com).

Maintenance:
- Clean the display surface with a soft, lint‑free cloth; avoid abrasive materials.
- Ensure ventilation openings remain unobstructed.
- Periodically verify cable connections and mounting integrity.
- Replace the external power adapter only with approved Acceed components.

Software & Firmware Updates:
Touchscreen driver updates and configuration utilities are available from Acceed’s support portal. Firmware updates are not typically required for this model, as the display operates as a standard VGA monitor.

Serviceability:
The open‑frame design allows easy access for maintenance or replacement of the LCD module, backlight, or touchscreen assembly.

Product Lifecycle:
With a 50,000‑hour backlight MTBF and industrial‑grade components, the OPM‑17T is designed for long‑term availability and stable supply for OEM and system integrator projects.

---

### Summary

The Acceed OPM‑17T is a robust, industrial‑grade 17‑inch open‑frame LCD monitor featuring SXGA resolution, resistive touchscreen input, and a durable steel chassis for embedded and panel‑mount applications. Its combination of high reliability, flexible mounting options, and broad operating system support makes it ideal for industrial automation, kiosks, and human‑machine interface systems.

With a 50,000‑hour backlight life, shock and vibration resistance, and comprehensive connectivity, the OPM‑17T delivers dependable performance in demanding environments while maintaining ease of integration and long‑term serviceability.

---

Manufacturer Contact:
Acceed GmbH
Arnoldstr. 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)

Product References:
- [www.acceed.com/OPM‑17](https://www.acceed.com/OPM-17)
- [www.acceed.com/OPM‑17T](https://www.acceed.com/OPM-17T)

---
