Comprehensive Product Summary – ADLINK PCI‑9527L Dynamic Signal Acquisition and Generation Card

---

### 1. Product Overview

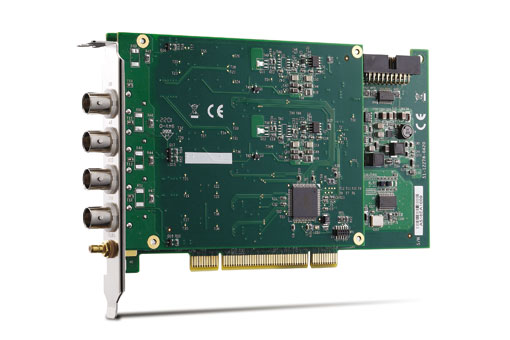

Product Name: PCI‑9527L
Model: PCI‑9527L (also referenced as PCI‑9527)
Series: High‑Resolution Dynamic Signal Acquisition and Generation Series
Article Number: PCI‑9527L
Manufacturer: ADLINK Technology Inc.
Product Type: Universal PCI (UPCI) 2‑Channel Analog Input and 2‑Channel Analog Output Dynamic Signal Acquisition Card
Bus Interface: 32‑bit / 33 MHz Universal PCI, supporting both 3.3 V and 5 V signaling
Physical Dimensions: 174.6 mm (W) × 106.6 mm (H)
Form Factor: Half‑size PCI card

The ADLINK PCI‑9527L is a high‑performance, 24‑bit resolution dynamic signal acquisition and generation board designed for precision measurement and signal analysis. It provides two simultaneous analog input channels and two simultaneous analog output channels, optimized for applications such as audio testing, acoustic measurement, vibration analysis, and machine condition monitoring.

---

### 2. Key Features

- High‑Resolution Conversion:
24‑bit sigma‑delta ADCs and DACs for superior dynamic range and low noise performance.

- Simultaneous Sampling and Output:
Two analog input channels and two analog output channels operate simultaneously, ensuring phase‑coherent data acquisition and generation.

- High Sampling and Update Rates:
- Analog Input: up to 432 kS/s per channel
- Analog Output: up to 216 kS/s per channel

- Programmable Input and Output Ranges:
- Input: ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V
- Output: ±0.1 V, ±1 V, ±10 V

- Flexible Coupling and Configuration:
Software‑selectable AC/DC coupling and differential or pseudo‑differential configurations for both input and output channels.

- Integrated IEPE Sensor Support:
Built‑in 4 mA to 10 mA excitation current for IEPE sensors (accelerometers, microphones), with 24 V compliance voltage.

- Triggering and Synchronization:
Supports software, analog, and external digital triggers; includes System Synchronization Interface (SSI) for multi‑module synchronization.

- FIFO Buffering and DMA Transfer:
2048‑sample FIFO per channel with bus‑mastering DMA for continuous, high‑speed data streaming.

- Software and OS Support:
Compatible with Windows 7/Vista/XP and Linux; drivers available for DAQPilot, DASK, and LabVIEW™ environments.

- Environmental and Regulatory Compliance:
CE and FCC Class A certified; RoHS and WEEE compliant.

---

### 3. Technical Specifications

Analog Input (AI):
- Channels: 2 simultaneous sampling
- Resolution: 24‑bit
- ADC Type: Sigma‑delta
- Sampling Rate: 1 kS/s – 432 kS/s (programmable in 454.7 µS/s increments)
- Input Configuration: Differential or pseudo‑differential (software‑selectable)
- Input Coupling: AC or DC (software‑selectable)
- Input Ranges: ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V
- Input Impedance:
- Differential: 1 MΩ / 1 MΩ to ground
- Pseudo‑differential: 1 MΩ (+) / 50 Ω (–) to ground
- Common‑Mode Range: ±10 V
- Overvoltage Protection: ±40 Vpk (differential), ±40 Vpk / ±10 Vpk (pseudo‑differential)
- Crosstalk: < –110 dB (adjacent channels, ±10 V input, 1 kHz)
- Bandwidth (–3 dB):
- ±40 V range: 30 kHz
- Other ranges: 130 kHz
- AC Coupling Cutoff: –3 dB @ 6.5 Hz, –0.1 dB @ 40 Hz
- IEPE Excitation: 4 mA–10 mA, 24 V compliance
- FIFO Buffer: 2048 samples per channel (4096 total shared)
- Data Transfer: Bus‑mastering DMA

Analog Output (AO):
- Channels: 2 simultaneous update
- Resolution: 24‑bit
- DAC Type: Sigma‑delta
- Update Rate: 1 kS/s – 216 kS/s (programmable in 227.3 µS/s increments)
- Output Configuration: Differential or pseudo‑differential (software‑selectable)
- Output Coupling: DC
- Output Ranges: ±0.1 V, ±1 V, ±10 V
- Output Impedance:
- Differential: 10 kΩ to chassis ground (both terminals)
- Pseudo‑differential: 10 kΩ (+) / 50 Ω (–) to chassis ground
- Minimum Load: 600 Ω
- Short‑Circuit Protection: Indefinite between positive and negative terminals
- Bandwidth (–3 dB): 110 kHz
- THD + N (100 Hz–20 kHz, 200 kS/s):
- ±0.1 V: –89 dB
- ±1 V: –101 dB
- ±10 V: –101 dB
- FIFO Buffer: 2048 samples per channel

Triggering and Timing:
- Trigger Sources: Software, analog, external digital (SMB connector)
- Analog Trigger:
- Source: AI0 or AI1
- Level: ±Full‑scale, 24‑bit resolution
- Slope: Positive or negative (software‑selectable)
- Digital Trigger:
- Compatibility: 5 V TTL
- Polarity: Rising or falling edge
- Minimum Pulse Width: 25 ns
- Trigger Modes: Post‑trigger, delay‑trigger
- Internal Clock: 80 MHz, ±20 ppm accuracy
- DDS Clock Range: 512 kHz – 27.648 MHz (programmable)

General Specifications:
- Bus Interface: 32‑bit/33 MHz PCI, universal signaling (3.3 V/5 V)
- Dimensions: 174.6 mm × 106.6 mm (excluding connectors)
- Operating Temperature: 0 °C – 50 °C
- Storage Temperature: –20 °C – 70 °C
- Humidity: 10 % – 90 %, non‑condensing
- Power Consumption:
- +5 V: 720 mA (standby) / 1490 mA (full load)
- +12 V: 290 mA (standby) / 340 mA (full load)

---

### 4. Functionality

The PCI‑9527L functions as a dual‑channel, high‑resolution dynamic signal acquisition and generation card. It digitizes analog signals using 24‑bit sigma‑delta ADCs and simultaneously generates analog waveforms through 24‑bit DACs.

Operation Principle:
- Analog Input: Incoming signals are conditioned via selectable coupling and gain stages, digitized by sigma‑delta ADCs, and buffered in onboard FIFO memory. Data is transferred to host memory via DMA for real‑time analysis.
- Analog Output: Digital waveform data from the host is converted to analog signals through sigma‑delta DACs, filtered, and output through BNC connectors.
- Synchronization: Multiple PCI‑9527L cards can be synchronized using the System Synchronization Interface (SSI) for multi‑channel, phase‑aligned acquisition.
- Triggering: Acquisition and generation can be initiated by software, analog thresholds, or external digital triggers, supporting both post‑trigger and delay‑trigger modes.

Applications:
- Audio and acoustic testing
- Noise, vibration, and harshness (NVH) analysis
- Machine condition monitoring
- Structural vibration and modal analysis
- General dynamic signal acquisition and waveform generation

Compatibility:
- Operating Systems: Windows 7/Vista/XP, Linux
- Programming Environments: VB.NET, VC.NET, VB, VC++, BCB, Delphi
- Supported Drivers: DAQPilot (Windows), DAQPilot for LabVIEW™, DASK (Windows), DASK/X (Linux)

---

### 5. Components & Accessories

Included Items:
- PCI‑9527L data acquisition card
- ADLINK All‑in‑One software CD (drivers, utilities, manuals)
- Software installation guide
- User’s manual

Connectors:
- Front Panel:
- 4 × BNC connectors (AI0, AI1, AO0, AO1)
- 1 × SMB connector (External Trigger)
- Internal: System Synchronization Interface (SSI) header for multi‑card synchronization

Optional Accessories:
- Shielded BNC cables
- IEPE sensor adapters
- External synchronization cables

---

### 6. Installation & Setup

Requirements:
- Available PCI slot (32‑bit/33 MHz, 3.3 V or 5 V signaling)
- Compatible operating system and driver package installed

Installation Steps:
1. Power off the host system and disconnect from mains.
2. Remove the chassis cover and locate an available PCI slot.
3. Insert the PCI‑9527L firmly into the slot and secure with a screw.
4. Replace the cover and reconnect power.
5. Install ADLINK drivers and software from the provided CD.

Signal Connections:
- Analog Input:
- Differential mode for ground‑referenced sources
- Pseudo‑differential mode for floating sources (– input connected via 50 Ω to ground)
- Analog Output:
- Differential mode for ground‑referenced DUTs
- Pseudo‑differential mode for floating DUTs (reference via 50 Ω resistor)

Safety Precautions:
Use anti‑static wrist straps and mats during installation. Avoid handling the board without proper grounding.

---

### 7. Performance & Capabilities

Dynamic Performance:
- High‑resolution 24‑bit sigma‑delta conversion ensures excellent signal‑to‑noise ratio and low distortion.
- Input bandwidth up to 130 kHz supports wide‑band dynamic measurements.
- Output bandwidth of 110 kHz enables accurate waveform synthesis.

Timing and Synchronization:
- DDS‑based clock generation provides fine frequency resolution (125 MHz / 2³² ≈ 0.029 Hz).
- ADC and DAC share a common timebase for coherent operation.
- Adjustable sampling and update rates maintain precise timing relationships.

Filter Delays:
- ADC filter delay: 5–12 samples depending on sampling rate.
- DAC filter delay: 43–177 samples depending on update rate.

Limitations:
- Maximum total input bandwidth limited by sigma‑delta architecture.
- Simultaneous AI/AO operation constrained by shared DDS clock; sampling and update rates must be harmonized.

Calibration and Accuracy:
- Factory‑calibrated with onboard EEPROM storage.
- Self‑calibration compensates for offset and gain drift.
- Offset compensation automatically applied when sampling rate changes.

---

### 8. Standards & Compliance

- Electrical and EMC: CE, FCC Class A
- Environmental: RoHS and WEEE compliant
- Bus Standard: PCI 2.2, Universal PCI signaling (3.3 V/5 V)
- Safety: Designed for industrial and laboratory environments (0 °C – 50 °C operation)

ADLINK emphasizes environmental responsibility, ensuring all manufacturing processes and materials comply with global environmental directives.

---

### 9. Additional Information

Calibration:
- Onboard 5 V precision reference, ±5 ppm/°C temperature coefficient
- Self‑calibration via software command
- External calibration recommended annually
- Warm‑up time: 15–20 minutes before calibration

Warranty & Support:
- Standard manufacturer warranty (contact ADLINK for regional terms)
- Technical support available via global ADLINK offices (Taiwan, USA, Europe, China, Japan, Korea, Singapore, India)
- Email support: service@adlinktech.com

Maintenance:
- Periodic recalibration recommended for optimal accuracy
- Keep connectors clean and protected from dust and moisture
- Store in anti‑static packaging when not in use

Software Utilities:
- Dynamic Signal Assistant: GUI‑based tool for configuration, real‑time visualization, and waveform generation without programming.
- DSA‑DASK Library: API for custom application development in Windows and Linux environments.

Environmental Disposal:
Compliant with WEEE directives; users are encouraged to recycle or dispose of the product according to local electronic waste regulations.

---

### Summary

The ADLINK PCI‑9527L is a precision, high‑resolution dynamic signal acquisition and generation card engineered for demanding measurement and analysis tasks. With dual 24‑bit sigma‑delta ADCs and DACs, simultaneous sampling and output, wide programmable voltage ranges, and robust synchronization and triggering capabilities, it delivers laboratory‑grade performance in a compact PCI form factor. Its compatibility with multiple operating systems, comprehensive driver support, and built‑in calibration and IEPE sensor excitation make it a versatile solution for audio, vibration, and structural testing applications.

The PCI‑9527L exemplifies ADLINK’s commitment to high‑accuracy instrumentation, environmental compliance, and long‑term reliability in industrial and research environments.
