- **High‑Precision Analog Input:** 64 single‑ended or 32 differential channels, 16‑bit resolution, ±10 V bipolar input range, 10 µs conversion per channel (100 kS/s aggregate rate). - **Flexible Sampling Control:** Sampling start/stop can be triggered by software, external triggers, or comparison of conversion data. Supports internal or external sampling clocks. - **Buffered Data Acquisition:** On‑board 1 k‑word buffer memory configurable as FIFO or ring buffer for continuous background sampling independent of host CPU load. - **Digital I/O and Counter:** 4 LVTTL‑level digital inputs and 4 LVTTL‑level digital outputs (positive logic), plus one 32‑bit up‑counter channel (10 MHz max). - **Digital Filtering:** Built‑in digital filter (1 µs selectable) suppresses chattering and noise on external trigger, sampling clock, digital input, and counter signals. - **Software‑Based Calibration:** Full analog input calibration via software; user can store additional calibration data for environmental adjustments. - **Driver and Software Support:** Includes CONTEC API‑PAC(W32) driver libraries for Windows and Linux, C‑LOGGER data‑logger software, and optional MATLAB ML‑DAQ and LabVIEW VI‑DAQ libraries. - **Compatibility:** Functionally and connector‑pin compatible with legacy PCI board AD16‑64(LPCI)LA, simplifying system migration. - **Dual Bracket Support:** Supplied with both low‑profile and standard PCI brackets for flexible installation. - **Regulatory Compliance:** RoHS and VCCI certified.

Hersteller: Contec

Kategorie: A/D High Resolution PCIe

- **High-Resolution A/D Conversion:** 16-bit resolution with ±10 V, ±5 V, 0–10 V, or 0–5 V input ranges. Provides accurate analog signal digitization for laboratory and industrial measurement. - **Analog Input Channels:** 16 single-ended or 8 differential analog input channels. Expandable to 32 single-ended or 16 differential channels using optional ATCH-16(PCI) or ATUH-16(PCI) expansion units. - **Analog Output Channel:** One 16-bit D/A output channel with ±10 V or 0–10 V range, 13 µs conversion speed, and ±5 mA drive capability. - **High-Speed Sampling:** Up to 100 k samples per second (10 µs per channel). Internal or external sampling clock selectable. - **Large Onboard Memory:** 256K-word FIFO or ring buffer memory for high-speed, continuous data acquisition and background processing. - **Digital I/O:** Four TTL-level digital inputs and four TTL-level digital outputs. Shared pins allow counter/timer signal routing. - **Counter/Timer Function:** One i8254-compatible programmable counter with three 16-bit counters. Supports internal 4 MHz or external clock input. - **Interrupt Support:** Multiple interrupt sources including sampling completion, buffer status, overflow, external triggers, and counter events. - **Flexible Triggering:** Sampling start/stop can be controlled by software, analog signal level comparison, or external TTL trigger signals. - **Optional Expansion and Conditioning Units:** Compatible with CONTEC’s ATSS-16 (simultaneous sampling), ATII-8 (isolated input), ATLF-8 (low-pass filter), and ATP-16 (BNC terminal) accessories. - **Multi-Board Support:** Up to 16 boards can be installed in a single system, each with a unique board ID (0–F).

Hersteller: Contec

Kategorie: A/D High Resolution PCI

- **High‑Resolution A/D Conversion:** 16‑bit resolution with a maximum conversion speed of 10 µs per channel, enabling precise analog signal digitization. - **Flexible Input Configuration:** Supports 16 single‑ended or 8 differential analog input channels, selectable via onboard jumpers. - **Wide Input Range:** Bipolar ±10 V or ±5 V, and unipolar 0–10 V or 0–5 V ranges configurable by jumper settings. - **Large On‑Board Memory:** 16 M‑sample FIFO or ring buffer memory allows high‑speed, continuous sampling independent of host CPU load. - **Analog Output Channel:** One 16‑bit D/A output channel with ±10 V or 0–10 V range, 10 µs conversion speed, and ±5 mA drive capability. - **Digital I/O and Counter:** Four TTL‑level digital inputs and four TTL‑level digital outputs, plus one 32‑bit counter (i8254‑compatible) with internal 4 MHz or external clock source. - **Trigger and Sampling Control:** Sampling can be started/stopped by software, analog level comparison, or external TTL trigger signals. - **Software Support:** Includes Windows and Linux drivers, C‑LOGGER data logging software, and dedicated libraries for MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ). - **Compact PCI Form Factor:** Short‑size PCI board (176.41 × 105.68 mm) with universal keying for both 3.3 V and 5 V PCI slots. - **High Compatibility:** Upward‑compatible with previous Analog E‑Series boards, offering improved memory capacity and universal PCI support. - **Optional Expansion:** Supports optional accessories such as simultaneous sampling units, isolation amplifiers, low‑pass filters, and multiplexer sub‑boards.

Hersteller: Contec

Kategorie: A/D High Resolution PCI

- **High-Speed A/D Conversion:** Up to **1 µs per channel (1 MS/s)** sampling rate for high-speed data acquisition. - **High Resolution:** **16-bit A/D and D/A resolution** for precise analog signal conversion. - **Flexible Input Configuration:** Supports **16 single-ended** or **8 differential** analog input channels. Expandable to **32 single-ended / 16 differential** channels using optional expansion units (ATCH-16(PCI) or ATUH-16(PCI)). - **Wide Input Voltage Ranges:** Selectable ranges of **±10 V, ±5 V, 0–10 V, or 0–5 V**, configurable via onboard jumpers. - **Large Onboard Memory:** **256K-word FIFO or ring buffer** for high-speed continuous sampling and background data processing. - **Analog Output Channel:** One 16-bit D/A output channel with selectable ranges (±10 V or 0–10 V), 13 µs conversion time, and ±5 mA drive capability. - **Digital I/O:** Four TTL-level digital inputs and four TTL-level digital outputs (one output shared with counter output). - **Counter Functionality:** Integrated **Intel i8254-compatible 16-bit counter** with internal 4 MHz clock or external clock/gate input. - **Interrupt Support:** Multiple interrupt events including sampling completion, buffer status, trigger detection, and error conditions. - **Scalable System Integration:** Up to **16 boards per system** can be installed, each with a unique board ID (0–F). - **Versatile Triggering and Control:** Sampling can be started/stopped by software, analog level comparison, or external TTL triggers. - **Optional Accessories:** Compatible with CONTEC’s range of terminal units, conditioning modules, and cables for signal conditioning, isolation, and connectivity.

Hersteller: Contec

Kategorie: A/D High Resolution PCI

- **High‑Precision Multi‑Channel Analog Input:** 64 single‑ended or 32 differential channels selectable via software. Bipolar ±10 V input range (absolute maximum ±20 V). 16‑bit resolution with ±5 LSB non‑linearity error. - **Flexible Input Configuration:** Software‑selectable single‑ended/differential input modes. Input impedance ≥ 1 MΩ for stable signal acquisition. - **Compact Low Profile PCI Design:** Fits Low Profile PCI slots; includes standard bracket for full‑height slots. Ideal for space‑constrained industrial PCs and embedded systems. - **Integrated Digital I/O and Counter:** 4 × LVTTL digital inputs and 4 × LVTTL digital outputs (positive logic). 1 × 32‑bit up‑counter with 10 MHz maximum frequency, TTL‑level gate and up inputs. - **Software‑Based Calibration:** Full analog input calibration via software; user‑defined adjustment data can be stored in addition to factory calibration. - **Trigger and Clock Control:** Supports software, external trigger, and external clock start/stop modes. External control signals include digital filters (1 µs selectable). - **Comprehensive Software Support:** Windows and Linux drivers, C‑LOGGER data logging software, and dedicated libraries for MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ). API‑PAC(W32) library enables custom application development in Visual Basic, Visual C++, C#, Delphi, and C++ Builder. - **Robust Control and Filtering:** Digital filtering on external control signals prevents chattering and noise interference. - **Universal PCI Compatibility:** 32‑bit, 33 MHz PCI bus interface with universal keying (supports both 3.3 V and 5 V slots; requires +5 V power).

Hersteller: Contec

Kategorie: A/D High Resolution PCI

- **Channel Expansion:** Doubles the analog input capacity of compatible E‑Series boards from 16 SE/8 DI to 32 SE/16 DI channels. - **High‑Precision Multiplexing:** Maintains the same resolution and accuracy as the host board (12‑bit or 16‑bit depending on the base model). - **PCI Bus Compatibility:** Occupies one PCI slot and interfaces directly with the host board through a dedicated expansion connector (CN3). - **Voltage Input Range:** Supports up to ±20 V maximum input voltage, matching the host board’s analog input range. - **Connector Type:** 37‑pin D‑SUB female connector for external signal interfacing. - **Compact Form Factor:** 75 mm × 40 mm PCB size allows installation in standard or low‑profile PCI chassis. - **Seamless Integration:** Designed for direct use with AD12‑16(PCI)E and AD16‑16(PCI)E without additional configuration. - **Industrial Reliability:** Built for stable operation in industrial measurement environments with noise‑resistant design and high‑quality components. - **Software Support:** Fully supported by CONTEC’s API‑PAC(W32) and API‑TOOLs for Windows/Linux, as well as LabVIEW and MATLAB libraries.

Hersteller: Contec

Kategorie: A/D High Resolution PCI

- **Channel Expansion:** Adds 16 single‑ended or 8 differential analog input channels to compatible E‑Series boards. When combined with the host board, the total input capacity reaches 32 SE or 16 DI channels. - **Voltage Input Range:** Supports analog input signals up to ±20 V maximum, ensuring compatibility with a wide range of industrial sensors and transducers. - **Interface Connector:** Equipped with a standard 37‑pin D‑type female connector for secure and noise‑resistant signal interfacing. - **Compact Form Factor:** Small PCB footprint of 75 mm × 40 mm allows installation within limited chassis space. - **High‑Precision Signal Handling:** Maintains the same resolution and accuracy characteristics as the host E‑Series board, ensuring consistent measurement quality across all channels. - **Seamless Integration:** Designed for direct connection to AD12‑16(PCI)E and AD16‑16(PCI)E boards without additional configuration. - **Industrial‑Grade Design:** Built for stable operation in measurement and control environments subject to electrical noise. - **Bus Compatibility:** Fully compliant with PCI bus specifications, ensuring plug‑and‑play recognition in standard PC systems. - **Accessory Ecosystem:** Compatible with CONTEC’s range of terminal blocks, shielded cables, and signal‑conditioning modules for flexible system configuration.

Hersteller: Contec

Kategorie: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D resolution (PCI-9111HR) with 16 single-ended analog input channels. - **High Sampling Rate:** Supports up to 100 kS/s maximum sampling rate with 8 µs conversion time. - **Programmable Input Ranges:** Five software-selectable bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V. - **Onboard Filtering:** Each analog input channel includes an RC low-pass filter for signal conditioning and noise reduction. - **Analog Output Channel:** One 12-bit D/A output channel with jumper-selectable unipolar (0–10 V) or bipolar (±10 V) range. - **Digital I/O:** 16 TTL-compatible digital inputs and 16 TTL-compatible digital outputs, plus 4 extended digital inputs and 4 extended digital outputs. - **FIFO Buffer:** 1 k-sample onboard FIFO buffer for efficient data streaming and reduced CPU load. - **Triggering and Timing:** Supports software, pacer (timer-based), and external trigger modes. Includes pre-trigger and post-trigger functionality. - **Programmable Gain Amplifier (PGA):** Software-programmable gains of x1, x2, x4, x8, and x16. - **Timer/Counter:** Integrated 8254 programmable timer/counter with three 16-bit counters and a 2 MHz base clock. - **Dual Interrupt System:** Two independent interrupt sources for flexible event handling (EOC, FIFO half-full, pacer, or external trigger). - **Compact Design:** Half-size PCI card (175 mm x 107 mm) with plug-and-play PCI configuration. - **Software and OS Support:** Compatible with Windows 7/Vista/XP/2000/2003 Server and Linux. Supported by ADLINK’s DAQPilot, PCIS-DASK, DAQBench, and LabVIEW™/MATLAB® drivers.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High-Speed Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 250 kS/s (4 µs conversion time). - **Flexible Analog Input Configuration:** Supports 32 single-ended (SE) or 16 differential (DI) analog input channels with software-programmable input ranges. - **Programmable Input Ranges:** ±10 V, ±5 V, ±2.5 V, ±1.25 V for the DG version; software-selectable for bipolar and unipolar signals. - **High Isolation Digital I/O:** 16 isolated digital input channels and 16 isolated digital output channels, each with 2500 V RMS isolation protection. - **Robust Digital Output Capability:** Open-emitter Darlington transistor outputs capable of sinking up to 350 mA per channel (100% duty) or 260 mA (10% duty for all channels). - **Integrated Timer/Counter:** One 16-bit general-purpose timer/counter compatible with 8254 architecture, supporting up to 2 MHz base clock or external clock input. - **Cold Junction Compensation (CJC):** On-board cold junction sensor for thermocouple measurement applications. - **Plug-and-Play PCI Interface:** Fully compliant with 32-bit PCI bus architecture, supporting automatic resource allocation via BIOS. - **On-Board FIFO Buffer:** 1K-sample FIFO memory for efficient data buffering and reduced CPU overhead. - **Multiple Trigger Modes:** Software, pacer timer, and external trigger modes (5 V TTL compatible). - **Comprehensive Software Support:** Compatible with ADLINK’s PCIS-DASK driver library, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC Server environments. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial environments with wide temperature and humidity tolerance.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High-Speed Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 250 kS/s (4 µs conversion time per channel). - **Flexible Analog Input Configuration:** 32 single-ended or 16 differential channels with programmable gain and input ranges. - **Programmable Gain Amplifier (PGA):** High-gain version supports gain factors of 1, 10, 100, and 1000, enabling precise low-level signal measurement. - **Wide Input Range:** Bipolar input ranges of ±10 V, ±1 V, ±0.1 V, and ±0.01 V (software programmable). - **High Isolation Digital I/O:** 16 isolated digital inputs and 16 isolated digital outputs with 2500 V RMS isolation voltage. - **Cold Junction Compensation (CJC):** Onboard sensor for accurate thermocouple temperature measurement. - **Integrated Timer/Counter:** One 16-bit general-purpose timer/counter compatible with 8254 architecture, supporting up to 2 MHz base clock. - **FIFO Buffer:** 1K-sample onboard FIFO for efficient data buffering and high-speed acquisition. - **Triggering and Data Transfer Modes:** Supports software, pacer timer, and external triggers; data transfer via polling, interrupt, or FIFO half-full interrupt. - **Plug-and-Play PCI Interface:** Fully compliant with PCI 2.1 specification, automatic resource allocation via BIOS. - **Software Support:** Compatible with ADLINK’s PCIS-DASK, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, ISaGRAF™, and OPC server environments. - **Industrial-Grade Design:** Operating temperature range 0–55°C, with robust isolation and protection circuitry for reliable operation in harsh environments.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 32 single-ended or 16 differential input channels. - **Sampling Performance:** Maximum throughput of 100 kS/s per channel (PCI-9114DG/HG models). - **Programmable Input Ranges:** Bipolar input ranges of ±10 V, ±5 V, ±2.5 V, and ±1.25 V (DG version). Software-selectable gain settings: 1, 2, 4, 8. - **Isolation and Protection:** 16 isolated digital inputs and 16 isolated digital outputs with 2500 V RMS isolation. Continuous overvoltage protection up to ±35 V on analog inputs. - **Digital I/O Capabilities:** 16 isolated digital input channels (0–24 V, non-polarity). 16 isolated digital output channels (open-emitter Darlington transistor type, 5–35 V supply). - **Integrated Timer/Counter:** One 16-bit general-purpose timer/counter compatible with 8254 architecture, supporting up to 2 MHz base clock. - **Onboard Cold Junction Compensation (CJC):** Built-in sensor for thermocouple measurement accuracy. - **FIFO Buffer:** 1K-sample FIFO memory for efficient data buffering and reduced CPU overhead. - **Triggering and Data Transfer:** Supports software, pacer, and external triggers (5 V/TTL compatible). Data transfer via polling or interrupt-driven modes. - **Software Support:** Comprehensive driver and library support for Windows and DOS environments, including LabVIEW®, HP-VEE™, DASYLab™, InTouch™, and OPC Server integration. - **Plug-and-Play PCI Interface:** Fully compliant with PCI 2.1 specifications, automatic resource allocation via BIOS.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 100 kS/s sampling rate. - **Channel Configuration:** 32 single-ended or 16 differential analog input channels. - **Programmable Gain Amplifier (PGA):** Software-selectable gains of 1, 10, 100, and 1000 for high-gain (HG) version. - **Input Range:** Bipolar ±10 V, ±1 V, ±100 mV, ±10 mV (HG version). - **Cold Junction Compensation (CJC):** On-board sensor for thermocouple measurement accuracy. - **Isolation:** 16 isolated digital inputs and 16 isolated digital outputs, each with 2500–5000 V RMS isolation. - **Digital I/O:** - 16 isolated digital inputs (0–24 V, non-polarity). - 16 isolated digital outputs (open-emitter Darlington transistor drivers, 5–35 V supply). - **Timer/Counter:** One 16-bit general-purpose timer/counter (8254 compatible) with 2 MHz base clock. - **FIFO Buffer:** 1K-sample hardware FIFO for analog input buffering. - **Trigger Modes:** Software, pacer timer, and external 5 V/TTL trigger. - **Plug-and-Play PCI Interface:** Fully compliant with 32-bit PCI bus architecture. - **Software Support:** Comprehensive driver suite for Windows and DOS, including LabVIEW®, HP VEE™, DASYLab™, and OPC server support. - **Applications:** Industrial process control, thermocouple and RTD measurement, biomedical instrumentation, and power monitoring.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

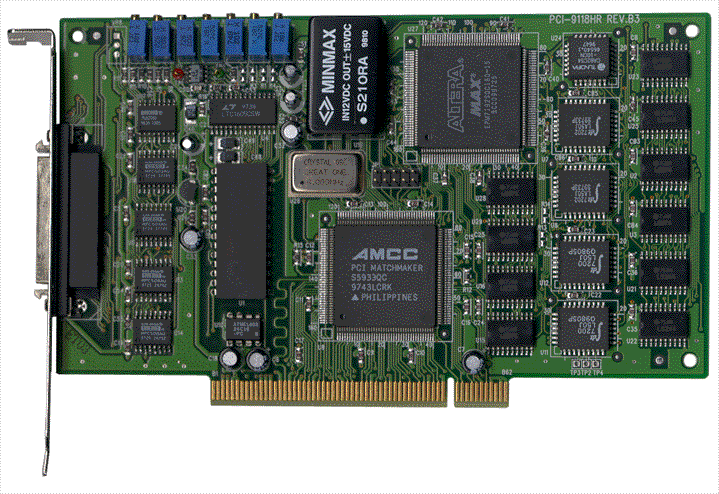

- **High-Resolution Analog Input:** 16-bit A/D conversion (Burr-Brown ADS7805 or equivalent). - **Sampling Rate:** Up to 100 kS/s (single channel). - **Analog Input Channels:** 16 single-ended or 8 differential, software-selectable. - **Analog Output:** Two 12-bit D/A channels (Burr-Brown DAC2813 or equivalent), ±10 V output range. - **FIFO Buffer:** 1K-sample onboard A/D FIFO for continuous high-speed acquisition. - **Channel-Gain Queue:** 256-entry programmable queue for mixed-channel, mixed-gain sampling. - **Programmable Gain:** ×1, ×2, ×4, ×8 for flexible input scaling. - **Input Ranges:** Bipolar ±0.625 V to ±5 V; unipolar 0–1.25 V to 0–10 V. - **Triggering Modes:** Software, programmable pacer, external pulse, pre-/post-/about-trigger, and burst mode. - **Burst Mode Sampling:** Emulates simultaneous sample-and-hold for multi-channel synchronization. - **Digital I/O:** 4 TTL-compatible inputs and 4 TTL-compatible outputs. - **Counter/Timer:** One 82C54 programmable counter/timer with 32-bit pacer (4 MHz base clock). - **Bus Interface:** 32-bit PCI bus, plug-and-play configuration. - **Connector:** 50-pin SCSI-II type D-sub female connector (CN1). - **Software Support:** Comprehensive driver suite for Windows and DOS, including LabVIEW®, HP VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC server support. - **Compatibility:** Functionally compatible with MetraByte DAS-1800 series. - **Compact Design:** Half-size PCI card for space-constrained systems.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 100 kS/s sampling rate. - **Channel Configuration:** 16 single-ended or 8 differential analog input channels. - **Programmable Input Range:** Bipolar ±0.625 V to ±5 V or unipolar 0–1.25 V to 0–10 V. - **Channel-Gain Queue:** 256-entry hardware queue allowing per-channel gain and sequence configuration. - **Onboard FIFO Buffer:** 1 k-sample A/D FIFO ensures reliable high-speed data acquisition under multitasking OS environments. - **Triggering Flexibility:** Supports software, programmable pacer, and external triggers (TTL/5 V compatible). - **Data Transfer Modes:** Polling, interrupt-driven, and bus-mastering DMA for continuous, gap-free data throughput. - **Digital I/O:** 4 TTL-compatible digital inputs and 4 digital outputs for control and monitoring. - **Compatibility:** Functionally compatible with MetraByte DAS-1800 series. - **Connector Interface:** 50-pin SCSI-II female connector for analog, digital, and trigger signals. - **Software Support:** Comprehensive driver suite for Windows (PCIS-DASK, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, OPC). - **Calibration Support:** Onboard variable resistors (VRs) for A/D and D/A calibration; software utility provided for automated calibration. - **Compact Design:** Half-size PCI card suitable for industrial PCs and laboratory systems.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High‑Resolution Data Acquisition:** 24‑bit A/D conversion with up to 30 kS/s sampling rate for single‑channel operation. 4 differential load‑cell transducer inputs and 4 general‑purpose analog inputs. - **Integrated Motion Control:** 3‑axis stepper/servo motor control with differential pulse outputs (CW/CCW or CLK/DIR). Built‑in incremental encoder feedback channels for closed‑loop control. - **Precision Measurement:** Supports transducer sensitivities from 1.0 mV/V to 4.0 mV/V with 1/200,000 full‑scale accuracy. Auto‑zero and remote‑sense functions for thermal drift and line‑loss compensation. - **Analog Output:** Two 16‑bit D/A channels with ±10 V output range and 5 kS/s update rate. - **Isolated Digital I/O:** 8 opto‑isolated digital inputs (0–24 V) and 8 isolated MOSFET digital outputs (up to 300 mA sink current). - **Onboard Timing Resources:** Two 32‑bit 40 MHz general‑purpose timer/counters and two 4 MHz encoder inputs. - **Connectivity:** Dual 68‑pin VHDCI (SCSI‑II) connectors for analog, digital, and motion I/O. - **Plug‑and‑Play PCI Interface:** Fully compliant with 32‑bit 3.3 V/5 V PCI bus, supporting bus‑mastering DMA and scatter/gather transfers. - **Software Support:** Compatible with ADLINK PCIS‑DASK driver library for Windows 98/NT/2000/XP/Vista and LabVIEW™.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **24‑bit Sigma‑Delta ADC and DAC:** High‑resolution converters for superior dynamic range and low noise. - **Simultaneous Sampling and Output:** Two analog input channels and two analog output channels operate concurrently for synchronized acquisition and generation. - **High Sampling Rates:** - Analog input: up to **432 kS/s** per channel. - Analog output: up to **216 kS/s** per channel. - **Programmable Input Ranges:** ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V. - **Programmable Output Ranges:** ±0.1 V, ±1 V, ±10 V. - **AC/DC Coupling:** Software‑selectable input coupling for flexible measurement of DC or AC signals. - **IEPE Sensor Support:** Built‑in 4 mA excitation current for integrated electronic piezoelectric sensors (accelerometers, microphones). - **Triggering Flexibility:** Supports software, analog, and external digital triggers; compatible with 5 V TTL logic. - **System Synchronization Interface (SSI):** Enables synchronization of multiple PCI‑9527 cards for multi‑channel systems. - **Universal PCI Interface:** 32‑bit/33 MHz PCI bus supporting both 3.3 V and 5 V signaling. - **Comprehensive Software Support:** Drivers for Windows and Linux, with APIs for LabVIEW™, MATLAB®, and Visual Studio environments. - **Applications:** Audio testing, acoustic measurement, vibration and noise analysis, machine condition monitoring, and structural dynamics.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **High‑Resolution Conversion:** 24‑bit sigma‑delta ADCs and DACs for superior dynamic range and low noise performance. - **Simultaneous Sampling and Output:** Two analog input channels and two analog output channels operate simultaneously, ensuring phase‑coherent data acquisition and generation. - **High Sampling and Update Rates:** - Analog Input: up to **432 kS/s** per channel - Analog Output: up to **216 kS/s** per channel - **Programmable Input and Output Ranges:** - Input: ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V - Output: ±0.1 V, ±1 V, ±10 V - **Flexible Coupling and Configuration:** Software‑selectable **AC/DC coupling** and **differential or pseudo‑differential** configurations for both input and output channels. - **Integrated IEPE Sensor Support:** Built‑in 4 mA to 10 mA excitation current for IEPE sensors (accelerometers, microphones), with 24 V compliance voltage. - **Triggering and Synchronization:** Supports software, analog, and external digital triggers; includes System Synchronization Interface (SSI) for multi‑module synchronization. - **FIFO Buffering and DMA Transfer:** 2048‑sample FIFO per channel with bus‑mastering DMA for continuous, high‑speed data streaming. - **Software and OS Support:** Compatible with Windows 7/Vista/XP and Linux; drivers available for DAQPilot, DASK, and LabVIEW™ environments. - **Environmental and Regulatory Compliance:** CE and FCC Class A certified; RoHS and WEEE compliant.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PCI

- **24-bit Sigma-Delta ADC and DAC:** Ensures high-resolution, low-noise signal conversion for both input and output channels. - **Simultaneous Sampling and Generation:** Two analog input channels and two analog output channels operate concurrently for synchronized measurement and playback. - **High Sampling and Update Rates:** - Analog Input: Up to 432 kS/s per channel - Analog Output: Up to 216 kS/s per channel - **Programmable Input and Output Ranges:** - Input: ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V - Output: ±0.1 V, ±1 V, ±10 V - **AC/DC Coupling:** Software-selectable input coupling for flexible signal conditioning. - **IEPE Sensor Support:** Built-in 4 mA excitation current for integrated electronic piezoelectric sensors (accelerometers, microphones). - **Triggering Flexibility:** Supports software, analog, external digital, PXI Star, and PXI Trigger Bus triggers. - **Synchronization:** Multi-module synchronization via PXI Trigger Bus [0..7] and PXI Star trigger for scalable systems. - **High Dynamic Performance:** - THD+N: -101 dB (typical at ±1 V and ±10 V output ranges) - Crosstalk: < -100 dB between adjacent channels - **Comprehensive Software Support:** Compatible with LabVIEW™, MATLAB®, Visual Studio®, and ADLINK’s DAQPilot and DSA-DASK drivers. - **Ready-to-Use Utility:** ADLINK Dynamic Signal Assistant software for configuration, acquisition, and waveform generation without programming.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution PXI

- **High‑Resolution Analog Input:** 16‑bit successive approximation A/D converter (ADS7805 or equivalent). - **Flexible Channel Configuration:** 16 single‑ended or 8 differential analog input channels. - **Programmable Input Range:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V. - **Programmable Gain:** ×1, ×2, ×4, ×8. - **High Sampling Rate:** Up to 100 kHz for single‑channel, 20 kHz for multi‑channel multiplexed operation. - **Fast Conversion:** 8 µs conversion time. - **Dual 12‑bit D/A Outputs:** Two double‑buffered analog output channels (DAC7541 or equivalent). - **Selectable Output Range:** 0–5 V or 0–10 V (internal reference), ±10 V (external reference). - **Digital I/O:** 16 TTL‑compatible inputs and 16 TTL‑compatible outputs. - **Programmable Counter/Timer:** Three 16‑bit counters (Intel 8254) with 2 MHz base clock. - **Trigger Modes:** Software, programmable pacer (timer), or external pulse trigger. - **Data Transfer Options:** Polling, interrupt, or DMA (channels 1 or 3). - **Interrupt Support:** Selectable IRQ3, 5, 6, 7, 9, 10, 11, 12, or 15. - **Integrated DC/DC Converter:** Provides stable analog power isolation. - **Compact Design:** Half‑size ISA card (163 mm × 123 mm). - **Connectors:** One 37‑pin D‑type and two 20‑pin IDC connectors. - **Software Support:** DOS C/C++ library, Windows DLL (ACLS‑DLL2), and LabVIEW driver (ACLS‑LVIEW). - **Calibration Support:** On‑board variable resistors (VRs) for A/D and D/A calibration.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution ISA

- **High‑Resolution Analog Input:** 16‑bit A/D conversion (ADS7805 or equivalent) with up to 100 kS/s sampling rate. - **Flexible Channel Configuration:** 16 single‑ended or 8 differential analog input channels. - **Programmable Gain:** x1, x2, x4, x8 for input ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V. - **On‑Board FIFO Buffer:** 1K‑word FIFO memory with half‑ and full‑ready interrupt flags for continuous data streaming. - **Dual Analog Outputs:** Two 12‑bit D/A channels (DAC2813 or equivalent) with bipolar/unipolar ranges (±10 V or 0–10 V). - **Digital I/O:** 16 TTL‑compatible digital input and 16 digital output channels. - **Programmable Counter/Timer:** Three independent 16‑bit down counters (Intel 8254 compatible) with 2 MHz base clock. - **Trigger Flexibility:** Software, internal pacer, and external trigger modes. - **DMA and Interrupt Support:** DMA channels 5, 6, or 7; IRQ levels 3, 5–7, 9, 11, 12, 15. - **Auto‑Scanning:** Hardware channel auto‑scan for sequential sampling. - **Integrated DC/DC Converter:** Provides stable analog power isolation. - **Compact Design:** Half‑size ISA card with 37‑pin D‑type and dual 20‑pin IDC connectors. - **Software Support:** C/C++ library, DOS utilities, Windows DLL (ACLS‑DLL2), and LabVIEW driver (ACLS‑LVIEW). - **Calibration Support:** On‑board variable resistors (VR1–VR7) for A/D and D/A calibration.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution ISA

- **High‑Resolution A/D Conversion:** 16‑bit successive approximation ADC (ADS7805 or equivalent). - **Sampling Rate:** Up to 100 kHz multiplexed sampling. - **Analog Input Channels:** 16 single‑ended or 8 differential inputs. - **Programmable Gain:** ×1, ×2, ×4, ×8 for flexible input scaling. - **Input Range:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V. - **FIFO Buffer:** 1 K‑word on‑board FIFO with half/full interrupt flags for continuous data streaming. - **Trigger Modes:** Software, internal pacer (timer‑based), or external trigger (TTL). - **Data Transfer Options:** Software polling, interrupt‑driven, FIFO polling, DMA (channels 5–7). - **Digital I/O:** 16 TTL‑compatible digital input/output channels. - **Programmable Counter/Timer:** Intel 8254‑compatible, three 16‑bit down counters with 2 MHz base clock. - **Interrupt and DMA Support:** IRQ selectable (3, 5–7, 9–12, 15); DMA channels 5–7. - **Power Supply:** On‑board DC/DC converter for stable analog power. - **Compact Form Factor:** Half‑size ISA card (163 mm × 123 mm). - **Connectors:** One 37‑pin D‑type connector and two 20‑pin ribbon connectors. - **Software Support:** C/C++ library, DOS utilities, Windows DLL (ACLS‑DLL2), and LabVIEW driver (ACLS‑LVIEW). - **Calibration Support:** On‑board variable resistors for A/D offset and full‑scale adjustment. - **Operating Environment:** 0 °C – 55 °C, 5–95 % RH non‑condensing.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution ISA

- **High-Resolution Analog-to-Digital Conversion:** Equipped with a **16-bit A/D converter (AD669)**, the card delivers precise analog signal digitization with a maximum sampling rate of **100 kS/s** (100,000 samples per second). - **Flexible Input Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels. With the optional **ATCH-16(PC)** expansion module, the configuration can be extended to **32 SE / 16 DI** channels. - **Wide Input Voltage Range:** Configurable input ranges of **±10 V**, **±5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a broad range of sensors and signal sources. - **Integrated FIFO / Ring Buffer:** Features a **256K-word FIFO (First-In-First-Out) or ring buffer**, enabling continuous high-speed data acquisition without data loss, even under heavy system load. - **Intelligent Sampling Control:** Incorporates a dedicated **ASIC (Application-Specific Integrated Circuit)** for intelligent sampling management, ensuring stable and accurate timing control during high-speed data acquisition. - **Analog Output (D/A Conversion):** Includes **one 16-bit D/A output channel** with output ranges of **±10 V** or **0–10 V**, and a **conversion time of 13 µs**, suitable for waveform generation, control signals, or analog feedback applications. - **Digital I/O Capability:** Provides **4 digital input** and **4 digital output** lines (TTL level), enabling control and monitoring of external devices such as relays, switches, or indicators. - **DMA and Interrupt Support:** Compatible with **DMA channels 5, 6, and 7**, and **IRQ lines 5, 7, 9–12, and 15**, allowing flexible system integration and efficient data transfer with minimal CPU overhead. - **Standard Connector Interface:** Equipped with a **D-Sub 37-pin female connector**, providing a robust and standardized interface for analog and digital signal connections. - **Compact Form Factor:** Physical dimensions of **160 mm × 122 mm**, designed for installation in standard PC/AT expansion slots. - **Manufacturer Reliability:** Developed and produced by **Contec**, a recognized manufacturer of industrial I/O and measurement hardware, ensuring long-term reliability and support.

Hersteller: Contec

Kategorie: A/D High Resolution ISA

- **High-Speed Analog-to-Digital Conversion:** Capable of sampling at up to **1 mega-sample per second (1 MS/s)** with **16-bit resolution**, ensuring precise and rapid data acquisition for dynamic signal measurement. - **Versatile Channel Configuration:** Provides **16 single-ended (SE)** or **8 differential (DI)** analog input channels. With the optional **ATUH-16(PC)** expansion module, the configuration can be extended to **32 SE / 16 DI** channels, offering scalability for larger measurement systems. - **Wide Input Voltage Range:** Supports multiple input ranges including **±10 V**, **±5 V**, **±2.5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a broad spectrum of analog sensors and signal sources. - **Integrated Digital-to-Analog Output:** Includes **one 16-bit D/A output channel** with selectable output ranges of **±10 V** or **0–10 V**, capable of delivering up to **±5 mA** output current with a maximum conversion time of **13 µs**. - **Intelligent Sampling Control:** Incorporates an **ASIC-based intelligent sampling controller** for efficient data handling and timing precision, minimizing CPU load during high-speed acquisition. - **Large Onboard FIFO / Ring Buffer:** Equipped with a **256 K-word FIFO (First-In-First-Out) or ring buffer**, enabling continuous high-speed data streaming without data loss. - **Flexible Bus and Interrupt Configuration:** Supports **DMA channels 5, 6, and 7** and **IRQ lines 5, 7, 9–12, and 15**, providing flexible integration into various PC architectures and minimizing latency. - **Digital I/O Capability:** Offers **4 TTL-compatible digital input** and **4 TTL-compatible digital output** lines, each rated for **5 VDC** operation and a total current capacity of **2 A**, suitable for control and status signaling. - **Robust Connectivity:** Features a **37-pin D-Sub female connector** for secure and standardized signal interfacing. - **Industrial-Grade Design:** Built for reliability and precision in laboratory, industrial automation, and embedded control systems.

Hersteller: Contec

Kategorie: A/D High Resolution ISA

- **High-Resolution Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 50 kS/s, ensuring precise signal measurement and low noise performance. - **Programmable Input Amplifier:** Configurable input ranges of 0–1.25 V, 0–2.5 V, 0–5 V, 0–10 V, or bipolar ranges of ±1.25 V, ±2.5 V, ±5 V, ±10 V, with a full-scale range (FSR) accuracy of ±0.003%. - **Dual 16-bit Digital-to-Analog Outputs:** Two independent 16-bit DA channels capable of ±10 V output voltage, with a maximum output current of ±5 mA per channel. - **Digital I/O Flexibility:** 8 digital input (DI) and 8 digital output (DO) channels with TTL-level compatibility, supporting a wide range of control and monitoring tasks. - **Integrated Counters:** Three 16-bit hardware counters for event counting, frequency measurement, or timing applications. - **Interrupt Handling:** Supports up to five interrupt request lines (5 IRQs) for efficient event-driven data processing. - **DMA Support:** Two direct memory access (DMA) channels for high-speed data transfer between the card and system memory, minimizing CPU load. - **Comprehensive Driver Support:** Supplied with driver software for seamless integration into PC-based systems and compatibility with standard data acquisition frameworks. - **Compact Form Factor:** Designed for PC installation with a board size of 338 mm × 99 mm, suitable for industrial PCs and rack-mounted systems. - **Standardized Connectivity:** Equipped with a 50-pin connector for reliable signal interfacing and compatibility with existing DAS-HRES accessories and cabling systems.

Hersteller: Axiom

Kategorie: A/D High Resolution ISA

- **High-Resolution Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 100 kS/s, enabling precise signal acquisition for demanding measurement tasks. - **Programmable Input Amplifier:** Configurable input ranges of 0–1.25 V, 0–2.5 V, 0–5 V, 0–10 V, or bipolar ranges of ±1.25 V, ±2.5 V, ±5 V, ±10 V. This flexibility allows adaptation to a wide variety of sensor and signal levels. - **Exceptional Accuracy:** ±0.003% of Full Scale Range (FSR) accuracy ensures high fidelity in analog signal measurement. - **Dual 12-bit Digital-to-Analog Outputs:** Two independent DA channels with ±10 V output range and maximum output current of ±5 mA, suitable for control signal generation or analog actuation. - **Integrated Digital I/O:** 8 digital input and 8 digital output TTL-compatible channels for general-purpose control, monitoring, and interfacing with external devices. - **Counter/Timer Functionality:** One 16-bit counter for event counting, frequency measurement, or timing applications. - **Interrupt and DMA Support:** 5 interrupt request (IRQ) lines and 2 direct memory access (DMA) channels for efficient data transfer and real-time performance. - **Comprehensive Driver Support:** Supplied with driver software for easy integration into PC-based control and data acquisition systems. - **Compact Form Factor:** Standard AT card dimensions (165 mm × 100 mm) for compatibility with legacy and industrial PC systems. - **Robust Connectivity:** 50-pin connector interface for secure and organized signal wiring.

Hersteller: Axiom

Kategorie: A/D High Resolution ISA
