Comprehensive Product Summary: ADLINK PCIe-6208V-GL 8-Channel 16-Bit Analog Output Card

---

### 1. Product Overview

Product Name: PCIe-6208V-GL
Model: PCIe-6208V-GL
Series: 6208/6216-GL Series Multi-Channel Analog Output Cards
Article Number: PCIe-6208V-GL
Manufacturer: ADLINK Technology Inc.

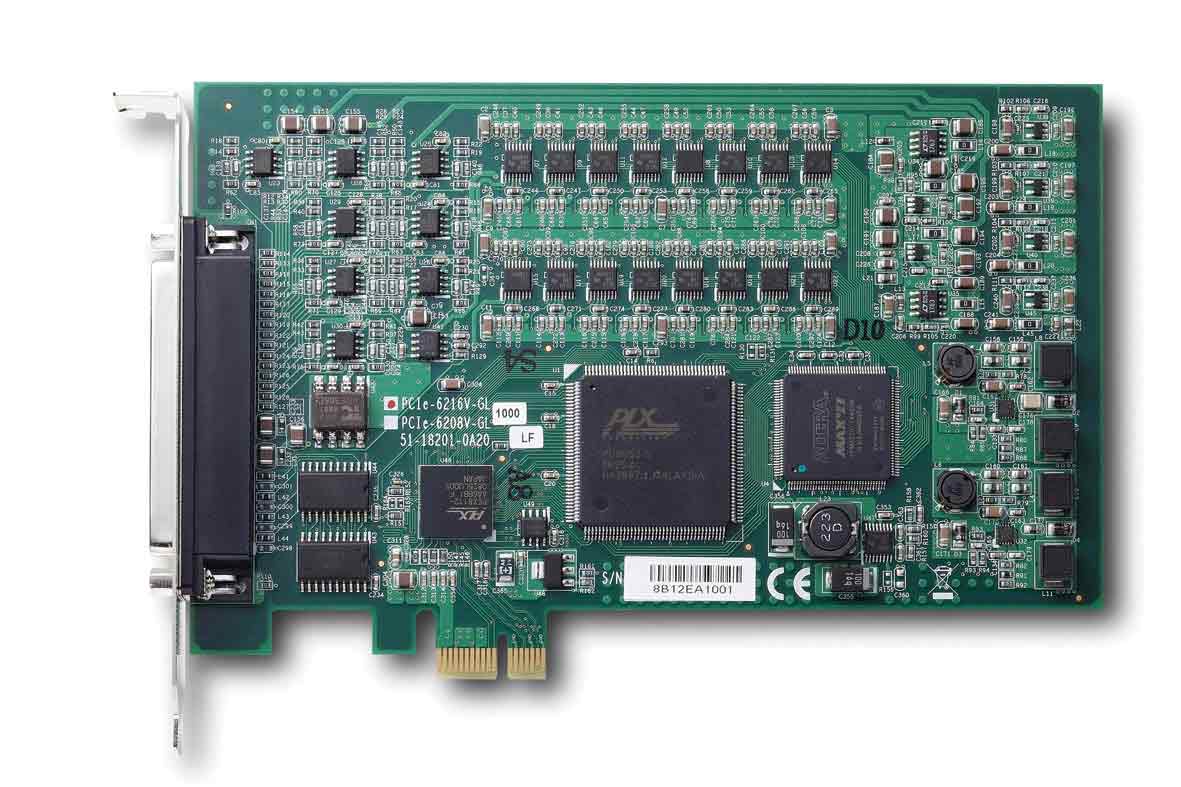

The ADLINK PCIe-6208V-GL is an 8-channel, 16-bit analog output card designed for PCI Express® (x1 lane) systems. It belongs to ADLINK’s 6208/6216-GL Series, which includes PCI, PCIe, and CompactPCI variants offering 8 or 16 channels of high-resolution voltage output. The PCIe-6208V-GL provides ±10 V bipolar analog outputs with a maximum output current of ±5 mA per channel and features a 37-pin D-sub connector interface. It is fully compatible with the legacy PCI-6208V model, ensuring seamless hardware and software integration.

---

### 2. Key Features

- PCI Express® x1 Interface: Fully compliant with PCI Express standards, ensuring high-speed data transfer and plug-and-play installation.
- High-Resolution Analog Output: 8 independent 16-bit digital-to-analog (D/A) channels with ±10 V bipolar output range.
- Fast Settling Time: Typical settling time of 130 µs for a 20 V step, enabling rapid signal updates.
- High Slew Rate: 26 V/µs typical, supporting dynamic signal generation.
- Output Drive Capability: ±5 mA maximum per channel, suitable for direct connection to control systems or instrumentation.
- Integrated DC/DC Converter: Provides stable internal power for analog circuitry.
- Digital I/O Support: 4 TTL-compatible digital inputs and 4 TTL-compatible digital outputs for auxiliary control and monitoring.
- Software and OS Compatibility: Supports Windows 7/8 (x86/x64) and Linux; compatible with LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio.NET.
- Backward Compatibility: 100% compatible with PCI-6208V hardware and software.
- Compact Design: 168 mm × 112 mm PCB size, optimized for modern PCIe slots.
- Plug and Play Configuration: Automatic resource allocation via PCIe PnP BIOS.

---

### 3. Technical Specifications

Analog Output (Voltage Mode):
- Channels: 8 independent voltage outputs
- Resolution: 16-bit
- Monotonicity: 15-bit typical
- Output Range: ±10 V bipolar
- Slew Rate: 26 V/µs typical
- Settling Time: 130 µs typical (20 V step)
- Gain Error: ±0.2% maximum
- Differential Nonlinearity (DNL): ±1 LSB typical
- Output Drive Capability: ±5 mA maximum
- Output Initial Status: 0 V after power-on or reset
- Data Transfer Method: Programmed I/O

Digital I/O:
- Channels: 4 digital inputs, 4 digital outputs
- Logic Level: 5 V TTL compatible
- Data Transfer: Programmed I/O

Electrical and Power Requirements:
- +3.3 V: 310 mA typical
- +12 V: 380 mA typical
- Power Consumption: Approximately 5.5 W typical

Physical Characteristics:
- Dimensions: 168 mm × 112 mm (6.55" × 4.36")
- Connector: One 37-pin D-sub female connector
- Form Factor: PCI Express x1, half-length card

Environmental Conditions:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +80°C (-4°F to 176°F)
- Relative Humidity: 5% to 95%, non-condensing

Materials and Construction:
- PCB: Multi-layer FR-4 industrial-grade board
- Connector Housing: Shielded D-sub metal shell for EMI protection

---

### 4. Functionality

The PCIe-6208V-GL performs digital-to-analog conversion across eight independent channels, each capable of generating precise voltage signals within a ±10 V range. Each channel has its own DAC (Digital-to-Analog Converter), allowing simultaneous or individual updates. The card is ideal for generating control voltages, reference signals, or analog waveforms in automation and test systems.

Typical Use Cases:
- Industrial process control and automation
- Servo motor control and motion systems
- Signal generation and waveform synthesis
- Reference voltage generation for calibration systems
- Automated test equipment (ATE) and laboratory instrumentation

Compatibility:
- Fully compatible with ADLINK’s PCI-6208V and cPCI-6208V models
- Supported by ADLINK’s DAQPilot, DAQMaster, and legacy PCIS-DASK drivers
- Integrates with third-party environments such as MATLAB®, LabVIEW™, and Agilent VEE™

---

### 5. Components & Accessories

Included Items:
- PCIe-6208V-GL analog output card
- ADLINK All-in-One Software CD (drivers, SDKs, utilities)
- User’s Manual (digital or printed)

Optional Accessories:
- DIN-37D-01: Terminal board with one 37-pin D-sub connector and DIN-rail mounting
- ACLD-9137-01: General-purpose terminal board with one 37-pin D-sub male connector
- ACLD-9137F-01: General-purpose terminal board with one 37-pin D-sub female connector
- ACL-10137-1MM: 37-pin D-sub male-to-male cable, 1 meter
- ACL-10137-1MF: 37-pin D-sub male-to-female cable, 1 meter

These accessories facilitate easy wiring, signal breakout, and integration with external devices or control systems.

---

### 6. Installation & Setup

System Requirements:
- Available PCI Express x1 slot
- Supported OS: Windows 7/8 (x86/x64) or Linux
- Administrative privileges for driver installation

Installation Steps:
1. Power off the host system and disconnect all peripherals.
2. Insert the PCIe-6208V-GL card into an available PCIe x1 slot.
3. Secure the card using the chassis screw.
4. Reconnect power and boot the system.
5. Install ADLINK DAQPilot or DAQMaster software from the provided CD or ADLINK website.
6. Verify device recognition in DAQMaster or the OS device manager.

Configuration:
- The card uses PCIe Plug and Play (PnP) for automatic resource allocation.
- No manual jumper or switch configuration is required.
- Analog output channels can be configured via software APIs or graphical utilities.

Mounting Options:
- Standard PCIe slot mounting
- Compatible with industrial PC chassis and rackmount systems

---

### 7. Performance & Capabilities

Analog Output Performance:
- 16-bit resolution ensures fine voltage granularity (approx. 0.305 mV per LSB at ±10 V range).
- Typical gain error within ±0.2% and DNL within ±1 LSB provide high linearity and accuracy.
- Fast 130 µs settling time supports dynamic waveform generation.
- ±5 mA drive capability allows direct interfacing with moderate load impedances.

Digital I/O Performance:
- TTL-compatible 4 input and 4 output channels for control signaling.
- Input thresholds: Low ≤ 0.8 V, High ≥ 2.0 V.
- Output drive: Sink up to 8 mA, source up to 0.4 mA.

Efficiency and Limitations:
- Optimized for voltage output applications; current output not supported on this model (available on PCI-6208A).
- Limited to ±5 mA output current per channel; external buffering recommended for higher loads.
- Not designed for high-frequency waveform generation beyond the settling time constraints.

---

### 8. Standards & Compliance

Bus Interface Standards:
- PCI Express® Base Specification compliant (x1 lane)
- Fully backward compatible with PCI-6208V register map and driver architecture

Form Factor Standards:
- 3U Eurocard form factor for CompactPCI variants (reference compatibility)
- PICMG 2.0 R2.1 compliance for cPCI models

Regulatory Compliance:
- CE and FCC Class A compliant (industrial environment)
- RoHS compliant (lead-free manufacturing)
- Manufactured under ISO 9001:2015 quality management standards

Software Standards:
- Compatible with DAQPilot, DAQMaster, and PCIS-DASK driver frameworks
- Supports industry-standard APIs for LabVIEW™, MATLAB®, and Visual Studio environments

---

### 9. Additional Information

Calibration:
- Factory calibrated using precision 6½-digit DMM for linearity and offset correction.
- Calibration data stored in onboard flash memory.
- Recommended recalibration interval: 1 year.

Warranty:
- Standard ADLINK limited warranty (typically 2 years, region-dependent).
- Covers manufacturing defects and hardware failures under normal use.

Support & Maintenance:
- Global technical support via ADLINK regional offices (Taiwan, USA, Europe, Japan, China, Korea, Singapore, India).
- Software updates and driver downloads available at [www.adlinktech.com](http://www.adlinktech.com).
- Field Application Engineers (FAEs) available for integration and troubleshooting assistance.

Documentation & Utilities:
- User’s Manual (Part Number: 50-11234-2020, Revision 4.03)
- Utility software for DOS and Windows environments for function testing and calibration
- DAQMaster for device management and configuration
- DAQPilot SDK for application development

Safety & Handling:
- Handle only in ESD-safe environments; use grounded wrist straps and anti-static mats.
- Operate within specified temperature and humidity ranges.
- Avoid exposure to moisture, vibration, or excessive heat.

---

### Summary

The ADLINK PCIe-6208V-GL is a high-performance, 8-channel, 16-bit analog output card engineered for precision voltage generation in industrial and laboratory environments. With its ±10 V bipolar range, fast 130 µs settling time, and robust PCI Express interface, it delivers reliable and accurate analog signal output for automation, control, and test applications. The inclusion of TTL digital I/O channels, comprehensive software support, and full backward compatibility with legacy PCI models make it a versatile and future-proof solution for system integrators and engineers seeking dependable analog output performance in modern PCIe-based systems.
