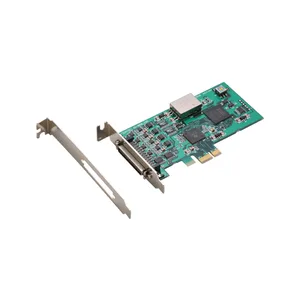

- **High‑Precision Analog Output:** Four non‑isolated 16‑bit analog output channels with bipolar ±10 V range and maximum output current of ±3 mA. - **High‑Speed Conversion:** 100 kS/s (10 µs per conversion) per channel, suitable for waveform generation and control applications. - **Integrated Digital I/O:** Four TTL‑level digital inputs and four TTL‑level digital outputs (positive logic, non‑isolated). - **Built‑in Counter Function:** One 32‑bit up‑counter channel with maximum response frequency of 10 MHz, supporting gate and up‑clock inputs and a count‑match output. - **Buffer Memory:** 1 k‑word buffer memory for analog output, supporting FIFO or ring operation modes for continuous or cyclic waveform generation. - **Software‑Based Calibration:** Full software calibration for analog outputs, allowing adjustment and storage of calibration data according to the operating environment. - **Trigger and Clock Synchronization:** Supports software, external trigger, and external clock synchronization for precise timing control. - **Digital Filtering:** 1 µs digital filter (software‑selectable) on digital inputs, counter inputs, and external control signals to suppress noise and chattering. - **Cross‑Platform Driver Support:** Includes Windows and Linux driver libraries (API‑PAC(W32), API‑AIO(WDM), API‑AIO(LNX)) with sample programs. - **MATLAB and LabVIEW Integration:** Dedicated plug‑in libraries (ML‑DAQ and VI‑DAQ) available free of charge for seamless integration with MATLAB and National Instruments LabVIEW. - **Compact Low Profile Design:** 121.69 mm (L) × 67.90 mm (H), 60 g weight, suitable for space‑constrained systems. - **RoHS and VCCI Compliant:** Environmentally friendly and compliant with Japanese VCCI electromagnetic standards.

Hersteller: Contec

Kategorie: D/A General Purpose PCIe

- **Eight 16‑bit Analog Outputs:** Unisolated bipolar ±10 V range with ≤ 1 Ω output impedance and ±3 mA maximum drive current per channel. - **High Speed Conversion:** 10 µs conversion time (100 kS/s aggregate) for precise waveform generation and control applications. - **Integrated 1 k‑word Buffer Memory:** Configurable as FIFO or RING for continuous or repetitive output without CPU intervention. - **Flexible Trigger and Clock Control:** Start/stop sampling via software command or external LVTTL trigger; internal or external clock selectable. - **Digital I/O and Counter:** 4 × LVTTL inputs and 4 × LVTTL outputs (positive logic) plus one 32‑bit up‑counter with 10 MHz max response frequency. - **Digital Filter Function:** 1 µs software‑selectable filter to suppress chattering and noise on external trigger, clock, and I/O signals. - **Safe Power‑On Design:** All analog outputs forced to 0 V at power‑up to protect connected equipment. - **Software Calibration:** Full software‑based gain/offset adjustment with user‑storable calibration data. - **Driver and Library Support:** API‑PAC(W32) for Windows and Linux (API‑AIO WDM/LNX), plus free ML‑DAQ (MATLAB) and VI‑DAQ (LabVIEW) libraries. - **Compatibility:** Connector and function compatible with legacy PCI board DA16‑8(LPCI)L for easy system migration. - **Dual Bracket Support:** Includes both low‑profile and standard PCI brackets for installation flexibility. - **RoHS and VCCI Compliant.**

Hersteller: Contec

Kategorie: D/A General Purpose PCIe

- **High‑precision 16‑bit Analog Output:** Sixteen independent unisolated channels with bipolar ±10 V range and ≤ 1 Ω output impedance provide fine‑resolution voltage generation for control and simulation tasks. - **High Speed Conversion:** 10 µs conversion time per channel (100 kS/s aggregate rate) enables smooth waveform generation and dynamic signal output. - **Integrated Digital I/O:** Four LVTTL‑level inputs and four LVTTL‑level outputs (positive logic) allow synchronous digital control and status monitoring. - **32‑bit Counter/Timer:** One LVTTL‑level up‑count channel with gate and up inputs and a count‑match pulse output supports event counting up to 10 MHz. - **Flexible Trigger and Clock Control:** Sampling start/stop can be initiated by software commands or external LVTTL triggers; sampling clock can be internal or external with edge selection (rising/falling). - **1 k‑word On‑board Buffer:** Configurable as FIFO or RING memory for continuous or cyclic output independent of host CPU load. - **Digital Filter on External Signals:** 1 µs software‑selectable filter suppresses chattering and false trigger detection on external and digital inputs. - **Safe Power‑on Design:** All analog outputs are forced to 0 V at power‑up to protect connected equipment from transients. - **Software Calibration:** Full software‑based gain/offset adjustment with storage of user calibration data in non‑volatile memory. - **Driver and Library Support:** Bundled Windows and Linux drivers (API‑PAC W32/LNX) with sample programs; MATLAB ML‑DAQ and LabVIEW VI‑DAQ libraries available free from CONTEC. - **Compatibility:** Connector and function compatible with legacy PCI board DA16‑16(LPCI)L for easy system migration. - **Dual Bracket Support:** Supplied with both low‑profile and standard PCI brackets for installation flexibility. - **Regulatory Compliance:** RoHS and VCCI certified.

Hersteller: Contec

Kategorie: D/A General Purpose PCIe

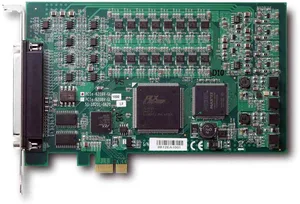

- **PCI Express® x1 Interface:** Fully compliant with PCI Express standards, ensuring high-speed data transfer and plug-and-play installation. - **High-Resolution Analog Output:** 8 independent 16-bit digital-to-analog (D/A) channels with ±10 V bipolar output range. - **Fast Settling Time:** Typical settling time of 130 µs for a 20 V step, enabling rapid signal updates. - **High Slew Rate:** 26 V/µs typical, supporting dynamic signal generation. - **Output Drive Capability:** ±5 mA maximum per channel, suitable for direct connection to control systems or instrumentation. - **Integrated DC/DC Converter:** Provides stable internal power for analog circuitry. - **Digital I/O Support:** 4 TTL-compatible digital inputs and 4 TTL-compatible digital outputs for auxiliary control and monitoring. - **Software and OS Compatibility:** Supports Windows 7/8 (x86/x64) and Linux; compatible with LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio.NET. - **Backward Compatibility:** 100% compatible with PCI-6208V hardware and software. - **Compact Design:** 168 mm × 112 mm PCB size, optimized for modern PCIe slots. - **Plug and Play Configuration:** Automatic resource allocation via PCIe PnP BIOS.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCIe

- **16‑Channel, 16‑Bit Analog Voltage Outputs:** Provides 16 independent voltage output channels with high‑resolution 16‑bit digital‑to‑analog conversion. - **Bipolar Output Range:** ±10 V output range with ±5 mA maximum drive capability per channel. - **High Accuracy and Linearity:** Typical differential nonlinearity (DNL) ±1 LSB, gain error ±0.2 % maximum, monotonic to 15 bits. - **Fast Response:** Typical slew rate of 26 V/µs and settling time of 130 µs for a 20 V step. - **Integrated Digital I/O:** 4 TTL‑compatible digital inputs and 4 TTL‑compatible digital outputs for auxiliary control and monitoring. - **PCI Express® x1 Interface:** Fully compliant with PCIe specifications, providing high‑speed data transfer and plug‑and‑play configuration. - **On‑board DC/DC Converter:** Ensures stable analog output performance independent of system power fluctuations. - **Compact Form Factor:** 168 mm × 112 mm PCB size suitable for standard PCIe slots. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; supported by ADLINK DAQPilot, DAQMaster, and legacy PCIS‑DASK drivers. - **Third‑Party Integration:** Provides APIs and SDKs for LabVIEW™, MATLAB®, Visual C++, Visual Basic, and .NET environments. - **Backward Compatibility:** 100 % register‑level and driver compatibility with PCI‑6216V‑GL.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCIe

PCI bus 6 channel DA card, 12 bit, 0-20/4-20mA/±5/10V/0-5/10V, 8/8 DIO, 37pin D-type male and 40pin, 175*110mm, Axiom

Hersteller: Axiom

Kategorie: D/A General Purpose PCI

- **Sixteen independent analog output channels:** Each channel can output a programmable voltage signal, allowing simultaneous control of multiple actuators or devices. - **12‑bit resolution:** Provides fine granularity for analog signal generation, suitable for precision control and waveform synthesis. - **Selectable output ranges:** Software‑selectable unipolar 0–10 V or bipolar ±5 V/±10 V ranges per channel. - **High‑speed conversion:** Maximum conversion speed of 10 µs per channel, enabling rapid waveform updates and real‑time control. - **Programmable timer:** Built‑in programmable timer allows periodic or externally triggered updates of output voltages. - **External trigger input:** One TTL‑level trigger input enables synchronization with external events or other measurement devices. - **Compact PCI short‑size board:** 176.4 mm (L) × 107 mm (H), suitable for standard PCI slots. - **Standard 37‑pin D‑SUB connector:** Provides robust and widely compatible interface for external wiring. - **High‑speed settling time:** 250 ns typical settling time ensures stable output transitions. - **Output current capacity:** ±5 mA maximum per channel. - **Occupies 32 I/O ports:** Efficient resource usage on the PCI bus. - **Software‑configurable operation:** All range and timing parameters are set via software—no jumpers or DIP switches required. - **Comprehensive driver support:** Windows and Linux drivers, plus LabVIEW and MATLAB libraries, are available free of charge. - **Industrial reliability:** Designed for continuous operation in measurement, control, and automation environments.

Hersteller: Contec

Kategorie: D/A General Purpose PCI

PCI 4 channel digital to analog output card, 12bit, Contec

Hersteller: Contec

Kategorie: D/A General Purpose PCI

- **8 Independent Analog Output Channels:** Each channel can be individually configured for output range and mode, providing flexibility for multi-signal generation and control applications. - **High-Speed Conversion:** Maximum conversion rate of 10 µs per channel (100 kS/s), enabling precise and rapid analog signal generation. - **12-bit Resolution:** Ensures fine granularity and accuracy in analog output, suitable for control, simulation, and waveform generation tasks. - **Software-Selectable Output Ranges:** Supports ±10 V, ±5 V, and 0–10 V ranges, configurable per channel via software. - **Dual Output Modes:** - *Transparent Output Mode* – updates only the specified channel. - *Synchronous Output Mode* – updates all channels simultaneously. - **Sampling Clock Flexibility:** - Internal clock adjustable from 10,000 ns to 1,073,741,824,000 ns in 250 ns increments. - External clock synchronization via TTL-level falling edge input. - **Programmable Timer Function:** Adjustable from 500 ns to 1,073,741,824,000 ns in 250 ns increments, with status monitoring for count-up and overrun conditions. - **Safety Power-On Design:** Automatically sets all output voltages to 0 V at power-on to prevent device malfunction or damage. - **Comprehensive Software Support:** Compatible with Windows (API-AIO(WDM)/API-AIO(98/PC)), Linux (API-AIO(LNX)), and LabVIEW (VI-DAQ). - **Compact and Lightweight:** 176.41 mm × 105.68 mm, approximately 135 g. - **PCI Bus Compatibility:** 32-bit, 33 MHz PCI interface supporting universal key shapes (5 V signaling). - **Regulatory Compliance:** CE and VCCI certified for electromagnetic compatibility and safety.

Hersteller: Contec

Kategorie: D/A General Purpose PCI

- **16-Channel Analog Output:** Provides 16 independent analog output channels for voltage signal generation. - **High Resolution:** 16-bit D/A conversion ensures fine output granularity and high precision. - **Low Profile PCI Compliance:** Designed for compact desktop PCs; includes a bracket for standard PCI slot installation. - **High-Speed Conversion:** Maximum conversion rate of 10 µsec per channel, enabling rapid waveform updates. - **Onboard Buffer Memory:** 1k-word buffer memory allows background analog output independent of host CPU load. - **Digital I/O and Counter Functions:** Includes 4 TTL-level digital inputs, 4 TTL-level digital outputs, and one 32-bit up counter. - **Software-Controlled Configuration:** Output range and operational parameters can be configured via software—no jumper settings required. - **Synchronization and Timing Control:** Onboard timing circuits support synchronized output and external trigger control. - **Comprehensive Software Support:** Compatible with Windows and Linux drivers, as well as LabVIEW and MATLAB libraries. - **Industrial Reliability:** Designed for stable operation in industrial environments with noise-resistant circuitry and robust connectors.

Hersteller: Contec

Kategorie: D/A General Purpose PCI

- **High‑Precision Analog Output:** Four independent 16‑bit D/A output channels with bipolar ±10 V range for precise voltage generation. - **Low‑Profile PCI Compliance:** Fits both low‑profile and standard PCI slots; includes interchangeable brackets for flexible installation. - **High‑Speed Conversion:** Maximum D/A conversion speed of **10 µs per channel**, enabling rapid waveform updates and control loops. - **On‑Board Buffer Memory:** 1 k‑word buffer memory supports background analog output independent of host CPU timing. - **Software‑Controlled Calibration:** All calibration and range settings are performed via software—no jumpers or manual adjustments required. - **Synchronous and Timed Operation:** Supports software, external trigger, and external clock synchronization for precise timing control. - **Integrated Digital I/O and Counter:** 4 × TTL digital inputs, 4 × TTL digital outputs, and one 32‑bit up counter with 10 MHz maximum count rate. - **Noise‑Resistant Design:** Digital filters on external trigger and clock lines reduce chatter and electrical noise interference. - **Universal PCI Bus Support:** Compatible with both 5 V and 3.3 V PCI signaling environments (32‑bit, 33 MHz). - **Comprehensive Software Support:** Includes Windows and Linux drivers, API libraries, and compatibility with LabVIEW and MATLAB environments.

Hersteller: Contec

Kategorie: D/A General Purpose PCI

- **Eight 16-bit Analog Output Channels:** Provides eight independent D/A conversion channels for precise voltage output control. - **High-Speed Conversion:** Maximum conversion speed of 10 µsec per channel, enabling real-time analog signal generation. - **High Precision:** 16-bit resolution ensures fine granularity and accurate analog output suitable for instrumentation and control. - **Low-Profile PCI Form Factor:** Compliant with PCI and Low Profile PCI standards; includes both low-profile and standard-height brackets for flexible installation. - **Onboard Timing and Synchronization:** Integrated timing circuitry allows synchronized output operations and timed waveform generation. - **Digital I/O and Counter Functions:** Includes 4 TTL-level digital inputs, 4 TTL-level digital outputs, and one 32-bit up counter for event counting or synchronization. - **Software-Controlled Configuration:** Output range, timing, and control parameters can be configured entirely via software—no jumper settings required. - **Onboard Buffer Memory:** 1 k-word buffer memory supports background data output independent of host CPU load. - **Windows and Linux Drivers:** Fully supported by CONTEC’s API-TOOLs for Windows and Linux, enabling easy integration into custom applications. - **LabVIEW and MATLAB Support:** Compatible with VI-DAQ (LabVIEW) and ML-DAQ (MATLAB) libraries for seamless integration into scientific and engineering environments. - **Comprehensive Accessory Ecosystem:** Compatible with CONTEC’s range of shielded cables, terminal blocks, and BNC breakout units for flexible system configuration.

Hersteller: Contec

Kategorie: D/A General Purpose PCI

- **8‑Channel Voltage‑to‑Current Conversion:** Converts eight independent ±10 V analog voltage outputs into current outputs. - **Programmable Output Ranges:** Software‑selectable current ranges of 0–20 mA, 4–20 mA, and 5–25 mA. - **High Resolution and Accuracy:** 15‑bit typical resolution with 14‑bit monotonicity; span error ±0.3 % typical. - **Fast Response:** Typical slew rate of 1.3 mA/µs and settling time of 17 µs for a 20 mA step. - **Precision Components:** Utilizes Burr‑Brown XTR110 or equivalent precision voltage‑to‑current transducers for linear, low‑noise conversion. - **Stable Power Supply:** On‑board DC‑to‑DC converter provides isolated ±15 V and +5 V rails for analog circuitry. - **Compact Daughterboard Design:** Mounts directly onto the PCI‑6208V main card to form the PCI‑6208A assembly. - **Industrial‑Grade Reliability:** Designed for continuous operation in 0 °C to 50 °C environments with 5–95 % non‑condensing humidity. - **Plug‑and‑Play PCI Interface:** Fully compatible with 32‑bit PCI bus architecture; automatic resource assignment via BIOS. - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and legacy PCIS‑DASK drivers; supports Windows and Linux environments.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **8 Additional Voltage Output Channels:** Expands the PCI‑6208V from 8 to 16 channels, forming the PCI‑6216V configuration. - **High‑Resolution Analog Output:** 16‑bit resolution with 15‑bit guaranteed monotonicity for precise voltage generation. - **Wide Output Range:** ±10 V bipolar output range suitable for a variety of analog control and signal generation tasks. - **Fast Response:** Typical 4 µs settling time for a 20 V step and 10 V/µs slew rate, ensuring rapid and stable output transitions. - **Low Error and High Accuracy:** Gain error within ±0.2% (maximum) and differential non‑linearity (DNL) of ±0.65 LSB typical. - **Stable Power‑On Behavior:** On‑board analog switches minimize power‑on glitches; outputs default to 0 V at startup. - **Compact and Modular Design:** Daughterboard form factor designed for direct connection to the PCI‑6208V main card. - **Industrial‑Grade Reliability:** Operating temperature range of 0 °C to 50 °C and humidity tolerance up to 95% non‑condensing. - **Compatibility:** Fully compatible with ADLINK’s PCI‑6208V and PCI‑6208A series cards and associated software libraries. - **Applications:** Ideal for automatic test equipment (ATE), process control, servo control, and signal generation systems.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **High-Resolution Analog Output:** Four 16-bit DAC channels with simultaneous update capability and a maximum update rate of 1 MS/s per channel. - **Excellent Linearity and Accuracy:** Differential nonlinearity (DNL) < ±1 LSB, offset error ±0.3 mV, and gain error ±0.06 mV after calibration. - **Fast Response:** Settling time < 3 µs, slew rate 20 V/µs, rise time 0.67 µs, and fall time 0.705 µs. - **Wide Output Range:** ±10 V bipolar output range with ±5 mA drive capability. - **Comprehensive Digital I/O:** 16 isolated digital inputs and 16 isolated digital outputs (2500 Vrms isolation), plus 8 TTL DI and 8 TTL DO channels. - **Encoder and PWM Support:** Three isolated encoder inputs (CW/CCW, x1/x2/x4 AB phase) and four PWM outputs with programmable duty cycles (1–99%) and frequencies from 20 MHz to 0.005 Hz. - **General-Purpose Timer/Counter:** Two 32-bit counters with internal 80 MHz or external 10 MHz clock sources. - **Advanced Triggering:** Supports software and external digital triggers, post-trigger, delay-trigger, and retrigger modes. - **Hardware-Timed Waveform Generation:** Onboard FIFO (512 samples shared across channels) and DMA support for continuous waveform output. - **Universal PCI Interface:** Compatible with both 3.3 V and 5 V PCI slots. - **Comprehensive Software Support:** Includes DAQPilot SDK, DAQMaster device manager, and legacy PCIS-DASK drivers for Windows. - **Robust Isolation and Protection:** 2500 Vrms isolation for digital I/O and encoder channels, ensuring reliable operation in industrial environments.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **Bus Interface:** 32-bit PCI bus, compatible with both 3.3 V and 5 V signaling. - **Analog Output Channels:** 8 independent channels supporting both voltage and current output. - **Resolution:** 16-bit D/A conversion for voltage output; effective 15-bit resolution for current output. - **Output Ranges:** - Voltage: ±10 V bipolar range. - Current: 0–20 mA, 4–20 mA, 5–25 mA (software programmable). - **Settling Time:** 17 µs typical for current output (20 mA step); 130 µs typical for voltage output (20 V step). - **Slew Rate:** 1.3 mA/µs (current output); 26 V/µs (voltage output). - **Output Drive Capability:** ±5 mA maximum for voltage output. - **Digital I/O:** 4 TTL-compatible digital inputs and 4 TTL-compatible digital outputs. - **Plug and Play:** Fully PCI Plug-and-Play compliant; automatic resource allocation by BIOS. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers and SDKs available for LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Form Factor:** Standard PCI card (175 mm × 107 mm). - **Connector:** One 37-pin D-sub female connector for analog and digital I/O. - **Power Supply:** +5 V and +12 V DC rails from PCI bus; onboard DC/DC converter for current output circuitry. - **Calibration:** Factory-calibrated with precision DMM; supports re-calibration for long-term accuracy. - **Safety and Reliability:** Designed for industrial environments with 0–50°C operating range and 5–95% non-condensing humidity tolerance.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **High-Resolution Analog Output:** 8 independent 16-bit DAC channels with ±10 V output range and 15-bit guaranteed monotonicity. - **Fast Response:** Typical settling time of 2–4 µs for a full-scale (20 V) step, with a slew rate of 10–25 V/µs depending on model revision. - **Stable Power Supply:** On-board DC/DC converter ensures stable analog power rails and minimizes noise and power-on glitches. - **Digital I/O Support:** 4 TTL-compatible digital input channels and 4 TTL-compatible digital output channels for auxiliary control and status monitoring. - **High Accuracy:** Gain error within ±0.2% (max), differential nonlinearity (DNL) ±0.65 LSB typical, and integral nonlinearity (INL) ±2.5 LSB typical. - **Output Drive Capability:** ±5 mA maximum per channel, suitable for driving moderate loads directly. - **Software Programmable:** Fully programmable via ADLINK’s software libraries and drivers for Windows and Linux environments. - **Plug and Play PCI Interface:** 32-bit PCI bus interface with automatic resource allocation (PnP BIOS compliant). - **Compact Design:** Half-size PCI card (175 mm × 107 mm) with a 37-pin D-sub female connector for all analog and digital I/O signals. - **Compatibility:** Fully compatible with ADLINK’s DAQPilot, PCIS-DASK, and third-party environments such as MATLAB®, LabVIEW™, and Agilent VEE™.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **Bus Interface:** 32-bit 3.3 V or 5 V PCI bus, Plug and Play compliant. - **Analog Outputs:** 8 independent voltage output channels, each with a dedicated 16-bit DAC. - **Resolution:** 16-bit D/A conversion with 15-bit guaranteed monotonicity. - **Output Range:** Bipolar ±10 V voltage output range. - **Output Drive Capability:** ±5 mA maximum per channel. - **Settling Time:** 130 µs typical for a 20 V step. - **Slew Rate:** 25–26 V/µs typical. - **Gain Error:** ±0.2% maximum. - **Differential Nonlinearity (DNL):** ±1 LSB typical. - **Digital I/O:** 4 TTL-compatible digital inputs and 4 TTL-compatible digital outputs. - **Operating Systems Supported:** Windows 7/8 (x86/x64) and Linux. - **Software Support:** Drivers and SDKs for LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio.NET. - **Form Factor:** Standard PCI card, 175 mm x 107 mm PCB dimensions. - **Connector:** One 37-pin D-sub female connector for analog and digital I/O. - **Power Supply:** +5 VDC at 650 mA typical, +12 VDC at 170 mA typical. - **Compatibility:** 100% backward compatible with PCI-6208V. - **Additional Features:** Onboard DC/DC converter, plug-and-play configuration, and robust calibration support.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **High‑Density Analog Output:** 16 independent voltage output channels, each with 16‑bit resolution and ±10 V range. - **High Precision and Stability:** Utilizes Burr‑Brown PCM56U or equivalent monolithic multiplying DACs with ultra‑stable NiCr thin‑film resistors ensuring monotonicity, low distortion, and minimal differential linearity error. - **Fast Response:** Typical settling time of 2 µs for a full‑scale (‑10 V to +10 V) step; slew rate up to 10 V/µs (typical). - **Excellent Accuracy:** Gain error ±0.2 % maximum; differential non‑linearity ±0.65 LSB typical; monotonicity guaranteed to 15 bits. - **Integrated Power Conversion:** Onboard DC‑to‑DC converter provides isolated ±15 V analog supply rails, ensuring stable operation and reduced noise coupling from the PCI bus. - **Digital I/O Support:** Four TTL‑compatible digital inputs and four TTL‑compatible digital outputs for auxiliary control and status signaling. - **Plug‑and‑Play PCI Interface:** Fully compliant with 32‑bit PCI bus specifications; automatic resource allocation via BIOS (PnP). - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and legacy PCIS‑DASK drivers; supports Windows and Linux environments; integrates with MATLAB®, LabVIEW™, VEE™, and ActiveX® environments. - **Calibration and Utility Tools:** Includes DOS‑based 6208UTIL.EXE for functional testing and calibration; supports fine adjustment of full‑scale and offset per channel.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **16‑Channel, 16‑Bit Analog Voltage Outputs:** Provides 16 independent voltage output channels with 16‑bit resolution for high‑precision signal generation. - **Universal PCI Interface:** Supports both 3.3 V and 5 V, 32‑bit PCI bus standards, ensuring compatibility with a wide range of industrial PCs. - **High Accuracy and Stability:** ±0.2% maximum gain error, ±1 LSB typical DNL, and 130 µs typical settling time for a 20 V step. - **Bipolar Output Range:** ±10 V output range suitable for control and simulation applications. - **Integrated Digital I/O:** 4 TTL digital inputs and 4 TTL digital outputs for auxiliary control and status monitoring. - **Dedicated DAC per Channel:** Each channel uses a dedicated 16‑bit DAC (e.g., BB PCM56U or equivalent) for simultaneous and independent updates. - **Fast Slew Rate:** 26 V/µs typical, enabling rapid signal transitions. - **Plug‑and‑Play Configuration:** Automatic resource allocation via PCI PnP BIOS, no manual jumper settings required. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers and SDKs available for LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Built‑in DC/DC Converter:** Ensures stable internal power for analog circuitry. - **Compact Design:** 175 mm × 107 mm PCB size, 37‑pin D‑sub connector interface. - **Backward Compatibility:** Fully compatible with earlier PCI‑6216V hardware and software.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **8 Analog Output Channels:** Each channel supports independent configuration for voltage or current output modes. - **12-bit Resolution:** Ensures fine granularity and precision in analog signal generation. - **Sampling Rate:** Up to **15 kS/s (15,000 samples per second)** per channel, suitable for medium-speed control and waveform generation applications. - **Double-Buffered Architecture:** Each DA channel includes a double-buffered output register, allowing seamless data updates without output glitches. - **Selectable Output Ranges:** - Voltage output: ±5 V, ±10 V, 0–5 V, 0–10 V - Current output: 4–20 mA (sink mode) Each channel can be individually configured for the desired range. - **Fast Output Response:** Typical update time of **

Hersteller: Keine Kategorie

Kategorie: D/A General Purpose ISA

- **Six Analog Output Channels:** Each channel features a 12‑bit resolution D/A converter (DAC7541AJP or equivalent) with double‑buffered architecture for smooth, single‑step updates. - **Multiple Output Ranges:** Configurable per channel for unipolar (0–5 V, 0–10 V), bipolar (±5 V, ±10 V), or current loop (4–20 mA sink) operation. - **Fast Conversion Performance:** Maximum settling time of 70 µs ensures rapid analog output updates suitable for dynamic control systems. - **Digital I/O Capability:** 16 digital input and 16 digital output channels, all TTL/DTL compatible, supporting standard 74/74LS logic levels. - **Enhanced Interrupt Support:** Selectable IRQ levels (IRQ3–IRQ15) triggered by external digital input (pin 17 of CN3). - **Compatibility:** Register structure fully compatible with Advantech PCL‑726, simplifying software migration. - **Robust Design:** Surface‑mount technology (SMT) construction for improved reliability and reduced noise susceptibility. - **Compact Form Factor:** Half‑size ISA card (163 mm × 123 mm) suitable for standard PC/AT chassis. - **Software Support:** Includes DOS programming library (ACLS‑DLL2) and LabVIEW driver (ACLS‑LVIEW) for Windows 95/98/NT environments. - **Automatic Safe State:** All D/A outputs reset to 0 V upon power‑on or system reset.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose ISA

- **Eight Analog Output Channels:** Provides 8 independent DA channels for simultaneous or sequential analog signal generation. - **12-bit Resolution:** Ensures fine granularity and high precision in analog output signals, suitable for control and measurement applications. - **Sampling Rate:** Capable of up to 33 kS/s (33,000 samples per second), enabling smooth waveform generation and responsive control. - **Multiple Output Ranges:** Configurable output voltage and current ranges including 0–5 V, 0–10 V, ±2.5 V, ±5 V, and 4–20 mA, supporting a wide variety of analog devices and sensors. - **ISA Bus Interface:** Designed for standard ISA bus architecture, ensuring compatibility with legacy industrial PC systems. - **Windows Driver Support:** Includes a Windows-compatible driver for easy integration with modern software environments and application development platforms. - **50-Pin Connector:** Utilizes a standard 50-pin connector for reliable signal transmission and easy interfacing with external equipment or terminal boards. - **Industrial Form Factor:** Compact and robust design (334 mm × 99 mm) optimized for installation in industrial PC chassis. - **Manufacturer Reliability:** Produced by Axiom, known for high-quality industrial I/O and data acquisition hardware.

Hersteller: Axiom

Kategorie: D/A General Purpose ISA

6 DA ISA card 12bit 33 kS/s, output 0..5/1..10V/±5/10V/4..20mA, windows driver available, 37pin connector, half size, Axiom

Hersteller: Axiom

Kategorie: D/A General Purpose ISA

8 DA ISA card 12bit 33 kS/s, output 0..5/1..10V/±5/10V/4..20mA, windows driver available, 37pin connector, half size, Axiom

Hersteller: Axiom

Kategorie: D/A General Purpose ISA
