- Compact Fanless Design:

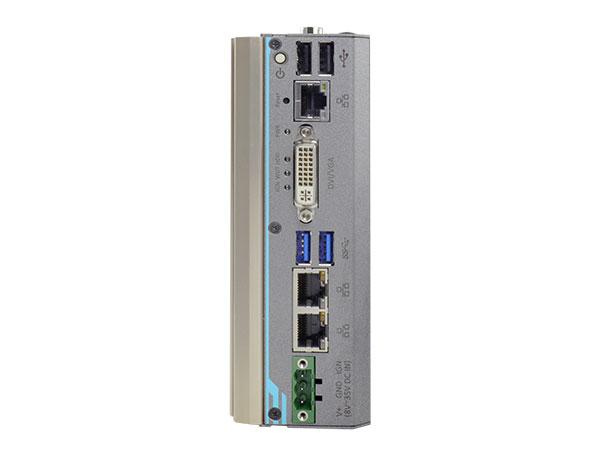

Ultra‑compact enclosure (56 × 108 × 153 mm) with front‑accessible I/O and fanless thermal design for silent, maintenance‑free operation.
- High‑Performance Intel® Apollo Lake Platform:
Equipped with Intel® Atom™ x7‑E3950 (1.6 GHz base / 2.0 GHz burst) or Pentium® N4200 (1.1 GHz base / 2.5 GHz burst) quad‑core processors, delivering up to 1.5× CPU and 3× GPU performance improvement over previous Atom™ E3845 generation.
- Rich I/O Connectivity:
Three Intel® I210 Gigabit Ethernet ports, two of which support IEEE 802.3at PoE+ (25 W per port) for powering IP cameras or sensors.
Four COM ports (1× software‑programmable RS‑232/422/485, 3× RS‑232 or 1× RS‑422/485), four USB ports (2× USB 3.0, 2× USB 2.0), and audio I/O (mic‑in, speaker‑out).
- Dual Display Support:
Integrated Intel® HD Graphics 505 with DVI‑I connector supporting both analog VGA and digital DVI outputs up to 1920 × 1200 resolution.
- Flexible Expansion:
One full‑size mini‑PCIe slot with USIM socket for wireless modules (3G/4G/Wi‑Fi/GPS) and one half‑size mSATA port for SSD storage.
Neousys proprietary MezIO™ interface enables modular expansion for additional serial ports, isolated digital I/O, SATA storage, or ignition control.
- Wide Operating Range:
Operates from –25 °C to +70 °C (with SSD) under full CPU load; accepts 8–35 V DC input; compliant with CE/FCC Class A EMC standards.
- Industrial‑Grade Reliability:
Shock‑resistant (50 Grms, 11 ms half‑sine) and vibration‑resistant (5 Grms, 5–500 Hz, 3 axes) per IEC 60068‑2‑27/‑64.
Designed for continuous operation in industrial and vehicular environments.
- Mounting Flexibility:
Standard DIN‑rail mount with optional wall‑mount kits (vertical or horizontal).
Ultra‑compact enclosure (56 × 108 × 153 mm) with front‑accessible I/O and fanless thermal design for silent, maintenance‑free operation.
- High‑Performance Intel® Apollo Lake Platform:
Equipped with Intel® Atom™ x7‑E3950 (1.6 GHz base / 2.0 GHz burst) or Pentium® N4200 (1.1 GHz base / 2.5 GHz burst) quad‑core processors, delivering up to 1.5× CPU and 3× GPU performance improvement over previous Atom™ E3845 generation.
- Rich I/O Connectivity:
Three Intel® I210 Gigabit Ethernet ports, two of which support IEEE 802.3at PoE+ (25 W per port) for powering IP cameras or sensors.
Four COM ports (1× software‑programmable RS‑232/422/485, 3× RS‑232 or 1× RS‑422/485), four USB ports (2× USB 3.0, 2× USB 2.0), and audio I/O (mic‑in, speaker‑out).
- Dual Display Support:
Integrated Intel® HD Graphics 505 with DVI‑I connector supporting both analog VGA and digital DVI outputs up to 1920 × 1200 resolution.
- Flexible Expansion:
One full‑size mini‑PCIe slot with USIM socket for wireless modules (3G/4G/Wi‑Fi/GPS) and one half‑size mSATA port for SSD storage.
Neousys proprietary MezIO™ interface enables modular expansion for additional serial ports, isolated digital I/O, SATA storage, or ignition control.
- Wide Operating Range:
Operates from –25 °C to +70 °C (with SSD) under full CPU load; accepts 8–35 V DC input; compliant with CE/FCC Class A EMC standards.
- Industrial‑Grade Reliability:
Shock‑resistant (50 Grms, 11 ms half‑sine) and vibration‑resistant (5 Grms, 5–500 Hz, 3 axes) per IEC 60068‑2‑27/‑64.
Designed for continuous operation in industrial and vehicular environments.
- Mounting Flexibility:
Standard DIN‑rail mount with optional wall‑mount kits (vertical or horizontal).
Comprehensive Product Summary – Neousys POC‑300 Series
### 1. Product Overview
Product Name: POC‑300
Model: POC‑300 (part of POC‑300 Series)
Series: POC‑300 Series Ultra‑Compact Fanless Embedded Controllers
Article Number: POC‑300
Manufacturer: Neousys Technology Inc.
Manufacturer Headquarters: 15F, No.868‑3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan
Website: [www.neousys‑tech.com](https://www.neousys-tech.com)
The Neousys POC‑300 is an ultra‑compact, fanless embedded controller designed for industrial automation, machine vision, and surveillance applications. It integrates Intel® Atom™ x7‑E3950 or Pentium® N4200 processors (Apollo Lake platform) and provides a rich set of I/O interfaces in a rugged, DIN‑rail mountable chassis. The system is engineered for reliable 24/7 operation in harsh environments, offering wide‑temperature tolerance, vibration/shock resistance, and flexible power input.
### 2. Key Features
- Compact Fanless Design:
Ultra‑compact enclosure (56 × 108 × 153 mm) with front‑accessible I/O and fanless thermal design for silent, maintenance‑free operation.
- High‑Performance Intel® Apollo Lake Platform:
Equipped with Intel® Atom™ x7‑E3950 (1.6 GHz base / 2.0 GHz burst) or Pentium® N4200 (1.1 GHz base / 2.5 GHz burst) quad‑core processors, delivering up to 1.5× CPU and 3× GPU performance improvement over previous Atom™ E3845 generation.
- Rich I/O Connectivity:
Three Intel® I210 Gigabit Ethernet ports, two of which support IEEE 802.3at PoE+ (25 W per port) for powering IP cameras or sensors.
Four COM ports (1× software‑programmable RS‑232/422/485, 3× RS‑232 or 1× RS‑422/485), four USB ports (2× USB 3.0, 2× USB 2.0), and audio I/O (mic‑in, speaker‑out).
- Dual Display Support:
Integrated Intel® HD Graphics 505 with DVI‑I connector supporting both analog VGA and digital DVI outputs up to 1920 × 1200 resolution.
- Flexible Expansion:
One full‑size mini‑PCIe slot with USIM socket for wireless modules (3G/4G/Wi‑Fi/GPS) and one half‑size mSATA port for SSD storage.
Neousys proprietary MezIO™ interface enables modular expansion for additional serial ports, isolated digital I/O, SATA storage, or ignition control.
- Wide Operating Range:
Operates from –25 °C to +70 °C (with SSD) under full CPU load; accepts 8–35 V DC input; compliant with CE/FCC Class A EMC standards.
- Industrial‑Grade Reliability:
Shock‑resistant (50 Grms, 11 ms half‑sine) and vibration‑resistant (5 Grms, 5–500 Hz, 3 axes) per IEC 60068‑2‑27/‑64.
Designed for continuous operation in industrial and vehicular environments.
- Mounting Flexibility:
Standard DIN‑rail mount with optional wall‑mount kits (vertical or horizontal).
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Processor | Intel® Atom™ x7‑E3950 (1.6/2.0 GHz, quad‑core) |
| Graphics | Integrated Intel® HD Graphics 505 |
| Memory | 1× DDR3L‑1866 SO‑DIMM (up to 8 GB) |
| Ethernet | 3× Intel® I210 GbE ports; PoE+ on port #1 and #2 (IEEE 802.3at) |
| USB | 2× USB 3.0 (SuperSpeed 5 Gb/s), 2× USB 2.0 |

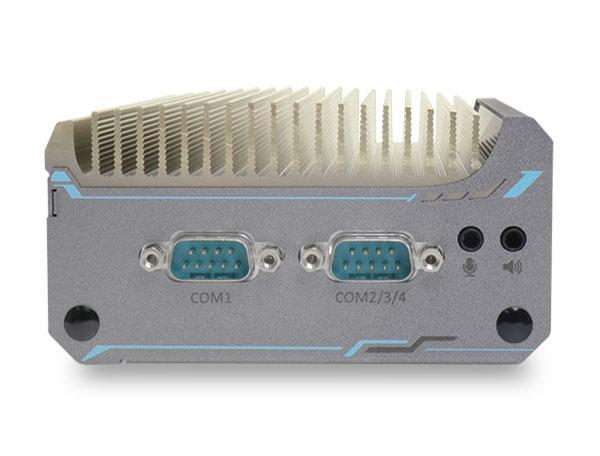

| Serial Ports | 1× RS‑232/422/485 programmable (COM1); 3× RS‑232 (COM2/3/4) or 1× RS‑422/485 (COM2) |
| Audio | 1× Mic‑in, 1× Speaker‑out (Realtek ALC262 codec) |
| Video Output | 1× DVI‑I connector (VGA + DVI, up to 1920 × 1200) |
| Expansion | 1× Full‑size mini‑PCIe slot with USIM socket; 1× MezIO™ expansion interface |
| Storage | 1× Half‑size mSATA port (for SSD) |
| Power Input | 8 – 35 V DC via 3‑pin pluggable terminal block |
| Dimensions | 56 (W) × 108 (D) × 153 (H) mm |
| Weight | 0.96 kg (incl. CPU, memory, HDD) |
| Mounting | DIN‑rail (standard) / Wall‑mount (optional) |
| Operating Temp. | –25 °C to +70 °C (with SSD, 100 % CPU load) |
| Storage Temp. | –40 °C to +85 °C |
| Humidity | 10 % – 90 %, non‑condensing |
| Vibration | 5 Grms, 5–500 Hz, 3 axes (IEC 60068‑2‑64) |
| Shock | 50 Grms, 11 ms half‑sine (IEC 60068‑2‑27) |
| EMC | CE/FCC Class A (EN 55022, EN 55024, EN 55032) |
### 4. Functionality
The POC‑300 operates as a compact embedded controller for industrial and edge‑computing tasks. It combines processing, networking, and I/O control in a single ruggedized unit.
Operation Principle:
The system runs on DC power (8–35 V) and boots via ATX‑mode power button, external switch, or Wake‑on‑LAN. Two PoE+ ports can power external IP cameras or sensors directly. The integrated Intel® HD Graphics 505 supports dual independent displays through DVI‑I (VGA + DVI). The MezIO™ interface allows modular expansion for application‑specific I/O.
Typical Use Cases:
- Machine Vision: PoE+ ports power industrial cameras; USB 3.0 ports connect high‑speed sensors; dual display outputs for monitoring.
- Industrial Automation: Serial and digital I/O for PLC communication, motion control, and data acquisition.
- Surveillance & Video Analytics: PoE+ for IP cameras, local video processing, and edge analytics.
- Transportation & In‑Vehicle Systems: Optional MezIO‑V20 ignition control for power management and battery protection.
- IoT Edge Computing: Compact form factor and fanless design for distributed data processing nodes.
Compatibility:
Supports Windows 10 64‑bit and Linux kernel ≤ 4.10. Compatible with Neousys driver packages and MezIO™ modules.
### 5. Components & Accessories
Included Items:
1. POC‑300/310/320/330 controller unit
2. DVI‑to‑VGA adapter
3. 3‑pin pluggable terminal block (DC input)
4. Neousys Drivers & Utilities DVD
5. DIN‑rail mount clip
6. Screw package
Optional Accessories:
- PA‑60W‑OW: 60 W AC/DC adapter (12 V 5 A, –30 °C to +60 °C)
- WMKIT‑V‑POC300: Vertical wall‑mount bracket
- WMKIT‑H‑POC300: Horizontal wall‑mount bracket
- CBL‑DB9F‑3DB9M‑10CM: 1× DB9 (F) to 3× DB9 (M) Y‑cable (10 cm)
MezIO™ Expansion Modules:
- MezIO‑C180: 4× RS‑232/422/485 + 4× RS‑232
- MezIO‑C181: 4× RS‑232/422/485 + 4× RS‑422/485
- MezIO‑D220: 8‑CH isolated DI + 8‑CH isolated DO
- MezIO‑D230: 16‑CH isolated DI + 16‑CH isolated DO
- MezIO‑V20: Ignition power control module (for in‑vehicle use)
- MezIO‑U4: 4× USB expansion
- MezIO‑R11: SATA port for 2.5″ HDD/SSD
- MezIO‑R12: SATA port + 4 DI / 4 DO isolation
Pre‑installed Model Variants:
| Base Model | With MezIO‑R11 | With MezIO‑R12 |
|-------------|----------------|----------------|
| POC‑300 | POC‑301 | POC‑302 |
| POC‑310 | POC‑311 | POC‑312 |
| POC‑320 | POC‑321 | POC‑322 |
| POC‑330 | POC‑331 | POC‑332 |
### 6. Installation & Setup
Mounting Options:

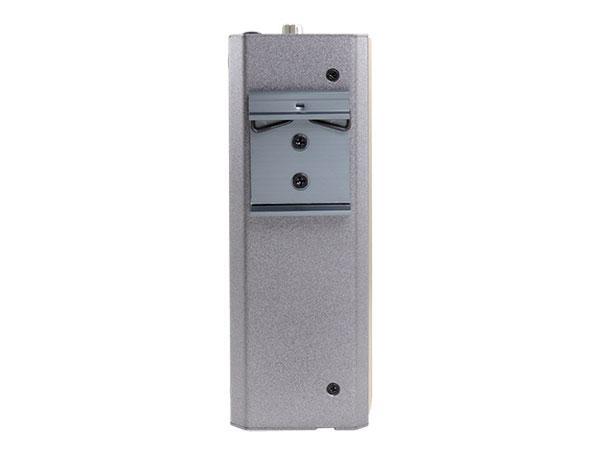

- DIN‑Rail Mount (Standard): Attach clip to rear panel using M4 screws; snap onto DIN rail from top‑down.
- Wall Mount (Optional): Use WM‑300V (vertical) or WM‑300H (horizontal) brackets; secure with four M4 screws.
Internal Component Installation:
- Memory: Insert DDR3L SO‑DIMM at 45° angle, press to lock.
- mSATA SSD: Insert half‑size module and secure with screw.
- mini‑PCIe Module: Install at 45° angle; insert SIM card into USIM slot; connect antennas via SMA openings.

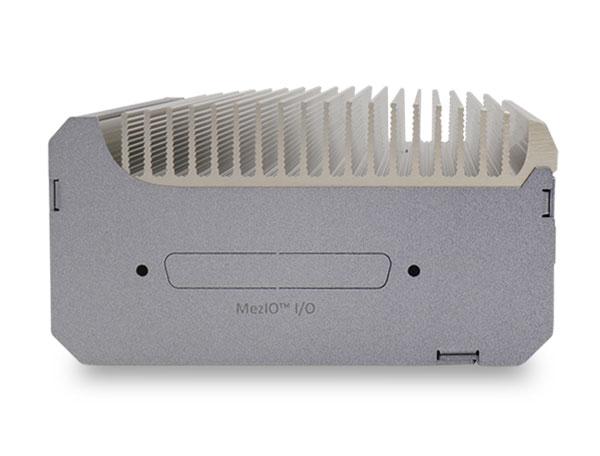

- MezIO™ Module: Mount on three standoffs and secure with screws; remove I/O shield if required.
Power Connection:
- 3‑pin terminal block: V+, GND, IGN (optional).
- Input range: 8–35 V DC.
- Optional ignition signal for vehicle applications (MezIO‑V20).
Power‑On Methods:
1. Front panel power button (ATX mode)
2. External non‑latched switch (ATX mode)
3. External latched switch (AT mode)
4. Wake‑on‑LAN via GbE port #3
5. Ignition signal control (MezIO‑V20)
BIOS Configuration:
- COM port mode selection (RS‑232/422/485)
- SATA interface speed (Gen1/2/3)
- Power on after power failure (S0/S5/Last State)
- Watchdog timer setup and timeout
- Wake‑on‑LAN enable/disable
- Boot device priority and C‑States power management
### 7. Performance & Capabilities
- CPU Performance: Up to 1.5× improvement over previous E3845 platform.
- GPU Performance: Up to 3× improvement with Intel HD Graphics 505.
- Memory Bandwidth: DDR3L‑1866 SO‑DIMM (8 GB max).
- Network Throughput: 3× GbE ports (2× PoE+ 25 W each).
- Storage Speed: mSATA SSD (Gen2/Gen3 SATA up to 600 MB/s).
- Audio/Video: HD Audio (Realtek ALC262); dual display 1920×1200.
- Environmental Endurance: Operates at –25 °C to +70 °C with SSD under full load.
- Power Efficiency: Low power consumption (8–35 V DC input, fanless design).
- Reliability: 24/7 operation certified under vibration and shock tests.
- Limitations: Single SO‑DIMM slot (8 GB max); limited internal storage to mSATA or MezIO SATA module.
### 8. Standards & Compliance
- EMC Compliance: CE/FCC Class A (EN 55022, EN 55024, EN 55032).
- Environmental Testing: IEC 60068‑2‑27 (Shock) and IEC 60068‑2‑64 (Vibration).
- Safety and Reliability: Designed for industrial and vehicular use with ESD and power protection.
- RoHS Compliance: All materials and components meet RoHS directives.
- FCC Declaration: Class A digital device per Part 15 of FCC Rules.
- CE Declaration: Conforms to EU directives for EMC and safety; requires CE‑compliant cabling for system integration.
### 9. Additional Information
Warranty & Support:
Covered under Neousys standard warranty policy. Firmware and software updates are available through the Neousys website or authorized service partners. Customers are responsible for ensuring third‑party software compatibility and system backups.
Maintenance & Service:
Only qualified personnel should service the system. Disconnect power and cables before maintenance. Observe ESD precautions when handling internal components.
Software Support:
- Windows 10 Professional / IoT Enterprise (64‑bit)
- Ubuntu 16.04 LTS (kernel ≤ 4.10)
Driver installation via Neousys Drivers & Utilities DVD (automatic or manual).
WDT & DIO library (WDT_DIO_Setup v2.2.6 or later) for watchdog and digital I/O control.
Watchdog Timer & DIO Functions:
Hardware watchdog ensures system recovery on software failure. MezIO‑R12 and D230 modules enable isolated digital input/output with API support for Windows applications.
Ignition Power Control (MezIO‑V20):
MCU‑based module monitors vehicle ignition signal and controls system power on/off with programmable delays (0 – 2 hours). Includes low‑battery protection, hard‑off timeout (10 min), and smart off‑delay modes.
Contact Information:
- Neousys Technology Inc. (Taipei, Taiwan) Tel +886‑2‑2223‑6182
- Neousys Technology America Inc. (Illinois, USA) Tel +1‑847‑656‑3298
- Neousys Technology (China) Ltd. (Shanghai) Tel +86‑21‑61155366
Patents & Trademarks:
Neousys®, MezIO™, and Expansion Cassette are registered trademarks of Neousys Technology Inc. Intel®, Core™, and Atom™ are trademarks of Intel Corporation. All other brands are property of their respective owners.
### Summary
The Neousys POC‑300 Series represents a new generation of ultra‑compact, fanless industrial controllers built on Intel’s Apollo Lake architecture. Combining high computing performance, rich I/O interfaces, and rugged mechanical design, it is optimized for applications in machine vision, industrial automation, and edge AI deployment. Its modular MezIO™ interface provides unmatched flexibility for custom I/O expansion, while its wide temperature and power tolerance ensure reliable operation in demanding environments. With comprehensive software support, robust EMC compliance, and versatile mounting options, the POC‑300 is a compact yet powerful solution for modern industrial computing needs.
### 1. Product Overview
Product Name: POC‑300
Model: POC‑300 (part of POC‑300 Series)
Series: POC‑300 Series Ultra‑Compact Fanless Embedded Controllers
Article Number: POC‑300
Manufacturer: Neousys Technology Inc.
Manufacturer Headquarters: 15F, No.868‑3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan
Website: [www.neousys‑tech.com](https://www.neousys-tech.com)
The Neousys POC‑300 is an ultra‑compact, fanless embedded controller designed for industrial automation, machine vision, and surveillance applications. It integrates Intel® Atom™ x7‑E3950 or Pentium® N4200 processors (Apollo Lake platform) and provides a rich set of I/O interfaces in a rugged, DIN‑rail mountable chassis. The system is engineered for reliable 24/7 operation in harsh environments, offering wide‑temperature tolerance, vibration/shock resistance, and flexible power input.
### 2. Key Features
- Compact Fanless Design:
Ultra‑compact enclosure (56 × 108 × 153 mm) with front‑accessible I/O and fanless thermal design for silent, maintenance‑free operation.
- High‑Performance Intel® Apollo Lake Platform:
Equipped with Intel® Atom™ x7‑E3950 (1.6 GHz base / 2.0 GHz burst) or Pentium® N4200 (1.1 GHz base / 2.5 GHz burst) quad‑core processors, delivering up to 1.5× CPU and 3× GPU performance improvement over previous Atom™ E3845 generation.
- Rich I/O Connectivity:
Three Intel® I210 Gigabit Ethernet ports, two of which support IEEE 802.3at PoE+ (25 W per port) for powering IP cameras or sensors.
Four COM ports (1× software‑programmable RS‑232/422/485, 3× RS‑232 or 1× RS‑422/485), four USB ports (2× USB 3.0, 2× USB 2.0), and audio I/O (mic‑in, speaker‑out).
- Dual Display Support:
Integrated Intel® HD Graphics 505 with DVI‑I connector supporting both analog VGA and digital DVI outputs up to 1920 × 1200 resolution.
- Flexible Expansion:
One full‑size mini‑PCIe slot with USIM socket for wireless modules (3G/4G/Wi‑Fi/GPS) and one half‑size mSATA port for SSD storage.
Neousys proprietary MezIO™ interface enables modular expansion for additional serial ports, isolated digital I/O, SATA storage, or ignition control.
- Wide Operating Range:
Operates from –25 °C to +70 °C (with SSD) under full CPU load; accepts 8–35 V DC input; compliant with CE/FCC Class A EMC standards.
- Industrial‑Grade Reliability:
Shock‑resistant (50 Grms, 11 ms half‑sine) and vibration‑resistant (5 Grms, 5–500 Hz, 3 axes) per IEC 60068‑2‑27/‑64.
Designed for continuous operation in industrial and vehicular environments.
- Mounting Flexibility:
Standard DIN‑rail mount with optional wall‑mount kits (vertical or horizontal).
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Processor | Intel® Atom™ x7‑E3950 (1.6/2.0 GHz, quad‑core) |
| Graphics | Integrated Intel® HD Graphics 505 |
| Memory | 1× DDR3L‑1866 SO‑DIMM (up to 8 GB) |
| Ethernet | 3× Intel® I210 GbE ports; PoE+ on port #1 and #2 (IEEE 802.3at) |
| USB | 2× USB 3.0 (SuperSpeed 5 Gb/s), 2× USB 2.0 |
| Serial Ports | 1× RS‑232/422/485 programmable (COM1); 3× RS‑232 (COM2/3/4) or 1× RS‑422/485 (COM2) |
| Audio | 1× Mic‑in, 1× Speaker‑out (Realtek ALC262 codec) |
| Video Output | 1× DVI‑I connector (VGA + DVI, up to 1920 × 1200) |
| Expansion | 1× Full‑size mini‑PCIe slot with USIM socket; 1× MezIO™ expansion interface |
| Storage | 1× Half‑size mSATA port (for SSD) |
| Power Input | 8 – 35 V DC via 3‑pin pluggable terminal block |
| Dimensions | 56 (W) × 108 (D) × 153 (H) mm |
| Weight | 0.96 kg (incl. CPU, memory, HDD) |
| Mounting | DIN‑rail (standard) / Wall‑mount (optional) |
| Operating Temp. | –25 °C to +70 °C (with SSD, 100 % CPU load) |
| Storage Temp. | –40 °C to +85 °C |
| Humidity | 10 % – 90 %, non‑condensing |
| Vibration | 5 Grms, 5–500 Hz, 3 axes (IEC 60068‑2‑64) |
| Shock | 50 Grms, 11 ms half‑sine (IEC 60068‑2‑27) |
| EMC | CE/FCC Class A (EN 55022, EN 55024, EN 55032) |
### 4. Functionality
The POC‑300 operates as a compact embedded controller for industrial and edge‑computing tasks. It combines processing, networking, and I/O control in a single ruggedized unit.
Operation Principle:
The system runs on DC power (8–35 V) and boots via ATX‑mode power button, external switch, or Wake‑on‑LAN. Two PoE+ ports can power external IP cameras or sensors directly. The integrated Intel® HD Graphics 505 supports dual independent displays through DVI‑I (VGA + DVI). The MezIO™ interface allows modular expansion for application‑specific I/O.
Typical Use Cases:
- Machine Vision: PoE+ ports power industrial cameras; USB 3.0 ports connect high‑speed sensors; dual display outputs for monitoring.
- Industrial Automation: Serial and digital I/O for PLC communication, motion control, and data acquisition.
- Surveillance & Video Analytics: PoE+ for IP cameras, local video processing, and edge analytics.
- Transportation & In‑Vehicle Systems: Optional MezIO‑V20 ignition control for power management and battery protection.
- IoT Edge Computing: Compact form factor and fanless design for distributed data processing nodes.
Compatibility:
Supports Windows 10 64‑bit and Linux kernel ≤ 4.10. Compatible with Neousys driver packages and MezIO™ modules.
### 5. Components & Accessories
Included Items:
1. POC‑300/310/320/330 controller unit
2. DVI‑to‑VGA adapter
3. 3‑pin pluggable terminal block (DC input)
4. Neousys Drivers & Utilities DVD
5. DIN‑rail mount clip
6. Screw package
Optional Accessories:
- PA‑60W‑OW: 60 W AC/DC adapter (12 V 5 A, –30 °C to +60 °C)
- WMKIT‑V‑POC300: Vertical wall‑mount bracket
- WMKIT‑H‑POC300: Horizontal wall‑mount bracket
- CBL‑DB9F‑3DB9M‑10CM: 1× DB9 (F) to 3× DB9 (M) Y‑cable (10 cm)
MezIO™ Expansion Modules:
- MezIO‑C180: 4× RS‑232/422/485 + 4× RS‑232
- MezIO‑C181: 4× RS‑232/422/485 + 4× RS‑422/485
- MezIO‑D220: 8‑CH isolated DI + 8‑CH isolated DO
- MezIO‑D230: 16‑CH isolated DI + 16‑CH isolated DO
- MezIO‑V20: Ignition power control module (for in‑vehicle use)
- MezIO‑U4: 4× USB expansion
- MezIO‑R11: SATA port for 2.5″ HDD/SSD
- MezIO‑R12: SATA port + 4 DI / 4 DO isolation
Pre‑installed Model Variants:
| Base Model | With MezIO‑R11 | With MezIO‑R12 |
|-------------|----------------|----------------|
| POC‑300 | POC‑301 | POC‑302 |
| POC‑310 | POC‑311 | POC‑312 |
| POC‑320 | POC‑321 | POC‑322 |
| POC‑330 | POC‑331 | POC‑332 |
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Mount (Standard): Attach clip to rear panel using M4 screws; snap onto DIN rail from top‑down.
- Wall Mount (Optional): Use WM‑300V (vertical) or WM‑300H (horizontal) brackets; secure with four M4 screws.
Internal Component Installation:
- Memory: Insert DDR3L SO‑DIMM at 45° angle, press to lock.
- mSATA SSD: Insert half‑size module and secure with screw.
- mini‑PCIe Module: Install at 45° angle; insert SIM card into USIM slot; connect antennas via SMA openings.
- MezIO™ Module: Mount on three standoffs and secure with screws; remove I/O shield if required.
Power Connection:
- 3‑pin terminal block: V+, GND, IGN (optional).
- Input range: 8–35 V DC.
- Optional ignition signal for vehicle applications (MezIO‑V20).
Power‑On Methods:
1. Front panel power button (ATX mode)
2. External non‑latched switch (ATX mode)
3. External latched switch (AT mode)
4. Wake‑on‑LAN via GbE port #3
5. Ignition signal control (MezIO‑V20)
BIOS Configuration:
- COM port mode selection (RS‑232/422/485)
- SATA interface speed (Gen1/2/3)
- Power on after power failure (S0/S5/Last State)
- Watchdog timer setup and timeout
- Wake‑on‑LAN enable/disable
- Boot device priority and C‑States power management
### 7. Performance & Capabilities
- CPU Performance: Up to 1.5× improvement over previous E3845 platform.
- GPU Performance: Up to 3× improvement with Intel HD Graphics 505.
- Memory Bandwidth: DDR3L‑1866 SO‑DIMM (8 GB max).
- Network Throughput: 3× GbE ports (2× PoE+ 25 W each).
- Storage Speed: mSATA SSD (Gen2/Gen3 SATA up to 600 MB/s).
- Audio/Video: HD Audio (Realtek ALC262); dual display 1920×1200.
- Environmental Endurance: Operates at –25 °C to +70 °C with SSD under full load.
- Power Efficiency: Low power consumption (8–35 V DC input, fanless design).
- Reliability: 24/7 operation certified under vibration and shock tests.
- Limitations: Single SO‑DIMM slot (8 GB max); limited internal storage to mSATA or MezIO SATA module.
### 8. Standards & Compliance
- EMC Compliance: CE/FCC Class A (EN 55022, EN 55024, EN 55032).
- Environmental Testing: IEC 60068‑2‑27 (Shock) and IEC 60068‑2‑64 (Vibration).
- Safety and Reliability: Designed for industrial and vehicular use with ESD and power protection.
- RoHS Compliance: All materials and components meet RoHS directives.
- FCC Declaration: Class A digital device per Part 15 of FCC Rules.
- CE Declaration: Conforms to EU directives for EMC and safety; requires CE‑compliant cabling for system integration.
### 9. Additional Information
Warranty & Support:
Covered under Neousys standard warranty policy. Firmware and software updates are available through the Neousys website or authorized service partners. Customers are responsible for ensuring third‑party software compatibility and system backups.
Maintenance & Service:
Only qualified personnel should service the system. Disconnect power and cables before maintenance. Observe ESD precautions when handling internal components.
Software Support:
- Windows 10 Professional / IoT Enterprise (64‑bit)
- Ubuntu 16.04 LTS (kernel ≤ 4.10)
Driver installation via Neousys Drivers & Utilities DVD (automatic or manual).
WDT & DIO library (WDT_DIO_Setup v2.2.6 or later) for watchdog and digital I/O control.
Watchdog Timer & DIO Functions:
Hardware watchdog ensures system recovery on software failure. MezIO‑R12 and D230 modules enable isolated digital input/output with API support for Windows applications.
Ignition Power Control (MezIO‑V20):
MCU‑based module monitors vehicle ignition signal and controls system power on/off with programmable delays (0 – 2 hours). Includes low‑battery protection, hard‑off timeout (10 min), and smart off‑delay modes.
Contact Information:
- Neousys Technology Inc. (Taipei, Taiwan) Tel +886‑2‑2223‑6182
- Neousys Technology America Inc. (Illinois, USA) Tel +1‑847‑656‑3298
- Neousys Technology (China) Ltd. (Shanghai) Tel +86‑21‑61155366
Patents & Trademarks:
Neousys®, MezIO™, and Expansion Cassette are registered trademarks of Neousys Technology Inc. Intel®, Core™, and Atom™ are trademarks of Intel Corporation. All other brands are property of their respective owners.
### Summary
The Neousys POC‑300 Series represents a new generation of ultra‑compact, fanless industrial controllers built on Intel’s Apollo Lake architecture. Combining high computing performance, rich I/O interfaces, and rugged mechanical design, it is optimized for applications in machine vision, industrial automation, and edge AI deployment. Its modular MezIO™ interface provides unmatched flexibility for custom I/O expansion, while its wide temperature and power tolerance ensure reliable operation in demanding environments. With comprehensive software support, robust EMC compliance, and versatile mounting options, the POC‑300 is a compact yet powerful solution for modern industrial computing needs.
-
POC-300_Datasheet_en.pdf
PDF Catalog
- Nuvo-PA-60W - 60W AC/DC Power Adapter for Nuvo-100x/20xx and POC series
- MezIO - Interchangeable Mezzanine I/O Boards
