Name: IP66 fanless Atom computer with dual 2.5GbE, isolated COM ports and M12 connectors.
Brand: Neousys Technology
SKU: POC-465AWP

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

IP66 fanless Atom computer with dual 2.5GbE, isolated COM ports and M12 connectors.

POC-465AWP

IP66 fanless Atom computer with dual 2.5GbE, isolated COM ports and M12 connectors.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

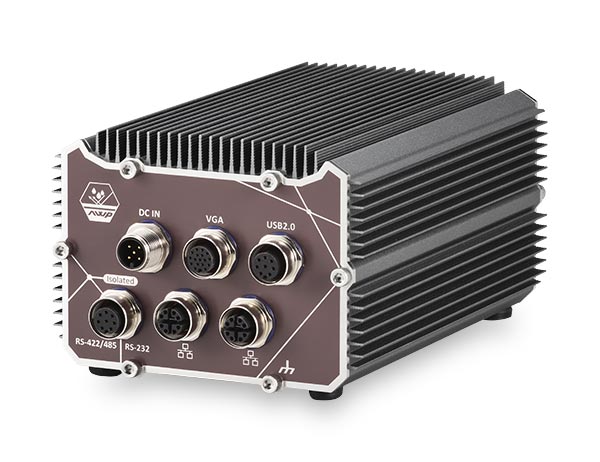

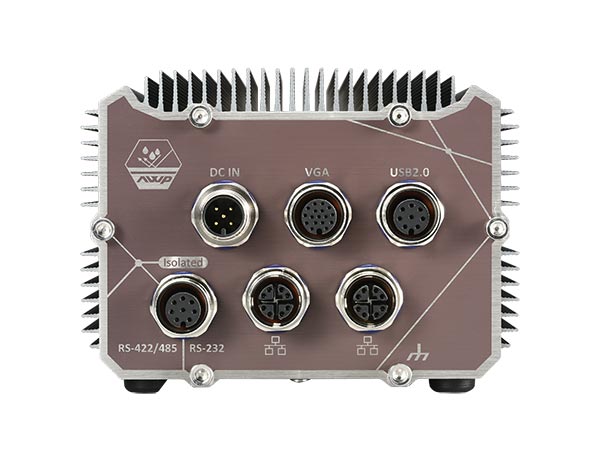

Der POC-465AWP ist ein lüfterloser, IP66-geschützter Embedded-Computer für anspruchsvolle Außen- und Industrieumgebungen. Sein Intel Atom x6425E Quad-Core-Prozessor arbeitet mit bis zu 3,0 GHz und wird durch maximal 32 GB DDR4-3200 ergänzt. Zwei 2,5-GbE-Anschlüsse, isolierte RS-232- und RS-422/485-Schnittstellen, zwei USB-2.0-Ports sowie VGA werden über robuste M12-Steckverbinder herausgeführt. Das kompakte, luftdichte Edelstahl-Aluminium-Gehäuse schützt vor Wasser, Staub und Korrosion. M.2-SATA, Mini-PCIe mit Micro-SIM, 8–35-VDC-Versorgung und der Temperaturbereich von -25 bis 70 °C unterstützen vielseitige Feldeinsätze.

Fanless IP66 embedded computer with Intel Atom x6425E quad-core processor (2.0/3.0 GHz, 12 W), up to 32 GB DDR4-3200, integrated Intel UHD Graphics, two 2.5GbE ports, isolated RS-232 and RS-422/485, two USB 2.0 ports and VGA. It provides an M.2 2280 SATA SSD socket, full-size mini-PCIe with micro SIM, 8–35 VDC input with ignition control, M12 connectors and a -25°C to 70°C operating range.

Processor Intel Elkhart Lake Atom x6425E quad-core, 2.0 GHz base / 3.0 GHz burst, 12 W
Graphics Integrated Intel UHD Graphics
Maximum Memory 32 GB
Memory Type DDR4-3200 SDRAM, one SODIMM socket
TPM Support TPM 2.0 (fTPM/dTPM)
Ethernet Ports 2x 2.5GbE using Intel I226-IT
Ethernet Connector M12 X-coded, 8-pin
Video Output 1x VGA via M12 A-coded 17-pin connector
Maximum Display Resolution 1920 x 1200 pixels
Isolated RS-232 Ports 1 port
Isolated RS-422/485 Ports 1 port
Serial Connector M12 A-coded, 8-pin
USB 2.0 Ports 2 ports
USB Connector M12 A-coded, 8-pin
Storage Socket 1x M.2 2280 M key socket for SATA SSD
Expansion Socket 1x full-size mini PCI Express with internal micro SIM socket
DC Input Voltage 8–35 VDC
Ignition Power Control Supported
Power Connector M12 A-coded, 5-pin
Ingress Protection Rating IP66
Cooling Design Fanless
Chassis Material Stainless steel and aluminum
Dimensions 106 x 159.7 x 79 mm
Weight 1.45 kg
Mounting Optional wall mount
Form Factor Ultra-compact fanless IP66 embedded computer
Connector M12 X-coded and M12 A-coded connectors
Dimensions 106 mm (W) x 159.7 mm (D) x 79 mm (H)
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85 °C
Operating Humidity 10–90, non-condensing % RH
Vibration Compliance MIL-STD-810G, Method 514.6, Category 4
Shock Compliance MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Operating Temperature -25°C to 70°C
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
Optional Power Adapter PA-60W-OW, 60 W AC/DC adapter, 12 V 5 A output
Optional Wall-Mount Kit WMkit-POC465AWP
M12 Cable Kit Cblkit-M12-POC-465AWP
Bus Interface 1x full-size mini PCI Express; 1x M.2 2280 M key SATA
Resolution VGA up to 1920 x 1200
Key Features IP66 waterproof and dustproof design; Intel Atom x6425E quad-core processor; 2x 2.5GbE; isolated RS-232 and RS-422/485; M12 connectors; fanless operation; 8–35 VDC input with ignition control; -25°C to 70°C operation; M.2 SATA storage; full-size mini-PCIe
Accessories PA-60W-OW, WMkit-POC465AWP, Cbl-M12X8M-RJ45F-100CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M-180CM, Cbl-M12A17M-VGA-180CM3, Cbl-M12A5F-OW3-180CM1, Cblkit-M12-POC-465AWP
