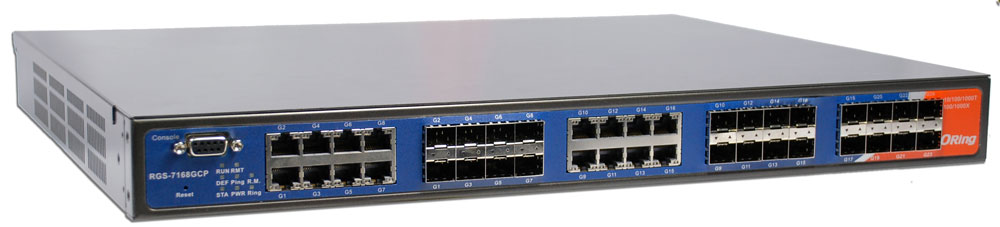

Comprehensive Product Summary – ORing RGS‑7168GCP‑E‑EU Industrial Managed Rack‑Mount Switch
### 1. Product Overview
Product Name: ORing RGS‑7168GCP‑E‑EU
Model: RGS‑7168GCP‑E
Series: RGS‑7168GCP / RGS‑7168GCP‑E Industrial Managed Gigabit Ethernet Switch Series
Article Number: RGS‑7168GCP‑E‑EU
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No. 3, Lane 235, Baoqiao Rd., Xindian District, New Taipei City 23145, Taiwan (R.O.C.)
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com
The RGS‑7168GCP‑E‑EU is a high‑performance, industrial‑grade, managed Ethernet switch designed for mission‑critical networking in harsh environments. It combines 16 Gigabit combo ports (10/100/1000Base‑T(X) and 100/1000Base‑X SFP) with 8 dedicated 100/1000Base‑X SFP fiber ports, providing a total of 24 ports in a 19‑inch rack‑mountable chassis. It supports advanced redundancy, security, and management features suitable for industrial automation, transportation, and utility applications.
### 2. Key Features
- High‑Density Port Configuration:
16 combo ports (10/100/1000Base‑T(X) RJ‑45 or 100/1000Base‑X SFP) plus 8 dedicated 100/1000Base‑X SFP ports.
- Fast Ethernet Redundancy:
ORing’s proprietary O‑Ring technology provides network recovery in less than 20 ms across up to 250 connected units, ensuring minimal downtime.
- Comprehensive Redundancy Protocols:
Supports O‑Ring, Coupling Ring, Dual Homing, and standard STP/RSTP/MSTP (IEEE 802.1D/w/s) for flexible network topologies.
- Advanced Management Interfaces:
Web‑based GUI, Telnet, RS‑232 console (CLI), and SNMPv1/v2c/v3 management. Compatible with Open‑Vision v3.0 centralized management software.
- Robust Security:
IEEE 802.1x port‑based access control, MAC‑based port security, RADIUS authentication, SNMPv3 encryption, and ACL filtering.
- Quality of Service (QoS):
IEEE 802.1p priority queuing, application‑based QoS, IP‑based bandwidth management, and traffic prioritization for real‑time data.
- VLAN Support:
IEEE 802.1Q VLAN tagging, GVRP, double‑tagging (Q‑in‑Q), and private VLANs for traffic segmentation.
- Multicast Optimization:
IGMP Snooping for efficient multicast traffic handling.
- Diagnostics and Monitoring:
System log, event notification via email/SNMP trap, relay output alarms, and VeriPHY cable diagnostics.
- Industrial‑Grade Design:
Extended operating temperature range –40 °C to +70 °C, IP‑30 metal enclosure, and redundant power inputs (AC 100–240 V and dual DC 36–72 V).
- High Reliability:
Surge protection (2000 V DC), ESD protection (4 kV DC), and compliance with IEC 60068 mechanical standards.
### 3. Technical Specifications
Physical Ports
- 16 × 10/100/1000Base‑T(X) RJ‑45 / 100/1000Base‑X SFP combo ports
- 8 × 100/1000Base‑X SFP fiber ports
- 1 × RS‑232 console port (DB‑9, 115200 bps, 8‑N‑1)
Switch Architecture
- Switching bandwidth: 48 Gbps
- Switching latency: 7 µs
- MAC address table: 8 K entries
- Priority queues: 4
- Processing method: Store‑and‑Forward
- Jumbo frame support: up to 9 KB
Dimensions & Weight
- Dimensions: 431 (W) × 342 (D) × 44 (H) mm
- Weight: 4.5 kg (RGS‑7168GCP‑E) / 4.3 kg (RGS‑7168GCP)
- Enclosure: 19‑inch rack‑mountable, IP‑30 rated metal housing
Power
- Input: 100–240 VAC, 50–60 Hz
- Redundant DC input (RGS‑7168GCP‑E only): 36–72 V DC, 6‑pin terminal block
- Power consumption: 33 W (typical)
- Over‑current protection: Present
Environmental Conditions
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +85 °C
- Operating humidity: 5 % – 95 % (non‑condensing)
LED Indicators
- PWR, PW1, PW2, PW3: Power status
- STA: System ready
- RUN: System operating
- R.M.: Ring master active
- Ring: O‑Ring status
- DEF: Factory default reset
- Ping: Ping in progress
- RMT: Remote management active
- Fault: Alarm condition (RGS‑7168GCP‑E only)
- Port LEDs: Link/Activity (Green = 1000 Mbps, Amber = 10/100 Mbps)
### 4. Functionality
Operational Overview
The RGS‑7168GCP‑E‑EU functions as a fully managed Layer 2 Ethernet switch with advanced redundancy and security mechanisms. It supports both copper and fiber connectivity, allowing flexible deployment in mixed‑media industrial networks.
Use Cases & Applications
- Industrial automation and control systems
- Transportation and traffic monitoring networks
- Power substations and utility communication
- IP surveillance and NVR backbones
- Oil, gas, and mining network infrastructure
- Harsh‑environment data aggregation nodes
Compatibility
- IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX/FX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X)
- Compatible with standard Ethernet devices, SFP transceivers (multi‑mode and single‑mode), and management protocols (SNMP, RMON, LLDP).
### 5. Components & Accessories
Included Items
- RGS‑7168GCP‑E‑EU switch unit
- Rack‑mount kit with screws
- Power cord (AC 100–240 V)
- Console cable (RS‑232 DB‑9)
- User manual and documentation
Optional Accessories
- SFP transceivers (100/1000Base‑X, multi‑mode or single‑mode)
- DIN‑rail mounting kit (optional)
- Redundant DC power supply (36–72 V DC)
- Open‑Vision network management software
Connectors
- RJ‑45 (shielded, auto‑MDI/MDI‑X)
- SFP slots (LC connectors)
- 6‑pin terminal block for DC input
- DB‑9 female console port
### 6. Installation & Setup
Mounting Options
- Standard 19‑inch rack‑mount installation using included brackets.
- Optional DIN‑rail mounting for industrial cabinets.
Power Requirements
- Connect AC 100–240 V input via IEC power cord.
- For redundancy, connect dual DC 36–72 V inputs (RGS‑7168GCP‑E model).
Configuration Interfaces
- Web‑based management: Accessible via browser (default IP 192.168.10.1).
- CLI (Console/Telnet): RS‑232 DB‑9 or Telnet access.
- SNMP: v1/v2c/v3 for remote monitoring.
- Open‑Vision software: Centralized management of multiple ORing devices.
Initial Setup Parameters
- Default IP: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Gateway: 192.168.10.254
- Username/Password: admin/admin
Reset Options
- Press reset button 3 s = reboot; 5 s = factory default restore.
### 7. Performance & Capabilities
Switching Performance
- Non‑blocking architecture with 48 Gbps switching capacity.
- Store‑and‑forward forwarding ensures error‑free packet transmission.
- Latency < 7 µs for 64‑byte frames.
Redundancy & Recovery
- O‑Ring recovery < 20 ms across 250 nodes.
- Supports Ring Coupling and Dual Homing for multi‑ring topologies.
- MSTP/RSTP/STP for standard redundancy interoperability.
Traffic Management
- Port‑based and IEEE 802.1p QoS with four priority queues.
- Application‑based QoS (TCP/UDP port prioritization).
- IP‑based bandwidth control per device.
- Storm control for broadcast, multicast, and unicast traffic.
Security & Access Control
- IEEE 802.1x authentication with RADIUS integration.
- MAC‑based port security and ACL filtering.
- SNMPv3 authentication and encryption.
- DoS/DDoS auto‑prevention mechanisms.
Multicast & VLAN Handling
- IGMP Snooping (up to 128 groups per VLAN).
- Supports 256 VLANs (IEEE 802.1Q).
- Private VLAN and QinQ double‑tagging.
Diagnostics & Monitoring
- System log, SNMP traps, email alerts, and relay output alarms.
- VeriPHY cable diagnostics (7–140 m accuracy).
- Port mirroring, traffic statistics, and MAC table monitoring.
Limitations
- Layer 2 switching only (no Layer 3 routing).
- VeriPHY temporarily disables 10/100 Mbps links during testing.
### 8. Standards & Compliance
Ethernet Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (Link Aggregation Control Protocol)
- IEEE 802.1p (Class of Service)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1D/w/s (STP/RSTP/MSTP)
- IEEE 802.1x (Network Access Control)
- IEEE 802.1AB (LLDP)
Electromagnetic Compatibility (EMC)
- FCC Part 15 Class A
- CISPR (EN 55022) Class A
Electromagnetic Susceptibility (EMS)
- EN 61000‑4‑2 (ESD)
- EN 61000‑4‑3 (RS)
- EN 61000‑4‑4 (EFT)
- EN 61000‑4‑5 (Surge)
- EN 61000‑4‑6 (CS)
- EN 61000‑4‑8 (Magnetic Field)
- EN 61000‑4‑11 (Dip/Interruption)
Environmental & Mechanical Tests
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Safety Certification
- EN 60950‑1 (Information Technology Equipment Safety)
### 9. Additional Information
Warranty
- 5‑year limited warranty covering defects in materials and workmanship.
- Excludes damage from misuse, unauthorized modification, or improper installation.
Support & Maintenance
- Firmware updates available via web interface or CLI.
- Configuration backup/restore in XML format.
- Technical support via email and online resources.
Maintenance Recommendations
- Ensure adequate ventilation in rack installations.
- Periodically inspect fiber and copper connections for dust or corrosion.
- Maintain firmware at the latest revision for security and stability.
Software Updates & Management
- Firmware upgrade via web GUI or TFTP (CLI command: `Firmware> Load <ip> <file>`).
- Configuration management via `Config> Save/Load` commands.
- SNMP MIB support for integration with third‑party NMS platforms.
Reliability & Safety Notes
- Built‑in surge and ESD protection for industrial environments.
- Relay output (1 A @ 24 V DC) for external alarm integration.
- Dual power inputs ensure continuous operation during power source failure.
### Summary
The ORing RGS‑7168GCP‑E‑EU is a robust, feature‑rich industrial managed switch engineered for high‑availability Ethernet networks. With 24 Gigabit ports, redundant power design, and sub‑20 ms ring recovery, it delivers exceptional reliability for mission‑critical applications. Its comprehensive management suite—including web, CLI, SNMP, and Open‑Vision integration—enables precise control and monitoring. Compliance with industrial EMC, safety, and environmental standards ensures dependable operation in demanding conditions such as factory automation, transportation systems, and energy infrastructure.
Key Advantages:
- 48 Gbps non‑blocking throughput
- 20 ms ring recovery across 250 nodes
- Extended temperature –40 °C to +70 °C
- Dual AC/DC redundant power inputs
- Full Layer 2 management, QoS, VLAN, and security suite
- 5‑year manufacturer warranty
This combination of performance, resilience, and manageability makes the RGS‑7168GCP‑E‑EU a premier choice for industrial Ethernet backbone deployments requiring continuous uptime and advanced network control.
### 1. Product Overview
Product Name: ORing RGS‑7168GCP‑E‑EU
Model: RGS‑7168GCP‑E
Series: RGS‑7168GCP / RGS‑7168GCP‑E Industrial Managed Gigabit Ethernet Switch Series
Article Number: RGS‑7168GCP‑E‑EU
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No. 3, Lane 235, Baoqiao Rd., Xindian District, New Taipei City 23145, Taiwan (R.O.C.)
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com
The RGS‑7168GCP‑E‑EU is a high‑performance, industrial‑grade, managed Ethernet switch designed for mission‑critical networking in harsh environments. It combines 16 Gigabit combo ports (10/100/1000Base‑T(X) and 100/1000Base‑X SFP) with 8 dedicated 100/1000Base‑X SFP fiber ports, providing a total of 24 ports in a 19‑inch rack‑mountable chassis. It supports advanced redundancy, security, and management features suitable for industrial automation, transportation, and utility applications.
### 2. Key Features
- High‑Density Port Configuration:
16 combo ports (10/100/1000Base‑T(X) RJ‑45 or 100/1000Base‑X SFP) plus 8 dedicated 100/1000Base‑X SFP ports.
- Fast Ethernet Redundancy:
ORing’s proprietary O‑Ring technology provides network recovery in less than 20 ms across up to 250 connected units, ensuring minimal downtime.
- Comprehensive Redundancy Protocols:
Supports O‑Ring, Coupling Ring, Dual Homing, and standard STP/RSTP/MSTP (IEEE 802.1D/w/s) for flexible network topologies.
- Advanced Management Interfaces:
Web‑based GUI, Telnet, RS‑232 console (CLI), and SNMPv1/v2c/v3 management. Compatible with Open‑Vision v3.0 centralized management software.
- Robust Security:
IEEE 802.1x port‑based access control, MAC‑based port security, RADIUS authentication, SNMPv3 encryption, and ACL filtering.
- Quality of Service (QoS):
IEEE 802.1p priority queuing, application‑based QoS, IP‑based bandwidth management, and traffic prioritization for real‑time data.
- VLAN Support:
IEEE 802.1Q VLAN tagging, GVRP, double‑tagging (Q‑in‑Q), and private VLANs for traffic segmentation.
- Multicast Optimization:
IGMP Snooping for efficient multicast traffic handling.
- Diagnostics and Monitoring:
System log, event notification via email/SNMP trap, relay output alarms, and VeriPHY cable diagnostics.
- Industrial‑Grade Design:
Extended operating temperature range –40 °C to +70 °C, IP‑30 metal enclosure, and redundant power inputs (AC 100–240 V and dual DC 36–72 V).
- High Reliability:
Surge protection (2000 V DC), ESD protection (4 kV DC), and compliance with IEC 60068 mechanical standards.
### 3. Technical Specifications
Physical Ports
- 16 × 10/100/1000Base‑T(X) RJ‑45 / 100/1000Base‑X SFP combo ports
- 8 × 100/1000Base‑X SFP fiber ports
- 1 × RS‑232 console port (DB‑9, 115200 bps, 8‑N‑1)
Switch Architecture
- Switching bandwidth: 48 Gbps
- Switching latency: 7 µs
- MAC address table: 8 K entries
- Priority queues: 4
- Processing method: Store‑and‑Forward
- Jumbo frame support: up to 9 KB
Dimensions & Weight
- Dimensions: 431 (W) × 342 (D) × 44 (H) mm
- Weight: 4.5 kg (RGS‑7168GCP‑E) / 4.3 kg (RGS‑7168GCP)
- Enclosure: 19‑inch rack‑mountable, IP‑30 rated metal housing
Power
- Input: 100–240 VAC, 50–60 Hz
- Redundant DC input (RGS‑7168GCP‑E only): 36–72 V DC, 6‑pin terminal block
- Power consumption: 33 W (typical)
- Over‑current protection: Present
Environmental Conditions
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +85 °C
- Operating humidity: 5 % – 95 % (non‑condensing)
LED Indicators
- PWR, PW1, PW2, PW3: Power status
- STA: System ready
- RUN: System operating
- R.M.: Ring master active
- Ring: O‑Ring status
- DEF: Factory default reset
- Ping: Ping in progress
- RMT: Remote management active
- Fault: Alarm condition (RGS‑7168GCP‑E only)
- Port LEDs: Link/Activity (Green = 1000 Mbps, Amber = 10/100 Mbps)
### 4. Functionality
Operational Overview
The RGS‑7168GCP‑E‑EU functions as a fully managed Layer 2 Ethernet switch with advanced redundancy and security mechanisms. It supports both copper and fiber connectivity, allowing flexible deployment in mixed‑media industrial networks.
Use Cases & Applications
- Industrial automation and control systems
- Transportation and traffic monitoring networks
- Power substations and utility communication
- IP surveillance and NVR backbones
- Oil, gas, and mining network infrastructure
- Harsh‑environment data aggregation nodes
Compatibility
- IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX/FX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X)
- Compatible with standard Ethernet devices, SFP transceivers (multi‑mode and single‑mode), and management protocols (SNMP, RMON, LLDP).
### 5. Components & Accessories
Included Items
- RGS‑7168GCP‑E‑EU switch unit
- Rack‑mount kit with screws
- Power cord (AC 100–240 V)
- Console cable (RS‑232 DB‑9)
- User manual and documentation
Optional Accessories
- SFP transceivers (100/1000Base‑X, multi‑mode or single‑mode)
- DIN‑rail mounting kit (optional)
- Redundant DC power supply (36–72 V DC)
- Open‑Vision network management software
Connectors
- RJ‑45 (shielded, auto‑MDI/MDI‑X)
- SFP slots (LC connectors)
- 6‑pin terminal block for DC input
- DB‑9 female console port
### 6. Installation & Setup
Mounting Options
- Standard 19‑inch rack‑mount installation using included brackets.
- Optional DIN‑rail mounting for industrial cabinets.
Power Requirements
- Connect AC 100–240 V input via IEC power cord.
- For redundancy, connect dual DC 36–72 V inputs (RGS‑7168GCP‑E model).
Configuration Interfaces
- Web‑based management: Accessible via browser (default IP 192.168.10.1).
- CLI (Console/Telnet): RS‑232 DB‑9 or Telnet access.
- SNMP: v1/v2c/v3 for remote monitoring.
- Open‑Vision software: Centralized management of multiple ORing devices.
Initial Setup Parameters
- Default IP: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Gateway: 192.168.10.254
- Username/Password: admin/admin
Reset Options
- Press reset button 3 s = reboot; 5 s = factory default restore.
### 7. Performance & Capabilities
Switching Performance
- Non‑blocking architecture with 48 Gbps switching capacity.
- Store‑and‑forward forwarding ensures error‑free packet transmission.
- Latency < 7 µs for 64‑byte frames.
Redundancy & Recovery
- O‑Ring recovery < 20 ms across 250 nodes.
- Supports Ring Coupling and Dual Homing for multi‑ring topologies.
- MSTP/RSTP/STP for standard redundancy interoperability.
Traffic Management
- Port‑based and IEEE 802.1p QoS with four priority queues.
- Application‑based QoS (TCP/UDP port prioritization).
- IP‑based bandwidth control per device.
- Storm control for broadcast, multicast, and unicast traffic.
Security & Access Control
- IEEE 802.1x authentication with RADIUS integration.
- MAC‑based port security and ACL filtering.
- SNMPv3 authentication and encryption.
- DoS/DDoS auto‑prevention mechanisms.
Multicast & VLAN Handling
- IGMP Snooping (up to 128 groups per VLAN).
- Supports 256 VLANs (IEEE 802.1Q).
- Private VLAN and QinQ double‑tagging.
Diagnostics & Monitoring
- System log, SNMP traps, email alerts, and relay output alarms.
- VeriPHY cable diagnostics (7–140 m accuracy).
- Port mirroring, traffic statistics, and MAC table monitoring.
Limitations
- Layer 2 switching only (no Layer 3 routing).
- VeriPHY temporarily disables 10/100 Mbps links during testing.
### 8. Standards & Compliance
Ethernet Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (Link Aggregation Control Protocol)
- IEEE 802.1p (Class of Service)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1D/w/s (STP/RSTP/MSTP)
- IEEE 802.1x (Network Access Control)
- IEEE 802.1AB (LLDP)
Electromagnetic Compatibility (EMC)
- FCC Part 15 Class A
- CISPR (EN 55022) Class A
Electromagnetic Susceptibility (EMS)
- EN 61000‑4‑2 (ESD)
- EN 61000‑4‑3 (RS)
- EN 61000‑4‑4 (EFT)
- EN 61000‑4‑5 (Surge)
- EN 61000‑4‑6 (CS)
- EN 61000‑4‑8 (Magnetic Field)
- EN 61000‑4‑11 (Dip/Interruption)
Environmental & Mechanical Tests
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Safety Certification
- EN 60950‑1 (Information Technology Equipment Safety)
### 9. Additional Information
Warranty
- 5‑year limited warranty covering defects in materials and workmanship.
- Excludes damage from misuse, unauthorized modification, or improper installation.
Support & Maintenance
- Firmware updates available via web interface or CLI.
- Configuration backup/restore in XML format.
- Technical support via email and online resources.
Maintenance Recommendations
- Ensure adequate ventilation in rack installations.
- Periodically inspect fiber and copper connections for dust or corrosion.
- Maintain firmware at the latest revision for security and stability.
Software Updates & Management
- Firmware upgrade via web GUI or TFTP (CLI command: `Firmware> Load <ip> <file>`).
- Configuration management via `Config> Save/Load` commands.
- SNMP MIB support for integration with third‑party NMS platforms.
Reliability & Safety Notes
- Built‑in surge and ESD protection for industrial environments.
- Relay output (1 A @ 24 V DC) for external alarm integration.
- Dual power inputs ensure continuous operation during power source failure.
### Summary
The ORing RGS‑7168GCP‑E‑EU is a robust, feature‑rich industrial managed switch engineered for high‑availability Ethernet networks. With 24 Gigabit ports, redundant power design, and sub‑20 ms ring recovery, it delivers exceptional reliability for mission‑critical applications. Its comprehensive management suite—including web, CLI, SNMP, and Open‑Vision integration—enables precise control and monitoring. Compliance with industrial EMC, safety, and environmental standards ensures dependable operation in demanding conditions such as factory automation, transportation systems, and energy infrastructure.
Key Advantages:
- 48 Gbps non‑blocking throughput
- 20 ms ring recovery across 250 nodes
- Extended temperature –40 °C to +70 °C
- Dual AC/DC redundant power inputs
- Full Layer 2 management, QoS, VLAN, and security suite
- 5‑year manufacturer warranty
This combination of performance, resilience, and manageability makes the RGS‑7168GCP‑E‑EU a premier choice for industrial Ethernet backbone deployments requiring continuous uptime and advanced network control.
-
Datasheet_RGS-7168GCP_RGS-7168GCP-E_v1.21_HQ.pdf
PDF Catalog
-
Datasheet_RGS-7168GCP_RGS-7168GCP-E_v1.1.pdf
PDF Catalog
_ User's Manual v1.4.webp)
Kein Zubehör vorhanden.
