Comprehensive Product Summary – ORing RGS‑7244GP Industrial Managed Rack‑Mount Switch

---

### 1. Product Overview

Product Name: RGS‑7244GP
Model Number: RGS‑7244GP
Series: ORing Industrial Managed Ethernet Switch Series
Article Number: RGS‑7244GP
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
Telephone: +886‑2‑2918‑3036
Fax: +886‑2‑2918‑3084

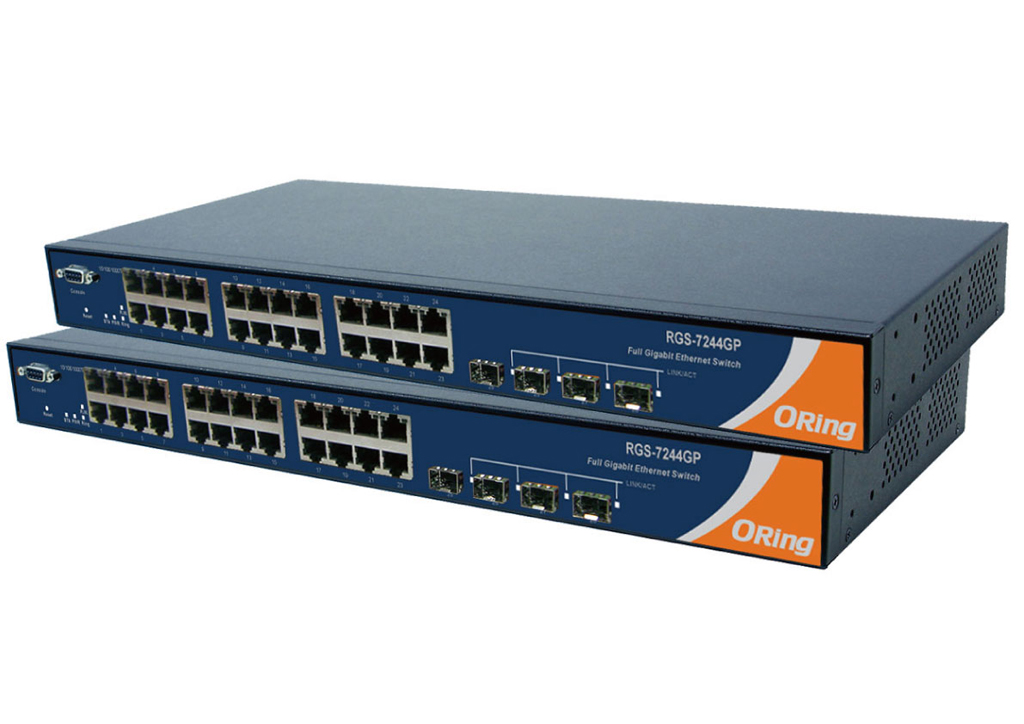

The ORing RGS‑7244GP is a high‑performance, fully managed industrial Ethernet switch designed for mission‑critical networking in harsh environments. It combines 24 Gigabit copper ports with 4 Gigabit SFP fiber uplinks in a 19‑inch rack‑mountable enclosure, providing robust Layer 2 management, redundancy, and security features suitable for industrial automation, transportation, and utility networks.

---

### 2. Key Features

- Port Configuration:
24 × 10/100/1000Base‑T(X) RJ‑45 ports (auto MDI/MDI‑X)
4 × 1000Base‑X SFP slots for fiber uplinks

- High‑Speed Redundancy:
ORing’s proprietary O‑Ring technology provides ultra‑fast network recovery (<10 ms over 250 units). Supports Ring Coupling, Dual Homing, and compatibility with STP/RSTP/MSTP.

- Comprehensive Management:
Managed via Web GUI, Telnet, Console (CLI), SNMP v1/v2c/v3, and Windows Utility.
Supports HTTPS, SSH, LLDP, RMON, and centralized authentication via RADIUS.

- Advanced Security:
- IEEE 802.1x port‑based access control
- MAC‑based port security
- SNMPv3 encrypted authentication
- ACL filtering and DoS/DDoS prevention
- Configurable user privileges and password protection

- Quality of Service (QoS):
IEEE 802.1p priority queuing (4 queues per port), ToS/DiffServ classification, and application‑based QoS management.

- VLAN Support:
IEEE 802.1Q VLAN tagging, up to 4096 VLANs, GVRP, QinQ double tagging, and Private VLANs for traffic isolation.

- Multicast Optimization:
IGMP Snooping (v1/v2/v3) with per‑VLAN configuration and fast leave support.

- Diagnostics and Monitoring:
- System and detailed logs
- Port mirroring (Rx/Tx)
- MAC table management (8 K entries)
- Traffic statistics and VeriPHY cable diagnostics
- Ping and SNMP traps for event notification

- Industrial Design:
Rugged IP‑30 metal housing, 19‑inch rack‑mountable, designed for ‑10 °C to +60 °C operation and 5–95 % non‑condensing humidity.

- Reliability:
Redundant AC power input (100–240 VAC), surge and ESD protection, and overload current protection.

---

### 3. Technical Specifications

| Category | Specification |
|---------------|------------------|
| Ethernet Ports | 24 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDI‑X) |
| SFP Ports | 4 × 1000Base‑X SFP slots |
| Console Port | RS‑232 (DB‑9 to RJ‑45 cable, 115200 bps, 8‑N‑1) |
| Switching Capacity | 56 Gbps |
| Switching Latency | 7 µs (store‑and‑forward) |
| MAC Address Table | 8 K entries |
| Priority Queues | 4 per port |
| Jumbo Frame Support | Up to 9 KB |
| VLANs Supported | 4096 |
| IGMP Groups | 128 per VLAN |
| Power Input | 100 – 240 VAC, 50/60 Hz |
| Power Consumption | Typical 36 W |
| Protection | Overload current protection, surge 2000 V DC, ESD 4 kV DC |
| Enclosure | IP‑30 rated, 19‑inch rack‑mountable metal chassis |
| Dimensions (W × D × H) | 443.7 × 200 × 44 mm |
| Weight | 2700 g |
| Operating Temperature | ‑10 °C to +60 °C (14 °F to 140 °F) |
| Storage Temperature | ‑40 °C to +85 °C (‑40 °F to 185 °F) |
| Operating Humidity | 5 % – 95 %, non‑condensing |
| EMI Compliance | FCC Part 15 Class A, EN55022 Class A |
| EMS Compliance | EN61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11 |
| Mechanical Tests | IEC60068‑2‑27 (Shock), ‑2‑32 (Free Fall), ‑2‑6 (Vibration) |
| Warranty | 2 years |

---

### 4. Functionality

The RGS‑7244GP operates as a fully managed Layer 2 switch supporting advanced redundancy, VLAN segmentation, and traffic prioritization. It is ideal for industrial automation networks requiring deterministic performance and high availability.

Operation & Management:
- Web Interface: Embedded HTML/Java‑based GUI accessible via standard browsers (default IP 192.168.10.1).
- CLI Access: Through RS‑232 console or Telnet; supports full command set for configuration, monitoring, and diagnostics.
- SNMP Management: SNMP v1/v2c/v3 with RMON, traps, and email alerts for event notification.
- Security Management: HTTPS/SSH encryption, user authentication, and RADIUS integration.

Use Cases:
- Factory automation and process control networks
- Intelligent transportation systems (ITS)
- Power substations and utility monitoring
- Surveillance and IP camera backbones
- Industrial data centers and control rooms

Compatibility:
- Interoperable with standard Ethernet devices (IEEE 802.3 compliant)
- Supports multimode and single‑mode SFP transceivers (LC connector, 850 nm MM up to 550 m; SM for long distance)
- Works with third‑party SNMP management software

---

### 5. Components & Accessories

Included Items:
- RGS‑7244GP switch unit
- Rack‑mount kit with screws
- Power cord (100–240 VAC)
- RS‑232 console cable (DB‑9 to RJ‑45)
- Quick installation guide and user manual

Optional Accessories:
- SFP transceivers (1000Base‑SX/LX/ZX)
- Fiber patch cords (LC‑LC)
- Replacement power cords
- Network management software (ORing Utility)

Connectors:
- RJ‑45 for copper Ethernet ports
- LC SFP slots for fiber modules
- RJ‑45 console port for serial management
- Standard IEC AC power inlet

---

### 6. Installation & Setup

Mounting Options:
- 19‑inch rack‑mount installation using included brackets
- Optional DIN‑rail mounting (for industrial cabinets)

Power Requirements:
- Single AC input 100–240 VAC, 50/60 Hz
- Built‑in overload and surge protection

Initial Configuration:
1. Connect power and verify PWR LED (green).
2. Connect management PC via console or Ethernet.
3. Access default IP 192.168.10.1 / admin (admin).
4. Configure network parameters, VLANs, and redundancy.
5. Optionally enable HTTPS, SSH, SNMP, and RADIUS.

LED Indicators:
- PWR: Power ON
- STA: System Ready
- R.M.: Ring Master active
- Ring: O‑Ring status (blinking = normal operation)
- Port LEDs: Green (1000 Mbps link), Amber (10/100 Mbps link), Blinking = activity

---

### 7. Performance & Capabilities

- Switching Fabric: 56 Gbps non‑blocking architecture
- Throughput: 41.7 Mpps (64‑byte packets)
- Latency: 7 µs typical
- Redundancy: O‑Ring < 10 ms recovery; supports Ring Coupling and Dual Homing
- QoS: 4 hardware queues per port; 802.1p priority mapping; ToS/DiffServ classification
- Bandwidth Control: Per‑port rate limiting (500 kbps – 1 Gbps)
- Trunking: IEEE 802.3ad LACP link aggregation for load balancing and redundancy
- VLANs: Port‑based, 802.1Q, Private VLAN, QinQ double tagging
- Multicast: IGMP Snooping v1/v2/v3 with 128 groups per VLAN
- Security: 802.1x authentication, MAC filtering, ACL policies, SNMPv3 encryption
- Diagnostics: VeriPHY cable test (7–140 m accuracy), port mirroring, system logs, ping utility
- Limitations: Layer 2 switching only (no Layer 3 routing); maximum 64 static MAC entries

---

### 8. Standards & Compliance

IEEE Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (Link Aggregation Control Protocol)
- IEEE 802.1p (Class of Service)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1D (STP) / 802.1w (RSTP) / 802.1s (MSTP)
- IEEE 802.1x (Network Access Control)
- IEEE 802.1AB (LLDP)

EMC & Safety Compliance:
- EMI: FCC Part 15 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11
- Environmental Tests: IEC60068‑2‑27 (Shock), ‑2‑32 (Free Fall), ‑2‑6 (Vibration)
- Ingress Protection: IP‑30 metal enclosure

Industrial Networking Protocols:
- O‑Ring redundancy (<10 ms recovery)
- STP/RSTP/MSTP compatibility
- SNMP v1/v2c/v3 with RMON support
- LLDP for topology discovery

---

### 9. Additional Information

Warranty: 2 years limited hardware warranty
Support: Email and phone technical support from ORing Industrial Networking Corp.
Maintenance: Firmware upgradable via Web GUI or CLI; configuration backup/restore supported (XML format).
Firmware Update: Performed through Web interface or TFTP server.
System Logs: Stored locally and exportable via SNMP trap or email.
Event Notification: Email alerts and SNMP traps for link status, power failure, and system events.
Security Updates: Periodic firmware releases to address vulnerabilities and enhance features.

---

### Summary

The ORing RGS‑7244GP is a robust, feature‑rich industrial managed Gigabit Ethernet switch engineered for high‑availability networks. With 24 Gigabit RJ‑45 ports and 4 SFP uplinks, it delivers 56 Gbps switching capacity, sub‑10 ms redundancy, and comprehensive Layer 2 management. Its industrial‑grade design, wide temperature tolerance, and advanced security and QoS features make it ideal for demanding applications such as automation, transportation, and energy systems.

The switch complies with major IEEE standards, supports SNMP v3, 802.1x, VLAN, QoS, and redundant ring topologies, and provides flexible management through Web, CLI, and SNMP interfaces. With its rugged construction, redundant power input, and comprehensive diagnostic tools, the RGS‑7244GP ensures reliable, secure, and efficient network operation in industrial environments.
