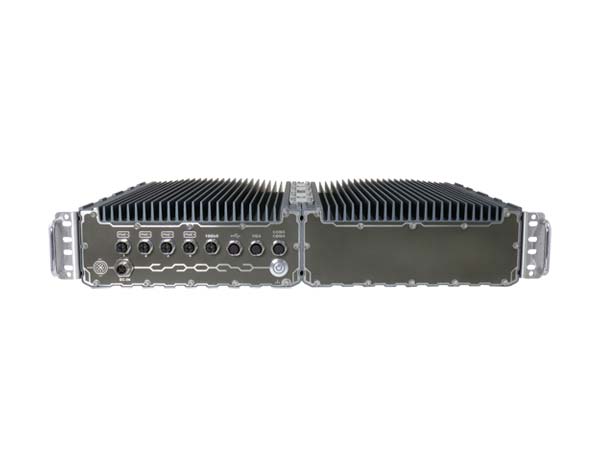

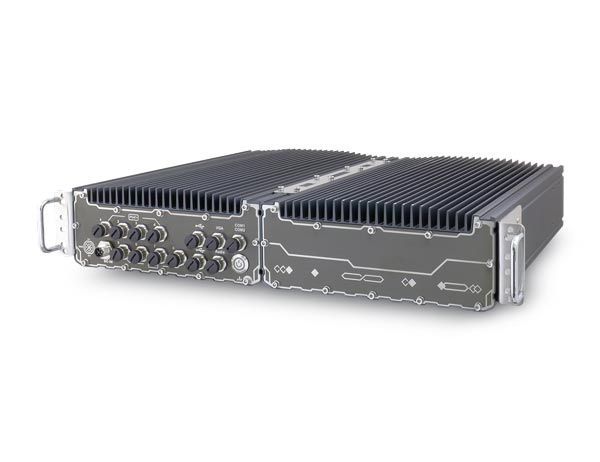

IP67 fanless edge AI computer with RTX 2000 Ada and eight M12 PoE+ ports.
IP67 fanless edge AI computer with RTX 2000 Ada and eight M12 PoE+ ports. IP67 fanless edge AI computer with RTX 2000 Ada and eight M12 PoE+ ports.

SEMIL-1728GC-ADA

IP67 fanless edge AI computer with RTX 2000 Ada and eight M12 PoE+ ports.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Der SEMIL-1728GC-ADA ist ein lüfterloser, IP67-geschützter GPU-Computer für Edge-AI-Aufgaben in rauen Einsatzbereichen. Er kombiniert eine NVIDIA RTX 2000 Ada mit Intel Xeon E oder Core Prozessoren der 9. beziehungsweise 8. Generation. Acht Gigabit-PoE+-Ports ermöglichen den direkten Anschluss zahlreicher Kameras und Netzwerkgeräte über verriegelbare M12-Stecker. Hinzu kommen VGA, USB und serielle Anschlüsse, bis zu 64 GB DDR4 sowie NVMe- und SATA-Speicher. Das 2HE-19-Zoll-Gehäuse unterstützt 8 bis 48 VDC, Zündsteuerung sowie Rack- und Wandmontage.
IP67 waterproof and dustproof fanless GPU computer with NVIDIA RTX 2000 Ada, Intel Xeon E or 9th/8th Gen Core CPU support, eight Gigabit PoE+ ports, M12 connectivity, up to 64 GB DDR4 memory, NVMe and SATA storage, 8–48 VDC input, ignition control and rack or wall mounting.
  • GPU NVIDIA RTX 2000 Ada
  • Gigabit PoE+ Ports 8 ports
  • Ingress Protection IP67
  • Supported Processor Families Intel Xeon E; 9th/8th Gen Intel Core i7/i5/i3
  • Maximum System Memory 64 GB
  • Storage Interfaces 2x 2.5-inch SATA with RAID 0/1; 2x mSATA; 1x M.2 2280 PCIe Gen3 x4
  • DC Input Range 8–48 VDC
  • Dimensions 440 x 310 x 90.5 mm
  • Form Factor Fanless 2U 19-inch rack/wall-mount computer
  • Connector M12 X-coded Ethernet; M12 A-coded VGA/USB/COM; M12 S-coded DC input
  • Dimensions 440 x 310 x 90.5 mm
  • Bus Interface 2x full-size mini PCIe; M.2 PCIe Gen3 x4
  • Resolution VGA up to 1920 x 1200
  • Operating Temperature -40°C to 70°C with 35 W CPU; up to 50°C with specified CPUs at 65 W mode
  • Key Features IP67 waterproof and dustproof;NVIDIA RTX 2000 Ada;8x Gigabit PoE+;fanless operation;8–48 VDC input;ignition control;MIL-STD-810G;EN 50155 EMC;M12 connectors
  • Accessories PA-280W-ET2, Cblkit-M12
