Fanless IP69K 2U rugged computer with dual 10GbE and four M12 PoE+ ports.

SEMIL-2007

Fanless IP69K 2U rugged computer with dual 10GbE and four M12 PoE+ ports.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

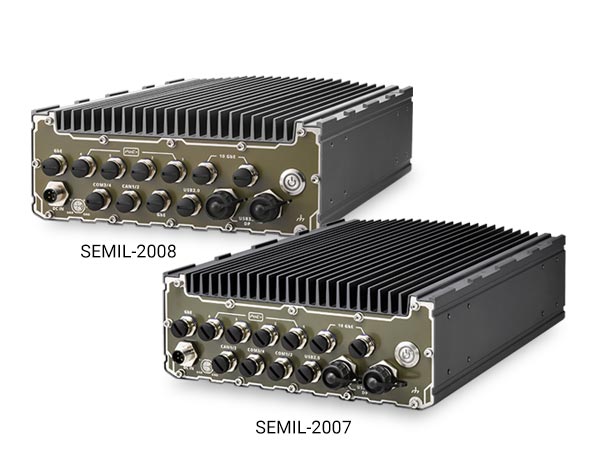

Der SEMIL-2007 ist ein lüfterloser, besonders robuster IP69K-Computer für den 2U-19-Zoll-Halbrack-Einsatz. Er unterstützt Intel Core Prozessoren der 14., 13. und 12. Generation sowie bis zu 128 GB DDR5-Speicher. Über vibrationssichere M12-Anschlüsse stehen zwei 10GbE-, vier 2.5GbE-PoE+- und ein GbE-Port bereit. Hinzu kommen zwei isolierte CAN-2.0-Schnittstellen, vier serielle Ports und zwei USB-C-Anschlüsse mit DisplayPort. Zwei SATA-Laufwerke mit RAID 0/1 und eine NVMe-SSD sind integrierbar. Der Betrieb ist mit 8 bis 48 VDC und bei Temperaturen bis -40 °C bis 70 °C möglich.

Extreme-rugged fanless computer supporting Intel 14th, 13th and 12th Gen LGA1700 processors, up to 128 GB DDR5 memory, dual 10GbE, four 2.5GbE PoE+, one GbE, two isolated CAN 2.0 ports, four serial ports and M12 connectivity. It provides two SATA bays with RAID 0/1, one PCIe Gen4 x4 NVMe socket, three full-size mini-PCIe sockets, 8–48 VDC input, ignition control and IP69K protection in a 220 x 310 x 90.5 mm chassis.

Supported Processor Generations Intel 14th, 13th and 12th Gen Core; selected Pentium and Celeron CPUs
Processor Socket LGA1700
Processor TDP 35 or 65 W
Chipset Intel Q670E
Maximum Memory 128 GB
Memory Type DDR5-4800 SDRAM, two SODIMM slots
10 Gigabit Ethernet Ports 2 ports
2.5 Gigabit PoE+ Ports 4 ports
Gigabit Ethernet Ports 1 port
Total Ethernet Ports 7 ports
PoE Standard IEEE 802.3at PoE+ PSE
Total PoE Power Budget 100 W
CAN Bus Ports 2 isolated CAN 2.0 ports with SocketCAN support
Serial Ports 3x isolated 3-wire RS-232; 1x RS-422/485
USB-C Ports 2x USB 3.2 Gen1x1, 5Gbps, shared DisplayPort
USB 2.0 Ports 2 ports
SATA Drive Bays 2x internal 2.5-inch SATA HDD/SSD
RAID Support RAID 0/1
NVMe Socket 1x M.2 2280 M-key, PCIe Gen4 x4
Mini PCI Express Sockets 3 full-size sockets with SIM slots
Cellular Expansion Socket 1x M.2 2242/3052 B-key with dual SIM
Wi-Fi Expansion Socket 1x M.2 2230 E-key
DC Input Range 8–48 VDC
Ignition Control Built-in
Dimensions 220 x 310 x 90.5 mm
Weight 6 kg
Mounting Wall mount standard; rack mount optional
Form Factor 2U 19-inch half-rack, wall-mountable

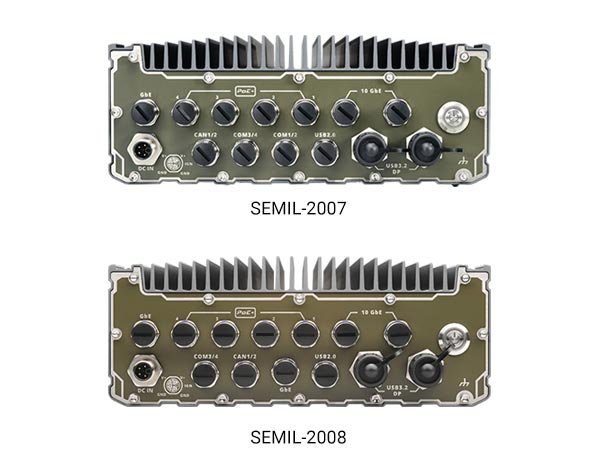

Connector M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; USB Type-C
Dimensions 220 x 310 x 90.5 mm (W x D x H)
Ingress Protection IP69K
Operating Temperature -40 to 70 with 35W CPU; -40 to 60 in 65W TDP mode °C
Humidity 10–90, non-condensing % RH
Vibration Compliance MIL-STD-810H 514.8C-VII, Category 4
Shock Compliance MIL-STD-810H 516.8, Procedure I
Operating Temperature -40°C to 70°C with 35W CPU; -40°C to 60°C in 65W TDP mode
Bus Interface 2x 10GbE; 4x 2.5GbE PoE+; 1x GbE; 2x CAN 2.0; USB 3.2/2.0; serial
Key Features IP69K dustproof and waterproof design; fanless operation; Intel 14th/13th/12th Gen Core support; up to 128 GB DDR5; 2x 10GbE; 4x 2.5GbE PoE+; 100 W PoE budget; 2x isolated CAN 2.0; RAID 0/1; NVMe expansion; 8–48 VDC input; ignition control; MIL-STD-810H compliance
Accessories PA-280W-CW6P-2P, PA-600W-C4PY-4P, JPlate-SL, Rmkit-SL, Cblkit-M12-SEMIL2007, Cbl-M12X8M-RJ45-500CM, Cbl-M12A8M-2U2TA-180CM2, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12A8M-2DB9M-180CM, Cbl-M12L5F-CordEnd5-180CM
