- **High-Resolution Digitization:** 16-bit ADC resolution across four simultaneous single-ended channels. - **Sampling Rate:** Up to 10 MS/s per channel (PXI-9816D model). - **Deep Onboard Memory:** 512 MB SDRAM shared across four channels, enabling long-duration waveform recording independent of PCI/PXI bus transfer rates. - **Programmable Input Range:** Software-selectable ±0.2 V or ±1 V input ranges for optimal dynamic range and signal fidelity. - **Selectable Input Impedance:** Software-configurable 50 Ω or 1 MΩ input impedance for flexible signal interfacing. - **Flexible Triggering:** Supports software, external digital, analog, PXI STAR, and PXI Trigger Bus triggers with multiple trigger modes (pre-, post-, middle-, delay-, and re-trigger). - **Synchronization:** Multi-module synchronization via PXI Trigger Bus or SSI interface for scalable, time-aligned data acquisition systems. - **Auto-Calibration:** Built-in precision 5 V reference with ±3 ppm/°C drift for fully automated calibration and long-term accuracy. - **High Dynamic Performance:** Typical SFDR of 90 dBc, SINAD of 79 dBc, and ENOB of 12.8 bits. - **PXI 3U Eurocard Form Factor:** Compact 160 mm × 100 mm module compatible with standard PXI chassis. - **Software Support:** Comprehensive driver suite including DAQPilot, DAQMaster, and WD-DASK for Windows, LabVIEW®, and MATLAB® environments.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High-Resolution Digitization:** 16-bit ADC resolution providing precise signal representation with up to 12.8-bit effective number of bits (ENOB). - **Sampling Rate:** Up to 10 MS/s per channel with simultaneous sampling across four channels. - **Deep Onboard Memory:** 512 MB SDRAM shared across channels for extended waveform recording independent of PCI bus bandwidth. - **Programmable Input Range:** Software-selectable ±1 V or ±5 V input range for flexible signal conditioning. - **Selectable Input Impedance:** Software-configurable 50 Ω or 1 MΩ input impedance for compatibility with various signal sources. - **Flexible Triggering:** Supports software, external digital, analog, PXI STAR, and PXI Trigger Bus triggers with multiple trigger modes (pre-, post-, middle-, delay-trigger). - **Synchronization Support:** PXI Trigger Bus and SSI interface enable multi-module synchronization for complex measurement systems. - **Auto-Calibration:** Built-in precision reference with ±3 ppm/°C drift for stable calibration and long-term accuracy. - **High Dynamic Performance:** Typical SFDR of 90 dBc, SINAD of 79 dBc, and THD below -89 dBc at 1 MHz input frequency. - **Software Integration:** Compatible with ADLINK DAQPilot, DAQMaster, and WD-DASK drivers for Windows, LabVIEW®, and MATLAB®. - **Compact PXI Form Factor:** 3U Eurocard module (100 mm × 160 mm) for easy integration into PXI chassis.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High-Speed Sampling:** - Dual-channel simultaneous sampling at up to 65 MS/s per channel. - Single-channel “ping-pong” mode supports up to 130 MS/s. - **High Resolution:** - 14-bit A/D conversion for precise signal digitization. - **Deep Onboard Memory:** - 128 MB standard SODIMM SDRAM, expandable to 512 MB. - 3k-sample FIFO for real-time streaming. - **Flexible Input Configuration:** - Programmable input ranges of ±1 V and ±5 V. - Selectable input impedance: 50 Ω or 1.5 MΩ. - **Triggering Flexibility:** - Supports software, analog, digital, and SSI (System Synchronization Interface) triggers. - Trigger modes include pre-trigger, post-trigger, middle-trigger, and delay-trigger. - Repeated trigger acquisition with minimal rearming interval (2 timebase cycles). - **Synchronization Capability:** - SSI bus for multi-module synchronization using shared clock and trigger signals. - **Auto-Calibration:** - Fully automated offset and gain calibration using onboard DACs. - Calibration constants stored in EEPROM for persistent accuracy. - **Data Transfer Efficiency:** - Scatter-gather bus mastering DMA for high-throughput data transfer to host memory. - **Robust Design:** - Compact PXI form factor with BNC and SMB connectors. - Operating temperature range: 0°C to 50°C.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High-Speed Sampling:** - 65 MS/s simultaneous sampling on two channels. - 130 MS/s single-channel sampling in ping-pong mode. - **High Resolution:** - 14-bit A/D conversion for precise waveform digitization. - **Deep Onboard Memory:** - 512 MB SODIMM SDRAM for extended waveform recording. - 3k-sample FIFO for real-time streaming. - **Flexible Input Configuration:** - Programmable input ranges of ±1 V and ±5 V. - Selectable input impedance: 50 Ω or 1.5 MΩ. - **Triggering Flexibility:** - Supports software, analog, and digital triggers. - Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger. - Repeated trigger acquisition with 2-cycle rearming interval. - **Synchronization Capability:** - System Synchronization Interface (SSI) for multi-module synchronization. - Common trigger and timebase sharing across multiple PXI-9820 modules. - **Auto-Calibration:** - Fully automated offset and gain calibration using onboard DACs. - Calibration constants stored in EEPROM for long-term stability. - **Data Transfer Efficiency:** - Scatter-gather bus mastering DMA for high-speed data transfer to host memory. - Real-time transfer bypassing SDRAM when bandwidth allows. - **Robust Design:** - Compact PXI form factor with plug-and-play configuration. - Integrated DC/DC converter for stable operation.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High-Speed Sampling:** 20 MS/s per channel simultaneous sampling across four channels. - **High Resolution:** 16-bit ADC resolution (1 part in 65,536). - **Deep Onboard Memory:** 512 MB SDRAM shared across channels for extended waveform recording. - **Programmable Input Range:** ±0.2 V or ±1 V, software selectable. - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software controlled. - **Wide Bandwidth:** Typical -3 dB bandwidth of 9.6 MHz at ±1 V input range. - **Flexible Triggering:** Supports software, external digital, analog, PXI STAR, and PXI Trigger Bus triggers. - **Multiple Trigger Modes:** Post-trigger, pre-trigger, middle-trigger, delay-trigger, and re-trigger acquisition. - **Multi-Module Synchronization:** PXI Trigger Bus and PXI STAR support for synchronized operation across multiple modules. - **Auto Calibration:** Built-in precision 5 V reference with ±3 ppm/°C drift for software-controlled calibration. - **Scatter-Gather DMA:** Efficient data transfer to host memory without CPU overhead. - **PXI 3U Form Factor:** Compact, modular design for PXI chassis integration. - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and WD-DASK drivers for Windows, LabVIEW®, and MATLAB® environments.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High‑Speed, High‑Resolution Acquisition:** Four simultaneous 16‑bit ADC channels with sampling rates up to **40 MS/s** per channel. - **Deep Onboard Memory:** **512 MB SDRAM** shared across channels allows long waveform recording independent of PCI/PXI bus throughput. - **Programmable Input Range and Impedance:** Software‑selectable **±0.2 V or ±1 V** input ranges; switchable **50 Ω or 1 MΩ** input impedance for flexible signal interfacing. - **Wide Bandwidth:** Typical **20 MHz (‑3 dB)** analog input bandwidth at 50 Ω impedance. - **Flexible Triggering:** Supports **software, external digital, analog, PXI STAR, PXI Trigger Bus, and SSI** trigger sources. Trigger modes include **pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and re‑trigger** operation. - **Multi‑Module Synchronization:** PXI Trigger Bus and STAR Trigger support enable precise synchronization of multiple modules. - **Auto‑Calibration:** Built‑in precision 5 V reference with ±3 ppm/°C drift ensures stable calibration and accuracy across temperature variations. - **Scatter‑Gather DMA:** Efficient data transfer using non‑contiguous memory blocks for high‑throughput acquisition. - **Software Support:** Compatible with **DAQPilot**, **DAQMaster**, and **WD‑DASK** drivers for Windows, LabVIEW®, MATLAB®, and ActiveX environments. - **Compact PXI Form Factor:** 3U Eurocard (100 mm × 160 mm) module with front‑panel BNC and SMB connectors.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High‑Speed Sampling:** 40 MS/s per channel simultaneous sampling across four 16‑bit ADCs. - **High Resolution:** True 16‑bit resolution (1 in 65,536) for accurate signal representation. - **Wide Bandwidth:** Typical –3 dB bandwidth of 20 MHz (50 Ω input) and up to 80 MHz for ±1 V range. - **Large Onboard Memory:** 512 MB SDRAM shared across four channels for long acquisition sessions. - **Programmable Input Range:** Software‑selectable ±0.2 V or ±1 V (also ±1 V/±5 V for H‑variants). - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software‑configurable for flexible signal interfacing. - **Flexible Triggering:** Supports software, external digital, analog, PXI STAR, and PXI Trigger Bus triggers. - **Multiple Trigger Modes:** Post‑trigger, pre‑trigger, middle‑trigger, delay‑trigger, and re‑trigger operation. - **Multi‑Module Synchronization:** PXI Trigger Bus and SSI interface enable precise synchronization of multiple modules. - **Auto‑Calibration:** Built‑in precision 5 V reference with ±3 ppm/°C drift for fully automated calibration. - **Scatter‑Gather DMA:** Efficient high‑throughput data transfer to host memory without fragmentation. - **PXI Integration:** Full compliance with PXI 3U Eurocard mechanical and electrical standards. - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and WD‑DASK drivers for Windows, LabVIEW®, and MATLAB®. - **High Dynamic Performance:** Typical SINAD 76 dBc, SFDR 91.6 dBc, ENOB 12.3 bits at 40 MS/s. - **Compact Form Factor:** Single‑slot 3U PXI module (100 × 160 mm).

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High-Speed Sampling:** 40 MS/s per channel simultaneous sampling across four channels. - **High Resolution:** 16-bit ADC resolution (1 part in 65,536). - **Large Onboard Memory:** 512 MB SDRAM shared across channels for long-duration waveform recording. - **Programmable Input Range:** ±1 V or ±5 V, software selectable. - **Selectable Input Impedance:** Software-selectable 50 Ω or 1 MΩ input impedance. - **Wide Bandwidth:** Typical -3 dB bandwidth of 20 MHz at 50 Ω input impedance. - **Flexible Triggering:** Supports software, external digital, analog, PXI STAR, and PXI Trigger Bus triggers. - **Multiple Trigger Modes:** Post-trigger, pre-trigger, middle-trigger, delay-trigger, and re-trigger acquisition. - **Multi-Module Synchronization:** PXI Trigger Bus and SSI interface for synchronized operation across multiple modules. - **Auto Calibration:** Built-in precision 5 V reference with ±3 ppm/°C drift for software-controlled self-calibration. - **Scatter-Gather DMA:** Efficient data transfer to host memory without CPU overhead. - **PXI 3U Eurocard Form Factor:** Compact 160 mm × 100 mm module for PXI chassis integration. - **Plug-and-Play Configuration:** Fully compliant with PXI specifications for automatic resource allocation.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **PXI Express Specification Rev. 1.0 Compliant** – Ensures full interoperability with PXIe chassis and controllers. - **Eight Simultaneous Analog Inputs** – Each channel sampled concurrently for phase‑coherent measurements. - **24‑Bit Sigma‑Delta ADCs** – High‑resolution conversion with superior dynamic range and low noise. - **Sampling Rate:** Up to 192 kS/s per channel. - **Input Range:** ±10 V or ±1 V, software‑selectable. - **AC/DC Coupling:** Software‑selectable with 0.5 Hz cutoff frequency for AC mode. - **Integrated IEPE Excitation:** 4 mA constant current per channel, 24 V compliance, for accelerometers and microphones. - **Auto‑Calibration:** Onboard reference (+5.000 V) with

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High‑Speed Sampling:** Up to 80 MS/s per channel with simultaneous acquisition across all four channels. - **High Resolution:** 16‑bit analog‑to‑digital conversion for superior dynamic range and precision. - **Wide Bandwidth:** 40 MHz analog input bandwidth supporting high‑frequency signal capture. - **Large Onboard Memory:** 1 GB shared memory for extended recording durations at full sampling rate. - **Programmable Input Ranges:** ±0.5 V, ±1 V, ±5 V, or ±10 V ranges, software‑selectable. - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software‑configurable for flexible signal interfacing. - **Digital Filtering:** FPGA‑based 10 MHz or 20 MHz digital low‑pass filter options. - **Scatter‑Gather DMA:** High‑speed, continuous data streaming with minimal CPU overhead. - **Triggering Flexibility:** Supports software, analog, external digital, and SSI (System Synchronization Interface) triggers. - **Auto‑Calibration:** Fully automated offset and gain calibration using onboard precision references. - **Synchronization Support:** PLL module (in PCIe‑9834P variant) for precise multi‑card synchronization. - **Software Ecosystem:** Compatible with ADLINK WD‑DASK, LabVIEW, MATLAB, and Visual Studio environments. - **Operating System Support:** Windows XP/7/8/10 (x86/x64) and Linux. - **Environmental Compliance:** RoHS and WEEE compliant; CE and FCC Class A certified.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

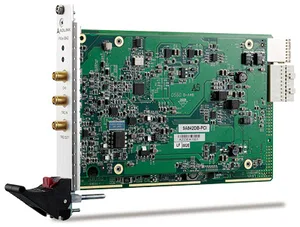

- **High Sampling Rate:** Up to 200 MS/s real‑time sampling for single‑channel analog input. - **High Resolution:** 14‑bit ADC providing 1 in 16,384 quantization levels for precise signal representation. - **Input Range & Impedance:** ±1 V input range, 50 Ω ± 2 % impedance, DC‑coupled input. - **Wide Bandwidth:** Analog input bandwidth of 100 MHz (‑3 dB). - **High‑Speed Interface:** PCI Express x4 or PXIe x4 bus interface supporting sustained data throughput up to 400 MB/s. - **Onboard Memory:** 16 K‑sample FIFO buffer for temporary data storage. - **Triggering:** Supports software and external digital triggers; post‑trigger, delay‑trigger, and re‑trigger modes. - **Auto‑Calibration:** Built‑in reference circuit with ±5 ppm/°C drift for automatic offset and gain calibration. - **Scatter‑Gather DMA:** High‑speed, continuous data streaming using bus‑mastering DMA with scatter‑gather capability. - **Auxiliary Digital I/O:** 8‑bit static DIO or 2‑bit synchronous digital input (SDI) for mixed‑signal acquisition. - **Software Support:** Compatible with Windows and Linux; drivers for LabVIEW, MATLAB, and ADLINK DAQPilot. - **Compact Design:** Standard short PCIe card dimensions (106.7 mm × 174.6 mm). - **Connectivity:** Three SMA connectors for analog input, external trigger input, and trigger output. - **Certifications:** CE, FCC Class A, and full EMC/EMI compliance.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **PXI Express Specification Rev. 1.0 Compliant:** Ensures full compatibility with PXIe chassis and controllers, supporting high-speed data transfer via PCI Express Gen 1 x4 interface. - **High Sampling Rate:** Up to 100 mega-samples per second (MS/s) per channel, enabling accurate capture of fast transient signals. - **High Resolution:** 14-bit analog-to-digital conversion (ADC) provides fine granularity and high dynamic range for precision measurements. - **Simultaneous 8-Channel Acquisition:** All eight analog input channels can sample concurrently, maintaining phase alignment and timing accuracy. - **Wide Analog Bandwidth:** Up to 100 MHz bandwidth (PXIe-9848), suitable for high-frequency signal analysis. - **Programmable Input Voltage Ranges:** ±0.2 V or ±2 V for PXIe-9848; extended ±100 V range for PXIe-9848H with integrated x15/x50 attenuator module. - **Selectable Input Impedance:** Software-selectable 50 Ω or 1 MΩ input impedance for flexible signal interfacing. - **Large Onboard Memory:** 512 MB acquisition memory (64 MB per channel) for extended data capture without host intervention. - **Scatter-Gather DMA Data Transfer:** High-speed, efficient data streaming to host memory for continuous acquisition. - **Comprehensive Triggering Options:** Supports software, external digital, analog, PXI_STAR, PXI trigger bus, and PXIe_DSTARB sources with multiple trigger modes (pre-, post-, middle, and delay). - **External Digital Trigger Input:** TTL-compatible (3.3 V/5 V), configurable threshold (0.8 V–3.3 V), and polarity selection. - **Auto-Calibration:** Built-in self-calibration ensures long-term measurement accuracy and stability. - **Software and OS Support:** Compatible with Windows and Linux; drivers and SDKs available for LabVIEW™, MATLAB®, C/C++, Visual Basic, and .NET environments. - **High Dynamic Performance:** SINAD up to 65 dB, SNR up to 66 dB, and SFDR up to 74 dB for PXIe-9848; optimized spectral characteristics for PXIe-9848H with attenuator. - **Scalable System Integration:** Multiple PXIe-9848 modules can be synchronized for up to 64 channels in a single 9-slot PXIe chassis.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **PXI Express Specification Rev. 1.0 Compliant:** Ensures full compatibility with PXI Express chassis and controllers. - **High Sampling Rate:** Up to 100 MS/s per channel with simultaneous sampling across all eight inputs. - **High Resolution:** 14‑bit ADC resolution (1 in 16,384) for precise signal digitization. - **Wide Bandwidth:** Up to 100 MHz analog input bandwidth (PXIe‑9848); 45 MHz / 35 MHz for PXIe‑9848H with ×15 / ×50 attenuation. - **High Voltage Input Capability:** Programmable input ranges of ±0.2 V, ±2 V, or ±100 V max (PXIe‑9848H). - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software‑configurable. - **Large Onboard Memory:** 512 MB total (64 MB per channel) for extended acquisition sessions. - **Scatter‑Gather DMA:** High‑speed data streaming to host memory with minimal CPU overhead. - **Flexible Triggering:** Supports software, external digital, analog, PXI_STAR, PXIe_DSTARB, and PXI Trigger Bus [0–7] sources. - **Auto‑Calibration:** Fully automated offset and gain calibration using onboard reference circuitry. - **Multi‑Module Synchronization:** Supports synchronization of up to 64 channels in a single 9‑slot PXIe chassis. - **Software Support:** Drivers and SDKs for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio .NET. - **Operating System Compatibility:** Windows 7/8 (x86/x64) and Linux. - **High Dynamic Performance:** SFDR up to 74 dB, SINAD up to 65 dB, ENOB up to 10.6 bits. - **Environmental Robustness:** Operational temperature 0 °C – 55 °C; storage –20 °C – 80 °C. - **Regulatory Compliance:** CE and FCC Class A certified.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **High‑Speed Sampling:** Up to 200 MS/s per channel simultaneous sampling. - **High Resolution:** 14‑bit analog‑to‑digital conversion with excellent linearity and dynamic range. - **Dual Analog Inputs:** Two single‑ended channels with software‑selectable coupling (AC/DC) and impedance (50 Ω or 1 MΩ). - **Programmable Input Ranges:** ±0.2 V, ±2 V, or ±10 V full‑scale ranges. - **Wide Bandwidth:** 90 MHz (‑3 dB) analog input bandwidth. - **Large Onboard Memory:** 1 GB shared acquisition memory for high‑speed buffering. - **High Data Throughput:** Continuous streaming up to 800 MB/s via PCIe Gen 2 ×4 interface. - **Scatter‑Gather DMA:** Efficient, CPU‑independent data transfer supporting large, non‑contiguous memory blocks. - **Advanced Triggering:** Software, external digital, analog, and SSI (System Synchronized Interface) triggers with multiple modes (pre‑, post‑, middle‑, and delayed‑trigger). - **External Clocking:** Accepts external reference or sampling clocks (40 MHz–200 MHz). - **Auto‑Calibration:** Fully automated onboard calibration with EEPROM‑stored constants. - **Signal Averaging:** Hardware‑based averaging for noise reduction without CPU overhead. - **Synchronization:** SSI bus for multi‑module synchronization (ACL‑eSSI‑2/3/4 cables). - **Software Support:** Compatible with LabVIEW®, MATLAB®, Visual Studio®, and ADLINK DAQPilot SDK. - **Operating Systems:** Windows XP/7/8 (x86/x64). - **Compliance:** PCI Express 2.0, CE, FCC Class A, RoHS, and WEEE.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe
