Comprehensive Product Summary: ADLINK PXIe‑9529 Dynamic Signal Acquisition Module

---

### 1. Product Overview

Product Name: PXIe‑9529
Model: PXIe‑9529
Series: PXI Express (PXIe) Dynamic Signal Acquisition Modules
Article Number: PXIe‑9529
Manufacturer: ADLINK Technology, Inc.
Part Number: 50‑17045‑1000
Manual Revision: 2.00 (October 31, 2013)

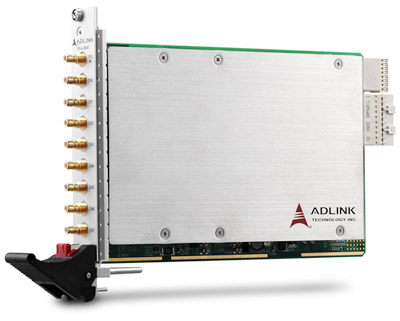

The ADLINK PXIe‑9529 is an 8‑channel, 24‑bit, high‑resolution dynamic signal acquisition module designed for PXI Express systems. It provides simultaneous sampling across all channels at rates up to 192 kS/s, optimized for vibration, acoustic, and structural monitoring applications. The module integrates sigma‑delta ADC technology, IEPE sensor support, and advanced synchronization features for multi‑module systems.

---

### 2. Key Features

- PXI Express Specification Rev. 1.0 Compliant – Ensures full interoperability with PXIe chassis and controllers.
- Eight Simultaneous Analog Inputs – Each channel sampled concurrently for phase‑coherent measurements.
- 24‑Bit Sigma‑Delta ADCs – High‑resolution conversion with superior dynamic range and low noise.
- Sampling Rate: Up to 192 kS/s per channel.
- Input Range: ±10 V or ±1 V, software‑selectable.
- AC/DC Coupling: Software‑selectable with 0.5 Hz cutoff frequency for AC mode.
- Integrated IEPE Excitation: 4 mA constant current per channel, 24 V compliance, for accelerometers and microphones.
- Auto‑Calibration: Onboard reference (+5.000 V) with <5 ppm/°C drift; calibration constants stored in EEPROM.
- Triggering: Supports software, analog, and external digital triggers, plus PXI trigger bus and PXI_STAR synchronization.
- Onboard Memory: 512 MB DDR2 shared buffer for high‑speed data streaming.
- Bus Interface: PCI Express Gen 1 x4 with scatter‑gather DMA for efficient data transfer.
- Software Compatibility: LabVIEW®, MATLAB®, Visual Studio®, and ADLINK’s DSA‑DASK and DAQPilot SDKs.
- Operating Systems: Windows XP/7/8 (x86/x64).
- Applications: NVH (Noise, Vibration, Harshness) analysis, structural health monitoring, machine condition monitoring, and phased array data acquisition.

---

### 3. Technical Specifications

Analog Input
- Channels: 8 simultaneous, differential or pseudo‑differential.
- ADC Type: 24‑bit delta‑sigma.
- Sampling Rate: 8 kS/s to 192 kS/s (programmable in fine increments).
- Input Range: ±10 V or ±1 V.
- Input Impedance:
- Differential: 1 MΩ to system ground.
- Pseudo‑differential: 1 MΩ (positive terminal), 50 Ω (negative terminal to ground).
- Coupling: AC or DC, software‑selectable.
- AC Cutoff Frequency: 0.5 Hz (–3 dB).
- IEPE Excitation: 4 mA/channel, 24 V compliance.
- Overvoltage Protection:
- Differential: ±42.4 V.
- Pseudo‑differential: +42.4 V (positive), ±2.5 V (negative terminal unprotected).
- Offset Error: ±1–2 mV max.
- Gain Error: ±0.1–0.5% of full‑scale range.
- Crosstalk: < –100 dB.
- THD: < –104 dB.
- SNR: Up to 104 dB (at 54 kS/s).
- SFDR: –106 dB.
- Bandwidth:
- <108 kS/s: 0.4863 × fs (–3 dB).
- >108 kS/s: ≈0.2 × fs (–3 dB).

Timebase & Clocking
- Internal Clock: 80 MHz onboard oscillator.
- External Clock Sources: PXI_CLK10, PXIe_CLK100.
- Timebase Accuracy: ±25 ppm.
- Warm‑Up Time: 15 minutes recommended.

Memory & Data Transfer
- Onboard Memory: 512 MB DDR2 shared buffer.
- FIFO Buffer: 1,024 samples per channel.
- Data Transfer: Scatter‑gather DMA, PCIe bus mastering.

Physical & Environmental
- Dimensions: 160 mm (W) × 100 mm (H) (6.24" × 3.9").
- Weight: Approx. 0.5 kg (typical).
- Operating Temperature: 0°C to 55°C.
- Storage Temperature: –20°C to 80°C.
- Relative Humidity: 10%–90%, non‑condensing.
- Power Consumption:
- +3.3 V: 102 mA
- +5 V: 1920–2010 mA
- +12 V: 20 mA

Connectors
- Analog Inputs: 8 × SMB connectors.
- External Digital Trigger: 1 × SMB connector.

---

### 4. Functionality

The PXIe‑9529 performs high‑precision analog signal acquisition using 24‑bit sigma‑delta ADCs. Each channel samples simultaneously, ensuring accurate phase relationships across multiple inputs—critical for vibration and acoustic analysis.

Operating Principle:
1. Analog signals enter through SMB connectors.
2. Input coupling (AC/DC) and range are configured via software.
3. Signals pass through programmable gain amplifiers (PGAs) and low‑pass filters.
4. Sigma‑delta ADCs oversample and digitally filter the signals, producing 24‑bit data streams.
5. Data is buffered in onboard memory and transferred to the host via PCIe DMA.

Use Cases:
- Structural health monitoring (bridges, aircraft, machinery).
- NVH testing in automotive and aerospace industries.
- Acoustic and audio analysis.
- Phased array and multi‑sensor data acquisition.
- Machine condition and predictive maintenance systems.

Compatibility:
- PXI Express chassis and controllers.
- Software environments: LabVIEW, MATLAB, Visual Studio, and ADLINK DAQPilot/DSA‑DASK APIs.

---

### 5. Components & Accessories

Included Items:
- PXIe‑9529 module.
- ADLINK All‑in‑One software CD (drivers, SDKs, utilities).
- Quick Start Guide.

Optional Accessories:
- SMB‑to‑BNC or SMB‑to‑SMA adapter cables.
- PXIe chassis and controller (sold separately).
- IEPE‑compatible accelerometers and microphones.

Connectors:
- 8 × SMB for analog inputs.
- 1 × SMB for external digital trigger input.
- PXI backplane connectors for trigger bus, PXI_STAR, and PXIe_DSTARB synchronization.

---

### 6. Installation & Setup

Requirements:
- PXI Express chassis with available x4 slot.
- Compatible host controller (Windows XP/7/8).
- Anti‑static handling precautions.

Installation Steps:
1. Power off the PXI chassis and disconnect power.
2. Insert the PXIe‑9529 into the designated PXIe slot, aligning with the guide rails.
3. Push the module until the ejector latch clicks.
4. Secure the front‑panel screw.
5. Reconnect power and boot the system.
6. Install ADLINK drivers and verify recognition in the system software.

Configuration:
- Use ADLINK DSA Utility or DAQPilot SDK to configure sampling rate, input range, coupling, and trigger modes.
- Calibration constants load automatically from EEPROM at startup.

---

### 7. Performance & Capabilities

Sampling Performance:
- Maximum Rate: 192 kS/s per channel.
- Minimum Rate: 8 kS/s.
- Incremental Steps: 192 µS/s to 768 µS/s depending on range.
- Dynamic Range: Up to 110 dB.

Data Throughput:
- Continuous streaming via PCIe Gen 1 x4 interface.
- DMA throughput up to several MB/s per channel.

Triggering & Synchronization:
- Trigger Sources: Software, analog, external digital (TTL), PXI trigger bus, PXI_STAR, PXIe_DSTARB.
- Trigger Modes: Post‑trigger, delay‑trigger, and re‑trigger.
- External Digital Trigger: 3.3 V TTL (5 V tolerant), 20 ns minimum pulse width, rising/falling edge selectable.
- Analog Trigger: Configurable threshold with 24‑bit resolution, ±10 V or ±1 V range.
- Synchronization: System Synchronization Interface (SSI) via PXI Trigger Bus [0..7].

Timing & Clocking:
- Internal PLL synthesizer generates ADC clocks from 6.144 MHz to 36.864 MHz depending on sample rate.
- External PXI_CLK10 and PXIe_CLK100 inputs enable multi‑module synchronization.

Limitations:
- Negative terminal in pseudo‑differential mode unprotected beyond ±2.5 V.
- AC coupling introduces 0.5 Hz high‑pass filtering.
- Requires 15‑minute warm‑up for optimal calibration accuracy.

---

### 8. Standards & Compliance

- PXI Express Specification: Revision 1.0 compliant.
- EMC/EMI: CE and FCC Class A certified.
- Environmental Compliance:
- RoHS (Restriction of Hazardous Substances).
- WEEE (Waste Electrical and Electronic Equipment) directives.
- Safety: Designed for operation in non‑condensing environments, 0–55°C.
- Calibration Standards: Factory‑calibrated with traceable reference; auto‑calibration supported.

---

### 9. Additional Information

Calibration & Maintenance:
- Factory calibration constants stored in EEPROM (Bank 0).
- User auto‑calibration constants stored in Bank 1.
- Auto‑calibration compensates for temperature and time drift using onboard reference.
- Recommended warm‑up: 20 minutes before calibration.

Warranty & Support:
- Standard ADLINK warranty (contact regional office for details).
- Technical support via global ADLINK service centers.
- Software updates and drivers available from [www.adlinktech.com](https://www.adlinktech.com).

Service Contacts:
- Headquarters: ADLINK Technology, Inc., New Taipei City, Taiwan.
- Regional Offices: USA (San Jose, CA), China (Shanghai, Beijing, Shenzhen), Germany, France, Japan, Korea, Singapore, India, Israel.
- Email Support: service@adlinktech.com

Maintenance Recommendations:
- Handle only in ESD‑safe environments.
- Avoid exposure to moisture, vibration, or extreme temperatures.
- Periodic recalibration recommended annually or after significant environmental changes.

---

### Summary

The ADLINK PXIe‑9529 is a precision 8‑channel, 24‑bit dynamic signal acquisition module engineered for high‑fidelity measurement of vibration, acoustic, and structural signals. Its sigma‑delta ADC architecture, simultaneous sampling, and integrated IEPE excitation make it ideal for advanced test and measurement systems. With robust PXI Express compliance, flexible triggering, and synchronization capabilities, it supports scalable, multi‑module configurations for complex data acquisition tasks.

The module’s combination of high resolution, low noise, and versatile software integration ensures reliable performance in demanding industrial, automotive, and research environments.
