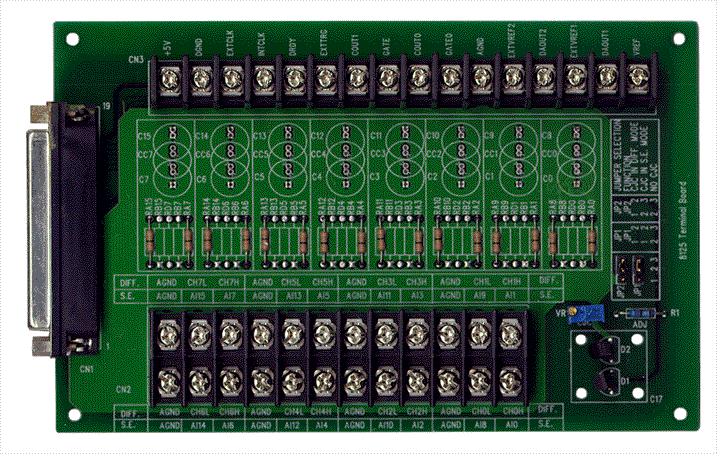

- **Integrated Cold Junction Compensation (CJC):** Built-in temperature sensor circuit for thermocouple measurement accuracy. The CJC circuit compensates for ambient temperature variations at the connection point, ensuring precise thermal readings. - **Signal Conditioning for Each Channel:** Each analog input channel includes onboard signal conditioning circuitry, allowing for stable and noise-free signal transmission to the data acquisition card. - **Dual Wiring Configurations:** Supports both **single-ended** and **differential** input wiring modes, providing flexibility for various measurement setups. - **High-Quality Connectivity:** Equipped with a **37-pin D-sub female connector** for direct interface with ADLINK DAQ cards and **screw terminals** for secure field wiring. - **Compatibility:** Designed for use with multiple ADLINK analog input and multifunction DAQ cards, including: - PCI-9112 - PCI-9111 Series - ACL-8312/8316 - ACL-8112 Series - ACL-8216 - ACL-8126 - **Compact and Durable Design:** PCB dimensions of 168 mm × 114 mm, suitable for tabletop or panel mounting using included nylon standoffs. - **Included Accessories:** Supplied with an **ACL-10137-1 cable** for direct connection to compatible DAQ cards. - **Ease of Installation:** Plug-and-play connection via DB-37 interface and screw terminals simplifies setup and maintenance.

Manufacturer: Adlink Technology Inc.

Category: Analog Panels

- **Eight Isolated Differential Input Channels:** Each channel is independently isolated, preventing ground loops and cross‑channel interference. - **Wide Input Range:** ±10 V nominal input range suitable for general‑purpose analog measurement. - **Selectable Gain Settings:** Jumper‑selectable gain factors of ×1, ×25, or ×200 allow flexible scaling of input signals for low‑level or high‑level voltage sources. - **High Isolation Voltage:** 500 V DC isolation between input and output, and between channels, ensuring safe operation in noisy or high‑potential environments. - **Integrated Cold Junction Compensation (CJC):** One built‑in CJC circuit supports thermocouple measurement applications. - **Cascadable Design:** Two ATII‑8A boards can be cascaded to expand the number of isolated channels to 16. - **High Bandwidth:** 60 kHz (–3 dB) analog bandwidth supports dynamic signal measurement and fast‑changing analog inputs. - **Standardized Connectors:** Equipped with two D‑sub female connectors for easy connection to CONTEC analog input boards and external wiring. - **Compact Form Factor:** 230 mm × 105 mm panel size suitable for installation in measurement racks or control panels. - **Compatibility:** Designed for CONTEC E‑series analog input boards such as AD12‑16E, AD12‑16U(PCI), and AD12‑16U(ISA). - **Industrial‑Grade Isolation Amplifiers:** Utilizes precision isolation amplifiers to maintain signal integrity across isolated domains. - **Noise Immunity:** Ideal for environments with high electrical noise, preventing interference between measurement channels and the host PC.

Manufacturer: Contec

Category: Analog Panels

- **Eight Independent Analog Input Channels:** Each channel supports differential input configuration for precise signal measurement and conditioning. - **Wide Input Range:** ±10 V input range, compatible with standard industrial analog signal levels. - **Selectable Gain:** Jumper-selectable gain settings from 1× up to 500×, allowing flexible amplification of low-level sensor signals. - **Integrated Low-Pass Filtering:** Fourth-order Butterworth low-pass filters per channel, selectable between 20 Hz and 10 kHz cutoff frequencies, providing effective noise suppression and anti-aliasing. - **High Bandwidth:** 0–100 kHz (-3 dB) bandwidth ensures accurate reproduction of dynamic analog signals. - **Cold Junction Compensation (CJC):** One built-in semiconductor temperature sensor for thermocouple reference compensation. - **Cascadable Design:** Two ATLF-8 boards can be cascaded to expand the number of conditioned channels to 16. - **Standard Connectors:** Equipped with two D-sub female connectors for easy interfacing with CONTEC analog input boards and terminal units. - **Compact Form Factor:** 230 mm × 105 mm board size, suitable for panel or DIN-rail mounting (with optional adapter). - **Compatibility:** Fully compatible with CONTEC’s AD12-16E, AD12-16U(PCI), and AD12-16U(ISA) analog input boards. - **Industrial Reliability:** Designed for stable operation in industrial environments with high electrical noise immunity.

Manufacturer: Contec

Category: Analog Panels

- **Sixteen BNC Channels:** Provides 16 single‑ended analog input or output channels for direct coaxial connection of sensors, transducers, or signal sources. - **D‑sub 37‑Pin Female Interface:** Rear connector mates directly with CONTEC analog I/O boards such as AD12‑16(PCI)E, AD16‑16(PCI)E, ADI12‑16(PCI), ADI16‑4C(PCI), and other E‑series models. - **Compact Panel Design:** 190 × 105 mm aluminum panel suitable for desktop, rack, or DIN‑rail mounting (with optional DIN‑ADP1 adapter). - **High‑Integrity Signal Path:** BNC connectors maintain coaxial shielding continuity, minimizing noise pickup and crosstalk in high‑precision analog measurement environments. - **Industrial‑Grade Construction:** Rugged metal panel and gold‑plated contacts ensure long‑term reliability in laboratory and factory automation systems. - **Plug‑and‑Play Compatibility:** Designed for use with CONTEC’s standard shielded cables (e.g., PCB37PS‑0.5P/1.5P or PCA37PS‑0.5P/1.5P) for immediate connection to host boards. - **Ease of Maintenance:** Clearly labeled channel numbering and ground reference points simplify wiring, troubleshooting, and calibration. - **Part of Modular System:** Integrates seamlessly with CONTEC’s ecosystem of analog I/O boards, signal‑conditioning modules (ATII‑8A, ATLF‑8, ATSS‑16), and terminal units (EPD‑37, FTP‑15).

Manufacturer: Contec

Category: Analog Panels

- **16‑Channel BNC Interface:** Provides sixteen BNC connectors for single‑ended analog signal input or output, enabling quick connection of coaxial‑terminated sensors, signal generators, or measurement instruments. - **D‑sub 37‑Pin Female Connector:** Rear‑mounted 37‑pin D‑sub (female) connector ensures compatibility with CONTEC’s E‑series analog I/O boards such as AD12‑16(PCI)E, AD16‑16(PCI)E, AD12‑16U(PCI)EH, and AD16‑16U(PCI)EH. - **Compact Panel Design:** Dimensions of 190 mm × 105 mm provide a compact footprint suitable for desktop or rack‑mount laboratory setups. - **High‑Quality Shielded BNC Jacks:** Each channel uses a standard BNC coaxial connector to maintain signal integrity and minimize noise pickup in analog measurement environments. - **Single‑Ended Configuration:** Designed for single‑ended analog signal wiring, simplifying connection to instruments with grounded signal references. - **Industrial‑Grade Construction:** Rugged metal panel construction ensures durability and stable grounding for precision analog measurements. - **Plug‑and‑Play Compatibility:** Fully compatible with CONTEC’s analog I/O ecosystem, including E‑series PCI boards, cables (PCB37PS, PCA37PS), and terminal accessories (EPD‑37, DTP‑3(PC), DTP‑4(PC)). - **DIN‑Rail Mounting Option:** Can be mounted using the optional DIN‑ADP1 adapter for integration into control panels or industrial enclosures. - **Optimized for E‑Series Boards:** Matches the pin assignment and electrical characteristics of E‑series analog boards, ensuring reliable signal routing without custom wiring.

Manufacturer: Contec

Category: Analog Panels

- **High-Density 32-Channel BNC Interface:** Provides 32 BNC connectors for analog signal input/output, enabling direct connection of coaxial cables from sensors, transducers, or other measurement devices. - **Optimized for CONTEC F Series Boards:** Specifically designed for ADA16-32/2(PCI)F and ADA16-32/2(CB)F analog I/O boards, ensuring full pin compatibility and signal integrity. - **Simplified External Wiring:** The terminal box eliminates the need for complex wiring harnesses by offering direct BNC connectivity, reducing setup time and minimizing wiring errors. - **Shielded Signal Path:** Each BNC connector provides a shielded coaxial interface, minimizing noise pickup and ensuring stable analog signal transmission in electrically noisy industrial environments. - **Rugged Industrial Design:** Built for durability and long-term reliability in measurement and control applications, with robust mechanical construction and high-quality connectors. - **Ease of Integration:** Compatible with CONTEC’s shielded cables (e.g., PCB96PS, ADC-68M/96F) for seamless connection to PCI or CardBus analog I/O boards. - **Supports High-Speed Sampling:** Designed to handle the full analog bandwidth and sampling rates of the ADA16-32/2 series boards (up to 2 µsec/channel A/D conversion speed). - **Compact and Organized Layout:** The 32 BNC connectors are arranged for easy access and labeling, facilitating quick channel identification and maintenance.

Manufacturer: Contec

Category: Analog Panels

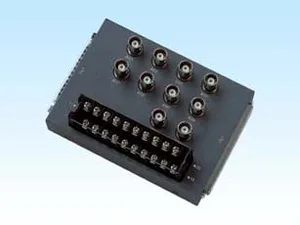

- **8‑Channel Analog Input (BNC):** Eight BNC connectors (AI00–AI07) for analog input signals, compatible with ±10 V analog ranges from CONTEC multifunction boards. - **2‑Channel Analog Output (BNC):** Two BNC connectors (AO00–AO01) for analog output signals, supporting ±10 V or 0–10 V ranges. - **Digital I/O Connectivity:** Four digital input and four digital output channels (DI00–DI03, DO00–DO03) via M3 screw terminals for TTL‑level or LVTTL‑level logic signals. - **Counter Signal Interface:** One counter channel (CNTUP, CNTCLK, CNTOUT) accessible through screw terminals for event counting or frequency measurement. - **High‑Density 96‑Pin Interface:** Equipped with a 96‑pin half‑pitch connector (PCR‑E96LMD) for direct connection to PCI or CardBus multifunction boards (ADA16‑32/2 series). - **37‑Pin D‑SUB Interface:** Secondary interface (CN2) for PCMCIA‑type multifunction cards (AD12‑8(PM)). - **Compact and Portable Design:** Small footprint (approx. 127 × 40.1 × 88 mm) allows convenient desktop use beside notebook or desktop PCs. - **Ease of Connection:** BNC connectors for analog signals and screw terminals for digital lines simplify wiring and reduce noise coupling. - **Signal Labeling:** Includes adhesive signal‑name label sheet for quick identification of channels and terminals. - **Environmental Robustness:** Designed for 0 – 50 °C operation and 10 – 90 % RH (non‑condensing) environments. - **Compatibility:** Fully compatible with CONTEC’s ADA16‑32/2(PCI)F, ADA16‑32/2(CB)F, and AD12‑8(PM) analog I/O products.

Manufacturer: Contec

Category: Analog Panels

- **16 Differential Analog Input Channels:** Supports 16 fully differential inputs for high-accuracy signal acquisition. - **Wide Input Range:** Accepts analog input signals from ±10 mV up to ±10 V, accommodating both low-level sensor outputs and standard voltage signals. - **Selectable Gain Settings:** Configurable gain factors of 1, 10, 100, 200, and 500 for flexible signal scaling and amplification. - **High-Speed Multiplexing:** Multiplexer settling time to 0.1% within 3.5 µs, ensuring rapid channel switching and stable signal acquisition. - **Expandable Channel Capacity:** When used with compatible A/D converter boards (ADC30 or AD12-8LT), the system can support up to 128 total input channels. - **Compact Form Factor:** 250 × 100 mm panel size suitable for rack or panel mounting in measurement systems. - **Industrial-Grade Design:** Engineered for precision measurement environments, ensuring low noise, high linearity, and stable operation. - **Seamless Integration:** Designed for direct connection to CONTEC analog input boards via shielded cables and terminal blocks. - **Software Configurable:** Compatible with CONTEC’s API-TOOLs and driver libraries for Windows and Linux, enabling easy configuration and control.

Manufacturer: Contec

Category: Analog Panels

- **Simultaneous Sampling Capability:** The ATSS-16 allows all 16 single-ended input channels to be sampled at the same instant, eliminating phase skew between channels. This is critical for time-correlated measurements such as vibration analysis, transient capture, and multi-sensor synchronization. - **High-Speed Performance:** - Acquisition Time: 1.5 µs - Settling Time: 350 ns - Aperture Time: 25 ns - Aperture Jitter: 0.3 ns These parameters ensure precise timing and minimal distortion during high-speed sampling operations. - **Wide Input Range and High Impedance:** Supports ±10 V analog input range with 3 MΩ input impedance, ensuring compatibility with a wide variety of signal sources while minimizing loading effects. - **Optimized for CONTEC E Series Boards:** Designed specifically for use with AD12-16, AD12-16U, AD16-16, and AD16-16U analog input boards, both PCI and ISA versions. The ATSS-16 integrates seamlessly with these boards’ analog input channels. - **Compact and Modular Design:** The 230 × 105 mm form factor allows easy installation within measurement systems or control panels. It can be DIN-rail mounted using the optional DIN-ADP1 adapter. - **Industrial-Grade Reliability:** Built for industrial measurement and control environments, the ATSS-16 provides stable operation under demanding electrical and environmental conditions. - **Low Crosstalk and High Accuracy:** The simultaneous sample-and-hold circuitry ensures minimal channel-to-channel interference, maintaining signal integrity across all 16 channels.

Manufacturer: Contec

Category: Analog Panels

- **16 Independent Amplifier Channels:** Each channel provides isolated amplification for differential input signals, ensuring accurate and low-noise signal conditioning. - **Selectable Gain Settings:** Switch-selectable gain options of ×1, ×10, ×50, ×100, ×200, and ×1000 allow precise adjustment of signal levels to match sensor outputs or measurement system input ranges. - **Integrated Multiplexer Functionality:** Built-in multiplexing enables sequential channel selection and routing of multiple input signals to a single output path, optimizing data acquisition efficiency. - **Expandable Architecture:** The system can be expanded from 16 channels up to 128 channels by cascading multiple AX752 units, providing scalability for large measurement systems. - **Thermocouple Cold Junction Compensation (CJC):** Integrated CJC circuitry ensures accurate temperature measurement when using thermocouple sensors, compensating for ambient temperature variations at the connection point. - **Low-Pass Filtering:** Each channel includes an 8 Hz (-3 dB) low-pass filter to suppress high-frequency noise and interference, improving signal integrity for low-frequency measurements. - **High Input Voltage Capability:** Supports input signals up to a maximum of 70 V, accommodating a wide range of sensor and transducer outputs. - **Compact and Lightweight Design:** Measuring 220 × 132 × 15 mm, the AX752 offers a slim profile suitable for rack, panel, or benchtop installations. - **Standardized Connectivity:** Equipped with dual 50-pin connectors for input/output interfacing, ensuring compatibility with standard data acquisition systems and cabling. - **Included Accessories:** Supplied with a 1-meter connection cable for immediate integration into existing setups.

Manufacturer: Axiom

Category: Analog Panels

- **16-Channel Relay-Isolated Multiplexer/Amplifier:** Provides 16 independent input channels, each isolated through high-quality relays to prevent signal interference and ensure accurate measurements. - **Selectable Amplifier Gain:** Each channel includes a switch-selectable amplifier with gain settings of **1, 100, 200, 500, and 1000**, allowing precise signal scaling for a wide range of input signal levels. - **Break-Before-Make Relay Switching:** Ensures that during channel switching, the previous connection is fully opened before the next is made, preventing short circuits, signal overlap, or transient interference. - **High Isolation Voltage:** Provides **maximum/minimum 2 kV AC isolation** between channels and system ground, ensuring safety and signal integrity in high-voltage or noisy environments. - **Expandable Architecture:** Supports expansion up to **4096 input channels**, enabling large-scale data acquisition or monitoring systems through modular integration. - **Thermocouple Cold Junction Compensation (CJC):** Integrated cold junction compensation allows accurate thermocouple measurements by automatically correcting for temperature variations at the connection point. - **Compact Form Factor:** Designed with a space-efficient panel size of **245 × 185 × 30 mm**, suitable for rack or panel mounting in instrumentation cabinets. - **Connectivity:** Equipped with **two 50-pin flat cable connectors** for easy integration with data acquisition systems, controllers, or signal processing modules. - **Included Accessories:** Supplied with a **1-meter flat cable**, ensuring immediate connectivity and simplified setup. - **Industrial-Grade Design:** Built for durability, precision, and long-term reliability in demanding industrial and laboratory environments.

Manufacturer: Axiom

Category: Analog Panels

- **16 Independent Relay Channels:** Each panel supports 16 discrete relay-controlled channels, enabling flexible signal routing and multiplexing. - **Cascadable Architecture:** Up to 16 panels can be interconnected, providing a total of 256 input channels for large-scale systems. - **High-Speed Reed Relays:** Equipped with 17 reed relays featuring

Manufacturer: Axiom

Category: Analog Panels
