- **100-pin SCSI-II Interface:** Supports standard 100-pin SCSI-II connectors, ensuring compatibility with a wide range of SCSI-based data acquisition and control modules. - **DIN Rail Mounting:** Integrated DIN rail mounting capability allows for quick and secure installation in industrial enclosures and control panels. - **High Signal Integrity:** Provides proper termination for SCSI-II buses, minimizing signal reflections, noise, and data transmission errors. - **Compact Form Factor:** Space-efficient design (157 × 112 × 51 mm) suitable for dense control cabinet layouts. - **Industrial-Grade Construction:** Built with robust materials to withstand vibration, temperature variations, and continuous operation in industrial environments. - **Plug-and-Play Compatibility:** Designed for direct connection to SCSI-II devices without the need for additional adapters or converters. - **No ACL-102100 Cable Included:** The board is supplied without the ACL-102100 male-to-male cable, allowing users to select or reuse existing cabling as needed. - **Reliable Termination Network:** Ensures stable impedance matching across the SCSI-II bus, improving communication reliability and reducing data loss. - **Manufacturer Quality Assurance:** Produced by ADLINK, a recognized manufacturer of industrial computing and data acquisition hardware.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **100-pin SCSI-II Interface:** Supports standard 100-pin SCSI-II connections, ensuring compatibility with a wide range of industrial and instrumentation devices. - **DIN Rail Mounting:** Designed for direct installation on standard DIN rails, simplifying integration into control cabinets and industrial enclosures. - **High Signal Integrity:** Provides proper termination for SCSI-II buses, reducing signal reflections and maintaining data transmission quality. - **Compact Form Factor:** Space-efficient design (157 × 112 × 51 mm) suitable for dense control panel layouts. - **Robust Construction:** Built with industrial-grade materials for durability and long-term reliability in harsh environments. - **Cable Compatibility:** Designed for use with ADLINK ACL-102100-x male-to-male SCSI-II cables (not included). - **Passive Termination Design:** Ensures stable impedance matching without requiring external power. - **Ease of Maintenance:** Modular design allows quick replacement or reconfiguration without extensive rewiring. - **Universal Application:** Suitable for data acquisition systems, motion control, test and measurement setups, and other SCSI-based industrial automation systems.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **20-Pin Header Interface:** Provides a standardized 20-pin header connection for signal input/output, ensuring compatibility with a wide range of ADLINK and third-party I/O modules. - **DIN Rail Mounting:** Designed for direct installation on standard DIN rails, simplifying integration into control cabinets and industrial enclosures. - **Compact Form Factor:** With dimensions of **67 × 77 × 51 mm**, the board offers a small footprint suitable for dense system configurations. - **High-Quality Construction:** Built with industrial-grade materials to ensure durability, electrical reliability, and long-term performance in demanding environments. - **Cable Compatibility:** Designed for use with the **ACL-10120-1** cable (not included), enabling straightforward connection between the termination board and compatible data acquisition or control hardware. - **Simplified Wiring:** Provides clear labeling and organized terminal layout to minimize wiring errors and reduce installation time. - **Versatile Application:** Suitable for signal termination in data acquisition systems, PLCs, motion controllers, and other industrial automation devices. - **Maintenance-Friendly Design:** Modular structure allows easy replacement or reconfiguration without disturbing adjacent components.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **37-pin D-type Interface:** Standard female D-sub connector supporting 37 signal lines for analog, digital, or mixed-signal I/O applications. - **DIN Rail Mounting:** Integrated DIN rail clip for quick installation on standard 35 mm DIN rails, ensuring secure and organized panel integration. - **Compact Design:** Space-efficient form factor (112 × 77 × 52 mm) suitable for dense control cabinets and instrumentation racks. - **Screw Terminal Connectivity:** Each pin of the D-sub connector is mapped to a corresponding screw terminal, simplifying field wiring and signal distribution. - **Cable-Free Configuration:** Delivered without cable, providing flexibility for users to select appropriate cable lengths, shielding, and connector types. - **Industrial-Grade Construction:** Durable materials and robust mechanical design ensure long-term reliability in industrial environments. - **Universal Compatibility:** Compatible with ADLINK DAQ cards, motion controllers, and other devices using a 37-pin D-sub interface. - **Ease of Maintenance:** Clearly labeled terminals and accessible layout facilitate troubleshooting and reconfiguration. - **Signal Integrity:** Short internal traces and high-quality connectors minimize signal degradation and crosstalk. - **Versatile Application Range:** Suitable for laboratory testing, automation control panels, signal conditioning, and prototyping setups.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **37-pin D-type Interface:** Standard D-sub 37-pin female connector for compatibility with a wide range of DAQ and control devices. - **DIN Rail Mountable:** Integrated DIN rail mounting bracket for quick installation in control cabinets or industrial enclosures. - **2-Meter Cable Assembly:** Pre-assembled 2m shielded cable for flexible connection between the termination board and host device. - **Compact Form Factor:** Dimensions of 112 mm (L) × 77 mm (W) × 52 mm (H) allow efficient use of panel space. - **High Signal Integrity:** Designed to minimize noise and crosstalk in analog and digital signal transmission. - **Rugged Construction:** Industrial-grade materials ensure durability and long-term reliability in harsh environments. - **Ease of Wiring:** Clearly labeled terminal blocks simplify signal identification and reduce wiring errors. - **Compatibility:** Designed to interface with ADLINK ACL-10137-2 and other 37-pin D-sub compatible I/O cards. - **No External Power Required:** Passive termination board design eliminates the need for additional power supplies. - **Maintenance-Friendly:** Modular design allows easy replacement or reconfiguration without rewiring the entire system.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **Dual 50-pin SCSI-II Interface:** Equipped with two standard 50-pin SCSI-II connectors, allowing easy connection between host controllers and peripheral devices. - **DIN Rail Mounting:** Designed for direct installation on standard 35 mm DIN rails, enabling quick and secure mounting in industrial enclosures. - **Integrated Termination:** Provides proper SCSI-II bus termination to maintain signal integrity and prevent reflection or data errors in multi-device configurations. - **High-Quality Construction:** Built with industrial-grade materials and precision PCB layout to ensure durability, electrical stability, and long-term reliability. - **Included Cable (ACL-10252):** Bundled with an Adlink ACL-10252 cable for immediate connectivity, reducing setup time and ensuring compatibility with Adlink DAQ cards and controllers. - **Compact Form Factor:** Space-efficient design suitable for dense control panels or instrumentation racks. - **Plug-and-Play Compatibility:** Fully compatible with standard SCSI-II interfaces and Adlink’s range of data acquisition and control products. - **Noise and Crosstalk Reduction:** Optimized trace routing and termination resistors minimize signal degradation in high-speed data environments. - **Industrial Reliability:** Designed for continuous operation in demanding industrial conditions, with robust mechanical and electrical characteristics.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **50-Pin Header Interface:** Standard 50-pin male header connector compatible with flat ribbon cables and I/O modules using 50-pin connectors. - **DIN Rail Mountable:** Designed for direct installation on standard DIN rails, enabling quick integration into control cabinets and industrial enclosures. - **Compact Form Factor:** Space-efficient design with dimensions of **145 mm (L) × 77 mm (W) × 52 mm (H)**, suitable for dense control panel layouts. - **Passive Termination Board:** Provides direct signal termination without active components, ensuring signal integrity and minimal interference. - **High-Quality Construction:** Built with durable materials for industrial reliability and long service life. - **Ease of Wiring:** Clearly labeled terminal points for straightforward signal identification and wiring. - **Compatibility:** Designed to interface with ADLINK data acquisition (DAQ) cards and other I/O modules using 50-pin connectors. - **Cable Interface:** Compatible with **ACL-10150-1.5** cable (not included), allowing flexible connection between the termination board and host devices. - **Industrial Application Ready:** Suitable for automation, process control, and laboratory instrumentation setups.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **SCSI-II 50-pin Interface:** Equipped with a standard 50-pin SCSI-II female connector, ensuring compatibility with a wide range of SCSI-II devices and cables. - **DIN Rail Mounting:** Designed for direct installation on DIN rails, simplifying integration into industrial control panels and rack systems. - **No Cable Configuration:** The termination board is supplied without a cable, allowing users to select or fabricate custom-length cables suited to their specific installation requirements. - **Compact Industrial Design:** With dimensions of 124 × 77 × 50 mm, the board offers a space-efficient solution for dense control environments. - **Reliable Signal Termination:** Provides proper electrical termination for SCSI-II buses, minimizing signal reflections and maintaining data integrity across the communication line. - **High-Quality Construction:** Built with durable materials and precision connectors to ensure long-term reliability in demanding industrial conditions. - **Ease of Integration:** The standardized form factor and connector layout facilitate quick installation and maintenance. - **Versatile Application Range:** Suitable for use in data acquisition systems, test and measurement setups, industrial automation networks, and embedded computing platforms requiring SCSI-II connectivity.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **68‑Pin SCSI‑VHDCI Interface:** Supports standard 68‑pin VHDCI (Very High Density Cable Interconnect) connectors, ensuring compatibility with ADLINK PCIe‑7350 and other 68‑pin digital I/O cards. - **Selectable Impedance:** User‑configurable termination impedance of **0 Ω or 50 Ω**, allowing optimization for different signal transmission environments and cable lengths. - **DIN‑Rail Mounting:** Designed for direct installation on standard DIN rails, simplifying integration into industrial control panels and test setups. - **High‑Signal Integrity:** Provides controlled impedance termination to minimize signal reflections and noise, ensuring reliable high‑speed digital communication. - **Compact and Durable Design:** Industrial‑grade construction suitable for continuous operation in demanding environments. - **Cable‑Free Configuration:** Delivered **without cable**, allowing users to select appropriate VHDCI cables based on system layout and distance requirements. - **Optimized for PCIe‑7350:** Specifically designed to complement the ADLINK PCIe‑7350 high‑speed digital I/O card, ensuring full electrical compatibility and performance consistency. - **Ease of Maintenance:** Modular design allows quick replacement or reconfiguration without extensive rewiring.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **68-pin SCSI-II Interface:** Fully compliant with the SCSI-II (Small Computer System Interface) standard, supporting 68-pin high-density connectors for wide SCSI bus configurations. - **DIN Rail Mounting:** Integrated DIN rail mounting bracket for quick and secure installation in industrial control panels or enclosures. - **Passive Termination Design:** Provides proper impedance matching and signal termination for SCSI-II buses, reducing signal reflections and ensuring reliable data transfer. - **Compact Form Factor:** Space-efficient design with dimensions of 124 mm (L) × 77 mm (W) × 50 mm (H), suitable for dense control cabinet layouts. - **High-Quality Construction:** Built with industrial-grade materials for durability, vibration resistance, and long-term reliability in harsh environments. - **Cable-Free Configuration:** Designed for direct connection without the need for additional cables (compatible with ACL-1056x-x cable assemblies if required). - **Compatibility:** Works with ADLINK data acquisition cards, SCSI-II interface modules, and other standard 68-pin SCSI-II devices. - **Ease of Integration:** Simplifies wiring and termination in distributed I/O systems, test setups, and industrial automation networks.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **68-pin SCSI-II Interface:** Provides a standard high-density 68-pin SCSI-II connector for seamless integration with ADLINK DAQ and PCI cards. - **DIN Rail Mounting:** Designed for easy installation on standard DIN rails, ideal for industrial control panels and test setups. - **Termination Board Functionality:** Ensures proper signal termination for SCSI-II communication lines, reducing reflection and maintaining signal integrity. - **Cable-Free Configuration:** Supplied without cable, allowing users to select the appropriate ACL-10568-x or ACL-10569-x cable depending on the target device. - **Compact and Robust Design:** Compact dimensions (124 mm × 77 mm × 50 mm) allow efficient use of space in control cabinets or instrumentation racks. - **High Compatibility:** Specifically designed for ADLINK DAQ-series and PCI-7256 cards, ensuring optimal electrical matching and performance. - **Industrial-Grade Construction:** Built with durable materials suitable for continuous operation in demanding environments. - **Ease of Integration:** Simplifies wiring and maintenance by providing a clear, accessible termination point for SCSI-II signals. - **Reliable Signal Transmission:** Maintains consistent impedance and minimizes crosstalk across all 68 channels. - **Flexible System Expansion:** Enables modular system design, allowing multiple boards to be mounted and interconnected as needed.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **68-pin SCSI-II Interface:** Supports standard SCSI-II (Small Computer System Interface) 68-pin connections, ensuring compatibility with a wide range of DAQ-2000 series modules and accessories. - **Integrated Termination Board:** Provides proper signal termination for SCSI-II buses, minimizing signal reflections and maintaining data integrity across high-speed communication lines. - **DIN Rail Mounting:** Designed for direct installation on standard DIN rails, facilitating organized and secure mounting within industrial enclosures. - **Included 1-Meter Cable (ACL-10568-1):** Supplied with a high-quality 1-meter SCSI-II cable for immediate deployment and reliable connectivity. - **Compact and Durable Design:** Dimensions of 124 mm (L) × 77 mm (W) × 50 mm (H) allow for efficient use of space in control panels or instrumentation racks. - **Optimized for DAQ-2000 Series:** Specifically engineered to complement ADLINK’s DAQ-2000 data acquisition cards, ensuring seamless integration and optimal performance. - **Enhanced Signal Integrity:** Built-in termination resistors and grounding features reduce electromagnetic interference (EMI) and crosstalk. - **Industrial-Grade Construction:** Designed for long-term reliability in demanding environments, with robust connectors and high-quality PCB materials. - **Ease of Maintenance:** Modular design allows quick replacement or reconfiguration without extensive rewiring.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **68-pin SCSI-II Interface:** Provides a standard high-density 68-pin connector for seamless connection to SCSI-II compatible devices and ADLINK PCI-7256 cards. - **DIN Rail Mounting:** Integrated DIN rail bracket allows quick and secure installation in industrial control panels, reducing wiring complexity and improving accessibility. - **Integrated Termination:** Ensures proper signal termination for SCSI-II communication lines, minimizing signal reflection and maintaining data integrity across high-speed digital channels. - **Included Cable (ACL-10569-1):** Supplied with a 1-meter shielded SCSI-II cable for immediate deployment, ensuring optimal signal transmission and EMI protection. - **Compact Industrial Design:** With dimensions of 124 mm (L) × 77 mm (W) × 50 mm (H), the board fits efficiently into confined spaces while maintaining robust mechanical stability. - **Compatibility with ADLINK PCI-7256:** Designed specifically for use with the PCI-7256 68-channel isolated digital I/O card, ensuring full electrical and mechanical compatibility. - **High Signal Integrity:** Precision termination resistors and controlled impedance traces maintain consistent signal quality across all 68 channels. - **Durable Construction:** Built with industrial-grade materials to withstand vibration, temperature variations, and long-term operational stress.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **DIN‑Rail Mountable Design:** Compact enclosure designed for 35 mm DIN‑rail installation, enabling organized and secure panel integration in industrial control cabinets. - **DB‑37 Female Connector:** Equipped with a 37‑pin D‑SUB (female) connector for direct connection to CONTEC analog and digital I/O boards using standard shielded or flat cables (e.g., PCB37PS, PCA37PS). - **Terminal Block Interface:** Provides screw‑type terminals for easy field wiring of analog, digital, or mixed‑signal channels. Terminal pitch is optimized for industrial wiring (10 mm spacing). - **High Compatibility:** Designed for use with CONTEC’s E‑series, F‑series, and L‑series analog I/O boards, as well as digital I/O boards such as PIO‑16/16L(PCI), AD12‑16(PCI)E, AD16‑16(PCI)E, ADI16‑4C(PCI), and DA12‑4(PCI). - **Industrial Durability:** Constructed from high‑strength materials suitable for harsh environments, ensuring long‑term reliability in measurement and control systems. - **Ease of Maintenance:** Screw terminals allow quick connection and disconnection of field wiring without soldering. The DB‑37 interface simplifies board replacement or system reconfiguration. - **Compact Form Factor:** Space‑efficient design (226 × 64 × 41 mm) allows dense installation in control panels alongside other terminal units such as EPD‑96 or DTP‑3(PC). - **Accessory Integration:** Fully compatible with CONTEC’s DIN‑ADP1 adapter for DIN‑rail mounting and with a wide range of shielded cables and signal conditioning modules.

Manufacturer: Contec

Category: DIN Rail Panels

- **Dual 9‑pin D‑type Connectors:** Provides two standard D‑sub 9‑pin female connectors for signal input/output interfacing. - **Integrated Screw Terminals:** Two 6‑position small screw terminal blocks allow direct wire termination without soldering, ideal for field wiring and quick maintenance. - **Designed for ACL‑6128 Compatibility:** Specifically engineered to interface with the ACL‑6128 module, ensuring pin‑to‑pin correspondence and electrical compatibility. - **Panel‑Mount Configuration:** The panel form factor allows secure installation in control cabinets, test benches, or rack systems. - **High‑Reliability Connectors:** D‑type connectors are known for robust mechanical coupling and EMI shielding, ensuring stable signal transmission. - **Ease of Maintenance:** Modular design allows easy replacement or reconfiguration without disturbing the main system wiring. - **Compact and Organized Layout:** The dual D‑type and terminal arrangement minimizes wiring clutter and supports efficient signal management. - **Industrial‑Grade Construction:** Built with durable materials suitable for continuous operation in industrial or laboratory environments. - **Versatile Signal Support:** Suitable for analog, digital, or control signal interfacing depending on the connected module’s configuration.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Direct 37‑Pin D‑Type Interface:** Provides a direct connection between a 37‑pin D‑sub connector and individual screw terminals for each signal line, simplifying field wiring and maintenance. - **Compact Screw Terminal Design:** Each terminal is a small, high‑density screw type, allowing secure connection of signal wires (typically 18–22 AWG) without soldering. - **Universal Compatibility:** Designed for use with ADLINK NuDAQ® and ACL series data acquisition cards that use a 37‑pin D‑sub connector, such as PCI‑9111, PCI‑9112, ACL‑8112, ACL‑8216, and ACL‑8316. - **Industrial‑Grade Construction:** Built with durable PCB materials and robust terminal blocks suitable for laboratory and light industrial environments. - **Ease of Integration:** The board can be mounted on a panel or tabletop using nylon standoffs and connected via standard 37‑pin shielded cables. - **Signal Integrity and Reliability:** The direct wiring design minimizes signal loss and noise pickup, ensuring accurate analog and digital signal transmission. - **Maintenance‑Friendly Layout:** Clearly labeled terminals and pin numbers correspond directly to the D‑sub connector pinout, simplifying troubleshooting and reconfiguration.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Direct 37‑Pin Female D‑Sub Interface:** Provides a standard 37‑pin female D‑type connector for direct connection to ADLINK DAQ cards or other compatible devices. - **Compact Screw Terminal Interface:** Each pin of the D‑sub connector is routed to an individual small screw terminal, allowing secure and tool‑accessible wiring for field signals. - **Universal Termination Board:** Designed for general‑purpose signal termination, suitable for analog, digital, or mixed‑signal I/O channels. - **High‑Reliability Construction:** Industrial‑grade PCB and terminal materials ensure long‑term stability and low contact resistance. - **Ease of Integration:** Directly compatible with ADLINK’s PCI and ACL series DAQ cards that use 37‑pin connectors (e.g., PCI‑9112, ACL‑8112, ACL‑8216, ACL‑8316). - **Panel or Table‑Top Mounting:** Can be mounted using nylon standoffs or integrated into control panels for permanent installations. - **Clear Pin Labeling:** Each terminal is clearly marked to correspond with the D‑sub pin number, simplifying wiring and troubleshooting. - **Passive Design:** No active components; provides a transparent electrical path between the DAQ card and external devices. - **Supports Signal Conditioning Add‑Ons:** Can be used in conjunction with other ACLD boards (e.g., ACLD‑8125, ACLD‑9178) for filtering, attenuation, or isolation.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Screw Terminal Interface:** Provides 2×20 small screw terminals for secure, tool‑accessible wiring of field signals. - **37‑Pin D‑Sub Connector:** Standard female DB‑37 connector for direct connection to ADLINK DAQ cards or external devices. - **16 Single‑Ended Channels:** Supports 16 single‑ended analog input channels (AI0–AI15) with shared ground reference. - **On‑Board Signal Conditioning Pads:** User‑configurable resistor and capacitor positions (RAx, RBx, Cx) allow implementation of filters, attenuators, or current‑to‑voltage converters. - **Power Status Indicator:** On‑board LED indicates active power supply between DB‑37 pins 15 (+5 V) and 19 (ground). - **Compact, Panel‑Mountable Design:** Includes nylon standoffs for table‑top or panel installation. - **Compatibility:** Designed for use with ADLINK PCI‑9111/9112, ACL‑8112, ACL‑8216, and ACL‑8312/8316 series DAQ cards. - **Ease of Integration:** Two 20‑pin flat‑ribbon connectors simplify connection to host DAQ boards. - **Flexible Signal Conditioning:** Supports user‑defined passive circuits for low‑pass filtering, voltage attenuation, or current‑loop conversion. - **Industrial Reliability:** Screw terminals and plated through‑holes ensure robust mechanical and electrical connections.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Screw Terminal Interface:** Provides 40 screw terminal points arranged as two 20-pin connectors (CNA and CNB), allowing direct connection to 20-pin flat ribbon cables. - **Signal Conditioning Capability:** Designed with reserved circuit pads for passive components (resistors and capacitors), enabling users to implement custom signal conditioning circuits such as: - Low-pass filters - Voltage attenuators - Current-to-voltage converters (e.g., 0–20 mA to 0–5 VDC) - **Flexible Configuration:** Each channel pair (A1–A2, B1–B2, etc.) can be configured for straight-through connection, attenuation, or filtering by populating or shorting specific resistor and capacitor positions. - **Compatibility:** Fully compatible with ADLINK’s ACL and PCI series DAQ cards, including ACL-8312/8316, ACL-8216, ACL-6126, and ACL-7120. - **Ease of Installation:** Equipped with nylon standoffs for secure table-top or panel mounting. Includes two 20-pin flat cables (ACL-10120-1) for direct connection to DAQ cards. - **Low-Cost, High-Reliability Design:** Provides a cost-effective and durable solution for laboratory, industrial, and educational signal interfacing applications. - **TTL/CMOS Signal Compatibility:** Supports TTL/CMOS-level signals for direct interfacing with digital I/O ports of ADLINK DAQ cards.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Screw Terminal Interface:** Provides 40 screw terminal points for secure, heavy-duty signal wiring. Each terminal corresponds to a channel on the connected DAQ card, simplifying field wiring and maintenance. - **Dual Connector Support:** Equipped with both a 37-pin D-type connector and two 20-pin flat cable connectors, allowing flexible connection options for shielded or ribbon cables. - **Signal Conditioning Capability:** Includes reserved circuit pads for implementing passive signal conditioning such as low-pass filters, voltage attenuators, current-to-voltage converters, or break detection circuits. - **Industrial-Grade Construction:** Features robust terminal blocks suitable for industrial environments, ensuring reliable electrical contact and mechanical stability. - **Compatibility with Multiple ADLINK DAQ Cards:** Designed for use with a wide range of ADLINK PCI and ACL series cards, including analog and digital I/O modules such as PCI-9114, PCI-9111, PCI-6208, PCI-7200, PCI-7230, PCI-7250/7251, ACL-8312/8316, ACL-8112, ACL-8216, ACL-8111, ACL-6126, ACL-7130, and ACL-7225. - **Flexible Mounting Options:** Supplied with nylon standoffs for table-top or panel mounting, supporting both benchtop testing and permanent installation. - **Low-Cost, High-Reliability Design:** Offers a cost-effective solution for signal termination and conditioning in industrial automation and data acquisition systems.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Comprehensive Signal Termination:** Provides 32 single‑ended analog input channels accessible via screw terminals and a 37‑pin D‑sub connector. - **Integrated RC Filter Network:** Each channel includes provisions for user‑configurable resistor (R) and capacitor (C) components, enabling low‑pass filtering, voltage attenuation, or current‑to‑voltage conversion. - **Flexible Signal Conditioning:** Supports installation of custom RC components for noise suppression, bandwidth limitation, or signal scaling. - **Universal Connectivity:** Equipped with a 37‑pin D‑sub female connector compatible with ADLINK’s ACL‑8113A and PCI‑9113A DAQ cards via the included ACL‑10137‑1 cable. - **Industrial‑Grade Screw Terminals:** Heavy‑duty screw clamp terminals ensure secure, vibration‑resistant connections suitable for laboratory and industrial environments. - **Included Accessories:** Ships with a 1‑meter ACL‑10137‑1 cable and nylon standoffs for table‑top or panel mounting. - **Low‑Cost, High‑Reliability Design:** Provides a cost‑effective solution for analog signal interfacing, filtering, and conditioning without requiring external circuitry. - **Ground Reference Flexibility:** Allows grounding of input channels by modifying resistor configuration (e.g., cutting RA and setting RB = 0 Ω) for offset calibration or current sensing. - **Compact Form Factor:** Board dimensions of approximately 221 mm × 105 mm allow easy integration into control panels or test benches.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Interface Platform:** Provides a standardized environment for developing, testing, and debugging electronic circuits and embedded systems. - **Integrated Screw Clamp Terminal Blocks:** Equipped with four 12-position screw clamp terminal blocks (4 × 12), allowing secure and reliable wire terminations for signal, power, and ground connections. - **Breadboard Area:** Includes a dedicated breadboard section for constructing and testing user interface circuits, analog front-ends, or custom signal conditioning networks without soldering. - **High-Density Connectors:** Features two 50-pin flat cable connectors for high-speed parallel signal interfacing and two 37-pin D-sub male connectors for robust external connections to instrumentation or control systems. - **Comprehensive Connectivity:** Supports a wide range of signal types, including digital I/O, analog signals, and power distribution, enabling flexible configuration for various development tasks. - **Compact Form Factor:** With dimensions of 220 × 132 mm, the AX740 offers a large working area while maintaining a manageable footprint suitable for benchtop use. - **Included Accessories:** Supplied with a 1-meter flat cable for immediate integration and connectivity between the panel and external devices or controllers. - **Durable Construction:** Built with high-quality materials to ensure mechanical stability and long-term reliability in laboratory and industrial environments. - **Manufacturer Support:** Backed by Axiom’s reputation for precision-engineered development hardware and comprehensive technical documentation.

Manufacturer: Axiom

Category: General Purpose Panels

- **General-Purpose Interface:** Designed for universal use in control systems, data acquisition setups, and signal distribution applications. - **High-Density Terminal Configuration:** Equipped with **4 × 20 large screw clamp terminal blocks**, providing a total of **80 individual connection points** for signal or power wiring. - **Integrated Cable Assembly:** Supplied with a **1-meter flat cable** terminated with a **50-pin flat cable connector**, enabling direct connection to compatible I/O modules, PLCs, or data acquisition boards. - **Compact and Durable Construction:** The panel measures **220 × 132 × 15 mm**, offering a compact footprint suitable for control cabinets, test benches, or rack-mounted systems. - **Ease of Wiring:** Large screw terminals accommodate a wide range of wire gauges, ensuring secure mechanical and electrical connections. - **Clear Signal Routing:** The terminal layout supports organized wiring schemes, reducing installation time and minimizing wiring errors. - **Versatile Compatibility:** Designed to interface with standard 50-pin ribbon cable connectors (IDC type), making it compatible with a wide range of industrial and laboratory equipment. - **Reliable Electrical Performance:** Ensures low contact resistance and stable signal transmission across all channels. - **Axiom Quality Assurance:** Manufactured by Axiom, known for precision-engineered connectivity and interface solutions for industrial and electronic applications.

Manufacturer: Axiom

Category: General Purpose Panels

- **General-Purpose Interface:** Designed for universal signal connection and distribution across a wide range of control and measurement systems. - **High-Density Terminal Configuration:** Equipped with **4 × 20 large screw clamp terminal blocks**, providing a total of 80 connection points for efficient wiring management. - **Cold Junction Compensation (CJC):** Integrated compensation circuitry ensures accurate thermocouple signal measurement by maintaining stable reference temperature conditions. - **Flat Cable Connectivity:** Includes a **1-meter flat cable** with a **50-pin flat cable connector**, enabling direct connection to compatible data acquisition (DAQ) modules, PLC I/O boards, or signal conditioning units. - **Compact Form Factor:** Dimensions of **220 × 132 × 15 mm** allow for easy integration into control cabinets, test benches, or instrumentation racks. - **Rugged Construction:** Built with industrial-grade materials to ensure long-term reliability under demanding environmental and operational conditions. - **Ease of Maintenance:** Screw terminal design allows for quick connection, disconnection, and inspection of wiring without specialized tools. - **Versatile Application Range:** Suitable for analog and digital signal interfacing, thermocouple input termination, sensor wiring, and general-purpose signal routing.

Manufacturer: Axiom

Category: General Purpose Panels

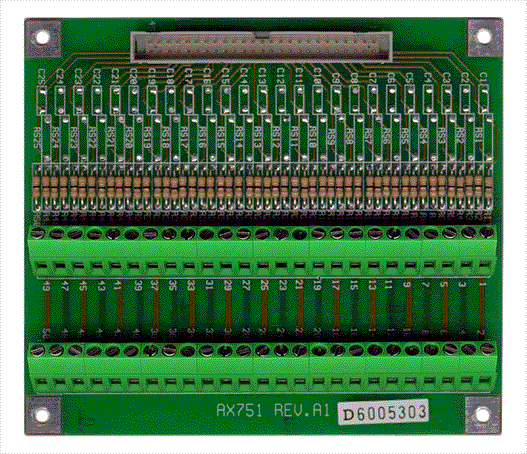

- **Universal Interface Design:** The AX751 is engineered as a general-purpose terminal panel suitable for a wide range of signal interfacing and wiring applications. - **Dual 25-Position Screw Clamp Terminal Blocks:** Provides 50 individual connection points for secure and repeatable wiring of analog or digital signals. - **Integrated 1m Flat Cable:** Supplied with a pre-assembled 1-meter flat ribbon cable for immediate connection to compatible devices or backplanes. - **50-Pin Flat Cable Connector:** Standard IDC (Insulation Displacement Connector) interface ensures compatibility with 50-pin headers, data acquisition modules, and I/O boards. - **Blank Pad Areas for Custom Circuits:** The panel includes unpopulated (blank) PCB areas that can be customized for additional circuitry such as break detection, low-pass filters, current shunts, or voltage attenuators. - **Compact and Durable Construction:** With a footprint of 132 × 110 mm, the AX751 offers a compact form factor suitable for bench-top or panel-mounted installations. - **Ease of Integration:** Designed for quick connection and disconnection in test setups, prototyping environments, and modular control systems. - **Reliable Electrical Connections:** Screw clamp terminals ensure strong mechanical retention and stable electrical contact, minimizing signal loss and interference.

Manufacturer: Axiom

Category: General Purpose Panels
