- **Intel® Atom™ E3845 1.9 GHz Quad-Core Processor:** Provides high-efficiency computing for real-time control tasks. - **ADLINK Softmotion Kernel:** Enables precise, synchronized motion control with IEC 61131-3 function blocks. - **IEC 61131-3 Programming Support:** Compatible with CoDeSys v3.5, supporting five standard PLC languages. - **High-Performance EtherCAT Master:** Controls up to 64 motion axes and 30,000 I/O points with a minimum cycle time of **250 µs**. - **Protocol Support:** EtherCAT CoE (CANopen over EtherCAT), FoE (File over EtherCAT), and EoE (Ethernet over EtherCAT). - **Fail-Safe Operation:** Code execution continues even if the host Windows OS crashes. - **Built-in SD Socket:** For data logging and manufacturing traceability. - **User-Defined Indicators:** Three programmable LEDs for controller diagnostics. - **Rugged Fanless Design:** Operates reliably from **-20°C to +60°C**. - **Compact Form Factor:** 120 × 100 × 55 mm, suitable for DIN-rail or wall mounting. - **Wide DC Input Range:** 9–32 VDC (or 6–36 VDC depending on configuration). - **Comprehensive Connectivity:** Dedicated EtherCAT port, Gigabit Ethernet, HDMI, USB 3.0/2.0, and serial ports. - **Environmental Robustness:** Vibration resistance up to 5 Grms, shock tolerance up to 50G, and EMC compliance (EN 55011 Class A).

Manufacturer: Adlink Technology Inc.

Category: Master

- **32‑Channel Sinking Digital Input:** Supports 32 independent digital input channels conforming to IEC 61131‑2 Type 1/3 standards. - **Wide Operating Temperature Range:** Reliable operation from –20 °C to +60 °C, suitable for harsh industrial environments. - **Hot‑Swappable Design:** Modules can be replaced without powering down the system, reducing mean time to repair (MTTR). - **Compact Form Factor:** 100 mm (L) × 100 mm (H) module size allows high‑density installation in limited spaces. - **Quick‑Removable Connector:** Equipped with a Phoenix Contact DFMC series 2 × 20‑pin European‑type connector for simplified wiring and maintenance. - **High Electrical Isolation:** 2 kV DC isolation between channels and ground ensures signal integrity and protection. - **Self‑Diagnostic Monitoring:** Built‑in power, communication, and watchdog diagnostics for module health monitoring. - **IEC 61131 Compliance:** Fully compliant with industrial control standards for digital input modules. - **Slave Module Health Monitoring:** Continuous status feedback through EtherCAT communication. - **Integration with LinkMasterPro™:** ADLINK’s EtherCAT configuration utility automatically detects installed modules and generates corresponding ESI (EtherCAT Slave Information) files.

Manufacturer: No category

Category: Modules

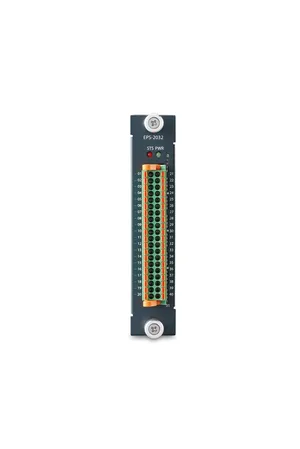

- **32‑Channel Sourcing Digital Outputs:** Provides 32 independent sourcing‑type digital output channels for high‑density control applications. - **EtherCAT Slave Compatibility:** Fully compliant with EtherCAT communication standards, supporting COE and FOE protocols. - **IEC 61131‑2 Compliance:** Meets industrial control standards for digital I/O modules. - **Hot‑Swappable Design:** Allows module replacement without system power interruption, minimizing downtime. - **Self‑Diagnostic Functions:** Monitors power, communication, and watchdog timer (WDT) status for enhanced reliability. - **Wide Operating Temperature Range:** Operates reliably from ‑20 °C to +60 °C, suitable for harsh industrial environments. - **Compact Form Factor:** 100 mm (L) × 100 mm (H) footprint for high‑density installations. - **Quick‑Removable European‑Type Connector:** Phoenix Contact DFMC series connector simplifies wiring and maintenance. - **LED Indicators:** Individual channel LEDs and system status indicators for easy visual diagnostics. - **High Isolation Protection:** 2 kV DC isolation between channels and ground ensures electrical safety and noise immunity. - **Integration with LinkMasterPro™:** ADLINK’s Windows‑based EtherCAT utility automatically detects installed modules and generates ESI (EtherCAT Slave Information) files for configuration. - **Environmental Compliance:** Designed in accordance with RoHS and WEEE directives for environmental responsibility.

Manufacturer: No category

Category: Modules

- **32‑Channel Sinking Digital Outputs:** Provides 32 individually addressable sinking‑type digital output channels for high‑density control applications. - **Wide Operating Temperature Range:** Reliable operation from **‑20°C to +60°C**, suitable for harsh industrial environments. - **Compact Form Factor:** Space‑efficient design measuring **100 mm (L) × 100 mm (H)** for high‑density installations. - **Hot‑Swappable Design:** Modules can be replaced without powering down the system, minimizing downtime and maintenance effort. - **Quick‑Removable Connector:** Equipped with a **Phoenix Contact DFMC series** connector for simplified wiring and maintenance. - **High Isolation Protection:** 2 kV DC isolation between channels and chassis/ground ensures electrical safety and signal integrity. - **Self‑Diagnostic Functions:** Monitors power, communication, and watchdog timer (WDT) status for enhanced reliability. - **IEC‑61131 Compliance:** Meets industrial control standards for digital I/O modules. - **EtherCAT Compatibility:** Fully interoperable with certified third‑party EtherCAT masters and ADLINK’s Talos controllers. - **Rugged Construction:** Designed for vibration, shock, and EMC compliance per EN 60068‑2 and EN 61000‑6 standards. - **Intelligent Monitoring:** FPGA and ARM‑based architecture enables real‑time monitoring of module health, temperature, and usage cycles.

Manufacturer: No category

Category: Modules

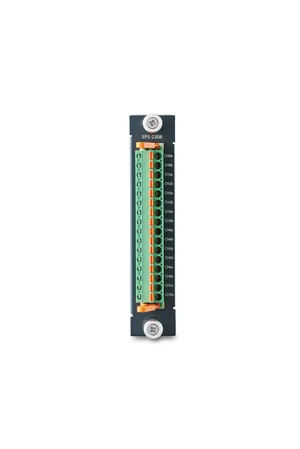

- **8‑Channel Relay Output:** Provides eight independent SPST (Single Pole Single Throw) relay outputs for flexible control of external devices. - **High Isolation Protection:** 2 kV DC isolation between channels, chassis, and ground ensures electrical safety and noise immunity. - **Wide Operating Temperature Range:** Fully functional from **–20 °C to +60 °C**, suitable for industrial environments. - **Compact Form Factor:** 100 mm (L) × 100 mm (H) module size allows dense installation in EPS chassis. - **Hot‑Swappable Design:** Modules can be replaced without powering down the system, minimizing downtime. - **Quick‑Removable Connector:** Equipped with a Weidmüller OMNIMATE Signal BL/SL 5.08 mm connector for easy wiring and maintenance. - **Relay Lifecycle Monitoring:** Integrated self‑diagnostic functions monitor relay health and module status. - **IEC 61131 Compliance:** Conforms to international industrial control standards for interoperability and reliability. - **Slave Module Health Monitoring:** Continuous status reporting via EtherCAT communication. - **Self‑Diagnostics:** Monitors power, communication, and watchdog timer (WDT) conditions. - **LinkMasterPro™ Compatibility:** Fully supported by ADLINK’s EtherCAT configuration utility for automatic ESI file generation and system configuration. - **Environmental Robustness:** Designed for vibration, shock, and EMC compliance per EN 60068‑2 and EN 61000‑6 standards.

Manufacturer: No category

Category: Modules

- **High‑Density Analog Input:** 32 single‑ended or 16 differential analog input channels. - **Wide Input Range:** ±10 V input range suitable for standard industrial voltage signals. - **High Resolution and Accuracy:** 16‑bit A/D conversion with ±1 mV offset error and ±0.05 % of full‑scale range (FSR) gain error. - **Fast Sampling Rate:** Up to 100 kS/s aggregate sampling rate for high‑speed data acquisition. - **Robust Electrical Isolation:** 2 kV DC isolation between channels and chassis/ground for noise immunity and safety. - **Hot‑Swappable Design:** Supports module replacement without system power‑down, minimizing downtime. - **Compact Form Factor:** 100 mm (L) × 100 mm (H) footprint for high‑density installations. - **Wide Operating Temperature:** Reliable operation from −20 °C to +60 °C. - **Quick‑Removable Connector:** Phoenix Contact DFMC series plug‑in terminal block for simplified wiring. - **Self‑Diagnostics:** Onboard temperature monitoring and module health status reporting. - **IEC 61131 Compliance:** Conforms to industrial control standards for interoperability. - **EtherCAT Compatibility:** Fully compatible with ADLINK’s EPS‑6000 bus coupler and third‑party EtherCAT masters via ESI file integration.

Manufacturer: No category

Category: Modules

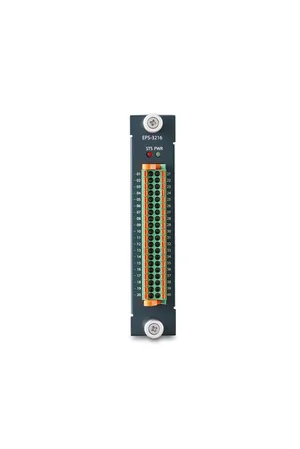

- **16‑Channel 0–20 mA Differential Analog Input:** Supports 16 single‑ended or differential current input channels for high‑density signal acquisition. - **High Sampling Rate:** 100 kS/s per channel ensures accurate and fast data capture for dynamic process monitoring. - **16‑Bit Resolution:** Provides fine granularity and precision in current measurement. - **Wide Operating Temperature Range:** Fully functional from –20 °C to +60 °C, suitable for harsh industrial environments. - **Hot‑Swappable Design:** Modules can be replaced without powering down the system, minimizing downtime. - **Self‑Diagnostic Functions:** Monitors power, communication, and watchdog timer (WDT) status for system reliability. - **Quick‑Removable European‑Type Connector:** Phoenix Contact DFMC series connector allows easy wiring and maintenance. - **Compact Form Factor:** 100 mm (L) × 100 mm (H) module size optimizes panel space. - **IEC 61131 Compliance:** Meets international standards for programmable controller I/O modules. - **High Isolation Protection:** 2 kV DC isolation between channels, chassis, and ground ensures signal integrity and safety. - **Slave Module Health Monitoring:** Continuous status feedback through EtherCAT communication. - **Integration with LinkMasterPro™:** ADLINK’s Windows‑based EtherCAT configuration utility automatically detects modules and generates ESI (EtherCAT Slave Information) files.

Manufacturer: No category

Category: Modules

- **4‑Channel RTD Input:** Supports four independent RTD sensor channels for simultaneous temperature measurement. - **Sensor Compatibility:** Compatible with PT100, PT500, and PT1000 platinum RTDs. - **Wiring Flexibility:** Supports 2‑wire, 3‑wire, and 4‑wire measurement configurations for optimal accuracy and noise immunity. - **High Resolution:** 24‑bit A/D conversion ensures precise temperature readings and fine measurement granularity. - **Sampling Rate:** Adjustable between 5 Hz and 20 Hz, balancing response time and accuracy. - **Wide Temperature Range:** Measures from ‑200 °C to +850 °C, suitable for a broad range of industrial processes. - **High Accuracy:** ±0.007 % of full‑scale range (FSR) DC accuracy and ±0.5 °C temperature accuracy. - **Excitation Current:** Up to 500 µA per channel for stable RTD excitation. - **Electrical Isolation:** 2 kV DC isolation between channels and ground, ensuring signal integrity and protection against electrical noise. - **Hot‑Swappable:** Can be replaced or added without powering down the EPS system, minimizing downtime. - **Compact Form Factor:** 100 mm (L) × 100 mm (H) module size for dense system integration. - **Wide Operating Temperature:** Reliable operation from ‑20 °C to +60 °C. - **Quick‑Removable Connector:** Uses Phoenix Contact DFMC series connectors for easy installation and maintenance. - **IEC 61131 Compliance:** Meets international industrial control standards for programmable automation systems. - **Slave Module Health Monitoring:** Integrated diagnostics for module presence, power status, and over‑temperature protection. - **EtherCAT Integration:** Fully compatible with ADLINK’s EPS‑6000 bus coupler and third‑party EtherCAT masters via ESI files generated by LinkMasterPro™.

Manufacturer: No category

Category: Modules

- **Eight single‑ended analog output channels** supporting ±10 V range. - **High‑speed performance:** 100 kS/s sampling rate per channel. - **High precision:** 16‑bit resolution with ±0.2 mV offset error and ±0.05 % FSR gain error. - **Loopback circuitry** for onboard output signal integrity monitoring. - **Hot‑swappable module** design allows replacement without system power‑down. - **Wide operating temperature range:** −20 °C to +60 °C for industrial environments. - **Compact mechanical form factor:** 100 mm (L) × 100 mm (H). - **IEC 61131 compliance** ensuring compatibility with industrial control standards. - **Integrated self‑diagnostics** for module temperature and health monitoring. - **Quick‑removable Phoenix Contact DFMC connector** for simplified wiring and maintenance. - **Full EtherCAT compatibility** with ADLINK’s EPS‑6000 bus coupler and third‑party EtherCAT masters. - **Comprehensive protection:** ±24 V over‑voltage protection with relay‑off safety state on fault. - **Low power consumption:**

Manufacturer: No category

Category: Modules

- **EtherCAT Protocol Support:** Fully supports EtherCAT COE (CANopen over EtherCAT), FOE (File over EtherCAT), and AOE (ADS over EtherCAT) protocols. - **High Compatibility:** Operates seamlessly with certified third-party EtherCAT masters, including ADLINK’s Talos controllers. - **Comprehensive Module Support:** Interfaces with up to four EPS peripheral modules, including digital I/O, analog I/O, thermal measurement, and motion control modules. - **Automatic Detection System (ADS):** Integrated with ADLINK’s LinkMasterPro™ configurator for automatic module recognition and ESI (EtherCAT Slave Information) file generation. - **Hot-Swappable Design:** Modules can be replaced without powering down the system, minimizing Mean Time to Repair (MTTR). - **Wide Operating Temperature Range:** Reliable operation from -20°C to +60°C for industrial environments. - **Rugged Construction:** Designed for vibration (5 Grms, 5–500 Hz) and shock (50G, 11 ms half-sine) resistance. - **Compact Form Factor:** 130 mm (L) × 110 mm (W) × 105 mm (H),

Manufacturer: No category

Category: Modules

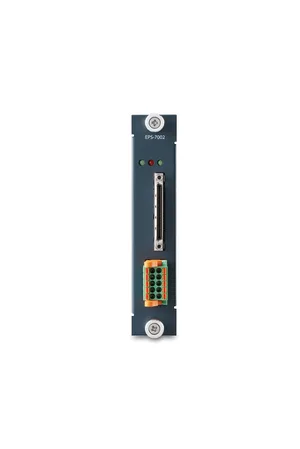

- **Dual‑Channel Pulse‑Train Motion Control:** Two independent pulse‑train output channels for precise motion control of servo or stepper drives. - **High‑Speed Pulse Output:** Supports pulse frequencies up to **4 MHz**, enabling high‑resolution and high‑speed motion profiles. - **Encoder Feedback Support:** Two encoder input channels with **20 MHz** maximum input frequency (at 4×AB mode), supporting **TTL incremental encoders** for position and velocity feedback. - **Flexible Output Modes:** Configurable **CW/CCW** (clockwise/counter‑clockwise) and **OUT/DIR** (pulse/direction) output modes for compatibility with a wide range of servo and stepper drives. - **Comprehensive Motion and Servo I/O:** Includes dedicated motion I/O (PEL, MEL, ORG) and servo I/O (ALM, INP, RDY, SVON, ERC, RST) interfaces for complete axis control and status monitoring. - **Industrial‑Grade Design:** - Operating temperature: **–20 °C to +60 °C** - Isolation: **2 kV DC** (channel‑to‑DGND and channel‑to‑chassis) - Power consumption: **

Manufacturer: No category

Category: Modules

- **EtherCAT Compatibility:** Fully compatible with certified third-party EtherCAT masters and ADLINK’s Talos controllers. - **Protocol Support:** Supports EtherCAT CoE (CANopen over EtherCAT), FoE (File over EtherCAT), and AoE (ADS over EtherCAT) protocols. - **Comprehensive I/O Modules:** Supports a wide range of high-density digital I/O, analog I/O, thermal measurement, and motion control modules. - **Automatic Detection System (ADS):** Integrated with ADLINK’s LinkMasterPro™ configurator for automatic module recognition and ESI file generation. - **Hot-Swappable Modules:** Enables module replacement without system shutdown, minimizing Mean Time to Repair (MTTR). - **Intelligent Monitoring:** Real-time monitoring of module status, relay lifecycle, analog signal integrity, and system temperature. - **Wide Operating Temperature:** Reliable operation from -20°C to +60°C. - **Rugged Construction:** IP31 protection, vibration resistance (5 Grms, 5–500 Hz), and shock tolerance (50G, 11 ms half-sine). - **Compact Design:** 130 mm (L) × 110 mm (W) × 105 mm (H),

Manufacturer: No category

Category: Modules

- **EtherCAT Communication:** Fully compliant with EtherCAT protocol (IEEE 802.3 100BASE-TX), enabling high-speed, deterministic communication between master and slave devices. - **Digital Inputs:** 8 isolated wet/dry contact digital input channels supporting 24V logic levels. - **Relay Outputs:** 4 relay outputs (2 Form A and 2 Form C) for flexible control of external devices. - **LED Indicators:** Individual LEDs for each digital input channel and system status indicators for power and communication states. - **Wide Power Range:** Operates from 12V to 48V DC (±10%), suitable for various industrial power systems. - **Compact Industrial Design:** Rugged enclosure with DIN-rail mounting capability for easy integration into control cabinets. - **Temperature Resilience:** Operates reliably in harsh environments with an extended temperature range of -25°C to +75°C. - **Flexible Network Topology:** Supports daisy-chain and ring configurations for scalable EtherCAT networks. - **Service-Friendly Wiring:** Modular terminal blocks for simplified installation and maintenance. - **High Reliability:** Gold-plated silver relay contacts ensure long mechanical and electrical endurance. - **Configuration via ESI File:** Easy integration with EtherCAT masters using XML-based EtherCAT Slave Information (ESI) files.

Manufacturer: No category

Category: Remote IO Modules

- **EtherCAT Communication Protocol:** Fully compliant with the EtherCAT® standard (IEEE 802.3 100BASE-TX), enabling high-speed deterministic communication and real-time data exchange. - **Dual RJ-45 Ports:** Two Ethernet ports (IN/OUT) for daisy-chain or ring topology configurations, supporting up to 100 m between stations. - **Digital I/O Configuration:** - 8 isolated digital input channels (wet/dry contact selectable) - 8 isolated digital output channels (open collector type) - **Wide Power Supply Range:** Operates from 12 VDC to 48 VDC (±10%), allowing flexible integration into various industrial power systems. - **Compact Industrial Design:** Rugged aluminum/plastic enclosure with DIN-rail mounting capability for easy installation in control cabinets. - **LED Indicators:** - 8 LEDs for digital input status - 8 LEDs for digital output status - Power and status LEDs for module diagnostics - **High Environmental Tolerance:** Operating temperature range from -25°C to +75°C, storage temperature from -30°C to +80°C, and relative humidity tolerance of 10–90% (non-condensing). - **Low Power Consumption:** Maximum 2.7 W at 24 VDC. - **Flexible Network Topology:** Supports daisy-chain and ring configurations, reducing cabling complexity and infrastructure costs. - **Easy Configuration:** Compatible with EtherCAT master tools such as Beckhoff TwinCAT and EtherCAT Configurator via ESI (EtherCAT Slave Information) XML file.

Manufacturer: No category

Category: Remote IO Modules

- **EtherCAT Communication:** Fully compliant with the EtherCAT protocol (IEEE 802.3 100BASE-TX), enabling high-speed, deterministic communication for industrial automation systems. - **16 Digital Inputs:** Supports 16 isolated digital input channels configurable for wet or dry contact operation. - **Wide Input Voltage Range:** Accepts input signals from 3.5 V to 24 V for ON state, with OFF voltage below 1 V. - **Status Indication:** Each input channel is equipped with a dedicated LED indicator reflecting real-time input status. - **Industrial Design:** Compact, rugged housing suitable for DIN-rail installation, with robust electrical isolation and environmental protection. - **Flexible Network Topology:** Supports daisy-chain and ring network configurations, allowing up to 100 m between stations using shielded Cat5 or higher Ethernet cables. - **Power Flexibility:** Operates from a 12–48 VDC power supply (±10%), with low power consumption (max. 2.7 W at 24 VDC). - **Wide Temperature Range:** Designed for harsh industrial environments with an operating range of -25°C to +75°C and storage range of -30°C to +80°C. - **Compact Dimensions:** 115 mm × 110 mm × 30 mm, optimized for space-constrained control cabinets. - **Ease of Integration:** Configuration via EtherCAT master using standard ESI (EtherCAT Slave Information) XML files. - **Visual Diagnostics:** Power and status LEDs provide clear indication of device state (INIT, Pre-Operational, Safe-Operational, Operational). - **Service-Friendly Wiring:** Modular terminal blocks for power and I/O connections simplify installation and maintenance.

Manufacturer: No category

Category: Remote IO Modules

- **EtherCAT Communication Protocol:** Fully compliant with EtherCAT® standards (IEEE 802.3 100BASE-TX), enabling deterministic, high-speed data exchange with EtherCAT masters. - **16 Isolated Digital Outputs:** Each channel supports open-collector output type, suitable for driving external loads such as relays, solenoids, and indicator lamps. - **Wide Load Voltage Range:** Supports 4.5–32 VDC load voltage, providing flexibility for various industrial devices. - **High Output Current Capability:** Each channel can handle 400–1000 mA, depending on load and voltage conditions. - **LED Status Indicators:** 16 individual LEDs display the real-time status of each digital output channel, simplifying diagnostics and maintenance. - **Dual RJ-45 Ports:** Two Ethernet ports (IN/OUT) allow daisy-chain or ring topology connections, reducing cabling complexity. - **Compact DIN-Rail Mountable Design:** 115 × 110 × 30 mm enclosure optimized for control cabinet installation. - **Wide Operating Temperature Range:** Designed for harsh industrial environments, operating reliably from -25°C to +75°C. - **Flexible Power Input:** Accepts 12–48 VDC (±10%) supply voltage, supporting a variety of industrial power systems. - **Low Power Consumption:** Maximum 2.7 W at 24 VDC ensures energy-efficient operation. - **Robust Construction:** Industrial-grade housing with frame ground (FG) connection for enhanced electrical safety and noise immunity. - **Easy Configuration:** Supports configuration via EtherCAT Master tools such as Beckhoff TwinCAT or EtherCAT Configurator using the provided ESI XML file. - **Service-Friendly Wiring:** Modular terminal blocks for power and I/O connections simplify installation and maintenance.

Manufacturer: No category

Category: Remote IO Modules

- **Ethernet-Based Architecture:** Operates over standard 10/100 Mbps Ethernet using TCP/IP, supporting up to 100 meters of cable length for flexible deployment. - **4-Axis Motion Control:** Provides 4 independent channels for servo or stepper motor control via pulse wave I/O, supporting OUT/DIR, CW/CCW, and AB phase drive modes. - **Scalable Multi-Axis System:** Supports up to 4 EMX-100 units per system, enabling control of up to 16 axes through a single PC. - **High-Speed Pulse Output:** Maximum pulse output rate of 4 Mpps per channel ensures precise and rapid motion control. - **Position Compare and Trigger Output:** Two-axis position comparison and trigger output for synchronization with external devices such as cameras or sensors. - **Comprehensive Motion Profiles:** Supports trapezoidal and S-curve velocity profiles, point-to-point motion, linear interpolation (2-axis), jog mode, and multiple homing modes. - **Isolated Digital I/O:** 32 optically isolated digital inputs and 14 optically isolated digital outputs with 3750 Vrms isolation for robust industrial operation. - **Software Integration:** Includes ADLINK’s MotionCreator Pro 2 software for configuration, testing, and motion programming. Compatible with C++, C#, and VB.NET via APS library DLLs. - **Plug-and-Play Setup:** Simplified installation and configuration through Ethernet connectivity and intuitive software tools. - **Environmental and Safety Compliance:** CE, FCC, and RoHS compliant, with built-in overvoltage and overcurrent protection.

Manufacturer: No category

Category: Motion Control
