- **CompactPCI 3U 4HP Form Factor:** Standard 3U height, 4HP width, fully compliant with PICMG® 2.0 R3.0 CompactPCI specifications. - **High‑Performance Networking:** Up to four Intel® 82574L Gigabit Ethernet controllers, each integrating MAC and PHY for full‑duplex 10/100/1000 Mbps operation. - **Flexible Port Configuration:** - Four RJ‑45 ports on the front panel (cPCI‑3E10). - Two of the four ports (LAN1/2) can be switched to the rear via the J2 connector and RTM. - Optional cPCI‑R3E10 RTM provides rear RJ‑45 access. - **Alternate Models:** - cPCI‑3E12: Two RJ‑45 Gigabit Ethernet ports. - cPCI‑3E10‑SUB: Two DB‑9 Fast Ethernet ports for rugged environments. - **PCI Bus Interface:** 32‑/64‑bit, 33/66 MHz CompactPCI interface supporting both 3.3V and 5V signaling. - **PCI Express Architecture:** Each Intel® 82574L controller operates on a PCIe 1.1 x1 lane, aggregated through a PEX8608 PCIe switch and PI7C9X130 PCIe‑to‑PCI bridge. - **Boot and Management:** - 128 KB onboard LAN Boot ROM supporting PXE 2.0 remote boot. - ACPI power management support. - **Environmental Robustness:** Operating temperature 0°C–60°C; storage −40°C–70°C; 95% non‑condensing humidity tolerance. - **OS Compatibility:** Windows XP, Vista, 7, Server 2003/2008, and Red Hat Enterprise Linux 5.0+. - **RoHS and WEEE Compliant:** Environmentally responsible design meeting EU directives.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **CompactPCI 3U 4HP Form Factor:** Standardized mechanical and electrical interface for industrial systems. - **Dual Gigabit Ethernet Ports:** Two independent 10/100/1000BASE‑T interfaces via RJ‑45 connectors on the front panel. - **Intel® 82574L Ethernet Controllers:** Two integrated MAC/PHY controllers providing PCIe 1.1 x1 connectivity per port. - **High‑Speed PCI Bus Interface:** Supports 32‑bit or 64‑bit CompactPCI bus at 33/66 MHz, 3.3 V or 5 V universal signaling. - **LAN Boot ROM:** 128 KB onboard ROM supporting PXE 2.0 for remote boot and network‑based system initialization. - **LED Indicators:** Dual “Link/Activity” LEDs per port for real‑time network status monitoring. - **Operating System Support:** Compatible with Windows XP, Vista, 7, Windows Server 2003/2008, and Red Hat Enterprise Linux 5.0+. - **Environmental Robustness:** Operating temperature range 0 °C – 60 °C; storage −40 °C – 70 °C; 95% non‑condensing humidity tolerance. - **Network Management:** ACPI power management and Intel PXE 2.0 preboot execution environment support. - **RoHS and WEEE Compliant:** Environmentally responsible design meeting EU directives.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **Dual‑Function Interface:** Combines 10Base‑T/100Base‑TX Fast Ethernet and Wide Ultra‑2 SCSI interfaces on a single CompactPCI card. - **High‑Performance Ethernet:** Utilizes the Intel® 82558 Ethernet controller supporting 10/100 Mbps operation with full‑duplex capability and auto‑negotiation (Nway). - **Advanced SCSI Controller:** Employs the Symbios® SYM53C895 PCI Wide Ultra‑2 SCSI controller supporting up to 80 MB/s transfer rates. - **Low Voltage Differential (LVD) Technology:** Enables extended SCSI cable lengths up to 12 meters while maintaining high‑speed data integrity. - **Backward Compatibility:** Fully compatible with SCSI‑1, SCSI‑2, Ultra SCSI, and Ultra‑Wide SCSI standards. - **Auto‑Switching Transmission Modes:** Automatically detects and adjusts between Single‑Ended (SE), Low Voltage Differential (LVD), and High Voltage Differential (HVD) modes. - **CompactPCI Compliance:** Fully compliant with PICMG 2.0 CompactPCI Rev. 2.0 specifications. - **Operating System Support:** Drivers available for DOS, Windows 95/98, Windows NT, OS/2, SCO UNIX, and Linux. - **Robust Industrial Design:** 3U form factor with front‑panel RJ‑45 and 68‑pin SCSI connectors, LED indicators, and jumper/switch configuration options. - **Regulatory Compliance:** Meets CE and FCC Class B standards for EMI/EMS performance.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

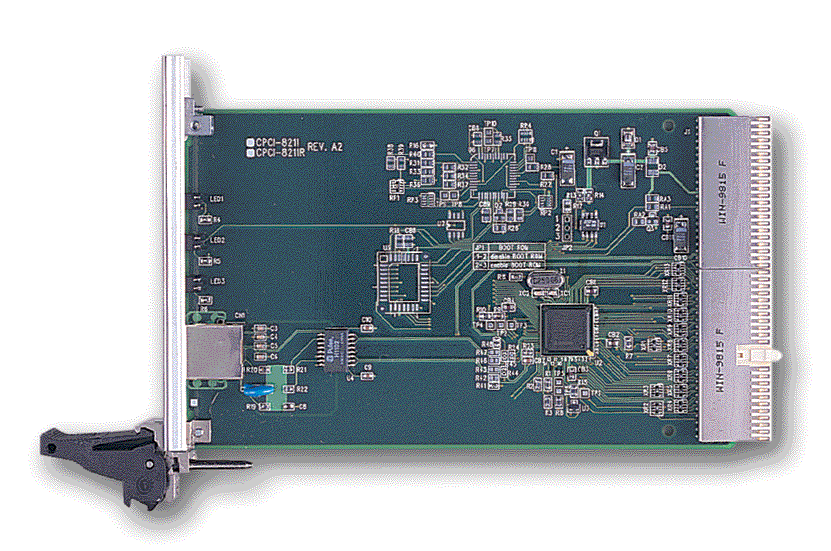

- **Dual-Speed Ethernet Support:** Supports both 10Base-T (10 Mb/s) and 100Base-TX (100 Mb/s) Fast Ethernet standards, allowing automatic speed negotiation based on network conditions and connected devices. - **CompactPCI Interface:** Designed for the CompactPCI (cPCI) bus architecture, ensuring compatibility with a wide range of industrial and embedded computing platforms that utilize the cPCI standard. - **PXE and Remote Boot Support:** Integrated PXE (Preboot Execution Environment) functionality enables network-based booting, allowing systems to boot from a remote server without requiring local storage. This is particularly useful for diskless workstations, thin clients, and centralized management environments. - **Alert-on-LAN Functionality:** Provides remote system monitoring and management capabilities, allowing administrators to receive alerts or perform remote wake-up and control operations over the network. - **External RJ-45 Connector:** Equipped with a standard RJ-45 port for straightforward Ethernet connectivity, supporting twisted-pair cabling for 10/100 Mb/s network connections. - **High Reliability and Industrial Design:** Built for continuous operation in industrial and embedded environments, featuring robust electrical design and adherence to CompactPCI mechanical and electrical standards. - **Plug-and-Play Compatibility:** Supports automatic configuration and detection by operating systems that recognize standard PCI network interface devices, simplifying installation and deployment. - **Low Power Consumption:** Optimized for energy efficiency, suitable for embedded systems and applications where power budgets are constrained.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **Dual-Speed Ethernet Support:** Compatible with both 10Base-T (10 Mbps) and 100Base-TX (100 Mbps) Fast Ethernet standards, allowing flexible network integration. - **Rear I/O Configuration:** Designed for rear I/O connectivity via a transition board, ideal for systems requiring front-panel space optimization or sealed front panels. - **PXE (Preboot Execution Environment) Support:** Enables remote booting and network-based system initialization, facilitating centralized management and deployment in distributed systems. - **Alert-on-LAN Functionality:** Provides remote system monitoring and management capabilities, allowing administrators to receive alerts and perform diagnostics over the network. - **External RJ45 Connector:** Standard Ethernet interface for reliable physical network connection, supporting twisted-pair cabling and standard Ethernet infrastructure. - **CompactPCI Bus Interface:** Fully compliant with CompactPCI specifications, ensuring compatibility with a wide range of industrial and embedded computing platforms. - **Transition Board Included:** Supplied with a dedicated transition board for rear I/O applications, simplifying integration into existing CompactPCI backplanes. - **Industrial-Grade Reliability:** Designed for continuous operation in demanding environments, with robust electrical and mechanical characteristics. - **Plug-and-Play Operation:** Supports automatic detection and configuration by the host system, minimizing setup time. - **Low Power Consumption:** Optimized for energy-efficient operation within CompactPCI systems.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

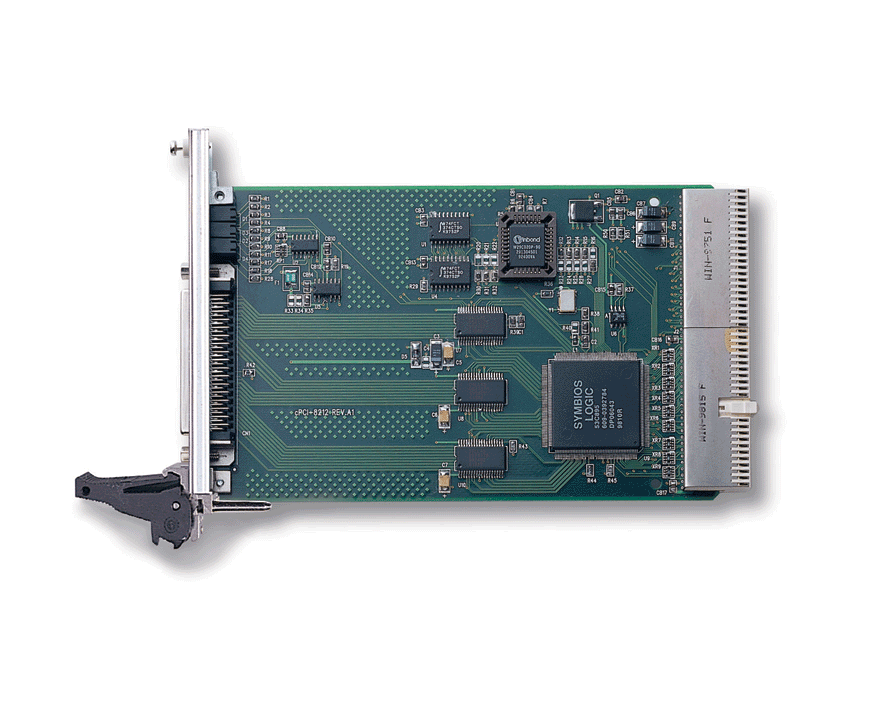

- **Comprehensive SCSI Compatibility:** Supports SCSI I, SCSI II, Ultra SCSI, and Ultra Wide SCSI protocols, ensuring interoperability with a wide range of SCSI devices and legacy equipment. - **Dual Connector Configuration:** Equipped with an **external 68-pin shielded connector** for Ultra Wide SCSI devices and an **internal 50-pin connector** for standard SCSI peripherals, enabling flexible system integration. - **CompactPCI Form Factor:** Designed for **CompactPCI (cPCI)** systems, providing a rugged, modular, and high-performance interface suitable for industrial and embedded applications. - **Dual Voltage Operation:** Operates with both **3.3V and 5V signaling**, ensuring compatibility with various CompactPCI backplanes and system configurations. - **High Data Throughput:** Supports Ultra Wide SCSI transfer rates up to 40 MB/s, enabling fast and reliable data exchange between host systems and connected devices. - **Industrial-Grade Design:** Built for continuous operation in demanding environments, featuring robust connectors, EMI shielding, and high-quality PCB materials. - **Plug-and-Play Integration:** Fully compliant with CompactPCI specifications, allowing straightforward installation and configuration within standard cPCI chassis. - **Backward Compatibility:** Maintains support for older SCSI standards, ensuring seamless integration with existing infrastructure and legacy peripherals. - **Shielded External Interface:** The 68-pin external connector is shielded to minimize electromagnetic interference (EMI) and maintain signal integrity in electrically noisy environments. - **Flexible Application Range:** Suitable for data acquisition systems, industrial automation, test and measurement setups, and embedded computing platforms requiring SCSI connectivity.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **Comprehensive SCSI Support:** Compatible with SCSI I, SCSI II, Ultra SCSI, and Ultra Wide SCSI protocols, enabling integration with a wide variety of storage and peripheral devices. - **Rear I/O Design:** Incorporates a **transition board** for rear I/O applications, allowing all external connections to be routed through the rear of the chassis for improved cable management and front-panel accessibility. - **Dual Connector Configuration:** Features both an **external 68-pin shielded connector** and an **internal 50-pin connector**, providing flexible connectivity options for different SCSI device configurations. - **Voltage Flexibility:** Supports **3.3V and 5V operation**, ensuring compatibility with diverse CompactPCI backplanes and system power environments. - **High Data Throughput:** Designed to support the full bandwidth of Ultra Wide SCSI, enabling data transfer rates up to 40 MB/s per channel under optimal conditions. - **Industrial-Grade Reliability:** Built for continuous operation in demanding industrial and embedded computing environments, with robust signal integrity and EMI shielding. - **CompactPCI Compliance:** Fully compliant with the **PICMG 2.x CompactPCI** specifications, ensuring interoperability with standard CompactPCI chassis and peripheral modules. - **Transition Board Integration:** The included transition board simplifies rear I/O deployment, reducing installation complexity and improving system maintainability.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **Integrated Graphics Accelerator:** Built around the Chips & Technologies 69000 video accelerator, offering hardware-accelerated 2D graphics performance suitable for industrial visualization and control applications. - **Onboard Video Memory:** Includes 2 MB of integrated SDRAM video memory, enabling high-resolution and high-color-depth display modes without external memory modules. - **Dual Display Support:** Capable of driving both traditional analog CRT monitors and various flat-panel display technologies (LCD, EL, gas plasma). - **High-Resolution Output:** - CRT displays: up to 1024 × 768 resolution in 64K colors. - Flat-panel displays: up to 800 × 600 resolution in 16.7 million colors. - **CompactPCI 3U Form Factor:** Fully compliant with the PICMG CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard CompactPCI backplanes and chassis. - **Flexible Panel Configuration:** Supports up to 14 different LCD panel types selectable via onboard jumpers (JP2), allowing adaptation to various display modules. - **Adjustable Power and Clock Settings:** - Flat panel power selectable between +5V and +3.3V (JP3). - Flat panel clock polarity selectable (JP1). - **Standard VGA Output:** Equipped with a 15-pin D-Sub VGA connector for analog display connection. - **Wide Operating Temperature Range:** Designed for industrial environments with an operating range of 0°C to 60°C (32°F to 140°F). - **Software Driver Support:** Compatible with Microsoft Windows 95, 98, and NT 4.0 operating systems, with dedicated driver installation procedures and refresh rate utilities.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **High-Performance Graphics Controller:** Powered by the **C&T69000** graphics chipset, the cPCI-8216 delivers stable and efficient 2D graphics acceleration suitable for industrial HMI, control panels, and visualization systems. - **Dual Display Interface:** Supports both **VGA output** for standard analog monitors and **LVDS output** for direct connection to flat-panel LCDs, offering flexibility in display configurations. - **CompactPCI Form Factor:** Fully compliant with the **CompactPCI (cPCI)** standard, ensuring compatibility with a wide range of industrial backplanes and system chassis. - **LVDS Interface Support:** Integrated **LVDS interface** allows direct connection to TFT LCD panels without the need for additional converter boards, reducing system complexity and improving signal integrity. - **Industrial-Grade Reliability:** Designed for continuous operation in demanding environments, with extended temperature tolerance, vibration resistance, and long product lifecycle support. - **Plug-and-Play Integration:** Seamless integration into existing CompactPCI systems with minimal configuration required. - **Low Power Consumption:** Optimized for embedded systems where power efficiency and thermal management are critical. - **Driver and OS Support:** Compatible with major operating systems used in industrial computing, including Windows Embedded, Linux, and real-time operating systems (RTOS).

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **High-Performance Graphics Controller:** Utilizes the **SMI Lynx3DM SM721** chipset, a proven embedded graphics processor known for its stability and low power consumption. - **Dedicated 4 MB VRAM:** Provides sufficient video memory for smooth rendering of 2D and 3D graphics in industrial and embedded applications. - **Multiple Display Resolutions:** - Up to **1024 × 768 pixels at 24-bit color depth** - Up to **1280 × 1024 pixels at 16-bit color depth** - Up to **1600 × 1200 pixels at 16-bit color depth** - **Dual Display Output:** Supports both **LCD and VGA** interfaces, allowing flexible display configurations for panel-mounted or external monitors. - **CompactPCI Form Factor:** Fully compliant with the **CompactPCI (cPCI) standard**, ensuring compatibility with a wide range of industrial backplanes and systems. - **Compact Design:** Measures **160 mm × 100 mm**, optimized for embedded and rack-mounted systems with limited space. - **Industrial-Grade Reliability:** Designed for continuous operation in demanding environments, offering stable performance and long product lifecycle support. - **Plug-and-Play Integration:** Seamless integration into existing CompactPCI systems with minimal configuration required.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **High-Performance Graphics Controller:** Equipped with the **SMI Lynx3DM SM721** chipset, offering efficient 2D and 3D graphics acceleration suitable for embedded visualization and control interfaces. - **Dedicated Video Memory:** Integrated **4 MB VRAM** ensures stable and high-speed frame buffering for smooth image rendering and display performance. - **Multiple Display Resolutions:** Supports a range of resolutions including **1024×768 at 24-bit color depth**, **1280×1024**, and **1600×1200 at 16-bit color depth**, providing flexibility for various display requirements. - **Rear I/O Connectivity:** Designed for **rear I/O output**, enabling clean front-panel layouts and improved cable management in CompactPCI chassis. - **CompactPCI Form Factor:** Fully compliant with the **CompactPCI (cPCI) standard**, ensuring compatibility with standard backplanes and system architectures. - **Industrial-Grade Design:** Engineered for reliability and long-term operation in demanding environments, with robust construction and stable thermal performance. - **Compact Dimensions:** Measuring **160 mm × 100 mm**, the card fits standard 3U CompactPCI slots, optimizing space utilization in embedded systems. - **High Color Fidelity:** Supports up to **24-bit true color** for vivid and accurate image reproduction. - **Low Power Consumption:** Optimized for embedded systems where power efficiency and thermal management are critical. - **ADLINK Quality Assurance:** Backed by ADLINK’s reputation for industrial-grade reliability, lifecycle support, and compliance with embedded computing standards.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **64-bit PCI Bus Interface:** Supports full 64-bit PCI signaling for high-bandwidth data transfer between the CompactPCI backplane and the PMC module. - **PMC Expansion Capability:** Provides one standard PMC site compliant with IEEE 1386.1, allowing integration of a wide range of PMC I/O and processing modules. - **Compact 3U Form Factor:** Designed for 3U CompactPCI systems, measuring 160 mm x 100 mm, ensuring compatibility with standard CompactPCI chassis and backplanes. - **High-Speed Data Throughput:** Optimized for 64-bit, 33/66 MHz PCI operation, enabling efficient communication between the host CPU and PMC devices. - **Industrial-Grade Design:** Built for rugged environments with high mechanical stability and reliable signal integrity. - **Flexible System Integration:** Enables system designers to add custom or third-party PMC modules for specialized functions such as data acquisition, communication, or signal processing. - **ADLINK Quality and Support:** Backed by ADLINK’s extensive experience in embedded computing and industrial-grade hardware design.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

PMC VGA module

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **Fast Ethernet Connectivity:** Supports IEEE 802.3 10/100 Mbps Ethernet standards for high-speed data transfer. - **PMC Form Factor:** Compliant with the PCI Mezzanine Card (PMC) specification, ensuring compatibility with a wide range of embedded and industrial computing platforms. - **Compact and Modular Design:** Enables flexible integration into systems with limited space, ideal for embedded and ruggedized environments. - **High Reliability:** Designed for continuous operation in mission-critical applications, with robust electrical and mechanical design. - **Low Power Consumption:** Optimized for energy-efficient operation, reducing thermal load in embedded systems. - **Plug-and-Play Integration:** Supports automatic configuration and detection by the host system’s operating environment. - **Broad OS Compatibility:** Compatible with major operating systems such as Windows, Linux, and real-time operating systems (RTOS) commonly used in embedded applications. - **Industrial-Grade Components:** Built with high-quality components to ensure long-term reliability and extended product lifecycle. - **Flexible Network Configuration:** Supports full-duplex and half-duplex operation modes, auto-negotiation, and flow control. - **Diagnostic and Management Features:** Includes link/activity LEDs and optional software utilities for monitoring and configuration.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **High-Speed Networking:** Supports **Gigabit Ethernet (10/100/1000 Mbps)** operation for fast and efficient data transfer. - **Intel 8254GC Controller:** Utilizes the **Intel 8254GC Gigabit Ethernet controller**, known for its stability, low CPU utilization, and advanced offload capabilities. - **PMC Form Factor:** Compliant with **IEEE P1386.1 PCI Mezzanine Card (PMC)** standard, ensuring compatibility with a wide range of carrier boards and embedded systems. - **Dual or Single Port Configuration:** Depending on variant, supports one or two independent Gigabit Ethernet ports for flexible network topologies. - **Advanced Network Features:** - VLAN tagging (IEEE 802.1Q) - Jumbo frame support (up to 9 KB) - TCP/UDP/IP checksum offload - Interrupt moderation and adaptive interrupt coalescing - IEEE 802.3x full-duplex flow control - **Low Power Consumption:** Optimized for embedded and rugged environments with efficient power management. - **Wide Operating Temperature Range:** Designed for industrial-grade operation in extended temperature conditions. - **Driver Support:** Compatible with major operating systems including **Windows, Linux, and VxWorks**, with native driver support for Intel Ethernet controllers. - **Rugged and Reliable:** Built with high-quality components for long-term deployment in mission-critical systems.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards

- **Comprehensive System Diagnostics:** Provides real-time monitoring of system parameters, including voltage levels, temperature, communication integrity, and module health. - **Modular Integration:** Fully compatible with PMC modular systems, allowing seamless integration into existing PMC-based architectures. - **High Reliability:** Designed for continuous operation in industrial environments with robust protection against electrical noise, vibration, and temperature fluctuations. - **Advanced Fault Detection:** Supports predictive diagnostics and early fault detection algorithms to prevent unplanned downtime. - **Data Logging and Reporting:** Capable of storing diagnostic data locally and transmitting it to supervisory systems for analysis and maintenance planning. - **Flexible Communication Interfaces:** Supports standard industrial communication protocols (e.g., CAN, Modbus, Ethernet-based protocols) for integration with PLCs, SCADA, and MES systems. - **User-Configurable Parameters:** Allows customization of diagnostic thresholds, alarm levels, and reporting intervals. - **Firmware Upgradable:** Supports field firmware updates to ensure compatibility with evolving system requirements. - **LED Indicators and Status Display:** Provides visual feedback for power, communication, and fault conditions. - **Compact and Rugged Design:** Optimized for panel or rack mounting in industrial control cabinets.

Manufacturer: Adlink Technology Inc.

Category: cPCI Interface Cards
