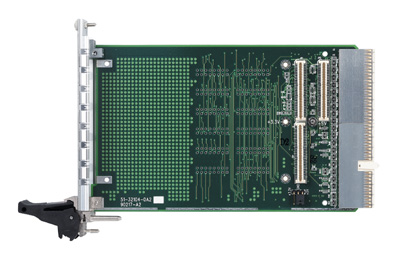

cPCI-8301
cPCI PMC 64bit carrier board
218,00 EUR
including VAT 259.42 EUR
- 64-bit PCI Bus Interface: Supports full 64-bit PCI signaling for high-bandwidth data transfer between the CompactPCI backplane and the PMC module.
- PMC Expansion Capability: Provides one standard PMC site compliant with IEEE 1386.1, allowing integration of a wide range of PMC I/O and processing modules.
- Compact 3U Form Factor: Designed for 3U CompactPCI systems, measuring 160 mm x 100 mm, ensuring compatibility with standard CompactPCI chassis and backplanes.
- High-Speed Data Throughput: Optimized for 64-bit, 33/66 MHz PCI operation, enabling efficient communication between the host CPU and PMC devices.
- Industrial-Grade Design: Built for rugged environments with high mechanical stability and reliable signal integrity.
- Flexible System Integration: Enables system designers to add custom or third-party PMC modules for specialized functions such as data acquisition, communication, or signal processing.
- ADLINK Quality and Support: Backed by ADLINK’s extensive experience in embedded computing and industrial-grade hardware design.
- PMC Expansion Capability: Provides one standard PMC site compliant with IEEE 1386.1, allowing integration of a wide range of PMC I/O and processing modules.
- Compact 3U Form Factor: Designed for 3U CompactPCI systems, measuring 160 mm x 100 mm, ensuring compatibility with standard CompactPCI chassis and backplanes.
- High-Speed Data Throughput: Optimized for 64-bit, 33/66 MHz PCI operation, enabling efficient communication between the host CPU and PMC devices.
- Industrial-Grade Design: Built for rugged environments with high mechanical stability and reliable signal integrity.
- Flexible System Integration: Enables system designers to add custom or third-party PMC modules for specialized functions such as data acquisition, communication, or signal processing.
- ADLINK Quality and Support: Backed by ADLINK’s extensive experience in embedded computing and industrial-grade hardware design.
1. Product Overview
Product Name: cPCI-8301
Model: cPCI-8301
Series: CompactPCI (cPCI) PMC Carrier Board Series
Article Number: cPCI-8301
Manufacturer: ADLINK Technology Inc.
The ADLINK cPCI-8301 is a CompactPCI (cPCI) PMC 64-bit carrier board designed to integrate PCI Mezzanine Card (PMC) modules into CompactPCI systems. It serves as a bridge between the CompactPCI backplane and PMC expansion modules, enabling system integrators to expand I/O capabilities, add specialized interfaces, or incorporate custom functionality within a standardized 3U CompactPCI form factor. With a compact footprint of 160 mm x 100 mm, the cPCI-8301 provides a robust, high-performance platform for embedded computing, industrial automation, telecommunications, and defense applications where modularity, reliability, and high data throughput are essential.
2. Key Features
- 64-bit PCI Bus Interface: Supports full 64-bit PCI signaling for high-bandwidth data transfer between the CompactPCI backplane and the PMC module.
- PMC Expansion Capability: Provides one standard PMC site compliant with IEEE 1386.1, allowing integration of a wide range of PMC I/O and processing modules.
- Compact 3U Form Factor: Designed for 3U CompactPCI systems, measuring 160 mm x 100 mm, ensuring compatibility with standard CompactPCI chassis and backplanes.
- High-Speed Data Throughput: Optimized for 64-bit, 33/66 MHz PCI operation, enabling efficient communication between the host CPU and PMC devices.
- Industrial-Grade Design: Built for rugged environments with high mechanical stability and reliable signal integrity.
- Flexible System Integration: Enables system designers to add custom or third-party PMC modules for specialized functions such as data acquisition, communication, or signal processing.
- ADLINK Quality and Support: Backed by ADLINK’s extensive experience in embedded computing and industrial-grade hardware design.
3. Technical Specifications
- Form Factor: 3U CompactPCI (cPCI)
- Board Dimensions: 160 mm (L) x 100 mm (H)
- Bus Interface: 64-bit PCI bus, compliant with CompactPCI specifications (PICMG 2.0 Rev. 3.0)
- PMC Interface: One standard PMC site, compliant with IEEE 1386.1
- Bus Speed: 33/66 MHz PCI operation
- Connector Type: CompactPCI J1/J2 connectors for backplane interface; PMC connectors (P11–P14) for mezzanine module interface
- Power Requirements: Derived from CompactPCI backplane (typical 5V and 3.3V rails)
- Operating Temperature: Typically 0°C to +60°C (industrial-grade variants may support extended ranges)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95%, non-condensing
- Weight: Approximately 200–250 g (depending on configuration and installed PMC module)
- Material: Multi-layer PCB with high-quality FR-4 substrate, gold-plated edge connectors, and industrial-grade components
4. Functionality
The cPCI-8301 functions as a carrier board that allows a PMC module to interface directly with a CompactPCI system. It translates the electrical and mechanical interfaces between the CompactPCI backplane and the PMC mezzanine card, enabling seamless communication and integration.
Operational Principle:
- The CompactPCI backplane provides the main system bus and power.
- The cPCI-8301 connects to the backplane through its J1/J2 connectors.
- The PMC module is mounted onto the cPCI-8301 via the PMC connectors (P11–P14).
- The board routes PCI signals between the CompactPCI bus and the PMC module, allowing the host CPU to access the PMC device as if it were a native CompactPCI peripheral.
Use Cases and Applications:
- Industrial Automation: Integration of specialized I/O modules such as analog/digital converters, motion controllers, or fieldbus interfaces.
- Telecommunications: Addition of network interface modules, protocol processors, or communication controllers.
- Defense and Aerospace: Deployment of ruggedized PMC modules for signal processing, radar, or avionics data handling.
- Data Acquisition and Control: Expansion of CompactPCI systems with high-speed data acquisition or control interfaces.
- Embedded Computing: Custom system configurations requiring additional processing or I/O capabilities through PMC modules.
Compatibility:
- Compatible with standard 3U CompactPCI chassis and backplanes.
- Supports a wide range of PMC modules from ADLINK and third-party vendors.
- Compliant with IEEE 1386.1 and PICMG 2.0 standards for mechanical and electrical interoperability.
5. Components & Accessories
Included Components:
- cPCI-8301 carrier board (main unit)
- User documentation or quick installation guide (depending on shipment)
Optional Accessories:
- PMC modules (sold separately) for various I/O or processing functions
- Front panel I/O bracket (depending on PMC module configuration)
- Mounting screws and standoffs for secure PMC installation
- Optional transition modules for rear I/O connectivity (if supported by system)
Connectors and Interfaces:
- CompactPCI Connectors: J1 and J2 for backplane interface
- PMC Connectors: P11–P14 for mezzanine module interface
- Front Panel Interface: Dependent on installed PMC module; may include Ethernet, serial, or custom I/O ports
- Power and Signal Routing: Fully compliant with CompactPCI power distribution and signal mapping
6. Installation & Setup
Requirements:
- Compatible 3U CompactPCI chassis with available slot
- Supported PMC module (IEEE 1386.1 compliant)
- Proper ESD handling equipment and environment
Installation Steps:
1. Power down the CompactPCI system and disconnect power.
2. Insert the PMC module onto the cPCI-8301 carrier board, aligning the connectors carefully.
3. Secure the PMC module using the provided screws and standoffs.
4. Insert the assembled cPCI-8301 with PMC module into an available CompactPCI slot.
5. Ensure proper seating of the J1/J2 connectors into the backplane.
6. Power on the system and verify that the PMC module is recognized by the host CPU.
Mounting Options:
- Standard front insertion into CompactPCI chassis
- Optional rear I/O support depending on system configuration
Configuration:
- No special configuration required for basic operation; the carrier board transparently bridges PCI signals.
- System BIOS or operating system automatically enumerates the PMC device as a PCI peripheral.
7. Performance & Capabilities
- Bus Bandwidth: Up to 533 MB/s (64-bit, 66 MHz PCI)
- Signal Integrity: Optimized PCB layout for minimal crosstalk and impedance control
- Latency: Low-latency signal routing between CompactPCI and PMC interfaces
- Power Efficiency: Efficient power distribution from backplane to PMC module
- Reliability: Designed for continuous operation in industrial environments
- Limitations:
- Supports one PMC module per carrier board
- Limited to CompactPCI systems with 3U slots
- Dependent on host system’s PCI bus speed and PMC module capabilities
Performance Highlights:
- High data throughput suitable for demanding I/O and processing tasks
- Stable operation under extended temperature and vibration conditions
- Scalable architecture allowing multiple cPCI-8301 boards in a single system for expanded functionality
8. Standards & Compliance
- CompactPCI Compliance: PICMG 2.0 Rev. 3.0
- PMC Compliance: IEEE 1386.1 (PCI Mezzanine Card standard)
- Electrical Compliance: PCI Local Bus Specification Rev. 2.2
- Mechanical Compliance: CompactPCI 3U mechanical dimensions (160 mm x 100 mm)
- Environmental Compliance:
- RoHS compliant (Restriction of Hazardous Substances)
- CE and FCC Class A (typical for industrial computing products)
- Quality Assurance: Manufactured under ISO 9001-certified processes
- Safety Standards: Designed to meet EN 60950 or equivalent safety requirements for industrial electronics
9. Additional Information
Warranty:
- Standard ADLINK limited warranty (typically 2 years, depending on region and distributor)
- Covers defects in materials and workmanship under normal operating conditions
Support:
- Comprehensive technical support from ADLINK, including documentation, driver updates, and integration assistance
- Access to online resources, datasheets, and application notes
Maintenance:
- Minimal maintenance required; periodic inspection for dust and connector integrity recommended
- Ensure proper airflow and cooling within the CompactPCI chassis for optimal performance
Firmware and Software Updates:
- The cPCI-8301 itself does not require firmware updates; functionality depends on the installed PMC module
- PMC modules may require driver or firmware updates provided by their respective manufacturers
Lifecycle and Availability:
- Long product lifecycle support typical of ADLINK’s industrial product lines
- Designed for embedded and industrial markets with extended availability and revision control
Summary:
The ADLINK cPCI-8301 CompactPCI PMC 64-bit Carrier Board is a robust, high-performance solution for integrating PMC modules into CompactPCI systems. With its 64-bit PCI interface, 3U form factor, and compliance with industry standards, it offers system designers a flexible and reliable platform for expanding system functionality. Whether used in industrial automation, telecommunications, or defense applications, the cPCI-8301 delivers dependable performance, modular scalability, and long-term support consistent with ADLINK’s reputation for quality embedded computing solutions.
