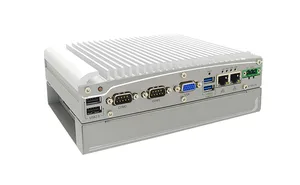

- **Purpose‑Built for Nuvo‑2500 Series:** Designed specifically for Nuvo‑2500E, Nuvo‑2500P, Nuvo‑2510VTC, and Nuvis‑2520at models. - **Industrial‑Grade Construction:** Fabricated from durable metal alloy to withstand vibration, shock, and temperature extremes. - **DIN‑Rail Compatibility:** Supports standard 35 mm DIN‑rail profiles (EN 60715). - **Quick Installation:** Allows tool‑assisted or tool‑free mounting and removal for maintenance or system replacement. - **Secure Locking Mechanism:** Ensures stable attachment under vibration up to 5 Grms and shock up to 50 Grms (as per IEC 60068‑2‑64/‑27). - **Compact Integration:** Maintains the Nuvo‑2500’s small footprint (205 × 145 × 73 mm) and allows vertical or horizontal orientation. - **Thermal Efficiency:** Mounting orientation supports optimal heat dissipation for fanless operation. - **Corrosion‑Resistant Finish:** Surface treated for long‑term reliability in industrial and vehicular environments. - **Ease of Access:** Provides unobstructed access to front and rear I/O panels once installed. - **Optional Accessory:** Supplied separately from the base system; can be ordered as part of the accessory kit.

Manufacturer: Neousys Technology

Category: Nuvo-2000-Series and others

- **High‑Performance Intel® Core™ i7/i5 Mobile Processors:** Supports Intel® Core™ i7‑620M (2.66 GHz), i5‑520M (2.4 GHz), and Celeron® P4500 (1.86 GHz) processors, with additional compatibility for other i7/i5/i3/Pentium/Celeron mobile CPUs in rPGA988 package. - **Fanless, Rugged Design:** Completely fanless aluminum housing ensures silent operation, extended MTBF, and resistance to dust, vibration, and shock. Ideal for harsh industrial environments. - **Triple Gigabit Ethernet Ports:** Three independent Intel® 82574L Gigabit Ethernet controllers, each with a dedicated PCI Express link for maximum throughput and network isolation. - **Dual Display Support:** Simultaneous VGA and DVI‑D/HDMI outputs supporting resolutions up to 2560 × 1600 (VGA) and 1920 × 1080 (DVI/HDMI). - **Rich I/O Connectivity:** Includes 6 × USB 2.0, 2 × eSATA, 4 × COM (3 × RS‑232, 1 × RS‑232/422/485), PS/2 keyboard and mouse, audio I/O, and CompactFlash Type I socket. - **Flexible Power Input:** Wide‑range 8 – 26 V DC input via 4‑pin terminal block with remote on/off control, or 12 V DC jack for AC/DC adapter. - **Extended Temperature Operation:** Reliable performance from –20 °C to +70 °C (operating) and –40 °C to +85 °C (storage). - **Industrial‑Grade Durability:** Vibration tolerance up to 5 Grms (5–500 Hz, 3 axes) and shock resistance up to 50 Grms (11 ms half‑sine). - **Compact, Wall‑Mountable Form Factor:** Dimensions 240 × 195 × 76 mm, weight 2.7 kg, with included wall‑mount brackets. - **Optional Digital I/O Expansion:** Isolated 8 × DI and 8 × DO (24 V) via optional DB‑25 connector. - **Power Management and Remote Control:** Supports AT/ATX power modes, Wake‑on‑LAN (WOL), and remote on/off control through terminal block. - **Operating System Compatibility:** Verified support for Windows XP, Windows 7 (32/64‑bit), and Linux distributions (Ubuntu 10.04 LTS, Fedora 13).

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Fanless Industrial Design:** The EC-3000-3G4500 employs a fanless architecture for silent operation and enhanced reliability in dusty or vibration-prone environments. - **Intel® Celeron® P4500 Processor:** Dual-core 1.86 GHz CPU with low power consumption, ideal for embedded and industrial control applications. - **Intel® HM55 Chipset:** Provides stable platform support for DDR3 memory and integrated graphics. - **Triple Gigabit Ethernet Ports:** Three Intel® 82574L GbE controllers, each with dedicated PCI Express lanes for maximum throughput and network isolation. - **Dual Display Support:** Simultaneous VGA and DVI/HDMI outputs for flexible display configurations, supporting resolutions up to 2560×1600 (VGA) and 1920×1080 (DVI/HDMI). - **Rich I/O Connectivity:** Includes 6× USB 2.0, 2× eSATA, 4× COM ports (1× RS-232/422/485, 3× RS-232), PS/2 keyboard/mouse, audio I/O, and CompactFlash slot. - **Wide Power Input Range:** Accepts 8–28 VDC input via 4-pin terminal block or 12 VDC via DC jack. - **Rugged Environmental Tolerance:** Operates from -20°C to +70°C, vibration resistance up to 5 Grms, and shock resistance up to 50 Grms. - **Compact and Durable Construction:** Aluminum housing with dimensions of 240 × 195 × 76 mm and weight of 2.7 kg. - **Flexible Mounting Options:** Wall-mount brackets included for industrial deployment. - **Optional Digital I/O Expansion:** Supports isolated 8×DI and 8×DO (24V) via DB25 connector. - **Power Management Flexibility:** Supports AT/ATX power modes, remote on/off control, and Wake-on-LAN (WOL). - **Operating System Compatibility:** Supports Windows XP, Windows 7 (32/64-bit), and major Linux distributions (Ubuntu, Fedora).

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Intel® Core™ i5‑520M Processor (2.4 GHz)** with dual‑core architecture and integrated Intel® HD Graphics. - **Fanless Design:** Passive aluminum heat‑sink chassis ensures silent operation and long‑term reliability in harsh environments. - **Wide Temperature Range:** Operates from ‑20 °C to +70 °C without active cooling. - **Multiple Gigabit Ethernet Ports:** Three Intel® 82574L GbE controllers (expandable to five in EC‑3000‑5G variant) for high‑speed networking, redundancy, or multi‑camera connectivity. - **Dual Display Output:** Supports simultaneous VGA (up to 2560 × 1600) and DVI‑D/HDMI (up to 1920 × 1080) outputs. - **Rich I/O Connectivity:** - 6 × USB 2.0 ports - 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485 software‑selectable) - 2 × eSATA ports - 1 × CompactFlash Type I socket - 1 × PS/2 keyboard and 1 × PS/2 mouse port - 1 × Mic‑in and 1 × Speaker‑out - **Flexible Power Input:** 8 – 26 V DC via 4‑pin terminal block or 12 V DC via 2.5 mm jack. - **AT/ATX Power Modes:** Selectable via jumper for remote or local power control. - **Wake‑on‑LAN (WOL) and PXE Boot Support:** Enables remote startup and network‑based management. - **Rugged Construction:** Aluminum housing, vibration‑resistant (5 Grms), and shock‑resistant (50 Grms). - **Compact Dimensions:** 240 mm (W) × 195 mm (D) × 76 mm (H); weight 2.7 kg. - **Pre‑installed 2 GB DDR3 Memory and HDD.**

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **High-Performance Processing:** Supports Intel® Core™ i7/i5 mobile processors (i7-620M, i5-520M, Celeron P4500) with clock speeds up to 2.66 GHz, providing strong computational capability for arithmetic-intensive and control applications. - **Fanless Thermal Design:** Completely fanless aluminum chassis ensures silent operation, long-term reliability, and resistance to vibration and dust ingress. - **Multiple Gigabit Ethernet Ports:** Equipped with five independent Intel® 82574L Gigabit Ethernet controllers, each with a dedicated PCI Express link for maximum throughput and network isolation. - **Dual Display Output:** Supports simultaneous VGA and DVI-D/HDMI outputs, enabling dual-display configurations up to 2560×1600 (VGA) and 1920×1080 (DVI/HDMI). - **Rich I/O Connectivity:** Includes 6× USB 2.0 ports, 4× COM ports (1× RS-232/422/485 programmable, 3× RS-232), 2× eSATA ports, 1× CompactFlash Type I socket, and PS/2 keyboard/mouse connectors. - **Wide Power Input Range:** Accepts 8–26 VDC via a 4-pin pluggable terminal block or 12 VDC via a DC jack, supporting both AT and ATX power modes. - **Rugged Environmental Tolerance:** Operates reliably in ambient temperatures from -20°C to +70°C, with vibration resistance up to 5 Grms and shock tolerance up to 50 Grms (with SSD). - **Compact and Durable Construction:** Aluminum housing with dimensions of 240 mm (W) × 195 mm (D) × 76 mm (H) and weight of 2.7 kg, suitable for wall-mount installations. - **Extended Lifecycle Support:** Compatible with Intel® Embedded Roadmap CPUs offering up to 7-year lifecycle support. - **Optional Expansion:** Mini PCIe slot for add-on modules such as video capture cards (VMX-200-4/8) or wireless communication modules. - **Industrial-Grade Reliability:** Designed for continuous operation in harsh industrial environments, including factory automation, surveillance, and transportation systems.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **High‑Performance CPU:** Equipped with Intel® Core™ i7‑620M (2.66 GHz) dual‑core processor with Hyper‑Threading and Turbo Boost technology for arithmetic‑intensive and real‑time control applications. - **Fanless Thermal Design:** Completely fanless architecture with aluminum housing for passive heat dissipation, ensuring silent operation, extended MTBF, and resistance to dust and vibration. - **Rich Network Connectivity:** Five independent Intel® 82574L Gigabit Ethernet controllers, each with a dedicated PCI Express lane, providing full‑bandwidth network throughput and support for PXE and Wake‑on‑LAN (front port only). - **Dual Display Support:** Simultaneous VGA and DVI‑D/HDMI outputs supporting resolutions up to 2560 × 1600 (VGA) and 1920 × 1080 (DVI/HDMI), ideal for visualization, HMI, and digital signage. - **Comprehensive I/O Interfaces:** Six USB 2.0 ports, two eSATA ports, four serial ports (three RS‑232, one software‑selectable RS‑232/422/485), PS/2 keyboard and mouse, audio I/O, and CompactFlash Type I socket. - **Wide‑Range DC Power Input:** Accepts 8 – 26 V DC via 4‑pin pluggable terminal block (with remote on/off control) or 12 V DC via 2.5 mm jack. Built‑in protection against over‑voltage and reverse polarity. - **Rugged Environmental Tolerance:** Operational temperature range from –20 °C to +70 °C, vibration tolerance up to 5 Grms, and shock resistance up to 50 Grms (with SSD). - **Compact Industrial Form Factor:** Dimensions 240 × 195 × 76 mm, weight 2.7 kg, wall‑mountable chassis for flexible installation in control cabinets or vehicles. - **Optional Digital I/O Expansion:** Isolated 8 × DI and 8 × DO (24 V) via DB‑25 connector available as front‑panel option. - **System Reliability Features:** Watchdog timer indicator, hardware monitoring, AT/ATX power mode selection, and BIOS‑level thermal throttling and shutdown protection.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** Compatible with Intel® Core™ i5 and i7 processors (Sandy Bridge platform) for high-performance computing in embedded and industrial applications. - **Chipset Options:** Supports Intel® QM67 or HM65 Express Chipset, providing advanced I/O capabilities and stable platform support. - **Fanless Design:** Completely fanless thermal solution for silent operation and enhanced reliability in dusty or vibration-prone environments. - **Multiple Gigabit Ethernet Ports:** Equipped with five independent Gigabit Ethernet interfaces for network redundancy, data routing, or multi-LAN applications. - LAN 1: Intel® 82579LM controller - LAN 2–5: Intel® 82574IT / 82574L / 82583V controllers - **Dual Display Output:** Supports dual independent displays via VGA and DVI/HDMI interfaces, enabling flexible visualization and monitoring setups. - **Rich I/O Connectivity:** - 6 × USB 2.0 ports for peripheral connectivity - 2 × eSATA ports for high-speed external storage - 4 × COM ports (3 × RS-232, 1 × configurable RS-232/422/485) for serial communication - 8 × Digital Inputs (DI) and 8 × Digital Outputs (DO) for industrial control integration - **Power Flexibility:** Wide-range DC power input from 6 to 36 VDC, supporting both AT and ATX power modes. - **Network Management Features:** PXE (Preboot Execution Environment) and Wake-on-LAN (WOL) support for remote management and system deployment. - **Rugged Environmental Design:** Operates reliably in extended temperature ranges from -20°C to +70°C, suitable for outdoor or industrial environments. - **Compact Form Factor:** Space-efficient design with dimensions of 232 mm × 170 mm, optimized for embedded and space-constrained installations. - **Industrial Reliability:** Designed for 24/7 operation, shock and vibration resistance, and long lifecycle support.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **High Power Output:** Delivers up to **60 watts** of continuous DC power for EC-Systems devices. - **Universal AC Input:** Supports a wide input voltage range (typically **100–240 VAC**, 50/60 Hz), enabling global compatibility. - **Stable DC Output:** Provides regulated DC output voltage (commonly **12V DC** or **19V DC**, depending on configuration) with low ripple and noise. - **High Efficiency:** Designed for energy efficiency, typically achieving **>85% conversion efficiency**, reducing heat generation and energy loss. - **Compact External Design:** External adapter form factor minimizes internal heat buildup in host systems and simplifies replacement or upgrades. - **Overload and Short-Circuit Protection:** Integrated protection circuits safeguard both the adapter and connected devices from electrical faults. - **Overvoltage and Overcurrent Protection:** Ensures safe operation under varying load conditions. - **Thermal Protection:** Automatically limits output or shuts down under excessive temperature conditions to prevent damage. - **LED Power Indicator:** Visual confirmation of power status for quick diagnostics. - **Compliance with Safety Standards:** Meets international safety and EMC standards for industrial and commercial environments. - **Plug-and-Play Compatibility:** Designed for seamless integration with EC-Systems hardware without additional configuration. - **Durable Construction:** Built with high-quality materials for long service life and consistent performance in demanding environments.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** Intel® 2nd Gen Core™ i7‑2710QE, i5‑2510E, i3‑2330E, or Celeron® B810 mobile CPUs. - **Chipset:** Intel® QM67 Express Chipset. - **Fanless Operation:** Passive cooling design for silent, maintenance‑free operation from ‑25 °C to +70 °C. - **Triple Gigabit Ethernet:** Three independent Intel® 82574L GbE controllers for network redundancy or multi‑LAN applications. - **Dual Display Output:** Simultaneous VGA and DVI‑D/HDMI outputs powered by Intel® HD Graphics 3000. - **Wide Power Input Range:** 6 V – 36 V DC input with 80 V surge protection for automotive and industrial power systems. - **Rich I/O Connectivity:** - 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485) - 6 × USB 2.0 ports - 2 × eSATA ports - 16 × GPIO (8 DI / 8 DO) - 1 × CFast slot (front‑accessible, hot‑swappable) - **Expansion Capability:** Two Mini‑PCIe slots, one with integrated SIM card socket for 3G/4G/LTE/Wi‑Fi/GPRS/UMTS modules. - **Storage Flexibility:** Two internal 2.5″ SATA III (6 Gb/s) drive bays for SSD/HDD plus external eSATA. - **Audio:** Realtek ALC892 5.1‑channel HD audio codec with line‑in, line‑out, and mic‑in. - **Rugged Design:** Aluminum housing, vibration and shock resistance compliant with IEC 60068‑2‑64 and IEC 60068‑2‑27. - **Certifications:** CE, FCC, RoHS, EN 50155, EN 50121‑3‑2 for railway and industrial EMC compliance. - **Compact Form Factor:** 260 mm (W) × 175 mm (D) × 78 mm (H), weight 2.8 kg.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 2nd Generation Intel® Core™ i7/i5/i3 and Celeron® Mobile (Sandy Bridge) CPUs. - **Chipset:** Intel® QM67 Express Chipset. - **Memory:** Dual 204-pin SO-DIMM slots supporting up to 16GB DDR3 1333/1066MHz. - **Fanless Design:** Completely fanless aluminum chassis for silent operation and enhanced durability. - **Triple Gigabit Ethernet:** 3x Intel® 82574L GbE LAN ports for high-speed networking. - **Dual Removable Storage:** Two front-access 2.5” SATA III (6Gbps) HDD/SSD bays with key locks for secure and easy maintenance. - **Dual Display Output:** VGA + DVI-D/HDMI with Intel® GMA HD 3000 graphics supporting resolutions up to 2048x1536 (VGA) and 1920x1200 (DVI-D/HDMI). - **Expansion Capability:** Two Mini PCIe slots with one SIM card socket for wireless or I/O expansion. - **Comprehensive I/O:** 6x USB 2.0, 4x COM ports (3x RS-232, 1x RS-232/422/485), 2x eSATA, external CFast slot (hot-swappable). - **Wide Power Input:** 6–36V DC input range with built-in DC/DC converter; optional 90W AC/DC adapter. - **Rugged Environmental Tolerance:** Operating temperature -25°C to +70°C, vibration and shock resistance per IEC60068 standards. - **Certifications:** CE, FCC, RoHS, EN50155, EN50121-3-2 for railway and industrial compliance. - **Compact Form Factor:** 260mm (W) x 175mm (D) x 78mm (H), 2.8kg aluminum chassis. - **Watchdog Timer:** Programmable 1–255 sec/min intervals for system recovery. - **Applications:** Ideal for in-vehicle computing, industrial automation, digital signage, surveillance, and environmental monitoring.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **High-Performance Embedded Computing:** Supports 2nd Generation Intel® Core™ i7/i5/i3 and Celeron® Sandy Bridge mobile processors, offering multi-core performance, Intel® Turbo Boost, and virtualization technologies. - **Fanless, Rugged Design:** Operates reliably in extended temperature ranges from -25°C to +70°C, with vibration and shock resistance compliant with IEC60068-2-64 and IEC60068-2-27 standards. - **Integrated Video Capture:** Built-in 4-channel D1 video capture card supporting NTSC (120 fps) and PAL (100 fps) systems, with 4 BNC video inputs and 4 RCA audio inputs for real-time video and audio acquisition. - **Rich I/O Connectivity:** Includes 3 Gigabit Ethernet ports (Intel® 82574L), 4 COM ports (3x RS-232, 1x RS-232/422/485), 6 USB 2.0 ports, 2 eSATA ports, and an external CFast slot for hot-swappable storage. - **Dual Display Support:** Integrated Intel® GMA HD 3000 graphics engine supports dual independent displays via VGA and DVI-D/HDMI outputs, with resolutions up to 2048x1536 (VGA) and 1920x1200 (DVI-D/HDMI). - **Flexible Expansion:** Two Mini PCIe slots with one SIM card socket allow for wireless, 3G, or Wi-Fi module integration. - **Wide Power Input Range:** Accepts 6–36 VDC input via DC jack or terminal block, suitable for vehicle and industrial power systems. - **Comprehensive System Monitoring:** Hardware watchdog timer and thermal monitoring ensure system stability and automatic recovery from faults.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 2nd Gen Intel® Core™ i7/i5/i3/Celeron® Mobile (Sandy Bridge) CPUs, up to 45W TDP. - **Chipset:** Intel® QM67 Express Chipset. - **Memory:** Dual 204-pin DDR3 SO-DIMM sockets, supporting up to 16GB DDR3 1333/1066MHz. - **Fanless Design:** Completely fanless aluminum chassis for silent, maintenance-free operation. - **Networking:** 5 Gigabit Ethernet ports (4x Intel® 82574L + 1x Intel® 82579LM) with Intel® AMT 7.0 support. - **Display:** Dual independent display outputs (VGA + DVI-D/HDMI) powered by Intel® GMA HD 3000 graphics. - **Storage:** Dual 2.5” SATA III (6Gbps) HDD/SSD bays, external hot-swappable CFast slot, and dual eSATA ports. - **Expansion:** Two Mini PCIe slots (one with SIM socket) for wireless, 3G, or additional I/O modules. - **Serial Communication:** 3x RS-232 and 1x RS-232/422/485 configurable port. - **Audio:** Realtek ALC892 5.1-channel HD Audio codec with line-in, line-out, and mic-in. - **Power Input:** Wide-range 6–36V DC input via terminal block or DC jack. - **Environmental Robustness:** Operating temperature -25°C to +70°C, vibration 5Grms, shock 50Grms. - **Certifications:** CE, FCC, RoHS, EN50155, EN50121-3-2 (railway and industrial compliance). - **Mounting:** Wall-mountable with included brackets.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor:** 2nd Generation Intel® Core™ i5-2510E (Sandy Bridge, 35W TDP) - **Chipset:** Intel® QM67 Express - **Memory:** 8GB DDR3 1333/1066MHz SO-DIMM (expandable to 16GB) - **Storage:** Dual 2.5" SATA III (6Gbps) HDD/SSD bays, external CFast slot (hot-swappable), and dual eSATA ports - **Networking:** 5 Gigabit Ethernet ports (4× Intel® 82574L + 1× Intel® 82579LM with Intel® AMT 7.0 support) - **Display:** Dual independent display support via VGA and DVI-D/HDMI, powered by Intel® GMA HD 3000 graphics - **Expansion:** 2 Mini PCIe slots with 1 SIM card socket; optional SUMIT A/B expansion (on 5GDE variant) - **I/O Interfaces:** 6× USB 2.0, 4× COM (3× RS-232, 1× RS-232/422/485), 8× DI/8× DO (on 5GD/5GDE models) - **Audio:** Realtek ALC892 5.1-channel HD Audio (Line-in, Line-out, Mic-in) - **Power Input:** Wide-range 6–36 VDC input with built-in DC/DC converter - **Construction:** Rugged fanless aluminum housing, wall-mountable - **Environmental Tolerance:** Operating temperature -25°C to +70°C; vibration and shock resistant - **Certifications:** CE, FCC, RoHS, EN50155, EN50121-3-2

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **High-Performance Embedded Computing:** Powered by the 2nd Gen Intel® Core™ i7-2710QE (quad-core, 45W TDP), supporting Intel® AMT 7.0 for remote management and system monitoring. - **Fanless Rugged Design:** Operates reliably in harsh environments with a wide temperature range of **-25°C to +70°C**, vibration resistance up to **5 Grms**, and shock tolerance up to **50 Grms**. - **Multiple Gigabit Ethernet Ports:** Equipped with **five independent GbE ports** (4x Intel® 82574L + 1x Intel® 82579LM) for high-bandwidth networking, redundancy, or multi-LAN applications. - **Dual Display Support:** Integrated Intel® GMA HD 3000 graphics with **VGA + DVI-D/HDMI** outputs, supporting resolutions up to **2048×1536 (VGA)** and **1920×1200 (DVI-D/HDMI)**. - **Flexible Storage Options:** Supports **two 2.5” SATA III (6Gbps) HDD/SSD bays**, **two eSATA ports**, and an **external hot-swappable CFast slot** for removable storage. - **Rich I/O Connectivity:** Includes **6× USB 2.0**, **4× COM ports (3× RS-232, 1× RS-232/422/485)**, **audio I/O**, and **GPIO (8 DI / 8 DO)** for industrial control. - **Expansion Capability:** Two **Mini PCIe slots** with one **SIM card socket** for wireless modules (Wi-Fi, 3G, LTE), and optional **SUMIT A/B** expansion (on ECS-5600-5GDE variant). - **Wide Power Input Range:** Accepts **6–36 VDC** input via DC jack or terminal block, with optional **90W AC/DC adapter (PWA-90W)**. - **Comprehensive System Protection:** Integrated **watchdog timer (1–255 sec/min)**, **hardware monitoring**, and **auto-throttling** for thermal protection. - **Certifications:** CE, FCC, RoHS, EN50155, and EN50121-3-2 compliant for industrial and transportation standards.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 2nd Gen Intel® Core™ i7/i5/i3 and Celeron® Mobile (Sandy Bridge) CPUs, including embedded-grade i7-2710QE, i5-2510E, i3-2330E, and Celeron B810. - **Chipset:** Intel® QM67 Express, optimized for embedded and mobile computing. - **Memory:** Dual 204-pin DDR3 SO-DIMM slots supporting up to 16GB DDR3 1333/1066 MHz. - **Fanless Design:** Completely fanless thermal solution for silent, maintenance-free operation in harsh environments. - **Networking:** Five independent Gigabit Ethernet ports (4× Intel® 82574L + 1× Intel® 82579LM) with Intel® AMT 7.0 remote management support. - **Isolated Digital I/O:** 8 isolated digital inputs and 8 isolated digital outputs (5V logic level, 2.5kV isolation). - **Display:** Dual independent display outputs via VGA and DVI-D/HDMI, powered by Intel® GMA HD 3000 graphics with up to 1.7GB shared memory. - **Storage:** Two internal 2.5" SATA III (6Gbps) HDD/SSD bays, external hot-swappable CFast slot, and two eSATA ports. - **Expansion:** Two Mini PCIe slots (one with SIM card socket) for wireless, 3G, or additional I/O modules. - **Audio:** Realtek ALC892 5.1-channel HD audio codec with line-in, line-out, and mic-in. - **Power Input:** Wide-range 6–36V DC input with built-in protection; optional 90W AC/DC adapter. - **Environmental Tolerance:** Operating temperature from -25°C to +70°C, vibration resistance up to 5 Grms, and shock tolerance up to 50 Grms. - **Certifications:** CE, FCC, RoHS, EN50155, and EN50121-3-2 compliance for industrial and railway applications.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 2nd Gen Intel® Core™ i7/i5/i3 and Celeron® Mobile (Sandy Bridge) CPUs with embedded lifecycle support. - **Chipset:** Intel® QM67 Express Chipset for high-speed I/O and integrated graphics. - **Fanless Design:** Completely fanless thermal solution for silent, maintenance-free operation in industrial environments. - **Memory:** Dual 204-pin DDR3 SO-DIMM slots supporting up to 16GB DDR3 1333/1066MHz. - **Networking:** Five Gigabit Ethernet ports (4× Intel® 82574L + 1× Intel® 82579LM) with Intel® AMT 7.0 support for remote management. - **Expansion:** Two Mini PCIe slots (one with SIM socket) and two SUMIT™ A/B expansion slots for modular I/O or video capture cards. - **Storage:** Dual 2.5" SATA III (6Gbps) HDD/SSD bays, external hot-swappable CFast slot, and two eSATA ports. - **Display:** Dual independent display outputs (VGA + DVI-D/HDMI) powered by Intel® GMA HD 3000 graphics. - **Digital I/O:** 8 isolated digital inputs and 8 isolated digital outputs (5V) for industrial control. - **Audio:** Realtek ALC892 5.1-channel HD audio codec with line-in, line-out, and mic-in. - **Power Input:** Wide-range 6–36V DC input with optional 90W AC/DC adapter. - **Environmental Robustness:** Operating temperature from -25°C to +70°C, vibration resistance up to 5 Grms, and shock tolerance up to 50 Grms. - **Certifications:** CE, FCC, RoHS, EN50155, and EN50121-3-2 compliance for industrial and railway applications.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 2nd Gen Intel® Core™ i7/i5/i3 and Celeron® Mobile (Sandy Bridge) CPUs, socket rPGA988B. - **Chipset:** Intel® QM67 Express Chipset. - **Memory:** Dual 204-pin DDR3 SO-DIMM slots supporting up to 16GB DDR3 1333/1066MHz. - **Fanless Design:** Completely fanless aluminum chassis for silent operation and high reliability in dusty or vibration-prone environments. - **Networking:** Five independent Gigabit Ethernet ports (4x Intel® 82574L + 1x Intel® 82579LM) with Intel® AMT 7.0 support for remote management. - **Storage:** Two front-access removable 2.5" SATA III (6Gbps) HDD/SSD bays with key locks, plus two eSATA ports and an external hot-swappable CFast slot. - **Display:** Dual independent display outputs via VGA and DVI-D/HDMI, powered by Intel® GMA HD 3000 graphics (shared memory up to 1.7GB). - **Expansion:** Two Mini PCIe slots (one with SIM card socket) for wireless, 3G, or additional I/O modules. - **I/O Interfaces:** 4 COM ports (3x RS-232, 1x RS-232/422/485), 6 USB 2.0 ports, audio I/O, and GPIO (8 DI / 8 DO). - **Power Supply:** Wide-range DC input (6–36V) via DC jack or terminal block; optional 90W AC/DC adapter. - **Environmental Robustness:** Operating temperature -25°C to +70°C, vibration 5Grms, shock 50Grms, compliant with EN50155 and EN50121-3-2 railway standards. - **Management & Reliability:** Watchdog timer (1–255 sec/min), hardware monitoring, and Phoenix UEFI BIOS. - **Mounting:** Wall-mountable with included brackets.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile processors (6M Cache, up to 3.30 GHz) with rPGA988B socket. - **Chipset:** Intel® QM77 Express Chipset for high‑speed I/O and integrated graphics. - **Memory:** Dual‑channel DDR3/DDR3L SODIMM up to 16 GB (2 × 204‑pin slots, 1066/1333/1600 MHz). - **Graphics:** Integrated Intel® GMA HD 4000 GPU supporting up to three independent displays (VGA, DVI‑D, DisplayPort, LVDS). - **Networking:** Dual Intel® Gigabit Ethernet controllers (Intel® 82579LM and Intel® 82574L) with Wake‑on‑LAN and PXE boot support. - **Storage:** Two 2.5‑inch SATA III (6 Gb/s) HDD/SSD bays, one SATA II (3 Gb/s) for horizontal SATA DOM, two mSATA II (3 Gb/s) sockets, and one external CFast slot. - **Expansion:** Two Mini‑PCIe slots (one with SIM card socket) for wireless, I/O, or storage expansion. - **I/O Interfaces:** 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0, 3 × RS‑232, 1 × RS‑232/422/485, 16 GPIO, optional isolated 8 DI/8 DO. - **Audio:** Realtek ALC892 5.1‑channel HD audio codec with line‑in, line‑out, mic‑in, and front audio header. - **Power Input:** 6 – 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC). Optional 120 W AC/DC adapter (24 V / 5 A). - **Mechanical Design:** Fanless aluminum housing, wall‑mountable, compact 260 × 175 × 79 mm, 2.8 kg. - **Environmental:** Extended temperature operation (‑25 °C to +70 °C), vibration and shock resistance per IEC 68‑2‑64 and IEC 60068‑2‑27. - **Security:** Optional Infineon SLB9635 TPM 1.2 module for hardware‑based encryption. - **Reliability:** Watchdog timer (1–255 s/min), hardware monitoring, auto‑throttling on overheat. - **Certifications:** CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile CPUs (up to 3.30 GHz, 6 MB cache). - **Chipset:** Intel® QM77 Express, optimized for embedded and mobile computing. - **Fanless Design:** Completely fanless aluminum chassis for silent, dust‑free operation and enhanced reliability. - **Memory:** Dual‑channel DDR3/DDR3L SO‑DIMM sockets supporting up to 16 GB at 1066/1333/1600 MHz. - **Storage Flexibility:** - Two front‑accessible 2.5" SATA III (6 Gb/s) HDD/SSD trays with key locks. - One SATA II (3 Gb/s) port for horizontal SATA DOM. - Two mSATA II (3 Gb/s) sockets. - External CFast slot with push‑in/out ejector. - **Networking:** Dual Intel® Gigabit Ethernet controllers (Intel® 82579LM and Intel® 82574L) with Wake‑on‑LAN and PXE boot support. - **Graphics:** Integrated Intel® GMA HD 4000 GPU supporting up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS. - **Expansion:** Two Mini‑PCIe slots (one with SIM card socket) for wireless, I/O, or storage expansion. - **Rich I/O Interface:** - 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0. - 3 × RS‑232, 1 × RS‑232/422/485 configurable port. - 16 GPIO lines. - **Audio:** Realtek ALC892 5.1‑channel HD audio codec with line‑in, line‑out, mic‑in, and front audio header. - **Power Protection:** Wide‑range 6–36 V DC input with onboard LT4356 surge protection (up to 80 V DC). - **Environmental Robustness:** Operates from ‑25 °C to +70 °C; vibration and shock resistant per IEC 60068‑2‑64/‑27. - **Security:** Optional Infineon SLB9635 Trusted Platform Module (TPM) for hardware‑based encryption. - **Mounting:** Wall‑mount brackets included for industrial installation. - **Certifications:** CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile CPUs (up to 3.30 GHz, 6 MB cache). - **Chipset:** Intel® QM77 Express Chipset. - **Fanless Design:** Completely fanless aluminum chassis for silent, dust‑resistant, and maintenance‑free operation. - **Extended Temperature Range:** Reliable operation from ‑25 °C to +70 °C. - **Networking:** Six independent Gigabit Ethernet ports (5 × Intel® 82574L + 1 × Intel® 82579LM) with Wake‑on‑LAN and PXE boot support. - **Memory:** Dual‑channel DDR3/DDR3L SO‑DIMM up to 16 GB (2 × 204‑pin sockets). - **Graphics:** Integrated Intel® HD Graphics 4000 supporting up to three independent displays (VGA, DVI‑D, 2 × DisplayPort, LVDS). - **Storage:** - 2 × 2.5″ SATA III 6 Gb/s HDD/SSD bays - 1 × SATA II 3 Gb/s for horizontal SATA DOM - 2 × mSATA II 3 Gb/s sockets - 1 × external CFast slot with push‑in/out ejector - **Expansion:** 2 × Mini‑PCIe slots (one with SIM card socket) for wireless, I/O, or fieldbus modules. - **I/O Interfaces:** - 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485) - 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0 - 16 × GPIO (TTL 5 V tolerant) - Optional isolated 8 DI / 8 DO digital I/O - **Audio:** Realtek ALC892 5.1‑channel HD audio (Line‑in, Line‑out, Mic‑in, front header). - **Power Input:** 6 – 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC). - **Optional TPM:** Infineon SLB9635 Trusted Platform Module for hardware‑level security. - **Intel® AMT 8.0:** Remote management and monitoring capability. - **Rugged Construction:** Aluminum housing, vibration and shock resistant, CE/FCC Class A compliant. - **Mounting:** Wall‑mount brackets included.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile processors (up to 3.30 GHz, 6 MB cache). - **Chipset:** Intel® QM77 Express Chipset with Intel® AMT 8.0 support. - **Fanless Design:** Completely fanless aluminum chassis for silent operation and enhanced reliability in harsh environments. - **Extended Temperature Range:** Operational from –25 °C to +70 °C; storage –40 °C to +85 °C. - **Networking:** Six independent Gigabit Ethernet ports (1 × Intel® 82579LM + 5 × Intel® 82574L) supporting Wake‑on‑LAN and PXE boot. - **Display Capability:** Up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS interfaces; Intel® HD Graphics 4000 with shared memory up to 1.7 GB. - **Memory:** Dual‑channel DDR3/DDR3L SO‑DIMM up to 16 GB (1066/1333/1600 MHz). - **Storage:** - 2 × 2.5″ SATA III (6 Gb/s) HDD/SSD bays - 1 × SATA II (3 Gb/s) for horizontal SATA DOM - 2 × mSATA II (3 Gb/s) slots - 1 × external CFast slot with push‑eject mechanism - **Digital I/O:** Isolated 8 × DI / 8 × DO (5 V logic) and 16 GPIO lines. - **Expansion:** Two Mini‑PCI Express slots (one with SIM card socket) for wireless, I/O, or fieldbus modules. - **Audio:** Realtek ALC892 5.1‑channel HD audio codec with Line‑in, Line‑out, Mic‑in, and front audio header. - **Power Input:** Wide‑range 6 – 36 V DC input with on‑board LT4356 80 V surge protection; optional 120 W AC/DC adapter (24 V / 5 A). - **Security:** Optional Infineon SLB9635 Trusted Platform Module (TPM). - **Reliability:** Hardware watchdog timer (1 – 255 s/min), hardware monitor for temperature and voltage auto‑throttling. - **Mechanical:** Compact 260 × 175 × 79 mm aluminum housing (2.8 kg) with wall‑mount brackets. - **Certifications:** CE, FCC Class A, RoHS, EN50155 & EN50121‑3‑2 compliance.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor:** 3rd Gen Intel® Core™ i7-3610QE (Quad-Core, 6M Cache, up to 3.30 GHz, 45W TDP) - **Chipset:** Intel® QM77 Express - **Memory:** Dual-channel DDR3/DDR3L SO-DIMM, up to 16GB (2×204-pin sockets) - **Fanless Design:** Completely fanless thermal solution for silent and reliable operation in -25°C to +70°C environments - **Networking:** Six Gigabit Ethernet ports (5×Intel® 82574L + 1×Intel® 82579LM) with Wake-on-LAN and PXE support - **Storage Options:** - 2×2.5" SATA III (6Gbps) HDD/SSD bays - 1×SATA II (3Gbps) for horizontal SATA DOM - 2×mSATA II (3Gbps) slots - 1×external CFast slot with push-in/out ejector - **Graphics:** Integrated Intel® HD Graphics 4000 supporting up to three independent displays (VGA, DVI-D, 2×DisplayPort, LVDS) - **I/O Interfaces:** - 4×COM ports (3×RS-232, 1×RS-232/422/485) - 4×USB 3.0, 2×USB 2.0, 2×internal USB 2.0 - 8×isolated digital inputs and 8×isolated digital outputs (5V) - 16×GPIO lines - **Expansion:** 2×Mini PCIe slots (one with SIM card socket), internal JST USB connector - **Audio:** Realtek ALC892 5.1-channel HD audio codec (Line-in, Line-out, Mic-in, front audio header) - **Power Input:** 6–36V DC wide-range input with LT4356 surge protection; optional 120W AC/DC adapter - **Security:** Optional Infineon SLB9635 Trusted Platform Module (TPM) - **Reliability:** Watchdog timer (1–255 sec/min), hardware monitoring, and auto-throttling thermal control - **Certifications:** CE, FCC Class A, RoHS, EN50155, EN50121-3-2 compliance

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile processors (up to 3.30 GHz, 6 MB cache). - **Chipset:** Intel® QM77 Express with Intel® AMT 8.0 support for remote management. - **Memory:** Dual‑channel DDR3/DDR3L SO‑DIMM up to 16 GB (1066/1333/1600 MHz). - **Fanless Design:** Completely fanless aluminum chassis for silent, dust‑free operation. - **Extended Temperature Range:** ‑25 °C to +70 °C operational, ‑40 °C to +85 °C storage. - **Networking:** Six independent Gigabit Ethernet ports (1 × Intel® 82579LM + 5 × Intel® 82574L) with Wake‑on‑LAN and PXE boot. - **Display Capability:** Supports up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS. - **Graphics Engine:** Intel® HD Graphics 4000 with shared memory up to 1.7 GB. - **Storage Options:** - 2 × 2.5″ SATA III (6 Gb/s) HDD/SSD bays - 1 × SATA II (3 Gb/s) for horizontal SATA DOM - 2 × mSATA II (3 Gb/s) sockets - 1 × external CFast slot with push‑eject mechanism - **Expansion:** - 2 × Mini‑PCIe (one with SIM card socket) - 2 × SUMIT A/B expansion slots - 1 × internal 6‑pin USB 2.0 JST connector - **Digital I/O:** Isolated 8 × DI / 8 × DO (5 V TTL) with photocoupler isolation. - **Audio:** Realtek ALC892 5.1‑channel HD Audio (Line‑in, Line‑out, Mic‑in, front header). - **Power Input:** 6 – 36 V DC wide‑range input with on‑board LT4356 80 V surge protection. - **Optional TPM:** Infineon SLB9635 Trusted Platform Module (LPC interface). - **Mechanical Design:** Compact aluminum housing (260 × 175 × 79 mm), wall‑mountable. - **Certifications:** CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliant.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile CPUs (up to 3.30 GHz, 6 MB cache). - **Chipset:** Intel® QM77 Express, supporting Intel® AMT 8.0 and vPro™ technology. - **Memory:** Dual‑channel DDR3/DDR3L SO‑DIMM, up to 16 GB (2 × 204‑pin slots). - **Fanless Design:** Completely fanless thermal solution for silent, maintenance‑free operation in harsh environments. - **Extended Temperature Range:** ‑25 °C ~ +70 °C operating, ‑40 °C ~ +85 °C storage. - **Networking:** Six independent Gigabit Ethernet ports (5 × Intel® 82574L + 1 × Intel® 82579LM) with Wake‑on‑LAN and PXE boot support. - **Storage Flexibility:** - Two front‑accessible 2.5" SATA III (6 Gb/s) HDD/SSD bays with key locks. - One SATA II (3 Gb/s) port for horizontal SATA DOM. - Two mSATA II (3 Gb/s) sockets. - External CFast slot with push‑in/out ejector. - **Display & Graphics:** Intel® HD Graphics 4000 with support for up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS. - **Expansion:** Two Mini‑PCI Express slots (one with SIM card socket) for wireless, I/O, or fieldbus modules. - **I/O Interfaces:** - 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485). - 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0. - 16 × GPIO (TTL 5 V). - **Audio:** Realtek ALC892 5.1‑channel HD audio (Line‑in, Line‑out, Mic‑in, front header). - **Power Input:** 6 ~ 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC). - **Optional Security:** Infineon SLB9635 TPM (LPC interface). - **Mechanical Design:** Rugged aluminum housing, wall‑mountable, compact footprint. - **Certifications:** CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others

- **Processor Support:** 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile processors (up to 3.30 GHz, 6 MB cache). - **Chipset:** Intel® QM77 Express chipset for mobile platforms. - **Fanless Design:** Completely fanless aluminum chassis for silent operation and enhanced reliability. - **Extended Temperature Range:** Operates from -25°C to +70°C, suitable for outdoor and industrial environments. - **Power over Ethernet (PoE+):** Four IEEE 802.3at PoE+ Gigabit Ethernet ports (25.5 W per port, 48 VDC) powered by Intel® 82574L controllers. - **Rich I/O Connectivity:** - 6 Gigabit Ethernet ports (2 standard GbE + 4 PoE+) - 4 USB 3.0, 2 USB 2.0, and 2 internal USB 2.0 ports - 4 COM ports (3 RS-232, 1 RS-232/422/485) - Isolated 8 Digital Inputs / 8 Digital Outputs - 16 GPIO lines - **Display Support:** Up to five display interfaces (2× DisplayPort, 1× DVI-D, 1× VGA, 1× LVDS) supporting three independent displays. - **Storage Options:** - 2× SATA III (6 Gbps) for 2.5” HDD/SSD - 1× SATA II (3 Gbps) for horizontal SATA DOM - 2× mSATA II (3 Gbps) - 1× external CFast slot (hot-swappable) - **Expansion Capability:** - 2× Mini PCIe slots (one with SIM card socket) - 2× SUMIT A/B slots (optional) - **Security and Reliability:** Optional Infineon SLB9635 TPM module, watchdog timer, and hardware monitoring. - **Power Input:** 6–36 VDC wide-range input with LT4356 surge protection (80 VDC tolerance). - **Certifications:** CE and FCC Class A compliant.

Manufacturer: Vecow Co., Ltd

Category: Nuvo-2000-Series and others
