1. Product Overview

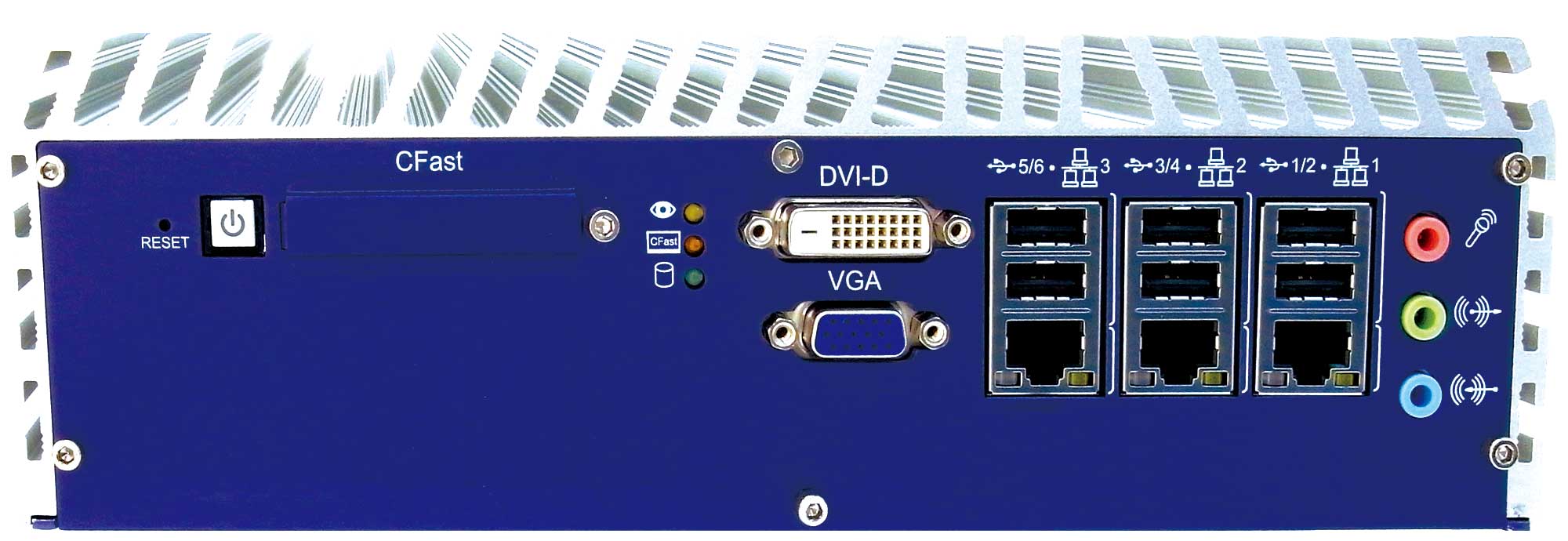

Product Name: ECS-5600-5G
Model: ECS-5600-5G
Series: ECS-5600 Series Fanless Embedded Controller
Article Number: ECS-5600-5G
Manufacturer: Vecow Co., Ltd. (Taiwan)
The Vecow ECS-5600-5G is a high-performance, fanless embedded barebone system designed for industrial, in-vehicle, and automation applications. It supports 2nd Generation Intel® Core™ i7, i5, i3, and Celeron® mobile processors (Sandy Bridge architecture) and integrates five Gigabit Ethernet ports, dual display outputs, and extensive I/O connectivity. The system is engineered for rugged environments, offering wide temperature operation (-25°C to +70°C), vibration and shock resistance, and a wide DC input range (6–36V).
2. Key Features
- Processor Support: 2nd Gen Intel® Core™ i7/i5/i3/Celeron® Mobile (Sandy Bridge) CPUs, up to 45W TDP.
- Chipset: Intel® QM67 Express Chipset.
- Memory: Dual 204-pin DDR3 SO-DIMM sockets, supporting up to 16GB DDR3 1333/1066MHz.
- Fanless Design: Completely fanless aluminum chassis for silent, maintenance-free operation.
- Networking: 5 Gigabit Ethernet ports (4x Intel® 82574L + 1x Intel® 82579LM) with Intel® AMT 7.0 support.
- Display: Dual independent display outputs (VGA + DVI-D/HDMI) powered by Intel® GMA HD 3000 graphics.
- Storage: Dual 2.5” SATA III (6Gbps) HDD/SSD bays, external hot-swappable CFast slot, and dual eSATA ports.
- Expansion: Two Mini PCIe slots (one with SIM socket) for wireless, 3G, or additional I/O modules.
- Serial Communication: 3x RS-232 and 1x RS-232/422/485 configurable port.
- Audio: Realtek ALC892 5.1-channel HD Audio codec with line-in, line-out, and mic-in.
- Power Input: Wide-range 6–36V DC input via terminal block or DC jack.
- Environmental Robustness: Operating temperature -25°C to +70°C, vibration 5Grms, shock 50Grms.
- Certifications: CE, FCC, RoHS, EN50155, EN50121-3-2 (railway and industrial compliance).
- Mounting: Wall-mountable with included brackets.
3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Processor | 2nd Gen Intel® Core™ i7/i5/i3/Celeron® Mobile (Sandy Bridge) |
| Chipset | Intel® QM67 |
| BIOS | Phoenix UEFI BIOS |
| Super I/O | Nuvoton NCT6106D |
| Memory | 2x 204-pin DDR3 SO-DIMM, up to 16GB, 1333/1066MHz |
| Graphics | Intel® GMA HD 3000, shared memory up to 1.7GB |
| Display Interfaces | VGA (2048x1536 @60Hz), DVI-D/HDMI (1920x1200 @60Hz) |
| Ethernet | 4x Intel® 82574L GbE + 1x Intel® 82579LM GbE (AMT 7.0) |
| Serial Ports | 3x RS-232, 1x RS-232/422/485 |
| USB Ports | 6x USB 2.0 |
| Storage | 2x SATA III (6Gbps) 2.5” HDD/SSD bays |
| External Storage | 1x CFast slot (hot-swappable), 2x eSATA ports |
| Audio | Realtek ALC892, 5.1-channel HD Audio |
| Expansion Slots | 2x Mini PCIe (1 with SIM socket) |
| Power Input | 6–36V DC via 2-pin terminal block or DC jack |
| Power Adapter (optional) | 90W, 24V AC/DC adapter (PWA-90W) |
| Watchdog Timer | 1–255 sec/min adjustable |
| Chassis Material | Aluminum housing |
| Dimensions (W x D x H) | 260mm x 175mm x 78mm (10.2” x 6.9” x 3.1”) |
| Weight | 2.8 kg (6 lb) |
| Mounting | Wall-mount bracket included |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10–95% non-condensing |
| Vibration | 5Grms, 5–500Hz, 3 axes (IEC60068-2-64) |
| Shock | 50Grms, 11ms half-sine (IEC60068-2-27) |
| Certifications | CE, FCC, RoHS, EN50155, EN50121-3-2 |
4. Functionality
The ECS-5600-5G operates as a compact, rugged embedded controller suitable for industrial automation, transportation, and surveillance systems. It integrates Intel’s QM67 chipset and supports a range of Sandy Bridge mobile CPUs, providing high computing performance with low power consumption.
Use Cases:
- In-vehicle computing and fleet management
- Industrial automation and machine control
- Digital signage and kiosk systems
- Medical and healthcare instrumentation
- Environmental and energy monitoring
- Network security and firewall applications
Operation:
The system’s fanless design ensures silent operation and reliability in dusty or vibration-prone environments. The wide DC input range (6–36V) allows direct connection to vehicle or industrial power sources. The integrated watchdog timer and hardware monitoring functions ensure system stability and automatic recovery from software failures.
Compatibility:
Supports Windows and Linux operating systems. Drivers are provided for chipset, graphics, network, audio, and Intel Management Engine (ME).
5. Components & Accessories
Included Items:
1. ECS-5600-5G Fanless Embedded Controller
2. Accessory box containing:
- Vecow Drivers & Utilities DVD
- Wall-mounting bracket
- M4 screws (x4)
- Foot pads (x4)
- 4-pin pluggable terminal block
Optional Accessories:
- PWA-90W: 90W, 24V AC/DC power adapter (90–264VAC input).
- LSM-100-3: SUMIT 3-port Gigabit Ethernet expansion card.
- VSM-200-4 / VSM-200-8: 4- or 8-channel D1 real-time video capture cards (SUMIT PCIe).
- VMX-200-4 / VMX-200-8: Mini PCIe video capture cards (4/8 channels).
- NVTE3G: 3G Mini PCIe module (W/HSPA+/UMTS 850/900/AWS/1900/2100 MHz).
- DN WiFi: 802.11 a/b/g/n Mini PCIe wireless module (2Tx/2R).
6. Installation & Setup
Power Connection:
The ECS-5600-5G accepts DC input via either a 2-pin terminal block or a DC jack. Only one input method should be used at a time. The terminal block also provides remote on/off control pins (Ctrl+, Ctrl-).
Mounting:
Wall-mount installation is supported using the included brackets. The aluminum chassis provides efficient heat dissipation and mechanical rigidity.
Storage & Memory Installation:
Access to the HDD/SSD and SO-DIMM slots is provided via a bottom “pet-door” panel for easy maintenance.
Power-On Modes:
- ATX mode (front power button)
- External power button mode
- Maximum power-saving mode
- Always-on mode after power failure (BIOS configurable)
Wake-on-LAN:
Supported on LAN1 (Intel® 82579LM).
BIOS Configuration:
Phoenix UEFI BIOS allows configuration of CPU, memory, SATA mode (IDE/AHCI/RAID), COM port modes, and watchdog timer.
7. Performance & Capabilities
- Processing Power: Supports up to Intel® Core™ i7-2710QE (quad-core, 45W TDP).
- Memory Bandwidth: Dual-channel DDR3 1333/1066MHz, up to 16GB.
- Graphics Performance: Intel® GMA HD 3000 with shared memory up to 1.7GB, supporting dual independent displays.
- Networking: Five independent Gigabit Ethernet ports with dedicated PCIe lanes for maximum throughput.
- Storage Speed: SATA III (6Gbps) interface for high-speed SSDs; external eSATA ports for expansion.
- Reliability: Hardware watchdog timer (1–255 sec/min), auto-throttling for thermal protection, and hardware monitoring for voltage and temperature.
- Environmental Endurance: Operates reliably in -25°C to +70°C environments, with high vibration and shock tolerance.
Limitations:
- USB limited to version 2.0 (no native USB 3.0).
- Single GPU (integrated Intel HD 3000).
- No internal fan; relies on passive cooling (adequate for rated TDP CPUs).
8. Standards & Compliance
The ECS-5600-5G meets multiple international standards for safety, electromagnetic compatibility, and environmental protection:
- CE (Conformité Européenne): Compliant with EU directives for electronic equipment.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial/commercial environments.
- RoHS: Restriction of Hazardous Substances compliant.
- EN50155 & EN50121-3-2: Certified for railway and transportation applications.
- IEC60068-2-64 / IEC60068-2-27: Vibration and shock resistance standards.
These certifications ensure suitability for mission-critical and transportation-grade deployments.
9. Additional Information
Warranty & Support:
Vecow provides standard warranty coverage and global technical support. The ECS-5600 series is backed by Vecow’s professional service network, offering driver updates, BIOS revisions, and long-term product lifecycle support.
Maintenance:
The fanless design minimizes maintenance requirements. Periodic inspection of connectors and cleaning of external surfaces is recommended for optimal thermal performance.
Software Support:
Vecow provides driver packages for Windows and Linux, including:
- Intel Chipset INF
- Intel HD Graphics
- Intel Network (82574L/82579LM)
- Realtek Audio
- Intel Management Engine (ME)
- Intel Rapid Storage Technology (for AHCI mode)
Lifecycle & Embedded Availability:
The ECS-5600 series supports embedded-grade CPUs with extended availability (Intel Embedded Roadmap, 7-year lifecycle).
Revision History:
- Version 1.00 (June 2012): Initial release
- Version 1.01 (Sept 2012): Added ECS-5600-8R model
- Version 1.02 (Oct 2012): Updated RS-422 mode and SIO configuration
Manufacturer Contact:
Vecow Co., Ltd.
7F, No. 105 Zhongcheng Rd., Tucheng Dist., New Taipei City 23674, Taiwan
Tel: +886-2-2268-5658
Fax: +886-2-2268-1658
Website: [www.vecow.com](http://www.vecow.com)
Email: info@vecow.com
### Summary
The Vecow ECS-5600-5G is a robust, high-performance fanless embedded controller engineered for demanding industrial and vehicular environments. Combining Intel’s 2nd Gen Core™ processing power with extensive I/O, multiple Gigabit Ethernet ports, and flexible expansion options, it delivers exceptional reliability and connectivity. Its rugged aluminum chassis, wide temperature tolerance, and compliance with EN50155/EN50121-3-2 make it ideal for transportation, automation, and surveillance applications.
With its modular design, long lifecycle support, and comprehensive connectivity, the ECS-5600-5G stands as a versatile platform for embedded computing solutions requiring durability, performance, and scalability.
Product Name: ECS-5600-5G
Model: ECS-5600-5G
Series: ECS-5600 Series Fanless Embedded Controller
Article Number: ECS-5600-5G
Manufacturer: Vecow Co., Ltd. (Taiwan)
The Vecow ECS-5600-5G is a high-performance, fanless embedded barebone system designed for industrial, in-vehicle, and automation applications. It supports 2nd Generation Intel® Core™ i7, i5, i3, and Celeron® mobile processors (Sandy Bridge architecture) and integrates five Gigabit Ethernet ports, dual display outputs, and extensive I/O connectivity. The system is engineered for rugged environments, offering wide temperature operation (-25°C to +70°C), vibration and shock resistance, and a wide DC input range (6–36V).
2. Key Features
- Processor Support: 2nd Gen Intel® Core™ i7/i5/i3/Celeron® Mobile (Sandy Bridge) CPUs, up to 45W TDP.
- Chipset: Intel® QM67 Express Chipset.
- Memory: Dual 204-pin DDR3 SO-DIMM sockets, supporting up to 16GB DDR3 1333/1066MHz.
- Fanless Design: Completely fanless aluminum chassis for silent, maintenance-free operation.
- Networking: 5 Gigabit Ethernet ports (4x Intel® 82574L + 1x Intel® 82579LM) with Intel® AMT 7.0 support.
- Display: Dual independent display outputs (VGA + DVI-D/HDMI) powered by Intel® GMA HD 3000 graphics.
- Storage: Dual 2.5” SATA III (6Gbps) HDD/SSD bays, external hot-swappable CFast slot, and dual eSATA ports.
- Expansion: Two Mini PCIe slots (one with SIM socket) for wireless, 3G, or additional I/O modules.
- Serial Communication: 3x RS-232 and 1x RS-232/422/485 configurable port.
- Audio: Realtek ALC892 5.1-channel HD Audio codec with line-in, line-out, and mic-in.
- Power Input: Wide-range 6–36V DC input via terminal block or DC jack.
- Environmental Robustness: Operating temperature -25°C to +70°C, vibration 5Grms, shock 50Grms.
- Certifications: CE, FCC, RoHS, EN50155, EN50121-3-2 (railway and industrial compliance).
- Mounting: Wall-mountable with included brackets.
3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Processor | 2nd Gen Intel® Core™ i7/i5/i3/Celeron® Mobile (Sandy Bridge) |
| Chipset | Intel® QM67 |
| BIOS | Phoenix UEFI BIOS |
| Super I/O | Nuvoton NCT6106D |
| Memory | 2x 204-pin DDR3 SO-DIMM, up to 16GB, 1333/1066MHz |
| Graphics | Intel® GMA HD 3000, shared memory up to 1.7GB |
| Display Interfaces | VGA (2048x1536 @60Hz), DVI-D/HDMI (1920x1200 @60Hz) |
| Ethernet | 4x Intel® 82574L GbE + 1x Intel® 82579LM GbE (AMT 7.0) |
| Serial Ports | 3x RS-232, 1x RS-232/422/485 |
| USB Ports | 6x USB 2.0 |
| Storage | 2x SATA III (6Gbps) 2.5” HDD/SSD bays |
| External Storage | 1x CFast slot (hot-swappable), 2x eSATA ports |
| Audio | Realtek ALC892, 5.1-channel HD Audio |
| Expansion Slots | 2x Mini PCIe (1 with SIM socket) |
| Power Input | 6–36V DC via 2-pin terminal block or DC jack |
| Power Adapter (optional) | 90W, 24V AC/DC adapter (PWA-90W) |
| Watchdog Timer | 1–255 sec/min adjustable |
| Chassis Material | Aluminum housing |
| Dimensions (W x D x H) | 260mm x 175mm x 78mm (10.2” x 6.9” x 3.1”) |
| Weight | 2.8 kg (6 lb) |
| Mounting | Wall-mount bracket included |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10–95% non-condensing |
| Vibration | 5Grms, 5–500Hz, 3 axes (IEC60068-2-64) |
| Shock | 50Grms, 11ms half-sine (IEC60068-2-27) |
| Certifications | CE, FCC, RoHS, EN50155, EN50121-3-2 |
4. Functionality
The ECS-5600-5G operates as a compact, rugged embedded controller suitable for industrial automation, transportation, and surveillance systems. It integrates Intel’s QM67 chipset and supports a range of Sandy Bridge mobile CPUs, providing high computing performance with low power consumption.
Use Cases:
- In-vehicle computing and fleet management
- Industrial automation and machine control
- Digital signage and kiosk systems
- Medical and healthcare instrumentation
- Environmental and energy monitoring
- Network security and firewall applications
Operation:
The system’s fanless design ensures silent operation and reliability in dusty or vibration-prone environments. The wide DC input range (6–36V) allows direct connection to vehicle or industrial power sources. The integrated watchdog timer and hardware monitoring functions ensure system stability and automatic recovery from software failures.
Compatibility:
Supports Windows and Linux operating systems. Drivers are provided for chipset, graphics, network, audio, and Intel Management Engine (ME).
5. Components & Accessories
Included Items:
1. ECS-5600-5G Fanless Embedded Controller
2. Accessory box containing:
- Vecow Drivers & Utilities DVD
- Wall-mounting bracket
- M4 screws (x4)
- Foot pads (x4)
- 4-pin pluggable terminal block
Optional Accessories:
- PWA-90W: 90W, 24V AC/DC power adapter (90–264VAC input).
- LSM-100-3: SUMIT 3-port Gigabit Ethernet expansion card.
- VSM-200-4 / VSM-200-8: 4- or 8-channel D1 real-time video capture cards (SUMIT PCIe).
- VMX-200-4 / VMX-200-8: Mini PCIe video capture cards (4/8 channels).
- NVTE3G: 3G Mini PCIe module (W/HSPA+/UMTS 850/900/AWS/1900/2100 MHz).
- DN WiFi: 802.11 a/b/g/n Mini PCIe wireless module (2Tx/2R).
6. Installation & Setup
Power Connection:
The ECS-5600-5G accepts DC input via either a 2-pin terminal block or a DC jack. Only one input method should be used at a time. The terminal block also provides remote on/off control pins (Ctrl+, Ctrl-).
Mounting:
Wall-mount installation is supported using the included brackets. The aluminum chassis provides efficient heat dissipation and mechanical rigidity.
Storage & Memory Installation:
Access to the HDD/SSD and SO-DIMM slots is provided via a bottom “pet-door” panel for easy maintenance.
Power-On Modes:
- ATX mode (front power button)
- External power button mode
- Maximum power-saving mode
- Always-on mode after power failure (BIOS configurable)
Wake-on-LAN:
Supported on LAN1 (Intel® 82579LM).
BIOS Configuration:
Phoenix UEFI BIOS allows configuration of CPU, memory, SATA mode (IDE/AHCI/RAID), COM port modes, and watchdog timer.
7. Performance & Capabilities
- Processing Power: Supports up to Intel® Core™ i7-2710QE (quad-core, 45W TDP).
- Memory Bandwidth: Dual-channel DDR3 1333/1066MHz, up to 16GB.
- Graphics Performance: Intel® GMA HD 3000 with shared memory up to 1.7GB, supporting dual independent displays.
- Networking: Five independent Gigabit Ethernet ports with dedicated PCIe lanes for maximum throughput.
- Storage Speed: SATA III (6Gbps) interface for high-speed SSDs; external eSATA ports for expansion.
- Reliability: Hardware watchdog timer (1–255 sec/min), auto-throttling for thermal protection, and hardware monitoring for voltage and temperature.
- Environmental Endurance: Operates reliably in -25°C to +70°C environments, with high vibration and shock tolerance.
Limitations:
- USB limited to version 2.0 (no native USB 3.0).
- Single GPU (integrated Intel HD 3000).
- No internal fan; relies on passive cooling (adequate for rated TDP CPUs).
8. Standards & Compliance
The ECS-5600-5G meets multiple international standards for safety, electromagnetic compatibility, and environmental protection:
- CE (Conformité Européenne): Compliant with EU directives for electronic equipment.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial/commercial environments.
- RoHS: Restriction of Hazardous Substances compliant.
- EN50155 & EN50121-3-2: Certified for railway and transportation applications.
- IEC60068-2-64 / IEC60068-2-27: Vibration and shock resistance standards.
These certifications ensure suitability for mission-critical and transportation-grade deployments.
9. Additional Information
Warranty & Support:
Vecow provides standard warranty coverage and global technical support. The ECS-5600 series is backed by Vecow’s professional service network, offering driver updates, BIOS revisions, and long-term product lifecycle support.
Maintenance:
The fanless design minimizes maintenance requirements. Periodic inspection of connectors and cleaning of external surfaces is recommended for optimal thermal performance.
Software Support:
Vecow provides driver packages for Windows and Linux, including:
- Intel Chipset INF
- Intel HD Graphics
- Intel Network (82574L/82579LM)
- Realtek Audio
- Intel Management Engine (ME)
- Intel Rapid Storage Technology (for AHCI mode)
Lifecycle & Embedded Availability:
The ECS-5600 series supports embedded-grade CPUs with extended availability (Intel Embedded Roadmap, 7-year lifecycle).
Revision History:
- Version 1.00 (June 2012): Initial release
- Version 1.01 (Sept 2012): Added ECS-5600-8R model
- Version 1.02 (Oct 2012): Updated RS-422 mode and SIO configuration
Manufacturer Contact:
Vecow Co., Ltd.
7F, No. 105 Zhongcheng Rd., Tucheng Dist., New Taipei City 23674, Taiwan
Tel: +886-2-2268-5658
Fax: +886-2-2268-1658
Website: [www.vecow.com](http://www.vecow.com)
Email: info@vecow.com
### Summary
The Vecow ECS-5600-5G is a robust, high-performance fanless embedded controller engineered for demanding industrial and vehicular environments. Combining Intel’s 2nd Gen Core™ processing power with extensive I/O, multiple Gigabit Ethernet ports, and flexible expansion options, it delivers exceptional reliability and connectivity. Its rugged aluminum chassis, wide temperature tolerance, and compliance with EN50155/EN50121-3-2 make it ideal for transportation, automation, and surveillance applications.
With its modular design, long lifecycle support, and comprehensive connectivity, the ECS-5600-5G stands as a versatile platform for embedded computing solutions requiring durability, performance, and scalability.
-
ECS-5600-series.pdf
PDF Catalog
-
ECS-5600-manual.pdf
Manual
- ECS-PWA90W - 90W AC/DC Power Adapter for ECS-Systems
