- **Bidirectional Conversion:** Converts RS‑422/RS‑485 differential signals to standard RS‑232 levels. - **Addressable Operation:** Supports both addressable and transparent (non‑addressable) modes for flexible network integration. - **Independent Baud Rate Configuration:** RS‑232 and RS‑422/RS‑485 interfaces can operate at different baud rates (1.2 kBd – 115.2 kBd). - **Full‑Duplex and Half‑Duplex Support:** - RS‑422: 4‑wire full‑duplex differential communication. - RS‑485: 2‑wire half‑duplex differential communication with automatic direction control. - **High Isolation Voltage:** 1000 V DC galvanic isolation between communication ports to protect against ground loops and surges. - **Surge Protection:** Built‑in transient voltage suppressors (TVS) on RS‑422/RS‑485 lines. - **Auto Direction Flow Control:** Automatic transmit/receive switching for RS‑485 half‑duplex operation. - **High‑Speed Data Transfer:** Supports up to 115.2 kbps on both interfaces. - **Low Power Consumption:** Typical power draw of 1.008 W. - **Industrial‑Grade Design:** ABS enclosure with captive mounting hardware, suitable for DIN‑rail or panel installation. - **Software Compatibility:** Fully compatible with ND‑6521 and other NuDAM communication modules. - **CE Class A Conformity:** Meets industrial EMC and safety standards.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Comprehensive Device Management:** Provides full configuration and monitoring capabilities for all Nudam series modules, including analog input/output, digital input/output, counter, and communication modules. - **Automatic Device Detection:** Scans and identifies connected Nudam modules on RS-485 or Ethernet networks, displaying module type, address, firmware version, and operational status. - **Parameter Configuration Interface:** Allows users to set module parameters such as baud rate, data format, sampling rate, input range, and channel configuration through an intuitive graphical interface. - **Real-Time Monitoring:** Displays live data from connected modules, enabling users to observe analog and digital signal changes in real time for diagnostics and verification. - **Firmware Management:** Supports firmware version checking and updates for Nudam modules, ensuring compatibility and access to the latest performance enhancements. - **Network Configuration Tools:** Includes utilities for assigning communication addresses, setting up RS-485 network topology, and configuring Ethernet-based Nudam devices. - **Data Logging and Export:** Offers basic data logging capabilities for test and calibration purposes, with export options to CSV or text formats for further analysis. - **User-Friendly Interface:** Designed with a clear, menu-driven GUI that simplifies complex configuration tasks, reducing setup time and minimizing user error. - **Compatibility with Multiple Operating Systems:** Typically supports Windows-based environments (Windows 7/8/10/11), with driver and library support for integration into custom applications. - **Diagnostic and Test Functions:** Provides built-in diagnostic tools for communication testing, module response verification, and error detection.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Dynamic Data Exchange (DDE) Server:** Implements Microsoft’s DDE protocol for real-time data sharing between Windows applications. - **Multi-Module Support:** Compatible with the entire NuDAM-6000 series, including analog input/output, digital I/O, and counter modules (e.g., 6011, 6017, 6021, 6050, 6080). - **Windows Compatibility:** Supports Windows 95, Windows 98, and Windows NT operating systems. - **Bidirectional Data Flow:** Enables both read and write operations between client applications and NuDAM modules. - **Hot-Link Data Exchange:** Supports continuous data updates (“advise” mode) for real-time monitoring. - **Flexible Configuration:** Allows user-defined communication ports, baud rates, parity, stop bits, and module addresses. - **Topic-Based Architecture:** Organizes data exchange through logical “topics” corresponding to specific modules or devices. - **Comprehensive Command Set:** Provides extensive item names and commands for analog, digital, and counter operations. - **Integration with SCADA and HMI:** Seamless connectivity with Wonderware InTouch for industrial process visualization and control. - **Excel and Database Connectivity:** Enables direct data exchange with Microsoft Excel and database applications for reporting and analysis. - **Built-in Diagnostics:** Includes communication status monitoring and DDE conversation tracking. - **Sample Programs:** Includes preconfigured InTouch sample applications for all supported NuDAM modules.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Comprehensive Windows Support:** Compatible with Windows 3.1x, 95, 98, and NT 4.0 environments. - **Dynamic Linking Library Architecture:** Provides a DLL-based API for seamless integration with Windows applications. - **Multi-Language Compatibility:** Supports Visual Basic, Visual C/C++, and Delphi programming environments. - **High-Performance Data Acquisition:** Optimized for real-time communication with NuDAM 6000 modules via RS-232 serial interface. - **Extensive Function Library:** Includes over 80 function calls for analog/digital I/O, counter/timer, watchdog, and configuration control. - **Sample Programs Included:** Ready-to-run examples for Visual Basic and Visual C/C++ demonstrating communication and module control. - **Modular Design:** Supports a wide range of NuDAM 6000 modules, including ND-6011, ND-6012, ND-6014D, ND-6050, ND-6060, ND-6080, and others. - **Error Handling and Diagnostics:** Built-in return codes for communication errors, timeouts, and invalid commands. - **Checksum and Watchdog Support:** Ensures reliable communication and system safety. - **Synchronized Sampling:** Allows simultaneous data acquisition across multiple modules.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Direct Integration with Wonderware InControl:** Enables InControl applications to directly access and control NuDAM‑6000 analog and digital I/O modules. - **Comprehensive Module Support:** Compatible with seventeen NuDAM‑6000 models, including ND‑6011/6011D, ND‑6012/6012D, ND‑6013, ND‑6014D, ND‑6017, ND‑6018, ND‑6021, ND‑6024, ND‑6050, ND‑6052, ND‑6053, ND‑6054, ND‑6056, ND‑6058, ND‑6060, ND‑6063, and ND‑6080. - **PC‑Based Software PLC Functionality:** Combines the flexibility of PC‑based control with the reliability of industrial I/O modules, effectively replacing traditional PLCs in many automation applications. - **RS‑485 Communication Protocol:** Provides robust, long‑distance, multi‑drop communication between the host PC and distributed NuDAM modules. - **IEC‑1131‑3 Programming Compatibility:** Supports standard PLC programming languages including Structured Text (ST), Function Block Diagram (FBD), Ladder Diagram (LD), and Sequential Function Chart (SFC). - **Integrated Configuration Utilities:** Includes NuDAM Administration Utility (Nudam32.exe) and COM port configuration tool (ComConfig.exe) for module and communication setup. - **Flexible Alarm and Counter Modes:** Supports multiple operational modes for specific modules (e.g., Counter Mode, Frequency Mode, Disable Alarm Mode). - **Automatic Installation and Uninstallation:** Simple setup via floppy disk or ADLINK All‑in‑One CD, with full Add/Remove Programs support for uninstallation. - **Sample Programs Included:** Provides ready‑to‑use InControl project examples for each supported NuDAM module to accelerate application development.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **ISaGRAF Integration:** Provides a direct interface between ISaGRAF Target runtime and NuDAM6000 serial I/O modules, enabling real‑time control and monitoring. - **IEC1131‑3 Compliance:** Fully compatible with the internationally recognized IEC1131‑3 standard for industrial control programming languages (IL, ST, FBD, LD, SFC). - **PC‑Based Soft PLC Functionality:** Converts a standard Windows NT‑based PC into a high‑performance, software‑driven PLC system. - **Multi‑Module Support:** Supports seventeen NuDAM6000 module types, including analog input/output, digital input/output, and counter/frequency modules. - **Flexible Configuration:** Allows configuration of communication parameters (baud rate, parity, address) and module‑specific modes (alarm, latch, momentary, counter, frequency). - **Comprehensive Development Environment:** Works seamlessly with the ISaGRAF Workbench for project creation, debugging, simulation, and online monitoring. - **Sample Programs Included:** Provides pre‑configured ISaGRAF sample projects for each supported NuDAM module to accelerate application development. - **Automatic Installation and Uninstallation:** Includes setup utilities for easy deployment and removal via Windows Control Panel. - **Demo Mode:** Offers a 120‑minute demonstration mode for evaluation without a valid license key. - **Compatibility with ADLINK Tools:** Integrates with NuDAM Administration Utility and COM Port Configuration Tool (ComConfig.exe).

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Full‑Function OPC Server:** Implements the complete OPC Data Access interface, allowing real‑time data exchange between NuDAM modules and OPC clients. - **Wide Compatibility:** Works with any OPC‑compliant client software, including SCADA, HMI, and custom industrial control applications. - **Integrated Configuration Utility (NuDAM Explorer):** A graphical tool for configuring both hardware and server parameters, simplifying setup and reducing configuration time. - **Interactive Module Configuration:** Enables users to set module parameters such as input range, data format, and filtering directly through the Explorer interface. - **Customizable Server Operation:** Users can define I/O scan times, timeout limits, and assign descriptive names (tags) to each data item for easy identification in client applications. - **Sample OPC Client Application:** Includes a fully functional sample client (OpcClient.exe) demonstrating digital input/output (DI/DO) and analog input/output (AI/AO) operations. - **Flexible Installation Options:** Offers Typical, Compact, and Custom installation modes to suit different deployment needs. - **DCOM‑Based Communication:** Utilizes Microsoft’s Distributed Component Object Model (DCOM) for local and remote OPC communications. - **Comprehensive Documentation:** Includes user guides, installation manuals, and reference documentation in both help and PDF formats. - **Automatic System Registration:** The installation process registers the OPC server (NDOPCSvr.EXE) within the Windows system registry for immediate use.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **DIN Rail Compatibility:** Designed for standard 35 mm DIN rails (EN 60715 / IEC 60715), ensuring universal fit within industrial control cabinets. - **Optimized for CTxx Panels:** Specifically tailored to the CTxx series, providing precise alignment, secure attachment, and reliable mechanical support. - **Quick Installation:** Enables fast and tool-minimized mounting of CTxx panels onto DIN rails, reducing setup time and simplifying maintenance. - **Durable Construction:** Manufactured from high-quality industrial-grade materials to withstand vibration, temperature variations, and mechanical stress. - **Compact Design:** Maintains minimal additional depth and footprint, preserving valuable space within control enclosures. - **Secure Locking Mechanism:** Incorporates a locking or snap-fit mechanism to prevent accidental detachment or displacement during operation. - **Versatile Application:** Suitable for use in automation systems, process control, building management, and other industrial environments requiring modular panel integration. - **Corrosion Resistance:** Surface-treated or coated to resist oxidation and corrosion in demanding industrial conditions. - **Maintenance-Friendly:** Allows easy removal and reinstallation of CTxx panels for servicing or replacement without dismantling the entire assembly.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Bidirectional Conversion:** Converts full-duplex RS232 signals to half-duplex RS485 signals, enabling communication between devices using different serial standards. - **Compact Design:** Small form factor ideal for space-constrained environments such as control cabinets, embedded systems, and field installations. - **Wide Baud Rate Range:** Supports data transmission speeds from **50 to 460.8 baud (Bd)**, accommodating a broad range of serial communication requirements. - **High ESD Protection:** Integrated **15 kV ESD (Electrostatic Discharge) protection** ensures reliable operation in electrically noisy industrial environments. - **Low Power Consumption:** Operates at **20 mA @ 5 VDC**, making it suitable for low-power embedded or portable applications. - **Connector Interfaces:** - **RS232 Side:** Female **DB9 connector** for direct connection to standard serial ports. - **RS485 Side:** **4-pin plug-in screw terminal block** for secure and flexible wiring to RS485 networks. - **Plug-and-Play Operation:** No external driver or software configuration required; automatically adapts to the connected devices’ communication parameters. - **Industrial Reliability:** Designed for continuous operation in industrial and commercial environments with stable signal conversion and minimal latency. - **Signal Integrity:** Ensures accurate data transmission over long distances typical of RS485 networks, reducing signal degradation and interference.

Manufacturer: No category

Category: RS485 DIN Rail IO Modules

- **Bidirectional Conversion:** Converts RS-232 signals to RS-422 or RS-485 standards and vice versa, enabling communication between devices using different serial protocols. - **Automatic Configuration:** Supports automatic detection of data format and baud rate, eliminating manual setup and simplifying installation. - **Auto Direction Flow Control:** Automatically manages data direction in RS-485 mode, ensuring efficient half-duplex communication without additional control signals. - **Wide Power Input Range:** Operates from a DC power supply of +10V to +30V, suitable for diverse industrial power environments. - **High Isolation Protection:** Provides 3000V DC optical isolation between RS-232 and RS-422/485 interfaces, protecting connected equipment from voltage surges and ground potential differences. - **Surge Protection:** Built-in surge protection on RS-422/485 data lines enhances durability and reliability in harsh electrical conditions. - **LED Indicators:** Equipped with Power (PWR), Transmit (TX), and Receive (RX) LEDs for real-time status monitoring. - **Flexible Mounting Options:** Supports both DIN rail and panel mounting for easy integration into industrial control panels. - **Compact and Durable Design:** Rugged metal enclosure with compact dimensions (151 × 75 × 26 mm) and a weight of approximately 375 g. - **Long-Distance Communication:** Supports data transmission up to 1.2 km (4000 ft) over RS-422/485 lines. - **Wide Operating Temperature Range:** Designed for industrial environments with an operating temperature range of -10°C to +50°C (some documentation lists -20°C to +65°C). - **Low Power Consumption:** Consumes only 1.2 watts, making it energy-efficient for continuous operation.

Manufacturer: Trycom

Category: RS485 DIN Rail IO Modules

- **Dual RS232 to RS422/485 Conversion:** Supports two independent RS232 channels, each capable of bi-directional conversion to RS422 or RS485 standards. - **Automatic Configuration:** Auto-detects data format and baud rate (300 bps to 115.2 kbps) without manual setup. - **Optical Isolation:** 3000V DC isolation between RS232 and RS422/485 interfaces to protect connected devices from voltage spikes and ground loops. - **Surge Protection:** Built-in surge suppression on RS422/485 data lines for enhanced reliability in electrically noisy environments. - **Wide Power Input Range:** Accepts DC power from +10V to +30V, suitable for various industrial power systems. - **Auto Direction Flow Control:** Automatically manages data direction in RS485 half-duplex communication, eliminating the need for software flow control. - **LED Indicators:** Dedicated LEDs for power (PWR), transmit (TXA/TXB), and receive (RXA/RXB) status for both channels, providing real-time communication monitoring. - **Flexible Mounting Options:** Supports both **DIN rail** and **panel mounting**, allowing easy integration into control cabinets or equipment racks. - **Compact and Rugged Design:** Industrial-grade enclosure with small footprint and robust construction for harsh environments. - **Plug-and-Play Operation:** No driver or firmware configuration required; ready for immediate deployment.

Manufacturer: Trycom

Category: RS485 DIN Rail IO Modules

- **Extended Communication Range:** Extends RS-422/RS-485 signals up to 4000 feet (1200 meters), allowing long-distance data transmission without signal degradation. - **Optical Isolation:** Provides 3000 VDC isolation between communication segments, protecting devices from ground potential differences and high-voltage transients. - **Surge Protection:** Built-in surge suppression on RS-422/485 data lines safeguards against voltage spikes and electromagnetic interference. - **Automatic Configuration:** Automatically detects data format, baud rate, and RS-485 data direction flow, simplifying setup and reducing configuration errors. - **Auto Baud Rate Switching:** Supports automatic baud rate detection from 300 bps to 115.2 Kbps, ensuring compatibility with a wide range of serial devices. - **RS-485 Bi-Directional Communication:** Enables full duplex or half duplex communication between RS-422 and RS-485 devices. - **Flexible Power Input:** Accepts DC power input from +10V to +30V via screw terminal or external DC adapter. - **LED Indicators:** Power (PWR), Transmit (TX), and Receive (RX) LEDs provide real-time status monitoring. - **Industrial Mounting Options:** Supports both DIN rail and panel mounting for flexible installation in control cabinets or equipment racks. - **Compact and Rugged Design:** Industrial-grade enclosure with plug-in screw terminals for secure wiring and easy maintenance.

Manufacturer: Trycom

Category: RS485 DIN Rail IO Modules

- **Integrated Power and Communication Distribution:** The backbone provides both power and RS-485 communication pathways between the COM module and all connected I/O modules. - **Modular Scalability:** Supports one COM module and up to sixteen I/O modules, allowing system expansion or reduction as needed. - **Hot-Swappable I/O Modules:** Modules can be inserted or removed while the system is powered, with automatic recognition and configuration by the COM module. - **Compact DIN Rail Mounting:** Designed for installation on standard 35 × 7.5 mm gull-wing DIN rails, ensuring compatibility with industrial enclosures and control panels. - **Mechanical Interlock for Reverse Protection:** Prevents incorrect module orientation or reverse installation, protecting both modules and backbone. - **Expandable Architecture:** Male/female pluggable connectors at each end allow direct interconnection of multiple backbones or remote expansion via an accessory cable (up to 100 ft / 30 m). - **Durable and Vibration-Resistant Contacts:** Ensures long-term reliability in industrial environments. - **Simplified System Wiring:** Reduces wiring complexity by integrating power and communication distribution within the DIN rail backbone. - **Flexible System Configuration:** Enables local or distributed installation of I/O modules, supporting both centralized and remote data acquisition setups. - **Industrial-Grade Environmental Performance:** Operates reliably across a wide temperature range (–40°C to +85°C) and high humidity conditions (up to 95% non-condensing).

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Comprehensive System Integration:** Supports one communication module and up to 24 I/O modules, enabling large-scale data acquisition and control configurations. - **Power and Communication Distribution:** Provides both electrical power and RS-485 communication links between modules through an integrated passive circuitry backbone. - **Modular Scalability:** Available in multiple backbone lengths (4, 8, 16, and 24 positions) that can be interconnected using pluggable connectors for flexible system expansion. - **DIN Rail Mounting:** Designed for installation on industry-standard **35 x 7.5 mm gull-wing DIN rails**, ensuring compatibility with common industrial enclosures and racks. - **Hot-Swappable Modules:** I/O modules can be inserted or removed while the system is powered, with automatic recognition and configuration by the communication module. - **Plug-and-Run Operation:** Simplifies setup—modules are automatically registered in the system configuration and made available in the host software upon installation. - **Reverse Installation Protection:** Mechanical design prevents incorrect module insertion, protecting both modules and backbone from damage. - **Durable and Reliable Construction:** Long-life, vibration-resistant contacts ensure stable operation in demanding industrial environments. - **Distributed Installation Capability:** Male/female pluggable terminal blocks at each end allow direct interconnection or remote installation using an expansion cable (up to 100 ft / 30 m). - **Compact and Efficient Design:** The 24-position backbone fits within a 19-inch rack width, optimizing space utilization in control cabinets.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Integrated Power and Communication Distribution:** The backbone provides both power and RS-485 communication pathways between the COM module and all connected I/O modules. - **Compact DIN Rail Mounting:** Designed for installation on standard 35 × 7.5 mm gull-wing DIN rails, ensuring compatibility with common industrial enclosures and control panels. - **Scalable System Design:** Supports one COM module and four I/O modules; additional backbones (BKPL8, BKPL16, BKPL24) can be interconnected for larger systems. - **Hot-Swappable Modules:** I/O modules can be inserted or removed while the system is powered, with automatic recognition and configuration by the communications module. - **Plug-and-Run Operation:** The system automatically detects module insertion/removal, updates configuration records, and enables immediate use in host software. - **Mechanical Reverse Protection:** Physical keying prevents incorrect module installation, protecting both modules and backbone from damage. - **Durable and Vibration-Resistant Contacts:** Ensures long service life and reliable operation in demanding industrial environments. - **Expandable for Distributed Installation:** Male/female pluggable connectors at each end allow direct interconnection or remote expansion using accessory cables up to 100 ft (30 m). - **Simplified System Wiring:** Reduces wiring complexity by integrating power and communication distribution within the DIN rail backbone. - **Industrial-Grade Environmental Performance:** Operates reliably across a wide temperature range (–40°C to +85°C) and in high-humidity environments (up to 95% non-condensing).

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Integrated Power and Communication Distribution:** The backbone provides both power and RS-485 communication interconnections between the COM module and all installed I/O modules. - **Modular Expandability:** Supports direct interconnection with other MAQ20 backbones via pluggable connectors, allowing system expansion up to 24 I/O modules or distributed installations up to 100 ft (30 m) apart. - **Compact DIN Rail Mounting:** Designed for installation on standard **35 × 7.5 mm gull-wing DIN rails**, enabling efficient use of panel space. - **Hot-Swappable I/O Modules:** Modules can be inserted or removed while the system is powered. The COM module automatically detects module changes and updates the system configuration dynamically. - **Mechanical Reverse Protection:** The backbone’s mechanical interface prevents incorrect or reversed module installation, ensuring safe and error-free setup. - **Durable and Vibration-Resistant Contacts:** Engineered for long service life and reliable operation in industrial environments subject to vibration and mechanical stress. - **Simplified System Wiring:** The backbone consolidates power and communication lines, minimizing external wiring complexity and reducing installation time. - **Flexible Configuration:** Multiple backbone lengths (4, 8, 16, 24 positions) allow system designers to tailor configurations to specific application requirements. - **Distributed Installation Capability:** Supports remote module placement through expansion cables, enabling distributed data acquisition architectures. - **Industrial-Grade Environmental Performance:** Operates reliably across a wide temperature range from –40°C to +85°C and up to 95% non-condensing humidity.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Four Independent Input Channels:** Supports up to four bridge or strain gage sensors per module, enabling multi-point measurement within a single compact unit. - **4- or 6-Wire Bridge Compatibility:** Accommodates both 4-wire and 6-wire configurations, allowing for flexible sensor connection and compensation for lead wire resistance. - **High Input-to-Bus Isolation:** Provides **1500 Vrms isolation** between input channels and system bus, ensuring signal integrity and protection against ground loops and electrical interference. - **DIN Rail Mounting:** Designed for direct installation on a DIN rail, integrating mechanically and electrically with the MAQ20 backbone for streamlined system assembly. - **Compact Form Factor:** Space-efficient design with dimensions of **114.6 mm (L) × 82.8 mm (H) × 15.3 mm (W)**, allowing dense channel packing in control cabinets. - **High Accuracy and Stability:** Engineered for precise strain and load measurements, suitable for demanding industrial monitoring and control applications. - **Modular System Integration:** Fully compatible with the MAQ20 system architecture, enabling easy expansion, configuration, and maintenance. - **Industrial-Grade Reliability:** Built to operate in harsh environments with robust electrical isolation, noise immunity, and long-term stability.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Multi‑interface communications:** - Ethernet 10/100 Base‑T (compatible with 1000 Base‑T) using Modbus TCP - USB 2.0 Type B interface using proprietary Modbus RTU over USB - RS‑232 serial port (RJ‑45) using Modbus RTU - **Integrated power distribution:** - Accepts +7 to +34 VDC input @ 2 A max - Provides 5 VDC @ 3 A max to system bus - **High‑performance industrial design:** - 1500 Vrms channel‑to‑bus isolation - 240 Vrms continuous field I/O protection - ANSI/IEEE C37.90.1 transient protection - Operating temperature –40 °C to +85 °C - **System capacity and scalability:** - Supports up to 24 I/O modules (384 channels) per system - Automatic module registration and hot‑swap capability - DIN‑rail backbone expansion with 1 m or 2 m cables - **Autonomous operation:** - Internal microSD data logger (up to 4 GB) - Integrated FTP server for remote file access - Built‑in Modbus server for remote control via Ethernet - Real‑time clock for timestamped data logging - **Software ecosystem:** - ReDAQ Shape graphical HMI and control software - Configuration Software Tool for setup and diagnostics - LabVIEW VIs and examples - Modbus TCP/RTU compatibility for third‑party SCADA systems - **Compliance and safety:** - CE compliant, UL/CUL Class I Div 2 pending, ATEX pending - Designed for industrial and hazardous environments

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Multi‑Interface Communication:** - Ethernet 10/100 Base‑T (compatible with 1000 Base‑T) using Modbus TCP - USB 2.0 Type B interface using proprietary Modbus‑over‑USB protocol - RS‑485 2‑wire/4‑wire serial interface using Modbus RTU - **Integrated System Management:** - Automatic registration of up to 24 I/O modules (384 channels) - Hot‑swappable I/O modules with field‑side pluggable terminal blocks - Distributed processing for autonomous operation and local data logging - **Industrial‑Grade Design:** - 1500 Vrms channel‑to‑bus isolation - 240 Vrms continuous field I/O protection - ANSI/IEEE C37.90.1 transient protection - Operating temperature –40 °C to +85 °C - CE compliant; UL Class I Div 2 and ATEX pending - **Integrated Data Logging:** - microSD card slot supporting up to 4 GB for onboard data storage - Configurable logging intervals (100 ms to 49.7 days) - FTP server for remote file access and management - **Advanced Control Capabilities:** - Supports up to 32 independent PID control loops (via firmware) - Real‑time clock for time‑stamped data logging - Built‑in Modbus server for remote operation without a local PC - **Software Ecosystem:** - ReDAQ Shape HMI and control software (Developer and User versions) - Configuration Software Tool for setup and diagnostics - LabVIEW VIs and examples for custom application development - Modbus TCP/RTU compatibility for third‑party SCADA integration

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

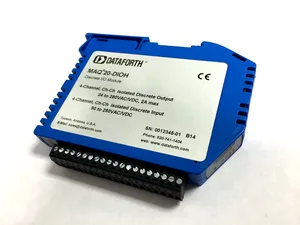

- **High-Voltage Discrete I/O:** - 4 isolated input channels supporting 90–280 VAC/VDC. - 4 isolated output channels rated for 24–280 VAC loads. - **Industrial-Grade Isolation:** - 1500 Vrms channel-to-bus isolation. - 300 Vrms channel-to-channel isolation. - ANSI/IEEE C37.90.1 transient protection. - **Rugged Design:** - Operates from –40 °C to +85 °C. - 240 Vrms continuous field I/O protection. - Reverse polarity and overload protection on all channels. - **System Integration:** - Fully compatible with the MAQ20 backbone and COM modules. - Automatic module registration and hot-swappable design. - Modbus-compatible memory map for easy integration with SCADA and PLC systems. - **Advanced Functionality:** - Supports seven programmable special functions (pulse/frequency counting, waveform measurement, PWM, etc.). - Configurable alarms (High, Low, High-High, Low-Low) with mappable outputs. - User-defined default output states for safe startup conditions. - **Ease of Use:** - DIN-rail mountable with pluggable terminal blocks. - LED indicators for power, status, communication, and alarms. - Supported by Dataforth’s ReDAQ Shape and Configuration Software tools.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Dual Functionality:** 5 isolated discrete inputs and 5 isolated discrete outputs, each channel independently protected and isolated. - **Wide Voltage Range:** Operates with 3–60VDC input and output signals. - **High Current Output:** Each output channel supports up to 3A load current. - **Advanced Isolation:** 1500Vrms channel-to-bus isolation and 300Vrms channel-to-channel isolation. - **Rugged Industrial Design:** Operates reliably in harsh environments from -40°C to +85°C. - **Inverted Logic Operation:** Logic 0 indicates input above threshold or output switch closed; Logic 1 indicates input below threshold or output switch open. - **Programmable Default States:** User-configurable default output states on power-up or reset for fail-safe operation. - **Seven Built-in Special Functions:** 1. Pulse/Frequency Counter 2. Pulse/Frequency Counter with Debounce

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Eight Independent Input Channels:** Each channel can measure frequency signals independently, allowing simultaneous monitoring of multiple sources. - **Wide Frequency Range:** Supports input frequencies from **0.5Hz to 1MHz**, including state change detection for digital or pulse-type signals. - **High Sensitivity:** 50mV input sensitivity enables accurate detection of low-level signals from magnetic pickups, contact closures, or TTL sources. - **Configurable Alarms:** Each channel supports **High, High-High, Low, and Low-Low** alarm thresholds for process monitoring and fault detection. - **Excitation Outputs:** Four independent **5V excitation sources** (8mA each) can power external sensors or serve as logic-level outputs. - **Robust Electrical Isolation:** Provides **1500Vrms input-to-bus isolation** for safety and noise immunity. - **Channel Protection:** Each input channel is protected up to **240Vrms continuous** and meets **ANSI/IEEE C37.90.1** transient protection standards. - **Selective Channel Scanning:** Non-used channels can be disabled to increase the effective sampling rate of active channels. - **High Accuracy and Resolution:** 32-bit resolution with clock accuracy of ±0.003% (typical) and ±0.01% over temperature range. - **Compact DIN Rail Form Factor:** Designed for easy integration into MAQ20 backplanes and industrial control panels. - **Wide Operating Temperature Range:** –40°C to +85°C for reliable operation in harsh environments. - **Compliance and Safety:** Meets CE and heavy industrial EMC standards; ATEX and UL Class I, Division 2 certifications pending.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Eight Differential Current Input Channels:** Each channel independently configurable for 0–20 mA or 4–20 mA operation. - **High Accuracy:** ±0.035 % of span typical, including linearity, hysteresis, and repeatability. - **Robust Isolation:** 1500 Vrms channel-to-bus isolation for one minute; ±3 V peak channel-to-channel isolation. - **Input Protection:** Continuous 240 Vrms field I/O protection; transient protection per ANSI/IEEE C37.90.1. - **Wide Operating Range:** Industrial temperature range of –40 °C to +85 °C. - **High Noise Immunity:** 100 dB common-mode rejection (CMR) and 30 dB normal-mode rejection (NMR) at 50/60 Hz. - **Per-Channel Configuration:** Range, alarms, and averaging parameters can be set individually. - **Advanced Alarm Functions:** High, High-High, Low, and Low-Low alarms with configurable deadbands and tracking/latching modes. - **Signal Averaging:** Adjustable averaging weight (2⁰–2¹⁵) for noise reduction and stable readings. - **Hot-Swappable Design:** Modules can be inserted or removed without system shutdown. - **Automatic Module Registration:** The system automatically detects and assigns registration numbers to new modules. - **Modbus-Compatible Memory Map:** Simplifies integration with third-party software and controllers. - **CE and ATEX Compliance (pending):** Designed for heavy industrial environments and hazardous locations (Class I, Division 2). - **Compact DIN-Rail Form Factor:** 114.6 × 15.3 × 82.8 mm for high-density installations.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **Eight Isolated Current Output Channels:** Each channel independently configurable for 0–20mA or 4–20mA output ranges. - **High Accuracy and Stability:** ±0.040% span accuracy, ±0.030% linearity, and low temperature coefficients (±25ppm/°C zero, ±35ppm/°C span). - **Robust Electrical Isolation:** 1500Vrms channel-to-bus isolation and 300Vrms channel-to-channel isolation. - **Industrial Protection:** 40Vrms continuous overload protection and ANSI/IEEE C37.90.1 transient protection. - **Wide Power Supply Range:** Operates from 7–34VDC system power. - **High-Speed Performance:** 100Hz bandwidth and 1600 channels per second update rate. - **Programmable Output Burst Mode:** Supports user-defined waveforms or data streams with up to 100 data points per channel. - **Hot-Swappable Design:** Modules can be inserted or removed without system shutdown. - **Automatic Module Registration:** System auto-detects and assigns registration numbers for each module. - **Rugged Industrial Operation:** Rated for -40°C to +85°C and 0–95% non-condensing humidity. - **Compliance and Safety:** CE compliant, UL/CUL Class I Division 2 pending, ATEX pending. - **Software Integration:** Compatible with Dataforth’s ReDAQ Shape and MAQ20 Configuration Software Tool for setup, monitoring, and control.

Manufacturer: Dataforth

Category: Dataforth Data Acquisition

- **16 Single‑Ended Current Input Channels:** Each channel independently configurable for 0–20 mA or 4–20 mA ranges. - **High Accuracy:** ±0.035 % of span typical, including linearity, hysteresis, and repeatability. - **High Isolation:** 1500 Vrms channel‑to‑bus isolation for one minute; 240 Vrms continuous field I/O protection. - **Robust Protection:** ANSI/IEEE C37.90.1 transient protection; 240 Vrms continuous overload tolerance. - **Wide Operating Range:** −40 °C to +85 °C industrial temperature range. - **High Density:** Compact 15.3 mm width allows up to 24 modules (384 channels) per 19‑inch rack width. - **Hot‑Swappable:** Modules can be inserted or removed without powering down the system. - **Automatic Registration:** System firmware detects installation/removal and assigns registration numbers automatically. - **Per‑Channel Configuration:** Range, alarms, and averaging adjustable individually. - **Advanced Alarm Functions:** High, Low, High‑High, and Low‑Low alarms with tracking or latching modes and programmable deadbands. - **Signal Averaging:** Configurable exponential averaging per channel (weight = 2^x, x = 0–15). - **Modbus‑Compatible:** Fully addressable via Modbus memory map; accessible through Ethernet, USB, RS‑232, or RS‑485 via MAQ20‑COMx module. - **Software Integration:** Compatible with Dataforth ReDAQ Shape HMI software, MAQ20 Configuration Tool, and IPEmotion multi‑vendor platform. - **Rugged Industrial Design:** Ventilated housing, ESD‑protected, and compliant with CE and ATEX (pending) standards.
