- **Isolated Analog Input:** The C1142 provides galvanic isolation between the input signal and communication interface, ensuring protection against ground loops, electrical noise, and potential differences in industrial environments. - **10 V Input Range:** Supports analog voltage signals up to ±10 V, compatible with a wide range of sensors, transducers, and signal sources. - **High Resolution (15 Bit):** Offers fine measurement granularity, enabling precise data acquisition for control and monitoring applications. - **RS485 Communication Interface:** Utilizes a differential serial communication standard for long-distance, noise-resistant data transmission. - **ASCII Output Format:** Transmits measurement data in ASCII-coded format, simplifying integration with PLCs, SCADA systems, and data loggers. - **Compact Modular Design:** Designed for easy installation in distributed measurement systems or control cabinets. - **Industrial-Grade Reliability:** Built for continuous operation in demanding environments, with robust electrical isolation and stable performance. - **Flexible Integration:** Compatible with standard RS485 networks and configurable for multi-drop communication setups.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Isolated 4–20 mA Analog Input:** Supports standard current loop signals used in industrial sensors and transmitters, ensuring compatibility with a wide range of process instrumentation. - **High-Resolution 15-Bit Conversion:** Provides precise analog-to-digital conversion for accurate measurement and monitoring of process variables such as temperature, pressure, flow, or level. - **RS485 Communication Interface:** Enables long-distance, multi-drop serial communication using ASCII protocol, suitable for integration into distributed control systems and data acquisition networks. - **Electrical Isolation:** Galvanic isolation between input, output, and communication circuits enhances system reliability and protects against electrical surges and ground potential differences. - **Compact Modular Design:** Designed for easy integration into control panels, DIN rail systems, or modular I/O assemblies. - **ASCII Output Format:** Simplifies data interpretation and integration with PLCs, HMIs, and SCADA systems without complex protocol handling. - **Industrial-Grade Reliability:** Built for continuous operation in demanding industrial environments with stable performance and low drift. - **Flexible Integration:** Compatible with standard RS485 network topologies and can be addressed individually for multi-node communication setups.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Thermocouple Type J Input:** Supports standard Type J thermocouples (Iron–Constantan) for temperature measurement in industrial and laboratory environments. - **Galvanic Isolation:** Electrically isolated input ensures protection against ground loops and electrical interference, improving measurement accuracy and system safety. - **High Resolution:** 15-bit analog-to-digital conversion provides fine measurement granularity and precise temperature readings. - **Digital Communication Interface:** RS485 serial interface with ASCII output format for easy integration into existing communication networks and PLC systems. - **Robust Industrial Design:** Engineered for stable operation in harsh environments with electrical noise, temperature fluctuations, and mechanical vibration. - **Compact Form Factor:** Designed for DIN rail or panel mounting, optimizing space utilization in control cabinets. - **Ease of Integration:** Standardized communication protocol and simple ASCII command structure facilitate quick setup and interoperability with various control systems. - **Low Power Consumption:** Efficient internal circuitry minimizes power draw, suitable for large-scale distributed measurement systems. - **High Accuracy and Stability:** Internal compensation and linearization for Type J thermocouples ensure consistent and repeatable measurements. - **Flexible Network Configuration:** RS485 multi-drop capability allows multiple modules to be connected on a single bus for distributed sensing applications.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Thermocouple Type K Input:** Supports standard Type K thermocouples for temperature measurement across a wide range of industrial applications. - **Galvanic Isolation:** Electrically isolated input ensures protection against ground loops and electrical interference, improving measurement accuracy and system safety. - **High Resolution (15-bit):** Provides fine measurement granularity and high precision in temperature readings. - **RS485 Communication Interface:** Enables robust, long-distance serial communication in multi-drop network configurations. - **ASCII Output Protocol:** Simplifies data exchange with controllers, PLCs, or monitoring systems using standard ASCII commands. - **Industrial Reliability:** Designed for continuous operation in harsh environments with stable performance and low drift. - **Compact Form Factor:** Suitable for DIN rail or panel mounting in control cabinets or distributed I/O systems. - **Low Power Consumption:** Optimized for energy-efficient operation in multi-channel measurement systems. - **Noise Immunity:** Shielded and isolated design minimizes susceptibility to electromagnetic interference (EMI). - **Flexible Integration:** Compatible with a wide range of industrial automation systems, SCADA platforms, and data loggers.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Wide Measurement Range:** Supports Pt100 sensors for temperature measurement from **–200°C to +850°C**, covering cryogenic to high-temperature industrial processes. - **High Accuracy:** General measurement accuracy of **±0.3°C**, ensuring precise readings across the entire range. - **High Resolution:** Temperature resolution of **0.1°C**, allowing fine-grained monitoring and control. - **Sensor Compatibility:** Compatible with **2-wire, 3-wire, and 4-wire Pt100 RTDs**, providing flexibility for different installation and accuracy requirements. - **Excitation Current:** Operates with a **0.25 mA** sensor excitation current, minimizing self-heating effects in the RTD element. - **Linearization:** Integrated linearization for Pt100 (α = 0.00385) sensors, ensuring accurate temperature-to-signal conversion. - **Input Isolation:** **Galvanically isolated input** for enhanced safety and noise immunity, preventing ground loops and interference between measurement and communication circuits. - **High Common-Mode Rejection:** **100 dB CMR (Common Mode Rejection)**, ensuring stable operation in environments with high electrical noise or potential differences. - **Digital Communication:** **RS485 interface** with **ASCII output**, enabling integration into distributed control systems, PLCs, and SCADA networks. - **Industrial-Grade Design:** Built for continuous operation in demanding industrial environments, offering long-term stability and reliability.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Isolated Bridge Input:** Accepts differential bridge signals with selectable input ranges of ±30 mV, ±100 mV, or 1–6 V DC, ensuring compatibility with a wide range of transducers. - **Excitation Supply:** Provides regulated excitation voltages of 5 V, 8 V, or 10 V DC with a maximum current output of 60 mA, suitable for powering strain gauge bridges and similar sensors. - **High Accuracy:** Typical gain accuracy of ±0.05 % of full scale (FS), ensuring precise signal measurement and minimal calibration drift. - **Low Thermal Drift:** Input drift of ±1 µV/°C, maintaining measurement stability across varying ambient temperatures. - **High Common-Mode Rejection Ratio (CMRR):** 100 dB CMR ensures excellent noise immunity and reliable operation in electrically noisy environments. - **High Resolution:** 15-bit resolution for fine signal quantization and accurate digital representation of analog inputs. - **Digital Communication:** RS485 serial interface with ASCII output format for easy integration into distributed measurement networks and industrial control systems. - **Galvanic Isolation:** Complete electrical isolation between input, output, and power circuits to prevent ground loops and enhance system safety. - **Compact and Robust Design:** Engineered for industrial environments, offering reliable long-term operation and ease of integration into control panels or DIN-rail systems.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Dual Measurement Capability:** Supports both frequency and counter input modes, enabling flexible use in a wide range of applications. - **Frequency Input Range:** 1 Hz to 20 kHz, suitable for low- to mid-frequency signal measurement. - **Counter Input Range:** 1 Hz to 10 kHz, optimized for pulse counting and event accumulation. - **High Accuracy:** Frequency measurement accuracy of ±0.01%, ensuring precise signal analysis and reliable data acquisition. - **High Counting Capacity:** Maximum count capacity of 10⁷ pulses (10 million pulses), allowing long-duration counting without overflow. - **Isolated Input:** Electrically isolated input channels to prevent ground loops and protect connected equipment from electrical interference. - **RS485 Communication Interface:** ASCII-based serial communication for integration with PLCs, HMIs, SCADA systems, and industrial PCs. - **Compact Industrial Design:** Designed for panel or DIN-rail mounting in industrial control cabinets. - **Robust Signal Processing:** Capable of handling noisy industrial signals with stable performance across the specified frequency range. - **Flexible Integration:** Compatible with standard RS485 networks and Modbus-compatible systems (ASCII protocol).

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Isolated Digital I/O:** Provides galvanic isolation between input/output channels and communication interface, protecting connected equipment and ensuring signal reliability. - **RS485 Communication Interface:** Supports half-duplex serial communication using the RS485 standard, allowing long-distance data transmission and multi-drop network configurations. - **ASCII Protocol Support:** Communicates using a simple ASCII-based command set, enabling easy integration with PLCs, SCADA systems, and industrial PCs without complex protocol stacks. - **Modular Design:** Compact form factor suitable for DIN-rail or panel mounting, allowing flexible deployment in distributed control architectures. - **Industrial-Grade Reliability:** Designed for harsh environments with robust electrical protection, extended temperature tolerance, and durable housing materials. - **Flexible Digital I/O Configuration:** Supports multiple digital input and output channels for monitoring sensors, switches, and controlling actuators or relays. - **Noise Immunity and Signal Integrity:** High isolation voltage and filtering ensure stable operation in electrically noisy industrial settings. - **Scalable Network Integration:** Multiple C1702 modules can be connected on a single RS485 bus, supporting multi-node communication and distributed I/O expansion. - **Low Power Consumption:** Optimized for energy-efficient operation in continuous industrial processes.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **15 Configurable Digital Channels:** Each of the 15 channels can be independently configured as a digital input or digital output, allowing flexible adaptation to various control and monitoring tasks. - **RS485 Communication Interface:** Supports half-duplex serial communication over RS485, enabling multi-drop network configurations and long-distance data transmission (up to 1200 meters depending on cable and environment). - **ASCII Protocol Support:** Utilizes a simple ASCII-based communication protocol for easy integration with PCs, PLCs, and other controllers without the need for complex drivers or proprietary software. - **Modular Design:** Designed for use in modular data acquisition systems, allowing multiple modules to be networked together for expanded I/O capacity. - **Industrial-Grade Construction:** Built for durability and reliability in harsh industrial environments, with robust electrical isolation and protection against noise and interference. - **Flexible Power and Signal Configuration:** Supports a range of input signal types and output drive capabilities, suitable for interfacing with sensors, switches, relays, and actuators. - **Compact Form Factor:** Space-efficient design suitable for DIN rail or panel mounting in control cabinets. - **LED Status Indicators:** Provides visual feedback for power, communication activity, and channel status, simplifying diagnostics and maintenance. - **Scalable Network Integration:** Multiple C1712 modules can be connected on a single RS485 bus, each with a unique address, enabling distributed I/O architectures.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **12-bit Digital-to-Analog Conversion (DAC):** Provides fine resolution for analog signal generation, ensuring accurate voltage output representation of digital input data. - **Analog Output Range ±10 V:** Supports bipolar voltage output suitable for controlling a wide range of industrial devices such as actuators, drives, and analog instrumentation. - **RS485 Communication Interface:** Utilizes a robust, noise-resistant serial communication standard ideal for long-distance and multi-drop network configurations. - **ASCII Protocol Support:** Simplifies integration with PLCs, PCs, and other controllers using standard ASCII command sets for configuration and data transmission. - **Compact Modular Design:** Designed for easy integration into distributed control systems, DIN-rail mounting, or panel installations. - **High Signal Integrity:** Shielded design and differential communication minimize interference and ensure stable analog output performance. - **Industrial-Grade Reliability:** Built for continuous operation in demanding environments, with extended temperature tolerance and durable construction. - **Flexible Configuration:** Supports adjustable parameters via RS485 commands, allowing calibration, scaling, and offset adjustments. - **Low Power Consumption:** Optimized for energy-efficient operation in multi-module systems.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Multi-Module Capacity:** Supports up to **14 plug-in modules**, allowing flexible system expansion and configuration. - **Dual Communication Interface:** Provides integrated support for both **RS485** and **RS232** serial communication standards, ensuring compatibility with a wide range of industrial devices and controllers. - **Centralized Backplane Design:** Acts as a unified communication and power distribution backbone for all connected modules. - **High Signal Integrity:** Optimized PCB layout and grounding structure minimize interference and cross-talk between channels. - **Modular Scalability:** Enables users to start with a smaller number of modules and expand up to 14 as system requirements grow. - **Industrial-Grade Construction:** Designed for continuous operation in demanding environments, with robust connectors and durable materials. - **Ease of Integration:** Compatible with standard DIN-rail or panel mounting systems for quick installation in control cabinets. - **Serviceability:** Each module slot is individually accessible for maintenance, replacement, or upgrade without system downtime. - **Flexible Power Distribution:** Integrated power bus supports consistent voltage supply to all modules, reducing wiring complexity. - **Communication Bus Management:** Built-in termination and biasing options for RS485 networks ensure stable multi-drop communication.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Multi-Module Capacity:** Supports installation of up to **8 communication modules**, allowing flexible configuration for various serial communication requirements. - **Dual Communication Standards:** Compatible with both **RS485** and **RS232** interfaces, enabling integration with a wide range of industrial devices, controllers, and sensors. - **Modular Design:** Each module slot is independently addressable and replaceable, simplifying maintenance and system expansion. - **Centralized Power and Signal Distribution:** Provides a unified backplane for power supply and data routing between modules and external systems. - **High Reliability:** Designed for continuous operation in industrial environments, with robust PCB construction and secure module connectors. - **Compact Panel Integration:** Optimized for installation in control cabinets, panels, or rack-mounted systems. - **Ease of Configuration:** Supports standardized pin assignments and communication protocols for quick setup and commissioning. - **Scalable Architecture:** Allows system designers to start with fewer modules and expand up to eight as system requirements grow. - **Signal Integrity:** Incorporates proper grounding and shielding provisions to minimize electromagnetic interference (EMI) and ensure stable data transmission. - **Versatile Application Range:** Suitable for automation systems, building management, process control, and data acquisition networks.

Manufacturer: Contec

Category: RS485 DIN Rail IO Modules

- **Universal DIN-Rail Compatibility:** Supports standard 35 mm DIN rails (EN 60715 / IEC 60715 Type TH35). - **Durable Construction:** Manufactured from high-strength industrial-grade materials to ensure long-term mechanical stability and resistance to vibration. - **Compact and Lightweight Design:** Optimized for space-constrained control panels and modular installations. - **Easy Installation and Removal:** Snap-on/snap-off mechanism allows quick mounting without additional tools. - **Secure Locking Mechanism:** Integrated spring clip or latch ensures firm attachment to the rail, preventing accidental dislodging. - **Versatile Mounting Interface:** Designed to accommodate Trycom converters, serial device servers, and communication modules. - **Corrosion-Resistant Finish:** Surface treated to withstand industrial environments, humidity, and temperature variations. - **Electrical Isolation:** Provides mechanical separation between the device and the mounting surface, minimizing electrical interference. - **Maintenance-Free Operation:** No moving parts or electrical connections; purely mechanical adaptor for long service life. - **Compliance with Industrial Standards:** Conforms to international DIN-rail specifications for universal compatibility.

Manufacturer: Trycom

Category: RS485 DIN Rail IO Modules

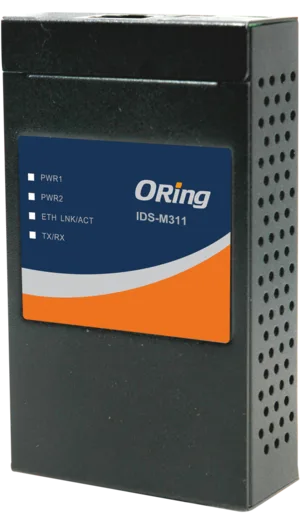

- **Protocol Conversion:** Converts between **Modbus TCP** and **Modbus RTU/ASCII**, enabling seamless integration of legacy serial devices into modern Ethernet networks. - **Flexible Serial Interface:** One DB9 male port, software‑selectable for **RS‑232**, **RS‑422**, or **RS‑485 (2‑wire/4‑wire)** operation. - **High Connectivity:** Supports up to **16 simultaneous TCP connections** and **32 concurrent requests**, allowing multiple clients to access serial devices concurrently. - **Multiple Operating Modes:** RTU Master, RTU Slave, ASCII Master, and ASCII Slave modes for versatile deployment. - **Wide Baud Rate Range:** 110 bps to 115.2 kbps with configurable data bits (5–8), parity (odd, even, none, mark, space), and stop bits (1, 1.5, 2). - **Dual Power Inputs:** Redundant **12–48 V DC** inputs via terminal block and DC jack ensure uninterrupted operation. - **Web‑Based Configuration:** Integrated web interface for configuration, monitoring, and firmware updates. - **Comprehensive Protocol Support:** ICMP, IP, TCP, UDP, DHCP, BOOTP, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE, and Modbus TCP. - **Industrial‑Grade Design:** IP‑30 metal housing, vibration/shock resistance, and extended temperature tolerance (‑10 °C to +60 °C). - **LED Indicators:** Power, Ethernet link/activity, and serial TX/RX LEDs for real‑time status monitoring. - **Cross‑Platform Compatibility:** Supports Windows NT/2000/XP/2003/Vista/7 (32/64‑bit). - **Mounting Flexibility:** Supplied with both **DIN‑rail** and **wall‑mount** kits. - **Long‑Term Reliability:** Backed by a **5‑year manufacturer warranty**.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **VDSL2 Ethernet Extension:** Enables Ethernet signal transmission over existing copper wiring using VDSL2 technology, extending network reach up to 2400 meters on 26 AWG two-wire cable. - **Gigabit Ethernet Interface:** Provides one 10/100/1000Base-T RJ45 port for high-speed LAN connectivity. - **Industrial Design:** Rugged metal enclosure suitable for industrial automation, transportation, and utility applications. - **Wide Temperature Range:** Operates reliably from -40°C to +75°C, ensuring performance in extreme environmental conditions. - **Flexible Mounting:** Supports both DIN rail and wall mounting for versatile installation in control cabinets or field enclosures. - **Dual Power Inputs:** Accepts dual redundant 12–48 VDC power supplies with Oring protection for uninterrupted operation. - **Low Power Consumption:** Typical power draw of approximately 4.75 W, optimizing energy efficiency in continuous operation. - **Compact Form Factor:** Space-saving design with dimensions of 41 × 70 × 95.5 mm and a weight of approximately 272 grams. - **Reliable Connectivity:** Terminal block connection for VDSL2 line interface ensures secure and vibration-resistant wiring. - **Industrial-Grade Components:** Designed for long-term reliability, electromagnetic compatibility, and resistance to shock and vibration.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

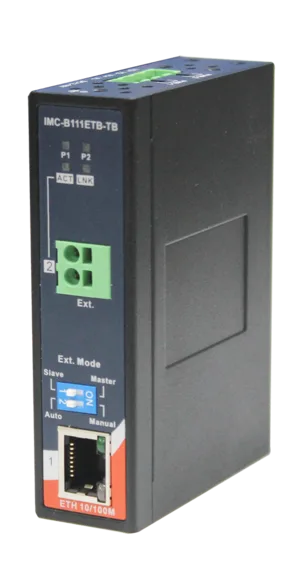

- **Extended Ethernet Range:** Extends Ethernet transmission distance up to **300 meters (984 ft)** over standard UTP cable or **200 meters (656 ft)** over 24 AWG non-UTP cable. - **Flexible Transmission Modes:** Supports **2/4/8-wire auto-detecting transmission**, allowing adaptive operation depending on cable type and installation conditions. - **Auto/Manual Master-Slave Configuration:** Equipped with a **2-position DIP switch** for selecting between **Auto** and **Manual** configuration modes. - **DIP 1:** Master/Slave selection (On = Master, Off = Slave) - **DIP 2:** Auto/Manual mode (On = Manual, Off = Auto) - **Auto-Negotiation and Auto MDI/MDI-X:** The 100Base-TX Ethernet port supports **auto-negotiation** for speed and duplex mode, and **Auto MDI/MDI-X** for automatic cable type detection. - **Industrial-Grade Design:** Compact **IP-30-rated** metal housing ensures protection against dust and mechanical stress. Designed for **-40°C to +75°C** operation, suitable for extreme environments. - **Redundant Power Inputs:** Dual **12–48 VDC** power inputs via a 4-pin terminal block provide redundancy and protection against power failure. - **Low Power Consumption:** Typical power consumption is **2 Watts**, ensuring energy-efficient operation. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall-mount** installation, with kits included in the package. - **Comprehensive LED Indicators:** Dual power LEDs and link/activity indicators for both Ethernet and extender ports provide clear operational status. - **High Reliability:** Designed for rugged industrial applications with compliance to multiple **EMI/EMS** and **safety standards**.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **Extended Ethernet Range:** Extends Ethernet communication up to **300 meters (984 ft)** over UTP cable or **200 meters (656 ft)** over 24 AWG non-UTP cable, surpassing the standard 100-meter Ethernet limitation. - **Two-Wire Transmission:** Supports **2-wire transmission** for cost-effective and simplified cabling in industrial installations. - **Flexible Master/Slave Configuration:** Equipped with a **two-position DIP switch** for selecting **Master/Slave** and **Auto/Manual** operation modes. - **DIP 1:** Master (ON) / Slave (OFF) - **DIP 2:** Manual (ON) / Auto (OFF) Auto mode enables automatic negotiation between master and slave devices. - **Auto MDI/MDI-X Functionality:** The 100Base-TX RJ45 port supports **Auto MDI/MDI-X**, eliminating the need for crossover cables. - **Full/Half Duplex Support:** Ethernet port supports both **full-duplex** and **half-duplex** operation modes. - **Redundant Power Inputs:** Dual **12–48 VDC** power inputs via terminal block ensure uninterrupted operation and system reliability. - **Industrial-Grade Design:** Compact **IP-30-rated** metal enclosure provides mechanical durability and electromagnetic shielding. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall-mount** installation for versatile deployment in control cabinets or industrial panels. - **Wide Temperature Range:** Operates reliably from **-40°C to +75°C (-40°F to +167°F)**, suitable for extreme industrial environments. - **Low Power Consumption:** Typical power consumption is **2 Watts**, optimizing energy efficiency. - **Comprehensive LED Indicators:** Dual power LEDs and link/activity LEDs for both Ethernet and extender ports provide clear operational status. - **High Reliability:** Designed for continuous operation in mission-critical applications with **5-year warranty** coverage.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **Serial Interface Conversion:** Converts one RS-232 port to one RS-422/485 port, enabling communication between legacy serial devices and modern industrial control systems. - **Transparent Operation:** RS-485 control is fully automatic and transparent to the user, requiring no software modification for half-duplex operation. - **High-Speed Data Transmission:** Supports baud rates from 300 bps up to 115.2 Kbps, ensuring compatibility with a wide range of serial communication devices. - **Optical Isolation (ISC-1112-I):** Provides 3000 VDC isolation between RS-232 and RS-422/485 interfaces, protecting connected equipment from voltage surges and ground loops. - **Industrial-Grade Design:** ABS housing with IP30 protection, designed for harsh environments with operating temperatures from -10°C to +70°C. - **Flexible Mounting:** Supports both DIN-rail and wall-mount installation for versatile deployment in control cabinets or industrial enclosures. - **Compact and Lightweight:** Small footprint (71.2 × 25.3 × 100.6 mm) and low weight (~130 g) for easy integration into space-constrained systems. - **Wide Power Input Range:** Accepts +9 to +30 VDC input, suitable for various industrial power systems. - **Low Power Consumption:** Typical power usage of approximately 2.2 W. - **LED Indicators:** Power, TxD, and RxD LEDs provide clear visual status of device operation and data transmission. - **Comprehensive EMC Protection:** Meets industrial EMC standards for ESD, surge, EFT, and vibration resistance. - **Long-Term Reliability:** Designed for continuous operation in demanding industrial automation, SCADA, and process control environments.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **Isolated Serial Conversion:** Converts RS-232 signals to RS-422 or RS-485 with 3000 VDC optical isolation, protecting connected equipment from voltage surges and ground loops. - **Industrial-Grade Design:** Built with an IP30-rated ABS housing suitable for harsh industrial environments. - **Wide Operating Temperature:** Reliable operation from -10°C to +70°C, ensuring stability in both indoor and outdoor industrial settings. - **Flexible Mounting Options:** Supports both DIN-rail and wall-mount installations for versatile deployment. - **High-Speed Data Transmission:** Supports baud rates from 300 bps up to 115.2 Kbps, accommodating a wide range of serial communication devices. - **Automatic RS-485 Direction Control:** Hardware-based auto-direction control simplifies half-duplex communication without software modification. - **Comprehensive Signal Support:** Handles RS-232 (TX, RX, GND) and RS-422/485 (TX+, TX-, RX+, RX-, Data+, Data-) signals. - **LED Status Indicators:** Power, TxD, and RxD LEDs provide clear visual feedback for power and data transmission status. - **Low Power Consumption:** Typical power usage of approximately 2.2 W, supporting energy-efficient operation. - **Extended Voltage Input Range:** Accepts +9 to +30 VDC input, compatible with various industrial power systems. - **Rugged Reliability:** Tested for shock, vibration, and free-fall resistance per IEC60068 standards. - **Regulatory Compliance:** Meets FCC Part 15, CISPR (EN55022) Class A, and multiple EN61000-4 EMC standards. - **Ease of Integration:** Transparent operation for RS-485 half-duplex communication—no software changes required.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **USB to Serial Conversion:** Converts one USB 1.1 port to one RS-422/485 serial port, enabling communication between USB hosts and serial devices. - **High Isolation Protection:** 3000 VDC optical isolation between USB and serial interfaces protects against voltage surges and ground loops. - **Industrial-Grade Design:** Built for harsh environments with an IP30-rated ABS enclosure and extended operating temperature range (-10°C to +70°C). - **Bus-Powered Operation:** Draws power directly from the USB bus, eliminating the need for an external power adapter. - **Low Power Consumption:** Typical power usage of only 0.65 W, ensuring energy-efficient operation. - **Flexible Mounting Options:** Supports both DIN-rail and wall-mount installations for versatile deployment in industrial control panels or enclosures. - **Comprehensive Serial Support:** Compatible with RS-422 and RS-485 communication standards, supporting full-duplex and half-duplex modes. - **Wide Baud Rate Range:** Supports data rates from 300 bps up to 115.2 Kbps. - **LED Indicators:** Dedicated LEDs for power, transmit (TxD), and receive (RxD) status for easy monitoring. - **Surge and ESD Protection:** Integrated transient suppressors and surge protection circuits safeguard against electrical disturbances. - **Cross-Platform Driver Support:** Compatible with Windows 95/98/ME/2000/XP and Linux operating systems. - **Compact and Lightweight:** Small form factor (71.2 × 25.3 × 100.6 mm) and lightweight (130 g) for easy integration into space-constrained environments.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **Dual-Port Isolated Repeater:** Provides two isolated serial ports for RS-422/RS-485 communication, enabling signal regeneration and isolation between network segments. - **High Isolation Voltage:** 3 kV galvanic isolation between input and output channels ensures protection against ground loops, surges, and electrical noise. - **Wide Baud Rate Support:** Operates across a broad data rate range from **300 bps to 115.2 Kbps**, accommodating both legacy and modern serial communication systems. - **Industrial-Grade Design:** Built for harsh environments with an extended operating temperature range of **-10°C to +70°C**, ensuring stable performance in industrial and field applications. - **Compact and Durable Enclosure:** Housed in a robust **ABS case** with **IP30** protection rating, providing resistance to dust and mechanical stress. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall-mount** installation, allowing easy integration into control cabinets or equipment panels. - **Low Power Consumption:** Typical power consumption of approximately **2.2 W**, making it energy-efficient for continuous operation. - **Terminal Block Connectivity:** Equipped with **2 × 10-pin terminal blocks** for secure and reliable wiring of serial lines and power connections. - **Signal Integrity Enhancement:** Regenerates and reshapes RS-422/RS-485 signals to extend communication distance and improve data reliability. - **Industrial Reliability:** Designed for continuous operation in automation systems, SCADA networks, and industrial control environments.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

- **Multi‑protocol Serial Support:** Provides one configurable serial port supporting RS‑232, RS‑422, or RS‑485 communication modes without requiring manual jumper settings. - **USB Interface:** Compliant with USB 1.1 standard, compatible with USB 2.0 hosts, enabling plug‑and‑play connectivity to PCs, industrial computers, or USB hubs. - **High Electrical Isolation:** 3,000 VDC optical isolation between USB and serial interfaces protects host systems from voltage surges, ground loops, and transient spikes. - **Surge and Transient Protection:** Built‑in high‑speed transient suppressors safeguard data lines against electrical disturbances. - **Bus‑Powered Operation:** Draws power directly from the USB port (self‑powered), eliminating the need for an external power adapter. - **Compact Industrial Design:** IP‑30 rated ABS enclosure with DIN‑rail and wall‑mount options for flexible installation in control cabinets or field environments. - **Wide Temperature Range:** Operates reliably from –10 °C to +70 °C, suitable for harsh industrial conditions. - **Low Power Consumption:** Typical power draw of only 0.65 W, ensuring energy‑efficient operation. - **LED Indicators:** Dedicated Power, TxD, and RxD LEDs provide clear visual status of device operation and data transmission. - **Driver Support:** Compatible with major operating systems including Windows 95/98/ME/2000/XP and Linux. - **Industrial Reliability:** Designed and tested to meet rigorous EMI/EMS and mechanical shock/vibration standards for industrial environments.

Manufacturer: Oring

Category: RS485 DIN Rail IO Modules

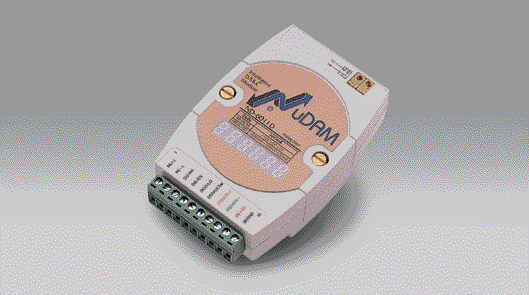

- **High‑Gain Analog Input:** One differential analog input channel with programmable gain and voltage range from ±15 mV to ±2.5 V. - **Thermocouple Compatibility:** Direct thermocouple connection with built‑in Cold Junction Compensation (CJC) for accurate temperature measurement. - **Multi‑Range Input:** Supports voltage, current, and thermocouple input types with programmable ranges. - **High Isolation:** 5000 Vrms isolation for analog‑to‑digital channel (2500 Vrms for ND‑6011/D version). - **Digital I/O Integration:** Two open‑collector digital outputs (DO) and one digital input (DI) that can function as an event counter. - **Programmable Alarms:** High/low alarm thresholds with digital output signaling for external alarm devices. - **Watchdog Protection:** Dual watchdog system—internal (150 ms) and host‑programmable (100 ms to 25.5 s)—for system reliability. - **RS‑485 Communication:** Two‑wire serial interface supporting baud rates from 1200 bps to 115.2 kbps. - **Software Calibration:** Fully programmable offset and span calibration without manual adjustment. - **LED Display (D Version):** 5½‑digit LED display for real‑time analog value visualization. - **Ease of Integration:** Compact, software‑configurable, and compatible with NuDAM Administration utilities for setup and monitoring.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **High‑Gain Analog Input:** One differential analog input channel with programmable gain and selectable voltage or current ranges. - **Thermocouple Compatibility:** Direct connection to thermocouples (types J, K, T, E, R, S, B, N, C) with built‑in cold junction compensation (CJC). - **Programmable Input Ranges:** ±15 mV to ±2.5 V or ±20 mA (via external 125 Ω resistor). - **High Resolution:** 16‑bit A/D conversion for precise signal acquisition. - **Isolation:** 2500 Vrms channel‑to‑system isolation (5000 Vrms for non‑display version). - **Digital I/O:** - 2 open‑collector digital outputs (30 V max, 50 mA sink). - 1 digital input channel usable as event counter (up to 50 Hz). - **Alarm Functionality:** Programmable high/low alarm thresholds with digital output signaling. - **Watchdog Protection:** - Internal 150 ms watchdog for module self‑monitoring. - Host‑programmable watchdog (100 ms – 25.5 s) for communication supervision. - **Display:** 5½‑digit LED display for real‑time measurement visualization. - **Ease of Integration:** Software‑configurable parameters, RS‑485 networking, and simple wiring. - **Industrial Durability:** Wide power input range (+10 V – +30 V DC), robust isolation, and noise immunity.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

The **NuDAM‑6012** is a **multi‑function, high‑gain analog input module** designed for industrial data acquisition and remote monitoring applications. It provides a **single differential analog input channel** with programmable voltage ranges and integrated digital I/O for alarm and control functions. The module communicates via a **two‑wire RS‑485 interface**, supporting multi‑drop networking and long‑distance communication. **Primary Features:** - **1 differential analog input channel** with programmable voltage range. - **High‑gain measurement capability** for low‑level signals (±150 mV to ±10 V). - **16‑bit resolution** analog‑to‑digital conversion for precise measurement. - **RS‑485 communication interface** (2‑wire, half‑duplex) with baud rates up to 115.2 kbps. - **5000 Vrms isolation** between analog and communication circuits (2500 Vrms for ND‑6012/D). - **2 open‑collector digital outputs** (50 mA sink current each) for alarms or control. - **1 digital input channel** configurable as a general input or event counter (up to 50 Hz). - **Programmable high/low alarm thresholds** with latch or momentary modes. - **Host and internal watchdog timers** for system reliability and fail‑safe operation. - **LED display (5½‑digit)** on the “D” version for real‑time value indication. - **Software‑configurable parameters** including address, baud rate, input range, and data format. - **Compact, DIN‑rail mountable design** for distributed I/O networks. - **Power supply range:** +10 V DC to +30 V DC.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules
