- **32-Channel PNP Discrete Output:** Provides 32 sourcing-type digital outputs for controlling actuators, relays, solenoids, and other field devices. - **High-Speed Communication:** Utilizes ADLINK’s HSL protocol for fast, deterministic data exchange between controllers and distributed I/O nodes. - **DIN-Rail Mountable Design:** Compact and rugged housing suitable for industrial control cabinets. - **Flexible Power Input:** Operates from a wide DC voltage range of +10 V to +30 V, ensuring compatibility with standard industrial power supplies. - **LED Status Indicators:** - **Red:** Active DC power - **Green:** Link status - **Green:** Discrete input activity (for combined I/O models) - **Yellow:** Discrete output activity - **Configurable Addressing:** DIP switch settings allow up to 63 addressable nodes on a single HSL network. - **Fast Response Time:** Typical ON/OFF switching response of 2 ms, suitable for high-speed control loops. - **Compact and Lightweight:** Weighs approximately 72 g, minimizing load on DIN rails and simplifying installation. - **Modular Terminal Base Options:** Compatible with multiple terminal base configurations (32- or 64-channel bases) for flexible wiring and expansion. - **Industrial-Grade Reliability:** Designed for continuous operation in harsh industrial environments with robust electrical isolation and noise immunity.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **64-Channel NPN Sinking Outputs:** Provides 64 discrete output channels for controlling external loads such as relays, solenoids, and indicators. - **High-Speed Link (HSL) Interface:** Utilizes ADLINK’s proprietary HSL communication protocol for fast, deterministic data exchange between controllers and remote I/O modules. - **Economic Design:** Optimized for cost efficiency while maintaining industrial-grade reliability and performance. - **DIN-Rail Mounting:** Compact form factor with DIN socket compatibility for easy installation in control cabinets. - **Flexible Terminal Base Options:** Compatible with **HSL-TB32-DO-DIN**, **HSL-TB32-U-DIN**, and **HSL-TB64-DIN** terminal bases, supporting both 32- and 64-channel configurations. - **LED Indicators:** - **Red LED:** Active DC power - **Green LED:** Link status - **Yellow LED:** Individual discrete output status - **Fast Response Time:** Maximum ON/OFF switching time of **2 ms**, ensuring precise and rapid control. - **Wide Power Supply Range:** Operates from **+10V to +30V DC**, suitable for various industrial power environments. - **Compact and Lightweight:** Designed for space-constrained installations with minimal power consumption (1.8 W typical). - **High Reliability:** Industrial-grade components and robust electrical design for long-term operation in harsh environments. - **Address Configuration via DIP Switch:** Simple address assignment using onboard DIP switches for flexible system integration. - **Compatibility with RS-422 Communication Lines:** Supports differential signaling for noise immunity and long-distance communication.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **64-Channel PNP Sourcing Outputs:** Provides 64 discrete output channels for driving external loads with sourcing (positive) logic. - **High-Speed Communication:** Utilizes ADLINK’s **HSL (High Speed Link)** technology for fast, deterministic data transfer between controllers and I/O modules. - **Compact DIN-Rail Mountable Design:** Optimized for space-saving installation in control cabinets using standard DIN-rail terminal bases. - **Flexible Terminal Base Options:** Compatible with **HSL-TB64-DIN** and **HSL-TB32-U-DIN** terminal bases for 32- or 64-channel configurations. - **Wide Power Supply Range:** Operates from **+10V to +30V DC**, suitable for various industrial power environments. - **LED Status Indicators:** - **Red LED:** Active DC power indication - **Green LED:** Link status indication - **Yellow LED:** Discrete output channel activity indication - **Fast Response Time:** Maximum ON/OFF switching time of **2 ms**, ensuring precise control for time-critical automation tasks. - **Compact and Lightweight:** Weighs only **72 g**, facilitating easy installation and maintenance. - **Economic Design:** Offers a cost-effective solution for large-scale digital output expansion in industrial systems. - **High Reliability:** Designed for continuous operation in industrial environments with robust electrical isolation and stable performance.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

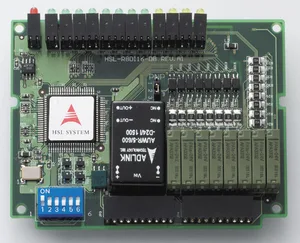

- **Dual Functionality:** Combines 8 relay outputs and 16 discrete NPN sinking inputs on a single daughter board, optimizing space and wiring efficiency. - **HSL System Integration:** Fully compatible with ADLINK’s HSL distributed I/O architecture, enabling high-speed, deterministic communication between controllers and field devices. - **Flexible Input Configuration:** Supports NPN sinking or dry contact inputs, allowing connection to a wide range of sensors and switches. - **Relay Output Control:** Provides isolated relay outputs suitable for switching external loads, actuators, or control signals. - **High-Speed RS-422 Communication:** Utilizes differential RS-422 transmission for robust, noise-immune data exchange over long distances. - **Address Configuration via DIP Switch:** Supports up to 63 addressable modules through a 6-bit DIP switch configuration. - **LED Indicators:** Multi-color LEDs for power, link status, input, and output channel activity, simplifying diagnostics and maintenance. - **DIN-Rail Mountable Terminal Base:** Designed for use with the HSL-TB32-M-DIN terminal base, ensuring secure installation and easy field wiring. - **Wide Power Supply Range:** Operates from +10 VDC to +30 VDC, accommodating various industrial power environments. - **Compact and Lightweight Design:** Optimized for panel integration with minimal footprint and weight.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual Functionality:** Combines 8 relay output channels with 16 discrete PNP sourcing input channels on a single daughter board, optimizing space and wiring efficiency. - **HSL System Integration:** Fully compatible with ADLINK’s HSL High Speed Link architecture, enabling distributed I/O expansion with minimal latency. - **High-Speed Communication:** Utilizes RS-422 differential signaling for reliable, noise-immune data transmission in industrial environments. - **Flexible Address Configuration:** DIP switch selectable node addressing (1–63) for easy system integration and expansion. - **Wide Power Supply Range:** Operates from +10 VDC to +30 VDC, accommodating diverse industrial power systems. - **LED Indicators:** Provides clear visual feedback for power, link status, input activity, and output operation. - **Compact Modular Design:** Designed for DIN-rail mounting with the HSL-TB32-M-DIN terminal base, simplifying installation and maintenance. - **Fast Response Time:** Input and output response times of ≤2 ms ensure precise control in time-critical automation processes. - **High Reliability:** Industrial-grade components and isolation ensure long-term stability and resistance to electrical noise. - **Scalable Architecture:** Supports multiple module configurations (NN, NP, PN, PP) for flexible input/output combinations.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Integrated I/O Functionality:** Combines 8 relay output channels and 16 NPN sinking input channels on a single module, reducing wiring complexity and space requirements. - **High-Speed Communication:** Utilizes ADLINK’s proprietary **HSL (High Speed Link)** technology for fast, deterministic data transfer between controllers and field I/O devices. - **Industrial-Grade Design:** Metal enclosure provides superior electromagnetic shielding and mechanical protection, ensuring stable operation in harsh industrial environments. - **Flexible Input Configuration:** Supports NPN sinking or dry contact input types, compatible with a wide range of sensors and switches. - **Relay Output Capability:** Each relay output channel can drive external loads, suitable for controlling actuators, solenoids, and indicator lamps. - **LED Indicators:** Integrated LED indicators for power, link status, and channel activity simplify diagnostics and maintenance. - **DIN-Rail Mountable:** Compatible with HSL terminal bases (HSL-TB32-U-DIN and HSL-TB64-DIN) for easy installation and modular expansion. - **Address Configuration via DIP Switch:** Simple DIP switch settings allow flexible address assignment within the HSL network. - **Wide Power Supply Range:** Operates from +10 VDC to +30 VDC, accommodating various industrial power systems. - **Compact and Lightweight:** Optimized for distributed I/O applications where space efficiency and modularity are critical.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual Functionality:** Combines 8 relay output channels and 16 PNP input channels on a single daughter board, optimizing space and simplifying wiring. - **High-Speed Link (HSL) Technology:** Utilizes ADLINK’s proprietary HSL communication protocol for fast, deterministic data exchange between controllers and distributed I/O modules. - **Robust Construction:** Metal enclosure provides superior protection against electromagnetic interference (EMI) and mechanical stress, ensuring reliable operation in harsh industrial environments. - **Flexible Power Input:** Operates with a wide DC voltage range of +10V to +30V, suitable for various industrial power systems. - **LED Indicators:** Integrated LED indicators for power, communication link, and I/O channel status facilitate quick diagnostics and maintenance. - **DIN-Rail Mounting Compatibility:** Designed for easy installation on standard DIN rails using compatible terminal bases (HSL-TB32-U-DIN, HSL-TB64-DIN). - **Scalable System Integration:** Fully compatible with other HSL modules such as HSL-DO32-DB and HSL-DI32-DB, enabling modular expansion of I/O capacity. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial automation, process control, and machine monitoring applications. - **Fast Response Time:** Typical ON/OFF response time of 2 ms ensures real-time performance for control tasks. - **Comprehensive Address Configuration:** DIP switch-based addressing allows flexible allocation of module addresses within the HSL network.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Field I/O Wiring Interface:** Provides direct screw terminal connections for field I/O signals, simplifying wiring and maintenance. - **Power LED Indicator:** Integrated LED for visual confirmation of power status, aiding in diagnostics and system monitoring. - **Screw Terminal Design:** Facilitates easy and secure field wiring without specialized connectors. - **DIN Rail Mounting:** Standard DIN rail compatibility ensures quick installation and modular system expansion. - **Integrated Power and Ground:** Each signal channel includes dedicated power and ground terminals, improving signal integrity and reducing wiring complexity. - **Onboard Terminator Resistor:** Built-in termination resistor ensures proper signal transmission and minimizes reflection in RS-422 communication lines. - **Interlocking Mechanical Design:** Enables rugged and stable installation, maintaining reliable electrical contact even in high-vibration industrial environments. - **Full-Duplex RS-422 Communication:** Supports high-speed, noise-resistant serial communication between modules and controllers. - **Compatibility with HSL-DB Modules:** Specifically engineered for HSL-DI16DO16-DB-NN and HSL-DI16DO16-DB-PN daughter boards, ensuring seamless integration. - **High Load Capacity:** Supports discrete output loads up to 300 mA per channel, suitable for inductive loads. - **Wide Power Input Range:** Operates from 10 to 30 VDC, accommodating diverse industrial power systems. - **Compact and Durable Construction:** Optimized for space efficiency and long-term reliability in control cabinets.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **32-Channel Terminal Base:** Supports up to 32 I/O channels, providing a compact and organized wiring interface for HSL-M modules. - **Full-Duplex RS-422 Communication:** Ensures high-speed, noise-resistant data transmission between modules and controllers. - **DIN Rail Mounting:** Standard DIN socket design allows quick installation and secure mechanical attachment in control cabinets. - **Field I/O Wiring Connection:** Simplifies field wiring through screw terminals, enabling easy connection and maintenance. - **Power LED Indicator:** Provides clear visual feedback of power status for quick diagnostics. - **Integrated Power and Ground per Channel:** Each signal channel includes dedicated power and ground terminals for stable operation and reduced interference. - **Built-in Terminator Resistor:** Ensures proper signal termination for reliable communication across the HSL network. - **Interlocking Design:** Allows multiple terminal bases to be securely connected, enhancing mechanical stability and modular scalability. - **Wide Power Input Range:** Operates from 10 to 30 VDC, accommodating various industrial power supply standards. - **Compact and Lightweight:** Optimized for space-constrained control panels with a total weight of only 186 g. - **Jumper Configurable:** Supports jumper settings for defining module position (last or not last module) in the HSL chain.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **32-Channel I/O Terminal Base:** Supports up to 32 input/output channels, providing a structured and efficient wiring interface for HSL modules. - **Separate I/O Design:** Each channel includes dedicated power and ground terminals, ensuring signal integrity and minimizing electrical noise. - **Power Selection Capability:** Allows flexible power configuration within the 10–30 VDC range, accommodating various industrial power standards. - **Full-Duplex RS-422 Communication:** Ensures high-speed, noise-resistant data transmission between modules and controllers. - **DIN Rail Mounting:** Standard DIN rail compatibility simplifies installation and maintenance in control cabinets. - **Screw Terminal Connections:** Facilitates secure and easy field wiring, reducing installation time and improving reliability. - **Power LED Indicator:** Provides visual confirmation of power status for quick diagnostics and system monitoring. - **Onboard Terminator Resistor:** Integrated termination ensures proper signal integrity in daisy-chained communication networks. - **Interlocking Mechanical Design:** Enables rugged, vibration-resistant installation suitable for industrial environments. - **Compact and Lightweight Construction:** Optimized for space-constrained control panels while maintaining mechanical durability. - **Compatibility with HSL-M Modules:** Designed specifically to interface with all HSL-M type modules, ensuring seamless integration within the HSL ecosystem.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Field I/O Wiring Connection:** Provides direct screw terminal connections for field I/O signals, simplifying wiring and maintenance. - **Power LED Indicator:** Integrated LED for visual confirmation of power status, aiding diagnostics and system monitoring. - **Screw Terminal Design:** Facilitates secure and easy field wiring without specialized connectors. - **DIN Rail Mounting:** Standard DIN rail compatibility ensures quick installation and modular system expansion. - **Integrated Power and Ground:** Each signal channel includes dedicated power and ground terminals, improving signal integrity and reducing wiring complexity. - **Onboard Terminator Resistor:** Built-in termination resistor ensures proper signal transmission and minimizes reflection in RS-422 communication lines. - **Interlocking Mechanical Design:** Rugged interlocking structure enhances mechanical stability and vibration resistance in industrial environments. - **Full-Duplex RS-422 Communication:** Supports high-speed, noise-immune serial communication between modules. - **Universal Compatibility:** Designed to interface with all HSL-DB type daughter boards, offering flexibility across multiple I/O configurations. - **Compact and Lightweight:** Optimized for space-constrained control cabinets while maintaining robust construction.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **64-Channel Terminal Interface:** Supports up to 64 I/O channels, enabling high-density signal connectivity for complex automation systems. - **Compatibility with HSL-DB Daughter Boards:** Designed to interface seamlessly with all HSL–DB type daughter boards (two modules per base). - **DIN Rail Mounting:** Standard DIN rail socket for quick and secure installation in control cabinets. - **Full-Duplex RS-422 Communication:** Ensures high-speed, noise-resistant data transmission between modules and controllers. - **Integrated Power and Ground per Channel:** Each signal channel includes dedicated power and ground terminals for stable and isolated operation. - **Built-in Terminator Resistor:** On-board termination resistor enhances signal integrity and reduces reflection in long-distance communication lines. - **Screw Terminal Connections:** Simplifies field wiring and maintenance with secure, easy-to-use screw terminals. - **Power LED Indicator:** Provides visual confirmation of power status for quick diagnostics. - **Interlocking Mechanical Design:** Allows rugged, vibration-resistant installation suitable for industrial environments. - **Wide Power Input Range:** Operates from 10 to 30 VDC, accommodating various industrial power systems. - **High Wire Gauge Flexibility:** Supports wire sizes from 14 AWG (maximum) to 24 AWG (minimum), allowing versatile wiring options. - **Modular System Integration:** Designed as part of the HSL modular I/O system, enabling scalable and flexible automation architectures.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **High-Speed Distributed I/O Communication:** Operates at a data rate of **6 Mbps** using a full-duplex RS-422 communication scheme with transformer isolation. - **Real-Time Deterministic Performance:** The I/O scan time is linearly proportional to the number of slave modules, ensuring predictable and repeatable timing. Each additional slave adds **30.1 µs** to the total scan cycle. - **Large I/O Capacity:** Supports up to **63 slave I/O modules per master**, with each module providing up to 32 input/output channels. A single PC can host up to **16 masters**, enabling control of over **16,000 I/O points**. - **Simple and Cost-Effective Wiring:** Uses standard **Cat.5 100Base-TX Ethernet cables** with **RJ45 connectors**, minimizing wiring complexity and installation cost. - **Self-Diagnostic and Error Handling:** Built-in CRC12 error checking and slave no-response counters ensure robust communication integrity. The system automatically detects and flags communication errors. - **Modular and Scalable Architecture:** The HSL system’s modular design allows easy expansion by adding slave modules without requiring additional PCI slots. - **Ease of Programming:** Equipped with **32 KB of onboard SRAM** for I/O data buffering. Users can access I/O data directly through memory-mapped PCI operations without complex protocol handling. - **Comprehensive Software Support:** Includes Windows DLL drivers, Linux drivers, LabVIEW VIs, ISaGRAF SoftPLC drivers, OPC server, and DDE server for SCADA integration. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial environments with operating temperatures from **0°C to 60°C**.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual HSL Master Controllers:** Each PCI-7852 card integrates two independent HSL master controllers, effectively doubling the communication capacity compared to single-port models (e.g., PCI-7851). - **High-Speed Communication:** Supports a data rate of **6 Mbps** using a full-duplex RS-422 communication scheme with transformer isolation. The system can scan up to 63 slave modules in as little as **1.895 ms**, achieving a refresh rate of approximately **1000 I/O points per millisecond**. - **Deterministic Real-Time Operation:** The I/O scan time is linearly proportional to the number of connected slave modules, ensuring predictable and repeatable timing for real-time control applications. - **Large I/O Capacity:** Each master can control up to **63 slave I/O modules**, and each PC can host up to **8 PCI-7852 cards**, supporting a total of **1008 modules** and over **32,000 I/O points**. - **Simple and Cost-Effective Wiring:** Utilizes standard **Cat.5 100Base-TX Ethernet cables** with **RJ45 connectors**, simplifying installation and reducing wiring costs. - **Self-Diagnostic and Error Handling:** Built-in CRC12 error checking, communication error counters, and self-diagnostic functions ensure robust and reliable operation even in noisy industrial environments. - **Modular and Expandable Architecture:** Supports a wide range of HSL slave I/O modules and terminal bases, allowing flexible configuration and easy expansion without additional PCI slots. - **Easy Programming Interface:** Equipped with **32 KB of on-board SRAM** for I/O data buffering. The card’s ASIC handles all communication, allowing users to access I/O data directly via memory-mapped PCI operations—no complex protocol handling required. - **Comprehensive Software Support:** Compatible with Windows 95/98/2000/NT and Linux. Includes DLL drivers, LabVIEW VIs, ISaGRAF SoftPLC drivers, OPC server, and DDE server for SCADA integration.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual HSL Master Controllers:** Each PCI-7852H card contains two independent HSL master controllers, allowing simultaneous control of two separate HSL networks. - **High-Speed Communication:** Operates at up to **6 Mbps** data rate using full-duplex RS-422 with transformer isolation, ensuring reliable and noise-immune communication. - **Deterministic Real-Time Performance:** The I/O scanning period is linearly proportional to the number of connected slave modules, with a base refresh rate of **30.1 µs per module**. A full 63-module network can be scanned in **1.895 ms**. - **Large I/O Capacity:** Each master supports up to **63 slave I/O modules**, and each computer can host up to **8 PCI-7852H cards**, enabling control of over **16,000 I/O points**. - **Easy Wiring and Installation:** Uses standard **RJ45 connectors** and **Cat.5 Ethernet cables**, simplifying wiring and reducing installation costs. - **Self-Diagnostic and Error Handling:** Built-in CRC12 error checking, slave no-response counters, and communication error flags ensure robust network reliability. - **Modular Slave Architecture:** Supports a wide range of HSL slave I/O modules (digital input, digital output, relay, and mixed I/O types) with hot-swappable terminal bases. - **32KB Onboard SRAM:** Dedicated memory for storing I/O status data, enabling fast access via PCI bus without protocol overhead. - **Software Support:** Compatible with Windows 95/98/2000/NT and Linux. Includes DLL drivers, LabVIEW VIs, ISaGRAF SoftPLC drivers, OPC server, and DDE server for SCADA integration.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

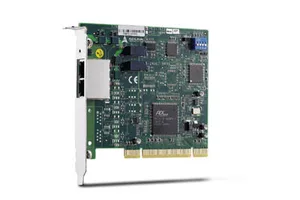

- **High-Speed Distributed I/O Communication:** Supports up to 6 Mbps data rate using full-duplex RS-422 with transformer isolation. The system can scan thousands of I/O points within milliseconds. - **Deterministic Real-Time Operation:** The I/O refresh rate is linearly proportional to the number of connected slave modules, ensuring predictable and repeatable timing for control applications. - **Scalable Architecture:** Each HSL master can control up to 63 slave I/O modules, and a single PC can host up to 16 masters, supporting over 16,000 digital I/O points. - **Flexible Wiring Using Standard Ethernet Cables:** Utilizes RJ45 connectors and Cat.5 100Base-TX cables for simple, cost-effective wiring up to 200 meters per port. - **Self-Diagnostic and Error Handling:** Built-in CRC12 error checking, slave no-response counters, and communication error flags ensure robust and reliable operation. - **Modular Slave I/O Design:** Uniform mechanical design across slave modules allows easy replacement and expansion without system downtime. - **Easy Programming Interface:** Equipped with 32 KB of onboard SRAM for I/O data buffering, accessible directly via PCI bus. No complex communication protocol is required—data is read/written through memory mapping. - **Software Configurable:** Transmission speed and operation mode can be configured via software or DIP switches. - **Comprehensive Software Support:** Includes Windows DLL drivers, Linux drivers, LabVIEW VIs, ISaGRAF SoftPLC drivers, OPC and DDE servers for SCADA integration.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual-Port HSL Master Controller:** Two independent HSL communication ports allow simultaneous control of multiple slave I/O modules, supporting up to 63 modules per master. - **High-Speed, Real-Time Communication:** Operates at data rates up to **6 Mbps**, with deterministic I/O refreshing rates as low as **30.1 µs per slave module**, ensuring millisecond-level real-time performance. - **Scalable Distributed Architecture:** Supports up to **63 slave modules per master** and up to **16 masters per PC**, enabling control of over **16,000 digital I/O points** in a single system. - **Software-Configurable Transmission:** Transmission speed and mode are configurable via software or DIP switch, allowing flexible adaptation to system requirements. - **Transformer-Isolated RS-422 Interface:** Provides full-duplex, multi-drop RS-422 communication with transformer isolation for noise immunity and signal integrity. - **Plug-and-Play PCI Interface:** Fully compliant with **PCI Local Bus Specification Rev. 2.1**, supporting automatic resource allocation by BIOS. - **Integrated 32 KB SRAM:** Onboard memory stores I/O status data for rapid access by the host system without protocol overhead. - **Self-Diagnostic and Error Handling:** Built-in CRC12 error checking, slave no-response counters, and communication error flags ensure robust and reliable operation. - **Flexible Wiring and Easy Expansion:** Uses standard **RJ45 connectors** and **Cat.5 Ethernet cables**, simplifying installation and expansion without specialized wiring. - **Comprehensive Software Support:** Compatible with Windows 95/98/2000/NT and Linux; includes DLL drivers, LabVIEW VIs, ISaGRAF SoftPLC drivers, OPC and DDE servers.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual-Port Master Control:** Supports two independent communication ports—one for Motionnet and one for HSL—allowing simultaneous distributed motion and I/O control. - **High Connectivity:** - Supports up to **2,016 I/O points** via HSL network. - Controls up to **256 motion axes** via Motionnet. - **Flexible Communication Speeds:** - **Motionnet:** Software-selectable transmission rates of **2.5 / 5 / 10 / 20 Mbps** (default 20 Mbps). - **HSL:** Software-selectable transmission rates of **3 / 6 / 12 Mbps** (default 6 Mbps). - **Programmable Timer Interrupt:** Enables precise timing control for real-time applications. - **Non-Volatile RAM Onboard:** Retains configuration and operational data even after power loss. - **RJ-45 Connectors:** Four RJ-45 jacks (two for Motionnet, two for HSL) simplify installation using standard Ethernet cables. - **LED Indicators:** - Red LED for Motionnet link status. - Green LED for HSL link status. - **Software Configurable:** Transmission modes and speeds can be set via software, eliminating the need for hardware switches. - **Transformer-Isolated RS-485 Communication:** Ensures robust and noise-immune data transmission. - **Compact PCI Form Factor:** Fits standard PCI slots for easy integration into industrial PCs.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Eight Differential Analog Inputs:** Provides eight isolated differential input channels for precise voltage measurement. - **12-bit Resolution:** High-resolution A/D conversion for accurate analog signal digitization. - **Bus Isolation:** Complete electrical isolation between analog input circuitry and the F&eIT system bus, ensuring noise immunity and protection from ground loops. - **Selectable Input Ranges:** Supports bipolar (±10 V, ±5 V) and unipolar (0–10 V, 0–5 V) input ranges, configurable via software. - **High-Speed Conversion:** Conversion rate of (number of channels × 10 µs) + 20 µs, enabling fast data acquisition. - **Programmable Sampling Timer:** Internal sampling timer adjustable from 10 µs to 1,073,741,824 µs (approx. 17.9 minutes). - **Interrupt Support:** Programmable interrupt generation on IRQ5, IRQ7, or IRQ9 for event-driven data acquisition. - **Compact DIN-Rail Design:** 25.2 mm (W) × 64.7 mm (D) × 94.0 mm (H) form factor with one-touch DIN-rail mounting. - **Stackable Architecture:** Connects directly to controller modules via the F&eIT bus without backplanes or cables. - **Software Configurable:** Fully programmable through CONTEC’s Windows driver libraries (API-SBP(W32), API-CAP(W32), API-USBP(WDM)) or via F&eIT protocol over Ethernet. - **Web-Based Monitoring:** When used with SVR-MMF(FIT)GY or SVR-IOA(FIT)GY servers, data can be monitored and logged through a standard web browser. - **Industrial Durability:** Designed for 0–50°C operation, 10–90% RH, and compliance with IEC/EN61000-4-4 Level 3 noise immunity standards.

Manufacturer: Contec

Category: Contec System

- **Ethernet Connectivity:** The module communicates via standard Ethernet (TCP/IP), allowing remote data acquisition and control over LAN or WAN networks. - **High-Resolution Analog Inputs:** Four analog input channels with **16-bit resolution** provide accurate signal measurement for voltage or current inputs. - **Electrical Isolation:** Each analog input channel is isolated from the communication interface and power supply, ensuring signal integrity and protection against ground loops and electrical noise. - **DIN Rail Mounting:** Compact, industrial-grade housing designed for **DIN rail installation**, simplifying integration into control cabinets. - **Compact and Modular Design:** Part of CONTEC’s FIT series, the ADI16-4(FIT)GY offers a modular approach to distributed I/O, allowing flexible system expansion. - **Industrial Reliability:** Designed for continuous operation in industrial environments, with robust construction and wide operating temperature tolerance. - **Remote Configuration and Monitoring:** Supports remote setup, calibration, and monitoring through Ethernet-based configuration tools. - **Plug-and-Play Integration:** Compatible with CONTEC’s Ethernet I/O ecosystem and standard industrial communication protocols. - **Low Power Consumption:** Optimized for energy-efficient operation in distributed systems. - **Status Indicators:** LED indicators for power, communication, and channel status provide quick visual diagnostics.

Manufacturer: Contec

Category: Contec System

- **Eight Independent 16‑bit Counters:** Each channel performs up‑counting of external pulse signals up to 16‑bit resolution (0x0000–0xFFFF). - **Optical Isolation:** All input channels are opto‑isolated, providing high noise immunity and protection against ground loops. - **Wide Power Range:** - CNT16‑8(FIT)GY operates on 12–24 VDC (±15%) external supply. - CNT16‑8L(FIT)GY operates on 5 VDC (±10%) external supply. - **Digital Input Filtering:** Built‑in digital filter configurable from 0.25 µs to 131.072 ms to suppress contact bounce and noise. - **DIN‑Rail Mounting:** Standard 35 mm DIN‑rail one‑touch mounting mechanism for easy installation. - **Stackable Modular Design:** Modules interconnect laterally via stack connectors—no backplane required. - **Device ID Rotary Switch:** Hardware rotary switch (0–7) for unique module identification within a system. - **Web and API Control:** Supports control via I/O address map, memory address map, Windows drivers, and web browser interfaces. - **Interrupt Support:** Combined interrupt output for all eight channels; interrupt generated on counter carry‑up. - **High Reliability:** Industrial‑grade design with opto‑couplers, robust connectors, and compliance with FCC Class A standards.

Manufacturer: Contec

Category: Contec System

- **Eight 16‑bit Up‑Counters:** Each of the eight channels supports 16‑bit binary up‑counting (0x0000 – 0xFFFF), allowing independent pulse accumulation. - **Opto‑Isolated Inputs:** All input channels are isolated via opto‑couplers, ensuring high noise immunity and protection against ground loops or transient surges. - **5 VDC External Power Operation:** The CNT16‑8L(FIT)GY variant operates with a 5 VDC external supply, optimized for low‑voltage logic systems and embedded controllers. - **Digital Noise Filter:** A configurable digital filter (0.25 µs – 131.072 ms) suppresses input chattering and electrical noise, ensuring accurate pulse detection. - **DIN‑Rail Mounting:** Standard 35 mm DIN‑rail mounting with one‑touch installation; modules can be stacked laterally without a backplane. - **Device ID Rotary Switch:** A front‑panel rotary switch allows assignment of Device IDs (0–7) for multi‑module configurations. - **Ethernet‑Based Modular System:** Designed for use with CONTEC’s F&eIT controllers (CPU‑CAxx(FIT)GY, CPU‑SBxx(FIT)GY) and servers (SVR‑MMF2(FIT), SVR‑MMF(FIT)GY). - **Flexible Control Interfaces:** Supports I/O address mapping, memory mapping, Windows API drivers (API‑CAP(W32), API‑SBP(W32)), FIT protocol, and web‑based configuration. - **Interrupt Support:** Combined interrupt output for all eight channels; interrupt generated on count carry‑up events. - **Compact and Lightweight:** 25.2 mm × 64.7 mm × 94.0 mm, 100 g, ideal for dense control panels.

Manufacturer: Contec

Category: Contec System

- **Dual‑channel 24‑bit up/down counter:** Two independent counting channels supporting 24‑bit resolution for precise pulse measurement and position tracking. - **High‑speed operation:** Supports input frequencies up to 500 kHz (duty 50%) for high‑speed encoder or pulse input applications. - **Opto‑isolated inputs and outputs:** Ensures electrical isolation between external signals and internal logic, improving noise immunity and protecting the controller. - **Flexible counting modes:** Supports 1‑phase, 2‑phase (quadrature), and 1‑phase with gate control modes, with selectable multiplication (×1, ×2, ×4). - **Programmable digital filter:** Adjustable from 0.1 µs to 1056.1 µs to suppress noise and signal chatter. - **Programmable timer:** 1 ms to 200 s range for timed operations and interrupt generation. - **One‑shot pulse output:** Generates a programmable pulse (0–104.45 ms) upon count match for external device triggering. - **Interrupt and sense functions:** Supports IRQ5, IRQ7, or IRQ9 interrupt levels for event‑driven control. - **Compact DIN‑rail design:** 25.2 (W) × 64.7 (D) × 94.0 (H) mm, 100 g, with tool‑less spring connectors for easy wiring. - **Device ID rotary switch:** Allows up to eight modules (IDs 0–7) per controller stack. - **Wide compatibility:** Operates with CONTEC’s Ethernet and USB controllers and servers, enabling integration into distributed I/O networks. - **Software support:** Fully supported by CONTEC’s Windows driver libraries (API‑SBP(W32), API‑CAP(W32), API‑USBP(WDM)) and F&eIT protocol for networked control.

Manufacturer: Contec

Category: Contec System

- **RS-422A/485 Serial Communication:** Supports full-duplex and half-duplex asynchronous serial communication. - **Electrical Isolation:** Complete bus isolation between communication lines and internal circuitry (1000 VDC isolation voltage). - **High-Speed Data Transfer:** Supports baud rates from 2 bps up to 921,600 bps (115,200 bps in compatible mode). - **Configurable Baud Rate:** Baud rate and communication parameters can be set via software. - **FIFO Buffers:** 128-byte transmit and 128-byte receive FIFO buffers reduce CPU load and improve throughput. - **Software-Selectable Modes:** Operates in either *compatible mode* (standard COM3/COM4) or *enhanced mode* (CONTEC proprietary control). - **Automatic RTS Control:** Hardware-based RTS/CTS control for half-duplex communication minimizes CPU overhead. - **Surge Protection:** All RS-422A/485 signal lines are surge-protected for industrial reliability. - **DIN Rail Mounting:** Integrated 35 mm DIN rail clip for easy installation and modular stacking. - **Terminator Switches:** Built-in 100 Ω termination resistors can be enabled/disabled via DIP switches for multi-drop configurations. - **Device ID Configuration:** Rotary switch for setting device ID and I/O address mapping. - **LED Indicators:** Separate TX and RX LEDs for real-time communication status. - **Driver Support:** Includes Windows and Linux drivers for virtual COM port operation. - **Expansion Capability:** Up to three modules can be added as expansion ports in enhanced mode (two in compatible mode). - **Compact and Lightweight:** Designed for space-constrained control panels and embedded systems.

Manufacturer: Contec

Category: Contec System

- **Dual RS-232C Channels:** Two independent serial communication channels (CH0 and CH1) supporting full-duplex asynchronous data transfer. - **High-Speed Communication:** Software-selectable baud rates from 2 bps up to 921,600 bps (115,200 bps in compatible mode). - **FIFO Buffers:** 128-byte transmit and 128-byte receive FIFO buffers per channel reduce CPU load and ensure stable high-speed data transfer. - **Software-Configurable Parameters:** Baud rate, data length (5–8 bits), stop bits (1, 1.5, or 2), and parity (even, odd, none) can be configured via software. - **Dual Operating Modes:** - *Compatible Mode*—operates as standard COM3/COM4 ports for legacy compatibility. - *Enhanced Mode*—uses CONTEC’s proprietary control method, allowing two channels to share a single interrupt level. - **Flexible Expansion:** Up to three COM-2(FIT)GY modules can be stacked in enhanced mode, providing up to six RS-232C ports per controller. - **DIN Rail Mounting:** Integrated 35 mm DIN rail clip for quick installation and removal. - **Stackable F&eIT Bus Interface:** Side-mounted connectors allow direct stacking with other F&eIT modules without backplanes. - **LED Indicators:** Independent RX/TX LEDs for each channel provide real-time communication status. - **Industrial Durability:** Fanless, compact, and vibration-resistant design suitable for factory automation and embedded control systems. - **Cross-Platform Driver Support:** Recognized as standard COM ports under Windows® and Linux; compatible with CONTEC’s API-SBP(W32) and COM-DRV(W32) driver libraries. - **Safety and Compliance:** FCC Class A certified, CE compliant, and designed to meet IEC1000-4-4 Level 3 noise immunity standards.

Manufacturer: Contec

Category: Contec System
