- **EN50155 Compliance:** Certified for railway and rolling stock environments, ensuring vibration, shock, and temperature resilience. - **CompactPCI 3U / 4HP Form Factor:** Hot‑swappable card compatible with PICMG 2.0 CompactPCI backplanes. - **8× Gigabit Ethernet Ports:** Eight 10/100/1000Base‑T(X) ports via CompactPCI socket with auto MDI/MDIX. - **Redundant Network Technologies:** - **O‑Ring** proprietary redundancy with

Manufacturer: Oring

Category: Switch Card

- **High‑Density Gigabit Switching:** 12×10/100/1000Base‑T(X) ports (4×RJ‑45 front, 8×backplane) with auto‑negotiation and auto‑MDI/MDI‑X. - **CompactPCI Integration:** Fully compliant with PICMG 2.0 Rev. 3.0; supports 3U, 8HP form factor with hot‑swap capability. - **Industrial‑Grade Design:** EN50155‑certified for railway and vehicle applications; wide operating temperature range from ‑40 °C to +70 °C. - **Advanced Redundancy:** Supports ORing’s proprietary O‑Ring and O‑Chain technologies (recovery

Manufacturer: Oring

Category: Switch Card

- **CompactPCI 3U 8HP form factor** with hot‑swap capability - **12×10/100/1000Base‑T(X)** ports (4 M12 A‑coded front, 8 CompactPCI backplane) - **EN50155 railway compliance** for vibration, shock, and temperature extremes - **Fast Ethernet redundancy** via ORing’s proprietary **O‑Ring** (

Manufacturer: Oring

Category: Switch Card

- **16-Port Gigabit Managed Switch:** Provides 16 auto-negotiating 10/100/1000Base-T(X) ports—8 M12 connectors on the front and 8 CompactPCI backplane ports (PICMG 2.0 compatible). - **Redundant Ethernet Ring:** Supports fast redundant ring recovery (

Manufacturer: Oring

Category: Switch Card

- **CompactPCI 3U Form Factor:** 16HP width, hot-swappable design compatible with PICMG 2.0 CompactPCI systems. - **High Port Density:** 14 Gigabit Ethernet ports (10/100/1000Base-T(X)) plus 2 two-wire extension ports. - **Redundant Ethernet Ring:** Supports ORing’s proprietary O-Ring and O-Chain redundancy technologies with recovery times under 30 ms across up to 250 units. - **EN50155 Compliance:** Certified for railway and transportation applications, ensuring vibration, shock, and temperature resilience. - **Wide Temperature Range:** Operates reliably from **–40°C to +70°C**, suitable for harsh industrial environments. - **Advanced Network Management:** Web-based GUI, Telnet, CLI (console), and centralized management via ORing’s management software. - **Comprehensive Protocol Support:** STP/RSTP/MSTP, MRP, VLAN, QoS, IGMP Snooping, Modbus TCP, DHCP, SNMPv3, HTTPS, SSH. - **Enhanced Security:** Device Binding, 802.1x authentication, MAC-based port security, RADIUS integration, and DoS/DDoS prevention. - **Energy Efficiency:** IEEE 802.3az Energy-Efficient Ethernet reduces power consumption during low data activity. - **High Switching Performance:** 28.4 Gbps switching bandwidth, 7 µs latency, 8K MAC address table, and 9.6K jumbo frame support. - **CompactPCI Bus Powered:** 5VDC input, typical power consumption 21.5W with overload protection. - **Long-Term Reliability:** 5-year warranty and industrial-grade components for extended service life.

Manufacturer: Oring

Category: Switch Card

- **High Port Density:** 14 × 10/100/1000Base-T(X) ports (8 CompactPCI backplane, 6 M12 front connectors) + 2 × two-wire Ethernet extension ports for long-distance, cost-effective cabling. - **CompactPCI 3U Form Factor:** PICMG 2.0 compatible, 16HP width, hot-swappable design for modular integration. - **Rugged Industrial Design:** Fully compliant with **EN50155** for railway applications, vibration and shock tested per IEC60068 standards, and wide temperature operation from **–40°C to +70°C**. - **Advanced Redundancy:** Supports **O-Ring**, **O-Chain**, **MRP (IEC 62439-2)**, and **MSTP/RSTP/STP** for network fault tolerance with sub-30 ms recovery. - **Comprehensive Management:** Web-based GUI, Telnet, CLI via RS-232 console, and centralized management through ORing’s network management software. - **Enhanced Security:** Includes **Device Binding**, **802.1x authentication**, **MAC-based port security**, **SNMPv3 encryption**, **HTTPS/SSH**, and **DoS/DDoS auto-prevention**. - **Quality of Service (QoS):** Application-based and IP-based QoS for traffic prioritization, ensuring real-time data delivery for critical applications such as IP surveillance and control systems. - **Energy Efficiency:** Supports **IEEE 802.3az Energy-Efficient Ethernet**, reducing power consumption during low data activity periods. - **Modbus TCP Support:** Enables integration with industrial automation systems and SCADA environments. - **High Performance:** 28.4 Gbps switching bandwidth, 7 µs latency, 8K MAC address table, and jumbo frame support up to 9.6 KB.

Manufacturer: Oring

Category: Switch Card

- **EN50155‑compliant** for railway and rolling stock applications. - **3U / 4HP CompactPCI form factor** with **hot‑swap capability**. - **PICMG 2.0 specification compatible** for CompactPCI backplane integration. - **8×10/100Base‑T(X)** Ethernet ports with auto‑negotiation and auto‑MDI/MDI‑X. - **Fast redundant Ethernet ring** (O‑Ring) with recovery time **

Manufacturer: Oring

Category: Switch Card

- **Redundant Ethernet Ring Technology:** Implements ORing’s **O‑Ring** redundancy protocol with recovery time under 10 ms across up to 250 connected devices, ensuring minimal downtime in mission‑critical applications. - **Multiple Redundancy Protocols:** Supports **RSTP/STP (IEEE 802.1w/D)** and **Fast Recovery Mode** for flexible network topologies including Network + Device Redundant, Device Communication Redundant, and standard Ethernet switch configurations. - **Dual Power Inputs:** Operates from both PCI bus power (+5 V DC) and external DC input (9–30 V DC). The external input ensures uninterrupted operation if the host IPC shuts down. - **Relay Output for Fault Notification:** Configurable alarm relay output (1 A @ 24 V DC) for power failure or port link loss events. - **Comprehensive Management:** Web‑based configuration interface and **Open‑Vision** Windows utility for centralized monitoring and management of multiple ORing switches. - **Event Notification:** Supports Syslog, Email (SMTP), and SNMP traps for remote fault and system event reporting. - **SNMP and LLDP Support:** SNMP v1/v2c/v3 for secure network management and **LLDP (IEEE 802.1AB)** for device discovery and topology mapping. - **PCI Bus Compliance:** Fully compliant with **PCI Local Bus Specification Rev 2.2**, 32‑bit Bus Master architecture, and supports **Wake‑on‑LAN (WOL)**. - **Industrial‑Grade Design:** Extended operating temperature range (‑10 °C to 60 °C), ESD protection (EN61000‑4‑2), surge protection (EN61000‑4‑5), and robust mechanical construction for harsh environments. - **Low Power Consumption:** Typical consumption of approximately **3.5 W**, optimized for embedded and IPC applications. - **Warranty:** Backed by a **3‑year manufacturer warranty**.

Manufacturer: Oring

Category: Switch Card

- **Four‑Port Gigabit Switch Architecture:** Provides **3× 10/100/1000Base‑T(X)** RJ‑45 ports and **1× 100/1000Base‑X SFP** port for mixed copper and fiber connectivity. - **PCIe Interface Compatibility:** Supports **PCIe x1** bus interface and is **upward compatible** with **x4, x8, and x16** slots. Fully compliant with **PCIe Revision 1.1**. - **Flexible SFP Configuration:** A **DIP‑switch (S1)** allows selection between **100Base‑FX** and **1000Base‑X** operation for the SFP port (ON = 100Base‑FX, OFF = 1000Base‑X). - **High‑Performance Switching:** - **Store‑and‑forward** switching architecture - **8K MAC address table** - **Auto‑negotiation** and **auto‑MDI/MDI‑X** support - **Flow control** compliant with IEEE 802.3x - **Jumbo Frame Support:** Handles Ethernet frames up to **10,000 bytes**, improving throughput for large data transfers. - **Bus‑Powered Operation:** Draws power directly from the PCIe bus (~4.2 W typical), eliminating the need for external power supplies. - **Industrial‑Grade Design:** Designed for rugged environments with **‑10°C to 60°C** operating temperature, **5–95% non‑condensing humidity**, and compliance with **IEC shock, vibration, and free‑fall** standards. - **Cross‑Platform Driver Support:** Compatible with **Windows, Linux, Unix, Novell, and MacOS** operating systems. - **Long‑Term Reliability:** Backed by a **5‑year warranty** and ORing’s industrial quality assurance.

Manufacturer: Oring

Category: Switch Card

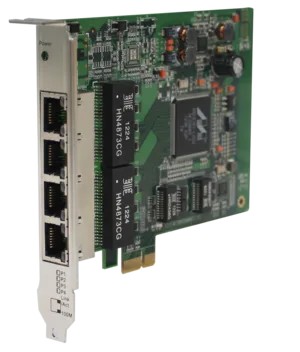

- **Four Gigabit Ethernet Ports:** Equipped with **4×10/100/1000Base-T(X)** RJ45 ports supporting auto MDI/MDI-X and auto-negotiation for flexible network integration. - **PCI Express Interface:** Supports **PCIe x1** bus interface and is fully compatible with **x4, x8, and x16 PCIe slots**, ensuring broad motherboard compatibility. - **High-Speed Data Throughput:** Provides full-duplex 1000 Mbps bandwidth through the PCIe bus architecture, enabling high-performance LAN communication. - **Unmanaged Operation:** Plug-and-play functionality with no configuration required, ideal for systems requiring simple, reliable Ethernet expansion. - **Fast Redundant Ethernet Ring:** Supports redundant Ethernet ring topology with **recovery time

Manufacturer: Oring

Category: Switch Card

- **Integrated PoE P.S.E. Functionality:** Provides three 10/100/1000Base‑T(X) PoE ports compliant with IEEE 802.3at/af standards, delivering up to **30 W per port** and a **total power budget of 65 W**. - **Flexible Fiber Connectivity:** Includes one 100/1000Base‑X SFP port with onboard DIP‑switch for speed selection (ON: 100Base‑FX, OFF: 1000Base‑X). - **PCIe Interface Compatibility:** Supports **PCIe x1** bus interface, compliant with **PCIe Rev. 1.1**, and compatible with **x4, x8, and x16** slots for flexible installation across various IPC motherboards. - **Bus‑Powered Operation:** The switch card itself is powered via the PCIe bus (~4.2 W typical without PoE load), while PoE power is sourced from the **12 VDC ATX line** of the host system. - **High‑Performance Switching:** Supports **store‑and‑forward** switching architecture, **auto‑negotiation**, **auto‑MDI/MDI‑X**, and **10 K jumbo frame** transmission for optimized throughput and reduced latency. - **Robust Industrial Design:** Designed for harsh environments with an **operating temperature range of −10 °C to +60 °C**, **storage temperature −40 °C to +85 °C**, and **humidity tolerance of 5 %–95 % non‑condensing**. - **Comprehensive OS Support:** Compatible with a wide range of operating systems including **Windows (DOS to Win 8)**, **Linux (Kernel 2.4.x–3.x)**, **FreeBSD**, **SCO Unix**, **Novell**, and **Mac OS 10.4–10.7**. - **Industrial‑Grade Reliability:** Certified for **EMI/EMS compliance**, **shock**, **vibration**, and **free‑fall** resistance per IEC and EN standards. - **Long‑Term Support:** Backed by a **5‑year warranty** and ORing’s industrial networking support infrastructure.

Manufacturer: Oring

Category: Switch Card

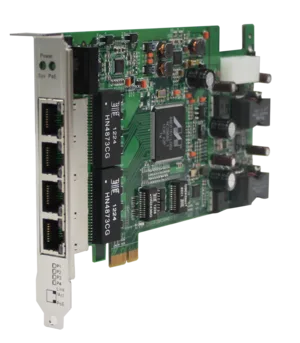

- **4×10/100/1000Base‑T(X) PoE (P.S.E.) Ports:** Each RJ‑45 port supports Gigabit Ethernet speeds and IEEE 802.3af PoE power delivery up to **15.4 W per port**. - **IEEE Standards Compliance:** - IEEE 802.3 (10Base‑T) - IEEE 802.3u (100Base‑TX) - IEEE 802.3ab (1000Base‑T) - IEEE 802.3x (Flow Control) - IEEE 802.3af (Power over Ethernet) - **PCIe Interface:** Supports **PCIe x1** bus and is compatible with **x4, x8, and x16** slots. Fully compliant with **PCIe Rev. 1.1**. - **PoE Power Source:** Draws PoE power from **12 V DC ATX power input**. - **Auto‑Detection & Classification:** Each LAN port automatically detects PoE or non‑PoE devices and adjusts accordingly. - **Jumbo Frame Support:** Handles Ethernet frames up to **10 KB**, improving throughput for large data transfers. - **Store‑and‑Forward Switching:** Ensures reliable data transmission with error checking. - **Auto‑Negotiation & Auto‑MDI/MDI‑X:** Simplifies network setup by automatically configuring link speed and cable type. - **Overload Current Protection:** Built‑in protection for safe PoE operation. - **Fast Redundant Ethernet Ring:** Recovery time less than **10 ms** across up to **250 units**, ensuring high network availability. - **Alarm Relay Output:** One configurable relay output for system alarms or fault notifications. - **Industrial‑Grade Design:** Extended operating temperature range, ESD and surge protection, and robust mechanical construction.

Manufacturer: Oring

Category: Switch Card

PCI card 4*Ethernet, 4*Intel 82559 10/100Mbps controller, support 32/64bit 33/66MHz PCI bus, Intel 21154 64bit PCI bridge on board, Adlink

Manufacturer: Adlink Technology Inc.

Category: Switch Card

- **Dual 10/100 Mbps Ethernet Ports:** Two independent Fast Ethernet interfaces based on Intel® 82559 controllers, supporting IEEE 802.3 and 802.3u standards for 10Base-T and 100Base-TX operation. - **Bypass Functionality:** Hardware relay-based bypass mechanism automatically connects the two Ethernet ports when system power is off or when the software watchdog timer (WDT) detects a fault. This ensures uninterrupted network traffic flow in fail-safe applications. - **Watchdog Timer (WDT):** Programmable watchdog timer monitors system health. If the system halts or fails to refresh the WDT, the card switches to bypass mode automatically. - **Intel® 21154 PCI-to-PCI Bridge:** Provides 64-bit PCI bus compatibility and efficient data throughput between the host system and Ethernet controllers. - **PXE Remote Boot Support:** Supports Intel® Preboot Execution Environment (PXE) for remote booting over the network, enabling diskless system deployment and remote management. - **Auto-Negotiation and Flow Control:** Complies with IEEE 802.3u auto-negotiation for 10/100 Mbps speed selection and IEEE 802.3x flow control for full-duplex operation. - **LED Indicators:** Each port includes dual LEDs for link/activity and speed indication (10/100 Mbps), providing clear visual status feedback. - **Operating System Support:** Compatible with DOS, Windows® 98 SE/ME/NT/2000, and Linux® operating systems. Drivers are included on the ADLINK support CD. - **Industrial Reliability:** Designed for industrial environments with extended temperature tolerance, robust EMI/EMS compliance, and long-term operational stability.

Manufacturer: Adlink Technology Inc.

Category: Switch Card
