- **Port Configuration:** 4 × 10/100Base‑T(X) RJ‑45 copper ports and 2 × 100Base‑FX fiber ports (multi‑mode, ST/SC connectors). - **Redundant Ethernet Ring:** SUNIX ELITE‑Ring™ technology with recovery time

Manufacturer: Sunix

Category: Box Type

- **High‑Reliability Industrial Design:** Built for continuous 24/7 operation in demanding environments such as factory automation, transportation, and utilities. IP30 aluminum enclosure with DIN‑rail or wall‑mount installation options. - **Fast Redundant Ethernet Ring:** Incorporates **ELITE‑Ring™** technology with recovery time

Manufacturer: Sunix

Category: Box Type

- **5×10/100Base‑T(X) Fast Ethernet Ports:** All ports support auto‑negotiation and auto‑MDI/MDI‑X for flexible connection to industrial controllers, PLCs, or other network devices. - **Lite‑Managed Functionality:** Offers essential management features via web browser or SUNIX Commander Pro Windows utility, providing simplified configuration and monitoring without the complexity of full SNMP management. - **ELITE‑Ring™ Redundancy:** Proprietary SUNIX ring redundancy technology with recovery time **

Manufacturer: Sunix

Category: Box Type

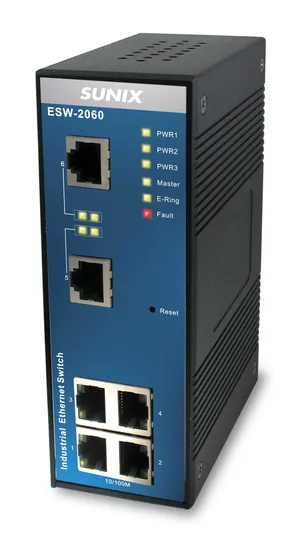

- **6× 10/100Base‑T(X) RJ‑45 Ports:** Auto‑negotiation and Auto‑MDI/MDI‑X support for flexible copper Ethernet connectivity up to 100 m per segment. - **Lite‑Managed Functionality:** Web‑based configuration and SUNIX Commander Pro Windows utility for simplified management without full SNMP overhead. - **ELITE‑Ring™ Redundancy:** Proprietary ring redundancy technology with recovery time

Manufacturer: Sunix

Category: Box Type

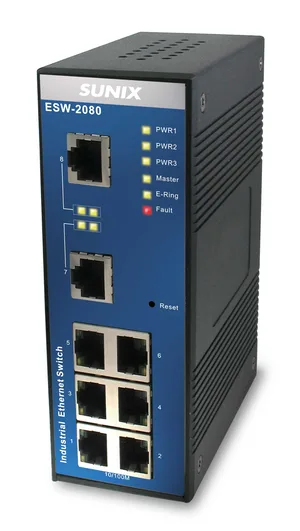

- **8× 10/100Base‑T(X) RJ‑45 Ports:** Supports auto‑negotiation and auto MDI/MDI‑X for flexible copper connectivity up to 100 m per segment. - **Lite‑Managed Functionality:** Provides essential management features via web browser or SUNIX Commander Pro Windows utility. - **ELITE‑Ring™ Redundancy:** Proprietary fast recovery ring technology with recovery time

Manufacturer: Sunix

Category: Box Type

- **Redundant Ethernet Ring Technology:** Supports ORing’s proprietary **O-Ring** redundancy protocol with recovery time less than **10 ms** across up to **250 connected units**, ensuring minimal network downtime. Also supports **RSTP/STP (IEEE 802.1w/D)** for compatibility with standard redundancy protocols. - **Lite-Managed Functionality:** Provides essential management features through **Web-based configuration** and **Windows utility (Open-Vision)** for centralized monitoring and control. - **Flexible Port Configuration:** - **4 × 10/100Base-T(X)** RJ45 copper ports - **2 × 100Base-FX** fiber ports (Multi-Mode, SC connector) This combination allows both short-distance copper and long-distance fiber connectivity. - **Triple Redundant Power Inputs:** Equipped with **dual DC terminal block inputs (12–48 VDC)** and an additional **DC power jack (12–45 VDC)** for maximum power reliability. - **Industrial-Grade Design:** - **IP-30 rated metal housing** for mechanical protection - **DIN-rail and panel mounting** options - **Extended operating temperature range:** -40°C to +75°C - **High immunity to electrical interference:** ESD protection up to **4 kV DC** on Ethernet ports and **2000 VDC surge protection** on power inputs. - **Event Notification and System Monitoring:** Supports **Syslog, Email, and SNMP Trap** notifications for system events and alarms. Includes a **configurable alarm relay output** for external alert integration. - **Low Power Consumption:** Typical power usage of approximately **7 W**, ensuring energy efficiency in continuous operation. - **Long-Term Reliability:** Backed by a **5-year warranty**, reflecting ORing’s commitment to industrial-grade durability and performance.

Manufacturer: Oring

Category: Box Type

- **High‑Performance Redundant Ethernet Ring:** Supports ORing’s proprietary **O‑Ring** redundancy protocol with recovery time **

Manufacturer: Oring

Category: Box Type

- **Lite-Managed Industrial Switch:** Offers essential management functions such as VLAN, QoS, and DHCP client/server capabilities, providing a balance between unmanaged simplicity and full management control. - **Port Configuration:** Equipped with **2 SFP slots for 1000Base-X fiber connections** and **4 RJ45 ports supporting 10/100Base-T(X)** Ethernet, enabling mixed media network topologies. - **High Reliability:** Features **redundant dual DC power inputs** with reverse polarity protection and **2000VDC surge protection** on power lines. - **Enhanced Protection:** Each Ethernet port is protected against **4kV ESD** to ensure stable operation in electrically noisy environments. - **Compact Slim Design:** The **145 × 95 × 26 mm** form factor allows installation in tight spaces while maintaining full industrial-grade durability. - **Wide Temperature Range:** Operates reliably from **-40°C to +70°C**, suitable for outdoor or unconditioned environments. - **Low Power Consumption:** Typical power usage is approximately **4W**, optimizing energy efficiency for continuous operation. - **Network Redundancy:** Supports **μ-Ring** and **O-Ring** technologies for rapid network recovery (

Manufacturer: Oring

Category: Box Type

- **High‑speed Redundant Ethernet Ring:** Supports ORing’s proprietary O‑Ring technology with recovery time of less than **10 ms** across up to **250 interconnected units**, ensuring minimal downtime in case of link or node failure. - **Standards‑based Redundancy:** Compatible with **RSTP/STP (IEEE 802.1w/D)** protocols for interoperability with other managed switches. - **Lite‑Managed Functionality:** Provides essential management capabilities through **Web‑based configuration** and **Windows utility (Open‑Vision)**, offering centralized monitoring and control without the complexity of full Layer 2 management. - **Event Notification System:** Supports **Syslog**, **Email alerts**, and **SNMP traps** for proactive fault detection and maintenance. - **Industrial‑grade Design:** Constructed with a **rigid IP‑30 metal housing** for protection against dust and mechanical impact. - **Wide Operating Temperature Range:** Operates reliably from **–40 °C to +70 °C**, suitable for extreme industrial environments. - **Redundant Power Input:** Dual **12–48 V DC** power inputs with **ORing** redundancy design ensure uninterrupted operation during power source failure. - **Compact Form Factor:** Small footprint (**88 × 102 × 24 mm**) ideal for space‑constrained control cabinets. - **Enhanced Electrical Protection:** - **ESD protection:** 4 kV DC on Ethernet ports - **Surge protection:** 2 kV DC on power input - **Flexible Mounting:** Supports **DIN‑rail** and **panel mounting** for versatile installation. - **Long‑term Reliability:** Backed by a **5‑year warranty**, reflecting ORing’s commitment to industrial‑grade durability.

Manufacturer: Oring

Category: Box Type

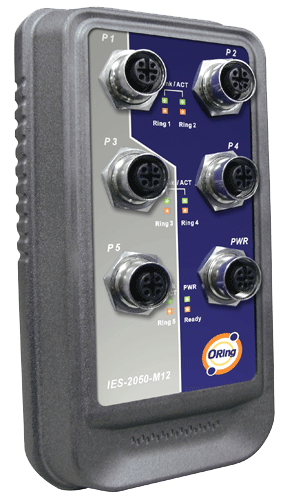

- **Five 10/100Base‑T(X) M12 Ports:** All ports use waterproof M12 connectors for secure, vibration‑resistant Ethernet connections in industrial environments. - **IP67 Protection:** Fully sealed aluminum enclosure provides complete protection against dust ingress and immersion in water, suitable for outdoor or wash‑down applications. - **O‑Ring Redundant Ethernet Technology:** Proprietary ORing redundancy protocol with recovery time

Manufacturer: Oring

Category: Box Type

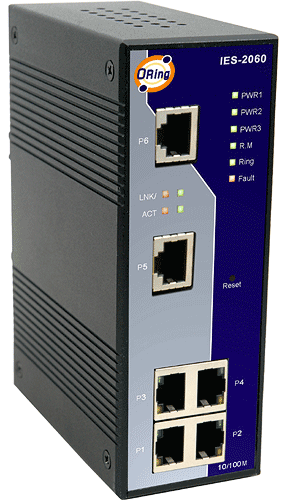

- **High‑Speed Redundant Ethernet Ring:** Supports ORing’s O‑Ring technology with recovery times under 10 ms for up to 250 interconnected devices, ensuring continuous network availability in industrial environments. - **Standards‑Based Redundancy:** Compatible with IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1D Spanning Tree Protocol (STP) for flexible network topology design and interoperability with third‑party equipment. - **Lite‑Managed Functionality:** Provides essential management features such as SNMP v1, Syslog, SMTP email alerts, and SNMP traps for event notification and remote monitoring. - **Web‑Based and Windows Utility Configuration:** Configurable via a built‑in web interface or ORing’s **Open‑Vision** Windows utility, enabling centralized management of multiple ORing switches. - **Multiple Event Notification Methods:** Supports Syslog, email, and SNMP trap notifications for system events, ensuring proactive fault detection and maintenance. - **Industrial‑Grade Design:** IP‑30 rated metal housing with DIN‑rail and panel mounting options, designed for harsh industrial environments. - **Wide Operating Temperature Range:** Operates reliably from **–40 °C to +70 °C**, suitable for outdoor, factory, and transportation applications. - **Redundant Power Input:** Dual 12–48 V DC power inputs with reverse polarity protection and surge immunity up to 2000 V DC, ensuring uninterrupted operation. - **High Immunity and Protection:** Ethernet ports protected against electrostatic discharge (ESD) up to 4 kV DC. - **Compact Slim Form Factor:** Space‑saving design (30 × 68.5 × 105 mm) ideal for control cabinets and constrained installations.

Manufacturer: Oring

Category: Box Type

- **High-Speed Redundant Ethernet Ring:** Supports ORing redundancy technology with recovery time less than 10 ms across up to 250 connected units, ensuring minimal downtime in industrial networks. - **Multiple Redundancy Protocols:** Compatible with RSTP/STP (IEEE 802.1w/D) for flexible network topology and redundancy options. - **Lite-Managed Functionality:** Offers essential management features such as web-based configuration, SNMP v1 monitoring, and event notification via Syslog, Email, and SNMP Trap. - **Triple Redundant Power Inputs:** Equipped with dual DC terminal block inputs (12–48 VDC) and an additional DC power jack (12–45 VDC) for maximum power reliability. - **Wide Operating Temperature Range:** Designed for extreme industrial conditions, operating from -40°C to +70°C. - **Compact and Durable Design:** IP-30 rated metal housing with DIN-rail and panel mounting options, suitable for space-constrained control cabinets. - **Low Power Consumption:** Typical power usage of approximately 5 W, optimizing energy efficiency in continuous operation. - **Comprehensive Event Notification:** Supports multiple alert mechanisms (Syslog, Email, SNMP Trap, and relay output) for proactive fault management. - **Centralized Management via Open-Vision:** ORing’s proprietary Windows-based utility allows centralized configuration, monitoring, and management of multiple ORing switches. - **Industrial-Grade Protection:** ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2000 VDC on power inputs.

Manufacturer: Oring

Category: Box Type

- **Redundant Ethernet Ring Technology:** Supports ORing redundancy with recovery time

Manufacturer: Oring

Category: Box Type

- **Hybrid Port Configuration:** Equipped with 4×10/100Base-T(X) RJ45 ports supporting IEEE 802.3af PoE (up to 25 W per port) and 2×100Base-FX single-mode fiber ports (SC connectors) for long-distance data transmission. - **Lite-Managed Functionality:** Offers essential management features such as web-based configuration, SNMP v1 monitoring, and centralized management via ORing’s Open-Vision Windows utility. - **Redundant Ethernet Ring Technology:** Supports ORing’s proprietary **O-Ring** redundancy protocol with recovery time

Manufacturer: Oring

Category: Box Type

- **Lite-Managed Industrial Switch:** Provides essential management functions through a web interface and ORing’s Open-Vision Windows utility for simplified configuration and monitoring. - **6-Port Configuration:** Includes 4×10/100Base-T(X) RJ45 ports with PoE PSE capability and 2×100Base-FX SFP fiber ports for flexible network topology and long-distance connectivity. - **Power over Ethernet (PoE):** Supports IEEE 802.3af standard, delivering up to 25 W per port, enabling direct powering of IP cameras, wireless access points, and VoIP phones. - **Redundant Ethernet Ring Technology:** Incorporates ORing’s proprietary O-Ring technology with recovery time

Manufacturer: Oring

Category: Box Type

- **Redundant Ethernet Ring Technology:** Supports ORing’s proprietary **O‑Ring** redundancy protocol with recovery times of less than 10 ms across up to 250 connected devices. This ensures near‑instantaneous network recovery in the event of a link failure. - **RSTP/STP Support:** Fully compatible with IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE 802.1D (Spanning Tree Protocol) for network redundancy and loop prevention. - **Power over Ethernet (PoE):** Four 10/100Base‑T(X) ports function as **PSE ports**, supplying up to **25 W per port** in compliance with **IEEE 802.3af**. This allows the switch to power IP cameras, VoIP phones, wireless access points, and other PoE‑enabled devices directly through Ethernet cabling. - **Triple Redundant Power Inputs:** Equipped with **three DC power inputs** (two via terminal block, one via power jack) supporting **12–48 V DC** (terminal block) and **12–45 V DC** (power jack). This triple redundancy ensures continuous operation even if one or two power sources fail. - **Wide Operating Temperature Range:** Designed for extreme environments with an **operating range of –40 °C to +70 °C**, suitable for outdoor and industrial enclosures. - **Rugged Industrial Design:** Constructed with a **metal IP‑30‑rated housing** for protection against dust and mechanical impact. - **Flexible Mounting Options:** Supports **DIN‑rail** and **panel mounting**, facilitating easy integration into control cabinets or industrial racks. - **Comprehensive Event Notification:** Provides multiple alert mechanisms including **Syslog**, **Email**, and **SNMP Trap** notifications for proactive fault management. - **Centralized Management:** Configurable via **Web‑based interface** or **Open‑Vision**, ORing’s Windows‑based network management utility for monitoring and configuration of multiple devices. - **Compact Form Factor:** Small footprint (52 × 106 × 144 mm) allows installation in space‑constrained environments. - **High Reliability:** Mean power consumption of approximately **5 W**, with built‑in surge and ESD protection (Ethernet ports: 4 kV DC ESD; power input: 2 kV DC surge).

Manufacturer: Oring

Category: Box Type

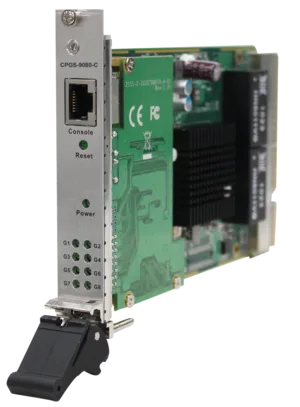

- **EN50155 Compliance:** Certified for railway and rolling stock environments, ensuring vibration, shock, and temperature resilience. - **CompactPCI 3U / 4HP Form Factor:** Hot‑swappable card compatible with PICMG 2.0 CompactPCI backplanes. - **8× Gigabit Ethernet Ports:** Eight 10/100/1000Base‑T(X) ports via CompactPCI socket with auto MDI/MDIX. - **Redundant Network Technologies:** - **O‑Ring** proprietary redundancy with

Manufacturer: Oring

Category: Switch Card

- **High‑Density Gigabit Switching:** 12×10/100/1000Base‑T(X) ports (4×RJ‑45 front, 8×backplane) with auto‑negotiation and auto‑MDI/MDI‑X. - **CompactPCI Integration:** Fully compliant with PICMG 2.0 Rev. 3.0; supports 3U, 8HP form factor with hot‑swap capability. - **Industrial‑Grade Design:** EN50155‑certified for railway and vehicle applications; wide operating temperature range from ‑40 °C to +70 °C. - **Advanced Redundancy:** Supports ORing’s proprietary O‑Ring and O‑Chain technologies (recovery

Manufacturer: Oring

Category: Switch Card

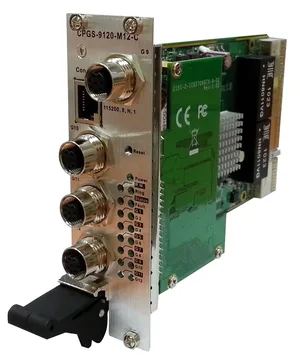

- **CompactPCI 3U 8HP form factor** with hot‑swap capability - **12×10/100/1000Base‑T(X)** ports (4 M12 A‑coded front, 8 CompactPCI backplane) - **EN50155 railway compliance** for vibration, shock, and temperature extremes - **Fast Ethernet redundancy** via ORing’s proprietary **O‑Ring** (

Manufacturer: Oring

Category: Switch Card

- **16-Port Gigabit Managed Switch:** Provides 16 auto-negotiating 10/100/1000Base-T(X) ports—8 M12 connectors on the front and 8 CompactPCI backplane ports (PICMG 2.0 compatible). - **Redundant Ethernet Ring:** Supports fast redundant ring recovery (

Manufacturer: Oring

Category: Switch Card

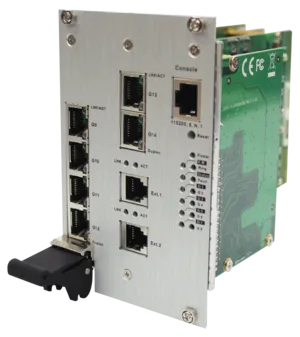

- **CompactPCI 3U Form Factor:** 16HP width, hot-swappable design compatible with PICMG 2.0 CompactPCI systems. - **High Port Density:** 14 Gigabit Ethernet ports (10/100/1000Base-T(X)) plus 2 two-wire extension ports. - **Redundant Ethernet Ring:** Supports ORing’s proprietary O-Ring and O-Chain redundancy technologies with recovery times under 30 ms across up to 250 units. - **EN50155 Compliance:** Certified for railway and transportation applications, ensuring vibration, shock, and temperature resilience. - **Wide Temperature Range:** Operates reliably from **–40°C to +70°C**, suitable for harsh industrial environments. - **Advanced Network Management:** Web-based GUI, Telnet, CLI (console), and centralized management via ORing’s management software. - **Comprehensive Protocol Support:** STP/RSTP/MSTP, MRP, VLAN, QoS, IGMP Snooping, Modbus TCP, DHCP, SNMPv3, HTTPS, SSH. - **Enhanced Security:** Device Binding, 802.1x authentication, MAC-based port security, RADIUS integration, and DoS/DDoS prevention. - **Energy Efficiency:** IEEE 802.3az Energy-Efficient Ethernet reduces power consumption during low data activity. - **High Switching Performance:** 28.4 Gbps switching bandwidth, 7 µs latency, 8K MAC address table, and 9.6K jumbo frame support. - **CompactPCI Bus Powered:** 5VDC input, typical power consumption 21.5W with overload protection. - **Long-Term Reliability:** 5-year warranty and industrial-grade components for extended service life.

Manufacturer: Oring

Category: Switch Card

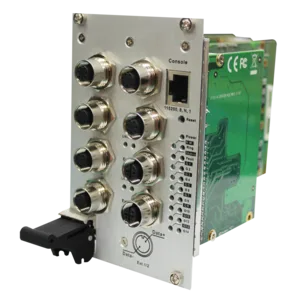

- **High Port Density:** 14 × 10/100/1000Base-T(X) ports (8 CompactPCI backplane, 6 M12 front connectors) + 2 × two-wire Ethernet extension ports for long-distance, cost-effective cabling. - **CompactPCI 3U Form Factor:** PICMG 2.0 compatible, 16HP width, hot-swappable design for modular integration. - **Rugged Industrial Design:** Fully compliant with **EN50155** for railway applications, vibration and shock tested per IEC60068 standards, and wide temperature operation from **–40°C to +70°C**. - **Advanced Redundancy:** Supports **O-Ring**, **O-Chain**, **MRP (IEC 62439-2)**, and **MSTP/RSTP/STP** for network fault tolerance with sub-30 ms recovery. - **Comprehensive Management:** Web-based GUI, Telnet, CLI via RS-232 console, and centralized management through ORing’s network management software. - **Enhanced Security:** Includes **Device Binding**, **802.1x authentication**, **MAC-based port security**, **SNMPv3 encryption**, **HTTPS/SSH**, and **DoS/DDoS auto-prevention**. - **Quality of Service (QoS):** Application-based and IP-based QoS for traffic prioritization, ensuring real-time data delivery for critical applications such as IP surveillance and control systems. - **Energy Efficiency:** Supports **IEEE 802.3az Energy-Efficient Ethernet**, reducing power consumption during low data activity periods. - **Modbus TCP Support:** Enables integration with industrial automation systems and SCADA environments. - **High Performance:** 28.4 Gbps switching bandwidth, 7 µs latency, 8K MAC address table, and jumbo frame support up to 9.6 KB.

Manufacturer: Oring

Category: Switch Card

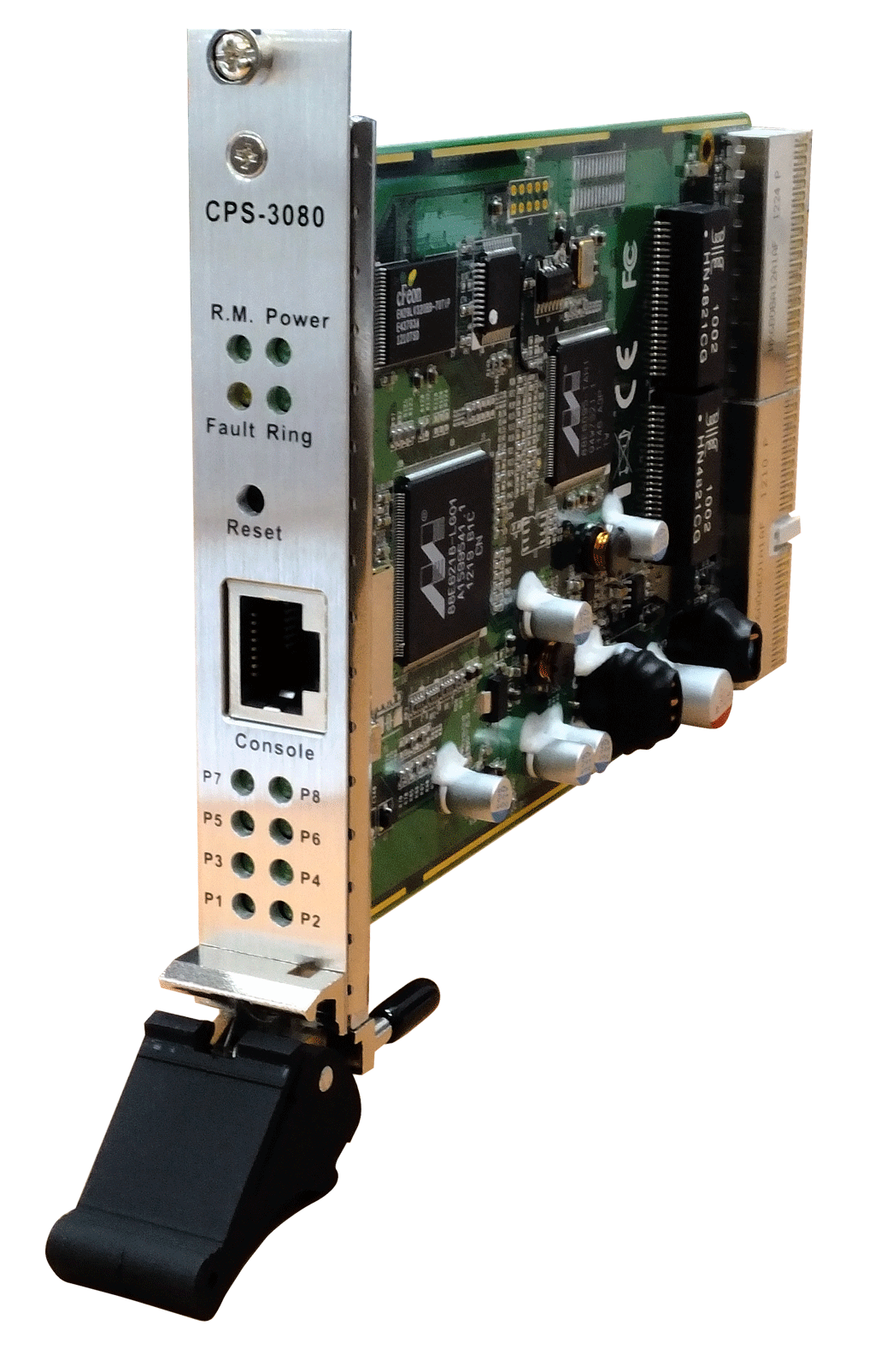

- **EN50155‑compliant** for railway and rolling stock applications. - **3U / 4HP CompactPCI form factor** with **hot‑swap capability**. - **PICMG 2.0 specification compatible** for CompactPCI backplane integration. - **8×10/100Base‑T(X)** Ethernet ports with auto‑negotiation and auto‑MDI/MDI‑X. - **Fast redundant Ethernet ring** (O‑Ring) with recovery time **

Manufacturer: Oring

Category: Switch Card

- **Redundant Ethernet Ring Technology:** Implements ORing’s **O‑Ring** redundancy protocol with recovery time under 10 ms across up to 250 connected devices, ensuring minimal downtime in mission‑critical applications. - **Multiple Redundancy Protocols:** Supports **RSTP/STP (IEEE 802.1w/D)** and **Fast Recovery Mode** for flexible network topologies including Network + Device Redundant, Device Communication Redundant, and standard Ethernet switch configurations. - **Dual Power Inputs:** Operates from both PCI bus power (+5 V DC) and external DC input (9–30 V DC). The external input ensures uninterrupted operation if the host IPC shuts down. - **Relay Output for Fault Notification:** Configurable alarm relay output (1 A @ 24 V DC) for power failure or port link loss events. - **Comprehensive Management:** Web‑based configuration interface and **Open‑Vision** Windows utility for centralized monitoring and management of multiple ORing switches. - **Event Notification:** Supports Syslog, Email (SMTP), and SNMP traps for remote fault and system event reporting. - **SNMP and LLDP Support:** SNMP v1/v2c/v3 for secure network management and **LLDP (IEEE 802.1AB)** for device discovery and topology mapping. - **PCI Bus Compliance:** Fully compliant with **PCI Local Bus Specification Rev 2.2**, 32‑bit Bus Master architecture, and supports **Wake‑on‑LAN (WOL)**. - **Industrial‑Grade Design:** Extended operating temperature range (‑10 °C to 60 °C), ESD protection (EN61000‑4‑2), surge protection (EN61000‑4‑5), and robust mechanical construction for harsh environments. - **Low Power Consumption:** Typical consumption of approximately **3.5 W**, optimized for embedded and IPC applications. - **Warranty:** Backed by a **3‑year manufacturer warranty**.

Manufacturer: Oring

Category: Switch Card

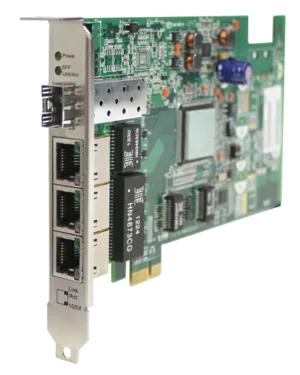

- **Four‑Port Gigabit Switch Architecture:** Provides **3× 10/100/1000Base‑T(X)** RJ‑45 ports and **1× 100/1000Base‑X SFP** port for mixed copper and fiber connectivity. - **PCIe Interface Compatibility:** Supports **PCIe x1** bus interface and is **upward compatible** with **x4, x8, and x16** slots. Fully compliant with **PCIe Revision 1.1**. - **Flexible SFP Configuration:** A **DIP‑switch (S1)** allows selection between **100Base‑FX** and **1000Base‑X** operation for the SFP port (ON = 100Base‑FX, OFF = 1000Base‑X). - **High‑Performance Switching:** - **Store‑and‑forward** switching architecture - **8K MAC address table** - **Auto‑negotiation** and **auto‑MDI/MDI‑X** support - **Flow control** compliant with IEEE 802.3x - **Jumbo Frame Support:** Handles Ethernet frames up to **10,000 bytes**, improving throughput for large data transfers. - **Bus‑Powered Operation:** Draws power directly from the PCIe bus (~4.2 W typical), eliminating the need for external power supplies. - **Industrial‑Grade Design:** Designed for rugged environments with **‑10°C to 60°C** operating temperature, **5–95% non‑condensing humidity**, and compliance with **IEC shock, vibration, and free‑fall** standards. - **Cross‑Platform Driver Support:** Compatible with **Windows, Linux, Unix, Novell, and MacOS** operating systems. - **Long‑Term Reliability:** Backed by a **5‑year warranty** and ORing’s industrial quality assurance.

Manufacturer: Oring

Category: Switch Card
