- 8-inch SVGA Display: 800 × 600 resolution with 400 cd/m² brightness and 130° viewing angle for clear, vivid visuals.
- Fanless Design: Passive cooling system for silent operation and enhanced reliability in dusty or vibration-prone environments.
- AMD LX-800 Processor: Low-power 500 MHz CPU optimized for embedded and industrial applications.
- Flexible Memory Support: One 200-pin DDR SO-DIMM slot supporting 266/333 MHz DDR SDRAM up to 1 GB.
- Versatile Storage Options: Space for one 2.5" HDD and one CompactFlash (CF) card slot for flexible storage configurations.
- Comprehensive I/O Connectivity:
- 3 × RS-232 serial ports
- 1 × RS-232/422/485 configurable serial port
- 2 × external USB 2.0 ports
- 2 × internal USB 2.0 ports (2×5 2.0 mm pin header)
- 1 × 10/100 Mbps LAN port
- 1 × VGA output
- 1 × PS/2 keyboard & mouse port
- Audio I/O (Line-in, Line-out, Mic) with AC’97 codec
- 2 × SATA ports (optional)
- Onboard buzzer, reset switch, and power on/off switch
- Touch Interface: Analog resistive touchscreen for precise input and control.
- Rugged Construction: Black alloy bezel with metal housing for durability and protection.
- Wide Power Input Range: Operates from 11 to 28 VDC, suitable for industrial and vehicular power systems.
- Mounting Flexibility: Supports both panel mounting and VESA 75 mm mounting standards.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C and storage from -20°C to 60°C.
- Compliance: NEMA 4 / IP65 front bezel protection, CE and FCC Class A certified.
- OS Compatibility: Supports Windows CE.NET 4.2 / 5.0, Windows XP Professional, and Windows XP Embedded.
- Fanless Design: Passive cooling system for silent operation and enhanced reliability in dusty or vibration-prone environments.
- AMD LX-800 Processor: Low-power 500 MHz CPU optimized for embedded and industrial applications.
- Flexible Memory Support: One 200-pin DDR SO-DIMM slot supporting 266/333 MHz DDR SDRAM up to 1 GB.
- Versatile Storage Options: Space for one 2.5" HDD and one CompactFlash (CF) card slot for flexible storage configurations.
- Comprehensive I/O Connectivity:
- 3 × RS-232 serial ports
- 1 × RS-232/422/485 configurable serial port
- 2 × external USB 2.0 ports
- 2 × internal USB 2.0 ports (2×5 2.0 mm pin header)
- 1 × 10/100 Mbps LAN port
- 1 × VGA output
- 1 × PS/2 keyboard & mouse port
- Audio I/O (Line-in, Line-out, Mic) with AC’97 codec
- 2 × SATA ports (optional)
- Onboard buzzer, reset switch, and power on/off switch
- Touch Interface: Analog resistive touchscreen for precise input and control.
- Rugged Construction: Black alloy bezel with metal housing for durability and protection.
- Wide Power Input Range: Operates from 11 to 28 VDC, suitable for industrial and vehicular power systems.
- Mounting Flexibility: Supports both panel mounting and VESA 75 mm mounting standards.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C and storage from -20°C to 60°C.
- Compliance: NEMA 4 / IP65 front bezel protection, CE and FCC Class A certified.
- OS Compatibility: Supports Windows CE.NET 4.2 / 5.0, Windows XP Professional, and Windows XP Embedded.

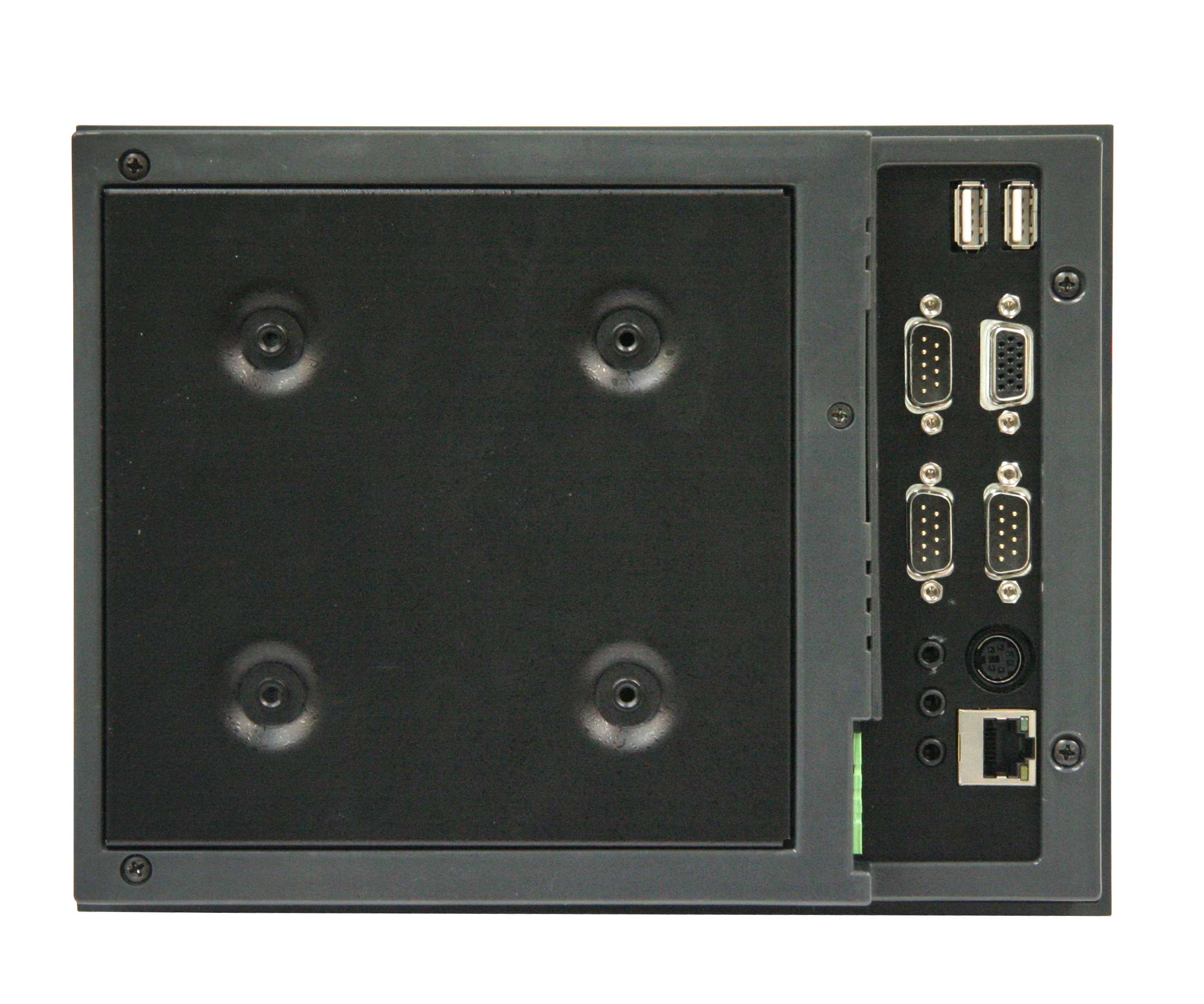

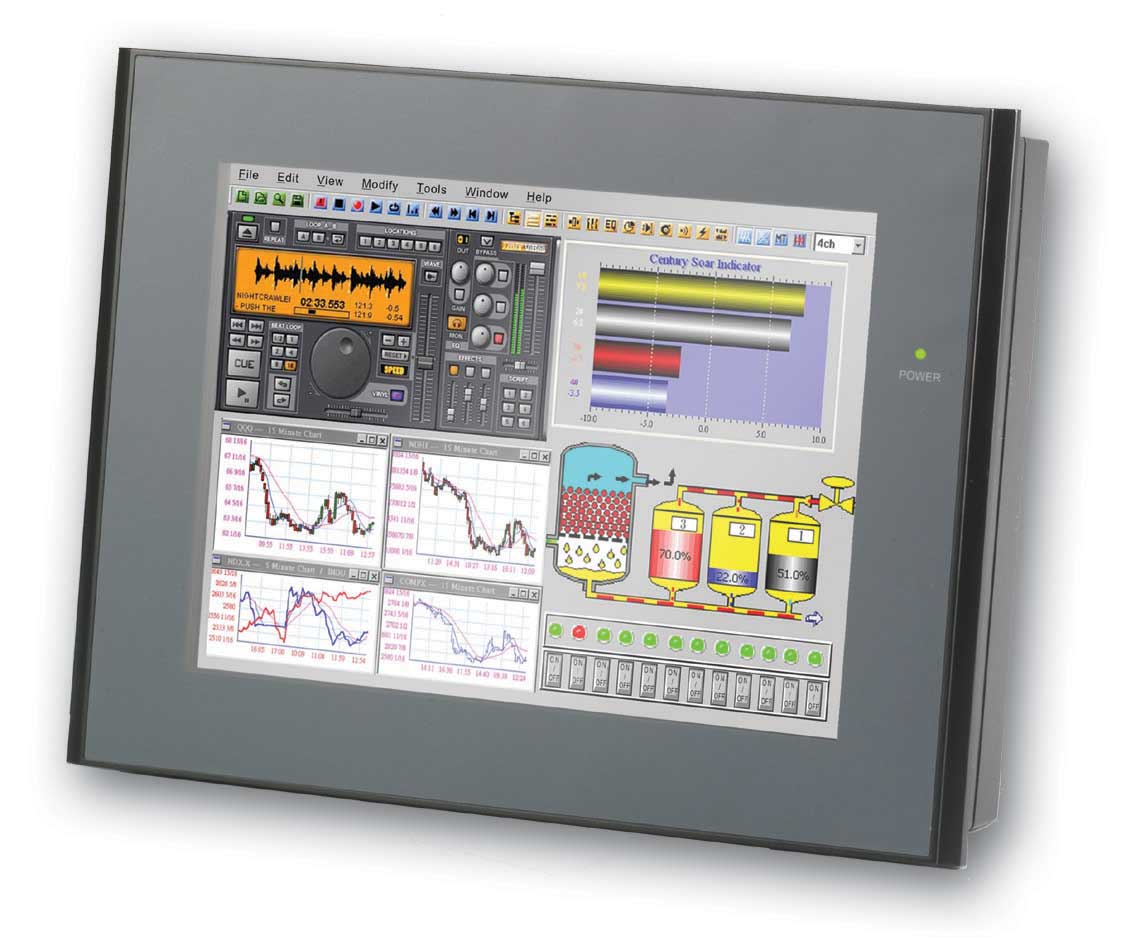

Comprehensive Product Summary – AHM-6083 8" SVGA Fanless Panel PC (Aplex)
### 1. Product Overview
Product Name: AHM-6083
Model Number: AHM-6083
Series: AHM Series Fanless Panel PCs
Article Number: AHM-6083
Manufacturer: Aplex Technology Inc.
The AHM-6083 is an industrial-grade 8-inch SVGA fanless panel PC designed for embedded control, automation, and human-machine interface (HMI) applications. Engineered by Aplex Technology, this compact and robust system integrates an AMD LX-800 500 MHz processor, a resistive touch display, and a wide range of I/O interfaces within a durable metal housing. Its fanless architecture ensures silent operation and long-term reliability in demanding industrial environments.
### 2. Key Features
- 8-inch SVGA Display: 800 × 600 resolution with 400 cd/m² brightness and 130° viewing angle for clear, vivid visuals.
- Fanless Design: Passive cooling system for silent operation and enhanced reliability in dusty or vibration-prone environments.
- AMD LX-800 Processor: Low-power 500 MHz CPU optimized for embedded and industrial applications.
- Flexible Memory Support: One 200-pin DDR SO-DIMM slot supporting 266/333 MHz DDR SDRAM up to 1 GB.
- Versatile Storage Options: Space for one 2.5" HDD and one CompactFlash (CF) card slot for flexible storage configurations.
- Comprehensive I/O Connectivity:
- 3 × RS-232 serial ports
- 1 × RS-232/422/485 configurable serial port
- 2 × external USB 2.0 ports
- 2 × internal USB 2.0 ports (2×5 2.0 mm pin header)
- 1 × 10/100 Mbps LAN port
- 1 × VGA output
- 1 × PS/2 keyboard & mouse port
- Audio I/O (Line-in, Line-out, Mic) with AC’97 codec
- 2 × SATA ports (optional)
- Onboard buzzer, reset switch, and power on/off switch
- Touch Interface: Analog resistive touchscreen for precise input and control.
- Rugged Construction: Black alloy bezel with metal housing for durability and protection.
- Wide Power Input Range: Operates from 11 to 28 VDC, suitable for industrial and vehicular power systems.
- Mounting Flexibility: Supports both panel mounting and VESA 75 mm mounting standards.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C and storage from -20°C to 60°C.
- Compliance: NEMA 4 / IP65 front bezel protection, CE and FCC Class A certified.
- OS Compatibility: Supports Windows CE.NET 4.2 / 5.0, Windows XP Professional, and Windows XP Embedded.
### 3. Technical Specifications
Display:
- Size: 8 inches (diagonal)
- Resolution: 800 × 600 (SVGA)
- Brightness: 400 cd/m²
- Viewing Angle: 130° (typical)
- Backlight Lifetime: 40,000 hours (typical)
- Touchscreen: Analog resistive type
Processor (CPU):
- Model: AMD LX-800
- Clock Speed: 500 MHz
- Architecture: x86-compatible, low-power embedded processor
Memory (DRAM):
- Type: DDR SDRAM (SO-DIMM, 200-pin)
- Frequency: 266/333 MHz
- Capacity: Up to 1 GB
Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot
- Optional: 2 × SATA ports for additional storage expansion
Power Input:
- Voltage Range: 11–28 VDC
- Power Type: DC input
I/O Interfaces:
- Serial Ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- COM3: RS-232
- COM4: Reserved for touchscreen controller
- USB Ports:
- 2 × external USB 2.0
- 2 × internal USB 2.0 (2×5 2.0 mm pin header)
- LAN: 1 × 10/100 Mbps Ethernet (RJ-45)
- VGA Output: 1 × standard VGA port
- PS/2: 1 × combined keyboard & mouse port
- Audio: AC’97 codec with Line-in, Line-out, and Mic
- Other: Onboard buzzer, reset switch, power on/off switch
Physical Characteristics:
- Dimensions: 231 (W) × 176 (H) × 76 (D) mm
- Cut-out Size: 222 × 167 mm
- Weight: Approx. 1.4 kg (3.09 lbs)
- Front Bezel Color: Black
- Housing Material: Metal chassis with alloy front bezel
### 4. Functionality
The AHM-6083 functions as a compact, all-in-one industrial panel PC designed for control, monitoring, and data acquisition tasks. Its fanless design and solid-state components make it ideal for continuous operation in environments where dust, vibration, or temperature fluctuations are common.
Typical Use Cases:
- Industrial automation and process control
- Human-Machine Interface (HMI) terminals
- Factory and production line monitoring
- Building automation systems
- Kiosk and point-of-information terminals
- Transportation and vehicle-mounted control systems
- Embedded control in machinery or instrumentation
Operation:
The system integrates a resistive touchscreen interface, allowing operators to interact directly with applications without external peripherals. The AMD LX-800 processor provides sufficient performance for lightweight control software, SCADA interfaces, and data visualization tools.
Compatibility:
The AHM-6083 supports multiple operating systems, including Windows CE.NET 4.2/5.0, Windows XP Professional, and Windows XP Embedded, ensuring compatibility with a wide range of industrial software platforms.
### 5. Components & Accessories
Included Components:
- AHM-6083 main unit (panel PC)
- Integrated 8" SVGA LCD with resistive touchscreen
- Power input terminal block (for DC 11–28V connection)
- Mounting brackets for panel or VESA 75 installation
- Onboard buzzer, reset, and power switches
Optional Accessories:
- 2.5" HDD or SSD (user-supplied or optional from manufacturer)
- CompactFlash storage card
- SATA storage devices (optional interface)
- External USB peripherals (keyboard, mouse, storage)
- LAN cables and connectors
- Power adapter (if required for specific voltage input)
Connectors:
- Standard industrial-grade connectors for serial, USB, LAN, and VGA interfaces
- Internal pin headers for additional USB connectivity
### 6. Installation & Setup
Power Requirements:
- Input Voltage: 11–28 VDC
- Power connection via terminal block or DC jack (depending on configuration)
Mounting Options:
- Panel Mounting: Designed for flush installation into control panels or enclosures using the provided mounting brackets.
- VESA Mounting: Compatible with VESA 75 mm standard for mounting on arms, stands, or wall brackets.
Configuration:
- Memory and storage devices can be installed or upgraded via accessible internal slots.
- BIOS and system settings configurable through standard PC interfaces.
- Operating system installation supported via CompactFlash, HDD, or external USB media.
Setup Process:
1. Secure the panel PC into the desired mounting location.
2. Connect DC power supply (11–28V).
3. Attach necessary peripherals (LAN, USB, serial devices).
4. Power on and configure BIOS or OS settings as required.
5. Calibrate the resistive touchscreen for accurate input.
### 7. Performance & Capabilities
Processing Performance:
The AMD LX-800 500 MHz processor provides efficient performance for embedded control and HMI applications, balancing low power consumption with adequate computing capability for industrial tasks.
Memory & Storage:
Up to 1 GB DDR SDRAM ensures smooth operation of lightweight operating systems and control software. The combination of HDD and CF storage options allows flexible data management and system backup configurations.
Display Performance:
The 8" SVGA display delivers 400 cd/m² brightness, ensuring visibility in various lighting conditions. The 130° viewing angle supports multi-angle readability, while the 40,000-hour backlight life ensures long-term reliability.
Environmental Performance:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10–90% @ 40°C (non-condensing)
- Vibration Resistance: 5–500 Hz (random), 1G peak-to-peak acceleration
- Shock Resistance: 15G peak-to-peak (11 ms duration)
Limitations:
While robust and reliable, the AHM-6083 is optimized for low-power embedded applications rather than high-performance computing. It is best suited for control, monitoring, and interface tasks rather than intensive data processing or graphics-heavy workloads.
### 8. Standards & Compliance
Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust and water splashes.
Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial and commercial environments)
Industry Standards:
- VESA 75 mm mounting standard
- AC’97 audio codec compliance
- RS-232/422/485 serial communication standards
- USB 2.0 and Ethernet 10/100Base-T compatibility
These certifications and standards ensure the AHM-6083 meets industrial-grade reliability, electromagnetic compatibility, and safety requirements.
### 9. Additional Information
Operating System Support:
- Windows CE.NET 4.2
- Windows CE.NET 5.0
- Windows XP Professional
- Windows XP Embedded
Warranty & Support:
Aplex typically provides a standard manufacturer’s warranty covering defects in materials and workmanship. Extended warranty and service contracts may be available depending on region and distributor.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and inspection of connectors recommended.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.
Software & Firmware Updates:
- BIOS updates available from Aplex support.
- OS image and driver packages provided for supported platforms.
Service & Technical Assistance:
Aplex offers technical documentation, installation guides, and driver downloads through its official support channels. Technical support is available for integration, troubleshooting, and customization inquiries.
### Summary
The Aplex AHM-6083 is a compact, rugged, and energy-efficient 8-inch fanless panel PC designed for industrial and embedded applications. Featuring an AMD LX-800 500 MHz processor, resistive touchscreen, and wide DC input range (11–28V), it delivers reliable performance in harsh environments. Its metal housing, IP65 front bezel, and comprehensive I/O connectivity make it ideal for automation, control, and HMI tasks.
With support for Windows CE.NET and Windows XP Embedded, the AHM-6083 provides a stable and flexible platform for industrial software integration. Its fanless architecture, long-life display, and robust environmental tolerance ensure dependable operation in continuous-use scenarios.
Overall, the AHM-6083 exemplifies Aplex’s commitment to delivering durable, high-quality embedded computing solutions tailored for industrial control, monitoring, and automation systems.
End of Product Summary – AHM-6083 8" SVGA Fanless Panel PC (Aplex)
### 1. Product Overview
Product Name: AHM-6083
Model Number: AHM-6083
Series: AHM Series Fanless Panel PCs
Article Number: AHM-6083
Manufacturer: Aplex Technology Inc.
The AHM-6083 is an industrial-grade 8-inch SVGA fanless panel PC designed for embedded control, automation, and human-machine interface (HMI) applications. Engineered by Aplex Technology, this compact and robust system integrates an AMD LX-800 500 MHz processor, a resistive touch display, and a wide range of I/O interfaces within a durable metal housing. Its fanless architecture ensures silent operation and long-term reliability in demanding industrial environments.
### 2. Key Features
- 8-inch SVGA Display: 800 × 600 resolution with 400 cd/m² brightness and 130° viewing angle for clear, vivid visuals.
- Fanless Design: Passive cooling system for silent operation and enhanced reliability in dusty or vibration-prone environments.
- AMD LX-800 Processor: Low-power 500 MHz CPU optimized for embedded and industrial applications.
- Flexible Memory Support: One 200-pin DDR SO-DIMM slot supporting 266/333 MHz DDR SDRAM up to 1 GB.
- Versatile Storage Options: Space for one 2.5" HDD and one CompactFlash (CF) card slot for flexible storage configurations.
- Comprehensive I/O Connectivity:
- 3 × RS-232 serial ports
- 1 × RS-232/422/485 configurable serial port
- 2 × external USB 2.0 ports
- 2 × internal USB 2.0 ports (2×5 2.0 mm pin header)
- 1 × 10/100 Mbps LAN port
- 1 × VGA output
- 1 × PS/2 keyboard & mouse port
- Audio I/O (Line-in, Line-out, Mic) with AC’97 codec
- 2 × SATA ports (optional)
- Onboard buzzer, reset switch, and power on/off switch
- Touch Interface: Analog resistive touchscreen for precise input and control.
- Rugged Construction: Black alloy bezel with metal housing for durability and protection.
- Wide Power Input Range: Operates from 11 to 28 VDC, suitable for industrial and vehicular power systems.
- Mounting Flexibility: Supports both panel mounting and VESA 75 mm mounting standards.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C and storage from -20°C to 60°C.
- Compliance: NEMA 4 / IP65 front bezel protection, CE and FCC Class A certified.
- OS Compatibility: Supports Windows CE.NET 4.2 / 5.0, Windows XP Professional, and Windows XP Embedded.
### 3. Technical Specifications
Display:
- Size: 8 inches (diagonal)
- Resolution: 800 × 600 (SVGA)
- Brightness: 400 cd/m²
- Viewing Angle: 130° (typical)
- Backlight Lifetime: 40,000 hours (typical)
- Touchscreen: Analog resistive type
Processor (CPU):
- Model: AMD LX-800
- Clock Speed: 500 MHz
- Architecture: x86-compatible, low-power embedded processor
Memory (DRAM):
- Type: DDR SDRAM (SO-DIMM, 200-pin)
- Frequency: 266/333 MHz
- Capacity: Up to 1 GB
Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot
- Optional: 2 × SATA ports for additional storage expansion
Power Input:
- Voltage Range: 11–28 VDC
- Power Type: DC input
I/O Interfaces:
- Serial Ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- COM3: RS-232
- COM4: Reserved for touchscreen controller
- USB Ports:
- 2 × external USB 2.0
- 2 × internal USB 2.0 (2×5 2.0 mm pin header)
- LAN: 1 × 10/100 Mbps Ethernet (RJ-45)
- VGA Output: 1 × standard VGA port
- PS/2: 1 × combined keyboard & mouse port
- Audio: AC’97 codec with Line-in, Line-out, and Mic
- Other: Onboard buzzer, reset switch, power on/off switch
Physical Characteristics:
- Dimensions: 231 (W) × 176 (H) × 76 (D) mm
- Cut-out Size: 222 × 167 mm
- Weight: Approx. 1.4 kg (3.09 lbs)
- Front Bezel Color: Black
- Housing Material: Metal chassis with alloy front bezel
### 4. Functionality
The AHM-6083 functions as a compact, all-in-one industrial panel PC designed for control, monitoring, and data acquisition tasks. Its fanless design and solid-state components make it ideal for continuous operation in environments where dust, vibration, or temperature fluctuations are common.
Typical Use Cases:
- Industrial automation and process control
- Human-Machine Interface (HMI) terminals
- Factory and production line monitoring
- Building automation systems
- Kiosk and point-of-information terminals
- Transportation and vehicle-mounted control systems
- Embedded control in machinery or instrumentation
Operation:
The system integrates a resistive touchscreen interface, allowing operators to interact directly with applications without external peripherals. The AMD LX-800 processor provides sufficient performance for lightweight control software, SCADA interfaces, and data visualization tools.
Compatibility:
The AHM-6083 supports multiple operating systems, including Windows CE.NET 4.2/5.0, Windows XP Professional, and Windows XP Embedded, ensuring compatibility with a wide range of industrial software platforms.
### 5. Components & Accessories
Included Components:
- AHM-6083 main unit (panel PC)
- Integrated 8" SVGA LCD with resistive touchscreen
- Power input terminal block (for DC 11–28V connection)
- Mounting brackets for panel or VESA 75 installation
- Onboard buzzer, reset, and power switches
Optional Accessories:
- 2.5" HDD or SSD (user-supplied or optional from manufacturer)
- CompactFlash storage card
- SATA storage devices (optional interface)
- External USB peripherals (keyboard, mouse, storage)
- LAN cables and connectors
- Power adapter (if required for specific voltage input)
Connectors:
- Standard industrial-grade connectors for serial, USB, LAN, and VGA interfaces
- Internal pin headers for additional USB connectivity
### 6. Installation & Setup
Power Requirements:
- Input Voltage: 11–28 VDC
- Power connection via terminal block or DC jack (depending on configuration)
Mounting Options:
- Panel Mounting: Designed for flush installation into control panels or enclosures using the provided mounting brackets.
- VESA Mounting: Compatible with VESA 75 mm standard for mounting on arms, stands, or wall brackets.
Configuration:
- Memory and storage devices can be installed or upgraded via accessible internal slots.
- BIOS and system settings configurable through standard PC interfaces.
- Operating system installation supported via CompactFlash, HDD, or external USB media.
Setup Process:
1. Secure the panel PC into the desired mounting location.
2. Connect DC power supply (11–28V).
3. Attach necessary peripherals (LAN, USB, serial devices).
4. Power on and configure BIOS or OS settings as required.
5. Calibrate the resistive touchscreen for accurate input.
### 7. Performance & Capabilities
Processing Performance:
The AMD LX-800 500 MHz processor provides efficient performance for embedded control and HMI applications, balancing low power consumption with adequate computing capability for industrial tasks.
Memory & Storage:
Up to 1 GB DDR SDRAM ensures smooth operation of lightweight operating systems and control software. The combination of HDD and CF storage options allows flexible data management and system backup configurations.
Display Performance:
The 8" SVGA display delivers 400 cd/m² brightness, ensuring visibility in various lighting conditions. The 130° viewing angle supports multi-angle readability, while the 40,000-hour backlight life ensures long-term reliability.
Environmental Performance:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10–90% @ 40°C (non-condensing)
- Vibration Resistance: 5–500 Hz (random), 1G peak-to-peak acceleration
- Shock Resistance: 15G peak-to-peak (11 ms duration)
Limitations:
While robust and reliable, the AHM-6083 is optimized for low-power embedded applications rather than high-performance computing. It is best suited for control, monitoring, and interface tasks rather than intensive data processing or graphics-heavy workloads.
### 8. Standards & Compliance
Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust and water splashes.
Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial and commercial environments)
Industry Standards:
- VESA 75 mm mounting standard
- AC’97 audio codec compliance
- RS-232/422/485 serial communication standards
- USB 2.0 and Ethernet 10/100Base-T compatibility
These certifications and standards ensure the AHM-6083 meets industrial-grade reliability, electromagnetic compatibility, and safety requirements.
### 9. Additional Information
Operating System Support:
- Windows CE.NET 4.2
- Windows CE.NET 5.0
- Windows XP Professional
- Windows XP Embedded
Warranty & Support:
Aplex typically provides a standard manufacturer’s warranty covering defects in materials and workmanship. Extended warranty and service contracts may be available depending on region and distributor.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and inspection of connectors recommended.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.
Software & Firmware Updates:
- BIOS updates available from Aplex support.
- OS image and driver packages provided for supported platforms.
Service & Technical Assistance:
Aplex offers technical documentation, installation guides, and driver downloads through its official support channels. Technical support is available for integration, troubleshooting, and customization inquiries.
### Summary
The Aplex AHM-6083 is a compact, rugged, and energy-efficient 8-inch fanless panel PC designed for industrial and embedded applications. Featuring an AMD LX-800 500 MHz processor, resistive touchscreen, and wide DC input range (11–28V), it delivers reliable performance in harsh environments. Its metal housing, IP65 front bezel, and comprehensive I/O connectivity make it ideal for automation, control, and HMI tasks.
With support for Windows CE.NET and Windows XP Embedded, the AHM-6083 provides a stable and flexible platform for industrial software integration. Its fanless architecture, long-life display, and robust environmental tolerance ensure dependable operation in continuous-use scenarios.
Overall, the AHM-6083 exemplifies Aplex’s commitment to delivering durable, high-quality embedded computing solutions tailored for industrial control, monitoring, and automation systems.
End of Product Summary – AHM-6083 8" SVGA Fanless Panel PC (Aplex)
-
AHM-6083.pdf
PDF Catalog
No accessories available.
