Comprehensive Product Summary – AHM-6155 Fanless Panel PC

---

### 1. Product Overview

Product Name: AHM-6155
Model Number: AHM-6155
Series: AHM Industrial Panel PC Series
Article Number: AHM-6155
Manufacturer: Aplex Technology Inc.

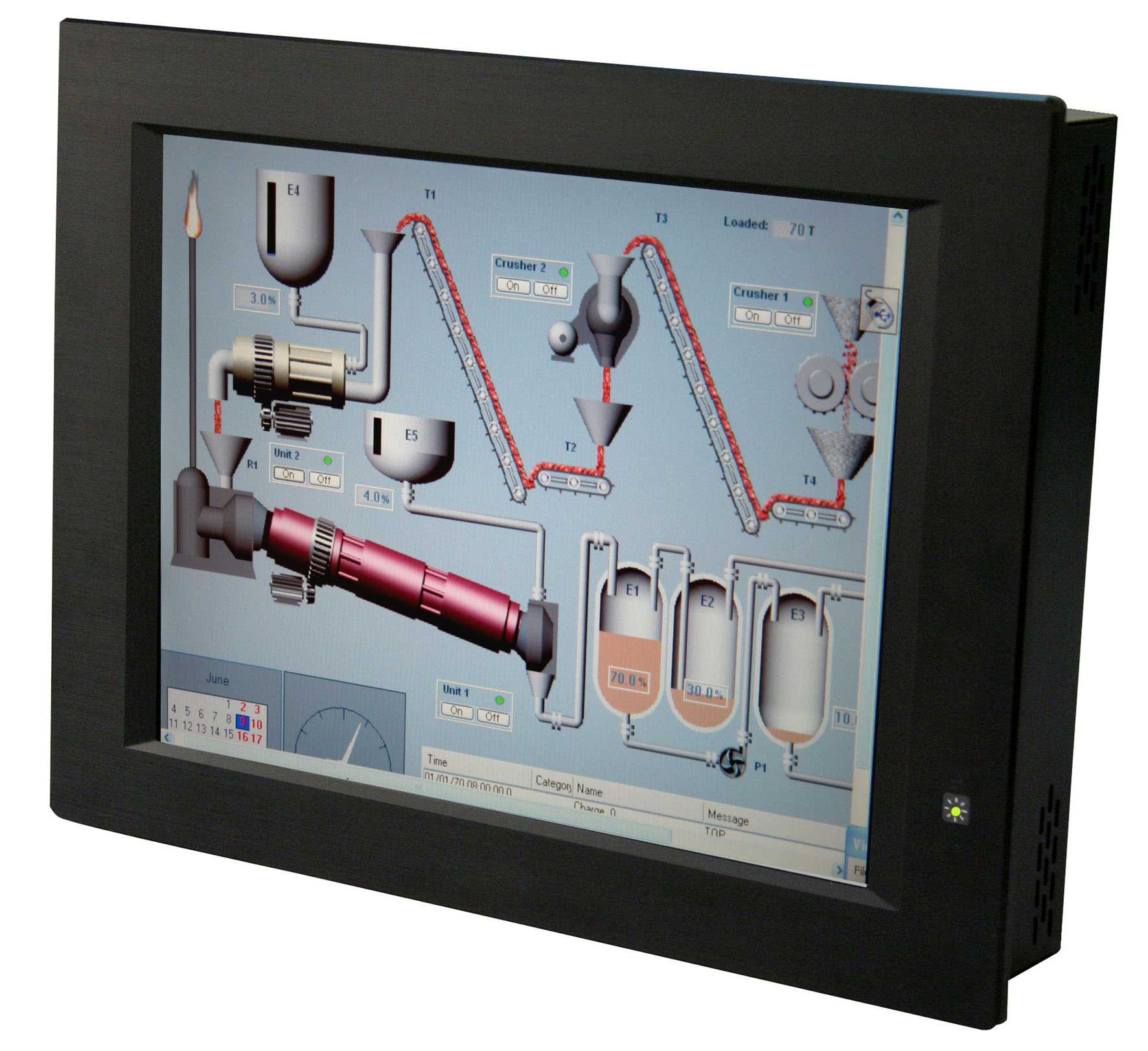

The AHM-6155 is a 15-inch XGA fanless industrial panel PC designed for demanding embedded and automation applications. Engineered by Aplex Technology, a recognized manufacturer of industrial computing solutions, this model integrates a high-performance low-power CPU, a rugged IP65-rated front panel, and a resistive touch interface. It is optimized for environments requiring reliable, silent operation, such as factory automation, process control, human-machine interface (HMI) systems, and industrial monitoring.

---

### 2. Key Features

- Display: 15-inch XGA (1024 × 768) TFT LCD panel providing clear, high-contrast visuals suitable for industrial control and monitoring.
- Touch Interface: Sealed 5-wire resistive touch screen for precise input, operable with gloves or stylus, ideal for harsh or contaminated environments.
- Fanless Design: Completely fanless architecture ensures silent operation, reduced maintenance, and improved reliability in dusty or vibration-prone settings.
- Processor: Equipped with a Celeron 1 GHz CPU, with upgrade options up to Pentium 4-M 1.8 GHz, balancing performance and energy efficiency.
- Storage Options: Supports one 2.5" HDD bay and one CompactFlash (CF) slot for flexible storage configurations.
- Connectivity:
- 1 × RS-232 port
- 1 × RS-232/422/485 configurable serial port
- 1 × 10/100 Mbps LAN port
- 2 × USB 2.0 ports
- 1 × Parallel port
- Construction: Rugged alloy chassis with IP65-rated front panel protection against dust and water ingress.
- Mounting: VESA 75 mm standard mount for flexible installation on panels, arms, or enclosures.
- Power Input: Wide-range DC power input from 11 VDC to 28 VDC, supporting diverse industrial power systems.
- Operating Temperature: 0°C to 50°C operational range, with storage tolerance from -20°C to +60°C.
- Dimensions & Weight: 409 × 309 × 82 mm, approximately 7.45 kg.
- Cut-Out Dimensions: 392 × 292 mm for panel mounting.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Display Size | 15-inch TFT LCD |
| Resolution | XGA 1024 × 768 pixels |
| Touch Type | 5-wire resistive touch panel |
| Processor | Intel Celeron 1 GHz (upgradable to Pentium 4-M 1.8 GHz) |
| System Memory | Supports standard DDR or SDRAM (depending on configuration) |
| Storage | 1 × 2.5" HDD bay, 1 × CompactFlash slot |
| I/O Interfaces | 1 × RS-232, 1 × RS-232/422/485, 1 × 10/100 LAN, 2 × USB 2.0, 1 × Parallel port |
| Expansion Slots | CompactFlash Type I/II |
| Power Input | 11–28 VDC wide-range input |
| Power Consumption | Optimized for low power operation (varies by CPU configuration) |
| Enclosure Material | Aluminum alloy front bezel, steel rear housing |
| Front Panel Protection | IP65-rated (dust-tight and water-resistant) |
| Mounting Options | VESA 75 mm, panel mount |
| Cut-Out Dimensions | 392 × 292 mm |
| Overall Dimensions | 409 × 309 × 82 mm |
| Weight | Approx. 7.45 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% to 90% RH, non-condensing |
| Vibration Resistance | 5–17 Hz, 1.0 mm amplitude (typical industrial tolerance) |
| Shock Resistance | 10–9 G (typical industrial tolerance) |

---

### 4. Functionality

The AHM-6155 functions as a fully integrated industrial panel PC, combining computing, display, and touch input in a single compact unit. It operates as a human-machine interface (HMI) or embedded control terminal in automation systems. The resistive touch screen allows operators to interact directly with control software, SCADA interfaces, or monitoring dashboards.

Typical Use Cases:
- Factory automation and production line control
- Process monitoring and data acquisition
- Building management systems (BMS)
- Machine control panels and operator terminals
- Kiosk and information display systems
- Transportation and logistics control stations

Compatibility:
The system supports standard operating systems such as Windows Embedded, Windows XP/7, or Linux distributions, depending on CPU and memory configuration. It interfaces easily with PLCs, sensors, and industrial networks via its serial and Ethernet ports.

---

### 5. Components & Accessories

Included Components:
- AHM-6155 main panel PC unit
- Integrated 15" TFT LCD with resistive touch screen
- Power connector terminal block
- Mounting brackets for panel or VESA installation
- User manual and driver CD (depending on shipment configuration)

Optional Accessories:
- AC-to-DC power adapter (for 110/220 VAC mains input)
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Additional storage media (HDD or CF card)
- Serial and USB extension cables
- Protective screen film or front cover for harsh environments

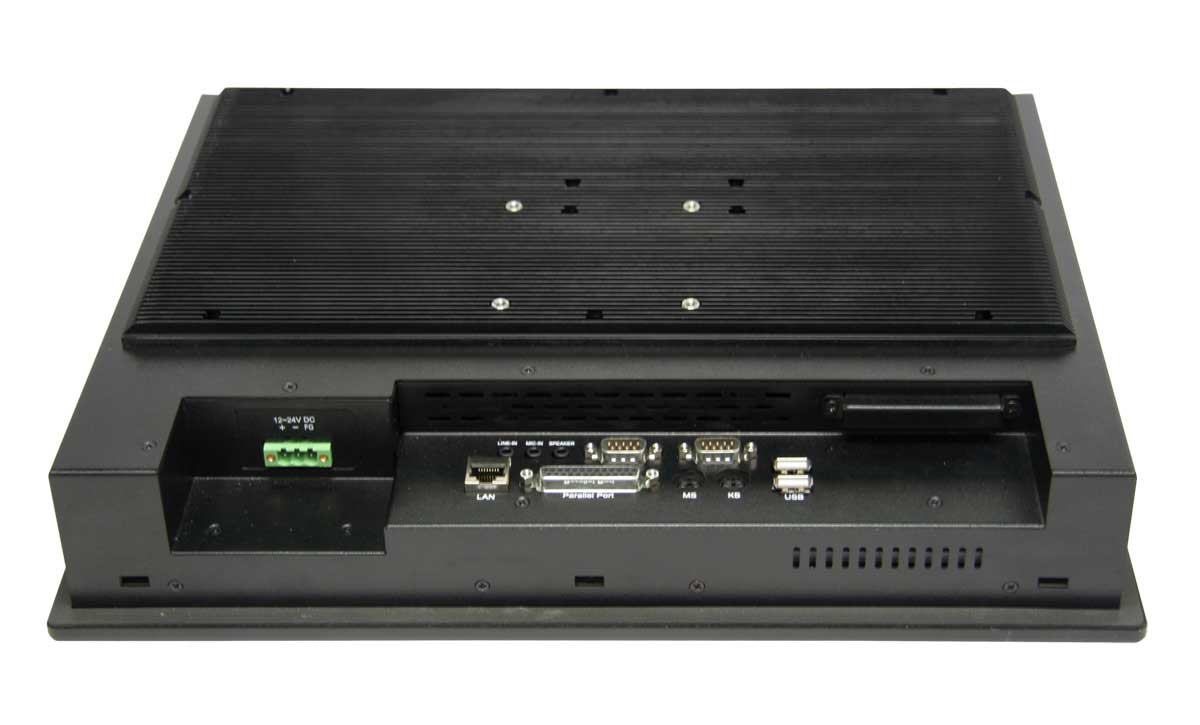

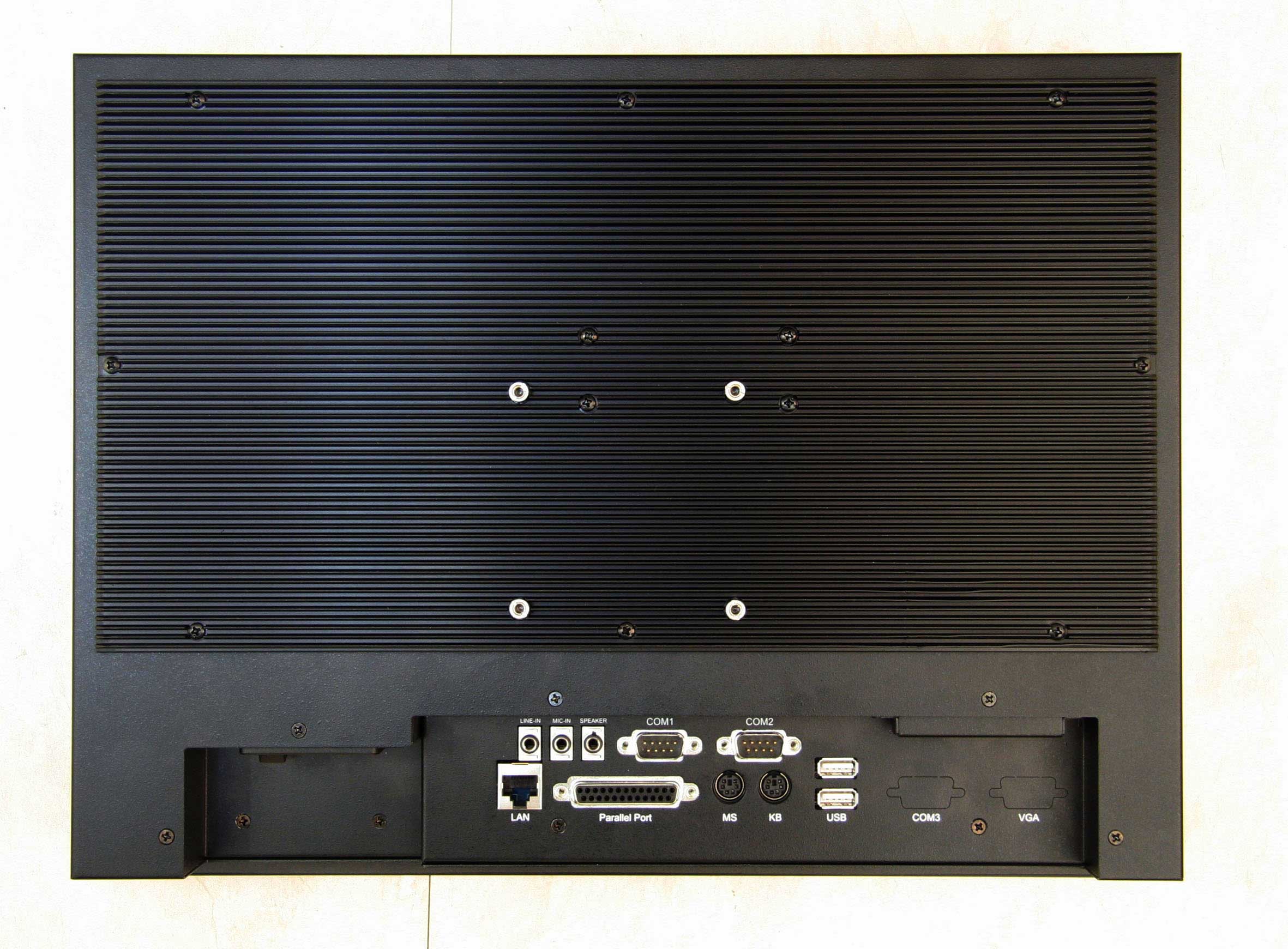

Connectors:
- DB9 connectors for RS-232/422/485 ports
- RJ45 connector for LAN
- USB Type-A ports for peripherals
- DB25 connector for parallel interface
- DC power input terminal block

---

### 6. Installation & Setup

Requirements:
- DC power source between 11 VDC and 28 VDC
- Panel cut-out of 392 × 292 mm for flush mounting
- Adequate ventilation or enclosure space for heat dissipation

Mounting Options:
- Panel Mount: Insert the unit into the prepared cut-out and secure with mounting clamps.
- VESA Mount: Attach to a VESA 75 mm bracket for wall or arm installation.

Configuration:
- Connect power, LAN, and peripheral interfaces.
- Install the desired operating system and drivers.
- Calibrate the resistive touch screen using the provided utility.
- Configure serial communication parameters (RS-232/422/485) as required by connected devices.

Setup Notes:
The fanless design eliminates the need for active cooling, reducing installation complexity. The wide DC input range allows direct connection to industrial power buses or vehicle systems.

---

### 7. Performance & Capabilities

Processing Performance:
The AHM-6155’s Intel Celeron 1 GHz processor provides sufficient computing power for HMI, data logging, and control applications. The optional Pentium 4-M 1.8 GHz upgrade enhances multitasking and graphical performance.

Display Performance:
The 15-inch XGA display delivers sharp, bright images suitable for indoor and semi-outdoor environments. The resistive touch panel ensures accurate input even with gloved hands.

Storage & Memory:
The combination of a 2.5" HDD bay and CF slot allows flexible storage configurations—solid-state CF for reliability or HDD for higher capacity.

Network & Communication:
The integrated 10/100 LAN port supports standard Ethernet networking for SCADA or MES integration. Dual serial ports (RS-232 and RS-232/422/485) enable communication with PLCs, sensors, and legacy equipment.

Power Efficiency:
The system’s fanless, low-power design minimizes energy consumption and heat generation, extending component lifespan and reliability.

Limitations:
- Limited graphics performance for high-end visualization or 3D rendering.
- Restricted CPU upgrade path due to embedded architecture.
- Operating temperature limited to 0–50°C; may require enclosure heating or cooling in extreme environments.

---

### 8. Standards & Compliance

Certifications & Compliance:
- IP65 Front Panel Protection: Ensures dust-tight and water-resistant operation on the front surface.
- CE Compliance: Meets European safety and electromagnetic compatibility (EMC) standards.
- FCC Class A: Suitable for industrial and commercial environments.
- RoHS Compliance: Manufactured in accordance with Restriction of Hazardous Substances directives.

Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of mounting accessories.
- RS-232/422/485 Serial Communication Standards: Supports standard industrial communication protocols.
- Ethernet IEEE 802.3 10/100 Mbps: Ensures network interoperability.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard 1-year manufacturer’s warranty covering defects in materials and workmanship. Extended warranty options may be available upon request.

Support:
Aplex Technology provides technical documentation, driver downloads, and firmware updates through its official support portal. Engineering support is available for system integration and customization.

Maintenance:
The fanless design minimizes maintenance requirements. Periodic cleaning of the front panel and inspection of connectors is recommended. The resistive touch screen can be recalibrated as needed.

Software & Firmware Updates:
Firmware and BIOS updates are available from the manufacturer to ensure compatibility with new operating systems and peripherals. Touch screen drivers and calibration utilities are provided for Windows and Linux platforms.

Lifecycle & Availability:
The AHM-6155 is part of Aplex’s long-term support product line, ensuring extended availability for industrial customers requiring consistent hardware platforms over multiple years.

---

### Summary

The Aplex AHM-6155 is a robust, fanless 15-inch XGA industrial panel PC engineered for reliability, flexibility, and ease of integration in industrial automation environments. With its IP65-rated front panel, wide DC input range, and versatile I/O configuration, it serves as an ideal HMI or embedded control terminal. Its combination of a resistive touch interface, silent operation, and durable construction makes it suitable for continuous operation in manufacturing, process control, and other mission-critical applications.

---

Key Highlights Recap:
- 15" XGA (1024×768) TFT LCD with resistive touch
- Fanless design with Intel Celeron 1 GHz CPU (up to P4-M 1.8 GHz)
- IP65 front panel, aluminum alloy construction
- 1 × RS-232, 1 × RS-232/422/485, 1 × LAN, 2 × USB 2.0, 1 × Parallel
- Supports 2.5" HDD and CompactFlash storage
- 11–28 VDC power input, 409 × 309 × 82 mm, 7.45 kg
- Operating temperature: 0–50°C; storage: -20–60°C
- VESA 75 mount and panel cut-out 392 × 292 mm
- CE/FCC/ROHS compliant, designed for industrial automation and HMI applications

---

End of Product Summary – AHM-6155 Fanless Panel PC
