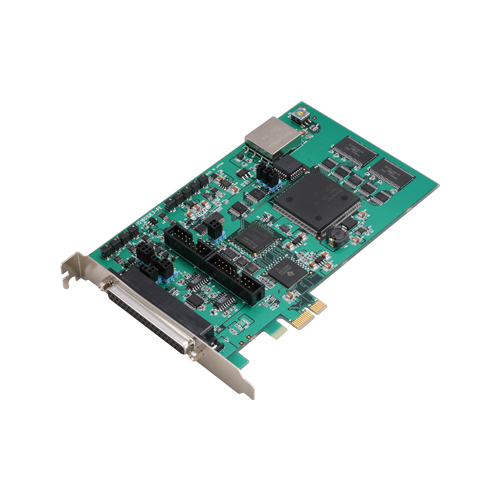

AIO-121601E3-PE
PCIe I/O card AD 100kS/s 12 Bit 16 channels 1*DA 4*DI 4*DO
720,00 EUR
including VAT 856.80 EUR
- High-Speed 12-bit A/D Conversion:
Performs analog-to-digital conversion at a maximum speed of 10 µs per channel (100 kS/s) with 12-bit resolution.
- Flexible Analog Input Configuration:
Supports 16 single-ended or 8 differential analog input channels. Input ranges are selectable as bipolar (±1.25V, ±2.5V, ±5V, ±10V) or unipolar (0–1.25V, 0–2.5V, 0–5V, 0–10V).
- Analog Output Channel:
One 12-bit D/A output channel configurable for ±10V, ±5V, or 0–10V ranges with ±5 mA drive capability.
- Large Onboard Buffer Memory:
16M data buffer memory configurable as FIFO or RING format for continuous or cyclic data acquisition.
- Digital I/O and Counter:
Four TTL-level digital inputs and four TTL-level digital outputs, plus one 32-bit counter (i8254 equivalent) with internal 4 MHz or external clock source.
- Software-Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison conditions.
- Software Calibration:
Full software-based calibration for analog input and output channels, allowing environment-specific adjustment.
- Comprehensive Software Support:
Includes Windows and Linux driver libraries (API-PAC(W32)), C-LOGGER data logger software, and plug-in libraries for MATLAB (ML-DAQ) and LabVIEW (VI-DAQ).
- Expandable Functionality:
Compatible with optional accessories such as isolation amplifiers, simultaneous sampling units, multiplexer sub-boards, and termination panels.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane).
Performs analog-to-digital conversion at a maximum speed of 10 µs per channel (100 kS/s) with 12-bit resolution.
- Flexible Analog Input Configuration:
Supports 16 single-ended or 8 differential analog input channels. Input ranges are selectable as bipolar (±1.25V, ±2.5V, ±5V, ±10V) or unipolar (0–1.25V, 0–2.5V, 0–5V, 0–10V).
- Analog Output Channel:
One 12-bit D/A output channel configurable for ±10V, ±5V, or 0–10V ranges with ±5 mA drive capability.
- Large Onboard Buffer Memory:
16M data buffer memory configurable as FIFO or RING format for continuous or cyclic data acquisition.
- Digital I/O and Counter:
Four TTL-level digital inputs and four TTL-level digital outputs, plus one 32-bit counter (i8254 equivalent) with internal 4 MHz or external clock source.
- Software-Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison conditions.
- Software Calibration:
Full software-based calibration for analog input and output channels, allowing environment-specific adjustment.
- Comprehensive Software Support:
Includes Windows and Linux driver libraries (API-PAC(W32)), C-LOGGER data logger software, and plug-in libraries for MATLAB (ML-DAQ) and LabVIEW (VI-DAQ).
- Expandable Functionality:
Compatible with optional accessories such as isolation amplifiers, simultaneous sampling units, multiplexer sub-boards, and termination panels.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane).
Comprehensive Product Summary – AIO-121601E3-PE PCI Express Analog I/O Board
### 1. Product Overview
Product Name: PCI Express Analog I/O Board
Model: AIO-121601E3-PE
Series: AIO-E3 PCI Express Series
Article Number: AIO-121601E3-PE
Manufacturer: CONTEC CO., LTD. (Osaka, Japan)
Product Type: Unisolated PCI Express Bus Analog/Digital I/O Interface Board
Version: Ver.1.01
The CONTEC AIO-121601E3-PE is a high-performance analog input/output (A/D and D/A) interface board designed for PCI Express (PCIe) bus systems. It provides 12-bit resolution analog-to-digital conversion at up to 100 kS/s per channel, supporting up to 16 analog input channels, one analog output channel, and eight digital I/O lines (4 inputs and 4 outputs). The board includes a 32-bit counter, large onboard memory (16M data), and comprehensive software support for Windows and Linux environments.
### 2. Key Features
- High-Speed 12-bit A/D Conversion:
Performs analog-to-digital conversion at a maximum speed of 10 µs per channel (100 kS/s) with 12-bit resolution.
- Flexible Analog Input Configuration:
Supports 16 single-ended or 8 differential analog input channels. Input ranges are selectable as bipolar (±1.25V, ±2.5V, ±5V, ±10V) or unipolar (0–1.25V, 0–2.5V, 0–5V, 0–10V).
- Analog Output Channel:
One 12-bit D/A output channel configurable for ±10V, ±5V, or 0–10V ranges with ±5 mA drive capability.
- Large Onboard Buffer Memory:
16M data buffer memory configurable as FIFO or RING format for continuous or cyclic data acquisition.
- Digital I/O and Counter:
Four TTL-level digital inputs and four TTL-level digital outputs, plus one 32-bit counter (i8254 equivalent) with internal 4 MHz or external clock source.
- Software-Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison conditions.
- Software Calibration:
Full software-based calibration for analog input and output channels, allowing environment-specific adjustment.
- Comprehensive Software Support:
Includes Windows and Linux driver libraries (API-PAC(W32)), C-LOGGER data logger software, and plug-in libraries for MATLAB (ML-DAQ) and LabVIEW (VI-DAQ).
- Expandable Functionality:
Compatible with optional accessories such as isolation amplifiers, simultaneous sampling units, multiplexer sub-boards, and termination panels.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane).
### 3. Technical Specifications
Analog Input:
- Type: Unisolated, single-ended (16 ch) or differential (8 ch)
- Input Range:
Bipolar: ±10V, ±5V, ±2.5V, ±1.25V
Unipolar: 0–10V, 0–5V, 0–2.5V, 0–1.25V
(Selectable via jumpers and software)
- Absolute Maximum Input Voltage: ±20V
- Input Impedance: ≥1 MΩ
- Resolution: 12-bit
- Non-Linearity Error: ±2 LSB (bipolar), ±4 LSB (unipolar)
- Conversion Speed: 10 µs/channel (max)
- Buffer Memory: 16M data (FIFO or RING)
- Trigger Sources: Software, input data comparison, or external TTL signal
- Stop Conditions: Specified sample count, data comparison, external trigger, or software command
Analog Output:
- Channels: 1 (unisolated)
- Output Range: ±10V, ±5V, or 0–10V (jumper selectable)
- Output Current: ±5 mA max
- Output Impedance: ≤1 Ω
- Resolution: 12-bit
- Non-Linearity Error: ±0.5 LSB
- Conversion Speed: 6 µs/channel (max)
Digital I/O:
- Digital Inputs: 4 channels, TTL level
- Digital Outputs: 4 channels, TTL level
- Shared Counter I/O: Configurable via jumpers
- Output Drive: 24 mA sink current per output
Counter:
- Device: i8254 equivalent, 32-bit
- Clock Source: Internal 4 MHz or external TTL signal
- Modes: Programmable one-shot, rate generator, event counting
- I/O Address: Any 32-byte boundary
- Interrupt: 1 level usable
Electrical & Environmental:
- Power Consumption: +3.3V, 1500 mA (max)
- Operating Temperature: 0–50°C
- Operating Humidity: 10–90% RH (non-condensing)
- Bus Interface: PCI Express Base Specification Rev. 1.0a x1
- Dimensions: 169.33 mm (L) × 110.18 mm (H)
- Weight: 160 g
Connectors:
- CN1: 37-pin D-SUB female (JAE DCLC-J37SAF-20L9E or equivalent)
- CN2: 16-pin pin-header (JAE PS-16SEN-D4P1-1C or equivalent)
### 4. Functionality
Operation Overview:
The AIO-121601E3-PE performs analog-to-digital and digital-to-analog conversions for data acquisition and control applications. It supports both continuous and triggered sampling modes, with flexible start/stop conditions and internal/external clocking.
Use Cases:
- Industrial process monitoring and control
- Laboratory data acquisition
- Sensor signal measurement and logging
- Automated testing systems
- Real-time control applications using MATLAB or LabVIEW
Compatibility:
- Operating Systems: Windows 7/Vista/XP/Server 2003, Linux (RedHat, TurboLinux)
- Supported Languages: Visual Basic, Visual C++, Visual C#, Delphi, C++ Builder, gcc
- Supported Software: MATLAB (ML-DAQ), LabVIEW (VI-DAQ), C-LOGGER
### 5. Components & Accessories
Included Items:
- AIO-121601E3-PE board (1 unit)
- First Step Guide (1 copy)
- CD-ROM [API-PAC(W32)] containing drivers, libraries, and user’s guide
Optional Accessories:
- Analog I/O Cables:
PCA37P-1.5 (flat, 1.5m), PCA37PS-0.5P/1.5P (shielded), PCB37PS-0.5P/1.5P (dual connector), PCC16PS (coaxial), PCD8PS (2-wire shielded)
- Digital I/O Cables:
PCA15P-1.5, PCB15P-1.5, DT/E1, DT/E2, DT-E3 (conversion cables)
- Termination Panels:
DTP-3A, DTP-4A, ATP-16E, ATBA-16E, FTP-15, EPD-37A, EPD-37
- Expansion Modules:
ATSS-16A (simultaneous sampling), ATII-8C (isolation), ATLF-8A (gain amplifier), ATCH-16A(PCI) (multiplexer)
- Connector Kits:
CN5-D37M (D-SUB37 male connector set)
### 6. Installation & Setup
Requirements:
- PCI Express x1 slot
- Administrator privileges for driver installation
- Supported OS (Windows or Linux)
Setup Steps:
1. Install Software:
Run the API-PAC(W32) installer from the CD-ROM before inserting the board.
2. Configure Hardware:
Set jumpers for input mode (single-ended/differential), input/output voltage ranges, and counter configuration.
3. Install Hardware:
Power off the PC, insert the board into a PCIe slot, and secure it with a screw.
4. Initialize Software:
Use Device Manager (Windows) or configuration scripts (Linux) to register the device.
5. Verify Operation:
Run the diagnostic program to test analog input/output and digital I/O functions.
Mounting:
Standard PCIe bracket with screw lock; compatible with standard PC chassis.
### 7. Performance & Capabilities
- Analog Input Speed: 100 kS/s (10 µs/channel)
- Analog Output Speed: 6 µs/channel
- Resolution: 12-bit (4096 steps)
- Buffer Capacity: 16M samples (FIFO or RING)
- Counter Frequency: 4 MHz internal or external
- Output Drive: ±5 mA
- Accuracy: ±2 LSB (typical)
- Latency: <100 ns trigger response
- Reliability: Continuous operation within 0–50°C, 10–90% RH
Limitations:
- Unisolated design (requires proper grounding)
- Maximum input voltage ±20V (do not exceed)
- Output current limited to ±5 mA
### 8. Standards & Compliance
- Bus Interface: PCI Express Base Specification Rev. 1.0a x1
- Electrical Standards: TTL-level digital I/O
- Environmental Compliance: RoHS compliant (per CONTEC manufacturing standards)
- Safety: Designed for operation in non-condensing environments, 0–50°C
- Software Standards:
- Windows Driver Model (WDM) compliant
- Linux kernel module compatible
- MATLAB Data Acquisition Toolbox and LabVIEW VI integration
### 9. Additional Information
Warranty:
Limited three-year warranty covering defects in materials and workmanship. Excludes damage from misuse, modification, or environmental exposure.
Support & Updates:
- Website: [https://www.contec.com](https://www.contec.com)
- Downloads: Updated drivers, sample programs, and documentation available online.
- Technical Support: Provided via CONTEC offices and authorized distributors.
Maintenance:
- Periodic inspection of connectors and terminals recommended.
- Clean edge connectors with industrial alcohol if contaminated.
- Store in anti-static packaging when not in use.
Calibration:
Factory-calibrated prior to shipment; software-based recalibration supported for field adjustment.
Safety Precautions:
- Do not install/remove board with power on.
- Avoid exposure to flammable gases or high humidity.
- Ensure proper grounding to prevent noise and damage.
### Summary
The CONTEC AIO-121601E3-PE is a robust, high-precision PCI Express analog I/O board optimized for data acquisition, control, and measurement applications. With 12-bit resolution, 16 analog input channels, and a 16M-sample buffer, it delivers reliable performance for both laboratory and industrial environments. Its flexible configuration, comprehensive software ecosystem, and optional expansion accessories make it a versatile solution for engineers and researchers requiring accurate, high-speed analog and digital interfacing within modern PC-based systems.
### 1. Product Overview
Product Name: PCI Express Analog I/O Board
Model: AIO-121601E3-PE
Series: AIO-E3 PCI Express Series
Article Number: AIO-121601E3-PE
Manufacturer: CONTEC CO., LTD. (Osaka, Japan)
Product Type: Unisolated PCI Express Bus Analog/Digital I/O Interface Board
Version: Ver.1.01
The CONTEC AIO-121601E3-PE is a high-performance analog input/output (A/D and D/A) interface board designed for PCI Express (PCIe) bus systems. It provides 12-bit resolution analog-to-digital conversion at up to 100 kS/s per channel, supporting up to 16 analog input channels, one analog output channel, and eight digital I/O lines (4 inputs and 4 outputs). The board includes a 32-bit counter, large onboard memory (16M data), and comprehensive software support for Windows and Linux environments.
### 2. Key Features
- High-Speed 12-bit A/D Conversion:
Performs analog-to-digital conversion at a maximum speed of 10 µs per channel (100 kS/s) with 12-bit resolution.
- Flexible Analog Input Configuration:
Supports 16 single-ended or 8 differential analog input channels. Input ranges are selectable as bipolar (±1.25V, ±2.5V, ±5V, ±10V) or unipolar (0–1.25V, 0–2.5V, 0–5V, 0–10V).
- Analog Output Channel:
One 12-bit D/A output channel configurable for ±10V, ±5V, or 0–10V ranges with ±5 mA drive capability.
- Large Onboard Buffer Memory:
16M data buffer memory configurable as FIFO or RING format for continuous or cyclic data acquisition.
- Digital I/O and Counter:
Four TTL-level digital inputs and four TTL-level digital outputs, plus one 32-bit counter (i8254 equivalent) with internal 4 MHz or external clock source.
- Software-Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison conditions.
- Software Calibration:
Full software-based calibration for analog input and output channels, allowing environment-specific adjustment.
- Comprehensive Software Support:
Includes Windows and Linux driver libraries (API-PAC(W32)), C-LOGGER data logger software, and plug-in libraries for MATLAB (ML-DAQ) and LabVIEW (VI-DAQ).
- Expandable Functionality:
Compatible with optional accessories such as isolation amplifiers, simultaneous sampling units, multiplexer sub-boards, and termination panels.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane).
### 3. Technical Specifications
Analog Input:
- Type: Unisolated, single-ended (16 ch) or differential (8 ch)
- Input Range:
Bipolar: ±10V, ±5V, ±2.5V, ±1.25V
Unipolar: 0–10V, 0–5V, 0–2.5V, 0–1.25V
(Selectable via jumpers and software)
- Absolute Maximum Input Voltage: ±20V
- Input Impedance: ≥1 MΩ
- Resolution: 12-bit
- Non-Linearity Error: ±2 LSB (bipolar), ±4 LSB (unipolar)
- Conversion Speed: 10 µs/channel (max)
- Buffer Memory: 16M data (FIFO or RING)
- Trigger Sources: Software, input data comparison, or external TTL signal
- Stop Conditions: Specified sample count, data comparison, external trigger, or software command
Analog Output:
- Channels: 1 (unisolated)
- Output Range: ±10V, ±5V, or 0–10V (jumper selectable)
- Output Current: ±5 mA max
- Output Impedance: ≤1 Ω
- Resolution: 12-bit
- Non-Linearity Error: ±0.5 LSB
- Conversion Speed: 6 µs/channel (max)
Digital I/O:
- Digital Inputs: 4 channels, TTL level
- Digital Outputs: 4 channels, TTL level
- Shared Counter I/O: Configurable via jumpers
- Output Drive: 24 mA sink current per output
Counter:
- Device: i8254 equivalent, 32-bit
- Clock Source: Internal 4 MHz or external TTL signal
- Modes: Programmable one-shot, rate generator, event counting
- I/O Address: Any 32-byte boundary
- Interrupt: 1 level usable
Electrical & Environmental:
- Power Consumption: +3.3V, 1500 mA (max)
- Operating Temperature: 0–50°C
- Operating Humidity: 10–90% RH (non-condensing)
- Bus Interface: PCI Express Base Specification Rev. 1.0a x1
- Dimensions: 169.33 mm (L) × 110.18 mm (H)
- Weight: 160 g
Connectors:
- CN1: 37-pin D-SUB female (JAE DCLC-J37SAF-20L9E or equivalent)
- CN2: 16-pin pin-header (JAE PS-16SEN-D4P1-1C or equivalent)
### 4. Functionality
Operation Overview:
The AIO-121601E3-PE performs analog-to-digital and digital-to-analog conversions for data acquisition and control applications. It supports both continuous and triggered sampling modes, with flexible start/stop conditions and internal/external clocking.
Use Cases:
- Industrial process monitoring and control
- Laboratory data acquisition
- Sensor signal measurement and logging
- Automated testing systems
- Real-time control applications using MATLAB or LabVIEW
Compatibility:
- Operating Systems: Windows 7/Vista/XP/Server 2003, Linux (RedHat, TurboLinux)
- Supported Languages: Visual Basic, Visual C++, Visual C#, Delphi, C++ Builder, gcc
- Supported Software: MATLAB (ML-DAQ), LabVIEW (VI-DAQ), C-LOGGER
### 5. Components & Accessories
Included Items:
- AIO-121601E3-PE board (1 unit)
- First Step Guide (1 copy)
- CD-ROM [API-PAC(W32)] containing drivers, libraries, and user’s guide
Optional Accessories:
- Analog I/O Cables:
PCA37P-1.5 (flat, 1.5m), PCA37PS-0.5P/1.5P (shielded), PCB37PS-0.5P/1.5P (dual connector), PCC16PS (coaxial), PCD8PS (2-wire shielded)
- Digital I/O Cables:
PCA15P-1.5, PCB15P-1.5, DT/E1, DT/E2, DT-E3 (conversion cables)
- Termination Panels:
DTP-3A, DTP-4A, ATP-16E, ATBA-16E, FTP-15, EPD-37A, EPD-37
- Expansion Modules:
ATSS-16A (simultaneous sampling), ATII-8C (isolation), ATLF-8A (gain amplifier), ATCH-16A(PCI) (multiplexer)
- Connector Kits:
CN5-D37M (D-SUB37 male connector set)
### 6. Installation & Setup
Requirements:
- PCI Express x1 slot
- Administrator privileges for driver installation
- Supported OS (Windows or Linux)
Setup Steps:
1. Install Software:
Run the API-PAC(W32) installer from the CD-ROM before inserting the board.
2. Configure Hardware:
Set jumpers for input mode (single-ended/differential), input/output voltage ranges, and counter configuration.
3. Install Hardware:
Power off the PC, insert the board into a PCIe slot, and secure it with a screw.
4. Initialize Software:
Use Device Manager (Windows) or configuration scripts (Linux) to register the device.
5. Verify Operation:
Run the diagnostic program to test analog input/output and digital I/O functions.
Mounting:
Standard PCIe bracket with screw lock; compatible with standard PC chassis.
### 7. Performance & Capabilities
- Analog Input Speed: 100 kS/s (10 µs/channel)
- Analog Output Speed: 6 µs/channel
- Resolution: 12-bit (4096 steps)
- Buffer Capacity: 16M samples (FIFO or RING)
- Counter Frequency: 4 MHz internal or external
- Output Drive: ±5 mA
- Accuracy: ±2 LSB (typical)
- Latency: <100 ns trigger response
- Reliability: Continuous operation within 0–50°C, 10–90% RH
Limitations:
- Unisolated design (requires proper grounding)
- Maximum input voltage ±20V (do not exceed)
- Output current limited to ±5 mA
### 8. Standards & Compliance
- Bus Interface: PCI Express Base Specification Rev. 1.0a x1
- Electrical Standards: TTL-level digital I/O
- Environmental Compliance: RoHS compliant (per CONTEC manufacturing standards)
- Safety: Designed for operation in non-condensing environments, 0–50°C
- Software Standards:
- Windows Driver Model (WDM) compliant
- Linux kernel module compatible
- MATLAB Data Acquisition Toolbox and LabVIEW VI integration
### 9. Additional Information
Warranty:
Limited three-year warranty covering defects in materials and workmanship. Excludes damage from misuse, modification, or environmental exposure.
Support & Updates:
- Website: [https://www.contec.com](https://www.contec.com)
- Downloads: Updated drivers, sample programs, and documentation available online.
- Technical Support: Provided via CONTEC offices and authorized distributors.
Maintenance:
- Periodic inspection of connectors and terminals recommended.
- Clean edge connectors with industrial alcohol if contaminated.
- Store in anti-static packaging when not in use.
Calibration:
Factory-calibrated prior to shipment; software-based recalibration supported for field adjustment.
Safety Precautions:
- Do not install/remove board with power on.
- Avoid exposure to flammable gases or high humidity.
- Ensure proper grounding to prevent noise and damage.
### Summary
The CONTEC AIO-121601E3-PE is a robust, high-precision PCI Express analog I/O board optimized for data acquisition, control, and measurement applications. With 12-bit resolution, 16 analog input channels, and a 16M-sample buffer, it delivers reliable performance for both laboratory and industrial environments. Its flexible configuration, comprehensive software ecosystem, and optional expansion accessories make it a versatile solution for engineers and researchers requiring accurate, high-speed analog and digital interfacing within modern PC-based systems.
-
ds_aio121601e3pe_en.pdf
PDF Catalog
- ATUH-16A(PCI) - Extension board 32SE/16DI extra inputs for AIO-161601 series
