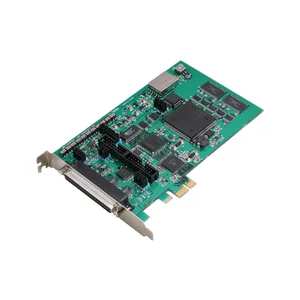

- **High-Speed 12-bit A/D Conversion:** Performs analog-to-digital conversion at a maximum speed of 10 µs per channel (100 kS/s) with 12-bit resolution. - **Flexible Analog Input Configuration:** Supports 16 single-ended or 8 differential analog input channels. Input ranges are selectable as bipolar (±1.25V, ±2.5V, ±5V, ±10V) or unipolar (0–1.25V, 0–2.5V, 0–5V, 0–10V). - **Analog Output Channel:** One 12-bit D/A output channel configurable for ±10V, ±5V, or 0–10V ranges with ±5 mA drive capability. - **Large Onboard Buffer Memory:** 16M data buffer memory configurable as FIFO or RING format for continuous or cyclic data acquisition. - **Digital I/O and Counter:** Four TTL-level digital inputs and four TTL-level digital outputs, plus one 32-bit counter (i8254 equivalent) with internal 4 MHz or external clock source. - **Software-Controlled Sampling:** Sampling start/stop can be triggered by software, external TTL signals, or data comparison conditions. - **Software Calibration:** Full software-based calibration for analog input and output channels, allowing environment-specific adjustment. - **Comprehensive Software Support:** Includes Windows and Linux driver libraries (API-PAC(W32)), C-LOGGER data logger software, and plug-in libraries for MATLAB (ML-DAQ) and LabVIEW (VI-DAQ). - **Expandable Functionality:** Compatible with optional accessories such as isolation amplifiers, simultaneous sampling units, multiplexer sub-boards, and termination panels. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane).

Manufacturer: Contec

Category: A/D High Speed PCIe

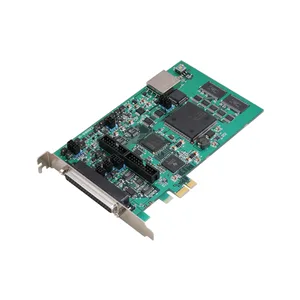

- **High‑Speed 12‑bit A/D Conversion:** Performs analog‑to‑digital conversion at 1 µs per channel (1 MS/s) with 12‑bit resolution, suitable for high‑speed data acquisition and waveform capture. - **Flexible Analog Input Configuration:** 16 single‑ended or 8 differential analog input channels selectable via jumper settings. Input ranges include bipolar ±2.5 V, ±5 V, ±10 V or unipolar 0–5 V, 0–10 V. - **Large On‑Board Buffer Memory:** 16 M‑sample memory configurable as FIFO or ring buffer, enabling continuous background sampling independent of host CPU load. - **Analog Output Channel:** One 12‑bit D/A output channel supporting bipolar ±5 V, ±10 V or unipolar 0–10 V ranges, with 6 µs maximum conversion speed and ±5 mA drive capability. - **Digital I/O and Counter:** Four TTL‑level digital inputs and four TTL‑level digital outputs, configurable for counter control. Includes one i8254‑compatible 32‑bit counter with internal 4 MHz or external clock input. - **Trigger and Clock Control:** Sampling start/stop can be controlled by software, external TTL trigger, or input data comparison. Supports internal or external sampling clock sources. - **Comprehensive Software Support:** Bundled with CONTEC’s API‑PAC(W32) driver library for Windows and Linux, C‑LOGGER data logging software, and plug‑in libraries for MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ). - **Extensive Accessory Ecosystem:** Compatible with a wide range of optional accessories including terminal panels, shielded cables, buffer amplifiers, isolation modules, and multiplexer expansion boards. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane), ensuring high‑speed data transfer and compatibility with modern PCs. - **Compact and Lightweight:** Board dimensions 169.33 mm (L) × 110.18 mm (H); weight approximately 160 g.

Manufacturer: Contec

Category: A/D High Speed PCIe

- **High-Resolution Analog Conversion:** 16-bit A/D and D/A resolution with a maximum conversion speed of 10 µs per channel (100 kS/s). Provides precise analog signal acquisition and generation for laboratory, industrial, and embedded systems. - **Flexible Analog Input Configuration:** 16 single-ended or 8 differential analog input channels selectable via jumper settings. Input voltage ranges: bipolar ±10V, ±5V or unipolar 0–10V, 0–5V. - **Large Onboard Memory:** 16M data buffer memory configurable as FIFO or RING mode for continuous or cyclic sampling. Enables background data acquisition independent of host CPU load. - **Analog Output Channel:** One 16-bit analog output channel with bipolar ±10V or unipolar 0–10V range, ±5mA drive capability, and ≤1Ω output impedance. - **Digital I/O and Counter:** 4 TTL-level digital inputs and 4 TTL-level digital outputs. Includes one i8254-compatible 32-bit counter with internal 4 MHz or external clock input. - **Software-Controlled Sampling:** Start/stop triggers selectable via software, external TTL signals, or data comparison. Supports internal or external sampling clocks. - **Software Calibration:** Full software-based calibration for analog input/output channels, allowing field adjustment without hardware trimmers. - **Comprehensive Software Support:** Bundled with CONTEC’s **C-LOGGER** data logging software and **API-PAC(W32)** driver library for Windows and Linux. Compatible with MATLAB (ML-DAQ) and LabVIEW (VI-DAQ) via dedicated plug-in libraries. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a (x1 lane). Provides high-speed data transfer and plug-and-play configuration. - **Extensive Accessory Options:** Supports expansion modules for simultaneous sampling, isolation, amplification, and additional channels.

Manufacturer: Contec

Category: A/D High Speed PCIe

- **High‑Speed, High‑Resolution A/D Conversion:** 16‑bit resolution with a maximum conversion speed of 1 µs per channel, enabling precise and rapid analog signal acquisition. - **Flexible Analog Input Configuration:** 16 single‑ended or 8 differential input channels selectable via jumper settings. Input ranges include bipolar ±10 V/±5 V or unipolar 0–10 V/0–5 V. - **Analog Output Capability:** One 16‑bit D/A output channel supporting bipolar ±10 V or unipolar 0–10 V ranges, with 10 µs maximum conversion speed. - **Integrated Digital I/O and Counter:** Four TTL‑level digital inputs and four TTL‑level digital outputs, with one 32‑bit counter (i8254‑equivalent) supporting internal 4 MHz or external clock operation. - **Large On‑Board Memory:** 16 M‑sample buffer memory configurable as FIFO or ring buffer for continuous or cyclic data acquisition independent of host CPU load. - **Software‑Controlled Sampling:** Sampling start/stop can be triggered by software, external TTL signals, or data comparison events. Internal or external clocks selectable. - **Software Calibration:** Full analog input/output calibration can be performed via software, allowing environmental adjustment without hardware modification. - **Comprehensive Software Support:** Bundled with CONTEC’s **C‑LOGGER** data logger software and **API‑PAC(W32)** driver libraries for Windows and Linux. Compatible with MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ) through dedicated plug‑ins. - **Extensive Accessory Ecosystem:** Optional accessories include buffer amplifiers, isolation modules, simultaneous sampling units, multiplexers, and termination panels for flexible system expansion. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring high‑speed data transfer and compatibility with modern PCs.

Manufacturer: Contec

Category: A/D High Speed PCIe

- **Multi‑Function Integration:** Combines analog input (AI), analog output (AO), digital input/output (DI/DO), and counter functions on a single PCIe card, minimizing slot usage. - **High‑Resolution Analog I/O:** 16‑bit resolution for both input and output channels, supporting bipolar and unipolar voltage ranges up to ±10 V or 0–10 V. - **High‑Speed Sampling:** Analog input conversion speed up to 2 µs per channel (500 kS/s aggregate rate). Analog output conversion speed up to 10 µs per channel. - **Event Controller:** Hardware‑based event controller enables precise synchronization between analog, digital, and counter operations without software latency. Supports external triggers, clock synchronization, and inter‑board coordination. - **Bus Master DMA Transfer:** High‑speed data transfer directly between board and system memory without CPU load. Supports simultaneous analog and digital data streaming. - **Independent Buffer Memory:** 64 k‑word FIFO or RING buffer for both AI and AO, enabling background operation independent of host software. - **Software Calibration:** Full software‑based calibration for analog input/output channels; user calibration data can be stored in addition to factory calibration. - **Synchronization Across Boards:** Up to 16 boards can be synchronized via dedicated SC connectors for simultaneous sampling and control. - **Digital Filtering:** Built‑in digital filters on digital inputs, counter inputs, and external control signals to suppress noise and chattering. - **Comprehensive Software Support:** Includes Windows and Linux drivers, C‑LOGGER data logging software, and libraries for MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ). - **Wide Environmental Tolerance:** Operating temperature 0–50 °C, humidity 10–90 % RH (non‑condensing).

Manufacturer: Contec

Category: A/D High Speed PCIe

- **Expansion Capability:** Adds extra input channels to the AIO-161601 series, supporting up to **32 single-ended (SE) analog inputs** and **16 digital inputs (DI)** in total when combined with the base board. - **Voltage Input Range:** Supports analog input signals up to **±10 V**, suitable for a wide range of sensor and transducer outputs. - **Interface Connector:** Equipped with a **D-type 37-pin female connector**, ensuring secure and standardized connectivity for analog and digital signals. - **Compact Design:** With physical dimensions of **80 mm × 60 mm**, the board is optimized for space-constrained installations and embedded systems. - **PCI-Compatible Form Factor:** Designed for use with PCI-based AIO-161601 boards, ensuring seamless electrical and mechanical integration. - **High Signal Integrity:** Engineered for low-noise signal transmission and stable analog input performance, maintaining accuracy across all channels. - **Accessory Integration:** Functions as an accessory module, allowing users to expand input capacity without replacing the main AIO board. - **Industrial Reliability:** Manufactured by Contec, a recognized provider of industrial computing and measurement solutions, ensuring long-term reliability and support.

Manufacturer: Contec

Category: A/D High Speed PCIe

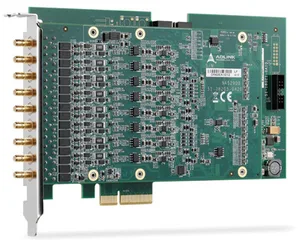

- **PCI Express Specification Compliance:** PCI Express Rev. 1.1, Gen 1 x4 interface - **High‑Resolution ADC:** 24‑bit delta‑sigma analog‑to‑digital converters for superior accuracy - **Simultaneous Sampling:** Eight channels sampled concurrently for phase‑coherent measurements - **Sampling Rate:** Up to 192 kS/s per channel, adjustable in fine increments - **Input Range:** Software‑selectable ±10 V or ±1 V - **Input Coupling:** AC or DC, software‑selectable; AC coupling cutoff frequency 0.5 Hz - **IEPE Sensor Support:** 4 mA excitation current per channel, 24 V compliance for accelerometers and microphones - **Auto‑Calibration:** Onboard reference circuit with EEPROM‑stored calibration constants - **Triggering Options:** Software, external digital, analog, and SSI (System Synchronization Interface) triggers - **Synchronization:** Multi‑module synchronization via SSI bus for timebase and trigger sharing - **Data Transfer:** Scatter‑gather DMA for high‑speed, continuous data streaming - **Onboard Memory:** 512 MB shared buffer for data acquisition - **Software Compatibility:** LabVIEW®, MATLAB®, Visual Studio®, and ADLINK DSA‑DASK SDK - **Operating Systems:** Windows XP/7/8 (x86/x64) - **Certifications:** CE, FCC Class A, RoHS, and WEEE compliant

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe

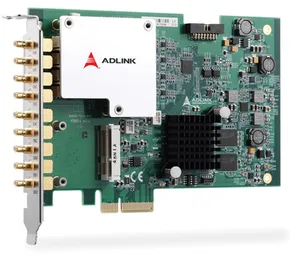

- **High-Speed Sampling:** Up to 80 MS/s per channel with simultaneous acquisition across all four channels. - **High Resolution:** 12-bit analog-to-digital conversion for accurate signal representation. - **Wide Bandwidth:** 40 MHz analog input bandwidth supporting high-frequency signal capture. - **Large Onboard Memory:** 1 GB shared memory for extended recording durations at maximum sampling rates. - **Programmable Input Ranges:** ±0.5 V, ±1 V, ±5 V, and ±10 V ranges selectable via software. - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software-configurable for flexible signal interfacing. - **Digital Filtering:** FPGA-based 10 MHz or 20 MHz digital filters for noise reduction and signal conditioning. - **Scatter-Gather DMA:** High-speed, low-overhead data transfer directly to host memory without CPU intervention. - **Triggering Flexibility:** Supports software, analog, external digital, and SSI (System Synchronization Interface) triggers. - **Synchronization Support:** Three synchronous digital inputs (SDI) and SSI bus for multi-card synchronization. - **Auto-Calibration:** Fully automated calibration with onboard precision voltage references. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; SDKs for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Environmental Compliance:** RoHS and WEEE compliant; CE and FCC Class A certified. - **Variant Option:** PCIe-9814P includes a PLL module for precise synchronization using an external 10 MHz reference clock.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe

- **High-Speed Sampling:** Up to 80 MS/s per channel with true simultaneous sampling across four analog inputs. - **High Resolution:** 12-bit analog-to-digital conversion for accurate signal representation. - **Wide Bandwidth:** 40 MHz analog input bandwidth suitable for high-frequency signal capture. - **Large Onboard Memory:** 1 GB shared acquisition memory enables long-duration recording at maximum sampling rates. - **Programmable Input Ranges:** ±0.5 V, ±1 V, ±5 V, and ±10 V ranges selectable via software. - **Selectable Input Impedance:** 50 Ω or 1 MΩ input impedance, software-configurable for flexible signal interfacing. - **Digital Filtering:** FPGA-based 10 MHz or 20 MHz digital low-pass filters for noise reduction and signal conditioning. - **PLL Synchronization (PCIe-9814P only):** Integrated PLL module allows precise synchronization with external reference clocks for multi-card or system-level timing alignment. - **Triggering Flexibility:** Supports software, analog, external digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes (pre-, post-, delay-, and middle-trigger). - **Scatter-Gather DMA:** High-speed data streaming to host memory with minimal CPU overhead, supporting large continuous or segmented data transfers. - **Synchronous Digital Inputs (SDI):** Three digital input lines sampled synchronously with analog channels for mixed-signal acquisition. - **Auto-Calibration:** Fully automated onboard calibration with EEPROM-stored constants for long-term accuracy. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers and SDKs available for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Environmental Compliance:** RoHS and WEEE compliant, CE and FCC Class A certified.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe

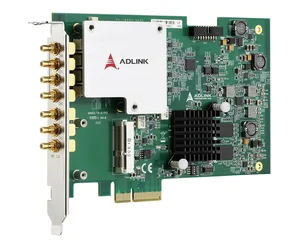

- **High‑Speed Sampling:** Up to 80 MS/s per channel with simultaneous acquisition across four channels. - **High Resolution:** 16‑bit analog‑to‑digital conversion for superior signal fidelity. - **Wide Bandwidth:** 40 MHz analog input bandwidth supporting high‑frequency signal capture. - **Programmable Input Range:** ±0.5 V, ±1 V, ±5 V, or ±10 V ranges; ±10 V supported only at 1 MΩ input impedance. - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software‑selectable per channel. - **Large Onboard Memory:** 1 GB shared acquisition memory for extended recording at full sampling rate. - **FPGA‑Based Digital Filtering:** Selectable 10 MHz or 20 MHz digital low‑pass filter. - **Scatter‑Gather DMA:** High‑speed, low‑latency data transfer to host memory without CPU overhead. - **Trigger Flexibility:** Supports software, analog, external digital, and SSI (System Synchronization Interface) triggers. - **Auto‑Calibration:** Fully automated offset and gain calibration using onboard precision reference voltages. - **Synchronization Support:** SSI interface for multi‑card synchronization; optional PLL module (PCIe‑9834P) for precise clock alignment. - **Software Ecosystem:** Drivers and SDKs for Windows and Linux; compatible with LabVIEW, MATLAB, and Visual Studio. - **Environmental Compliance:** RoHS and WEEE compliant; CE and FCC Class A certified.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe

- **High-Speed Sampling:** Up to 80 mega-samples per second (MS/s) per channel. - **High Resolution:** 16-bit analog-to-digital conversion for superior signal fidelity. - **Four Simultaneous Channels:** True simultaneous sampling across all four analog inputs with no inter-channel phase delay. - **Wide Bandwidth:** 40 MHz analog input bandwidth for high-frequency signal acquisition. - **Programmable Input Range:** ±0.5 V, ±1 V, ±5 V, or ±10 V, selectable via software. - **Selectable Input Impedance:** 50 Ω or 1 MΩ, software-configurable for flexible signal interfacing. - **Onboard Memory:** 1 GB shared acquisition memory for extended recording durations. - **Digital Filtering:** FPGA-based 10 MHz or 20 MHz digital low-pass filter options. - **PLL Synchronization Module:** Provides precise clock synchronization across multiple cards (exclusive to PCIe-9834P). - **Scatter-Gather DMA:** High-speed, CPU-independent data transfer for continuous streaming. - **Triggering Flexibility:** Supports software, analog, external digital, and SSI (System Synchronization Interface) triggers. - **Clock Sources:** Internal, external, or external reference clock (REF_CLK) for flexible timing control. - **Auto-Calibration:** Fully automated calibration with onboard precision voltage references. - **Software Support:** Compatible with WD-DASK, LabVIEW, MATLAB, and Visual Studio environments. - **Operating System Support:** Windows XP/7/8/10 (x86/x64) and Linux. - **Environmental Compliance:** RoHS and WEEE compliant; CE and FCC Class A certified.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe

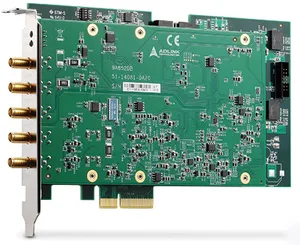

- **High-Speed Sampling:** Up to 200 MS/s sampling rate for precise waveform capture. - **High Resolution:** 14-bit ADC resolution (1 in 16,384) for accurate signal representation. - **Input Range & Impedance:** ±1 V input range, 50 Ω input impedance, DC coupling. - **Wide Bandwidth:** 100 MHz (-3 dB) analog input bandwidth for high-frequency signal acquisition. - **PCI Express x4 Interface:** High-speed data transfer with dedicated bandwidth up to 400 MB/s. - **Scatter-Gather DMA:** Efficient, continuous data streaming without CPU overhead. - **Triggering Options:** Supports software and external digital triggers; programmable polarity and pulse width. - **Auto-Calibration:** Onboard reference circuit for automatic offset and gain calibration. - **Auxiliary Digital I/O:** 8-bit static DIO or 2-bit synchronous digital input (SDI) for mixed-signal applications. - **Software Support:** Compatible with Windows and Linux; drivers for LabVIEW, MATLAB, and DAQPilot. - **Compact PCIe Form Factor:** Standard short-length PCIe card (106.7 mm x 174.6 mm). - **Environmental Robustness:** Operates from 0°C to +50°C, 10–90% RH non-condensing. - **Certifications:** CE and FCC Class A compliant for EMC/EMI standards.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe

- **High-Speed Sampling:** Up to 200 MS/s per channel simultaneous sampling. - **High Resolution:** 14-bit analog-to-digital conversion for precise signal representation. - **Wide Bandwidth:** 90 MHz (-3 dB) analog input bandwidth for high-frequency signals. - **Flexible Input Ranges:** Programmable ±0.2 V, ±2 V, or ±10 V input voltage ranges. - **Dual Analog Inputs:** Two single-ended channels with software-selectable 50 Ω or 1 MΩ impedance. - **Large Onboard Memory:** 1 GB acquisition memory shared between channels. - **High-Speed Data Streaming:** Continuous data transfer up to 800 MB/s using scatter-gather DMA. - **Triggering Options:** Software, external digital, analog, and SSI (System Synchronized Interface) triggers. - **Multiple Trigger Modes:** Post-trigger, pre-trigger, middle-trigger, delayed-trigger, and re-trigger modes. - **Signal Averaging:** Onboard signal averaging for noise reduction and small-signal detection. - **Auto-Calibration:** Fully automatic calibration with onboard reference voltages (+5 V and +2.5 V). - **External Clocking:** Supports internal 200 MHz clock or external clock input (40–200 MHz). - **Synchronization:** SSI interface for multi-card synchronization (ACL-eSSI-2/3/4 cables). - **Software Compatibility:** Supports LabVIEW, MATLAB, Visual Studio, and ADLINK’s DAQPilot SDK. - **Operating Systems:** Windows XP/7/8 (x86/x64). - **Compliance:** CE and FCC Class A certified; RoHS and WEEE compliant.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCIe
