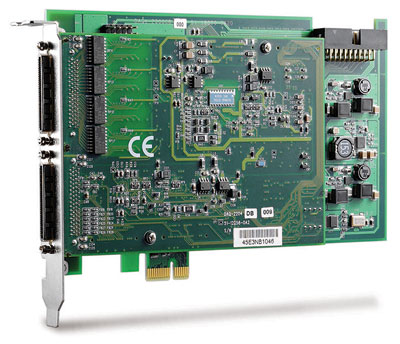

DAQe-2206
PCIe AD Card 250kS/s 16bit 64chan 1024W FIFO
1174,00 EUR
including VAT 1,397.06 EUR
- PCI Express x1 Interface: High‑speed, plug‑and‑play PCIe connectivity for modern PC platforms.
- High‑Resolution Analog Input: 64 single‑ended or 32 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate.
- Flexible Input Ranges: Bipolar ±10 V to ±1.25 V and unipolar 0–10 V to 0–1.25 V ranges, software‑selectable per channel.
- Programmable Gain: x1, x2, x4, x8 gain settings for optimized signal scaling.
- Dual Analog Outputs: Two 12‑bit voltage outputs (0–10 V or ±10 V) with 1 MS/s update rate and 20 V/µs slew rate.
- Digital I/O: 24‑channel TTL‑compatible programmable I/O via Intel 8255 PIO architecture.
- Timer/Counter: Two independent 16‑bit general‑purpose counters with 40 MHz base clock and external clock input up to 10 MHz.
- Triggering: Supports software, external analog/digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes (pre‑, post‑, middle‑, delay‑trigger).
- Auto‑Calibration: Fully automatic calibration with onboard 5 V reference (±2 ppm/°C).
- FIFO Buffers: 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for continuous data streaming.
- Scatter‑Gather DMA: Efficient high‑speed data transfer with minimal CPU overhead.
- Synchronization: Multi‑card synchronization via SSI bus or PXI trigger bus.
- Software Support: Drivers and SDKs for Windows and Linux; compatible with LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET.
- Utility Software: AD‑Logger for data logging and monitoring.
- High‑Resolution Analog Input: 64 single‑ended or 32 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate.
- Flexible Input Ranges: Bipolar ±10 V to ±1.25 V and unipolar 0–10 V to 0–1.25 V ranges, software‑selectable per channel.
- Programmable Gain: x1, x2, x4, x8 gain settings for optimized signal scaling.
- Dual Analog Outputs: Two 12‑bit voltage outputs (0–10 V or ±10 V) with 1 MS/s update rate and 20 V/µs slew rate.
- Digital I/O: 24‑channel TTL‑compatible programmable I/O via Intel 8255 PIO architecture.
- Timer/Counter: Two independent 16‑bit general‑purpose counters with 40 MHz base clock and external clock input up to 10 MHz.
- Triggering: Supports software, external analog/digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes (pre‑, post‑, middle‑, delay‑trigger).
- Auto‑Calibration: Fully automatic calibration with onboard 5 V reference (±2 ppm/°C).
- FIFO Buffers: 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for continuous data streaming.
- Scatter‑Gather DMA: Efficient high‑speed data transfer with minimal CPU overhead.
- Synchronization: Multi‑card synchronization via SSI bus or PXI trigger bus.
- Software Support: Drivers and SDKs for Windows and Linux; compatible with LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET.
- Utility Software: AD‑Logger for data logging and monitoring.
Comprehensive Product Summary: ADLINK DAQe‑2206 PCI Express Data Acquisition Card
### 1. Product Overview
Product Name: DAQe‑2206
Model: DAQe‑2206
Series: PXI/DAQ/DAQe‑2200 Series
Article Number: DAQe‑2206
Manufacturer: ADLINK Technology Inc.
The ADLINK DAQe‑2206 is a high‑precision, multi‑function PCI Express (PCIe) data acquisition (DAQ) card designed for industrial, laboratory, and automation applications requiring accurate analog and digital signal measurement and generation. As part of ADLINK’s DAQe‑2200 Series, the DAQe‑2206 provides 16‑bit resolution analog input, dual 12‑bit analog outputs, 24‑channel digital I/O, and dual 16‑bit general‑purpose counters. It supports a maximum sampling rate of 250 kS/s and features a fully auto‑calibrated architecture with onboard FIFO buffering and scatter‑gather DMA for high‑speed, low‑latency data transfer.
### 2. Key Features
- PCI Express x1 Interface: High‑speed, plug‑and‑play PCIe connectivity for modern PC platforms.
- High‑Resolution Analog Input: 64 single‑ended or 32 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate.
- Flexible Input Ranges: Bipolar ±10 V to ±1.25 V and unipolar 0–10 V to 0–1.25 V ranges, software‑selectable per channel.
- Programmable Gain: x1, x2, x4, x8 gain settings for optimized signal scaling.
- Dual Analog Outputs: Two 12‑bit voltage outputs (0–10 V or ±10 V) with 1 MS/s update rate and 20 V/µs slew rate.
- Digital I/O: 24‑channel TTL‑compatible programmable I/O via Intel 8255 PIO architecture.
- Timer/Counter: Two independent 16‑bit general‑purpose counters with 40 MHz base clock and external clock input up to 10 MHz.
- Triggering: Supports software, external analog/digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes (pre‑, post‑, middle‑, delay‑trigger).
- Auto‑Calibration: Fully automatic calibration with onboard 5 V reference (±2 ppm/°C).
- FIFO Buffers: 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for continuous data streaming.
- Scatter‑Gather DMA: Efficient high‑speed data transfer with minimal CPU overhead.
- Synchronization: Multi‑card synchronization via SSI bus or PXI trigger bus.
- Software Support: Drivers and SDKs for Windows and Linux; compatible with LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET.
- Utility Software: AD‑Logger for data logging and monitoring.
### 3. Technical Specifications
Analog Input (AI):
- Channels: 64 SE / 32 DI (software‑selectable)
- Resolution: 16 bits, no missing codes
- Sampling Rate: 250 kS/s (max)
- Input Coupling: DC
- Input Ranges (Bipolar): ±10 V, ±5 V, ±2.5 V, ±1.25 V
- Input Ranges (Unipolar): 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V
- Programmable Gain: x1, x2, x4, x8
- Offset Error: ±2 mV
- Gain Error: ±0.06 % of FSR
- Input Impedance: 1 GΩ / 100 pF
- Overvoltage Protection: ±30 V (power on), ±15 V (power off)
- CMRR (Gain = 1): 83 dB
- Settling Time: 4 µs to 0.01 % error
- Bandwidth (–3 dB): 600 kHz @ ±10 V, Gain = 1
- FIFO Buffer: 1 k samples
- Data Transfer: Polling or scatter‑gather DMA
Analog Output (AO):
- Channels: 2 voltage outputs
- Resolution: 12 bits
- Output Ranges: 0–10 V, ±10 V, 0–AOEXTREF, ±AOEXTREF
- Update Rate: 1 MS/s (max)
- Slew Rate: 20 V/µs
- Settling Time: 3 µs to ±0.5 LSB
- Offset Error: ±1 mV
- Gain Error: ±0.02 % of max output
- Drive Capability: ±5 mA, stable up to 1500 pF load
- FIFO Buffer: 1 k samples
- Trigger Sources: Software, external analog/digital, SSI bus
Digital I/O:
- Channels: 24 TTL‑compatible (8255 PIO)
- Logic Levels:
- Input Low ≤ 0.8 V, Input High ≥ 2.0 V
- Output Low ≤ 0.5 V @ 8 mA, Output High ≥ 2.7 V @ 400 µA
Timer/Counter:
- Channels: 2 independent 16‑bit counters
- Base Clock: 40 MHz internal, external up to 10 MHz
- Modes: Event counting, pulse generation, period/pulse‑width measurement, gated operations
General Specifications:
- Auto‑Calibration: Yes (+5 V reference, ±2 ppm/°C)
- Dimensions: 168 mm × 107 mm (6.55 in × 4.17 in)
- Connectors: Two 68‑pin VHDCI female connectors
- Operating Temperature: 0 °C – 55 °C
- Storage Temperature: –20 °C – 70 °C
- Humidity: 5 % – 95 %, non‑condensing
- Power Requirements (typical):
- +5 V @ 1.2 A
- +3.3 V @ 0.756 A
- +12 V @ 0.584 A
### 4. Functionality
The DAQe‑2206 performs high‑accuracy analog‑to‑digital (A/D) and digital‑to‑analog (D/A) conversions for data acquisition and control applications. It supports both single‑ended and differential input configurations, allowing flexible measurement of floating or ground‑referenced signals. The card’s programmable gain and input range selection enable precise scaling of input signals for optimal resolution.
Use Cases and Applications:
- Industrial process monitoring and control
- Laboratory automation and instrumentation
- Automotive and cable testing
- Transient signal measurement
- Automated Test Equipment (ATE)
- Biotech and medical signal acquisition
Compatibility:
- PCI Express x1 slot (3.3 V signaling)
- Supported OS: Windows 7/8 x86/x64, Linux
- Supported APIs: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET
### 5. Components & Accessories
Included Items:
- DAQe‑2206 PCIe data acquisition card
- ADLINK All‑in‑One Software CD
- Software Installation Guide
- User’s Manual
Optional Accessories:
- Terminal Boards: DIN‑68S‑01
- Cables: ACL‑10568‑1 (68‑pin VHDCI cable)
- Synchronization Cable: ACL‑SSI‑2/3/4 for multi‑card synchronization
Connectors:
- Two 68‑pin VHDCI female connectors for analog, digital, and counter I/O
- 20‑pin SSI connector for synchronization
### 6. Installation & Setup
Requirements:
- Available PCI Express x1 slot
- Compatible operating system and driver installation
- Anti‑static handling precautions during installation
Mounting:
- Standard PCIe card form factor (168 × 107 mm)
- Secured via PCIe bracket
Configuration:
- Plug‑and‑play PCIe configuration (no jumpers required)
- Automatic IRQ and address assignment by system BIOS
- Software‑based channel, gain, and range configuration
Setup Steps:
1. Power off the host PC and install the DAQe‑2206 into an available PCIe slot.
2. Connect external signals via VHDCI connectors using appropriate terminal boards.
3. Install ADLINK drivers and software from the included CD.
4. Verify installation using ADLINK’s PCI_SCAN utility.
5. Configure channels, ranges, and triggers through the provided SDK or software tools.
### 7. Performance & Capabilities
Analog Input Performance:
- 16‑bit resolution ensures high‑precision measurement with minimal quantization noise.
- 250 kS/s sampling rate suitable for medium‑speed data logging and waveform capture.
- 600 kHz bandwidth supports accurate representation of dynamic signals.
- 1 k‑sample FIFO enables continuous streaming without data loss.
Analog Output Performance:
- 12‑bit resolution with 1 MS/s update rate for waveform generation and control.
- 20 V/µs slew rate ensures fast signal transitions.
- Stable operation with capacitive loads up to 1500 pF.
Digital I/O Performance:
- 24 TTL channels configurable as input or output.
- Ideal for control, status monitoring, and digital pattern generation.
Counter/Timer Capabilities:
- Dual 16‑bit counters support event counting, frequency measurement, and pulse generation.
- Programmable gating and up/down counting for flexible timing control.
Limitations:
- Maximum AI sampling rate limited to 250 kS/s (single channel).
- Analog output limited to ±10 V range and ±5 mA drive current.
- No synchronous digital input (SDI) function—available only on DAQe‑2204.
### 8. Standards & Compliance
- Bus Interface: PCI Express x1 compliant
- PXI Specification: Rev 2.2 (for PXI variants)
- Electrical Compatibility: 3.3 V signaling, TTL/CMOS I/O
- Environmental Compliance: Designed for industrial temperature and humidity ranges
- Software Standards:
- D2K‑DASK driver library for Windows
- D2K‑DASK/X for Linux (kernel 2.4.x and Red Hat 7.3/8.0)
- ActiveX, LabVIEW, and MATLAB integration
- Safety & Reliability: Factory‑calibrated with onboard reference; auto‑calibration ensures long‑term accuracy
### 9. Additional Information
Calibration:
- Factory‑calibrated with stored constants in EEPROM.
- Auto‑calibration compensates for temperature and time drift using onboard 5 V reference.
- User can store up to three calibration sets for different environments.
Warranty:
- Standard two‑year limited warranty (one year in China).
- Covers manufacturing defects; excludes damage from misuse, environmental factors, or unauthorized repair.
- RMA service available via ADLINK’s online portal (rma.adlinktech.com).
Support & Maintenance:
- Global technical support via regional ADLINK offices (Taiwan, USA, Europe, Singapore, India, Korea, China).
- Email: service@adlinktech.com
- Software updates and documentation available at [www.adlinktech.com](http://www.adlinktech.com).
Software Updates & SDKs:
- D2K‑DASK and D2K‑DASK/X libraries for Windows and Linux.
- DAQ‑LVIEW PnP for LabVIEW integration.
- D2K‑OCX ActiveX controls for Visual Basic/Visual C++.
- DAQBench ActiveX controls for GUI‑based measurement applications.
Maintenance Recommendations:
- Operate within specified temperature and humidity limits.
- Allow 15 minutes warm‑up before calibration or precision measurement.
- Periodically verify calibration using ADLINK’s software utility.
### Summary
The ADLINK DAQe‑2206 is a robust, high‑accuracy PCI Express data acquisition card engineered for multi‑function measurement and control. With 16‑bit analog input resolution, dual 12‑bit analog outputs, 24 digital I/O lines, and dual 16‑bit counters, it provides a complete platform for signal acquisition, generation, and analysis. Its auto‑calibration, scatter‑gather DMA, and flexible triggering architecture make it ideal for demanding applications in industrial automation, laboratory research, and test systems. The DAQe‑2206 combines precision, reliability, and software versatility, ensuring seamless integration into modern data acquisition environments.
### 1. Product Overview
Product Name: DAQe‑2206
Model: DAQe‑2206
Series: PXI/DAQ/DAQe‑2200 Series
Article Number: DAQe‑2206
Manufacturer: ADLINK Technology Inc.
The ADLINK DAQe‑2206 is a high‑precision, multi‑function PCI Express (PCIe) data acquisition (DAQ) card designed for industrial, laboratory, and automation applications requiring accurate analog and digital signal measurement and generation. As part of ADLINK’s DAQe‑2200 Series, the DAQe‑2206 provides 16‑bit resolution analog input, dual 12‑bit analog outputs, 24‑channel digital I/O, and dual 16‑bit general‑purpose counters. It supports a maximum sampling rate of 250 kS/s and features a fully auto‑calibrated architecture with onboard FIFO buffering and scatter‑gather DMA for high‑speed, low‑latency data transfer.
### 2. Key Features
- PCI Express x1 Interface: High‑speed, plug‑and‑play PCIe connectivity for modern PC platforms.
- High‑Resolution Analog Input: 64 single‑ended or 32 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate.
- Flexible Input Ranges: Bipolar ±10 V to ±1.25 V and unipolar 0–10 V to 0–1.25 V ranges, software‑selectable per channel.
- Programmable Gain: x1, x2, x4, x8 gain settings for optimized signal scaling.
- Dual Analog Outputs: Two 12‑bit voltage outputs (0–10 V or ±10 V) with 1 MS/s update rate and 20 V/µs slew rate.
- Digital I/O: 24‑channel TTL‑compatible programmable I/O via Intel 8255 PIO architecture.
- Timer/Counter: Two independent 16‑bit general‑purpose counters with 40 MHz base clock and external clock input up to 10 MHz.
- Triggering: Supports software, external analog/digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes (pre‑, post‑, middle‑, delay‑trigger).
- Auto‑Calibration: Fully automatic calibration with onboard 5 V reference (±2 ppm/°C).
- FIFO Buffers: 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for continuous data streaming.
- Scatter‑Gather DMA: Efficient high‑speed data transfer with minimal CPU overhead.
- Synchronization: Multi‑card synchronization via SSI bus or PXI trigger bus.
- Software Support: Drivers and SDKs for Windows and Linux; compatible with LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET.
- Utility Software: AD‑Logger for data logging and monitoring.
### 3. Technical Specifications
Analog Input (AI):
- Channels: 64 SE / 32 DI (software‑selectable)
- Resolution: 16 bits, no missing codes
- Sampling Rate: 250 kS/s (max)
- Input Coupling: DC
- Input Ranges (Bipolar): ±10 V, ±5 V, ±2.5 V, ±1.25 V
- Input Ranges (Unipolar): 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V
- Programmable Gain: x1, x2, x4, x8
- Offset Error: ±2 mV
- Gain Error: ±0.06 % of FSR
- Input Impedance: 1 GΩ / 100 pF
- Overvoltage Protection: ±30 V (power on), ±15 V (power off)
- CMRR (Gain = 1): 83 dB
- Settling Time: 4 µs to 0.01 % error
- Bandwidth (–3 dB): 600 kHz @ ±10 V, Gain = 1
- FIFO Buffer: 1 k samples
- Data Transfer: Polling or scatter‑gather DMA
Analog Output (AO):
- Channels: 2 voltage outputs
- Resolution: 12 bits
- Output Ranges: 0–10 V, ±10 V, 0–AOEXTREF, ±AOEXTREF
- Update Rate: 1 MS/s (max)
- Slew Rate: 20 V/µs
- Settling Time: 3 µs to ±0.5 LSB
- Offset Error: ±1 mV
- Gain Error: ±0.02 % of max output
- Drive Capability: ±5 mA, stable up to 1500 pF load
- FIFO Buffer: 1 k samples
- Trigger Sources: Software, external analog/digital, SSI bus
Digital I/O:
- Channels: 24 TTL‑compatible (8255 PIO)
- Logic Levels:
- Input Low ≤ 0.8 V, Input High ≥ 2.0 V
- Output Low ≤ 0.5 V @ 8 mA, Output High ≥ 2.7 V @ 400 µA
Timer/Counter:
- Channels: 2 independent 16‑bit counters
- Base Clock: 40 MHz internal, external up to 10 MHz
- Modes: Event counting, pulse generation, period/pulse‑width measurement, gated operations
General Specifications:
- Auto‑Calibration: Yes (+5 V reference, ±2 ppm/°C)
- Dimensions: 168 mm × 107 mm (6.55 in × 4.17 in)
- Connectors: Two 68‑pin VHDCI female connectors
- Operating Temperature: 0 °C – 55 °C
- Storage Temperature: –20 °C – 70 °C
- Humidity: 5 % – 95 %, non‑condensing
- Power Requirements (typical):
- +5 V @ 1.2 A
- +3.3 V @ 0.756 A
- +12 V @ 0.584 A
### 4. Functionality
The DAQe‑2206 performs high‑accuracy analog‑to‑digital (A/D) and digital‑to‑analog (D/A) conversions for data acquisition and control applications. It supports both single‑ended and differential input configurations, allowing flexible measurement of floating or ground‑referenced signals. The card’s programmable gain and input range selection enable precise scaling of input signals for optimal resolution.
Use Cases and Applications:
- Industrial process monitoring and control
- Laboratory automation and instrumentation
- Automotive and cable testing
- Transient signal measurement
- Automated Test Equipment (ATE)
- Biotech and medical signal acquisition
Compatibility:
- PCI Express x1 slot (3.3 V signaling)
- Supported OS: Windows 7/8 x86/x64, Linux
- Supported APIs: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET
### 5. Components & Accessories
Included Items:
- DAQe‑2206 PCIe data acquisition card
- ADLINK All‑in‑One Software CD
- Software Installation Guide
- User’s Manual
Optional Accessories:
- Terminal Boards: DIN‑68S‑01
- Cables: ACL‑10568‑1 (68‑pin VHDCI cable)
- Synchronization Cable: ACL‑SSI‑2/3/4 for multi‑card synchronization
Connectors:
- Two 68‑pin VHDCI female connectors for analog, digital, and counter I/O
- 20‑pin SSI connector for synchronization
### 6. Installation & Setup
Requirements:
- Available PCI Express x1 slot
- Compatible operating system and driver installation
- Anti‑static handling precautions during installation
Mounting:
- Standard PCIe card form factor (168 × 107 mm)
- Secured via PCIe bracket
Configuration:
- Plug‑and‑play PCIe configuration (no jumpers required)
- Automatic IRQ and address assignment by system BIOS
- Software‑based channel, gain, and range configuration
Setup Steps:
1. Power off the host PC and install the DAQe‑2206 into an available PCIe slot.
2. Connect external signals via VHDCI connectors using appropriate terminal boards.
3. Install ADLINK drivers and software from the included CD.
4. Verify installation using ADLINK’s PCI_SCAN utility.
5. Configure channels, ranges, and triggers through the provided SDK or software tools.
### 7. Performance & Capabilities
Analog Input Performance:
- 16‑bit resolution ensures high‑precision measurement with minimal quantization noise.
- 250 kS/s sampling rate suitable for medium‑speed data logging and waveform capture.
- 600 kHz bandwidth supports accurate representation of dynamic signals.
- 1 k‑sample FIFO enables continuous streaming without data loss.
Analog Output Performance:
- 12‑bit resolution with 1 MS/s update rate for waveform generation and control.
- 20 V/µs slew rate ensures fast signal transitions.
- Stable operation with capacitive loads up to 1500 pF.
Digital I/O Performance:
- 24 TTL channels configurable as input or output.
- Ideal for control, status monitoring, and digital pattern generation.
Counter/Timer Capabilities:
- Dual 16‑bit counters support event counting, frequency measurement, and pulse generation.
- Programmable gating and up/down counting for flexible timing control.
Limitations:
- Maximum AI sampling rate limited to 250 kS/s (single channel).
- Analog output limited to ±10 V range and ±5 mA drive current.
- No synchronous digital input (SDI) function—available only on DAQe‑2204.
### 8. Standards & Compliance
- Bus Interface: PCI Express x1 compliant
- PXI Specification: Rev 2.2 (for PXI variants)
- Electrical Compatibility: 3.3 V signaling, TTL/CMOS I/O
- Environmental Compliance: Designed for industrial temperature and humidity ranges
- Software Standards:
- D2K‑DASK driver library for Windows
- D2K‑DASK/X for Linux (kernel 2.4.x and Red Hat 7.3/8.0)
- ActiveX, LabVIEW, and MATLAB integration
- Safety & Reliability: Factory‑calibrated with onboard reference; auto‑calibration ensures long‑term accuracy
### 9. Additional Information
Calibration:
- Factory‑calibrated with stored constants in EEPROM.
- Auto‑calibration compensates for temperature and time drift using onboard 5 V reference.
- User can store up to three calibration sets for different environments.
Warranty:
- Standard two‑year limited warranty (one year in China).
- Covers manufacturing defects; excludes damage from misuse, environmental factors, or unauthorized repair.
- RMA service available via ADLINK’s online portal (rma.adlinktech.com).
Support & Maintenance:
- Global technical support via regional ADLINK offices (Taiwan, USA, Europe, Singapore, India, Korea, China).
- Email: service@adlinktech.com
- Software updates and documentation available at [www.adlinktech.com](http://www.adlinktech.com).
Software Updates & SDKs:
- D2K‑DASK and D2K‑DASK/X libraries for Windows and Linux.
- DAQ‑LVIEW PnP for LabVIEW integration.
- D2K‑OCX ActiveX controls for Visual Basic/Visual C++.
- DAQBench ActiveX controls for GUI‑based measurement applications.
Maintenance Recommendations:
- Operate within specified temperature and humidity limits.
- Allow 15 minutes warm‑up before calibration or precision measurement.
- Periodically verify calibration using ADLINK’s software utility.
### Summary
The ADLINK DAQe‑2206 is a robust, high‑accuracy PCI Express data acquisition card engineered for multi‑function measurement and control. With 16‑bit analog input resolution, dual 12‑bit analog outputs, 24 digital I/O lines, and dual 16‑bit counters, it provides a complete platform for signal acquisition, generation, and analysis. Its auto‑calibration, scatter‑gather DMA, and flexible triggering architecture make it ideal for demanding applications in industrial automation, laboratory research, and test systems. The DAQe‑2206 combines precision, reliability, and software versatility, ensuring seamless integration into modern data acquisition environments.
-
DAQ_DAQe_PXI-2204_2205_2206_Datasheet_en_2.pdf
PDF Catalog
- DIN-68S-01 - 68pin SCSI-II termination board DIN rail w/o cable
- ACL-10568-1 - SCSI-VHDCI cable 1m for DAQ series
- ACL-10568-2 - SCSI-VHDCI cable 2m for DAQ series
- ACL-10568-3 - SCSI-VHDCI cable 3m for DAQ series
