Comprehensive Product Summary – SUNIX ESW‑8062‑GM‑E Managed Industrial Ethernet Switch
### 1. Product Overview

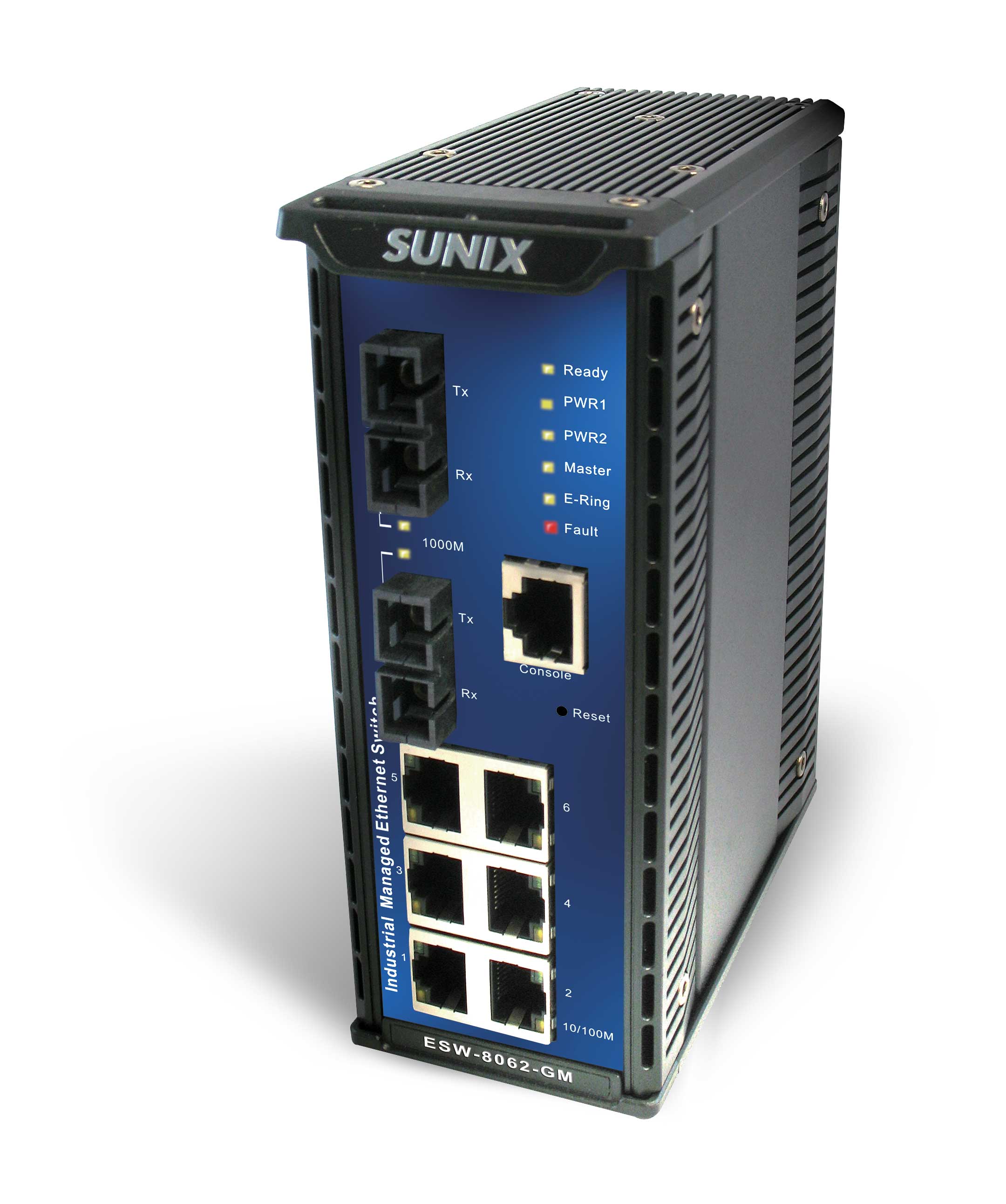

Product Name: SUNIX ESW‑8062‑GM‑E
Model: ESW‑8062‑GM‑E
Series: ESW‑8062‑xx Series (Managed Industrial Ethernet Switches)
Article Number: ESW‑8062‑GM‑E
Manufacturer: SUNIX Co., Ltd.
Product Category: Managed Industrial Ethernet Switch – Gigabit Multi‑Mode Fiber Type
Product Description:
Industrial‑grade managed Ethernet switch featuring six 10/100Base‑T(X) copper ports and two 1000Base‑SX (multi‑mode fiber) ports. Designed for high‑availability automation networks, the ESW‑8062‑GM‑E integrates SUNIX’s ELITE‑Ring™ redundancy technology with sub‑10 ms recovery, redundant power inputs, and extended temperature operation for harsh industrial environments.
### 2. Key Features
- High‑Performance Managed Switch:
6 × 10/100Base‑T(X) RJ‑45 ports and 2 × 1000Base‑SX (multi‑mode fiber) ports for flexible copper/fiber connectivity.
- Ultra‑Fast Redundant Ethernet Ring:
SUNIX ELITE‑Ring™ technology provides network recovery in < 10 ms across up to 300 interconnected switches. Supports Ring Coupling and Dual Homing for multi‑ring and redundant uplink topologies.
- Comprehensive Management Interfaces:
Configuration via Web browser (HTTP/HTTPS), Telnet, RS‑232 serial console, SNMP v1/v2c/v3, and SUNIX Commander Pro Windows utility for centralized multi‑device management.
- Advanced Network Control:
Supports RSTP/STP (IEEE 802.1W/D), IEEE 802.1Q VLAN, GVRP, QoS/ToS, IGMP Snooping v1/v2/v3, RMON Groups 1, 2, 3, 9, and Port Trunking (IEEE 802.3ad LACP).
- Industrial‑Grade Reliability:
- Redundant dual 12–48 V DC power inputs with reverse polarity and surge protection.
- Relay alarm output for power or link failure events.
- ESD protection: ± 4 kV DC on Ethernet ports.
- Surge protection: ± 2 kV DC on power inputs.
- Extended temperature range: –40 °C to +85 °C.
- IP30 aluminum enclosure with DIN‑rail and wall‑mount options.
- Security & Access Control:
- IEEE 802.1X port‑based authentication with RADIUS.
- HTTPS/SSL and SSH secure management sessions.
- Port/MAC binding and IP security for restricted management access.
- RADIUS authentication, authorization, and accounting support.
- Diagnostics & Monitoring:
- SNMP traps, email alerts, relay output alarms, and Syslog event reporting.
- Port mirroring, MAC address table, and traffic statistics for diagnostics.
- Auto‑topology mapping via SUNIX Commander utility.
- Deterministic Industrial Networking:
Designed for 24/7 operation with deterministic data flow, ensuring uninterrupted communication in automation, transportation, and utility systems.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 6 × 10/100Base‑T(X) RJ‑45 (auto‑negotiation, auto MDI/MDI‑X) |
| Fiber Ports | 2 × 1000Base‑SX (MM, 50/125 µm fiber, 2 km typical) |
| Total Ports | 8 |
| Alarm Contact | 1 × configurable relay output, 1 A @ 24 V DC |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ad, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Protocols Supported | IGMP v1/v2/v3, GVRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP |
| MIB Support | MIB‑II, Ethernet‑Like MIB, P‑Bridge MIB, Q‑Bridge MIB, RSTP MIB, RMON Groups 1, 2, 3, 9 |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K entries |
| Flow Control | IEEE 802.3x (full‑duplex), back‑pressure (half‑duplex) |
| Power Input | Dual 12–48 V DC (24 V nominal) via 7‑pin removable terminal block + DC jack |
| Power Consumption | ≤ 9 W max |
| Protection | Reverse polarity, over‑current (1.6 A limit), surge ± 2 kV DC |
| ESD Protection | ± 4 kV DC on Ethernet ports |
| Enclosure | IP30 aluminum housing |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Mounting | DIN‑rail or wall mount |
| Operating Temperature | Standard 0 °C to 60 °C / Extended –40 °C to 80 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity | 5 % to 95 % RH (non‑condensing) |
| MTBF | 830,000 hours |
| Safety Certifications | UL 60950, UL 508, CAN/CSA C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Div 2 Groups A–D |
| EMC Compliance | FCC Part 15 Class A, CISPR (EN55022) Class A, CE |
| Environmental Tests | Shock IEC 60068‑2‑27; Vibration IEC 60068‑2‑6; Free‑fall IEC 60068‑2‑32 |
| Warranty | 5 years |
### 4. Functionality
Operational Concept:
The ESW‑8062‑GM‑E functions as a managed Layer 2 Ethernet switch optimized for deterministic industrial networks. It provides redundant ring topology with automatic failover, VLAN segmentation, QoS prioritization, and secure remote management.
Use Cases & Applications:
- Factory and process automation networks
- Transportation and traffic control systems
- Building management and utility monitoring
- Power substations and SCADA systems
- Oil, gas, and hazardous‑location communication networks
Compatibility:
Interoperable with standard Ethernet devices and compliant with IEEE 802.3/802.1 protocols. Supports integration with third‑party SNMP network management systems and SUNIX Commander Pro for unified configuration.
Management Interfaces:
- Web GUI (HTTP/HTTPS) for intuitive configuration
- CLI via Telnet or RS‑232 console for advanced control
- SNMP v1/v2c/v3 for centralized monitoring
- SUNIX Commander Pro Windows utility for batch configuration, firmware updates, and topology visualization
### 5. Components & Accessories
Included Items:
- ESW‑8062‑GM‑E managed switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Fiber port dust covers
- Quick installation guide and CD (drivers, manuals, SUNIX Commander utility)
Optional Accessories:
- RJ‑45‑to‑DB9 console cable
- External 24 V DC power adapter
- Fiber connectors (ST/SC) and transceivers for various distances
Connectors:
- Ethernet: RJ‑45 (10/100Base‑T(X))
- Fiber: SC/ST 1000Base‑SX (MM)
- Power: 7‑pin removable terminal block + DC jack
- Console: RJ‑45 RS‑232
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Attach the rear clip to standard 35 mm DIN‑rail.
- Wall Mount: Use included brackets for panel installation.
Power Requirements:
- Dual 12–48 V DC inputs for redundancy.
- Connect via terminal block; ensure polarity correctness (reverse protection included).
Configuration Methods:
1. Web Browser: Access default IP 192.168.1.1 (login admin/admin).
2. Telnet/Serial Console: 9600 bps, 8‑N‑1 parameters.
3. SUNIX Commander Pro: Auto‑discovers devices, supports group configuration, firmware upgrade, and topology mapping.
4. SNMP: Integrate with NMS for monitoring and traps.
Initial Setup:
- Assign static IP or enable DHCP client.
- Configure VLANs, QoS, and redundancy (ELITE‑Ring or RSTP).
- Save configuration to flash to retain settings after reboot.
### 7. Performance & Capabilities
- Switching Capacity: 1.6 Gbps non‑blocking throughput.
- Latency: < 10 µs for 100 Mbps frames.
- Redundancy Recovery: < 10 ms (ELITE‑Ring™).
- Bandwidth Aggregation: Port Trunking (IEEE 802.3ad LACP) up to 4 ports.
- QoS/ToS: 8:4:2:1 weighted fair queuing or strict priority scheduling.
- VLAN Support: IEEE 802.1Q tagged and port‑based VLANs (1–4094 VIDs).
- IGMP Snooping: Efficient multicast filtering for industrial protocols.
- Security: 802.1X authentication, MAC/IP filtering, HTTPS/SSH management.
- Diagnostics: Port mirroring, SNMP traps, Syslog, email alerts, relay alarms.
- Reliability: Continuous 24/7 operation in vibration, shock, and temperature extremes.
Limitations:
- Layer 2 switching only (no Layer 3 routing).
- Fiber distance limited to 2 km for multi‑mode SX ports.
- Requires SUNIX Commander Pro for advanced group management.
### 8. Standards & Compliance
IEEE Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3z (1000Base‑SX), 802.3x (flow control), 802.3ad (LACP), 802.1D (STP), 802.1W (RSTP), 802.1Q (VLAN), 802.1p (QoS), 802.1X (authentication).
Environmental & Safety Certifications:
- Safety: UL 60950, UL 508, CSA C22.2 No. 60950
- Hazardous Location: UL/cUL Class I Div 2 Groups A–D
- EMC: FCC Part 15 Class A, EN 55022 Class A, CE Mark
- Immunity: EN 61000‑4‑2 (ESD Level 3), ‑4‑3 (RS Level 3), ‑4‑4 (EFT Level 2), ‑4‑5 (Surge Level 3), ‑4‑6 (CS Level 3)
- Mechanical Tests: IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall)
- Ingress Protection: IP30 rated aluminum enclosure
Industry Compliance:
Meets industrial automation networking requirements for deterministic Ethernet and mission‑critical applications.
### 9. Additional Information
Warranty & Support:
- Warranty: 5 years limited hardware warranty.
- Technical Support: Email support (info@sunix‑ncci.com.tw) and online resources at [www.sunix‑ncci.com.tw](http://www.sunix-ncci.com.tw).
- Maintenance: Firmware updates via TFTP or SUNIX Commander Pro.
- Return Procedure: Requires Product Return Agreement (PRA) and Problem Report Form with serial number and purchase proof.
Firmware & Configuration Management:
- Backup and restore via TFTP server or Commander Pro.
- Group firmware update and IP assignment wizards for multi‑device deployments.
- SNTP time synchronization and Syslog logging for event tracking.
Maintenance Recommendations:
- Periodically verify fiber connector cleanliness and tight terminal connections.
- Use redundant power inputs for maximum uptime.
- Regularly export configuration backups after changes.
### Summary
The SUNIX ESW‑8062‑GM‑E is a compact, rugged, and fully managed 8‑port industrial Ethernet switch engineered for mission‑critical automation networks. Its combination of 6 Fast Ethernet TX and 2 Gigabit SX fiber ports delivers flexible connectivity, while ELITE‑Ring™ redundancy ensures sub‑10 ms network recovery. With comprehensive management interfaces, advanced security, and industrial‑grade protection, the ESW‑8062‑GM‑E provides deterministic, high‑availability communication for demanding environments such as manufacturing, transportation, and utilities.
Its dual redundant power inputs, wide temperature tolerance, and robust IP30 aluminum enclosure make it ideal for continuous 24/7 operation in harsh conditions. Backed by a 5‑year warranty and full SNMP/Commander Pro management suite, the ESW‑8062‑GM‑E represents a reliable, standards‑compliant solution for industrial Ethernet infrastructure.
### 1. Product Overview
Product Name: SUNIX ESW‑8062‑GM‑E
Model: ESW‑8062‑GM‑E
Series: ESW‑8062‑xx Series (Managed Industrial Ethernet Switches)
Article Number: ESW‑8062‑GM‑E
Manufacturer: SUNIX Co., Ltd.
Product Category: Managed Industrial Ethernet Switch – Gigabit Multi‑Mode Fiber Type
Product Description:
Industrial‑grade managed Ethernet switch featuring six 10/100Base‑T(X) copper ports and two 1000Base‑SX (multi‑mode fiber) ports. Designed for high‑availability automation networks, the ESW‑8062‑GM‑E integrates SUNIX’s ELITE‑Ring™ redundancy technology with sub‑10 ms recovery, redundant power inputs, and extended temperature operation for harsh industrial environments.
### 2. Key Features
- High‑Performance Managed Switch:
6 × 10/100Base‑T(X) RJ‑45 ports and 2 × 1000Base‑SX (multi‑mode fiber) ports for flexible copper/fiber connectivity.
- Ultra‑Fast Redundant Ethernet Ring:
SUNIX ELITE‑Ring™ technology provides network recovery in < 10 ms across up to 300 interconnected switches. Supports Ring Coupling and Dual Homing for multi‑ring and redundant uplink topologies.
- Comprehensive Management Interfaces:
Configuration via Web browser (HTTP/HTTPS), Telnet, RS‑232 serial console, SNMP v1/v2c/v3, and SUNIX Commander Pro Windows utility for centralized multi‑device management.
- Advanced Network Control:
Supports RSTP/STP (IEEE 802.1W/D), IEEE 802.1Q VLAN, GVRP, QoS/ToS, IGMP Snooping v1/v2/v3, RMON Groups 1, 2, 3, 9, and Port Trunking (IEEE 802.3ad LACP).
- Industrial‑Grade Reliability:
- Redundant dual 12–48 V DC power inputs with reverse polarity and surge protection.
- Relay alarm output for power or link failure events.
- ESD protection: ± 4 kV DC on Ethernet ports.
- Surge protection: ± 2 kV DC on power inputs.
- Extended temperature range: –40 °C to +85 °C.
- IP30 aluminum enclosure with DIN‑rail and wall‑mount options.
- Security & Access Control:
- IEEE 802.1X port‑based authentication with RADIUS.
- HTTPS/SSL and SSH secure management sessions.
- Port/MAC binding and IP security for restricted management access.
- RADIUS authentication, authorization, and accounting support.
- Diagnostics & Monitoring:
- SNMP traps, email alerts, relay output alarms, and Syslog event reporting.
- Port mirroring, MAC address table, and traffic statistics for diagnostics.
- Auto‑topology mapping via SUNIX Commander utility.
- Deterministic Industrial Networking:
Designed for 24/7 operation with deterministic data flow, ensuring uninterrupted communication in automation, transportation, and utility systems.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 6 × 10/100Base‑T(X) RJ‑45 (auto‑negotiation, auto MDI/MDI‑X) |
| Fiber Ports | 2 × 1000Base‑SX (MM, 50/125 µm fiber, 2 km typical) |
| Total Ports | 8 |
| Alarm Contact | 1 × configurable relay output, 1 A @ 24 V DC |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ad, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Protocols Supported | IGMP v1/v2/v3, GVRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP |
| MIB Support | MIB‑II, Ethernet‑Like MIB, P‑Bridge MIB, Q‑Bridge MIB, RSTP MIB, RMON Groups 1, 2, 3, 9 |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K entries |
| Flow Control | IEEE 802.3x (full‑duplex), back‑pressure (half‑duplex) |
| Power Input | Dual 12–48 V DC (24 V nominal) via 7‑pin removable terminal block + DC jack |
| Power Consumption | ≤ 9 W max |
| Protection | Reverse polarity, over‑current (1.6 A limit), surge ± 2 kV DC |
| ESD Protection | ± 4 kV DC on Ethernet ports |
| Enclosure | IP30 aluminum housing |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Mounting | DIN‑rail or wall mount |
| Operating Temperature | Standard 0 °C to 60 °C / Extended –40 °C to 80 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity | 5 % to 95 % RH (non‑condensing) |
| MTBF | 830,000 hours |
| Safety Certifications | UL 60950, UL 508, CAN/CSA C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Div 2 Groups A–D |
| EMC Compliance | FCC Part 15 Class A, CISPR (EN55022) Class A, CE |
| Environmental Tests | Shock IEC 60068‑2‑27; Vibration IEC 60068‑2‑6; Free‑fall IEC 60068‑2‑32 |
| Warranty | 5 years |
### 4. Functionality
Operational Concept:
The ESW‑8062‑GM‑E functions as a managed Layer 2 Ethernet switch optimized for deterministic industrial networks. It provides redundant ring topology with automatic failover, VLAN segmentation, QoS prioritization, and secure remote management.
Use Cases & Applications:
- Factory and process automation networks
- Transportation and traffic control systems
- Building management and utility monitoring
- Power substations and SCADA systems
- Oil, gas, and hazardous‑location communication networks
Compatibility:
Interoperable with standard Ethernet devices and compliant with IEEE 802.3/802.1 protocols. Supports integration with third‑party SNMP network management systems and SUNIX Commander Pro for unified configuration.
Management Interfaces:
- Web GUI (HTTP/HTTPS) for intuitive configuration
- CLI via Telnet or RS‑232 console for advanced control
- SNMP v1/v2c/v3 for centralized monitoring
- SUNIX Commander Pro Windows utility for batch configuration, firmware updates, and topology visualization
### 5. Components & Accessories
Included Items:
- ESW‑8062‑GM‑E managed switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Fiber port dust covers
- Quick installation guide and CD (drivers, manuals, SUNIX Commander utility)
Optional Accessories:
- RJ‑45‑to‑DB9 console cable
- External 24 V DC power adapter
- Fiber connectors (ST/SC) and transceivers for various distances
Connectors:
- Ethernet: RJ‑45 (10/100Base‑T(X))
- Fiber: SC/ST 1000Base‑SX (MM)
- Power: 7‑pin removable terminal block + DC jack
- Console: RJ‑45 RS‑232
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Attach the rear clip to standard 35 mm DIN‑rail.
- Wall Mount: Use included brackets for panel installation.
Power Requirements:
- Dual 12–48 V DC inputs for redundancy.
- Connect via terminal block; ensure polarity correctness (reverse protection included).
Configuration Methods:
1. Web Browser: Access default IP 192.168.1.1 (login admin/admin).
2. Telnet/Serial Console: 9600 bps, 8‑N‑1 parameters.
3. SUNIX Commander Pro: Auto‑discovers devices, supports group configuration, firmware upgrade, and topology mapping.
4. SNMP: Integrate with NMS for monitoring and traps.
Initial Setup:
- Assign static IP or enable DHCP client.
- Configure VLANs, QoS, and redundancy (ELITE‑Ring or RSTP).
- Save configuration to flash to retain settings after reboot.
### 7. Performance & Capabilities
- Switching Capacity: 1.6 Gbps non‑blocking throughput.
- Latency: < 10 µs for 100 Mbps frames.
- Redundancy Recovery: < 10 ms (ELITE‑Ring™).
- Bandwidth Aggregation: Port Trunking (IEEE 802.3ad LACP) up to 4 ports.
- QoS/ToS: 8:4:2:1 weighted fair queuing or strict priority scheduling.
- VLAN Support: IEEE 802.1Q tagged and port‑based VLANs (1–4094 VIDs).
- IGMP Snooping: Efficient multicast filtering for industrial protocols.
- Security: 802.1X authentication, MAC/IP filtering, HTTPS/SSH management.
- Diagnostics: Port mirroring, SNMP traps, Syslog, email alerts, relay alarms.
- Reliability: Continuous 24/7 operation in vibration, shock, and temperature extremes.
Limitations:
- Layer 2 switching only (no Layer 3 routing).
- Fiber distance limited to 2 km for multi‑mode SX ports.
- Requires SUNIX Commander Pro for advanced group management.
### 8. Standards & Compliance
IEEE Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3z (1000Base‑SX), 802.3x (flow control), 802.3ad (LACP), 802.1D (STP), 802.1W (RSTP), 802.1Q (VLAN), 802.1p (QoS), 802.1X (authentication).
Environmental & Safety Certifications:
- Safety: UL 60950, UL 508, CSA C22.2 No. 60950
- Hazardous Location: UL/cUL Class I Div 2 Groups A–D
- EMC: FCC Part 15 Class A, EN 55022 Class A, CE Mark
- Immunity: EN 61000‑4‑2 (ESD Level 3), ‑4‑3 (RS Level 3), ‑4‑4 (EFT Level 2), ‑4‑5 (Surge Level 3), ‑4‑6 (CS Level 3)
- Mechanical Tests: IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall)
- Ingress Protection: IP30 rated aluminum enclosure
Industry Compliance:
Meets industrial automation networking requirements for deterministic Ethernet and mission‑critical applications.
### 9. Additional Information
Warranty & Support:
- Warranty: 5 years limited hardware warranty.
- Technical Support: Email support (info@sunix‑ncci.com.tw) and online resources at [www.sunix‑ncci.com.tw](http://www.sunix-ncci.com.tw).
- Maintenance: Firmware updates via TFTP or SUNIX Commander Pro.
- Return Procedure: Requires Product Return Agreement (PRA) and Problem Report Form with serial number and purchase proof.
Firmware & Configuration Management:
- Backup and restore via TFTP server or Commander Pro.
- Group firmware update and IP assignment wizards for multi‑device deployments.
- SNTP time synchronization and Syslog logging for event tracking.
Maintenance Recommendations:
- Periodically verify fiber connector cleanliness and tight terminal connections.
- Use redundant power inputs for maximum uptime.
- Regularly export configuration backups after changes.
### Summary
The SUNIX ESW‑8062‑GM‑E is a compact, rugged, and fully managed 8‑port industrial Ethernet switch engineered for mission‑critical automation networks. Its combination of 6 Fast Ethernet TX and 2 Gigabit SX fiber ports delivers flexible connectivity, while ELITE‑Ring™ redundancy ensures sub‑10 ms network recovery. With comprehensive management interfaces, advanced security, and industrial‑grade protection, the ESW‑8062‑GM‑E provides deterministic, high‑availability communication for demanding environments such as manufacturing, transportation, and utilities.
Its dual redundant power inputs, wide temperature tolerance, and robust IP30 aluminum enclosure make it ideal for continuous 24/7 operation in harsh conditions. Backed by a 5‑year warranty and full SNMP/Commander Pro management suite, the ESW‑8062‑GM‑E represents a reliable, standards‑compliant solution for industrial Ethernet infrastructure.
-
EthernetSwitches.pdf
PDF Catalog
-
ESW-8062-xx_Series.pdf
Manual
No accessories available.
