Comprehensive Product Summary – SUNIX ESW‑8062‑GT Managed Industrial Ethernet Switch
### 1. Product Overview

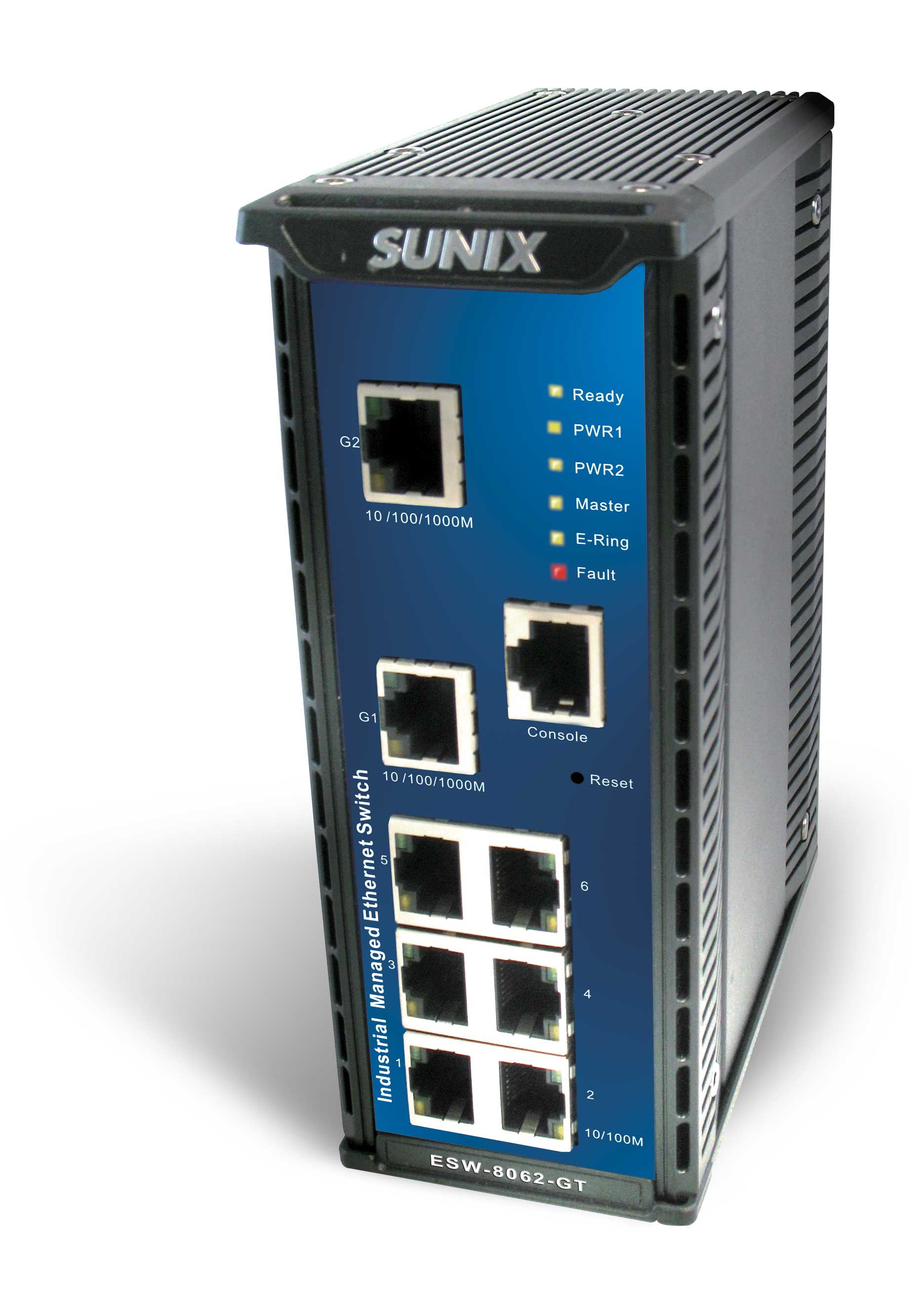

Product Name: SUNIX ESW‑8062‑GT
Model: ESW‑8062‑GT
Series: ESW‑8062‑xx Series (Managed Redundant Industrial Ethernet Switches)
Article Number: ESW‑8062‑GT
Manufacturer: SUNIX Co., Ltd.
The SUNIX ESW‑8062‑GT is an industrial‑grade managed Ethernet switch designed for mission‑critical automation and control networks. It belongs to the ESW‑8062‑xx family of managed redundant switches, offering six 10/100Base‑T(X) copper ports and two 10/100/1000Base‑T(X) Gigabit uplink ports. The unit supports SUNIX’s proprietary ELITE‑Ring™ redundancy technology with a recovery time of less than 10 ms, ensuring deterministic, fault‑tolerant communication across industrial Ethernet infrastructures.
This model is engineered for harsh environments, featuring a rugged IP30 aluminum enclosure, redundant 12–48 V DC power inputs, and comprehensive management capabilities via Web, Telnet, SNMP, RS‑232 console, or the Windows‑based SUNIX Commander Pro utility.
### 2. Key Features
- High‑Performance Managed Redundant Switch:
6 × 10/100Base‑T(X) + 2 × 10/100/1000Base‑T(X) ports with full‑duplex auto‑negotiation and auto‑MDI/MDI‑X.
- Ultra‑Fast Network Recovery:
SUNIX ELITE‑Ring™ redundancy technology provides self‑healing Ethernet ring recovery in < 10 ms across up to 300 interconnected switches.
- Comprehensive Network Management:
Supports SNMP v1/v2c/v3, RMON (1, 2, 3, 9), Web GUI, Telnet, Serial Console, and SUNIX Commander Pro for centralized configuration, firmware upgrade, and topology visualization.
- Advanced Security:
IEEE 802.1X port‑based authentication, HTTPS/SSL, SSH, RADIUS server integration, IP/MAC binding, and port security to prevent unauthorized access.
- Traffic Optimization:
IEEE 802.1p/1Q QoS, ToS/DiffServ prioritization, port‑based and VLAN‑based QoS, and rate limiting for deterministic traffic control.
- VLAN & Multicast Control:
IEEE 802.1Q tagged VLANs, GVRP dynamic VLAN registration, and IGMP v1/v2/v3 snooping for efficient multicast filtering.
- Diagnostics & Alarms:
Configurable relay output (1 A @ 24 V DC), alarm LEDs, SNMP traps, Syslog, and email notifications for power or link failures.
- Industrial‑Grade Design:
IP30 aluminum housing, DIN‑rail or wall‑mount installation, ESD 4 kV protection on Ethernet ports, surge 2 kV on power lines, and extended operating temperature range.
- Redundant Power Inputs:
Dual 12–48 V DC inputs with reverse polarity and overload protection ensure uninterrupted operation.
- Long‑Term Reliability:
MTBF > 830,000 hours, 5‑year warranty, and compliance with UL, CE, FCC, and IEC industrial standards.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Ports | 6 × 10/100Base‑T(X) RJ‑45 + 2 × 10/100/1000Base‑T(X) RJ‑45 |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.3z, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Protocols Supported | IGMP v1/v2/v3, GVRP, GMRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP |
| MIB Support | MIB‑II, Ethernet‑Like MIB, P‑Bridge MIB, Q‑Bridge MIB, RSTP MIB, RMON Groups 1, 2, 3, 9 |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K unicast entries |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
| Alarm Contact | 1 × configurable relay output, 1 A @ 24 V DC |
| Power Input | Dual 12–48 V DC (nominal 24 V DC) via 7‑pin removable terminal block + DC jack |
| Power Consumption | ≤ 9 W |
| Protection | Reverse polarity and overload protection |
| ESD Protection | 4 kV DC (Ethernet ports) |
| Surge Protection | 2 kV DC (power input) |
| Enclosure | IP30 aluminum |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Mounting | DIN‑rail or wall‑mount |
| Operating Temperature | Standard 0 – 60 °C / Extended –40 – 80 °C |
| Storage Temperature | –40 – 85 °C |
| Humidity | 5 – 95 % RH (non‑condensing) |
| Safety Certifications | UL 60950, UL 508, CAN/CSA C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Div 2 |
| EMC/EMI Compliance | FCC Part 15 Class A, CISPR (EN55022) Class A, CE |
| Shock/Vibration | IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall) |
| MTBF | 830,000 hours |
| Warranty | 5 years |
### 4. Functionality
Operational Concept:
The ESW‑8062‑GT functions as a managed Layer 2 Ethernet switch with integrated redundancy and management intelligence. It interconnects industrial controllers, PLCs, HMIs, and SCADA nodes, ensuring deterministic data flow even under link or node failure conditions.
Use Cases:
- Factory automation and process control networks
- Transportation and traffic control systems
- Building and utility automation
- Power substations and energy management
- Oil, gas, and hazardous‑area communication networks
Compatibility:
Fully interoperable with standard Ethernet devices and compliant with IEEE 802.3/802.1 protocols. Supports copper and fiber uplinks for mixed‑media topologies.
Management Interfaces:
- Web GUI: HTTPS‑secured browser interface for configuration and monitoring.
- CLI: Command‑line interface via Telnet or RS‑232 console.
- SNMP: Remote management through SNMP v1/v2c/v3 with trap notifications.
- SUNIX Commander Pro: Windows utility for multi‑device discovery, configuration, firmware upgrade, and topology mapping.
### 5. Components & Accessories
Included Items:
- ESW‑8062‑GT switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Fiber port protective lids (for G‑series models)
- CD‑ROM with drivers, user manual, and SUNIX Commander software
- Quick Installation Guide
Optional Accessories:
- RJ‑45‑to‑DB9 console cable for serial management
- External 24 V DC power supply (if required)
- Fiber transceivers (ST/SC connectors, single‑mode 30 km or multi‑mode 2 km options)
Connectors:
- 7‑pin removable terminal block for dual DC inputs
- DC jack for auxiliary power
- RJ‑45 console port for RS‑232 management
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Standard 35 mm rail clip for control cabinet integration.
- Wall Mount: Bracket kit for flat‑surface installation.
Power Requirements:
12–48 V DC dual redundant inputs; connect via terminal block or DC jack. Reverse polarity and overload protection are built‑in.
Initial Configuration:
Default IP address 192.168.1.1, username/password “admin/admin.” Configuration can be performed through:
- Web browser (HTTPS)
- Telnet or RS‑232 console (9600 bps, 8‑N‑1)
- SUNIX Commander Pro utility
Network Setup:
Supports DHCP client/server, static IP assignment, VLAN segmentation, and redundant ring configuration.
Alarm Integration:
The relay output can be wired to external alarm systems for power or link‑failure notifications.
### 7. Performance & Capabilities
- Switching Capacity: Wire‑speed forwarding on all ports; 148,800 pps per 10/100 port.
- Redundancy: ELITE‑Ring™ < 10 ms recovery; supports up to 300 nodes. Also supports STP/RSTP for mixed topologies.
- QoS: 4‑level priority queues with weighted‑fair (8:4:2:1) or strict scheduling.
- VLAN: IEEE 802.1Q tagged VLANs and GVRP dynamic VLAN registration.
- Port Trunking: IEEE 802.3ad LACP for bandwidth aggregation and redundancy.
- Security: 802.1X authentication, RADIUS, HTTPS/SSH, IP/MAC filtering, port lock.
- Multicast Control: IGMP v1/v2/v3 snooping with querier mode for efficient multicast distribution.
- Diagnostics: Port mirroring, SNMP traps, Syslog, email alerts, and relay output.
- Reliability: Continuous 24/7 operation under vibration, shock, and temperature extremes.
Limitations:
Layer 2 switching only (no Layer 3 routing); fiber transceiver distance depends on selected module (2 km MM / 30 km SM).
### 8. Standards & Compliance
| Category | Compliance / Certification |
|---------------|--------------------------------|
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.3z, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Safety | UL 60950, UL 508, CAN/CSA C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A–D |
| EMC/EMI | FCC Part 15 Class A, CISPR (EN55022) Class A, CE Mark |
| Environmental Tests | IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall) |
| ESD/Surge Immunity | EN 61000‑4‑2 (ESD Level 3), ‑4‑4 (EFT Level 2), ‑4‑5 (Surge Level 3), ‑4‑6 (CS Level 3) |
| Quality & Reliability | MTBF > 830,000 hours |
| Warranty | 5 years manufacturer warranty |
### 9. Additional Information
Warranty & Support:
SUNIX provides a 5‑year limited warranty covering manufacturing defects and hardware reliability. Technical support is available via email (info@sunix‑ncci.com.tw) and through the SUNIX website.
Maintenance:
Firmware updates and configuration backups can be performed via TFTP or SUNIX Commander Pro. The device supports configuration save/restore, group firmware upgrade, and reboot control.
Software Utilities:
- SUNIX Commander Pro: Windows‑based management suite for discovery, configuration, firmware upgrade, and topology mapping.
- SNMP MIBs: Includes MIB‑II, Bridge MIB, RMON MIB, and SUNIX private MIB for integration with network management systems.
Operational Reliability:
Designed for continuous 24/7 operation in industrial automation networks, the ESW‑8062‑GT ensures deterministic Ethernet communication with minimal downtime. Its redundant power design, robust mechanical construction, and advanced management features make it suitable for demanding environments such as manufacturing plants, transportation systems, and energy facilities.
### Summary
The SUNIX ESW‑8062‑GT is a compact, high‑reliability managed industrial Ethernet switch offering eight total ports (6 × Fast Ethernet + 2 × Gigabit Ethernet) and sub‑10 ms redundancy recovery. It integrates advanced management, security, and diagnostic capabilities while maintaining rugged environmental resilience. With dual DC inputs, IP30 aluminum housing, and compliance with global industrial standards, the ESW‑8062‑GT delivers deterministic, secure, and maintainable Ethernet connectivity for mission‑critical automation networks.
Key Highlights:
- 6 × 10/100 TX + 2 × 10/100/1000 TX ports
- ELITE‑Ring™ < 10 ms recovery
- SNMP v1/v2c/v3, RMON, VLAN, QoS, IGMP, 802.1X
- Dual 12–48 V DC redundant power inputs
- IP30 aluminum enclosure, DIN‑rail/wall mount
- Operating temperature –40 to 80 °C (extended)
- UL, CE, FCC, IEC certified
- 5‑year warranty
This model exemplifies SUNIX’s commitment to providing deterministic, secure, and resilient industrial networking solutions for automation and control environments.
### 1. Product Overview
Product Name: SUNIX ESW‑8062‑GT
Model: ESW‑8062‑GT
Series: ESW‑8062‑xx Series (Managed Redundant Industrial Ethernet Switches)
Article Number: ESW‑8062‑GT
Manufacturer: SUNIX Co., Ltd.
The SUNIX ESW‑8062‑GT is an industrial‑grade managed Ethernet switch designed for mission‑critical automation and control networks. It belongs to the ESW‑8062‑xx family of managed redundant switches, offering six 10/100Base‑T(X) copper ports and two 10/100/1000Base‑T(X) Gigabit uplink ports. The unit supports SUNIX’s proprietary ELITE‑Ring™ redundancy technology with a recovery time of less than 10 ms, ensuring deterministic, fault‑tolerant communication across industrial Ethernet infrastructures.
This model is engineered for harsh environments, featuring a rugged IP30 aluminum enclosure, redundant 12–48 V DC power inputs, and comprehensive management capabilities via Web, Telnet, SNMP, RS‑232 console, or the Windows‑based SUNIX Commander Pro utility.
### 2. Key Features
- High‑Performance Managed Redundant Switch:
6 × 10/100Base‑T(X) + 2 × 10/100/1000Base‑T(X) ports with full‑duplex auto‑negotiation and auto‑MDI/MDI‑X.
- Ultra‑Fast Network Recovery:
SUNIX ELITE‑Ring™ redundancy technology provides self‑healing Ethernet ring recovery in < 10 ms across up to 300 interconnected switches.
- Comprehensive Network Management:
Supports SNMP v1/v2c/v3, RMON (1, 2, 3, 9), Web GUI, Telnet, Serial Console, and SUNIX Commander Pro for centralized configuration, firmware upgrade, and topology visualization.
- Advanced Security:
IEEE 802.1X port‑based authentication, HTTPS/SSL, SSH, RADIUS server integration, IP/MAC binding, and port security to prevent unauthorized access.
- Traffic Optimization:
IEEE 802.1p/1Q QoS, ToS/DiffServ prioritization, port‑based and VLAN‑based QoS, and rate limiting for deterministic traffic control.
- VLAN & Multicast Control:
IEEE 802.1Q tagged VLANs, GVRP dynamic VLAN registration, and IGMP v1/v2/v3 snooping for efficient multicast filtering.
- Diagnostics & Alarms:
Configurable relay output (1 A @ 24 V DC), alarm LEDs, SNMP traps, Syslog, and email notifications for power or link failures.
- Industrial‑Grade Design:
IP30 aluminum housing, DIN‑rail or wall‑mount installation, ESD 4 kV protection on Ethernet ports, surge 2 kV on power lines, and extended operating temperature range.
- Redundant Power Inputs:
Dual 12–48 V DC inputs with reverse polarity and overload protection ensure uninterrupted operation.
- Long‑Term Reliability:
MTBF > 830,000 hours, 5‑year warranty, and compliance with UL, CE, FCC, and IEC industrial standards.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Ports | 6 × 10/100Base‑T(X) RJ‑45 + 2 × 10/100/1000Base‑T(X) RJ‑45 |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.3z, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Protocols Supported | IGMP v1/v2/v3, GVRP, GMRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP |
| MIB Support | MIB‑II, Ethernet‑Like MIB, P‑Bridge MIB, Q‑Bridge MIB, RSTP MIB, RMON Groups 1, 2, 3, 9 |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K unicast entries |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
| Alarm Contact | 1 × configurable relay output, 1 A @ 24 V DC |
| Power Input | Dual 12–48 V DC (nominal 24 V DC) via 7‑pin removable terminal block + DC jack |
| Power Consumption | ≤ 9 W |
| Protection | Reverse polarity and overload protection |
| ESD Protection | 4 kV DC (Ethernet ports) |
| Surge Protection | 2 kV DC (power input) |
| Enclosure | IP30 aluminum |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Mounting | DIN‑rail or wall‑mount |
| Operating Temperature | Standard 0 – 60 °C / Extended –40 – 80 °C |
| Storage Temperature | –40 – 85 °C |
| Humidity | 5 – 95 % RH (non‑condensing) |
| Safety Certifications | UL 60950, UL 508, CAN/CSA C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Div 2 |
| EMC/EMI Compliance | FCC Part 15 Class A, CISPR (EN55022) Class A, CE |
| Shock/Vibration | IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall) |
| MTBF | 830,000 hours |
| Warranty | 5 years |
### 4. Functionality
Operational Concept:
The ESW‑8062‑GT functions as a managed Layer 2 Ethernet switch with integrated redundancy and management intelligence. It interconnects industrial controllers, PLCs, HMIs, and SCADA nodes, ensuring deterministic data flow even under link or node failure conditions.
Use Cases:
- Factory automation and process control networks
- Transportation and traffic control systems
- Building and utility automation
- Power substations and energy management
- Oil, gas, and hazardous‑area communication networks
Compatibility:
Fully interoperable with standard Ethernet devices and compliant with IEEE 802.3/802.1 protocols. Supports copper and fiber uplinks for mixed‑media topologies.
Management Interfaces:
- Web GUI: HTTPS‑secured browser interface for configuration and monitoring.
- CLI: Command‑line interface via Telnet or RS‑232 console.
- SNMP: Remote management through SNMP v1/v2c/v3 with trap notifications.
- SUNIX Commander Pro: Windows utility for multi‑device discovery, configuration, firmware upgrade, and topology mapping.
### 5. Components & Accessories
Included Items:
- ESW‑8062‑GT switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Fiber port protective lids (for G‑series models)
- CD‑ROM with drivers, user manual, and SUNIX Commander software
- Quick Installation Guide
Optional Accessories:
- RJ‑45‑to‑DB9 console cable for serial management
- External 24 V DC power supply (if required)
- Fiber transceivers (ST/SC connectors, single‑mode 30 km or multi‑mode 2 km options)
Connectors:
- 7‑pin removable terminal block for dual DC inputs
- DC jack for auxiliary power
- RJ‑45 console port for RS‑232 management
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Standard 35 mm rail clip for control cabinet integration.
- Wall Mount: Bracket kit for flat‑surface installation.
Power Requirements:
12–48 V DC dual redundant inputs; connect via terminal block or DC jack. Reverse polarity and overload protection are built‑in.
Initial Configuration:
Default IP address 192.168.1.1, username/password “admin/admin.” Configuration can be performed through:
- Web browser (HTTPS)
- Telnet or RS‑232 console (9600 bps, 8‑N‑1)
- SUNIX Commander Pro utility
Network Setup:
Supports DHCP client/server, static IP assignment, VLAN segmentation, and redundant ring configuration.
Alarm Integration:
The relay output can be wired to external alarm systems for power or link‑failure notifications.
### 7. Performance & Capabilities
- Switching Capacity: Wire‑speed forwarding on all ports; 148,800 pps per 10/100 port.
- Redundancy: ELITE‑Ring™ < 10 ms recovery; supports up to 300 nodes. Also supports STP/RSTP for mixed topologies.
- QoS: 4‑level priority queues with weighted‑fair (8:4:2:1) or strict scheduling.
- VLAN: IEEE 802.1Q tagged VLANs and GVRP dynamic VLAN registration.
- Port Trunking: IEEE 802.3ad LACP for bandwidth aggregation and redundancy.
- Security: 802.1X authentication, RADIUS, HTTPS/SSH, IP/MAC filtering, port lock.
- Multicast Control: IGMP v1/v2/v3 snooping with querier mode for efficient multicast distribution.
- Diagnostics: Port mirroring, SNMP traps, Syslog, email alerts, and relay output.
- Reliability: Continuous 24/7 operation under vibration, shock, and temperature extremes.
Limitations:
Layer 2 switching only (no Layer 3 routing); fiber transceiver distance depends on selected module (2 km MM / 30 km SM).
### 8. Standards & Compliance
| Category | Compliance / Certification |
|---------------|--------------------------------|
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.3z, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Safety | UL 60950, UL 508, CAN/CSA C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A–D |
| EMC/EMI | FCC Part 15 Class A, CISPR (EN55022) Class A, CE Mark |
| Environmental Tests | IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall) |
| ESD/Surge Immunity | EN 61000‑4‑2 (ESD Level 3), ‑4‑4 (EFT Level 2), ‑4‑5 (Surge Level 3), ‑4‑6 (CS Level 3) |
| Quality & Reliability | MTBF > 830,000 hours |
| Warranty | 5 years manufacturer warranty |
### 9. Additional Information
Warranty & Support:
SUNIX provides a 5‑year limited warranty covering manufacturing defects and hardware reliability. Technical support is available via email (info@sunix‑ncci.com.tw) and through the SUNIX website.
Maintenance:
Firmware updates and configuration backups can be performed via TFTP or SUNIX Commander Pro. The device supports configuration save/restore, group firmware upgrade, and reboot control.
Software Utilities:
- SUNIX Commander Pro: Windows‑based management suite for discovery, configuration, firmware upgrade, and topology mapping.
- SNMP MIBs: Includes MIB‑II, Bridge MIB, RMON MIB, and SUNIX private MIB for integration with network management systems.
Operational Reliability:
Designed for continuous 24/7 operation in industrial automation networks, the ESW‑8062‑GT ensures deterministic Ethernet communication with minimal downtime. Its redundant power design, robust mechanical construction, and advanced management features make it suitable for demanding environments such as manufacturing plants, transportation systems, and energy facilities.
### Summary
The SUNIX ESW‑8062‑GT is a compact, high‑reliability managed industrial Ethernet switch offering eight total ports (6 × Fast Ethernet + 2 × Gigabit Ethernet) and sub‑10 ms redundancy recovery. It integrates advanced management, security, and diagnostic capabilities while maintaining rugged environmental resilience. With dual DC inputs, IP30 aluminum housing, and compliance with global industrial standards, the ESW‑8062‑GT delivers deterministic, secure, and maintainable Ethernet connectivity for mission‑critical automation networks.
Key Highlights:
- 6 × 10/100 TX + 2 × 10/100/1000 TX ports
- ELITE‑Ring™ < 10 ms recovery
- SNMP v1/v2c/v3, RMON, VLAN, QoS, IGMP, 802.1X
- Dual 12–48 V DC redundant power inputs
- IP30 aluminum enclosure, DIN‑rail/wall mount
- Operating temperature –40 to 80 °C (extended)
- UL, CE, FCC, IEC certified
- 5‑year warranty
This model exemplifies SUNIX’s commitment to providing deterministic, secure, and resilient industrial networking solutions for automation and control environments.
-
EthernetSwitches.pdf
PDF Catalog
-
ESW-8062-xx_Series.pdf
Manual
No accessories available.
