1. Product Overview

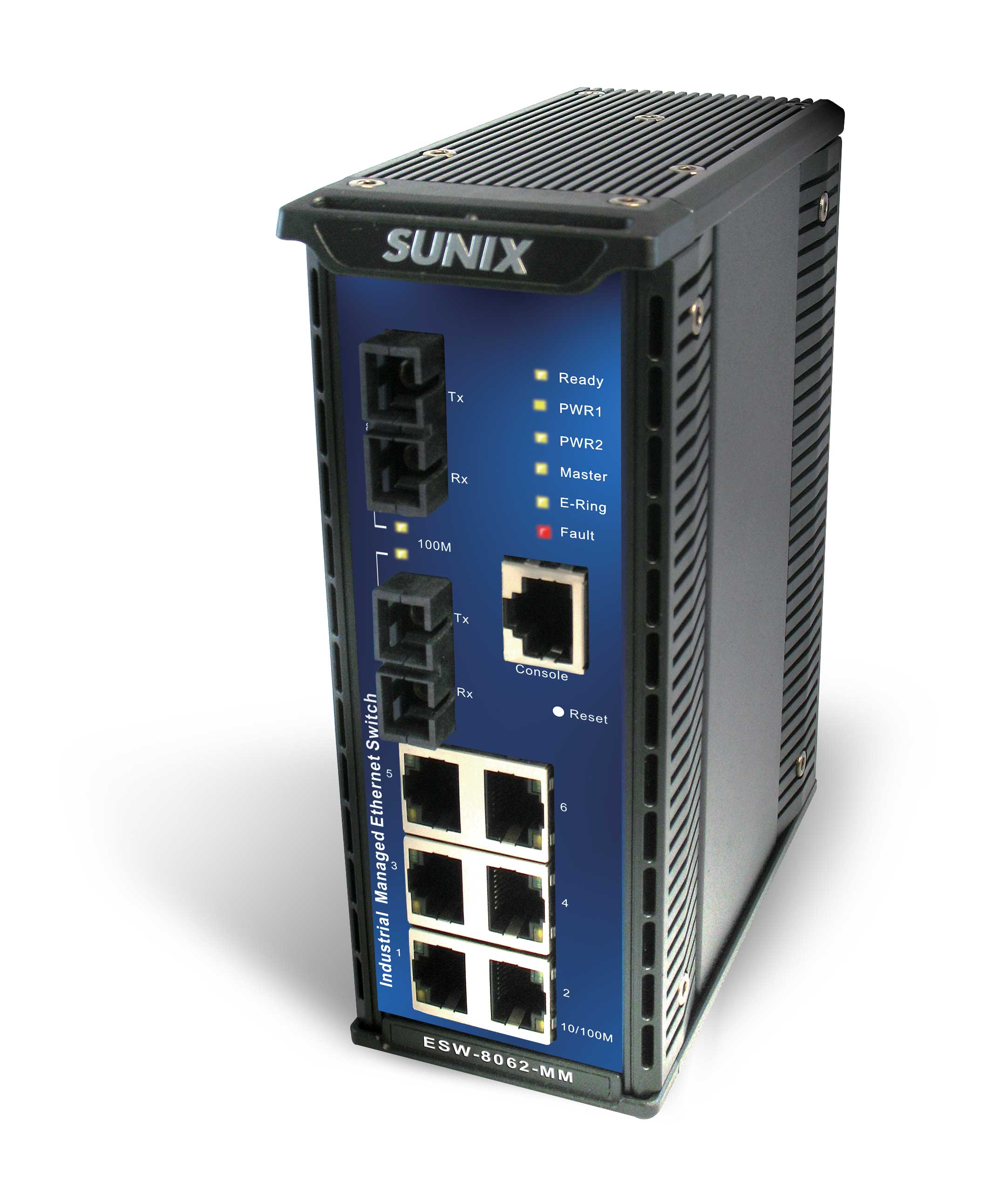

Product Name: Managed Industrial Ethernet Switch
Model: ESW‑8062‑MM
Series: ESW‑8062‑xx Series (Managed Redundant Industrial Ethernet Switches)
Article Number: ESW‑8062‑MM
Manufacturer: SUNIX Co., Ltd.
The SUNIX ESW‑8062‑MM is a managed industrial Ethernet switch designed for mission‑critical automation and control networks. It provides six 10/100Base‑T(X) copper ports and two 100Base‑FX multi‑mode fiber ports, integrating advanced redundancy, management, and security features. The switch is part of the ESW‑8062‑xx family, which includes TX, MM, and SS variants for copper, multi‑mode, and single‑mode fiber connectivity. It is engineered for harsh industrial environments, supporting redundant power inputs, extended temperature operation, and rapid network recovery (<10 ms) through SUNIX’s proprietary ELITE‑Ring™ technology.
2. Key Features
- High‑speed Redundant Networking:
Equipped with SUNIX ELITE‑Ring™ technology, the ESW‑8062‑MM achieves network recovery times of less than 10 ms across up to 50 interconnected units. It also supports IEEE 802.1W Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1D Spanning Tree Protocol (STP) for additional redundancy options.
- Industrial‑grade Design:
Built for continuous 24/7 operation in demanding environments, the switch withstands vibration, shock, and temperature extremes (0 °C – 60 °C standard, ‑40 °C – 80 °C extended). The IP30 aluminum enclosure ensures mechanical robustness and electromagnetic shielding.
- Comprehensive Management:
Supports multiple configuration interfaces—Web browser (HTTP/HTTPS), Telnet, RS‑232 console, SNMP v1/v2c/v3, and the Windows‑based SUNIX Commander utility. The Commander utility enables group configuration, firmware updates, and topology visualization.
- Advanced Security:
Implements IEEE 802.1X port‑based authentication, HTTPS/SSL, SSH, RADIUS server integration, IP and MAC‑based access control, and port security (MAC binding). These features protect against unauthorized access and data interception.
- Traffic Optimization:
Supports IEEE 802.1p/1Q QoS, ToS/DiffServ prioritization, port‑based and VLAN‑based QoS, and rate limiting. Port trunking (IEEE 802.3ad LACP) aggregates multiple links for higher bandwidth and redundancy.
- VLAN and Multicast Management:
IEEE 802.1Q VLAN tagging and GVRP for dynamic VLAN registration; IGMP v1/v2/v3 snooping and GMRP for efficient multicast traffic filtering.
- Diagnostics and Alerts:
Provides relay output alarm (1 A @ 24 V DC), LED indicators for power, fault, link/activity, and ring status, plus event notifications via email, SNMP traps, and Syslog.
- Fiber Optic Immunity:
Two 100Base‑FX multi‑mode ports (50/125 µm, 2 km standard) offer EMI/RFI immunity and extended communication distance for electrically noisy or hazardous areas.
3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ports | 6 × 10/100Base‑T(X) RJ‑45 (auto‑negotiation, auto MDI/MDI‑X) + 2 × 100Base‑FX (multi‑mode fiber, SC/ST) |
| Switching Method | Store‑and‑forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K unicast entries |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
| Alarm Output | 1 × configurable relay output, 1 A @ 24 V DC |
| Power Input | Dual 12 – 48 V DC (nominal 24 V DC) via 7‑pin removable terminal block + DC jack |
| Power Consumption | ≤ 9 W |
| Protection | Reverse polarity and overload protection; ESD ± 4 kV (Ethernet), surge ± 2 kV DC (power) |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Enclosure | IP30 aluminum housing |
| Mounting | DIN‑rail and wall‑mount capable |
| Operating Temperature | Standard 0 – 60 °C / Extended –40 – 80 °C |
| Storage Temperature | –40 – 85 °C |
| Humidity | 5 – 95 % RH (non‑condensing) |
| MTBF | > 830,000 hours |
| Warranty | 5 years |
4. Functionality
The ESW‑8062‑MM functions as a managed Layer 2 Fast Ethernet switch optimized for deterministic industrial networks. It interconnects PLCs, HMIs, sensors, and controllers within automation systems, ensuring continuous communication even under fault conditions.
- Operation:
Data packets are processed using store‑and‑forward switching with wire‑speed throughput. ELITE‑Ring™ redundancy maintains uninterrupted communication by automatically rerouting traffic within 10 ms of a link failure.
- Use Cases:
- Factory automation and process control
- Building and transportation systems
- Power utilities and substations
- Oil, gas, and hazardous‑area networking
- Remote monitoring and SCADA networks
- Compatibility:
Fully compliant with IEEE 802.3/802.3u/802.3x standards and interoperable with third‑party industrial Ethernet devices. Supports standard SNMP MIBs for integration with network management systems.
5. Components & Accessories
Included Items:
- ESW‑8062‑MM managed switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Quick installation guide and CD (drivers, manuals)
- Fiber port dust covers
Optional Accessories:
- RJ‑45 to DB‑9 console cable for RS‑232 management
- External 24 V DC power supply (12 – 48 V DC range)
- ST or SC fiber connectors (multi‑mode 50/125 µm)
- SUNIX Commander PRO software (Windows utility)
Connectors:
- 7‑pin removable terminal block for dual DC input
- DC jack for auxiliary power
- RJ‑45 console port (RS‑232)
6. Installation & Setup
Requirements:
- 12 – 48 V DC regulated power source
- Proper grounding and surge protection
- Ethernet cabling (Cat 5e/6 for copper, 50/125 µm multi‑mode fiber for FX ports)
Mounting Options:
- DIN‑Rail: Snap‑mount on standard 35 mm rail for control cabinets.
- Wall Mount: Use included brackets for panel installation.
Configuration Interfaces:
1. Web Browser (HTTP/HTTPS):
Access via default IP 192.168.1.1, login admin/admin.
2. Telnet Console:
Remote text‑based configuration.
3. RS‑232 Serial Console:
Local setup at 9600 bps, 8‑N‑1.
4. SNMP Management:
SNMP v1/v2c/v3 with MIB‑II, Bridge MIB, RMON groups 1, 2, 3, 9.
5. SUNIX Commander Utility:
Windows GUI for discovery, group configuration, firmware updates, and topology mapping.
Initial Setup Steps:
- Connect power and network cables.
- Assign IP address manually or via DHCP.
- Configure VLANs, redundancy, and security parameters.
- Save configuration to flash memory to retain settings after reboot.
7. Performance & Capabilities
- Switching Capacity: Non‑blocking wire‑speed forwarding on all eight ports.
- Redundancy Performance: ELITE‑Ring™ recovery < 10 ms; supports up to 300 switches in a ring topology.
- Throughput: 100 Mbps per copper or fiber port; aggregate bandwidth 800 Mbps full‑duplex.
- Latency: < 10 µs typical for 64‑byte frames.
- QoS: Four priority queues with weighted‑fair (8:4:2:1) or strict scheduling.
- VLANs: Up to 4094 IEEE 802.1Q VLAN IDs; port‑based and tagged VLANs supported.
- Trunking: IEEE 802.3ad LACP, up to 4 ports per trunk group.
- Multicast Control: IGMP v1/v2/v3 snooping, GMRP for multicast group management.
- Security:
- Port security (MAC binding)
- IP access control lists
- IEEE 802.1X authentication with RADIUS
- HTTPS/SSH encrypted management
- SNMP v3 authentication and privacy
- Diagnostics:
- Port mirroring (TX/RX)
- Port statistics (TX/RX counters, collisions, errors)
- Event logs and Syslog export
- SNMP traps for link or power events
- Alarm & Notification:
- Relay output for power or link failure
- Email alerts via SMTP
- Visual indicators (PWR1, PWR2, FAULT, E‑Ring, Master, Link/Activity LEDs)
Limitations:
Fast Ethernet (100 Mbps) bandwidth per port; for Gigabit performance, SUNIX ESW‑8062‑GT or GP series is recommended.
8. Standards & Compliance
IEEE Standards Supported:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (Spanning Tree Protocol)
- IEEE 802.1W (Rapid Spanning Tree Protocol)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1p (QoS Priority)
- IEEE 802.1X (Port‑based Network Access Control)
- IEEE 802.3ad (Link Aggregation Control Protocol)
Protocols Supported:
IGMP v1/v2/v3, GVRP, GMRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON.
MIB Support:
MIB‑II, Ethernet‑Like MIB, Bridge MIB, P‑Bridge MIB, Q‑Bridge MIB, RSTP MIB, RMON Groups 1, 2, 3, 9.
Safety & EMC Certifications:
- UL 60950, UL 508, CAN/CSA C22.2 No. 60950
- UL/cUL Class I Division 2 Hazardous Location
- FCC Part 15 Class A, CISPR (EN55022) Class A, CE Mark
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑32 (Free‑fall)
- IEC 60068‑2‑6 (Vibration)
- EN 61000‑4‑2 (ESD Level 3), EN 61000‑4‑3 (RS Level 3), EN 61000‑4‑4 (EFT Level 2), EN 61000‑4‑5 (Surge Level 3), EN 61000‑4‑6 (CS Level 3)
Environmental Compliance:
RoHS‑compliant construction; designed for industrial EMC immunity and low emissions.
9. Additional Information
Warranty & Support:
SUNIX provides a 5‑year limited hardware warranty covering manufacturing defects. Technical support is available via email (info@sunix‑ncci.com.tw) and the SUNIX website. Firmware updates, manuals, and configuration utilities can be downloaded from the support portal.
Maintenance:
- Periodically inspect terminal connections and grounding.
- Keep ventilation openings clear of dust.
- Use SUNIX Commander or SNMP tools for firmware updates and configuration backups.
- Replace fiber connectors or cables if optical loss increases.
Firmware & Software Updates:
Firmware can be upgraded via TFTP or the SUNIX Commander utility. Configuration files can be backed up and restored to multiple devices for rapid deployment.
Service & Returns:
For repair or replacement, customers must obtain a Product Return Agreement (PRA) and provide the product serial number and problem description. Devices should be shipped in anti‑static packaging with prepaid freight.
### Summary
The SUNIX ESW‑8062‑MM is a compact, rugged, and fully managed 8‑port Fast Ethernet switch engineered for industrial automation networks requiring high reliability and deterministic performance. With six 10/100Base‑T(X) copper ports and two 100Base‑FX multi‑mode fiber ports, it bridges copper and fiber segments while maintaining network integrity through ELITE‑Ring™ redundancy with sub‑10 ms recovery. The switch supports comprehensive Layer 2 management, advanced security, QoS, VLAN, and SNMP capabilities, ensuring seamless integration into modern control systems. Its dual DC power inputs, relay alarm, and robust IP30 aluminum housing make it ideal for deployment in factories, utilities, and transportation infrastructures where uptime and resilience are paramount.
