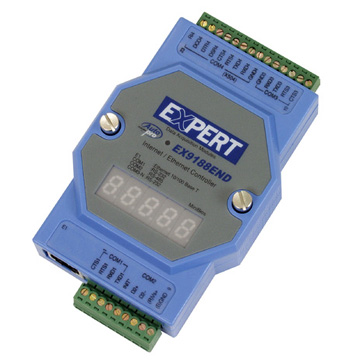

EX9188E2D
1*RS-232, 1*RS-485, 512 k flash, 256 k SRAM, 7 segment LED
180,00 EUR
including VAT 214.20 EUR
- Embedded 80188 CPU (40 MHz): Efficient 16-bit microprocessor optimized for industrial embedded applications.
- Memory Architecture: 512 KB Flash memory and 512 KB SRAM for program and data storage.
- Dual Serial Interfaces:
- 1 × RS-232 port with 5-wire hardware flow control.
- 1 × RS-485 port with automatic direction control.
- Ethernet Connectivity: Integrated 10Base-T Ethernet interface (RJ-45 connector) for TCP/IP communication.
- Built-in Real-Time Clock (RTC), NVRAM, and Serial EPROM: Ensures data retention and system configuration storage.
- 5-Digit 7-Segment LED Display: Displays system status, IP address, baud rates, and communication parameters.
- Fanless, Compact Design: Robust industrial housing suitable for harsh environments and extended temperature operation.
- Embedded DOS Environment: Runs Datalight ROM-DOS and miniBIOS for compatibility with legacy DOS applications.
- Virtual COM Port Support (VSP/VirCOM): Enables transparent serial-over-Ethernet communication without modifying existing COM-based software.
- DIN Rail Mounting: Simplifies installation in industrial control cabinets.
- Software Utilities: Includes tools for configuration, file transfer, ROM updates, and network diagnostics.
- Memory Architecture: 512 KB Flash memory and 512 KB SRAM for program and data storage.
- Dual Serial Interfaces:
- 1 × RS-232 port with 5-wire hardware flow control.
- 1 × RS-485 port with automatic direction control.
- Ethernet Connectivity: Integrated 10Base-T Ethernet interface (RJ-45 connector) for TCP/IP communication.
- Built-in Real-Time Clock (RTC), NVRAM, and Serial EPROM: Ensures data retention and system configuration storage.
- 5-Digit 7-Segment LED Display: Displays system status, IP address, baud rates, and communication parameters.
- Fanless, Compact Design: Robust industrial housing suitable for harsh environments and extended temperature operation.
- Embedded DOS Environment: Runs Datalight ROM-DOS and miniBIOS for compatibility with legacy DOS applications.
- Virtual COM Port Support (VSP/VirCOM): Enables transparent serial-over-Ethernet communication without modifying existing COM-based software.
- DIN Rail Mounting: Simplifies installation in industrial control cabinets.
- Software Utilities: Includes tools for configuration, file transfer, ROM updates, and network diagnostics.
Comprehensive Product Summary: TOPSCCC EX9188E2D Embedded DOS Controller
### 1. Product Overview
Product Name: EX9188E2D
Model: EX9188E2D
Series: EX9188E Embedded Controller Series
Article Number: EX9188E2D
Manufacturer: TOPSCCC (Taiwan)
The TOPSCCC EX9188E2D is an industrial-grade embedded controller designed for Ethernet-based automation and control applications. It integrates serial communication interfaces (RS-232 and RS-485), onboard memory, and a 7-segment LED display within a compact, fanless housing suitable for DIN rail mounting. The device operates under an embedded DOS environment, providing a stable and flexible platform for industrial networking, data acquisition, and remote control systems.
### 2. Key Features
- Embedded 80188 CPU (40 MHz): Efficient 16-bit microprocessor optimized for industrial embedded applications.
- Memory Architecture: 512 KB Flash memory and 512 KB SRAM for program and data storage.
- Dual Serial Interfaces:
- 1 × RS-232 port with 5-wire hardware flow control.
- 1 × RS-485 port with automatic direction control.
- Ethernet Connectivity: Integrated 10Base-T Ethernet interface (RJ-45 connector) for TCP/IP communication.
- Built-in Real-Time Clock (RTC), NVRAM, and Serial EPROM: Ensures data retention and system configuration storage.
- 5-Digit 7-Segment LED Display: Displays system status, IP address, baud rates, and communication parameters.
- Fanless, Compact Design: Robust industrial housing suitable for harsh environments and extended temperature operation.
- Embedded DOS Environment: Runs Datalight ROM-DOS and miniBIOS for compatibility with legacy DOS applications.
- Virtual COM Port Support (VSP/VirCOM): Enables transparent serial-over-Ethernet communication without modifying existing COM-based software.
- DIN Rail Mounting: Simplifies installation in industrial control cabinets.
- Software Utilities: Includes tools for configuration, file transfer, ROM updates, and network diagnostics.
### 3. Technical Specifications
Processor: Intel 80188 CPU, 40 MHz
Memory:
- 512 KB SRAM (0x00000–0x7FFFF)
- 512 KB Flash (0x80000–0xEFFFF usable, 448 KB ROM Disk)
- ROM-DOS (48 KB at 0xF0000–0xFBFFF)
- MiniBIOS (8 KB at 0xFE000–0xFFFFF)
Interfaces:
- 1 × RS-232 (5-wire, hardware flow control)
- 1 × RS-485 (auto-direction control)
- 1 × 10Base-T Ethernet (RJ-45, RTL8019 controller)
- Optional 6 × RS-232 expansion ports via add-on card
Display: 5-digit 7-segment LED display with adjustable intensity and test mode.
Timers:
- 1 × System timer (Interrupt 08H)
- 1 × General-purpose timer
I/O Mapping:
- 0x000–0x0FF: Add-on card (16C550 UARTs)
- 0x300–0x3FF: Ethernet controller (RTL8019)
Default Serial Configuration:
- COM1: 57600 bps, 8 data bits, no parity, 1 stop bit
- COM2–COM8: 9600 bps, 8 data bits, no parity, 1 stop bit
Power Supply: External DC input (specifications depend on system integration).
Mounting: DIN rail compatible.
Cooling: Fanless passive design.
Operating Environment: Extended temperature range suitable for industrial use.
Weight and Dimensions: Compact module form factor (exact dimensions per manufacturer datasheet).
### 4. Functionality
The EX9188E2D functions as a network-based embedded controller and serial-to-Ethernet converter. It allows remote access and control of serial devices over TCP/IP networks, enabling integration of legacy RS-232/RS-485 equipment into modern Ethernet infrastructures.
Operational Modes:
- TCP Mode: Normal operation for Ethernet communication.
- ROM-DOS Mode: Activated by grounding the INIT* pin during startup for direct DOS-level access and configuration.
Use Cases:
- Industrial automation and process control.
- Remote monitoring and data acquisition (SCADA).
- Serial device networking (PLC, sensors, meters).
- Legacy system integration with Ethernet networks.
- Modbus communication gateway (for EX9188E_MTCP variant).
Compatibility:
- Compatible with Datalight ROM-DOS and SOCKETS TCP/IP stack.
- Supports VSP/VirCOM virtual COM port drivers for Windows PCs.
- Works with standard terminal software (e.g., HyperTerminal) for configuration and file transfer.
### 5. Components & Accessories
Included Components:
- EX9188E2D main module.
- Built-in 5-digit LED display.
- RS-232 and RS-485 communication ports.
- Ethernet RJ-45 port.
- Embedded ROM-DOS operating system.
Optional Add-ons:
- 6-port RS-232 expansion card (16C550 UART-based).
- AD/DA or digital I/O expansion modules.
- DIN rail mounting kit.
- External power supply (as per system requirements).
Connectors:
- RJ-45 for Ethernet.
- DB9 or terminal block connectors for serial ports.
- INIT* pin for boot mode selection and firmware updates.
### 6. Installation & Setup
Requirements:
- PC with serial port (for initial configuration).
- HyperTerminal or equivalent terminal software.
- DC power source.
- Ethernet network connection.
Setup Procedure:
1. Connect COM1 of EX9188E2D to PC COM port.
2. Configure terminal: 57600 bps, 8 data bits, no parity, 1 stop bit, no flow control.
3. Power on the module (default TCP mode).
4. To enter ROM-DOS mode, momentarily connect INIT* pin to GND during boot.
5. Use DOS prompt (A:\>) for configuration and file management.
6. Use `INFOSET.EXE` to modify model, IP, subnet mask, gateway, and COM port parameters.
7. Use `XM.EXE`, `ROMDISK.EXE`, and `TOROM.EXE` for file transfer and ROM updates.
8. Configure network parameters via `N.COM` and `SOCKETP.EXE` or batch file `RUN.BAT`.
Mounting Options:
- DIN rail installation for industrial enclosures.
- Panel or cabinet integration possible.
### 7. Performance & Capabilities
Processing Speed: 40 MHz 80188 CPU ensures responsive control and communication.
Memory Performance: 512 KB SRAM for runtime operations; 512 KB Flash for firmware and ROM-DOS storage.
Networking:
- 10Base-T Ethernet with TCP/IP stack (Datalight SOCKETS).
- Supports client/server communication, data transfer, and remote printing.
Serial Communication:
- RS-232 and RS-485 with configurable baud rates (1200–115200 bps).
- Hardware flow control on COM1.
- Auto-direction control on RS-485.
Virtual COM Port Operation:
- Supports up to 255 virtual COM ports via VSP/VirCOM.
- Transparent serial-over-IP communication.
LED Display Functions:
- Sequential display of IP address, baud rates, and COM port settings.
- Configurable intensity and test modes.
Limitations:
- No built-in storage beyond Flash/ROM-DOS.
- No native support for modern high-speed Ethernet (limited to 10 Mbps).
- Limited memory for complex applications (512 KB SRAM).
### 8. Standards & Compliance
Software Standards:
- Datalight ROM-DOS compliant (MS-DOS compatible).
- Datalight SOCKETS TCP/IP stack compliant with standard Internet protocols.
- Supports standard Xmodem/1K-Xmodem file transfer protocols.
Hardware Standards:
- RS-232 (EIA/TIA-232) and RS-485 (EIA/TIA-485) compliant.
- Ethernet IEEE 802.3 10Base-T standard.
Regulatory Compliance:
- Designed for industrial environments with extended temperature operation.
- EMC and safety compliance per industrial embedded system norms (refer to manufacturer datasheet).
### 9. Additional Information
Warranty:
Standard manufacturer warranty (duration per TOPSCCC policy).
Technical Support:
- Documentation and software available at [www.topsccc.com.tw](http://www.topsccc.com.tw).
- VSP driver available from TOPSCCC; VirCOM driver from Easyunet Co.
- Datalight support for ROM-DOS and SOCKETS components ([www.datalight.com](http://www.datalight.com)).
Maintenance:
- Firmware and ROM-DOS updates via TOROM.EXE utility.
- Configuration backup via INFOSET.EXE.
- Regular verification of network and serial parameters recommended.
Software Utilities Summary:
- XM.EXE: File upload/download via Xmodem.
- ROMDISK.EXE: Create ROM-DOS image files.
- TOROM.EXE: Flash ROM update utility.
- VDISK.SYS: Create RAM-based virtual disks.
- INFOSET.EXE: Modify system configuration (IP, COM settings).
- N.COM / SOCKETP.EXE: Enable network stack.
- XPING.EXE: Network connectivity test.
- XCOM.EXE: Server program for command handling and LED display.
- NETTEST: PC utility for TCP/IP communication and diagnostics.
Firmware Libraries:
- Flash Library: Read/write/erase Flash memory.
- NVRAM/EEPROM Library: Read/write configuration data.
- LED Library: Control 5-digit 7-segment display.
- COM Port Library: Manage serial communication and flow control.
- Timer Library: System timing, stopwatch, and delay functions.
- Socket API: Full TCP/IP socket interface for embedded applications.
Update & Expansion:
- ROM-DOS image updates via Xmodem transfer.
- Add-on cards for additional serial or I/O functionality.
- Software extensibility through Datalight SOCKETS API.
### Summary
The TOPSCCC EX9188E2D is a robust, Ethernet-enabled embedded DOS controller tailored for industrial automation and networked serial communication. Combining a 40 MHz 80188 CPU, dual serial ports, and integrated Ethernet, it bridges traditional serial devices with modern TCP/IP networks. Its embedded ROM-DOS environment, comprehensive utility suite, and support for virtual COM ports make it ideal for retrofitting legacy systems, developing custom control applications, and deploying distributed industrial monitoring solutions. The EX9188E2D’s fanless, compact design, and DIN rail compatibility ensure reliable operation in demanding industrial environments.
### 1. Product Overview
Product Name: EX9188E2D
Model: EX9188E2D
Series: EX9188E Embedded Controller Series
Article Number: EX9188E2D
Manufacturer: TOPSCCC (Taiwan)
The TOPSCCC EX9188E2D is an industrial-grade embedded controller designed for Ethernet-based automation and control applications. It integrates serial communication interfaces (RS-232 and RS-485), onboard memory, and a 7-segment LED display within a compact, fanless housing suitable for DIN rail mounting. The device operates under an embedded DOS environment, providing a stable and flexible platform for industrial networking, data acquisition, and remote control systems.
### 2. Key Features
- Embedded 80188 CPU (40 MHz): Efficient 16-bit microprocessor optimized for industrial embedded applications.
- Memory Architecture: 512 KB Flash memory and 512 KB SRAM for program and data storage.
- Dual Serial Interfaces:
- 1 × RS-232 port with 5-wire hardware flow control.
- 1 × RS-485 port with automatic direction control.
- Ethernet Connectivity: Integrated 10Base-T Ethernet interface (RJ-45 connector) for TCP/IP communication.
- Built-in Real-Time Clock (RTC), NVRAM, and Serial EPROM: Ensures data retention and system configuration storage.
- 5-Digit 7-Segment LED Display: Displays system status, IP address, baud rates, and communication parameters.
- Fanless, Compact Design: Robust industrial housing suitable for harsh environments and extended temperature operation.
- Embedded DOS Environment: Runs Datalight ROM-DOS and miniBIOS for compatibility with legacy DOS applications.
- Virtual COM Port Support (VSP/VirCOM): Enables transparent serial-over-Ethernet communication without modifying existing COM-based software.
- DIN Rail Mounting: Simplifies installation in industrial control cabinets.
- Software Utilities: Includes tools for configuration, file transfer, ROM updates, and network diagnostics.
### 3. Technical Specifications
Processor: Intel 80188 CPU, 40 MHz
Memory:
- 512 KB SRAM (0x00000–0x7FFFF)
- 512 KB Flash (0x80000–0xEFFFF usable, 448 KB ROM Disk)
- ROM-DOS (48 KB at 0xF0000–0xFBFFF)
- MiniBIOS (8 KB at 0xFE000–0xFFFFF)
Interfaces:
- 1 × RS-232 (5-wire, hardware flow control)
- 1 × RS-485 (auto-direction control)
- 1 × 10Base-T Ethernet (RJ-45, RTL8019 controller)
- Optional 6 × RS-232 expansion ports via add-on card
Display: 5-digit 7-segment LED display with adjustable intensity and test mode.
Timers:
- 1 × System timer (Interrupt 08H)
- 1 × General-purpose timer
I/O Mapping:
- 0x000–0x0FF: Add-on card (16C550 UARTs)
- 0x300–0x3FF: Ethernet controller (RTL8019)
Default Serial Configuration:
- COM1: 57600 bps, 8 data bits, no parity, 1 stop bit
- COM2–COM8: 9600 bps, 8 data bits, no parity, 1 stop bit
Power Supply: External DC input (specifications depend on system integration).
Mounting: DIN rail compatible.
Cooling: Fanless passive design.
Operating Environment: Extended temperature range suitable for industrial use.
Weight and Dimensions: Compact module form factor (exact dimensions per manufacturer datasheet).
### 4. Functionality
The EX9188E2D functions as a network-based embedded controller and serial-to-Ethernet converter. It allows remote access and control of serial devices over TCP/IP networks, enabling integration of legacy RS-232/RS-485 equipment into modern Ethernet infrastructures.
Operational Modes:
- TCP Mode: Normal operation for Ethernet communication.
- ROM-DOS Mode: Activated by grounding the INIT* pin during startup for direct DOS-level access and configuration.
Use Cases:
- Industrial automation and process control.
- Remote monitoring and data acquisition (SCADA).
- Serial device networking (PLC, sensors, meters).
- Legacy system integration with Ethernet networks.
- Modbus communication gateway (for EX9188E_MTCP variant).
Compatibility:
- Compatible with Datalight ROM-DOS and SOCKETS TCP/IP stack.
- Supports VSP/VirCOM virtual COM port drivers for Windows PCs.
- Works with standard terminal software (e.g., HyperTerminal) for configuration and file transfer.
### 5. Components & Accessories
Included Components:
- EX9188E2D main module.
- Built-in 5-digit LED display.
- RS-232 and RS-485 communication ports.
- Ethernet RJ-45 port.
- Embedded ROM-DOS operating system.
Optional Add-ons:
- 6-port RS-232 expansion card (16C550 UART-based).
- AD/DA or digital I/O expansion modules.
- DIN rail mounting kit.
- External power supply (as per system requirements).
Connectors:
- RJ-45 for Ethernet.
- DB9 or terminal block connectors for serial ports.
- INIT* pin for boot mode selection and firmware updates.
### 6. Installation & Setup
Requirements:
- PC with serial port (for initial configuration).
- HyperTerminal or equivalent terminal software.
- DC power source.
- Ethernet network connection.
Setup Procedure:
1. Connect COM1 of EX9188E2D to PC COM port.
2. Configure terminal: 57600 bps, 8 data bits, no parity, 1 stop bit, no flow control.
3. Power on the module (default TCP mode).
4. To enter ROM-DOS mode, momentarily connect INIT* pin to GND during boot.
5. Use DOS prompt (A:\>) for configuration and file management.
6. Use `INFOSET.EXE` to modify model, IP, subnet mask, gateway, and COM port parameters.
7. Use `XM.EXE`, `ROMDISK.EXE`, and `TOROM.EXE` for file transfer and ROM updates.
8. Configure network parameters via `N.COM` and `SOCKETP.EXE` or batch file `RUN.BAT`.
Mounting Options:
- DIN rail installation for industrial enclosures.
- Panel or cabinet integration possible.
### 7. Performance & Capabilities
Processing Speed: 40 MHz 80188 CPU ensures responsive control and communication.
Memory Performance: 512 KB SRAM for runtime operations; 512 KB Flash for firmware and ROM-DOS storage.
Networking:
- 10Base-T Ethernet with TCP/IP stack (Datalight SOCKETS).
- Supports client/server communication, data transfer, and remote printing.
Serial Communication:
- RS-232 and RS-485 with configurable baud rates (1200–115200 bps).
- Hardware flow control on COM1.
- Auto-direction control on RS-485.
Virtual COM Port Operation:
- Supports up to 255 virtual COM ports via VSP/VirCOM.
- Transparent serial-over-IP communication.
LED Display Functions:
- Sequential display of IP address, baud rates, and COM port settings.
- Configurable intensity and test modes.
Limitations:
- No built-in storage beyond Flash/ROM-DOS.
- No native support for modern high-speed Ethernet (limited to 10 Mbps).
- Limited memory for complex applications (512 KB SRAM).
### 8. Standards & Compliance
Software Standards:
- Datalight ROM-DOS compliant (MS-DOS compatible).
- Datalight SOCKETS TCP/IP stack compliant with standard Internet protocols.
- Supports standard Xmodem/1K-Xmodem file transfer protocols.
Hardware Standards:
- RS-232 (EIA/TIA-232) and RS-485 (EIA/TIA-485) compliant.
- Ethernet IEEE 802.3 10Base-T standard.
Regulatory Compliance:
- Designed for industrial environments with extended temperature operation.
- EMC and safety compliance per industrial embedded system norms (refer to manufacturer datasheet).
### 9. Additional Information
Warranty:
Standard manufacturer warranty (duration per TOPSCCC policy).
Technical Support:
- Documentation and software available at [www.topsccc.com.tw](http://www.topsccc.com.tw).
- VSP driver available from TOPSCCC; VirCOM driver from Easyunet Co.
- Datalight support for ROM-DOS and SOCKETS components ([www.datalight.com](http://www.datalight.com)).
Maintenance:
- Firmware and ROM-DOS updates via TOROM.EXE utility.
- Configuration backup via INFOSET.EXE.
- Regular verification of network and serial parameters recommended.
Software Utilities Summary:
- XM.EXE: File upload/download via Xmodem.
- ROMDISK.EXE: Create ROM-DOS image files.
- TOROM.EXE: Flash ROM update utility.
- VDISK.SYS: Create RAM-based virtual disks.
- INFOSET.EXE: Modify system configuration (IP, COM settings).
- N.COM / SOCKETP.EXE: Enable network stack.
- XPING.EXE: Network connectivity test.
- XCOM.EXE: Server program for command handling and LED display.
- NETTEST: PC utility for TCP/IP communication and diagnostics.
Firmware Libraries:
- Flash Library: Read/write/erase Flash memory.
- NVRAM/EEPROM Library: Read/write configuration data.
- LED Library: Control 5-digit 7-segment display.
- COM Port Library: Manage serial communication and flow control.
- Timer Library: System timing, stopwatch, and delay functions.
- Socket API: Full TCP/IP socket interface for embedded applications.
Update & Expansion:
- ROM-DOS image updates via Xmodem transfer.
- Add-on cards for additional serial or I/O functionality.
- Software extensibility through Datalight SOCKETS API.
### Summary
The TOPSCCC EX9188E2D is a robust, Ethernet-enabled embedded DOS controller tailored for industrial automation and networked serial communication. Combining a 40 MHz 80188 CPU, dual serial ports, and integrated Ethernet, it bridges traditional serial devices with modern TCP/IP networks. Its embedded ROM-DOS environment, comprehensive utility suite, and support for virtual COM ports make it ideal for retrofitting legacy systems, developing custom control applications, and deploying distributed industrial monitoring solutions. The EX9188E2D’s fanless, compact design, and DIN rail compatibility ensure reliable operation in demanding industrial environments.
No accessories available.
