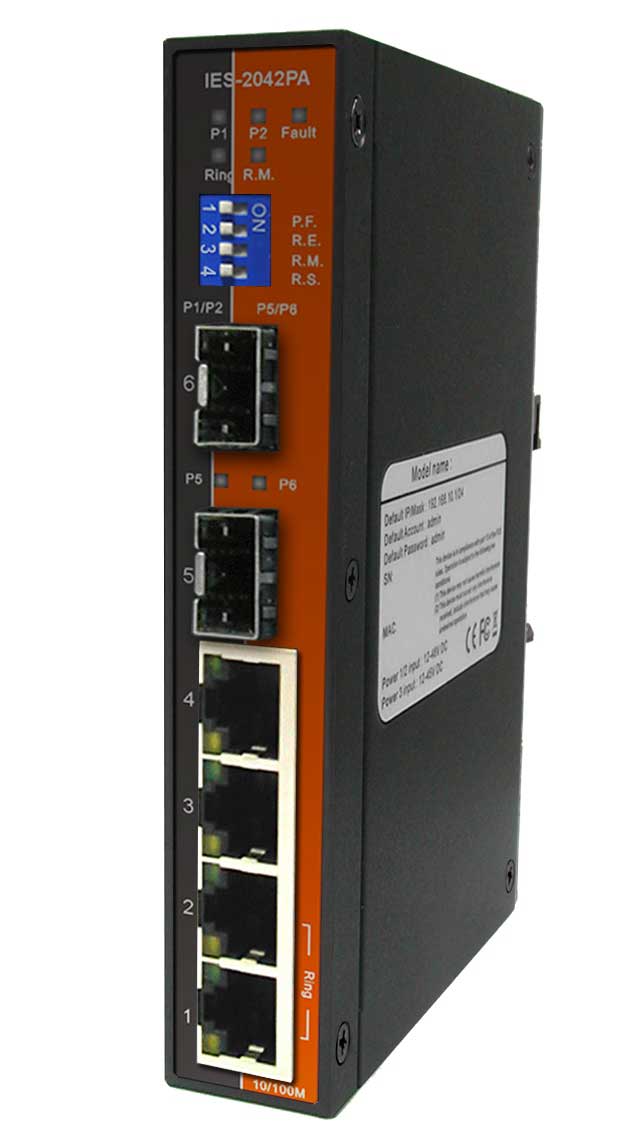

IES-2042PA
Industrial Lite-Managed 2*SFP1000 4*100TX Switch Slim
198,00 EUR
including VAT 235.62 EUR
- Lite-Managed Industrial Switch: Offers essential management functions such as VLAN, QoS, and DHCP client/server capabilities, providing a balance between unmanaged simplicity and full management control.
- Port Configuration: Equipped with 2 SFP slots for 1000Base-X fiber connections and 4 RJ45 ports supporting 10/100Base-T(X) Ethernet, enabling mixed media network topologies.
- High Reliability: Features redundant dual DC power inputs with reverse polarity protection and 2000VDC surge protection on power lines.
- Enhanced Protection: Each Ethernet port is protected against 4kV ESD to ensure stable operation in electrically noisy environments.
- Compact Slim Design: The 145 × 95 × 26 mm form factor allows installation in tight spaces while maintaining full industrial-grade durability.
- Wide Temperature Range: Operates reliably from -40°C to +70°C, suitable for outdoor or unconditioned environments.
- Low Power Consumption: Typical power usage is approximately 4W, optimizing energy efficiency for continuous operation.
- Network Redundancy: Supports μ-Ring and O-Ring technologies for rapid network recovery (<10 ms), ensuring minimal downtime in ring topologies.
- Flexible Mounting: Supports both DIN-rail and wall-mount installation options for versatile deployment.
- Comprehensive Management: Accessible via Web interface, SNMP (v1/v2c/v3), Telnet, and Console, and compatible with Open-Vision and Open-Vision Pro network management software.
- Long-Term Reliability: Backed by a 5-year warranty, reflecting industrial-grade design and manufacturing quality.
- Port Configuration: Equipped with 2 SFP slots for 1000Base-X fiber connections and 4 RJ45 ports supporting 10/100Base-T(X) Ethernet, enabling mixed media network topologies.
- High Reliability: Features redundant dual DC power inputs with reverse polarity protection and 2000VDC surge protection on power lines.
- Enhanced Protection: Each Ethernet port is protected against 4kV ESD to ensure stable operation in electrically noisy environments.
- Compact Slim Design: The 145 × 95 × 26 mm form factor allows installation in tight spaces while maintaining full industrial-grade durability.
- Wide Temperature Range: Operates reliably from -40°C to +70°C, suitable for outdoor or unconditioned environments.
- Low Power Consumption: Typical power usage is approximately 4W, optimizing energy efficiency for continuous operation.
- Network Redundancy: Supports μ-Ring and O-Ring technologies for rapid network recovery (<10 ms), ensuring minimal downtime in ring topologies.
- Flexible Mounting: Supports both DIN-rail and wall-mount installation options for versatile deployment.
- Comprehensive Management: Accessible via Web interface, SNMP (v1/v2c/v3), Telnet, and Console, and compatible with Open-Vision and Open-Vision Pro network management software.
- Long-Term Reliability: Backed by a 5-year warranty, reflecting industrial-grade design and manufacturing quality.
1. Product Overview
Product Name: Industrial Lite-Managed Ethernet Switch
Model: IES-2042PA
Series: Industrial Lite-Managed Switch Series
Article Number: IES-2042PA
Manufacturer: ORing Industrial Networking Corp.
The IES-2042PA is a compact, industrial-grade, lite-managed Ethernet switch designed for high-reliability networking in harsh environments. It features 2 Gigabit SFP (1000Base-X) ports and 4 Fast Ethernet (10/100Base-TX) ports, providing flexible connectivity for both copper and fiber networks. The unit is housed in a slim IP30-rated metal enclosure and supports DIN-rail or wall mounting, making it ideal for space-constrained industrial control cabinets. With redundant dual DC power inputs (12–48VDC), extended operating temperature range (-40°C to +70°C), and robust surge and ESD protection, the IES-2042PA ensures continuous operation in demanding industrial automation, transportation, and utility applications.
2. Key Features
- Lite-Managed Industrial Switch: Offers essential management functions such as VLAN, QoS, and DHCP client/server capabilities, providing a balance between unmanaged simplicity and full management control.
- Port Configuration: Equipped with 2 SFP slots for 1000Base-X fiber connections and 4 RJ45 ports supporting 10/100Base-T(X) Ethernet, enabling mixed media network topologies.
- High Reliability: Features redundant dual DC power inputs with reverse polarity protection and 2000VDC surge protection on power lines.
- Enhanced Protection: Each Ethernet port is protected against 4kV ESD to ensure stable operation in electrically noisy environments.
- Compact Slim Design: The 145 × 95 × 26 mm form factor allows installation in tight spaces while maintaining full industrial-grade durability.
- Wide Temperature Range: Operates reliably from -40°C to +70°C, suitable for outdoor or unconditioned environments.
- Low Power Consumption: Typical power usage is approximately 4W, optimizing energy efficiency for continuous operation.
- Network Redundancy: Supports μ-Ring and O-Ring technologies for rapid network recovery (<10 ms), ensuring minimal downtime in ring topologies.
- Flexible Mounting: Supports both DIN-rail and wall-mount installation options for versatile deployment.
- Comprehensive Management: Accessible via Web interface, SNMP (v1/v2c/v3), Telnet, and Console, and compatible with Open-Vision and Open-Vision Pro network management software.
- Long-Term Reliability: Backed by a 5-year warranty, reflecting industrial-grade design and manufacturing quality.
3. Technical Specifications
- Ports:
- 4 × 10/100Base-T(X) RJ45 ports (auto-negotiation, auto MDI/MDI-X)
- 2 × 1000Base-X SFP slots (multi-mode or single-mode fiber modules supported)
- Power Supply:
- Input Voltage: 12–48VDC (dual redundant inputs)
- Power Consumption: ~4W typical
- Surge Protection: 2000VDC
- Connector: 6-pin removable terminal block
- Mechanical Design:
- Enclosure: Rugged metal housing, IP30-rated
- Dimensions: 145 mm (W) × 95 mm (D) × 26 mm (H)
- Weight: Approximately 395 g
- Mounting: DIN-rail or wall mount
- Environmental:
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5%–95% (non-condensing)
- Protection:
- ESD Protection: 4kV DC on Ethernet ports
- Surge Protection: 2000VDC on power input
- Reverse Polarity Protection: Supported
- Casing Protection: IP30 industrial-grade metal enclosure
4. Functionality
The IES-2042PA functions as a lite-managed industrial Ethernet switch, bridging copper and fiber networks in mission-critical environments. It provides essential Layer 2 management features, enabling network segmentation, traffic prioritization, and redundancy without the complexity of a fully managed switch.
Use Cases and Applications:
- Industrial Automation: Connects PLCs, HMIs, and sensors in factory networks.
- Transportation Systems: Provides reliable Ethernet connectivity for traffic control, railway signaling, and surveillance systems.
- Energy and Utilities: Suitable for substations, renewable energy plants, and SCADA networks.
- Building Automation: Integrates IP-based control systems for HVAC, lighting, and security.
- Surveillance Networks: Supports IP cameras and NVRs in outdoor or industrial environments.
Compatibility:
- Compatible with standard Ethernet protocols (IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z).
- Supports both multi-mode and single-mode SFP transceivers for flexible fiber deployment.
- Interoperable with ORing’s Open-Vision network management suite for centralized monitoring and configuration.
5. Components & Accessories
Included Items:
- IES-2042PA switch unit
- Removable 6-pin terminal block for power input
- DIN-rail mounting kit
- Quick installation guide
Optional Accessories:
- Wall-mount bracket kit
- SFP transceivers (multi-mode or single-mode, various distances)
- External DC power supply (12–48VDC)
- Open-Vision or Open-Vision Pro network management software license
Connectors:
- Ethernet: 6 × RJ45/SFP combination ports
- Power: 6-pin terminal block for dual DC input
- Grounding: Dedicated chassis grounding screw
6. Installation & Setup
Requirements:
- DC power source (12–48VDC) with sufficient current capacity
- DIN-rail or wall-mount surface
- Proper grounding for surge and ESD protection
Mounting Options:
- DIN-Rail Mounting: Standard 35 mm DIN-rail clip pre-installed on the rear panel.
- Wall Mounting: Optional wall-mount brackets can be attached using the provided screw holes.
Configuration:
- Initial setup via Web interface or console port.
- Supports DHCP client/server for automatic IP assignment.
- VLAN and QoS configuration available through the web GUI or SNMP.
- Firmware updates and configuration backups supported via web interface.
LED Indicators:
- PWR1/PWR2: Power input status
- FAULT: Alarm output indicator
- Link/Activity: Per-port link and data transmission status
7. Performance & Capabilities
- Switching Capacity: 1.6 Gbps (non-blocking)
- Packet Forwarding Rate: 1.19 Mpps @ 64-byte packets
- MAC Address Table: 2K entries
- Buffer Memory: 1 Mbit shared memory
- Latency: <10 µs (typical)
- Network Redundancy:
- μ-Ring: <1 ms recovery time
- O-Ring: <10 ms recovery time
- Open-Ring: Compatible with other ring technologies
- RSTP/STP (IEEE 802.1w): Supported for loop prevention
Management Features:
- VLAN: Port-based and IEEE 802.1Q VLAN tagging
- QoS: Port-based, CoS, and ToS prioritization
- Port Trunking: Static and LACP (IEEE 802.3ad)
- IGMP Snooping: IGMP v1/v2/v3 for multicast traffic optimization
- Port Mirroring: For traffic monitoring and diagnostics
- Port Security: MAC-based access control
- Rate Limiting: Configurable per port
- LLDP: Link Layer Discovery Protocol for topology discovery
- System Alarms: SYSLOG, SMTP, SNMP Trap, and relay output
Limitations:
- Lite-managed functionality (not full Layer 3 routing)
- Limited to 6 total ports (4 copper + 2 fiber)
- No PoE capability
8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-X
- IEEE 802.3x Flow Control
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1p QoS
- IEEE 802.1w Rapid Spanning Tree Protocol
Environmental & Safety Compliance:
- CE (Conformité Européenne)
- FCC Part 15 Class A
- EN60950-1 (Safety of Information Technology Equipment)
Ingress Protection: IP30-rated metal enclosure
EMC & Immunity:
- ESD Protection: 4kV contact discharge
- Surge Protection: 2kV power line protection
- EFT/Burst: IEC 61000-4-4 Level 3
- Surge: IEC 61000-4-5 Level 3
Reliability:
- MTBF: >300,000 hours (calculated)
- Operating Humidity: 5–95% non-condensing
9. Additional Information
Warranty:
- 5-year limited hardware warranty covering manufacturing defects and component failures under normal industrial operating conditions.
Support & Maintenance:
- Technical support available via ORing’s global service network.
- Firmware updates and configuration utilities downloadable from the manufacturer’s website.
- Compatible with Open-Vision and Open-Vision Pro for centralized monitoring, event logging, and firmware management.
Maintenance Recommendations:
- Ensure proper grounding and surge protection.
- Periodically inspect terminal block connections for tightness.
- Keep ventilation openings unobstructed to maintain thermal performance.
- Update firmware periodically to ensure optimal security and performance.
Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Long-term component availability and backward compatibility with other ORing industrial networking products.
Summary:
The IES-2042PA is a robust, compact, and energy-efficient industrial lite-managed Ethernet switch engineered for mission-critical applications requiring reliable data communication under extreme conditions. Its combination of redundant power inputs, wide temperature tolerance, advanced ring redundancy, and essential management features make it an ideal solution for industrial automation, transportation, and infrastructure networks. With a slim IP30 metal housing, low power consumption, and comprehensive management interfaces, the IES-2042PA delivers dependable performance and simplified network control in a cost-effective, space-saving design.
Product Name: Industrial Lite-Managed Ethernet Switch
Model: IES-2042PA
Series: Industrial Lite-Managed Switch Series

Article Number: IES-2042PA
Manufacturer: ORing Industrial Networking Corp.
The IES-2042PA is a compact, industrial-grade, lite-managed Ethernet switch designed for high-reliability networking in harsh environments. It features 2 Gigabit SFP (1000Base-X) ports and 4 Fast Ethernet (10/100Base-TX) ports, providing flexible connectivity for both copper and fiber networks. The unit is housed in a slim IP30-rated metal enclosure and supports DIN-rail or wall mounting, making it ideal for space-constrained industrial control cabinets. With redundant dual DC power inputs (12–48VDC), extended operating temperature range (-40°C to +70°C), and robust surge and ESD protection, the IES-2042PA ensures continuous operation in demanding industrial automation, transportation, and utility applications.
2. Key Features
- Lite-Managed Industrial Switch: Offers essential management functions such as VLAN, QoS, and DHCP client/server capabilities, providing a balance between unmanaged simplicity and full management control.
- Port Configuration: Equipped with 2 SFP slots for 1000Base-X fiber connections and 4 RJ45 ports supporting 10/100Base-T(X) Ethernet, enabling mixed media network topologies.
- High Reliability: Features redundant dual DC power inputs with reverse polarity protection and 2000VDC surge protection on power lines.
- Enhanced Protection: Each Ethernet port is protected against 4kV ESD to ensure stable operation in electrically noisy environments.
- Compact Slim Design: The 145 × 95 × 26 mm form factor allows installation in tight spaces while maintaining full industrial-grade durability.
- Wide Temperature Range: Operates reliably from -40°C to +70°C, suitable for outdoor or unconditioned environments.
- Low Power Consumption: Typical power usage is approximately 4W, optimizing energy efficiency for continuous operation.
- Network Redundancy: Supports μ-Ring and O-Ring technologies for rapid network recovery (<10 ms), ensuring minimal downtime in ring topologies.
- Flexible Mounting: Supports both DIN-rail and wall-mount installation options for versatile deployment.
- Comprehensive Management: Accessible via Web interface, SNMP (v1/v2c/v3), Telnet, and Console, and compatible with Open-Vision and Open-Vision Pro network management software.
- Long-Term Reliability: Backed by a 5-year warranty, reflecting industrial-grade design and manufacturing quality.
3. Technical Specifications
- Ports:
- 4 × 10/100Base-T(X) RJ45 ports (auto-negotiation, auto MDI/MDI-X)
- 2 × 1000Base-X SFP slots (multi-mode or single-mode fiber modules supported)
- Power Supply:
- Input Voltage: 12–48VDC (dual redundant inputs)
- Power Consumption: ~4W typical
- Surge Protection: 2000VDC
- Connector: 6-pin removable terminal block
- Mechanical Design:
- Enclosure: Rugged metal housing, IP30-rated
- Dimensions: 145 mm (W) × 95 mm (D) × 26 mm (H)
- Weight: Approximately 395 g
- Mounting: DIN-rail or wall mount
- Environmental:
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5%–95% (non-condensing)
- Protection:
- ESD Protection: 4kV DC on Ethernet ports
- Surge Protection: 2000VDC on power input
- Reverse Polarity Protection: Supported
- Casing Protection: IP30 industrial-grade metal enclosure
4. Functionality
The IES-2042PA functions as a lite-managed industrial Ethernet switch, bridging copper and fiber networks in mission-critical environments. It provides essential Layer 2 management features, enabling network segmentation, traffic prioritization, and redundancy without the complexity of a fully managed switch.
Use Cases and Applications:
- Industrial Automation: Connects PLCs, HMIs, and sensors in factory networks.
- Transportation Systems: Provides reliable Ethernet connectivity for traffic control, railway signaling, and surveillance systems.
- Energy and Utilities: Suitable for substations, renewable energy plants, and SCADA networks.
- Building Automation: Integrates IP-based control systems for HVAC, lighting, and security.
- Surveillance Networks: Supports IP cameras and NVRs in outdoor or industrial environments.
Compatibility:
- Compatible with standard Ethernet protocols (IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z).
- Supports both multi-mode and single-mode SFP transceivers for flexible fiber deployment.
- Interoperable with ORing’s Open-Vision network management suite for centralized monitoring and configuration.
5. Components & Accessories
Included Items:
- IES-2042PA switch unit
- Removable 6-pin terminal block for power input
- DIN-rail mounting kit
- Quick installation guide
Optional Accessories:
- Wall-mount bracket kit
- SFP transceivers (multi-mode or single-mode, various distances)
- External DC power supply (12–48VDC)
- Open-Vision or Open-Vision Pro network management software license
Connectors:
- Ethernet: 6 × RJ45/SFP combination ports
- Power: 6-pin terminal block for dual DC input
- Grounding: Dedicated chassis grounding screw
6. Installation & Setup
Requirements:
- DC power source (12–48VDC) with sufficient current capacity
- DIN-rail or wall-mount surface
- Proper grounding for surge and ESD protection
Mounting Options:
- DIN-Rail Mounting: Standard 35 mm DIN-rail clip pre-installed on the rear panel.
- Wall Mounting: Optional wall-mount brackets can be attached using the provided screw holes.
Configuration:
- Initial setup via Web interface or console port.
- Supports DHCP client/server for automatic IP assignment.
- VLAN and QoS configuration available through the web GUI or SNMP.
- Firmware updates and configuration backups supported via web interface.
LED Indicators:
- PWR1/PWR2: Power input status
- FAULT: Alarm output indicator
- Link/Activity: Per-port link and data transmission status
7. Performance & Capabilities
- Switching Capacity: 1.6 Gbps (non-blocking)
- Packet Forwarding Rate: 1.19 Mpps @ 64-byte packets
- MAC Address Table: 2K entries
- Buffer Memory: 1 Mbit shared memory
- Latency: <10 µs (typical)
- Network Redundancy:
- μ-Ring: <1 ms recovery time
- O-Ring: <10 ms recovery time
- Open-Ring: Compatible with other ring technologies
- RSTP/STP (IEEE 802.1w): Supported for loop prevention
Management Features:
- VLAN: Port-based and IEEE 802.1Q VLAN tagging
- QoS: Port-based, CoS, and ToS prioritization
- Port Trunking: Static and LACP (IEEE 802.3ad)
- IGMP Snooping: IGMP v1/v2/v3 for multicast traffic optimization
- Port Mirroring: For traffic monitoring and diagnostics
- Port Security: MAC-based access control
- Rate Limiting: Configurable per port
- LLDP: Link Layer Discovery Protocol for topology discovery
- System Alarms: SYSLOG, SMTP, SNMP Trap, and relay output
Limitations:
- Lite-managed functionality (not full Layer 3 routing)
- Limited to 6 total ports (4 copper + 2 fiber)
- No PoE capability
8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-X
- IEEE 802.3x Flow Control
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1p QoS
- IEEE 802.1w Rapid Spanning Tree Protocol
Environmental & Safety Compliance:
- CE (Conformité Européenne)
- FCC Part 15 Class A
- EN60950-1 (Safety of Information Technology Equipment)
Ingress Protection: IP30-rated metal enclosure
EMC & Immunity:
- ESD Protection: 4kV contact discharge
- Surge Protection: 2kV power line protection
- EFT/Burst: IEC 61000-4-4 Level 3
- Surge: IEC 61000-4-5 Level 3
Reliability:
- MTBF: >300,000 hours (calculated)
- Operating Humidity: 5–95% non-condensing
9. Additional Information
Warranty:
- 5-year limited hardware warranty covering manufacturing defects and component failures under normal industrial operating conditions.
Support & Maintenance:
- Technical support available via ORing’s global service network.
- Firmware updates and configuration utilities downloadable from the manufacturer’s website.
- Compatible with Open-Vision and Open-Vision Pro for centralized monitoring, event logging, and firmware management.
Maintenance Recommendations:
- Ensure proper grounding and surge protection.
- Periodically inspect terminal block connections for tightness.
- Keep ventilation openings unobstructed to maintain thermal performance.
- Update firmware periodically to ensure optimal security and performance.
Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Long-term component availability and backward compatibility with other ORing industrial networking products.
Summary:
The IES-2042PA is a robust, compact, and energy-efficient industrial lite-managed Ethernet switch engineered for mission-critical applications requiring reliable data communication under extreme conditions. Its combination of redundant power inputs, wide temperature tolerance, advanced ring redundancy, and essential management features make it an ideal solution for industrial automation, transportation, and infrastructure networks. With a slim IP30 metal housing, low power consumption, and comprehensive management interfaces, the IES-2042PA delivers dependable performance and simplified network control in a cost-effective, space-saving design.
-
