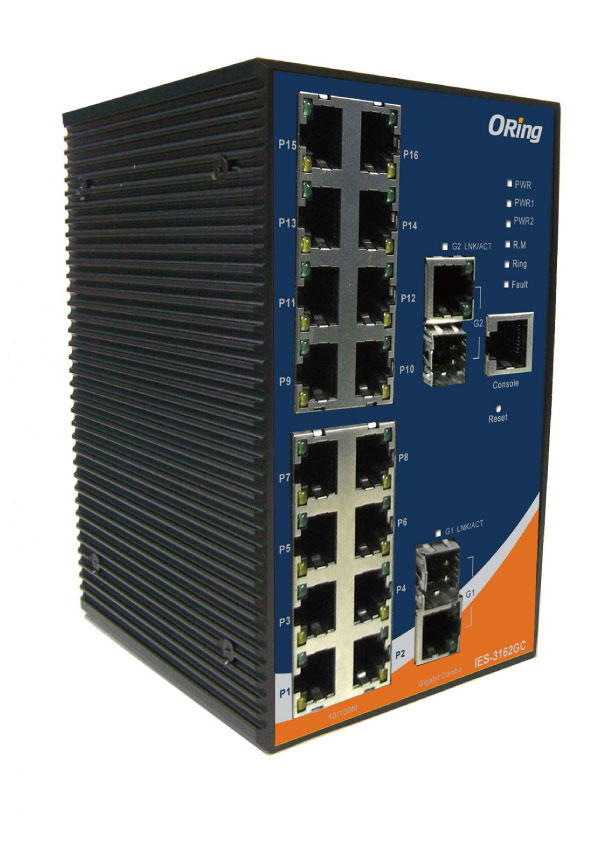

IES-3162GC
Industrial Managed 2*SFP1000 16*100TX Enhanced Switch
590,00 EUR
including VAT 702.10 EUR
- High‑Port Density: 18 total ports – 16× 10/100Base‑T(X) RJ‑45 and 2× Gigabit combo (RJ‑45/SFP).
- Redundant Ethernet Ring: ORing proprietary redundancy with < 10 ms recovery over 250 nodes.
- Multi‑Protocol Redundancy: Supports O‑Ring, O‑Chain, Open‑Ring, STP, RSTP (802.1w), MSTP (802.1s), and MRP (IEC 62439).
- Comprehensive Management: Web‑based interface, Telnet, CLI, SNMP v1/v2c/v3, and RS‑232 console.
- Security Functions: 802.1x port‑based authentication, MAC‑based port security, RADIUS centralized password management, HTTPS/SSH encryption, and IP Guard for intrusion prevention.
- Advanced QoS and VLAN: IEEE 802.1p QoS with four priority queues, IEEE 802.1Q VLAN tagging, Q‑in‑Q double tagging, GVRP, and up to 4096 VLANs.
- Multicast Optimization: IGMP v2/v3 snooping, MVR (Multicast VLAN Registration), and static multicast filtering.
- Time Synchronization: SNTP and IEEE 1588 PTP client for precision clock synchronization.
- Event Notification: Syslog, SNMP traps, email (SMTP) alerts, and relay output for fault events.
- High Reliability: Dual redundant 12–48 V DC power inputs with reverse polarity and overload protection.
- Industrial Durability: IP‑30 aluminum housing, 5‑year warranty, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
- Redundant Ethernet Ring: ORing proprietary redundancy with < 10 ms recovery over 250 nodes.
- Multi‑Protocol Redundancy: Supports O‑Ring, O‑Chain, Open‑Ring, STP, RSTP (802.1w), MSTP (802.1s), and MRP (IEC 62439).
- Comprehensive Management: Web‑based interface, Telnet, CLI, SNMP v1/v2c/v3, and RS‑232 console.
- Security Functions: 802.1x port‑based authentication, MAC‑based port security, RADIUS centralized password management, HTTPS/SSH encryption, and IP Guard for intrusion prevention.
- Advanced QoS and VLAN: IEEE 802.1p QoS with four priority queues, IEEE 802.1Q VLAN tagging, Q‑in‑Q double tagging, GVRP, and up to 4096 VLANs.
- Multicast Optimization: IGMP v2/v3 snooping, MVR (Multicast VLAN Registration), and static multicast filtering.
- Time Synchronization: SNTP and IEEE 1588 PTP client for precision clock synchronization.
- Event Notification: Syslog, SNMP traps, email (SMTP) alerts, and relay output for fault events.
- High Reliability: Dual redundant 12–48 V DC power inputs with reverse polarity and overload protection.
- Industrial Durability: IP‑30 aluminum housing, 5‑year warranty, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
Comprehensive Product Summary – ORing IES‑3162GC Industrial Managed Ethernet Switch
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: Industrial Managed Ethernet Switch
Model: IES‑3162GC
Series: IES‑31xxGC Series
Article Number: IES‑3162GC
Manufacturer: ORing Industrial Networking Corp., Taiwan
The ORing IES‑3162GC is an 18‑port industrial‑grade managed Ethernet switch designed for mission‑critical automation and networking applications. It integrates 16 Fast Ethernet (10/100Base‑T(X)) ports and 2 Gigabit combo ports (10/100/1000Base‑T(X) or 100/1000Base‑X SFP), providing flexible copper and fiber connectivity. The unit supports advanced redundancy technologies such as O‑Ring, Open‑Ring, RSTP/MSTP, and MRP, ensuring network recovery times of less than 10 ms across up to 250 interconnected devices.
The switch is housed in a rugged IP‑30 metal enclosure, supports DIN‑rail and wall‑mount installation, and operates reliably in extreme industrial environments with a temperature range of ‑40 °C to +70 °C. It is fully manageable via Web GUI, Telnet, CLI, RS‑232 console, or ORing’s Open‑Vision Windows‑based management suite.
### 2. Key Features
- High‑Port Density: 18 total ports – 16× 10/100Base‑T(X) RJ‑45 and 2× Gigabit combo (RJ‑45/SFP).
- Redundant Ethernet Ring: ORing proprietary redundancy with < 10 ms recovery over 250 nodes.
- Multi‑Protocol Redundancy: Supports O‑Ring, O‑Chain, Open‑Ring, STP, RSTP (802.1w), MSTP (802.1s), and MRP (IEC 62439).
- Comprehensive Management: Web‑based interface, Telnet, CLI, SNMP v1/v2c/v3, and RS‑232 console.
- Security Functions: 802.1x port‑based authentication, MAC‑based port security, RADIUS centralized password management, HTTPS/SSH encryption, and IP Guard for intrusion prevention.
- Advanced QoS and VLAN: IEEE 802.1p QoS with four priority queues, IEEE 802.1Q VLAN tagging, Q‑in‑Q double tagging, GVRP, and up to 4096 VLANs.
- Multicast Optimization: IGMP v2/v3 snooping, MVR (Multicast VLAN Registration), and static multicast filtering.
- Time Synchronization: SNTP and IEEE 1588 PTP client for precision clock synchronization.
- Event Notification: Syslog, SNMP traps, email (SMTP) alerts, and relay output for fault events.
- High Reliability: Dual redundant 12–48 V DC power inputs with reverse polarity and overload protection.
- Industrial Durability: IP‑30 aluminum housing, 5‑year warranty, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
### 3. Technical Specifications
Physical Ports
- 16 × 10/100Base‑T(X) RJ‑45, auto‑negotiation, auto MDI/MDI‑X
- 2 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP)
Performance
- Switching bandwidth: 7.2 – 7.4 Gbps
- Switching latency: 7–9 µs
- MAC address table: 8192 entries
- VLANs supported: 4096
- IGMP multicast groups: 1024
- Priority queues: 4
- Store‑and‑forward switching architecture
Power
- Dual DC inputs: 12 – 48 V DC via 6‑pin terminal block
- Typical consumption: 12 W
- Protection: reverse polarity and overload current
Mechanical
- Enclosure: IP‑30 metal case
- Dimensions: approx. 96.4 (W) × 108.5 (D) × 154 (H) mm
- Weight: ≈ 1.1 – 1.2 kg
Environmental
- Operating temperature: ‑40 °C to +70 °C
- Storage temperature: ‑40 °C to +85 °C
- Humidity: 5 % – 95 % non‑condensing
Reliability & Safety
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free fall: IEC 60068‑2‑32
- Safety: EN 60950‑1
- EMI/EMS: FCC Part 15 Class A, EN 55022 Class A, EN 61000‑4‑2/3/4/5/6/8/11
### 4. Functionality and Applications
Operation Principle
The IES‑3162GC functions as a Layer 2 managed switch providing deterministic Ethernet connectivity for industrial control systems. It uses store‑and‑forward packet processing and supports redundant ring topologies to maintain continuous communication even during link or node failures.
Use Cases
- Factory automation and process control networks
- Power substation and utility communication systems
- Intelligent transportation systems (ITS)
- Oil, gas, and mining field networks
- Surveillance and security infrastructure requiring fiber uplinks
Management Interfaces
- Web GUI: HTML/Java‑based configuration and monitoring
- CLI: Command‑line interface via Telnet or RS‑232 console (9600 bps, 8‑N‑1)
- SNMP: v1/v2c/v3 with encrypted authentication and access control
- Open‑Vision Utility: Windows‑based centralized management for up to 500 devices
Compatibility
Compliant with IEEE 802.3/802.3u/802.3z/802.3ab standards, interoperable with third‑party Ethernet devices and SFP transceivers (100 Mb/s and 1 Gb/s).
### 5. Components & Accessories
Included in Package
- IES‑3162GC switch unit
- 6‑pin terminal block for power input
- DIN‑rail mounting kit
- Wall‑mount bracket
- Console cable (RJ‑45 to DB‑9)
- Dust covers for RJ‑45 and SFP ports
- ORing Tool CD and Quick Installation Guide
Optional Accessories
- Open‑Vision M500: network management suite (supports 500 IP devices)
- SFP100 series: 100 Mb/s SFP optical transceivers
- SFP1G series: 1 Gb/s SFP optical transceivers
- DIN‑rail power supplies: DR‑45 (45 W), DR‑75 (75 W), DR‑120 (120 W), SDR‑240‑48 (240 W), SDR‑480‑48 (480 W)
### 6. Installation & Setup
Mounting Options
- DIN‑Rail: integrated rear clip for 35 mm DIN‑rail; tool‑less snap‑in installation.
- Wall‑Mount: optional bracket with M3 × 5 mm screws.
Power Connection
Connect dual DC sources (12–48 V DC) to the 6‑pin terminal block:
- V1+, V1– (primary)
- V2+, V2– (secondary)
- Fault relay contacts (1 A @ 24 V DC) for alarm signaling
Network Cabling
- 10/100Base‑T(X): Cat 5 UTP, 100 m max
- 1000Base‑T(X): Cat 5e UTP, 100 m max
- 100/1000Base‑X SFP: multi‑mode (850 nm, 0–550 m) or single‑mode (1310/1550 nm) fiber with LC connectors
Initial Configuration
Default IP address 192.168.10.1 / 24, gateway 192.168.10.254, login admin/admin.
Accessible via Web browser, Telnet, or console. Supports DHCP client or static IP assignment.
### 7. Performance & Capabilities
Switching & Throughput
- Non‑blocking architecture with 7.2 Gbps backplane bandwidth
- Store‑and‑forward latency < 10 µs
- Supports port trunking (IEEE 802.3ad LACP) for aggregated bandwidth
Redundancy & Recovery
- O‑Ring: < 10 ms recovery across 250 nodes
- Dual Homing: connects redundant rings to backbone switches
- Coupling Ring: segmentation of large rings for fault isolation
- O‑Chain: links multiple rings into compound topologies
Quality of Service (QoS)
- IEEE 802.1p priority tagging (4 queues)
- Weighted‑fair or strict‑priority scheduling
- Port‑based, COS‑based, and TOS/DSCP prioritization
VLAN & Traffic Segmentation
- IEEE 802.1Q tagged VLANs, Q‑in‑Q double tagging
- Port‑based VLANs for isolated domains
- GVRP automatic VLAN registration
Multicast & Filtering
- IGMP v1/v2/v3 snooping
- MVR for multicast VLAN distribution
- Static multicast filtering tables
Security & Access Control
- 802.1x authentication with RADIUS server integration
- MAC address blacklist/whitelist
- IP Guard for IP/MAC binding and anti‑spoofing
- HTTPS and SSH secure management
- SNMP v3 encrypted authentication
Diagnostics & Monitoring
- Port mirroring (TX/RX/both)
- Port statistics, MAC table view, traffic monitoring
- Syslog and SMTP event logging
- Ping and loop guard tools
Limitations
- Layer 2 switching only (no Layer 3 routing)
- SFP modules sold separately
- Open‑Vision software license required for centralized management
### 8. Standards & Compliance
Ethernet Standards
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX/FX), 802.3z (1000Base‑X), 802.3ab (1000Base‑T), 802.3x (flow control), 802.3ad (LACP)
Bridging & VLAN
IEEE 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1Q (VLAN tagging), 802.1p (QoS), 802.1x (authentication), 802.1AB (LLDP)
Environmental & Safety Compliance
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge 2 kV DC), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Safety: EN 60950‑1
- Mechanical: IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free Fall)
Industrial Protection
- IP‑30 rated metal enclosure
- ESD protection 4 kV DC on Ethernet ports
- Surge protection 2 kV DC on power inputs
### 9. Additional Information
Warranty & Support
- Standard 5‑year limited hardware warranty
- Covers defects in materials and workmanship
- Excludes damage from misuse or unauthorized modification
- Technical support via email (support@oring‑networking.com) and regional distributors
Maintenance & Firmware Updates
- Configuration backup/restore via TFTP or local file
- Firmware upgrade through Web GUI or CLI (TFTP server required)
- Auto‑Provision feature for automatic firmware update on boot
- SNTP/PTP time synchronization for accurate event logging
Management Software
- Open‑Vision M500: centralized monitoring of up to 500 ORing devices, topology visualization, event logging, and configuration templates.
Manufacturer Contact
ORing Industrial Networking Corp.
4F., No. 3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan
Tel: +886‑2‑2918‑3036 Fax: +886‑2‑2918‑3084
Website: [www.oring‑networking.com](http://www.oring-networking.com)
### Summary
The ORing IES‑3162GC is a robust, feature‑rich industrial Ethernet switch engineered for high‑availability networks in harsh environments. Its combination of redundant ring technology, comprehensive Layer 2 management, secure access control, and wide environmental tolerance makes it ideal for automation, transportation, and utility infrastructures. With dual DC inputs, IP‑30 metal housing, and a 5‑year warranty, the IES‑3162GC delivers long‑term reliability and network resilience for industrial applications requiring both Fast Ethernet and Gigabit connectivity.
