Comprehensive Product Summary – ORing IGS‑3032GC Industrial Managed Ethernet Switch

---

### 1. Product Overview

Product Name: Industrial Managed Ethernet Switch
Model: IGS‑3032GC
Series: IGS‑3000 Series
Article Number: IGS‑3032GC
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Headquarters: 3F., No.542‑2, Jhongjheng Rd., Sindian District, New Taipei City 23145, Taiwan, R.O.C.
Contact: Tel: +886‑2‑2218‑1066 | Fax: +886‑2‑2218‑1014 | Email: support@oring-networking.com

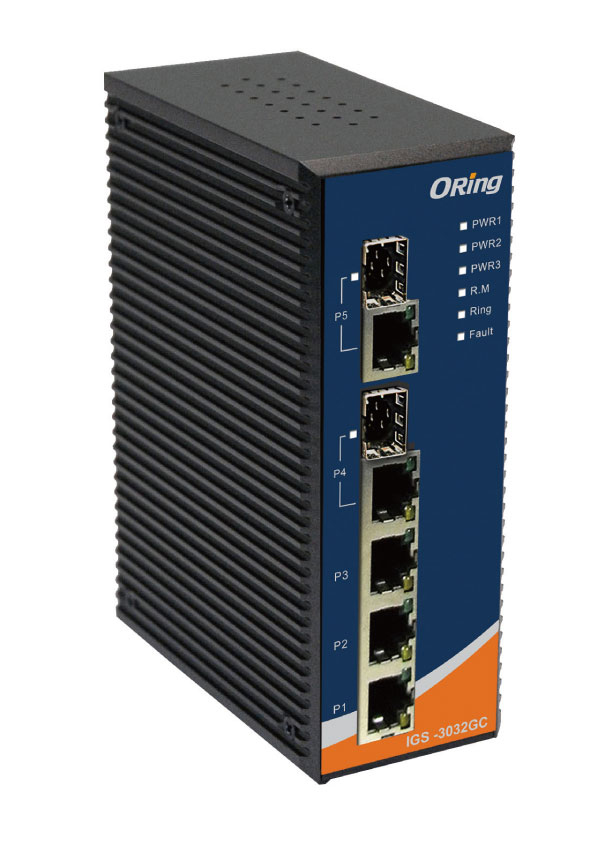

The ORing IGS‑3032GC is a rugged, fully managed industrial Ethernet switch designed for mission‑critical applications in harsh environments. It combines high‑performance Gigabit switching with advanced redundancy, security, and management features compliant with EN50155 railway standards. The unit supports both copper and fiber connectivity through three 10/100/1000Base‑T(X) ports and two 100/1000Base‑X SFP combo ports, providing flexible deployment options for industrial automation, transportation, and control networks.

---

### 2. Key Features

- High‑Performance Switching:
3 × 10/100/1000Base‑T(X) RJ‑45 ports and 2 × 100/1000Base‑X SFP combo ports with auto‑negotiation and auto‑MDI/MDI‑X.
Store‑and‑forward architecture with 10 Gbps switching bandwidth and 7 µs latency.

- Industrial‑Grade Design:
IP‑30 metal enclosure, fanless operation, and extended temperature range (‑40 °C to 70 °C).
Designed for vibration, shock, and electrical noise immunity per EN50155 and EN61373.

- Redundant Networking:
Supports ORing’s proprietary O‑Ring technology (recovery < 20 ms over 250 nodes), Open‑Ring, O‑Chain, MRP, and IEEE 802.1D/w/s STP/RSTP/MSTP.
Dual‑homing and coupling ring configurations for multi‑ring topologies.

- Comprehensive Management:
Web GUI, Telnet, RS‑232 console (CLI), SNMP v1/v2c/v3, and ORing’s Open‑Vision utility.
Supports Modbus TCP, LLDP, DHCP server/client, and firmware upgrade via TFTP or web.

- Advanced Security:
802.1X port‑based authentication, RADIUS integration, IP/MAC filtering, SNMPv3 encryption, and port security.
IP Guard and MAC blacklist for intrusion prevention.

- Quality of Service (QoS):
IEEE 802.1p CoS, DSCP/TOS prioritization, port‑based and weighted‑fair queuing (8:4:2:1 ratio).
Ensures deterministic performance for VoIP, video, and control traffic.

- Multicast & VLAN Support:
IGMP v2/v3 snooping, MVR (Multicast VLAN Registration), static multicast filtering.
IEEE 802.1Q VLAN tagging with up to 4096 VLANs and GVRP dynamic VLAN registration.

- Reliability & Redundancy:
Triple redundant DC power inputs (12–48 VDC) with reverse polarity and overload protection.
Fault relay output (1 A @ 24 VDC) and alarm LED for power or port failures.

- Diagnostics & Alerts:
SYSLOG, SMTP email notifications, SNMP traps, and event logging.
Real‑time monitoring of port statistics, MAC tables, and network topology.

---

### 3. Technical Specifications

Physical Ports
- 3 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDI‑X)
- 2 × 100/1000Base‑X SFP combo ports
- 1 × RS‑232 console port (RJ‑45, 9600 bps, 8‑N‑1)

Switching Performance
- Switching bandwidth: 10 Gbps
- Switching latency: 7 µs (store‑and‑forward)
- MAC address table: 8192 entries
- Priority queues: 4
- VLANs supported: 4096
- IGMP multicast groups: 1024

Power
- Triple DC inputs: +12 ~ 48 VDC or –12 ~ 48 VDC (7‑pin terminal block); 12 ~ 45 VDC on power jack
- Power consumption: 10 W typical
- Overload and reverse polarity protection: Yes

Mechanical
- Enclosure: IP‑30 metal housing
- Dimensions (W × D × H): 54.2 × 106.1 × 145.4 mm (2.13 × 4.18 × 5.72 in)
- Weight: 820 g
- Mounting: DIN‑rail or wall‑mount kit included

Environmental
- Operating temperature: ‑40 °C to 70 °C (‑40 °F to 158 °F)
- Storage temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % to 95 % non‑condensing

LED Indicators
- Power (PWR1/PWR2/PWR3): Green ON = active
- R.M. (Ring Master): Green ON = master mode
- Ring: Green ON = normal, Blinking = ring break
- Fault: Amber ON = power failure or port fault
- Port Link/Act: Green ON/Blink = link/activity
- Speed: Amber ON = 100 Mbps link

Compliance & Certifications
- EMI: FCC Part 15 Class A, EN55022 Class A, EN50155 (EN50121‑3‑2, EN55011, EN50121‑4)
- EMS: EN61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑9, ‑11
- Shock/Vibration: IEC60068‑2‑27, ‑2‑6, EN61373
- Free Fall: IEC60068‑2‑32
- Safety: EN60950‑1
- Railway: EN50155 compliant

Warranty: 5 years limited hardware warranty

---

### 4. Functionality

Operation & Management
The IGS‑3032GC operates as a Layer 2 managed switch supporting multiple management interfaces:
- Web GUI: HTTP/HTTPS configuration and monitoring
- CLI: via RS‑232 console or Telnet (115200 bps default)
- SNMP v1/v2c/v3: for integration with NMS systems
- Modbus TCP: for SCADA integration
- Open‑Vision: ORing’s centralized management software

Use Cases & Applications
- Railway and rolling stock networks (EN50155 certified)
- Factory automation and process control
- Intelligent transportation systems (ITS)
- Power substations and energy distribution networks
- Surveillance and security systems requiring redundant Ethernet rings

Compatibility
Interoperable with standard Ethernet devices and SFP modules (100/1000 Mbps, multi‑mode or single‑mode LC).
Supports auto MDI/MDI‑X and auto‑negotiation for seamless connection to PCs, PLCs, routers, and other switches.

---

### 5. Components & Accessories

Included Items
- IGS‑3032GC switch unit
- DIN‑rail mount kit
- Wall‑mount brackets and screws
- RS‑232 console cable (RJ‑45 to DB‑9 female)
- Quick installation guide and user manual

Optional Accessories
- SFP transceivers (100/1000Base‑X, multi‑mode or single‑mode)
- External DC power supplies (12–48 VDC)
- ORing Open‑Vision network management software

Connectors
- 7‑pin terminal block for dual redundant power inputs and fault relay
- RJ‑45 Ethernet ports for copper connections
- LC connectors via SFP modules for fiber links

---

### 6. Installation & Setup

Mounting Options
- DIN‑Rail Installation: Attach the included DIN‑rail kit to the rear panel and snap onto a standard 35 mm rail.
- Wall Mounting: Use the provided brackets and screws to secure the unit to a flat surface.

Wiring Guidelines
- Use CAT 5e or better UTP cables for 10/100/1000Base‑T(X) connections (up to 100 m).
- Ground the unit properly to reduce EMI.
- Separate power and signal wiring to avoid interference.
- Redundant power inputs (V+, V–) should be wired to independent DC sources for maximum uptime.

Configuration Interfaces
- Default IP: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Gateway: 192.168.10.254
- Username/Password: admin/admin

Reset Options
- Press reset button 2–3 s to reboot; hold 5 s to restore factory defaults.

---

### 7. Performance & Capabilities

Switching Capacity: 10 Gbps non‑blocking
Forwarding Rate: 7 µs latency (store‑and‑forward)
Redundancy Recovery: < 20 ms (O‑Ring over 250 nodes)
QoS: 4 priority queues with weighted fair or strict priority scheduling
VLAN Support: IEEE 802.1Q tagging, GVRP, QinQ (double tagging)
Multicast: IGMP v2/v3 snooping, MVR, static filtering
Security: 802.1X authentication, RADIUS, SNMPv3 encryption, IP/MAC filtering
Diagnostics: Port mirroring, loop guard, traffic monitoring, ping utility
Reliability: Triple redundant power inputs and fault relay output
Limitations: Layer 2 switching only (no Layer 3 routing); SFP modules sold separately

---

### 8. Standards & Compliance

Ethernet Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (LACP)
- IEEE 802.1D (STP)
- IEEE 802.1w (RSTP)
- IEEE 802.1s (MSTP)
- IEEE 802.1p (CoS/QoS)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1X (Authentication)
- IEEE 802.1AB (LLDP)

Environmental & Safety Compliance
- EN50155 (Railway Applications)
- EN50121‑3‑2 & EN50121‑4 (EMC for Railway Signaling)
- EN61000‑4‑2 to ‑11 (EMC Immunity Tests)
- IEC60068‑2‑6/‑27/‑32 (Vibration, Shock, Free Fall)
- EN60950‑1 (Safety of IT Equipment)
- FCC Part 15 Class A and CISPR 22 Class A

These certifications ensure the IGS‑3032GC meets industrial and transportation requirements for electromagnetic compatibility, safety, and environmental resilience.

---

### 9. Additional Information

Warranty & Support
- Standard 5‑year limited hardware warranty covering defects in materials and workmanship.
- Technical support available via email and phone from ORing Industrial Networking Corp.
- Firmware updates and manuals available on the manufacturer’s website.

Maintenance & Firmware Updates
- Configuration backup and restore via TFTP or local PC.
- Auto Provision feature for automatic firmware upgrade on boot.
- SNTP and PTP client support for time synchronization.
- System logs and event notifications for preventive maintenance.

Service Life & Reliability
- Fanless design for extended MTBF and low maintenance.
- Designed for continuous operation in industrial and transport applications.

---

### Summary

The ORing IGS‑3032GC is a compact yet powerful industrial managed Gigabit Ethernet switch engineered for high‑reliability networking in demanding environments. Its combination of five Gigabit ports (three copper, two SFP combo), fast redundancy (< 20 ms), and comprehensive management and security features make it ideal for railway, automation, and mission‑critical control systems. With EN50155 certification, triple redundant power inputs, and ‑40 °C to 70 °C operation, the IGS‑3032GC ensures continuous, secure, and deterministic network performance under extreme conditions.

This switch exemplifies ORing’s commitment to industrial‑grade networking—delivering robust performance, flexible configuration, and long‑term reliability for modern industrial Ethernet infrastructures.
