1. PRODUCT OVERVIEW

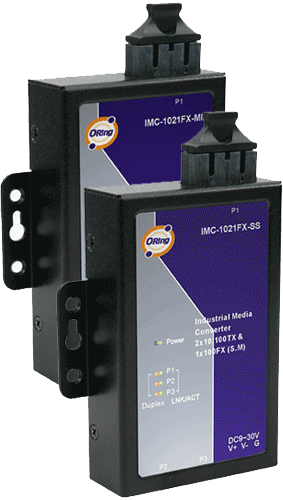

The IMC‑1021FX‑SS‑SC‑T is an industrial-grade Ethernet–to–fiber media converter designed by ORing Industrial Networking Corp. It belongs to the IMC‑1021FX series and is identified under article number IMC-1021FX-SS-SC-T. The unit provides media conversion between 10/100Base‑T(X) copper Ethernet and 100Base‑FX single‑mode fiber. It is engineered for harsh industrial environments requiring extended temperature support, redundant power, DIN‑rail installation, and high mechanical durability.

2. KEY FEATURES
• Converts 2× 10/100Base‑T(X) Ethernet ports to 1× 100Base‑FX fiber port
• Supports single‑mode fiber with SC connector, 1550 nm wavelength, up to 30 km transmission distance
• Auto‑negotiation and auto‑MDI/MDI‑X on all copper ports
• Extended temperature rating: –40°C to +75°C
• IP‑30 rugged metal housing for industrial reliability
• Alarm relay output (configurable) for event notifications
• Dual redundant DC power input (9–30 VDC) for high availability
• Low power consumption (~4.5 W) and lightweight (~300 g)
• DIN‑rail mountable industrial form factor
• Designed for high‑reliability deployment in demanding environments such as transportation, factory automation, utility networks, and critical infrastructure

3. TECHNICAL SPECIFICATIONS
• Dimensions: 88 mm (W) × 102 mm (D) × 24 mm (H)
• Weight: 300 g
• Housing: IP‑30 rated metal enclosure
• Copper Ports: 2× 10/100Base‑T(X), auto‑negotiation, auto‑MDI/MDI‑X
• Fiber Port: 1× 100Base‑FX, single‑mode, SC, 1550 nm, 30 km reach
• Power Input: 9–30 VDC, dual redundant inputs via DC terminal block
• Power Consumption: approx. 4.5 W
• Operating Temperature (T models): –40°C to +75°C
• Operating Humidity: Industrial standard (not explicitly listed but consistent with series: 5–95% non‑condensing)
• Mechanical construction: fanless, convection‑cooled, industrial-certified layout

4. FUNCTIONALITY
The converter provides seamless media translation between copper Ethernet and fiber networks. It enables long‑distance, noise‑immune communication through single‑mode fiber while maintaining compatibility with legacy and existing 10/100 Mbps copper infrastructure. Typical use cases include:
• Extending Ethernet networks over long distances
• Connecting remote industrial devices and control panels
• Improving EMI immunity in electrically noisy industrial sites
• Integrating fiber uplinks into SCADA, PLC, or security systems
• Deploying Ethernet in environments where copper is unsuitable (heat, distance, interference)

Compatibility:
• Supports IEEE 802.3, 802.3u (10/100 Mbps Ethernet standards)
• Compatible with industrial switches, routers, PLCs, and other fiber‑based network infrastructure

5. COMPONENTS & ACCESSORIES
Included components typically associated with IMC‑1021FX products:
• The media converter main unit
• DIN‑rail mounting clip (pre‑installed or included)
• Terminal block for DC power input
• Product documentation and installation notes

Optional accessories (not included but compatible):
• External AC/DC power supply (9–30V)
• Fiber patch cables (single‑mode, SC)
• Panel‑mount brackets (depending on deployment requirements)

Connectors:
• 2× RJ45 connectors (10/100Base‑T(X))
• 1× SC fiber connector (100Base‑FX)
• 1× terminal block for dual DC power input
• 1× alarm relay output connector

6. INSTALLATION & SETUP
Installation is designed for ease in industrial cabinets:
• Primary mounting method: DIN‑rail
• Alternative mounting: optional panel hardware supported by series
• Connect copper Ethernet devices via RJ45 ports
• Connect fiber uplink to SC single‑mode fiber
• Provide 9–30VDC to the terminal block; redundant input supported
• Configure relay output depending on alarm requirements
• Device automatically negotiates copper link speed and duplex

Environmental requirements:
• Must be installed within rated temperature limits (–40 to +75°C for T version)
• Allow sufficient airflow for convection cooling
• Use industrial power supplies to ensure stable operation

7. PERFORMANCE & CAPABILITIES
• Copper Ethernet: 10/100 Mbps, full/half duplex
• Fiber Ethernet: 100 Mbps full duplex
• Fiber transmission range: 30 km (typical for 1550 nm SMF)
• Low latency suitable for industrial control networks
• High noise immunity due to fiber interface
• Reliability: Redundant power + alarm relay supports stable industrial operation
• No switching/routing overhead—pure media conversion ensures predictable performance

Limitations:
• Does not support Gigabit speeds
• Media conversion only (no management functions)
• SC connector only—no SFP slot for optics changes

8. STANDARDS & COMPLIANCE
Directly applicable certifications based on IMC‑1021FX series:
• CE (EMC and safety compliance)
• FCC
• EN60950 (electrical safety for ICT equipment)
Industry standards supported:
• IEEE 802.3 (10Base‑T)
• IEEE 802.3u (100Base‑TX/FX)
• Auto‑MDI/MDI‑X functionality on copper interfaces

The IP‑30 metal casing ensures compliance with mechanical protection commonly required in industrial equipment.

9. ADDITIONAL INFORMATION
Warranty: 5 years (manufacturer standard for the IMC‑1021FX series)
Support: Includes technical documentation, wiring diagrams, installation guides
Maintenance:
• No internal serviceable components
• Periodic checks recommended for fiber connector cleanliness and power terminal integrity
Firmware/Software:
• Device is non‑managed; no firmware interaction required
Lifecycle: Industrial‑grade components ensure long‑term availability and stable performance in continuous‑operation environments

-----------------------------------------------------------------------
