Comprehensive Product Summary – IP102 Ethernet to RS232/422/485 2-Port Serial Device Server

---

### 1. Product Overview

Product Name: IP Serial Device Server
Model: IP102
Series: IP-E102SJ / IP Serial Server Series
Article Number: IP102
Manufacturer: RAYON TECHNOLOGY CO., LTD.
Manufacturer Address: 2F, No. 177, Chung Shan 2 Rd., Lu Chou City, Taipei Hsien, Taiwan
Contact:
- Tel: +886-2-82858362
- Fax: +886-2-82857065
- Email: rayon@ms1.hinet.net
- Web: [www.rayontech.com](http://www.rayontech.com)

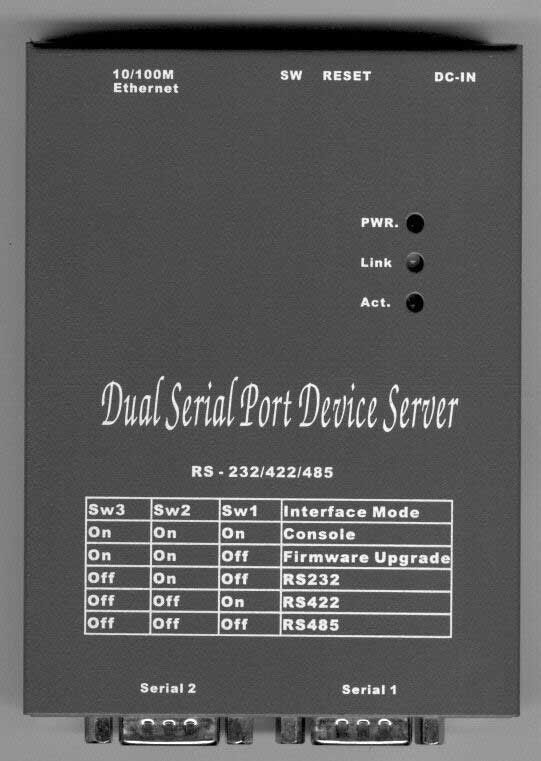

The IP102 is a compact, industrial-grade Ethernet-to-serial communication server designed to connect two serial devices (RS232, RS422, or RS485) to a 10/100 Mbps Ethernet network. It enables remote access, monitoring, and control of serial equipment over TCP/IP or UDP/IP networks, providing a reliable bridge between legacy serial systems and modern Ethernet infrastructures.

---

### 2. Key Features

- Dual Serial Interface: Two independent serial ports—one configurable as RS232/RS422/RS485 via DIP switch, and one fixed RS232 port.
- Auto-Detecting Ethernet: Supports 10/100 Mbps Ethernet with automatic speed detection and full/half-duplex operation.
- Flexible Communication Modes:
- Direct IP Mode: For socket-based TCP/UDP communication.
- Virtual COM Mode: Creates virtual COM ports on Windows PCs for transparent serial communication over LAN/WAN.
- Paired Mode (Serial Tunneling): Links two IP Serial Servers for point-to-point serial data transfer over Ethernet.
- Auto Data Direction Control: Automatic transmit/receive control for RS485 half-duplex communication.
- Heartbeat Function: Maintains persistent connections by automatically re-establishing communication after network or power interruptions.
- Multi-Platform Support: Compatible with Windows 95/98/ME/NT/2000/XP/2003 operating systems.
- Multiple Configuration Interfaces:
- IP Serial Server Manager (Windows GUI)
- Web-based configuration via browser
- Telnet command interface
- Console mode via RS232 terminal
- Firmware Upgradeable: Supports firmware updates via serial or network connection.
- Security Features: Password protection and IP address filtering.
- LED Indicators: Power, Link (10/100 Mbps), and Activity LEDs for quick status monitoring.
- Compact Metal Enclosure: Rugged IP30-rated housing suitable for industrial environments.

---

### 3. Technical Specifications

Network Interface:
- Type: 10/100 Mbps Ethernet (IEEE 802.3 10BaseT / 100BaseTX)
- Connector: RJ45 female
- Auto-negotiation: Supported
- Protocols: TCP, UDP, IP, ARP, ICMP, HTTP, Telnet, DHCP

Serial Interfaces:
- Port 1: RS232/RS422/RS485 selectable via DIP switch
- Port 2: RS232 fixed
- Connector: DB9 male
- Baud Rate: 110 bps to 230.4 kbps
- Data Bits: 5, 6, 7, or 8
- Stop Bits: 1, 1.5, or 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, RTS/CTS, or XON/XOFF
- RS485 Biasing: Selectable internal bias jumpers

Indicators:
- PWR (Red): Power ON
- LINK (Yellow/Green): Ethernet connection (10/100 Mbps)
- ACT (Flashing Green): Data activity

Power Requirements:
- Input Voltage: 12–30 VDC
- Typical Current: 500 mA @ 12 VDC
- Power Connector: 2.5 mm barrel jack (center positive)

Physical Dimensions:
- Size: 114 × 85 × 23 mm (approx.)
- Weight: ~310 g
- Enclosure: Metal, IP30-rated

Environmental Conditions:
- Operating Temperature: 5°C to 40°C (typical), extended -10°C to 80°C (industrial spec)
- Storage Temperature: 0°C to 65°C (typical), extended -20°C to 85°C
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing

---

### 4. Functionality

The IP102 acts as a transparent bridge between serial devices and Ethernet networks. It converts asynchronous serial data into TCP/IP or UDP/IP packets for transmission over LAN/WAN and vice versa.

Primary Use Cases:
- Industrial automation (PLC, CNC, SCADA systems)
- Factory and warehouse control
- Medical and laboratory instrumentation
- Security and access control systems
- Transportation and logistics equipment
- Barcode scanners, weigh scales, and data loggers

Operating Modes:
1. Direct IP Mode:
- The IP102 operates as a TCP/UDP server.
- Socket-based applications connect directly to the serial port via IP and port number.
2. Virtual COM Mode:
- Installs a virtual COM driver on Windows PCs.
- Applications communicate as if the serial device were locally connected.
3. Paired Mode (Serial Tunneling):
- Two IP102 units form a virtual serial cable over Ethernet.
- One configured as TCP/UDP client, the other as server.
4. Heartbeat Function:
- Automatically re-establishes lost connections every 5 seconds.

Compatibility:
- Windows 95/98/ME/NT/2000/XP/2003
- Supports Winsock API applications and virtual COM drivers

---

### 5. Components & Accessories

Included Items:
- IP102 Serial Device Server unit
- User Manual
- CD-ROM with IP Serial Server Manager and Virtual COM Driver software
- Optional Power Adapter (12 VDC, 500 mA)

Optional Accessories:
- DIN rail mounting kit
- RS232/RS422/RS485 cables (DB9)
- Ethernet crossover cable for direct PC connection

Connectors:
- Ethernet: RJ45 (8P8C)
- Serial: DB9 male (x2)
- Power: 2.5 mm DC jack

---

### 6. Installation & Setup

Hardware Installation:
1. Connect the IP102 to the Ethernet network using a standard RJ45 cable.
2. Connect serial devices to the DB9 ports (use straight-through or null modem cables as required).
3. Set DIP switches to select RS232, RS422, or RS485 mode for Port 1.
4. Apply 12–30 VDC power.
5. Observe LED indicators for power and link status.

Software Setup:
- Install the IP Serial Server Manager software from the included CD.
- Use the software to search for devices, assign IP addresses, and configure serial parameters.
- Optionally, install Virtual COM ports to map remote serial ports to local COM numbers.

Configuration Interfaces:
- IP Serial Server Manager (Windows GUI) – full configuration and monitoring
- Web Browser Interface – accessible via device IP address
- Telnet Interface – command-line configuration
- Console Mode – via RS232 terminal (9600 8N1)

Mounting Options:
- Desktop placement
- DIN rail or panel mounting (optional accessories)

---

### 7. Performance & Capabilities

- Serial Data Rate: 110 bps to 230.4 kbps
- Network Speed: 10/100 Mbps auto-sensing
- Maximum TCP Connections: Up to 8 simultaneous connections per port
- Buffer Memory: 1 MB internal buffer
- Data Packing: Configurable delimiters (HEX 1/2) and forced transmit interval
- Latency: Low-latency conversion suitable for real-time control
- Reliability: Heartbeat and TCP keep-alive mechanisms prevent connection lockups
- Firmware Upgrade: Supported via serial or network interface
- Limitations:
- RS485 supports 2-wire half-duplex only
- No built-in isolation (external isolation recommended for high-noise environments)

---

### 8. Standards & Compliance

- Network Standards: IEEE 802.3 10BaseT / 100BaseTX
- Electrical Safety: CE compliant
- EMC Compliance: FCC Class A
- Environmental Protection: IP30-rated metal enclosure
- Operating System Support: Windows 95/98/ME/NT/2000/XP/2003
- Protocols Supported: TCP, UDP, IP, ARP, ICMP, HTTP, Telnet, DHCP
- Security: Password protection and IP address filtering

---

### 9. Additional Information

Warranty:
- Standard manufacturer warranty (typically 1 year, extendable upon request).

Technical Support:
- Provided by RAYON TECHNOLOGY via email and phone.
- Firmware updates and software downloads available on the official website.

Maintenance:
- Periodic firmware updates recommended for performance and security improvements.
- Keep ventilation openings clear; avoid exposure to moisture or corrosive environments.

Firmware & Software Updates:
- Firmware can be upgraded via IP Serial Server Manager or through the serial console.
- Software updates for IP Serial Server Manager and Virtual COM drivers are available online.

Default Configuration:
- IP Address: 192.168.0.1
- Netmask: 255.255.255.0
- Gateway: 192.168.0.254
- DHCP: Disabled
- Baud Rate: 9600 bps
- Data Bits: 8
- Parity: None
- Stop Bits: 1
- Flow Control: None
- TCP Port: 4000 (Port 1), 4001 (Port 2)
- Connection Mode: Server
- Serial Mode: RS232

---

### Summary

The RAYON IP102 Ethernet to RS232/422/485 2-Port Serial Device Server is a robust, versatile communication gateway engineered for industrial and commercial applications requiring reliable serial-to-Ethernet connectivity. Its dual-port configuration, flexible communication modes, and comprehensive management interfaces make it ideal for integrating legacy serial equipment into modern IP-based networks. With support for multiple protocols, virtual COM operation, and advanced reliability features such as heartbeat and TCP keep-alive, the IP102 ensures continuous, transparent, and secure data communication across diverse automation and control environments.

---
