Comprehensive Product Summary: IPS-2042P Industrial Lite-Managed Switch

---

### 1. Product Overview

Product Name: Industrial Lite-Managed Ethernet Switch
Model: IPS-2042P

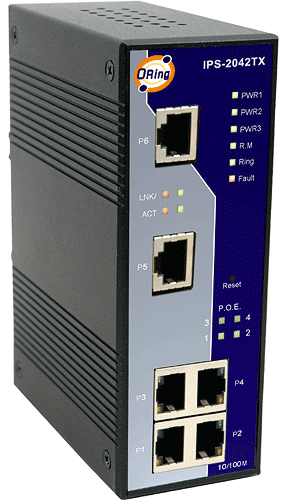

Series: IPS-2042 Series (includes IPS-2042TX, IPS-2042FX, and IPS-2042P variants)
Article Number: IPS-2042P
Manufacturer: ORing Industrial Networking Corp.

The IPS-2042P is a rugged, industrial-grade, lite-managed Ethernet switch designed for mission-critical network environments requiring Power over Ethernet (PoE) capability, redundancy, and extended temperature operation. It belongs to ORing’s IPS series of industrial Ethernet switches, which combine reliability, redundancy, and manageability in compact, DIN-rail mountable enclosures suitable for harsh industrial conditions.

---

### 2. Key Features

- Lite-Managed Industrial Switch: Provides essential management functions through a web interface and ORing’s Open-Vision Windows utility for simplified configuration and monitoring.
- 6-Port Configuration: Includes 4×10/100Base-T(X) RJ45 ports with PoE PSE capability and 2×100Base-FX SFP fiber ports for flexible network topology and long-distance connectivity.
- Power over Ethernet (PoE): Supports IEEE 802.3af standard, delivering up to 25 W per port, enabling direct powering of IP cameras, wireless access points, and VoIP phones.
- Redundant Ethernet Ring Technology: Incorporates ORing’s proprietary O-Ring technology with recovery time <10 ms over 250 connected devices, ensuring high network availability.
- RSTP/STP Support: Compliant with IEEE 802.1w/D Rapid Spanning Tree Protocol for additional redundancy and loop prevention.
- Triple Redundant Power Inputs: Accepts three independent DC power sources (12–48 VDC) via terminal block and power jack, ensuring uninterrupted operation.
- Event Notification System: Supports Syslog, SNMP trap, and email alerts for proactive fault management.
- Wide Operating Temperature: Designed for extreme environments, operating reliably from -40°C to +70°C.
- Industrial-Grade Design: IP30-rated metal housing provides protection against dust and mechanical stress.
- Flexible Mounting: Supports both DIN-rail and panel mounting for versatile installation in control cabinets or industrial enclosures.
- ESD and Surge Protection: 4 kV ESD protection on Ethernet ports and 2 kV surge protection on power inputs safeguard against electrical disturbances.
- Compact Form Factor: Space-efficient design (52 × 106 × 144 mm) suitable for dense industrial installations.
- Centralized Management: Compatible with ORing’s Open-Vision software for topology visualization, configuration, and monitoring across multiple devices.

---

### 3. Technical Specifications

Ports and Interfaces:
- 4 × 10/100Base-T(X) RJ45 ports (PoE PSE, IEEE 802.3af compliant, up to 25 W per port)
- 2 × 100Base-FX SFP slots (multi-mode or single-mode fiber options)

Network Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX / 100Base-FX
- IEEE 802.3af Power over Ethernet
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1D Spanning Tree Protocol (STP)

Redundancy:
- ORing O-Ring technology (<10 ms recovery over 250 nodes)
- RSTP/STP redundancy support

Power Supply:
- Triple redundant DC inputs:
- Terminal block: 12–48 VDC
- Power jack: 12–45 VDC
- Power consumption: approximately 5 W (excluding PoE load)
- Surge protection: 2000 VDC

Mechanical Design:
- Enclosure: IP30-rated metal housing
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm
- Weight: approximately 0.9 kg (typical)
- Mounting: DIN-rail and panel mount options

Environmental:
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +85°C
- Relative humidity: 5%–95% (non-condensing)

Protection:
- ESD protection: 4 kV DC on Ethernet ports
- Surge protection: 2 kV DC on power inputs

Indicators:
- Power status LEDs
- Ring Master (R.M.) indicator (green flashing for O-Ring master mode)
- Port link/activity LEDs
- Alarm LED for fault indication

---

### 4. Functionality

Operational Overview:
The IPS-2042P functions as a lite-managed Ethernet switch designed for industrial automation, transportation, and surveillance networks. It provides both data connectivity and power delivery over Ethernet cables, simplifying infrastructure by eliminating the need for separate power lines to connected devices.

Use Cases:
- Industrial automation systems (PLC, HMI, sensors)
- IP surveillance networks (PoE cameras)
- Intelligent transportation systems (ITS)
- Building automation and access control
- Energy and utility monitoring systems

Network Management:
- Web-based configuration interface for local management
- Open-Vision Windows utility for centralized management, topology visualization, and monitoring
- SNMP v1 support for integration with network management systems

Event Handling:
- System log (Syslog) for event recording
- Email notifications for critical events
- SNMP traps for remote monitoring and alerting

Compatibility:
- Compatible with standard Ethernet and PoE devices
- Supports integration with ORing’s Open-Vision and Open-Vision Pro software suites

---

### 5. Components & Accessories

Included Items:
- IPS-2042P switch unit
- DIN-rail mounting kit
- Quick installation guide
- Terminal block connector for power input

Optional Accessories:
- SFP transceivers (multi-mode or single-mode, depending on fiber distance requirements)
- Panel mounting brackets
- External DC power supplies (12–48 VDC)
- Open-Vision management software license

Connectors:
- 7-pin terminal block for triple DC power input
- Standard RJ45 connectors for Ethernet ports
- SFP slots for fiber modules

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 12–48 VDC regulated source
- Mounting surface: DIN-rail or flat panel
- Environmental conditions: -40°C to +70°C, non-condensing humidity

Mounting Options:
- DIN-Rail Mounting: Standard 35 mm DIN-rail clip for quick installation in control cabinets.
- Panel Mounting: Optional brackets for secure attachment to flat surfaces.

Configuration:
- Access via web browser (HTTP interface) or Open-Vision utility.
- Assign IP address, VLAN configuration, and PoE settings through the management interface.
- Enable redundancy protocols (O-Ring, RSTP/STP) as required.
- Configure event notifications (Syslog, SNMP trap, email).

Startup Procedure:
1. Connect DC power inputs (redundant sources recommended).
2. Connect Ethernet and fiber cables.
3. Power on the device; verify LED indicators for system and port status.
4. Access the management interface for configuration.

---

### 7. Performance & Capabilities

Switching Performance:
- Switching capacity: 1.2 Gbps (non-blocking)
- Packet forwarding rate: 0.89 Mpps (64-byte packets)
- MAC address table: 2K entries
- Packet buffer memory: 1 Mbit

PoE Performance:
- IEEE 802.3af compliant
- Maximum power per port: 25 W
- Total PoE budget: up to 100 W (depending on power supply)

Redundancy and Recovery:
- O-Ring recovery time: <10 ms over 250 connected switches
- RSTP/STP support for loop prevention and backup path creation

Reliability:
- Triple redundant power inputs ensure continuous operation even if one or two power sources fail.
- Industrial-grade components rated for extended temperature and vibration resistance.

Limitations:
- Lite-managed functionality provides essential management but lacks advanced Layer 3 routing features.
- PoE limited to IEEE 802.3af (does not support 802.3at high-power PoE+).

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX / 100Base-FX
- IEEE 802.3af Power over Ethernet
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol

Environmental & Safety Compliance:
- CE (Conformité Européenne)
- FCC Part 15 Class A
- EN60950 (Safety of Information Technology Equipment)

Protection Ratings:
- IP30 enclosure protection
- ESD 4 kV DC (Ethernet ports)
- Surge 2 kV DC (power inputs)

Quality & Reliability:
- Designed and tested for industrial-grade reliability
- Meets ORing’s internal quality assurance standards for vibration, shock, and thermal endurance

---

### 9. Additional Information

Warranty:
- 5-year limited warranty covering manufacturing defects and hardware reliability.

Support:
- Technical support via ORing’s global service network.
- Firmware updates and configuration utilities available through ORing’s website.

Maintenance:
- Minimal maintenance required; periodic inspection of power connections and ventilation recommended.
- Firmware updates can be applied via web interface or Open-Vision utility.

Software Updates:
- Open-Vision software periodically updated for enhanced device management and security.
- Firmware updates ensure compatibility with new network standards and security protocols.

Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- MTBF (Mean Time Between Failures) exceeds 300,000 hours under typical conditions.

Documentation & Resources:
- User manual and datasheet available in PDF format.
- Open-Vision management software documentation included.

---

### Summary

The ORing IPS-2042P Industrial Lite-Managed Switch is a robust, compact, and feature-rich networking device engineered for industrial automation and mission-critical applications. With six ports—four PoE-enabled 10/100Base-T(X) and two 100Base-FX SFP slots—it provides flexible connectivity for both copper and fiber networks. Its support for O-Ring redundancy (<10 ms recovery), RSTP/STP, and triple redundant DC power inputs ensures exceptional reliability and uptime.

The switch’s wide operating temperature range (-40°C to +70°C), IP30-rated metal housing, and ESD/surge protection make it ideal for deployment in harsh environments such as factory floors, outdoor enclosures, and transportation systems. The Open-Vision management platform simplifies configuration, monitoring, and fault diagnosis, while PoE capability reduces cabling complexity by powering end devices directly through Ethernet lines.

With 5-year warranty, CE/FCC/EN60950 compliance, and industrial-grade durability, the IPS-2042P stands as a dependable solution for organizations seeking a balance between performance, manageability, and ruggedness in their industrial Ethernet infrastructure.
