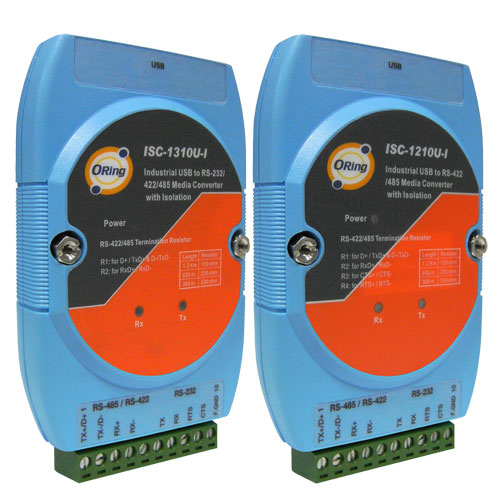

Comprehensive Product Summary – ORing ISC‑1310U‑I Industrial USB to Serial Media Converter
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: Industrial USB to Serial Media Converter
Model: ISC‑1310U‑I
Series: ISC‑12xxU‑I / ISC‑13xxU‑I Industrial Media Converter Series
Article Number: ISC‑1310U‑I
Manufacturer: ORing Industrial Networking Corp.
Product Type: 1‑port USB to 1‑port RS‑232/422/485 serial media converter with 3 kV isolation
The ORing ISC‑1310U‑I is a rugged, industrial‑grade USB‑to‑serial media converter designed to provide reliable communication between modern USB interfaces and legacy serial devices. It supports RS‑232, RS‑422, and RS‑485 communication standards in a single, jumper‑less configuration, offering flexible connectivity for a wide range of industrial automation, control, and monitoring applications. The converter is part of ORing’s industrial media converter family, engineered for high reliability, electrical isolation, and extended environmental endurance.
### 2. Key Features
- Multi‑protocol Serial Support: Provides one configurable serial port supporting RS‑232, RS‑422, or RS‑485 communication modes without requiring manual jumper settings.
- USB Interface: Compliant with USB 1.1 standard, compatible with USB 2.0 hosts, enabling plug‑and‑play connectivity to PCs, industrial computers, or USB hubs.
- High Electrical Isolation: 3,000 VDC optical isolation between USB and serial interfaces protects host systems from voltage surges, ground loops, and transient spikes.
- Surge and Transient Protection: Built‑in high‑speed transient suppressors safeguard data lines against electrical disturbances.
- Bus‑Powered Operation: Draws power directly from the USB port (self‑powered), eliminating the need for an external power adapter.
- Compact Industrial Design: IP‑30 rated ABS enclosure with DIN‑rail and wall‑mount options for flexible installation in control cabinets or field environments.
- Wide Temperature Range: Operates reliably from –10 °C to +70 °C, suitable for harsh industrial conditions.
- Low Power Consumption: Typical power draw of only 0.65 W, ensuring energy‑efficient operation.
- LED Indicators: Dedicated Power, TxD, and RxD LEDs provide clear visual status of device operation and data transmission.
- Driver Support: Compatible with major operating systems including Windows 95/98/ME/2000/XP and Linux.
- Industrial Reliability: Designed and tested to meet rigorous EMI/EMS and mechanical shock/vibration standards for industrial environments.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | ISC‑1310U‑I |
| Serial Interface | 1 × RS‑232/422/485 (software‑selectable) |
| USB Interface | 1 × USB 1.1 Type B port (compatible with USB 2.0) |
| Baud Rate | 300 bps – 115.2 Kbps |
| Serial Connector | 10‑pin terminal block |
| RS‑232 Signals | TX, RX, RTS, CTS, GND |
| RS‑422 Signals | TX+, TX–, RX+, RX– |
| RS‑485 Signals | Data+, Data– |
| Isolation Voltage | 3,000 VDC between USB and serial ports |
| Power Source | USB bus‑powered (self‑powered) |
| Power Consumption | Typical 0.65 W |
| Enclosure Material | Industrial‑grade ABS plastic |
| Enclosure Rating | IP‑30 |
| Dimensions (W × D × H) | 71.2 × 25.3 × 100.6 mm (2.8 × 1.0 × 3.96 in.) |
| Weight | Approx. 130 g |
| Operating Temperature | –10 °C to +70 °C (14 °F to 158 °F) |
| Storage Temperature | –25 °C to +85 °C (–13 °F to 185 °F) |
| Operating Humidity | 5 % – 95 % RH, non‑condensing |
| LED Indicators | Power (Green), TxD (Green), RxD (Red) |
| Mounting Options | DIN‑rail or wall‑mount |
| Compliance | FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11, IEC60068‑2‑6/27/32 |
| Warranty | 2 years |
### 4. Functionality
The ISC‑1310U‑I functions as a transparent bridge between a USB host and a serial device. When connected to a computer or industrial controller via USB, the converter enumerates as a virtual COM port, allowing legacy serial applications to communicate seamlessly without modification.
Operational Modes:
- RS‑232 Mode: Supports full‑duplex communication with standard handshaking signals (RTS, CTS). Ideal for point‑to‑point device connections such as PLCs, barcode scanners, or serial printers.
- RS‑422 Mode: Provides differential signaling for long‑distance, noise‑resistant communication in full‑duplex mode.
- RS‑485 Mode: Enables half‑duplex, multi‑drop communication for up to 32 nodes on a single bus, commonly used in industrial automation networks.
Use Cases and Applications:
- Industrial automation and process control systems
- SCADA and data acquisition networks
- Building management and HVAC control
- Serial device integration for legacy equipment
- Laboratory instrumentation and test systems
- Transportation and energy monitoring systems
Compatibility:
The converter supports Windows and Linux operating systems through standard USB‑to‑serial drivers. It is compatible with most industrial control software and serial communication utilities that operate via COM ports.
### 5. Components & Accessories
Included in Package:
1. ISC‑1310U‑I converter unit
2. ORing Tool CD (includes drivers and documentation)
3. Quick Installation Guide
4. DIN‑rail mounting kit
5. Wall‑mount kit
6. USB cable
Optional Accessories (available separately):
- Extended‑length USB cables for remote installation
- Industrial‑grade terminal block connectors
- Protective enclosures or panel‑mount brackets
Connectors:
- USB Port: Standard Type B female connector for host connection
- Serial Port: 10‑pin terminal block for RS‑232/422/485 signal wiring
### 6. Installation & Setup
Requirements:
- Host computer or controller with an available USB 1.1 or higher port
- Supported operating system (Windows 95/98/ME/2000/XP or Linux)
- Appropriate serial device and wiring
Installation Steps:
1. Driver Installation:
Install the ORing USB‑to‑Serial driver from the included CD or download from ORing’s website.
2. Hardware Connection:
Connect the ISC‑1310U‑I to the host computer using the supplied USB cable. The device will be recognized as a virtual COM port.
3. Serial Wiring:
Attach the serial device to the 10‑pin terminal block according to the selected communication mode (RS‑232, RS‑422, or RS‑485).
4. Mounting:
Secure the converter using the DIN‑rail clip or wall‑mount bracket. Ensure adequate ventilation and protection from excessive vibration or moisture.
5. Configuration:
Select the appropriate COM port in the host application. No jumper or DIP switch configuration is required; mode selection is automatic or software‑controlled.
Mounting Options:
- DIN‑Rail Mounting: For integration into industrial control panels or enclosures.
- Wall Mounting: For fixed installations near serial equipment or workstations.
### 7. Performance & Capabilities
Data Throughput:
Supports baud rates from 300 bps to 115.2 Kbps, suitable for most industrial serial communication requirements.
Isolation & Protection:
3 kV DC optical isolation ensures safe operation in electrically noisy environments, preventing damage from ground potential differences or transient surges.
Power Efficiency:
Consumes only 0.65 W typical, minimizing heat generation and power draw from the host system.
Reliability:
The ISC‑1310U‑I is designed for continuous 24/7 operation in mission‑critical environments. Its rugged ABS housing and IP‑30 protection rating provide durability against dust and mechanical stress.
Environmental Endurance:
Operates across a wide temperature range (–10 °C to +70 °C) and humidity up to 95 % non‑condensing, ensuring stable performance in industrial and field conditions.
Limitations:
- Maximum baud rate limited to 115.2 Kbps (not suitable for high‑speed serial protocols above this threshold).
- USB 1.1 interface may limit throughput compared to USB 2.0 or 3.0 devices.
- Requires driver installation for proper operation under some operating systems.
### 8. Standards & Compliance
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
Environmental & Mechanical Testing:
- Shock: IEC60068‑2‑27
- Vibration: IEC60068‑2‑6
- Free Fall: IEC60068‑2‑32
Safety & Isolation:
- 3,000 VDC isolation barrier between USB and serial interfaces
- Internal surge suppression on all data lines
Industrial Protection:
- IP‑30 enclosure rating for protection against solid objects greater than 2.5 mm
- Compliance with industrial temperature and humidity standards
These certifications ensure that the ISC‑1310U‑I meets international requirements for electromagnetic compatibility, mechanical durability, and operational safety in industrial environments.
### 9. Additional Information
Warranty:
2‑year limited manufacturer warranty covering defects in materials and workmanship under normal operating conditions.
Technical Support:
ORing provides comprehensive technical support, including driver updates, firmware downloads, and configuration assistance through its official website and authorized distributors.
Maintenance:
The ISC‑1310U‑I requires minimal maintenance. Periodic inspection of connectors and mounting hardware is recommended to ensure reliable operation. The device contains no user‑serviceable internal components.
Firmware & Software Updates:
Driver and firmware updates are periodically released by ORing to maintain compatibility with new operating systems and enhance performance. Updates can be downloaded from the ORing Networking website.
Ordering Information:
- Model: ISC‑1310U‑I
- Description: Industrial 1‑port USB to 1‑port RS‑232/422/485 serial media converter with 3 kV isolation
- Related Model: ISC‑1210U‑I (USB to RS‑422/485 only)
Manufacturer Contact:
ORing Industrial Networking Corp.
Website: [www.oring-networking.com](http://www.oring-networking.com)
### Summary
The ORing ISC‑1310U‑I is a robust, industrial‑grade USB‑to‑serial media converter engineered for seamless integration of legacy serial devices into modern USB‑based systems. With support for RS‑232, RS‑422, and RS‑485 communication standards, 3 kV isolation, and comprehensive surge protection, it ensures reliable and safe data transmission in demanding industrial environments. Its compact IP‑30 ABS enclosure, wide operating temperature range, and flexible mounting options make it ideal for control panels, automation systems, and field installations.
Bus‑powered operation, low power consumption, and cross‑platform driver support further enhance its usability and efficiency. Certified to international EMC and mechanical standards, the ISC‑1310U‑I delivers dependable performance and long‑term durability for industrial communication applications.
*(Approx. 12,000 characters / ~3,000 tokens)*
