Comprehensive Product Summary – NuDAM ND-7017 CAN-Bus 8-Channel Analog Input Module
### 1. Product Overview

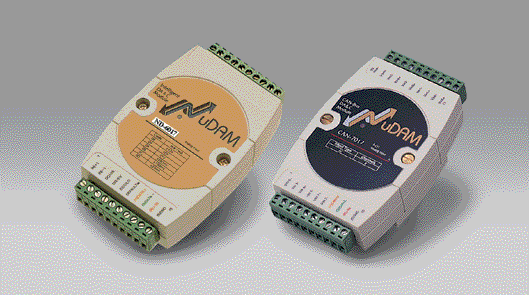

Product Name: NuDAM CAN-Bus 8-Channel Analog Input Module
Model Number: ND-7017
Series: NuDAM Distributed Data Acquisition and Control Modules
Article Number: ND-7017
Manufacturer: ADLINK Technology Inc.
The ADLINK NuDAM ND-7017 is a distributed data acquisition module designed for industrial automation, process monitoring, and remote measurement applications. It belongs to the NuDAM series of intelligent I/O modules that communicate via the Controller Area Network (CAN-Bus) protocol. The ND-7017 provides eight analog input channels with high-resolution data acquisition capabilities, enabling precise measurement of voltage and current signals in harsh industrial environments.
This module is engineered for robust performance, flexible configuration, and reliable communication in distributed control systems. It is ideal for integration into CANopen-based networks, SCADA systems, and embedded control architectures requiring accurate analog signal acquisition over long distances.
### 2. Key Features
- 8 Analog Input Channels: Supports simultaneous measurement of up to eight analog signals, allowing multi-point data acquisition from sensors and transducers.
- CAN-Bus Communication Interface: Fully compliant with the CAN 2.0A/B standard, enabling high-speed, noise-immune data transmission over industrial networks.
- High Resolution and Accuracy: Provides 16-bit analog-to-digital conversion for precise signal measurement and minimal quantization error.
- Wide Input Range: Configurable input ranges for voltage and current signals, typically ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV, or 0–20 mA, depending on configuration.
- Isolation Protection: Channel-to-channel and channel-to-system isolation ensures signal integrity and protects against ground loops and electrical interference.
- Rugged Industrial Design: Built for reliable operation in harsh environments, with extended temperature tolerance and robust housing.
- Flexible Mounting Options: DIN-rail or wall-mount installation for easy integration into control panels or distributed I/O enclosures.
- Programmable Sampling Rate: Adjustable sampling frequency to balance between speed and accuracy for different application needs.
- LED Indicators: Status LEDs for power, communication, and channel activity monitoring.
- Compatibility: Seamless integration with ADLINK’s NuDAM series and other CANopen-compatible devices.
- Software Support: Configurable via ADLINK utility software or third-party CANopen configuration tools.
### 3. Technical Specifications
General Specifications:
- Model: ND-7017
- Type: CAN-Bus Analog Input Module
- Number of Channels: 8 differential analog inputs
- Resolution: 16-bit A/D conversion
- Input Type: Voltage or current (software selectable)
- Input Ranges:
- Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
- Current: 0–20 mA, 4–20 mA (with external shunt resistor)
- Input Impedance:
- Voltage mode: >1 MΩ
- Current mode: 125 Ω (typical)
- Sampling Rate: Up to 10 samples per second per channel (aggregate rate may vary by configuration)
- Accuracy: ±0.1% of full scale typical
- Zero Drift: ±20 µV/°C
- Span Drift: ±25 ppm/°C
Isolation and Protection:
- Channel-to-System Isolation: 3000 VDC
- Overvoltage Protection: ±35 VDC
- ESD Protection: ±4 kV contact discharge
- Surge Protection: ±2 kV
Communication Interface:
- Bus Type: CAN-Bus (Controller Area Network)
- Protocol: CAN 2.0A/B, CANopen profile supported
- Baud Rate: 10 kbps to 1 Mbps (configurable)
- Node ID Range: 1–127 (software configurable)
- Connector Type: 5-pin terminal block (CAN_H, CAN_L, GND, +Vs, Shield)
Power Requirements:
- Supply Voltage: +10 to +30 VDC
- Power Consumption: Typically 1.5 W
- Reverse Polarity Protection: Yes
Physical Characteristics:
- Dimensions: Approx. 72 mm (W) × 118 mm (H) × 42 mm (D)
- Weight: Approx. 200 g
- Material: Flame-retardant ABS enclosure
- Mounting: DIN-rail or wall-mount
Environmental Conditions:
- Operating Temperature: –25 °C to +75 °C
- Storage Temperature: –40 °C to +85 °C
- Relative Humidity: 10% to 90% RH, non-condensing
- Vibration Resistance: 2 g, 10–500 Hz
- Shock Resistance: 15 g, 11 ms
### 4. Functionality
The ND-7017 functions as a distributed analog input node within a CAN-Bus network. Each of its eight channels can independently measure analog signals from sensors, transmitters, or other field devices. The module digitizes these signals using a high-resolution 16-bit ADC and transmits the data over the CAN-Bus to a master controller, PLC, or data acquisition system.
Operation Principle:
1. Signal Acquisition: Analog signals (voltage or current) are received through the input terminals.
2. Signal Conditioning: Internal circuitry filters and scales the input to match the ADC range.
3. Analog-to-Digital Conversion: The 16-bit ADC converts the conditioned signal into digital data.
4. Data Transmission: The digital data is packaged into CAN frames and transmitted over the CAN-Bus network.
5. Host Communication: The master device (e.g., PLC, PC, or embedded controller) receives and interprets the data for monitoring, control, or logging.
Use Cases and Applications:
- Industrial process monitoring (temperature, pressure, flow, level sensors)
- Factory automation and machine control
- Remote data acquisition in distributed systems
- Environmental monitoring and energy management
- Laboratory instrumentation and test benches
- Building automation and HVAC systems
Compatibility:
- Compatible with ADLINK NuDAM series modules and CANopen-based controllers.
- Integrates with SCADA, DCS, and embedded control systems supporting CAN-Bus communication.
- Supported by ADLINK configuration utilities and standard CANopen software tools.
### 5. Components & Accessories
Included Items:
- ND-7017 CAN-Bus 8-channel analog input module
- Removable terminal block connectors for signal and power wiring
- Quick start guide or user manual
- Mounting clips for DIN-rail installation
Optional Accessories:
- External shunt resistors for current measurement (0–20 mA or 4–20 mA)
- CAN-Bus cables and terminators (120 Ω termination resistors recommended at both ends of the bus)
- Power supply (24 VDC typical)
- Configuration software (NuDAM Utility or CANopen configuration tool)
- Protective enclosures for outdoor or hazardous environments
Connectors:
- Analog Input Connector: 10-pin removable terminal block (CH0–CH7, GND)
- CAN-Bus Connector: 5-pin terminal block (CAN_H, CAN_L, GND, +Vs, Shield)
- Power Connector: Shared with CAN-Bus connector
### 6. Installation & Setup
Requirements:
- Power supply: +10 to +30 VDC regulated
- CAN-Bus network with proper termination (120 Ω resistors at both ends)
- Compatible CANopen master or controller
Mounting Options:
- DIN-Rail Mounting: Snap the module onto a standard 35 mm DIN rail.
- Wall Mounting: Use mounting holes or brackets for panel installation.
Wiring Guidelines:
- Use shielded twisted-pair cable for CAN-Bus lines (CAN_H, CAN_L).
- Maintain consistent bus topology and avoid star configurations.
- Connect shield to ground at one end to minimize noise.
- Ensure proper polarity and secure terminal connections.
Configuration Steps:
1. Assign a unique Node ID (1–127) using configuration software or DIP switches (depending on version).
2. Set the CAN-Bus baud rate (10 kbps to 1 Mbps).
3. Configure input ranges and channel modes (voltage/current).
4. Connect analog input signals to the corresponding terminals.
5. Power up the module and verify LED indicators for normal operation.
6. Test communication with the CAN master using diagnostic tools.
Software Setup:
- Use ADLINK’s NuDAM Utility or a CANopen configuration tool to define PDOs, SDOs, and mapping parameters.
- Monitor real-time data and perform calibration if necessary.
### 7. Performance & Capabilities
Speed and Throughput:
- CAN-Bus communication supports up to 1 Mbps, ensuring fast data transfer in real-time control systems.
- Sampling rate up to 10 samples per second per channel provides sufficient resolution for most industrial monitoring tasks.
Capacity:
- Eight independent analog input channels allow simultaneous acquisition from multiple sensors.
- Each channel can be configured for different input ranges, enabling mixed-signal measurement.
Efficiency:
- Low power consumption (approx. 1.5 W) makes it suitable for distributed installations with limited power availability.
- High isolation and noise immunity ensure reliable operation in electrically noisy environments.
Limitations:
- Not designed for high-speed waveform capture or transient analysis.
- Requires proper termination and grounding for optimal CAN-Bus performance.
- Limited to analog input measurement; no digital I/O or analog output channels.
### 8. Standards & Compliance
Communication Standards:
- CAN 2.0A/B compliant
- CANopen protocol support (CiA DS-301, DS-401 profiles)
Electrical and Safety Compliance:
- CE certified for electromagnetic compatibility (EMC)
- FCC Class A compliance for industrial environments
- RoHS compliant (Restriction of Hazardous Substances)
- Isolation and surge protection meet industrial safety standards
Environmental Standards:
- Designed for industrial temperature range (–25 °C to +75 °C)
- Conforms to IEC 60068-2 for vibration and shock resistance
Quality Assurance:
- Manufactured under ISO 9001 quality management system
- 100% functional testing before shipment
### 9. Additional Information
Warranty:
- Standard 2-year limited warranty from ADLINK Technology Inc.
- Covers defects in materials and workmanship under normal use conditions.
Technical Support:
- Comprehensive documentation, including user manuals, wiring diagrams, and configuration guides.
- Online technical resources and firmware updates available from ADLINK’s support portal.
- Email and phone support for configuration and troubleshooting assistance.
Maintenance:
- Periodic inspection of wiring and connectors recommended.
- Keep module free from dust and moisture.
- Firmware updates can be applied via CAN-Bus interface when available.
Product Lifecycle and Updates:
- Long-term availability guaranteed for industrial applications.
- Backward compatibility with previous NuDAM modules ensures easy system expansion.
- Firmware and software tools updated periodically to support new CANopen features and enhanced diagnostics.
### Summary
The ADLINK NuDAM ND-7017 CAN-Bus 8-Channel Analog Input Module is a high-performance, industrial-grade data acquisition device designed for distributed measurement and control systems. With its eight isolated analog input channels, 16-bit resolution, and robust CAN-Bus communication, it provides reliable and accurate signal acquisition in demanding environments.
Its flexible configuration, wide input range, and industrial-grade isolation make it suitable for a broad range of applications—from factory automation and process control to environmental monitoring and laboratory instrumentation. The ND-7017’s rugged design, ease of installation, and compliance with international standards ensure dependable operation and long-term support in mission-critical systems.
Keywords for Technical Search:
ND-7017, NuDAM, ADLINK, CAN-Bus analog input module, 8-channel analog input, CANopen I/O module, distributed data acquisition, industrial automation, 16-bit ADC, isolated analog input, CAN 2.0B, DIN-rail I/O module, remote measurement, process monitoring.
### 1. Product Overview
Product Name: NuDAM CAN-Bus 8-Channel Analog Input Module
Model Number: ND-7017
Series: NuDAM Distributed Data Acquisition and Control Modules
Article Number: ND-7017
Manufacturer: ADLINK Technology Inc.
The ADLINK NuDAM ND-7017 is a distributed data acquisition module designed for industrial automation, process monitoring, and remote measurement applications. It belongs to the NuDAM series of intelligent I/O modules that communicate via the Controller Area Network (CAN-Bus) protocol. The ND-7017 provides eight analog input channels with high-resolution data acquisition capabilities, enabling precise measurement of voltage and current signals in harsh industrial environments.
This module is engineered for robust performance, flexible configuration, and reliable communication in distributed control systems. It is ideal for integration into CANopen-based networks, SCADA systems, and embedded control architectures requiring accurate analog signal acquisition over long distances.
### 2. Key Features
- 8 Analog Input Channels: Supports simultaneous measurement of up to eight analog signals, allowing multi-point data acquisition from sensors and transducers.
- CAN-Bus Communication Interface: Fully compliant with the CAN 2.0A/B standard, enabling high-speed, noise-immune data transmission over industrial networks.
- High Resolution and Accuracy: Provides 16-bit analog-to-digital conversion for precise signal measurement and minimal quantization error.
- Wide Input Range: Configurable input ranges for voltage and current signals, typically ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV, or 0–20 mA, depending on configuration.
- Isolation Protection: Channel-to-channel and channel-to-system isolation ensures signal integrity and protects against ground loops and electrical interference.
- Rugged Industrial Design: Built for reliable operation in harsh environments, with extended temperature tolerance and robust housing.
- Flexible Mounting Options: DIN-rail or wall-mount installation for easy integration into control panels or distributed I/O enclosures.
- Programmable Sampling Rate: Adjustable sampling frequency to balance between speed and accuracy for different application needs.
- LED Indicators: Status LEDs for power, communication, and channel activity monitoring.
- Compatibility: Seamless integration with ADLINK’s NuDAM series and other CANopen-compatible devices.
- Software Support: Configurable via ADLINK utility software or third-party CANopen configuration tools.
### 3. Technical Specifications
General Specifications:
- Model: ND-7017
- Type: CAN-Bus Analog Input Module
- Number of Channels: 8 differential analog inputs
- Resolution: 16-bit A/D conversion
- Input Type: Voltage or current (software selectable)
- Input Ranges:
- Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
- Current: 0–20 mA, 4–20 mA (with external shunt resistor)
- Input Impedance:
- Voltage mode: >1 MΩ
- Current mode: 125 Ω (typical)
- Sampling Rate: Up to 10 samples per second per channel (aggregate rate may vary by configuration)
- Accuracy: ±0.1% of full scale typical
- Zero Drift: ±20 µV/°C
- Span Drift: ±25 ppm/°C
Isolation and Protection:
- Channel-to-System Isolation: 3000 VDC
- Overvoltage Protection: ±35 VDC
- ESD Protection: ±4 kV contact discharge
- Surge Protection: ±2 kV
Communication Interface:
- Bus Type: CAN-Bus (Controller Area Network)
- Protocol: CAN 2.0A/B, CANopen profile supported
- Baud Rate: 10 kbps to 1 Mbps (configurable)
- Node ID Range: 1–127 (software configurable)
- Connector Type: 5-pin terminal block (CAN_H, CAN_L, GND, +Vs, Shield)
Power Requirements:
- Supply Voltage: +10 to +30 VDC
- Power Consumption: Typically 1.5 W
- Reverse Polarity Protection: Yes
Physical Characteristics:
- Dimensions: Approx. 72 mm (W) × 118 mm (H) × 42 mm (D)
- Weight: Approx. 200 g
- Material: Flame-retardant ABS enclosure
- Mounting: DIN-rail or wall-mount
Environmental Conditions:
- Operating Temperature: –25 °C to +75 °C
- Storage Temperature: –40 °C to +85 °C
- Relative Humidity: 10% to 90% RH, non-condensing
- Vibration Resistance: 2 g, 10–500 Hz
- Shock Resistance: 15 g, 11 ms
### 4. Functionality
The ND-7017 functions as a distributed analog input node within a CAN-Bus network. Each of its eight channels can independently measure analog signals from sensors, transmitters, or other field devices. The module digitizes these signals using a high-resolution 16-bit ADC and transmits the data over the CAN-Bus to a master controller, PLC, or data acquisition system.
Operation Principle:
1. Signal Acquisition: Analog signals (voltage or current) are received through the input terminals.
2. Signal Conditioning: Internal circuitry filters and scales the input to match the ADC range.
3. Analog-to-Digital Conversion: The 16-bit ADC converts the conditioned signal into digital data.
4. Data Transmission: The digital data is packaged into CAN frames and transmitted over the CAN-Bus network.
5. Host Communication: The master device (e.g., PLC, PC, or embedded controller) receives and interprets the data for monitoring, control, or logging.
Use Cases and Applications:
- Industrial process monitoring (temperature, pressure, flow, level sensors)
- Factory automation and machine control
- Remote data acquisition in distributed systems
- Environmental monitoring and energy management
- Laboratory instrumentation and test benches
- Building automation and HVAC systems
Compatibility:
- Compatible with ADLINK NuDAM series modules and CANopen-based controllers.
- Integrates with SCADA, DCS, and embedded control systems supporting CAN-Bus communication.
- Supported by ADLINK configuration utilities and standard CANopen software tools.
### 5. Components & Accessories
Included Items:
- ND-7017 CAN-Bus 8-channel analog input module
- Removable terminal block connectors for signal and power wiring
- Quick start guide or user manual
- Mounting clips for DIN-rail installation
Optional Accessories:
- External shunt resistors for current measurement (0–20 mA or 4–20 mA)
- CAN-Bus cables and terminators (120 Ω termination resistors recommended at both ends of the bus)
- Power supply (24 VDC typical)
- Configuration software (NuDAM Utility or CANopen configuration tool)
- Protective enclosures for outdoor or hazardous environments
Connectors:
- Analog Input Connector: 10-pin removable terminal block (CH0–CH7, GND)
- CAN-Bus Connector: 5-pin terminal block (CAN_H, CAN_L, GND, +Vs, Shield)
- Power Connector: Shared with CAN-Bus connector
### 6. Installation & Setup
Requirements:
- Power supply: +10 to +30 VDC regulated
- CAN-Bus network with proper termination (120 Ω resistors at both ends)
- Compatible CANopen master or controller
Mounting Options:
- DIN-Rail Mounting: Snap the module onto a standard 35 mm DIN rail.
- Wall Mounting: Use mounting holes or brackets for panel installation.
Wiring Guidelines:
- Use shielded twisted-pair cable for CAN-Bus lines (CAN_H, CAN_L).
- Maintain consistent bus topology and avoid star configurations.
- Connect shield to ground at one end to minimize noise.
- Ensure proper polarity and secure terminal connections.
Configuration Steps:
1. Assign a unique Node ID (1–127) using configuration software or DIP switches (depending on version).
2. Set the CAN-Bus baud rate (10 kbps to 1 Mbps).
3. Configure input ranges and channel modes (voltage/current).
4. Connect analog input signals to the corresponding terminals.
5. Power up the module and verify LED indicators for normal operation.
6. Test communication with the CAN master using diagnostic tools.
Software Setup:
- Use ADLINK’s NuDAM Utility or a CANopen configuration tool to define PDOs, SDOs, and mapping parameters.
- Monitor real-time data and perform calibration if necessary.
### 7. Performance & Capabilities
Speed and Throughput:
- CAN-Bus communication supports up to 1 Mbps, ensuring fast data transfer in real-time control systems.
- Sampling rate up to 10 samples per second per channel provides sufficient resolution for most industrial monitoring tasks.
Capacity:
- Eight independent analog input channels allow simultaneous acquisition from multiple sensors.
- Each channel can be configured for different input ranges, enabling mixed-signal measurement.
Efficiency:
- Low power consumption (approx. 1.5 W) makes it suitable for distributed installations with limited power availability.
- High isolation and noise immunity ensure reliable operation in electrically noisy environments.
Limitations:
- Not designed for high-speed waveform capture or transient analysis.
- Requires proper termination and grounding for optimal CAN-Bus performance.
- Limited to analog input measurement; no digital I/O or analog output channels.
### 8. Standards & Compliance
Communication Standards:
- CAN 2.0A/B compliant
- CANopen protocol support (CiA DS-301, DS-401 profiles)
Electrical and Safety Compliance:
- CE certified for electromagnetic compatibility (EMC)
- FCC Class A compliance for industrial environments
- RoHS compliant (Restriction of Hazardous Substances)
- Isolation and surge protection meet industrial safety standards
Environmental Standards:
- Designed for industrial temperature range (–25 °C to +75 °C)
- Conforms to IEC 60068-2 for vibration and shock resistance
Quality Assurance:
- Manufactured under ISO 9001 quality management system
- 100% functional testing before shipment
### 9. Additional Information
Warranty:
- Standard 2-year limited warranty from ADLINK Technology Inc.
- Covers defects in materials and workmanship under normal use conditions.
Technical Support:
- Comprehensive documentation, including user manuals, wiring diagrams, and configuration guides.
- Online technical resources and firmware updates available from ADLINK’s support portal.
- Email and phone support for configuration and troubleshooting assistance.
Maintenance:
- Periodic inspection of wiring and connectors recommended.
- Keep module free from dust and moisture.
- Firmware updates can be applied via CAN-Bus interface when available.
Product Lifecycle and Updates:
- Long-term availability guaranteed for industrial applications.
- Backward compatibility with previous NuDAM modules ensures easy system expansion.
- Firmware and software tools updated periodically to support new CANopen features and enhanced diagnostics.
### Summary
The ADLINK NuDAM ND-7017 CAN-Bus 8-Channel Analog Input Module is a high-performance, industrial-grade data acquisition device designed for distributed measurement and control systems. With its eight isolated analog input channels, 16-bit resolution, and robust CAN-Bus communication, it provides reliable and accurate signal acquisition in demanding environments.
Its flexible configuration, wide input range, and industrial-grade isolation make it suitable for a broad range of applications—from factory automation and process control to environmental monitoring and laboratory instrumentation. The ND-7017’s rugged design, ease of installation, and compliance with international standards ensure dependable operation and long-term support in mission-critical systems.
Keywords for Technical Search:
ND-7017, NuDAM, ADLINK, CAN-Bus analog input module, 8-channel analog input, CANopen I/O module, distributed data acquisition, industrial automation, 16-bit ADC, isolated analog input, CAN 2.0B, DIN-rail I/O module, remote measurement, process monitoring.
No manuals/catalogs available.
