IP66 fanless Jetson Orin edge AI computer with four PoE+ Gigabit Ethernet ports.

NRU-162S-AWP

IP66 fanless Jetson Orin edge AI computer with four PoE+ Gigabit Ethernet ports.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer

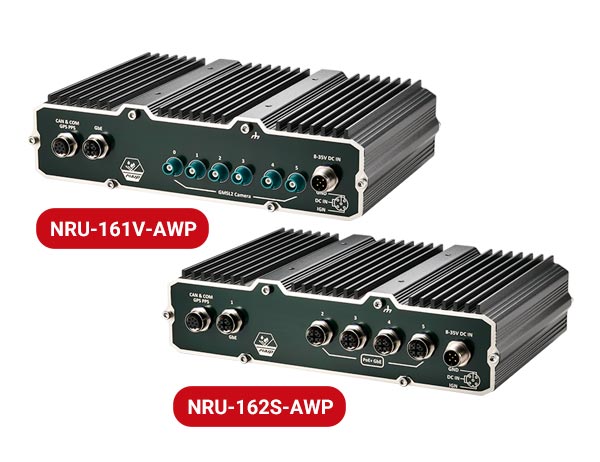

The NRU-162S-AWP is a rugged, fanless edge AI computer for NVIDIA Jetson Orin NX or Orin Nano. Its IP66 enclosure protects against water and dust, while operation from -25°C to 70°C supports outdoor, in-vehicle, robotic and industrial inspection deployments. Four PoE+ Gigabit Ethernet ports using M12 X-coded connectors provide a shared 50W budget for direct connection of IP or GigE cameras, with an additional GbE port for data transfer. CAN FD, RS-232, USB, VGA and GPS PPS are included, together with NVMe, mini PCIe and LTE/5G expansion. Power is supplied through an 8V to 35V DC input with ignition control.

IP66 fanless edge AI computer supporting NVIDIA Jetson Orin NX or Orin Nano modules. Provides four Intel I350-AM4 PoE+ Gigabit Ethernet ports with a shared 50W budget, one additional Gigabit Ethernet port, CAN FD, RS-232, two USB 2.0 ports, VGA, GPS PPS input, mini PCIe, LTE/5G M.2 B-key and NVMe expansion. Operates from -25°C to 70°C and accepts 8V to 35V DC with ignition control.

Supported Processor Modules NVIDIA Jetson Orin NX or Jetson Orin Nano
Maximum AI Performance Up to 100 sparse TOPS (INT8) with Jetson Orin NX TOPS
Memory Options Orin NX: 16GB/8GB LPDDR5 at 3200MHz; Orin Nano: 8GB/4GB LPDDR5 at 2133MHz
Gigabit Ethernet Ports 5 total: 1 standard GbE and 4 PoE+ GbE ports
PoE Standard IEEE 802.3at PoE+ PSE
PoE Power Budget 50 W total
Ethernet Controller Intel I350-AM4
CAN FD Ports 1 port
Serial Ports 1x RS-232
Isolated GPS PPS Inputs 1 input
Digital I/O 1x isolated GPS PPS input
USB Ports 2x USB 2.0; 1x USB Type-C for flashing and OTG
VGA Output Resolution 1920x1080 at 60Hz
NVMe Socket 1x M.2 2242 M-key, PCIe Gen3 x1
Mini PCI Express Socket 1x full-size, PCIe and USB 2.0
Cellular Module Socket 1x M.2 3042/3052 B-key with dual micro SIM support
DC Input Range 8 to 35 V DC
Ignition Power Control Built-in
Dimensions 225 x 136 x 55 mm
Weight 3.0 kg
Mounting VESA 75 and wall mount
Form Factor Fanless IP66 low-profile rugged computer

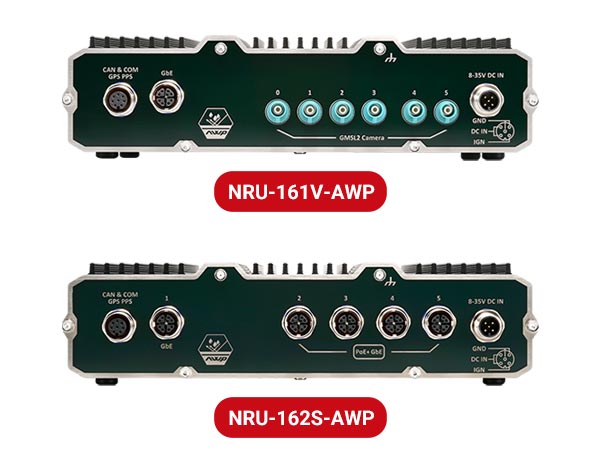

Connector 5x M12 X-coded GbE; M12 A-coded power, USB, serial/CAN/PPS and VGA; USB Type-C
Dimensions 225 x 136 x 55 mm, excluding wall mount
Ingress Protection IP66 waterproof and dustproof
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85 °C
Humidity 10 to 90, non-condensing % RH
Vibration Standard MIL-STD-810H Method 514.8 Category 4
Shock Standard MIL-STD-810H Method 516.8 Procedure I
Operating Temperature -25°C to 70°C with passive cooling in 20W TDP mode
Railway EMC Standard EN 50121-3, based on EN 50155:2017 Clause 13.4.8
Bus Interface 5x Gigabit Ethernet; 4x PoE+; CAN FD; RS-232; USB 2.0; PCIe
Resolution VGA output up to 1920x1080 at 60Hz
Key Features NVIDIA Jetson Orin NX or Orin Nano; IP66 waterproof and dustproof; 4x PoE+ GbE camera ports; Intel I350-AM4; 50W PoE budget; fanless operation; CAN FD; ignition power control; wide-range DC input; EN 50121-3 compliance
Accessories PA-60W-OW, PA-160W-OW, Cblkit-NRU-162S-AWP, Cbl-M12X8M-RJ45F-100CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12A17M-VGA-180CM2
