IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE.
IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE. IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE. IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE.

NRU-240S-AWP-JAOi

IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE.
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computer

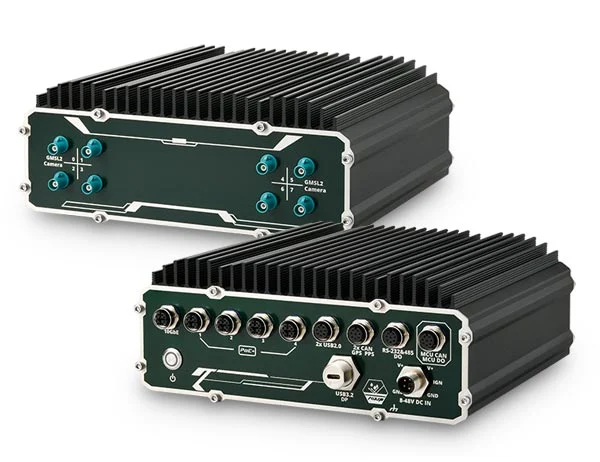

  • The NRU-240S-AWP-JAOi combines the NVIDIA Jetson AGX Orin Industrial module with a fanless, IP66-protected enclosure. Depending on interface load, operation extends from -40°C to 75°C, making the system suitable for vehicles, outdoor robotics and harsh industrial deployments. Four PoE+ Gigabit Ethernet ports support network and industrial cameras, while one 10GbE port handles high-speed data links. USB-C with 4K DisplayPort, isolated CAN, RS-485, DI and DO channels, plus RS-232 provide extensive I/O. NVMe, two SATA positions and cellular expansion complement the 8V to 48V input with ignition control.
IP66 fanless computer powered by NVIDIA Jetson AGX Orin Industrial with 64GB eMMC, four PoE+ Gigabit Ethernet ports, one 10GBASE-T port, USB 3.2/DisplayPort, isolated CAN and serial I/O, NVMe and SATA expansion, and 8V to 48V DC input with ignition control. Rated from -40°C to 75°C under reduced interface load and -40°C to 60°C with full function; no GMSL2 ports.
  • Processor Module NVIDIA Jetson AGX Orin Industrial
  • Onboard eMMC 64 GB
  • GMSL2 Camera Ports 0 ports
  • PoE+ Gigabit Ethernet Ports 4 ports
  • PoE Power Budget 100 W
  • 10 Gigabit Ethernet Ports 1 port
  • DC Input Range 8 to 48 V DC
  • Ingress Protection IP66
  • Form Factor IP66 rugged fanless industrial computer; wall mount

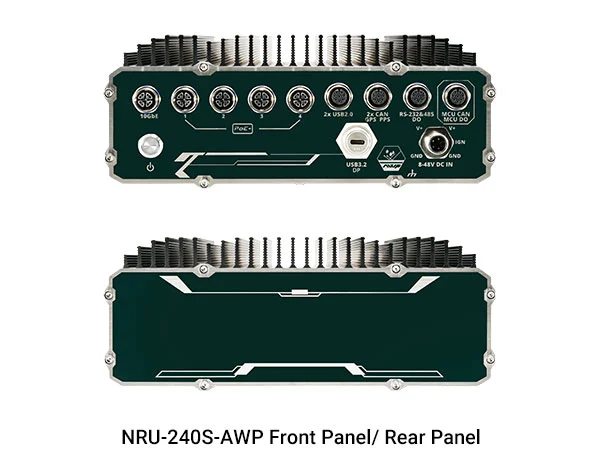

  • Connector 5x M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; waterproof USB-C
  • Dimensions 225 x 194 x 88.5 mm without rubber feet; 225 x 194 x 89.5 mm with rubber feet
  • Maximum Operating Temperature 75 °C
  • Full-Function Operating Temperature -40 to 60 °C
  • Humidity 10 to 90, non-condensing % RH
  • Operating Temperature -40°C to 75°C without 10GbE transmission and PoE load; -40°C to 60°C with full function
  • MAXN Non-Throttling Temperature 50 °C
  • Bus Interface PCIe Gen4 x2 NVMe; mini PCIe; USB 3.1/3.2; SATA
  • Digital I/O 1x isolated DI; 2x isolated DO; 2x isolated CAN 2.0; isolated RS-485; RS-232
  • Resolution DisplayPort up to 3840x2160 at 60 Hz
  • Key Features NVIDIA Jetson AGX Orin Industrial; IP66 waterproof and dustproof; -40°C cold start; fanless operation; 4x PoE+ GbE; 1x 10GBASE-T; isolated vehicle I/O; ignition control
  • Accessories PA-160W-OW, PA-280W-CW6P-2P, Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP, Cbl-TpCPlug-UTpCF-50CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12X8M-RJ45F-100CM
